dcox
dcox
Posted
Posted

hello folks,



i have a Mac Pro running OS X 10.5.5 and 3 monitors that I am trying to connect. My IT dept had an extra video card so i thought i'd throw it into the 'Pro and see if it worked. The video card is a Sapphire Radeon HD 3450. Of course after a quick google search i discovered that w/out some effort it wouldn't work... but when I came across this forum and saw the post on the first page, i was highly intrigued to see what appeared to be Mac OS X drivers for the HD 3450.... however upon installing the drivers, nada. I opened System Profiler and it appears that OS X is now recognizing that the card is in the computer, but I can't get any video feed. I have a 19" dell LCD connected via DVI. Below is the information from SysProfiler:



ATI unknown card:



Chipset Model: ATI unknown card

Type: Display

Bus: PCIe

Slot: Slot-2

PCIe Lane Width: x1

Vendor: ATI (0x1002)

Device ID: 0x95c5

Revision ID: 0x0000

Displays:

Display Connector:

Display Connector:



Any ideas?? Your help is greatly appreciated!



-dcox@docs

revengangel
revengangel
Posted
Posted

Hi lastExile



I upgraded my system to 10.5.5, and i realized that my 3650 AGP card has no QE and CI

With 10.5.2 was perfect with this driver you've made:



ATI RADEON HD 3650 AGP Version

DeviceID: 9596



Is there any possibility to get a driver update for 10.5.5 ?

Or what should i try or do to make it work?



And thanks again for your hard work.



UPDATE:

I rebooted in Sigle user mode, i removed all the ATI kexts, booted to the system, reinstalleg your original driver, repaired permissions, rebooted again,

and after reboot i got back QE and CI fully working ;)

So , nevermind about my previous question :D

Guest
Guest
Posted
Posted
Aaaaatention guys! :-)

I have great news for HD 2400 Pro/XT users (and may be for some others)

Just got PCI-E HD 2400 Pro 256Mb on 10.5.5 (9.5 vanilla kernel) with resolution and QE/CI




Here is solution in steps:



We need

1. this kexts (from 1st page of this topic)

2. Kext helper (u already have it i think)

3. Plist editor (u have it, or goooogle it :( )



At first install kexts, reboot and get working resolution, but without QE/CI.

2nd. Here the trick: go to the /system/library/extentions and find there ATIRadeonX2000.kext (!!!)

and dont change right that file, copy it on desktop (or somewhere else) and open copy (show package contents), find "Info.plist" and open it with plist editor. Find string with "IOPCIMatch", put there your id dev 0x94c31002 (thats 2400 pro id), save it.

Now, install this kext with Kext helper. Reboot. here is QE/CI



Works for me (HD 2400Pro PCI-E 94c3 iDeneb 10.5.5), thanks.



With Demone method there are now 2 methods for 2400PRO pcie and 2400XT pcie full working in Leopard 10.5.5.

ProMac
ProMac
Posted
Posted

Hi LastExile,



Finally I got my HD3650 AGP working incl. ALL resolutions and QE/GL :D



Here's what I did:

1) Install Kaliway 10.5.2 (don't select any display drivers!)

2) After reboot remove all KEXT files from /System/Library/Extensions starting with "ATIRadeon.."

3) Install HD3650 AGP driver from page 1 (device id 0x9596)

4) With utility "OSx86 Tools" tick all the boxes in System Maintenance except the first two (Repair Perm. + Set ext. Perm). Press button "Run selected tasks".

5) With "OSx86 Tools" tick the 2 boxes in System Maintenance : "Repair Permissions" and "Set Extensions permissions" and "Run selected tasks" again.

6) Now Reboot

7) With "OSx86 Tools" enable Quartz GL.

8) Reboot

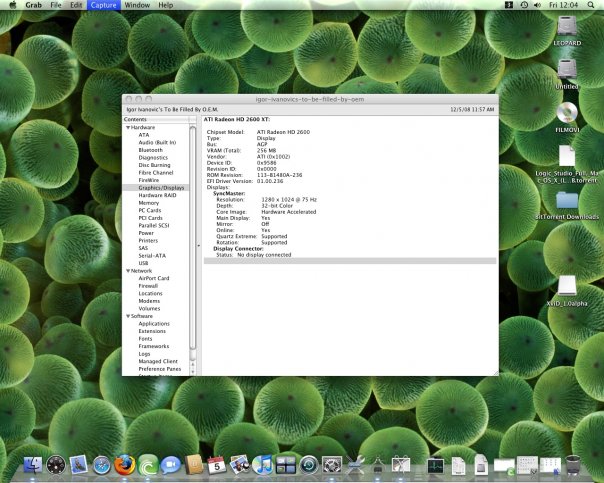

That's it. See attached screen.



Thanks LastExile for all your effort. (btw you don't have to answer my PM anymore ;) )




CrystalZaK
CrystalZaK
Posted
Posted

Netkas is really a magician :D



That could mean for ATI users that Snow Leo are our hope ? Even for mobilities cards ?



@LastExile : Did you already explored snow leo to see the differences, why such card as this one is now fully supported?

lastExile
lastExile
Posted
  • Author
Posted
Netkas is really a magician :D



That could mean for ATI users that Snow Leo are our hope ? Even for mobilities cards ?



@LastExile : Did you already explored snow leo to see the differences, why such card as this one is now fully supported?



looks like its going to be 46xx & 48xx maybe 43xx or low end also but ffrom what it looks like now its 46xx & 48xx

Guest
Guest
Posted
Posted
Giorgio,



Yes it is!



Can you provide the kexts to me?

Thanking you in advance...



You need

1. this kexts: http://tinyurl.com/3qcg8g

2. Kexthelper

3. Plist editor or textedit



At first install kexts, reboot and get working resolution, but without QE/CI.

2nd. Go to /System/Library/Extentions and find there ATIRadeonX2000.kext

and don't change right that file, copy it on Desktop and open copy (show package contents), find "Info.plist" and open it with plist editor or textedit. Find string with "IOPCIMatch", put there your id dev 0x94c31002 (thats 2400 pro id), save it.

Now, install this kext with Kexthelper. Reboot. here is QE/CI



Thanks to el_rocie for this method.



Giorgio

MonAmi
MonAmi
Posted
Posted
You need

1. this kexts: http://tinyurl.com/3qcg8g

2. Kexthelper

3. Plist editor or textedit



At first install kexts, reboot and get working resolution, but without QE/CI.

2nd. Go to /System/Library/Extentions and find there ATIRadeonX2000.kext

and dont change right that file, copy it on Desktop and open copy (show package contents), find "Info.plist" and open it with plist editor ot textedit. Find string with "IOPCIMatch", put there your id dev 0x94c31002 (thats 2400 pro id), save it.

Now, install this kext with Kexthelper. Reboot. here is QE/CI



Thanks to el_rocie for this method.



Giorgio



Thanks Giorgio,



i've followed your instructions and it worked. Just one thing...once i added my device id to the the IOPCIMatch, i saved it, and then the reboots takes over 2minutes ( everytime now ), i get a flaky screen, and after 2minutes i'm on my desktop...any ideas why this happen?



Should i be reinstalling from scrach without selected any video driver?



Any sugestions are welcome!



Thanks again



Regards

tetsu
tetsu
Posted
Posted

hey there folks, thanks to this great guide



http://forum.insanelymac.com/index.php?sho...amp;mode=linear



im finally able to use my dell studio 15, but my ati radeon hd 3450 is not working at full resolution...



im reading that there is no available driver yet, but is there a way to get native resolution?



thanks!



keep the great work! osx is so much fun to use!

ridgeline
ridgeline
Posted
Posted
hey there folks, thanks to this great guide



http://forum.insanelymac.com/index.php?sho...amp;mode=linear



im finally able to use my dell studio 15, but my ati radeon hd 3450 is not working at full resolution...



im reading that there is no available driver yet, but is there a way to get native resolution?



thanks!



keep the great work! osx is so much fun to use!





Keep your chin up we will find a solution eventually but we are unsure if the problem with the 3450 is the Frame Buffer or the output LVDS



Glad to hear you got your dell running.... If you upgraded your internal LCD you can try the Graphics Mode option at boot but if your max res is 1280x800 you are kinda stuck for now.

ridgeline
ridgeline
Posted
Posted
is the default LCD option so im with a 1280x800 stuck a 1024*768, so is there a way to go vesa and get the native resolution?



thanks!

I don't believe there is anything you can do if you find a solution please post it up as I am in the same boat, I am working on a driver but have not had very much luck so far...

melm25
melm25
Posted
Posted

Hi!

I recently install Ideneb 10.5.5 and everything works perfect except for the video, It's a mess, the problem is when I install the drivers of the dvd "hd 1600 xt" when I log in I ALWAYS GET A WHITE SCREEN :D (dvi---> vga), I tried manually with netkas drivers but is the same, even I can't get the -x mode always get a white screen, so if someone knows a good guide to install this video card "Diamond Viper HD 2600 XT" PLEASE HELP :thumbsup_anim: .



Diamond Viper HD 2600 XT

MSI AM2 A64X2 K9NNEO

AMD ATHLON64 X2 AM2-940P 4800

DDR2 3GB 667MHz KINGSTON

320GB WESTERN DIGITAL 7200RPM SATA2/300

Realtek® ALC883
