#1
geminidragonrx7

geminidragonrx7

    InsanelyMac Protégé

  • Members
  • Pip
  • 9 posts
  • Gender:Male
  • Location:USA
I don't know if anyone has start a post like this, but a list of DSDT files would be nice to make seemless installs. I would like to learn how to make one from my working system to share, only Firewire is my systems problem. Kexts can be pretty annoying to hunt down and find one that actually works.

#2
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,907 posts
  • Gender:Male
Excelent post, geminidragonrx7! For further information about dsdt patching, check www.olarila.com.

Best regards!

#3
spakk

spakk

    If you try to please everyone, then you have certainly forgotten

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,845 posts
  • Gender:Male
  • Location:português

I don't know if anyone has start a post like this, but a list of DSDT files would be nice to make seemless installs. I would like to learn how to make one from my working system to share, only Firewire is my systems problem. Kexts can be pretty annoying to hunt down and find one that actually works.


to create dsdt.aml, is verry easy. There are some tools that allow you within a few minutes to create a relative acceptable dsdt.aml.
download EVEREST Ultimate Edition as trial version and follow this video then you need the DSDT Editor tool, is the tool it once as OS X or Windows or Linux version.
The tool includes some patch files for customizing the dsdt, details you experience either on the above website or on Orilia website

Edited by spakk, 06 May 2013 - 08:48 PM.


#4
spakk

spakk

    If you try to please everyone, then you have certainly forgotten

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,845 posts
  • Gender:Male
  • Location:português

Spakk.
But as you get Crair DSDT from your system?

I tried to create my DSDT confguration, extracting through Windows 8 with the AIDA64 software and the DSDTFixer, but could not, gave error.

My motherboard is an Asus model: M4A785-M. My system does not work properly power management and why he will not go to sleep mode, I wanted to fix it, this is one of the problems beyond graphics that I want to fix.

Thanks for answering me.



after you have created the DSDT.aml and dsdt.dsl with AIDA64, as shown in the movie video. Now start the DSDEditor tool and open their dsdt.dsl. Then you can add patches, activate at the top Patch--> Open ....... then the patches folder opens, into the Patches folder are many useful patches included.
such as: RTC.txt, SBUS.txt,WAK.kext, shutdown gigabytes, EHCI etc...
test it by inserting these patches in their dsdt, and than activate above the register IASL --> Compile / your will dsdt now trying to available compilers, if shouldnt not all errors are eliminated, you should investigate the error analysis and correct the error manually . When all errors are eliminated save the DSDT in DSDT.aml in the upper register IASL / save AML AS. ....


I hope this will help them further

#5
spakk

spakk

    If you try to please everyone, then you have certainly forgotten

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,845 posts
  • Gender:Male
  • Location:português
for more Info see here http://www.youtube.c...ube.LxHojUwsdJs

#6
JorgeMax

JorgeMax

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 275 posts
  • Gender:Male
  • Location:Brasil-Piauí-Teresina
Spakk. I wanted you to me list the patches that are mandatory, sorry for the inconvenience but I am new in this business of "Hackintosh". thanks man.

for more Info see here http://www.youtube.c...ube.LxHojUwsdJs


What is the best "place" to extract the DSDT? under Windows or Mac OS X?

#7
alaskantraveler

alaskantraveler

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 118 posts
  • Gender:Male
  • Location:Central Arizona Desert
  • Interests:Single Carburetor GoldWings
    BlackPowder Revolvers
    PC based OSX

    AMD...
None on my system.

#8
spakk

spakk

    If you try to please everyone, then you have certainly forgotten

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,845 posts
  • Gender:Male
  • Location:português

Spakk. I wanted you to me list the patches that are mandatory, sorry for the inconvenience but I am new in this business of "Hackintosh". thanks man.



What is the best "place" to extract the DSDT? under Windows or Mac OS X?


it does not matter which operating system they run this, I think

#9
JorgeMax

JorgeMax

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 275 posts
  • Gender:Male
  • Location:Brasil-Piauí-Teresina
Spakk. Man, already created, recreated and always gives kernel panic! one thing I watched was that when I do with each separate patch I click preview and I see no change in the parameters, is the same way!

Then I click compile IASL and always shows the same 201 errors! 5 mistakes and always missing! and then install with ##### or drag and stick the file in the "extra" and when I restart aparaece that the flag is PCIRootUID as "0" and not "1" appears and the logo of the "apple" and then the error kernel panic.

But my system works without this DSDT shutdown and restart and not just sleep mode, but that mode does not wake up. smoothly but also the components of the board as all hardware it.

Thanks guy for the help, I'll be without this DSDT same.

#10
spakk

spakk

    If you try to please everyone, then you have certainly forgotten

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,845 posts
  • Gender:Male
  • Location:português

Spakk. Man, already created, recreated and always gives kernel panic! one thing I watched was that when I do with each separate patch I click preview and I see no change in the parameters, is the same way!

Then I click compile IASL and always shows the same 201 errors! 5 mistakes and always missing! and then install with ##### or drag and stick the file in the "extra" and when I restart aparaece that the flag is PCIRootUID as "0" and not "1" appears and the logo of the "apple" and then the error kernel panic.

But my system works without this DSDT shutdown and restart and not just sleep mode, but that mode does not wake up. smoothly but also the components of the board as all hardware it.

Thanks guy for the help, I'll be without this DSDT same.



Hi JorgeMax
then they should go to the appropriate line and try to fix the error. I know that it is not easy for newcomers, but since you have unfortunately through.

Boats with boot flag: npci=0x2000 or npci=0x3000 PCIRootUID=0 or 1 GraphicsEnabler=Yes -v -f
when the kernel panic message appears, take a picture and upload it here!
then we will see what is the cause of the kernel panic :wink2:

#11
JorgeMax

JorgeMax

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 275 posts
  • Gender:Male
  • Location:Brasil-Piauí-Teresina

Hi JorgeMax
then they should go to the appropriate line and try to fix the error. I know that it is not easy for newcomers, but since you have unfortunately through.

Boats with boot flag: npci=0x2000 or npci=0x3000 PCIRootUID=0 or 1 GraphicsEnabler=Yes -v -f
when the kernel panic message appears, take a picture and upload it here!
then we will see what is the cause of the kernel panic :wink2:


I'll take some pictures and post. :moil:

#12
JorgeMax

JorgeMax

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 275 posts
  • Gender:Male
  • Location:Brasil-Piauí-Teresina
Spakk, This is the error in the kernel:

Posted Image

Edited by JorgeMax, 08 May 2013 - 06:47 PM.


#13
spakk

spakk

    If you try to please everyone, then you have certainly forgotten

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,845 posts
  • Gender:Male
  • Location:português
please give this boot flag: npci=0x3000 PCIRootUID=0 or 1 ahcidisk=1 debug=8 GraphicsEnabler=Yes -v -f

than upload the picture

amd_kernel by Andy is a 64-bit kernel, therefore it is not necessary to enter into the boot flag:arch = x86_64

furthermore, it is necessary to install all chipset driver in System/Library/Extensions and edit accordingly with using SystemInfo tool the appropriate Info.plist of each driver the device-ID and vendor-ID

as an example, look at my extensions folder etc..

http://www.file-uplo...X550TI.zip.html

Edited by spakk, 08 May 2013 - 07:51 PM.


#14
JorgeMax

JorgeMax

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 275 posts
  • Gender:Male
  • Location:Brasil-Piauí-Teresina
Spakk. And those mistakes that image, they are not fixed in any way.
I've tried repeatedly pressing the button repair but does not correct, is it because of this?

Posted Image

#15
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
Upload your DSDT here

#16
JorgeMax

JorgeMax

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 275 posts
  • Gender:Male
  • Location:Brasil-Piauí-Teresina

Upload your DSDT here


This has no DSDT patch: https://mega.co.nz/#...Zs3BGQYjkkuKK4c (464 KB)

#17
spakk

spakk

    If you try to please everyone, then you have certainly forgotten

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,845 posts
  • Gender:Male
  • Location:português

This has no DSDT patch: https://mega.co.nz/#...Zs3BGQYjkkuKK4c (464 KB)


try this please

Attached Files



#18
JorgeMax

JorgeMax

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 275 posts
  • Gender:Male
  • Location:Brasil-Piauí-Teresina

try this please


Spakk, they are ready? just put in the "extra"? Or I have to make a patch?

#19
spakk

spakk

    If you try to please everyone, then you have certainly forgotten

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,845 posts
  • Gender:Male
  • Location:português
you have their dsdt saved with the wrong extension

FYI, I just compilert and save! only for test

in extra or in root
you should indicate the correct path in their chameleon.boot.plist !

for example: /Extra/

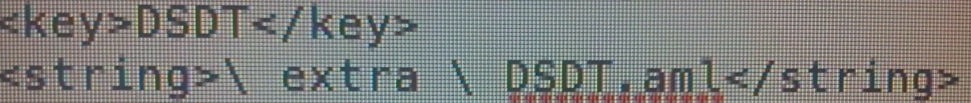

<key>DSDT</key>
<string>\Extra\DSDT.aml</string>

extract the JorgeMax.zip file, there you find a smal file DSDT.aml and a greater file dsdt.dsl, this can you save under Extra folder

please, boot as above described with boot flag: -v -f , so you can see the boot process, or better where the system stops

Just for info, their dsdt.dsl had approximately 220 errors, I hope they have created their dsdt correctly. after several available compilers all errors were eliminated :wink2:

should remain at boot the system hang, or a kernel panic message come, as usual, make a picture and upload

Edited by spakk, 08 May 2013 - 10:10 PM.


#20
spakk

spakk

    If you try to please everyone, then you have certainly forgotten

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,845 posts
  • Gender:Male
  • Location:português
are there any results?

I go to :superman: , bye
