Final solution (FIX) for GMA950 Desktop edition - NEW 28 DEC 08


  • Please log in to reply
481 replies to this topic

#1
Dr. Hurt

Dr. Hurt

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPipPip
  • 1,493 posts
  • Gender:Male
  • Location:Cairo, Egypt and NYC, USA
  • Interests:Wandering around on the internet!! Politics, Sci/Tech, Medicine.
Update 10:
10.6.2 introduces 64bit drivers for GMA950. They are very buggy and monitor doesn't wake after sleep. This means you can finally use the 64bit kernel and have GMA950 working, although I personally prefer not till Apple updates the driver.


Update 9:
THIS WORKS WITH SNOW LEOPARD. YOU NEED TO BOOT IN 32-BIT MODE BECAUSE DRIVERS DON'T SUPPORT 64-BIT.


Update 8:
I've compiled a list of all prepatched DSDT made by different users for different motherboards. Huge thanks to everyone who contributed.


NB:
This does not work with most Laptops so please stop complaining in this thread.


---------------------------------------------------------------------------------------------------------
1-Gigabyte users with similar boards (ie. GA-945GCM-S2L,GA-945GCM-S2C,GA-945GCMX-S2...etc), use V4.2 (updated for better compatibility with 10.5.7) :P

2-
Others, Start by searching for your board in the list at the end of post. Try to match at least the manufacturer, not necessarily the model. :)

3-If you can't find it, or if doesn't work try V3 or other versions. Otherwise, make your own patch.

NB: You need a boot-loader that supports DSDT like PC-EFI v9 or Chameleon 2!
---.--You also need to use stock kexts.


Attached File  GMA950_V3.zip   541.25KB   10865 downloads
Attached File  GMA950_V4.2.zip   5.78KB   9607 downloads
If they don't work, download the patch.zip and start patching the DSDT yourself.
Attached File  Patch.zip   458.65KB   10385 downloadsThe patch.zip contains:
-Instructions
-An example of a patched DSDT.dsl to help in figuring out the drop in location for the code and debugging!!
-DSDT patcher (by fassl)
-DSDT decompiler/compiler (iasl)
-Source Code (by roioft)

Source Code by roisoft. I feel greatly indebted to you. Thank You!!

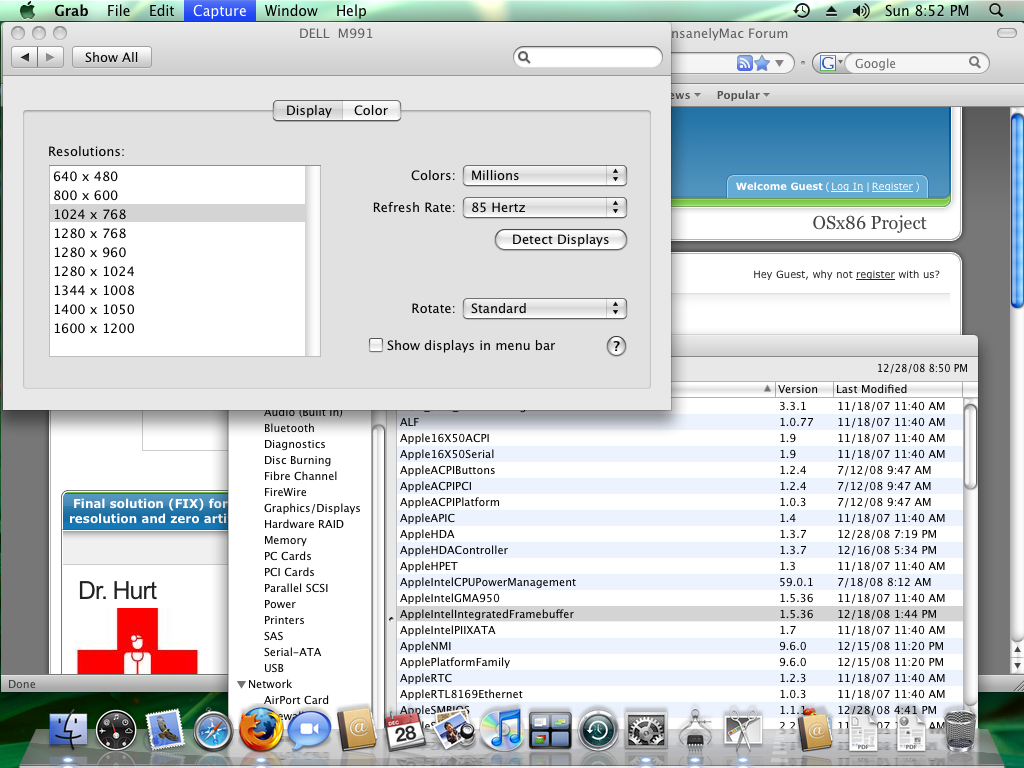

After patching the DSDT you should get:

- Full resolution changing using the most up-to-date stock kexts.
- Quartz Extreme and Core Image support.
- Rotation support.
- ZERO artifacts.
- Sleep/Wake-up fully working (S1/S3).
- System updates will no longer break graphics.


Disclaimer:
We will not be held responsible for any damage happening to you, you computer, your data, or anything else due to using this. You have been warned. Proceed at your own risk.

Attached Files



#2
M-S

M-S

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
Thank you for your solution but i have a few questions.
How can i check which ID i have?
After i find out what it is, how can i change it into the file that you publish?

#3
Dr. Hurt

Dr. Hurt

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPipPip
  • 1,493 posts
  • Gender:Male
  • Location:Cairo, Egypt and NYC, USA
  • Interests:Wandering around on the internet!! Politics, Sci/Tech, Medicine.
Instructions:

-- Use "kext helper" to install the kexts. (find download link from google!!)
-- Put this DSDT.aml file in you root (OS X) partition - make sure your boot loader supports DSDT - and reboot!

NB: PC-EFI v9 and a special version of Chameleon supports this.
To download PC EFI v9 installer search Google for "PC EFI v9 + Chameleon = Happiness"

#4
stellarola

stellarola

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 682 posts
  • Gender:Male
  • Location:Lextown, KY
Great work. Would love to this this same feature come to X3100. :wacko:

Thanks roisoft and Dr. Hurt.

-Stell

#5
thestevo

thestevo

    InsanelyMac Chuck Norris

  • Members
  • PipPipPipPipPipPipPip
  • 550 posts
  • Gender:Male
  • Interests:A piano that's in tune and hardware that I don't have to write drivers for.
Dr. Hurt,

Could you elaborate on what exactly was fixed, or where I can find that information? As you may know, I'm trying to finish up support for GMA 3100 (an overclocked GMA 950). I'd like to see if this would help with some issues I am having. Also, some people may need to make slight changes for non-Gigabyte 950 boards and it would help to know what to look for.

Great work, though! Awesome job Roisoft!

Thanks,
theStevo

#6
Dr. Hurt

Dr. Hurt

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPipPip
  • 1,493 posts
  • Gender:Male
  • Location:Cairo, Egypt and NYC, USA
  • Interests:Wandering around on the internet!! Politics, Sci/Tech, Medicine.
OS X had trouble detecting the proper address of the GMA950 desktop version (due to broken DSDT ) so the newer framebuffers would not load.
The proper GMA950 address was added (hard coded) to the DSDT.aml (using lspci from linux) to make OS X recognize the GMA950 and load the newer framebuffer. No EFI strings, not injectors, no nothing!!

This will allow you to use stock drivers and not worry about graphics in system updates.

#7
roidm

roidm

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,059 posts
  • Gender:Male
  • Location:Spain
hi there!

Ive used this fix on Asus, Intel and GA boards with GMA950 and it works fine... For the 3100 version i dont know if it will work because i dont have the hardware to try out. The point is OSX detect the Gfx like "built-in" , the same for TM fix....

People with differents boards (no GA) can decompile the aml, copy the code for GMA and paste it into the dsl.

#8
thestevo

thestevo

    InsanelyMac Chuck Norris

  • Members
  • PipPipPipPipPipPipPip
  • 550 posts
  • Gender:Male
  • Interests:A piano that's in tune and hardware that I don't have to write drivers for.
Well, I know that this alone won't get the GMA 3100 working. However, in conjunction with my edited kexts it may work now. I have QE/CI/etc working, but I can't get the framebuffer to load properly (black hash screen). I was at my wit's end as to what to do, but I will test and report back.

theStevo

#9
Dr. Hurt

Dr. Hurt

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPipPip
  • 1,493 posts
  • Gender:Male
  • Location:Cairo, Egypt and NYC, USA
  • Interests:Wandering around on the internet!! Politics, Sci/Tech, Medicine.
Thanks again roisoft. So the file attached here will not directly work with boards other than Gigabyte, unless it decompiled, and modified? Right? Should I modify the first post yet? I was waiting for people to try it out first, but of well.

OK, here's the code for anyone willing to do it:

Edit: I have updated the first post to put the source code for anyone willing to help

#10
roidm

roidm

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,059 posts
  • Gender:Male
  • Location:Spain
This dsdt is only for your board or similars (GA), ... better to change the first post.

if any of you want to give me the dsdt and a proper ioreg saved with ioregistryexplorer with the GMA 3100 working , lll try to inject code for fix it via dsdt.

#11
thestevo

thestevo

    InsanelyMac Chuck Norris

  • Members
  • PipPipPipPipPipPipPip
  • 550 posts
  • Gender:Male
  • Interests:A piano that's in tune and hardware that I don't have to write drivers for.
Well, you see, the GMA 3100 isn't working yet so there is no IOReg. I'm hoping this will turn the trick.

#12
roidm

roidm

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,059 posts
  • Gender:Male
  • Location:Spain
ah ok... anyway give me a copy of those files please

#13
nebulOSX

nebulOSX

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 143 posts
  • Gender:Male
  • Location:Earth
It appears to almost work, I have everything setup, after the grey apple boot screen the blue screen comes and resolution changes (which it didn't do before) but the cursor doesn't appear and it freezes on my wallpaper, no finder, loginwindow dock or anything.

So its a step in the right direction, but no worky..

EDIT:
Gigabyte GA-GC230D with GMA 950 0x2772, revision 0x0002

#14
roidm

roidm

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,059 posts
  • Gender:Male
  • Location:Spain
post a copy of your dsdt.dat and the ioreg (use iorgistryexplorer and GetDSDT )

Dont use any dsdt.aml into the root in order to obtain a clean copy of the dsdt.dat

ioregistry

GetDSDT

#15
nebulOSX

nebulOSX

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 143 posts
  • Gender:Male
  • Location:Earth
OK, i shall just go turn on my Hac....

EDIT: does it matter what frame buffer i use? i assume i should use the newer one, i switched back after it didn't work..

Ok, used no dsdt's on my drive root. got both things... on ioregexplorer i selected intel915 from the list (under "IOFramebufferUserClient" and click file save as, is that right?

Attached Files



#16
roidm

roidm

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,059 posts
  • Gender:Male
  • Location:Spain
its ok,... try the attached one, use the stock kext, repairpermissions and reboot with -f



Attached File  DSDT.aml.zip   5.49KB   399 downloads

#17
nebulOSX

nebulOSX

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 143 posts
  • Gender:Male
  • Location:Earth
Does the same thing as before :s freezes on wallpaper, but there is a resolution change before the wallpaper is displayed...

#18
nebulOSX

nebulOSX

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 143 posts
  • Gender:Male
  • Location:Earth
Aha, i realize what its doing! It thinks theres two displays! I can move the mouse over to this display... The main monitor is being seen as the secondary monitor and the primary monitor is.... non existant.

#19
roidm

roidm

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,059 posts
  • Gender:Male
  • Location:Spain
ok guys, Ill try to fix this issue but not before twomorrow

#20
nebulOSX

nebulOSX

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 143 posts
  • Gender:Male
  • Location:Earth

ok guys, Ill try to fix this issue but not before twomorrow


Thankyou man, ur a legend!

If you need any more assistance or testing, PM me..
