Intel Wireless 2100, 2200bg, 2915bg, 3945abg, 4965agn

[jalavoui]

wait...



iwi3945 rel 788

if you get errors try to press the switch off/on

if the scan functions works you will get scan_complete in logs

i'm note shore if this:

iwl_scan((struct iwl3945_priv*)get_my_priv());

will no give a kp - hope not

i'm following the linux log - it will work

just try reboots, etc to see if the driver works without errors

[junster90]

can you upload 788 as a whole dmg? i dont have the network selector and i really want to test it now

[mlazy]

788:



Pick your poison:



iwi3945.dmg



or:



iwi3945r788.kext.zip

[Megnus]

I have been following this thread, but what is the status ? Can you connect to a network and actually use this latest release?

[Miguel Madrid]

Here it's



Log from 788... Seems to do new things.... but not sure

systemlog.txt

[IPHASH]

Loaded new kext and it loaded successfully. Can see en1 'ethernet' in network settings. Can also see the correct mac for the card but that is as far as I get ....... Networkselector loads but does nothing when using the menu ....



en1: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500

ether 00:18:d4:52:6c:52

media: autoselect status: inactive

supported media: autoselect

[junster90]

same here... new network detected as ethernet (en1) but is not connected. Network Selector does nothing.

[IPHASH]

Here is the log .....

SystemLog.rtf

[Gahca]

Here are my 788 logs...



I am not seeing anything new in regards to en1 in the Network Settings...



Does anyone know why I'm not seeing anything new?

log.rtf

ioreg.txt

dmesg.txt

[fufay]

hi,all.

788,nothing new in Network Settings...



then I loaded the kext manually,i got this:



Missing dependencies:

{

"com.apple.iokit.IO80211Family" =

"A valid compatible version of this dependency cannot be found"

}



dose someone can tell me why?

[Doctadre]

quite busy in the wards here, got a chance to run 788, here are the logs

Systemlog788.rtf

[mlazy]

788 logs:



788syslog.txt



Very intersting changes here.



looks like it's trying to fire up a scan here:



Apr 22 11:48:41 Sony kernel[0]: error iwl3945: U iwl3945_mac_open Wait START_ALIVE Condition: 122ms left

Apr 22 11:48:41 Sony kernel[0]: error iwl3945: U iwl3945_mac_open leave

Apr 22 11:48:41 Sony kernel[0]: error iwl3945: U iwl3945_mac_add_interface enter: id 593424416, type 0

Apr 22 11:48:41 Sony kernel[0]: error iwl3945: U iwl3945_mac_add_interface Set: 00:19:d2:ac:3c:fa

Apr 22 11:48:41 Sony kernel[0]: error iwl3945: U iwl3945_mac_add_interface failed to set mode

Apr 22 11:48:41 Sony kernel[0]: error iwl3945: U iwl3945_mac_add_interface leave

Apr 22 11:48:41 Sony kernel[0]: ieee80211_hw_config @ /Users/super/Desktop/iwi3945/788/compatibility.cpp:5167

Apr 22 11:48:41 Sony kernel[0]: error iwl3945: U iwl3945_mac_config enter to channel 1

Apr 22 11:48:41 Sony kernel[0]: error iwl3945: U iwl3945_mac_config leave - not ready

Apr 22 11:48:41 Sony kernel[0]: error iwl3945: U iwl3945_mac_stop enter







Then, after I turn the card off, then on again via killswitch, I get:





Apr 22 11:49:32 Sony kernel[0]: iwl3945_mac_config_interface Leaving in AP mode because HostAPD is not ready.

Apr 22 11:49:32 Sony kernel[0]: 1st scan

Apr 22 11:49:32 Sony kernel[0]: error iwl3945: APs don't scan



Jalavoui, what are these timer events about:



Apr 22 11:55:29 Sony kernel[0]: timer->expires 1000 timei 10000 deadline 0

Apr 22 11:55:32 Sony kernel[0]: test_function @ /Users/super/Desktop/iwi3945/788/compatibility.cpp:6519

Apr 22 11:55:32 Sony kernel[0]: error iwl3945: U iwl3945_hw_reg_txpower_get_temperature Temperature: 56

Apr 22 11:55:32 Sony kernel[0]: queue_te @ /Users/super/Desktop/iwi3945/788/compatibility.cpp:6530

Apr 22 11:55:32 Sony kernel[0]: timei 6000 timei2 128831570







BTW: Very stable kext, no KP's yet.

[Miguel Madrid]

The good part comes from here:



Apr 22 15:23:21 kernel[0]: error iwl3945: U iwl3945_mac_open Wait START_ALIVE Condition: 23ms left

Apr 22 15:23:21 kernel[0]: error iwl3945: U iwl3945_mac_open leave

Apr 22 15:23:21 kernel[0]: error iwl3945: U iwl3945_mac_add_interface enter: id 592830496, type 0

Apr 22 15:23:21 kernel[0]: error iwl3945: U iwl3945_mac_add_interface Set: 00:1c:bf:02:15:16

Apr 22 15:23:21 kernel[0]: error iwl3945: U iwl3945_commit_rxon Sending RXON

Apr 22 15:23:21 kernel[0]: * without RXON_FILTER_ASSOC_MSK

Apr 22 15:23:21 kernel[0]: * channel = 1

Apr 22 15:23:21 kernel[0]: * bssid = 00:00:00:00:00:00



and then



Apr 22 15:23:22 kernel[0]: error iwl3945: U iwl3945_enqueue_hcmd Sending command REPLY_RXON (#10), seq: 0x0404, 48 bytes at 4[4]:4

Apr 22 15:23:22 kernel[0]: error iwl3945: U iwl3945_send_cmd_sync Wait REPLY_RXON Condition: 0ms left

Apr 22 15:23:22 kernel[0]: error iwl3945: Error sending REPLY_RXON: time out after 500ms.

Apr 22 15:23:22 kernel[0]: error iwl3945: Error setting new configuration (-60).

Apr 22 15:23:22 kernel[0]: error iwl3945: U iwl3945_mac_config leave

Apr 22 15:23:22 kernel[0]: error iwl3945: U iwl3945_mac_config_interface Leaving in AP mode because HostAPD is not ready.

Apr 22 15:23:22 kernel[0]: 1st scan

Apr 22 15:23:22 kernel[0]: error iwl3945: APs don't scan.

[jalavoui]

iwi3945 rel 789

hope to get less bugs



wait...

mlazy found a bug

i'll fix it



iwi3945 rel 790

one less bug to go

use the switch or reboot if you get errors

add more debug msgs - if you like compare to the linux log i've posted



driver status

need to get rid of inital driver start bugs

the timers are a hack for mac os x - hope they work some day





you're guys are getting pros reading logs





deam another bug

wait...



iwi3945 rel 791

this one is ok

waiting for logs

[grrantry]

What do you mean by use switch?? Mine is Function F2 and nothing happens when I press it

[mlazy]

r971:



dmg: iwi3945r791.dmg



or





kext: iwi3945r791.kext.zip





logs on the way. brb.

[grrantry]

Man I would love to be able to help with this but nothing happens after I install.



netselector gives me



could not get ID for Kernel Control. 2



Can't unload kext just get failed



And when loading I just get error

[jalavoui]

don't use this dmg

it as no files to install

you only get an old version for testing using this

mlazy can you upload iwi3945.pkg instead?

don't touch netwrokselector - it's disabled

[mlazy]

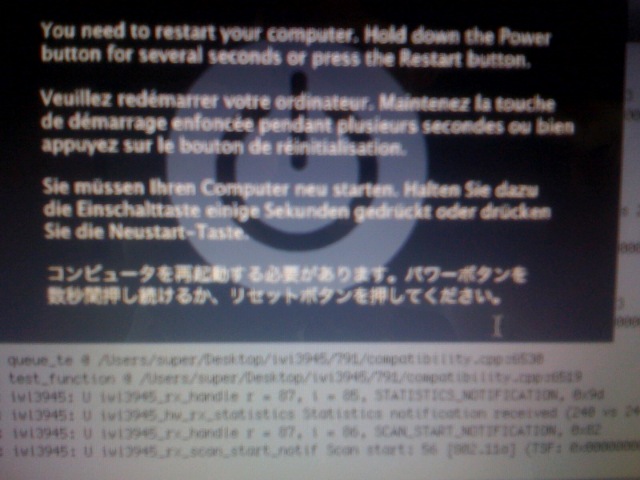

Hey Jalavoui,Immediate KP when scan starts: (driver loads first)





horrible picture I know..



don't use this dmgit as no files to installyou only get an old version for testing using thismlazy can you upload iwi3945.pkg instead?don't touch netwrokselector - it's disabled



Jalavoui, I've got files in the dmg. (verified with others on the board too.)



Anyway, here's the pkg:iwi3945r791installer.zip

[jalavoui]

try boot with -x or some reboots

i need last lines of kp to fix it

maybe the driver wants to associate to some network



the pkg you post as no files to install

this means that when you build it there's no files inside the iwi3945/applications and iwi3945/system/library/extensions folder

[mlazy]

try boot with -x or some rebootsi need last lines of kp to fix itmaybe the driver wants to associate to some network



that was -x booted. I'll go do it again and take a better picture.



Jalavoui, I tried again. Driver loads, can starts and the last line panic is:



Rx_scan_start_notif Scan Start: 48 [892.11a] (TSF: 0x00000000:0007A82E) – 1 (beacon timer 67119058)



It panics before the log is writen. here's the log I got. It shows about 5 lines of scan setup and then the final line fom above on screen. So, about 5 lines get clipped before they can write out to the log by the kp.



791.txt



try boot with -x or some rebootsi need last lines of kp to fix itmaybe the driver wants to associate to some networkthe pkg you post as no files to installthis means that when you build it there's no files inside the iwi3945/applications and iwi3945/system/library/extensions folder

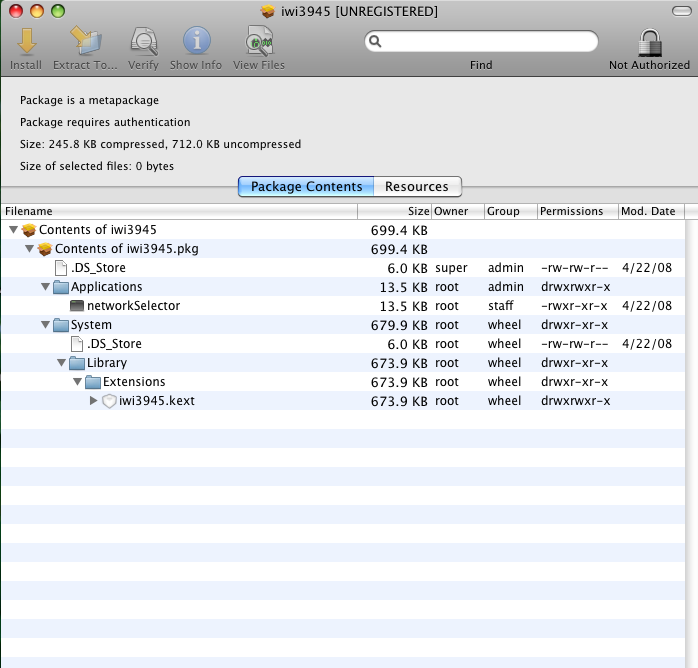

Jalavoui, when I build, I get errors uness I've moved the files into those folders. So, I move them, then run your package script. Can someone with 10.5 download the pkg, and look inside it with pacifist? I see files in there...

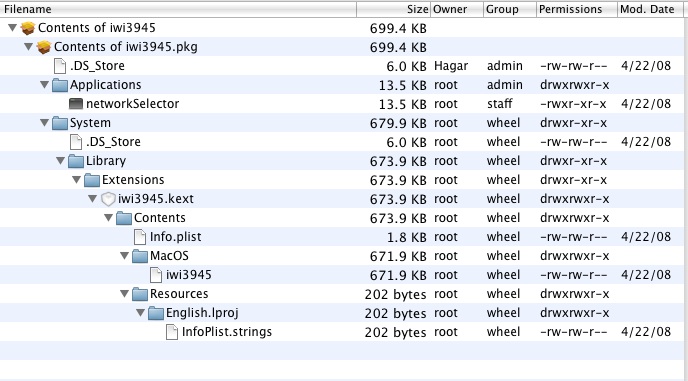

[Hagar]

pacifist, os x 10.5.2

[mlazy]

pacifist, os x 10.5.2



Thanks Hagar,



Does anyone know why a 10.4 user wouldn't see these? Jalavoui, could this be because of the project setting in the pkg script? (it blocks 10.4 users from seeing somehow?)

[jalavoui]

better post iwi3945.kext

we have enought bugs here



need help to find out why the driver gets a kp



but



i'll post a new release



iwi3945 rel 792

station scan test

[mlazy]

better post iwi3945.kextwe have enought bugs hereneed help to find out why the driver gets a kp



Here's 791 kext again:iwi3945r791.kext.zip





Jalavoui, it shoots about 50 lines or so that don't get logged (on screen only) What am I loking for in the lines? (some are blocked by KP icon)
