ATi Mobility Radeon x1700

righteye

By righteye,
in ATi

 Share
809 posts in this topic

Recommended Posts

righteye
righteye
Posted
  • Author
Posted
My os is:

10.6.3 Retail with chameleon 2 rc3 as boot manager.

hardware: acer travelmate 5720g



These are my kexts for ati radeon x2500 (x1700)

dual monitor is workink

laptop is at 1200x800

external monitor is at 1680x1050



there is 2 little problems,

1rst: i dont know how to boot without external monitor?!

2nd: there is a line about 1px line, that goes from the bottom all the way to up, on the esternal monitor, how can i disable that?

it is like a SCAN LINE....



(how to install win7 next to my osx 10.6.3 to get dual boot? )

You have the same EDID for the external and internal displays inside Natit ...

but is not ok ... better delete the DFP1 string .... also for this video card everybody has to boot with the external display plugged in at boot time in order to work Dual Display

Must be sure that the LVDS EDID is for and from internal display ...



I'll do an EvoEnabler injector for you right now and upload it in a few minutes ... to give it a try

Here is the injector to testdorkakutya_71DE_x2500_EVOenabler.kext.zip

inside there are 2 info.plist to check out, one has an EDID from a Samsung TV, is just for test, to remove it delete or edit the DFP1 string. Hope it works fine for you now.



Cheers

Link to comment
Share on other sites
dorkakutya
dorkakutya
Posted
Posted
You have the same EDID for the external and internal displays inside Natit ...

but is not ok ... better delete the DFP1 string .... also for this video card everybody has to boot with the external display plugged in at boot time in order to work



I'll do an EvoEnabler injector for you right now and upload it in a few minutes ... to give it a try





i have no windows anymore, how can i get my edids under osx?









ive just deleted that string you recomended, now that scan line goes from up to the bottom, and slower than it was going from the bottom to the top. strange.

Link to comment
Share on other sites
righteye
righteye
Posted
  • Author
Posted
i have no windows anymore, how can i get my edids under osx?









ive just deleted that string you recomended, now that scan line goes from up to the bottom, and slower than it was going from the bottom to the top. strange.

there is no way to get a proper EDID from osx but normally there is no need for the external display ... try to test the new injector posted above and do a repair permissions

The internal display works as it is suppose to or there are some glitches ?

Link to comment
Share on other sites
dorkakutya
dorkakutya
Posted
Posted
there is no way to get a proper EDID from osx but normally there is no need for the external display ... try to test the new injector posted above and do a repair permissions

The internal display works as it is suppose to or there are some glitches ?

the internal works perfektly

thanks for the kext, but dont know what to do with it,

should i remove the NatitX1700.kext from SLE before i install this one with kexthelper?

or what?

Link to comment
Share on other sites
righteye
righteye
Posted
  • Author
Posted
the internal works perfektly

thanks for the kext, but dont know what to do with it,

should i remove the atinjekkext from SLE before i install this one with kexthelper?

or what?

Soooo

There is a Atiinject and a Natitx1700 together in your system ?

The EVOenabler you can put it in /Extra/Extensions folder and yes ... only one injector must be installed in order to get proper results.

Link to comment
Share on other sites
dorkakutya
dorkakutya
Posted
Posted
Soooo

There is a Atiinject and a Natitx1700 together in your system ?

The EVOenabler you can put it in /Extra/Extensions folder and yes ... only one injector must be installed in order to get proper results.

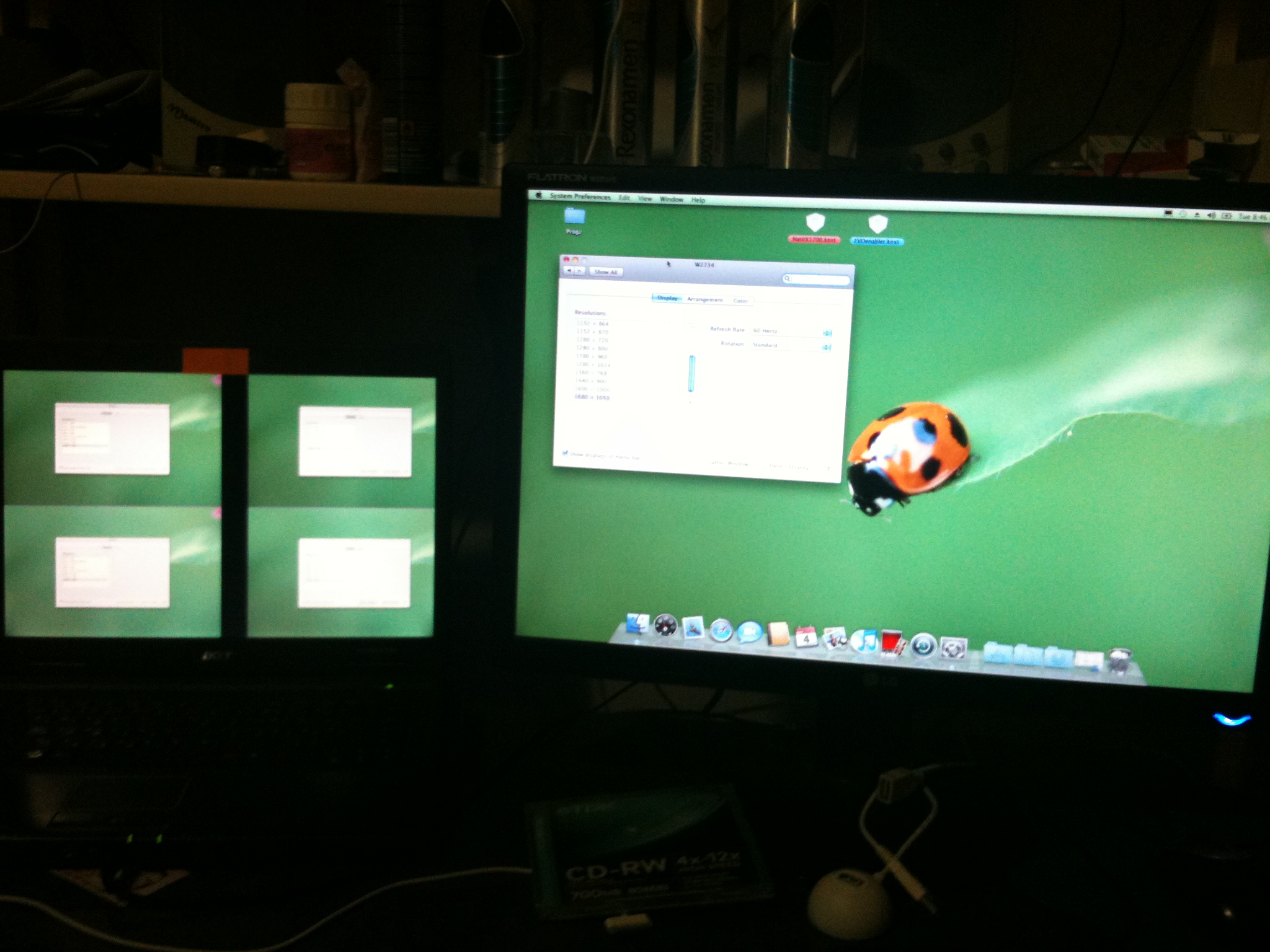

wow, now it seems to be working perfectly but closer look, i can see the scan line from bottom to top very very fast.

is that normal? (with info2.plist -» info.plist)



the info.plist cause this funny stuff :)



(uploaded pic)



with the attached prefpanel i got this edids:









iv got these two edids from this switchresx4.zip



INTERNAL:

< 00FFFFFF FFFFFF00 320C00D8 00000000 00100103 80211578 0AB34099 59538D27 25505400 00000101 01010101 01010101 01010101 0101BC1B 00A05020 17303020 36004BCF 10000019 00000000 00000000 00000000 00000000 00000000 00FE004C 47506869 6C697073 4C43440A 000000FE 004C5031 35345758 342D544C 43320048 >





EXTERNAL:

< 00FFFFFF FFFFFF00 1E6DB856 473E0100 22120103 6A2F1E78 EADC55A3 59489E24 115054A7 6B80950F 95008180 8140714F 01010101 01017C2E 90A0601A 1E403020 3600DA28 1100001A 21399030 621A2740 68B03600 DA281100 001C0000 00FD0038 4B1E530F 000A2020 20202020 000000FC 00573232 33340A20 20202020 202000A6 >


Link to comment
Share on other sites
righteye
righteye
Posted
  • Author
Posted
wow, now it seems to be working perfectly but closer look, i can see the scan line from bottom to top very very fast.

is that normal? (with info2.plist -» info.plist)



the info.plist cause this funny stuff :)



(uploaded pic)



with the attached prefpanel i got this edids:









iv got these two edids from this switchresx4.zip



INTERNAL:

< 00FFFFFF FFFFFF00 320C00D8 00000000 00100103 80211578 0AB34099 59538D27 25505400 00000101 01010101 01010101 01010101 0101BC1B 00A05020 17303020 36004BCF 10000019 00000000 00000000 00000000 00000000 00000000 00FE004C 47506869 6C697073 4C43440A 000000FE 004C5031 35345758 342D544C 43320048 >





EXTERNAL:

< 00FFFFFF FFFFFF00 1E6DB856 473E0100 22120103 6A2F1E78 EADC55A3 59489E24 115054A7 6B80950F 95008180 8140714F 01010101 01017C2E 90A0601A 1E403020 3600DA28 1100001A 21399030 621A2740 68B03600 DA281100 001C0000 00FD0038 4B1E530F 000A2020 20202020 000000FC 00573232 33340A20 20202020 202000A6 >

the switchresx4 is geting the info from mac side ... so is exactly what is injected, so if is a wrong injection might not be a good way to get that info. That did not happen on windows, the line there ? Also it is a VGA connection or DVI ? In about this mac at the graphics section ... the external display is the model you have or is just another "display"

Link to comment
Share on other sites
dorkakutya
dorkakutya
Posted
Posted
the switchresx4 is geting the info from mac side ... so is exactly what is injected, so if is a wrong injection might not be a good way to get that info. That did not happen on windows, the line there ? Also it is a VGA connection or DVI ? In about this mac at the graphics section ... the external display is the model you have or is just another "display"





in win (xp vista win7 everything is just fine)



exernal is: LG Flatron W2234S VGA (not dvi, but my card has also dvi connection, i did never use that)

mac recognizes external as W2234



in win (xp vista win7 everything is just fine)



exernal is: LG Flatron W2234S VGA (not dvi, but my card has also dvi connection, i did never use that)

mac recognizes external as W2234





after a restart strangely the scan line goes from the top to the bottom again and this time it is slow.



also for this video card everybody has to boot with the external display plugged in at boot time in order to work [/color]





what if im on a train, on a trip, and i have no external monitor with me? :)

Link to comment
Share on other sites
dorkakutya
dorkakutya
Posted
Posted
Hello,



i hava a Acer Travelmate 5720g with a Mobility x2500 =x1700.



Can anybody tell my the Kexts which work for my card?



Thank you.



i have the same and got my vidcard workin. see the 3 files above!

install them with kexthelper , and try...





here

http://www.insanelymac.com/forum/index.php...d=1461955



and you can try this one



http://www.insanelymac.com/forum/index.php...p=1452238



instead of my NatitX1700









Did you got your mic working? (how?)

Link to comment
Share on other sites
mairhons
mairhons
Posted
Posted
i have the same and got my vidcard workin. see the 3 files above!

install them with kexthelper , and try...





here

http://www.insanelymac.com/forum/index.php...d=1461955



and you can try this one



http://www.insanelymac.com/forum/index.php...p=1452238



instead of my NatitX1700









Did you got your mic working? (how?)







I have not installed Mac OS yet, but I will do that tomorrow.



After that i will watch for the mic and tell you.



Does your internal monitor work 1280x800 with QE/CI? Any problems with the graphic?



(PS: i need only internal monitor)

Link to comment
Share on other sites
dorkakutya
dorkakutya
Posted
Posted
I have not installed Mac OS yet, but I will do that tomorrow.



After that i will watch for the mic and tell you.



Does your internal monitor work 1280x800 with QE/CI? Any problems with the graphic?



(PS: i need only internal monitor)





yes it does, right now im without external monitor, im using my kext ( ATINDRV.kext.zip

ATIRadeonX1000.kext.zip ) from here:

http://www.insanelymac.com/forum/index.php...p=1452238



and that one righteye gave me: dorkakutya_71DE_x2500_EVOenabler.kext.zip

http://www.insanelymac.com/forum/index.php...p=1452238

Link to comment
Share on other sites
mairhons
mairhons
Posted
Posted
yes it does, right now im without external monitor, im using my kext ( ATINDRV.kext.zip

ATIRadeonX1000.kext.zip ) from here:

http://www.insanelymac.com/forum/index.php...p=1452238



and that one righteye gave me: dorkakutya_71DE_x2500_EVOenabler.kext.zip

http://www.insanelymac.com/forum/index.php...p=1452238









So, first i install ATINDRV.kext.zip, then ATIRadeonX1000.kext.zip. Do I need the dorkakutya_71DE_x2500_EVOenabler.kext.zip too?



Is the order in which i install the Kexts equal?





Thank you for your help.

Link to comment
Share on other sites
dorkakutya
dorkakutya
Posted
Posted
So, first i install ATINDRV.kext.zip, then ATIRadeonX1000.kext.zip. Do I need the dorkakutya_71DE_x2500_EVOenabler.kext.zip too?



Is the order in which i install the Kexts equal?





Thank you for your help.







yes

yes

but evoenabler.kext has two info.plist inside, u have to delete one of them!

which one? you have to try...

Link to comment
Share on other sites
mairhons
mairhons
Posted
Posted
yes

yes

but evoenabler.kext has two info.plist inside, u have to delete one of them!

which one? you have to try...





Ok, i will try that tomorrow.



Now are you happy with OsX? Do everything work, USB, LAN, Sound,....?

Link to comment
Share on other sites
dorkakutya
dorkakutya
Posted
Posted
@dorkakutya



I see you used a Retail DVD to install Snow Leopard. Can you tell me which Boot CD you used and which kexts do you need for your TM 5720g?



Chameleon rc5 as bootcd, im not sure if rc5 is out i got it from the author. but earlier versiont may do it.

my kext are in the zip file:

Link to comment
Share on other sites
mairhons
mairhons
Posted
Posted
Chameleon rc5 as bootcd, im not sure if rc5 is out i got it from the author. but earlier versiont may do it.

my kext are in the zip file:





Ok!



Where is the zip file? Can you send me your boot cd?



Thank you!

Link to comment
Share on other sites
  • 2 weeks later...
mairhons
mairhons
Posted
Posted
have fun, bye!





@dorkakutya

Thank you for the kexts!



I have another problem with the Travelmate 5720g.

Until now i tried different Boot cd's (EmpireEFI_V108, [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url]). I got kernel panics....



I know i have to create my own Boot cd and to insert your kexts. But now I'm working in MS Windows and I can't edit the Boot-CD (especially the Preboot.dmg from the boot cd). I haven't access to a Mac now.



So, dorkakutya, can you send me your Boot-cd file for our TM 5720g?



or



Can someone tell me how to edit the Boot-cd with Windows to insert my kexts?



Thank you.

Link to comment
Share on other sites
  • 4 weeks later...
city10001
city10001
Posted
Posted

Hi righteye! You good programmer and your kext for 10.6.2 working! Thanks again.



Now my OS is Snow Leopard 10.6.4



Permission 1280x800 but QE don't working.

x1700 128 mb

ID :0x71de





EDID BYTES:

0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

------------------------------------------------

00 | 00 FF FF FF FF FF FF 00 04 21 00 00 00 00 00 00

10 | 01 00 01 03 00 00 00 00 00 00 00 00 00 00 00 00

20 | 00 00 00 00 00 00 01 01 01 01 01 01 01 01 01 01

30 | 01 01 01 01 01 01 64 00 00 00 00 00 00 00 00 00

40 | 00 00 00 00 00 00 00 00 00 00 00 10 00 00 00 00

50 | 00 00 00 00 00 00 00 00 00 00 00 00 00 10 00 00

60 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10

70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 38



Waiting kext ;)

Link to comment
Share on other sites
righteye
righteye
Posted
  • Author
Posted
Hi righteye! You good programmer and your kext for 10.6.2 working! Thanks again.



Now my OS is Snow Leopard 10.6.4



Permission 1280x800 but QE don't working.

x1700 128 mb

ID :0x71de





EDID BYTES:

0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

------------------------------------------------

00 | 00 FF FF FF FF FF FF 00 04 21 00 00 00 00 00 00

10 | 01 00 01 03 00 00 00 00 00 00 00 00 00 00 00 00

20 | 00 00 00 00 00 00 01 01 01 01 01 01 01 01 01 01

30 | 01 01 01 01 01 01 64 00 00 00 00 00 00 00 00 00

40 | 00 00 00 00 00 00 00 00 00 00 00 10 00 00 00 00

50 | 00 00 00 00 00 00 00 00 00 00 00 00 00 10 00 00

60 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10

70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 38



Waiting kext :o

check my first post

cheers

Link to comment
Share on other sites
city10001
city10001
Posted
Posted

i installed patched ATISupport.kext for 10.6.4 71de

and remove ATI1600Controller.kext == nothing



then i installed ATIFramebuffer.kext and ATIRadeonX1000.kext for 10.6.2 71de == bad image and don't working system



Now permission 1280x800 but QE don't working.





i use this kexts permission x1700.zip





Waiting kext ;)

permission_x1700.zip

Link to comment
