DiaboliK

Better OpenGL benchmarking, GioFX OpenMark

87 posts in this topic

Recommended Posts

Alright kids,



i hate xbench's opengl and other graphics tests, cause it dependent on the monitor's resolution and refresh rate, change that and your results change!



so some people here at : GioFX , created OpenMark : OpenGl benchmarking for Mac OS X



with that said and done lets post some results.

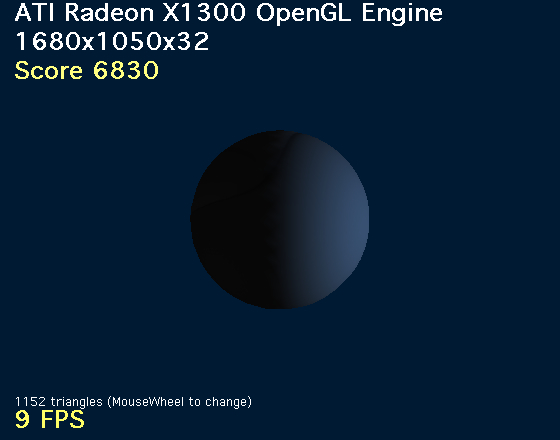

heres my ATi x1300Pro 256 pci-e with NatitX1300(R1) and 1049 ATi kexts:

(you need to convert the .tga to something uploadable to attach here)




X1300Pro.R1.OpenMark.result.txt



i will post my other cards when im done actually using them, to pull a few benches off them.

-DiaboliK



(if this program crahses your system or locks it up, you have a problem with your OpenGL :poster_oops:)

Share this post


Link to post
Share on other sites

couple more of my cards:



XFX 7600GS fanless 256mb pci-e: natit dual v02, unedited nvidia 1049 kexts




Diabolik.7600GS.Fanless.OpenMarkresult.txt

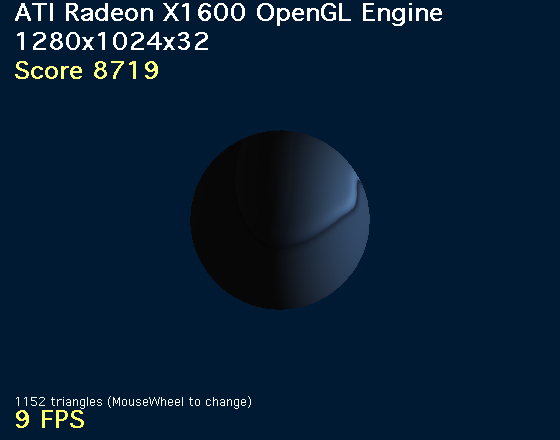

Sapphire X1600Pro 512mb pci-e: NatitX1600 (R1v3), edited atiradeonx1000.kext and 10.4.5 atindrv.kext , all other ati kexts are 1049




Diabolik.X1600Pro.512.OpenMarkresult.txt



Ive got a couple more cards but they are agp and i cant use agpgart so ill post anyway but i have to get that machine updated:P



lets see some more benches so we can have a nice comparison!

-DiaboliK

Share this post


Link to post
Share on other sites
GF 6600 TC on 10.4.9 kernel 8.9.1, I am curious how this benchmark is depended on CPU I have celeron 2.53GHz





this doesnt bech your cpu just your gpu and opengl.

Share this post


Link to post
Share on other sites

Hackintosh specs:

AMD Athlon 64 x2 4200

1GB Corsair Ram

Gigabyte K8N Pro SLi

(1) XFX Geforce 7900GT Overclocked



OSX 10.4.8

Semethex 8.8.1 kernel

Natit Universal Installer






Share this post


Link to post
Share on other sites

GMA950 @ 1024x768x32 = 720

Nvidia 6200 PCI @ 1280x1024x32 = 5807



Both on a Asrock conroe 945G-DVI with a C2D 1.87GHz E6300 and 1Gb Ram.

Share this post


Link to post
Share on other sites

Can't run the bench at any other resolutions other than 1152x870x32 (crashes when switching to fullscreen), my desktop is at 1280x1024x32. Everything works fine otherwise, the app scared me. Natit Dual v.02 with 10.4.9 kexts, more at sig.



Palit Geforce 7600GT 256MB PCIe

Openmark Score: 16040 OpenMark_result.txt




Share this post


Link to post
Share on other sites

:) I'm surprised to see 7600GTs scoring higher then 7900GS' and very close to 7900GTs, I suspect something is very unwell with kext's responsible for 7900s.

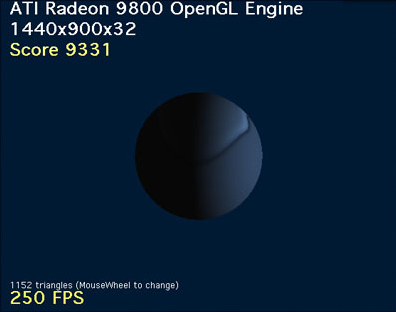

All benchies below were run at stock speeds.... Good old 9800, still pulling it's weight, damn that was a good card.





Share this post


Link to post
Share on other sites

Although i couldn't run the bench on my EIZO CRT, i changed monitors and on my Mitsubishi CRT i got the following results

Graphics = Gainward 7600GS passive Stock speed


Share this post


Link to post
Share on other sites

Well this makes me feel a bit better about my 7900 GTO. xBench had it running at around 160, which is quite a bit slower than my buddy's x1600 in his Macbook Pro. I'll be interested to see what his card gets in OpenMark. My result was a 23,557.




Share this post


Link to post
Share on other sites
:blink: I'm surprised to see 7600GTs scoring higher then 7900GS' and very close to 7900GTs, I suspect something is very unwell with kext's responsible for 7900s.



I was running the benchmark in 1680x1050 resolution. The 7600GT was running in 1100x700 or something like that. :P

Share this post


Link to post
Share on other sites

i really don't understand these numbers.



in consolation's post there is a 7600GT with a score of 16,040

and a 7600GS with a score of 10,396



but the GT was at 9 FPS

and theGS was 363 FPS





here is the part i don't understand, how does the GT get higher score

running 9FPS? that just doesn't make sense.





Share this post


Link to post
Share on other sites

The FPS probably dropped when the screenshot was taken...

Share this post


Link to post
Share on other sites
i really don't understand these numbers.



in consolation's post there is a 7600GT with a score of 16,040

and a 7600GS with a score of 10,396



but the GT was at 9 FPS

and theGS was 363 FPS





here is the part i don't understand, how does the GT get higher score

running 9FPS? that just doesn't make sense.









the bottom fps is just the fps thats currently going. if you used the tga that it output it would usally be 9fps.

screenshots will vary

Share this post


Link to post
Share on other sites

So could we normalize the results somehow?

Normalized Result = (Width x Height x Depth x Score)/1000000000

Using that formula would give the following:



DaxTsurugi 7900GS

(1680 x 1050 x 32 x 15769)/1000000000

= 890



consolation 7600GT

(1440 x 900 x 32 x 16040)/1000000000

= 665



My Nvidia 6200 PCI

(1280 x 1024 x 32 x 5807)/1000000000

= 243



SA22C 7900 GTO

(1280 x 1024 x 32 x 23557)/1000000000

= 988



Does this make sense or am I talking {censored}?

Share this post


Link to post
Share on other sites

How about trying this out, also includes a nifty utility:



OpenGL Extensions Viewer



It would make things easier IMHO, and it's not as buggy/picky with GioFX's fullscreen problems. I can run the included benchmarks in all resolutions, also has AA/AF tests and GPU capabilities.



Maybe a better Better OpenGL Benchmarking app? :P

Share this post


Link to post
Share on other sites
How about trying this out, also includes a nifty utility:



OpenGL Extensions Viewer



It would make things easier IMHO, and it's not as buggy/picky with GioFX's fullscreen problems. I can run the included benchmarks in all resolutions, also has AA/AF tests and GPU capabilities.



Maybe a better Better OpenGL Benchmarking app? :thumbsup_anim:





Multi-Render tests will crash on some hackies using OG Extension viewer, I think it's still affected by screen resolution (display mode selection) + lod/aa settings it would be even more of a pita to standardize. We could all agree to bench @ a lowest common denominator (1024x768) or a common resolution (1280x1024). First option will work on any display, but gives old/low end card a deceptive advantage, second may not be possible on all displays. Ritalin's normalization method seems to provide results approximate to what you see in the real world.



if you are interested in how these compare to PPC macs



mid-range



high-end



-you will need to register for the SDs site, but it's well worth the hassle.

Share this post


Link to post
Share on other sites

Actually - OpenMark seems reasonably resistant to resolution change, I benched at different resolutions:



1024x640= 655360pixels 16313

1440x900= 1296000pixels 16040

1280*1024=1310720pixels 16040



Doubling the pixels resulted in only a 1.7% drop; so the benchmarks at different resolutions are comparable.




Share this post


Link to post
Share on other sites

So I guess it doesn't really matter what resolution you bench it on, it just calculates pure GPU processing power. Nice.



I'm liking this bench more. Let's forget about me suggesting OpenGL Extensions Viewer :D And considering that the 7600GTs returned almost the same results (16040), makes it much more reliable than the other GPU benchmarks I know, even at different resolutions.

Share this post


Link to post
Share on other sites
