Broadcom FullMAC Wi-Fi support on macOS Sonoma, Sequoia and Tahoe without root patches

Austere.J

By Austere.J,
in LAN and Wireless

 Share
379 posts in this topic

Recommended Posts

fspkwonx86
fspkwonx86
Posted
Posted (edited)

are we supposed to keep the "US" country code for the card in our config.plist also is this dependent on the issued

extensions IOSkywalkFamily.kext IO80211FamilyLegacy.kext and AirportBroadcomFixup.kext? i know airportbroadcomfixups a no<-

but are the others required???????? i CAN just try it and see if it works without it

OK disable the IOSKywalk Downgrade under the BLOCK section of your config.plist it'll say Enabled </true>

change it to ENABLED </false> delete the entires for AirportBrcrm , IOSkywalkFamily, and IO80211FamilyLegacy , and it wont

kernel panic and it will load and actually work! BCM43602 in iMac 2017 18,1 non-retina

Edited by fspkwonx86
  • Like 1
jlrycm
jlrycm
Posted
Posted (edited)
2 hours ago, Hackintosh27 said:

Hello, does the Bcm94360cs2 device support it? I followed all the steps, but the Wifi button does not turn on.

@Hackintosh27  is this card based on the BCM43602 chipset, similar to the BCM943602CS? Is your device-I’d any of these two: 0x14E4, 0x43BA?



Edited by jlrycm
HyperX7
HyperX7
Posted
Posted
8 hours ago, Shaneee said:



sudo is required. You've already made the directory. You can use Terminal or Finder to copy the firmware file to the location,



sudo cp /Path/to/Firmware.bin /usr/local/share/firmware/wifi/

Or with Finder press Shift-Command-G and enter /usr/local/share/firmware/wifi/ and then drag the firmware.bin file in. You'll need to enter your password to authorise the copy.


Thank you.

Austere.J
Austere.J
Posted
  • Author
Posted
12 hours ago, HyperX7 said:

What is the probability of this card working? I want to try according to the return I will receive from you. Thank You!



How can I copy the firmware files to the /usr/local/share/firmware/wifi/ location. Terminal said permission denied.



Your BCM4350 is partially supported. As I stated in the Known Issues, you cannot connect to WPA/WPA2 protected access points at the moment, because the firmware does not support handling the four-way handshake. I need to add the support back via BCMC. Since BCMC is in public beta testing, you are welcome to give it a try and feel free to leave your feedback.



The easiest way to copy the firmware file is using Finder. You can also do that using the `cp` command:

sudo cp /path/to/your/firmware.bin /usr/local/share/firmware/wifi/
12 hours ago, gsxb said:

followed the instructions to the letter and nothing, it won't turn on still no wifi can someone check my config for mistakes

my hack boots fine however no wificonfig.plist



Would you mind identifying the device ID of your Wi-Fi chip? If it's 0x43A0, it is not supported by BCMC.

  • Like 3
Austere.J
Austere.J
Posted
  • Author
Posted
9 hours ago, Hackintosh27 said:

Hello, does the Bcm94360cs2 device support it? I followed all the steps, but the Wifi button does not turn on.



Your Wi-Fi card uses the BCM4360 chipset, so it is not supported by BCMC at the moment.

9 hours ago, fspkwonx86 said:

are we supposed to keep the "US" country code for the card in our config.plist also is this dependent on the issued

extensions IOSkywalkFamily.kext IO80211FamilyLegacy.kext and AirportBroadcomFixup.kext? i know airportbroadcomfixups a no<-

but are the others required???????? i CAN just try it and see if it works without it

OK disable the IOSKywalk Downgrade under the BLOCK section of your config.plist it'll say Enabled </true>

change it to ENABLED </false> delete the entires for AirportBrcrm , IOSkywalkFamily, and IO80211FamilyLegacy , and it wont

kernel panic and it will load and actually work! BCM43602 in iMac 2017 18,1 non-retina



You don't need to keep the country code in your config.plist. Please refer to the Country Code section in the manual and decide which option suits your needs.

The device properties needed by BCMC have nothing to do with the old wireless networking stack, and you should not enable those legacy kexts.

Glad to hear that BCMC works for you on your iMac 2017.

  • Like 2
Austere.J
Austere.J
Posted
  • Author
Posted
2 minutes ago, pico joe said:

Hi @Austere.J, first thank for your hardwork

but I'm trying here still cannot work, wifi still off and cannot ON, anyclue ?



  Hide contents






Thanks for your interest in this project. Unfortunately, your Wi-Fi card is BCM4360 (0x43A0) and is not supported at the moment.

schrup21
schrup21
Posted
Posted

Wow that's huge!!!

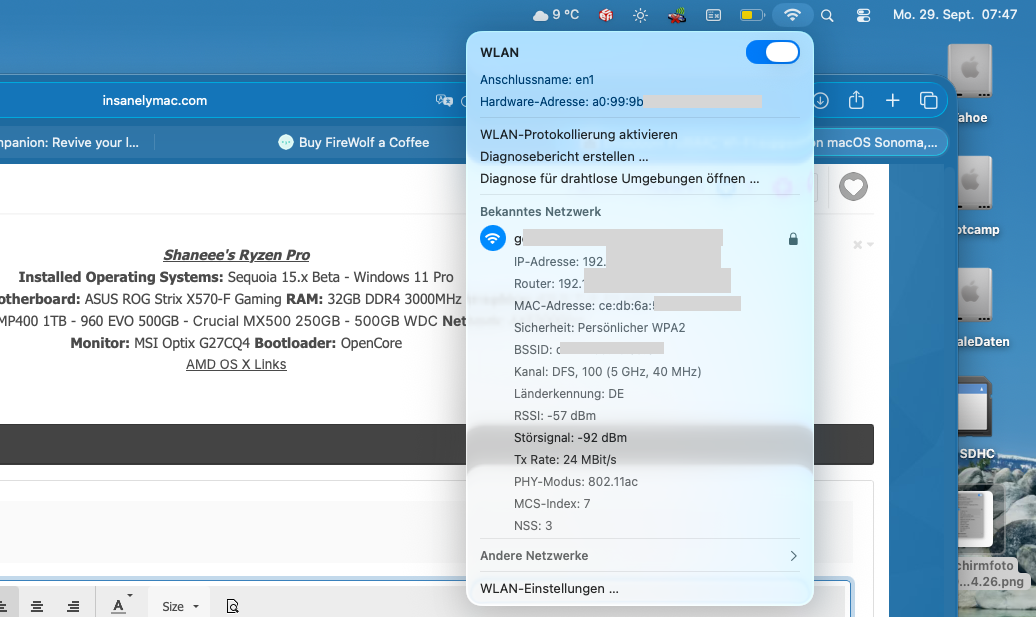

I got a BMC943602CS and my native WiFi is working under Tahoe!!!



I even forgot to deactivate OCLP-Mod Root Patch and booted with csr-active-config 03080000 - but it stil works!!!








Big thanks!!!





  • Like 4
  • Thanks 1
kgp
kgp
Posted
Posted

@Austere.J, I just ordered for a few bugs a Broadcom BCM943602CDP and a  BCM943602CDP WIFI WLAN Card to PCI-e 1x 16x Desktop PC WIFI Adapter for testing. Unfortunately, the latter will not arrive before 17 of October. Will it work?

nmano
nmano
Posted
Posted (edited)

I try still not work.

Hi

@Austere.J

Thanks for your hard work.

I Inject 0x43b1 to 0x43BA still not work please advise.





Edited by nmano
gsxb
gsxb
Posted
Posted (edited)
2 hours ago, Austere.J said:

Would you mind identifying the device ID of your Wi-Fi chip? If it's 0x43A0, it is not supported by BCMC.

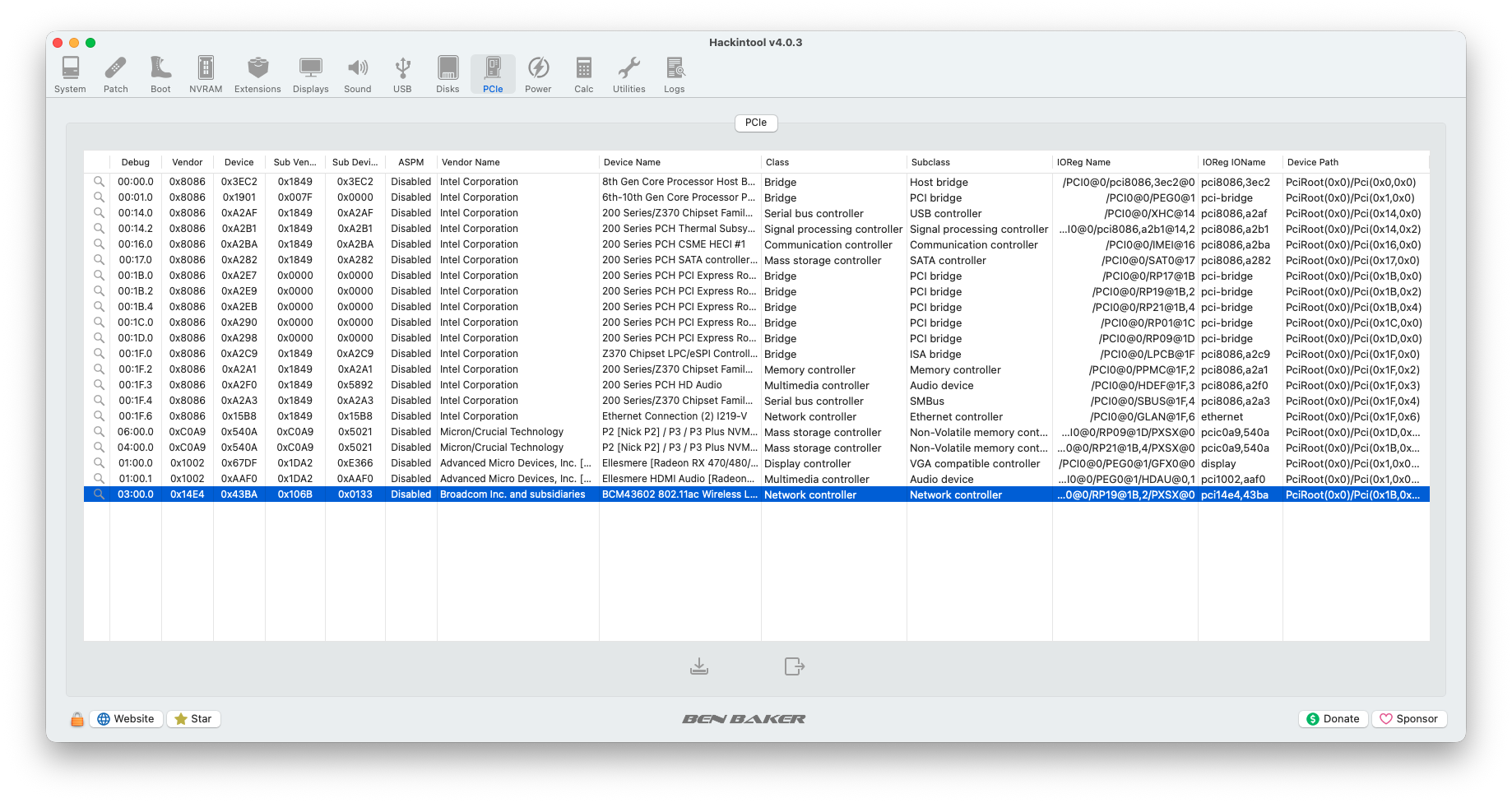

Hi there the card is

BCM43602 (0x14E4, 0x43BA)

macOS Tahoe 26,1

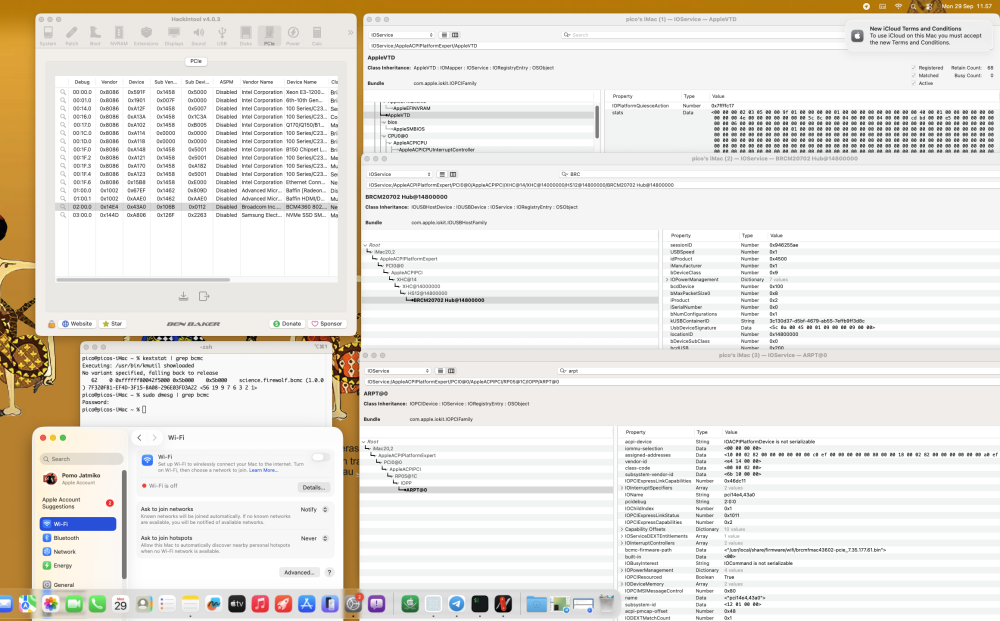

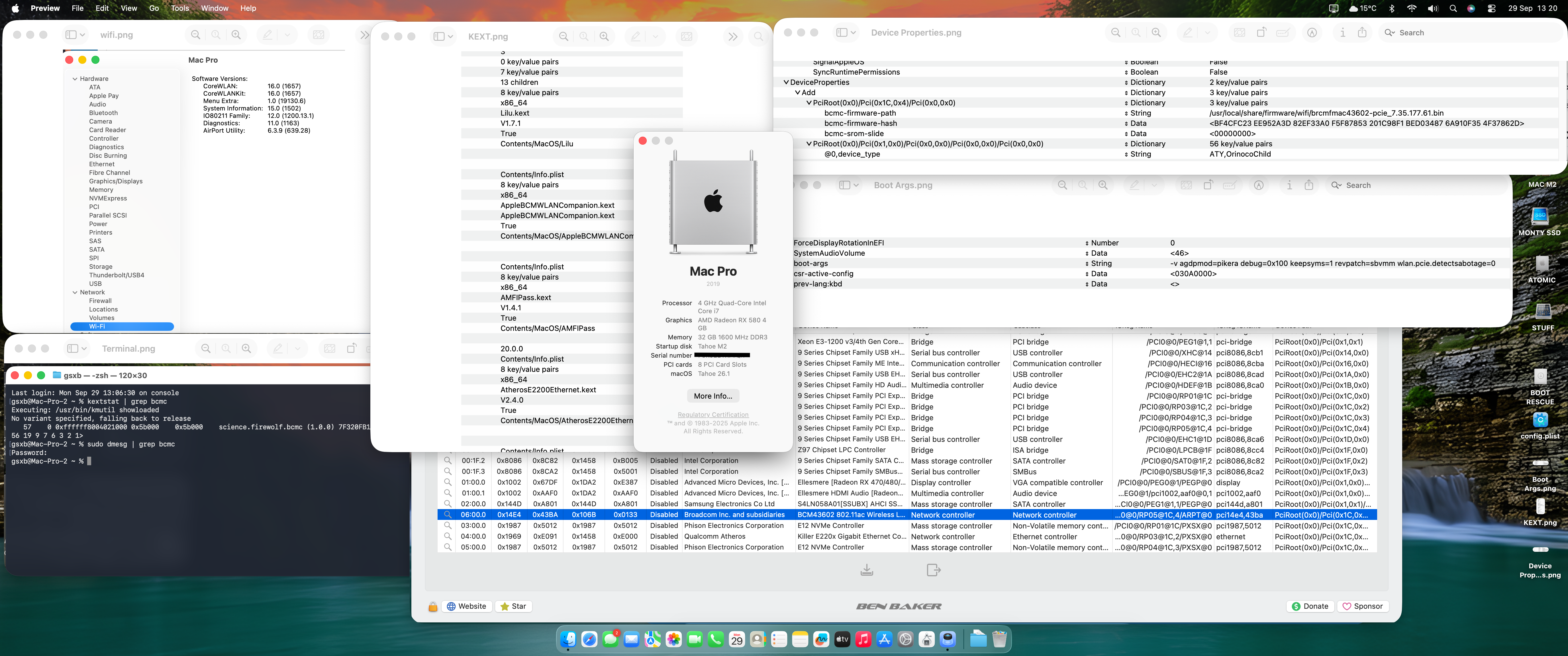

I’ll post some screen shot later with suggested terminal commands and  results

Edited by gsxb
  • Like 1
Perdu
Perdu
Posted
Posted
3 hours ago, Wayang-NT said:

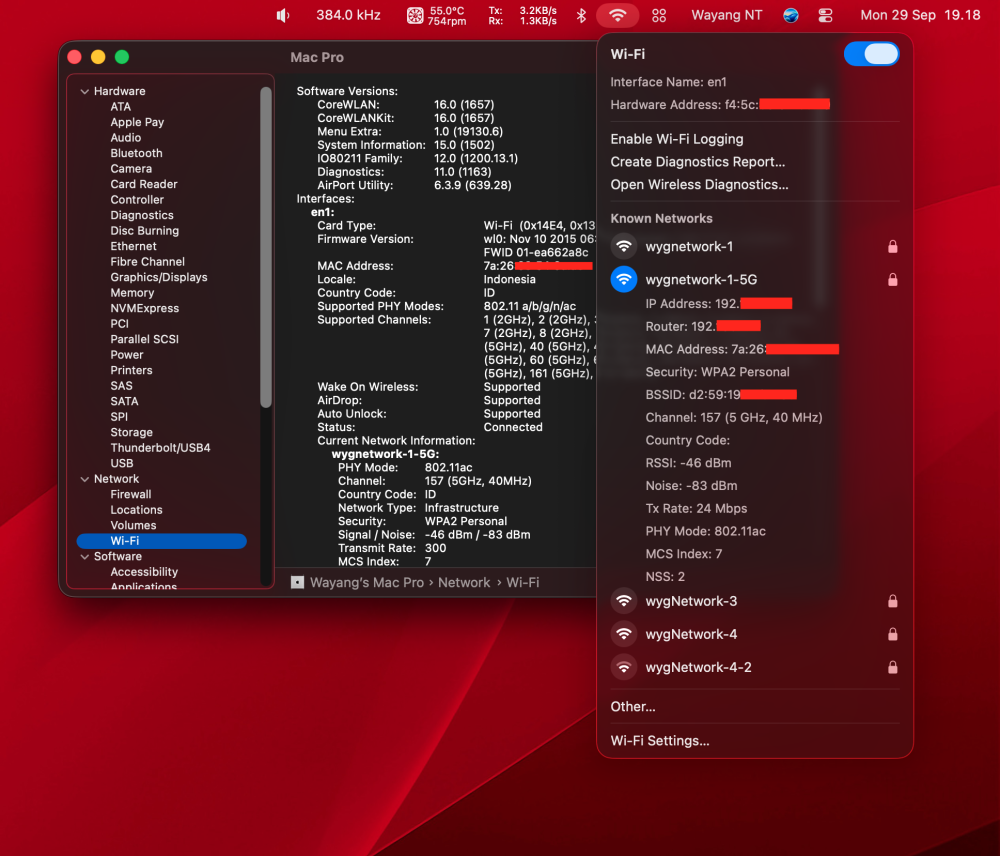

big thanks ... BCM943602CS with PCIe in macOS Tahoe 26.1 Beta ...




Hi, congratulations!

Would you be so kind as to share your EFI or card configuration?
I have the same card but I haven't been able to figure it out... thanks.



Spoiler




  • Like 2
schrup21
schrup21
Posted
Posted

@Austere.J you probably already checked the BCM firmwares available in the Linux Kernel Repository?

https://git.kernel.org/pub/scm/linux/kernel/git/iwlwifi/linux-firmware.git/

schrup21
schrup21
Posted
Posted
14 hours ago, CloverLeaf said:

Is there a way to fit BCM943602CS in any HP or Dell laptops?

I'm using one of these adapters in my 14 inch Lifebook U749, can be found on Aliexpress. You just have to be careful with these, the 3.3V line in the cable is right next to ground - I almost fried my M.2 connector when the laptop case pressed on the ribbon cable with a small nipple 😅




There's also a M.2 card with BCM943602, the DELL DW1830 - but the DELL needs BluetoolFixup for it's BT, so it isn't fully Continuity Features compatible.

  • Thanks 1
gsxb
gsxb
Posted
Posted
11 hours ago, Wayang-NT said:

here's my EFI focused only in wifi configuration ... I use 03080000 for csr-active-config ...

config-BCM.plist.zip 1.45 kB · 14 downloads

You have the hash check above the firmware location please explain as it’s the other way round on the instructions pages example plist

gsxb
gsxb
Posted
Posted (edited)

After two days of editing my opencore config and numerous reboots we have a winner

Austere.J you da man

HP 280 G2 SFF ( Ewaste )

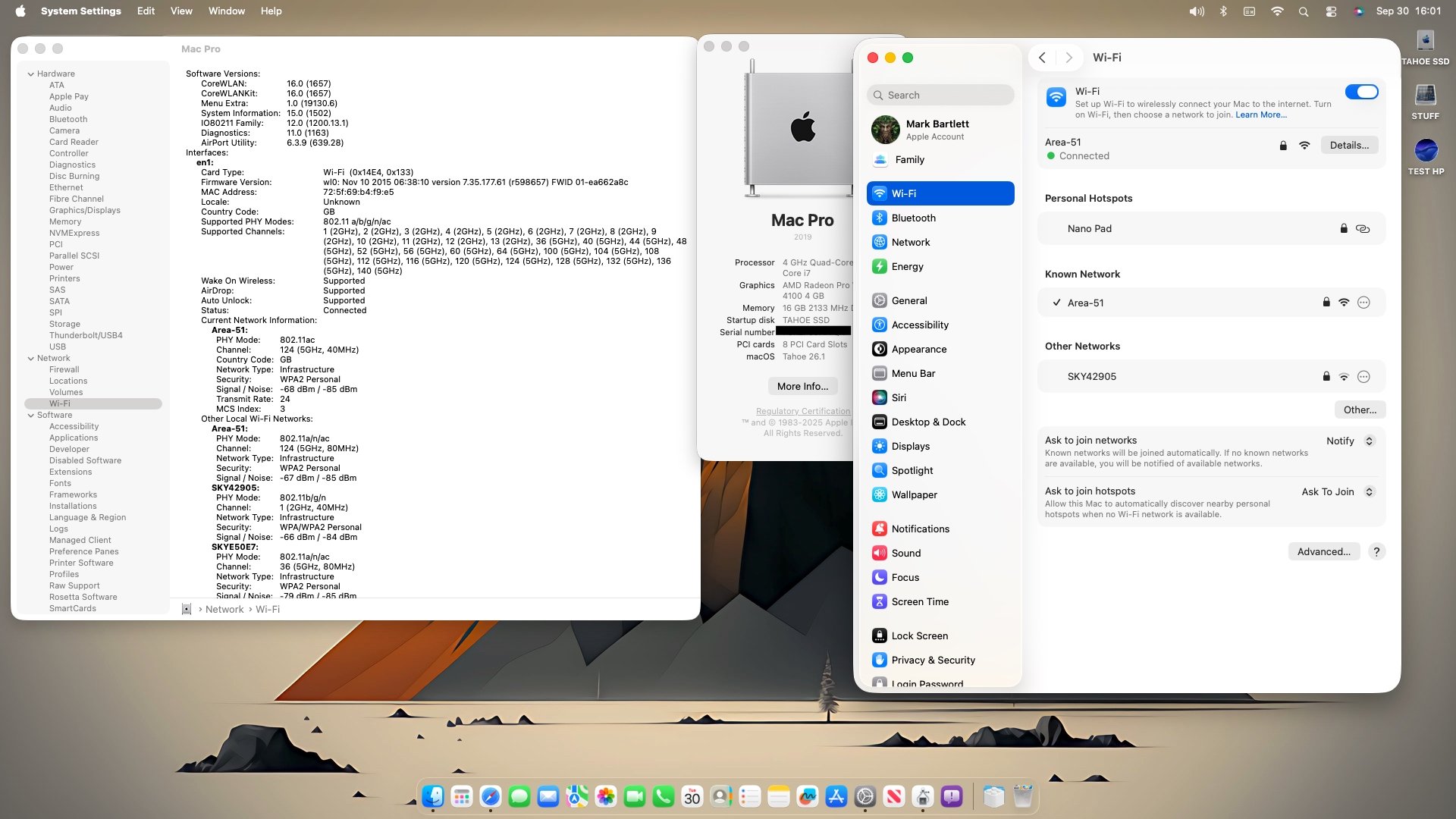

Native WiFi Working.jpg

Edited by gsxb
  • Like 4
schrup21
schrup21
Posted
Posted
2 hours ago, KGP-iMacPro said:

@Austere.J, or those guys who have it working: is AppleVTD deemed necessary for this solution? I am afraid, I cannot use DisableIOMapper=false due to other reasons....

VTD turned off - no WiFi



so it seems @Austere.J is telling the truth 😉

pkdesign
pkdesign
Posted
Posted

How do we identify Full and Soft cards? For instance would this card work?

https://www.ebay.com/itm/146173773561?_skw=BCM943602CS&epid=1542442036&itmmeta=01K6DW0MBNFDVKFAS3KBF6PVDE&hash=item2208a2c6f9:g:rvcAAOSwO6dnLnru&itmprp=enc%3AAQAKAAAA4FkggFvd1GGDu0w3yXCmi1deZBJIr0WJ6Qz87aP2deJaKOGVQIO0%2Bs10UuBBhSD%2BH8gLrSCGZpCqSz0WuTNGDDKmRdJUuF7guvfa5XonOfssxWqeStV511UFRLZRE8Cp5ILj0gczaNZh6xGj3B1aRcLcMOaRVnDjqlpwlfpuegHXN3iSD7lVFteblFdWDCiqcduF9t7GkfV75yFlNaL3YAC3RRRmQR81VugttVPBSLPamwTHrz4WYzk9LsRivMnFi1XaEw538g2EBmYnTXMTFnZa6RuZ5BURlq25c3bQlTPI|tkp%3ABFBMpsaCvLNm
