Get back Fenvi T919 and other Broadcom Wi-Fi on macOS 14 Sonoma thanks to OLCP

miliuco

By miliuco,
in OSx86 14.0 (Sonoma)

 Share
45 posts in this topic

Recommended Posts

  • 3 months later...
razor7
razor7
Posted
Posted

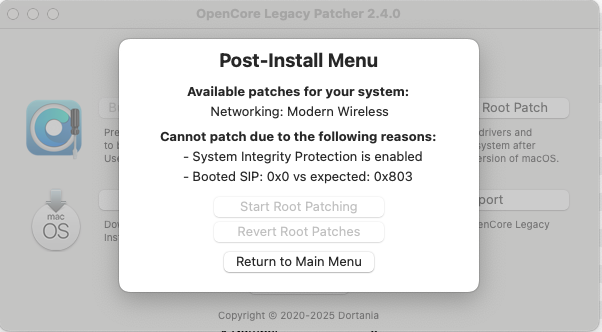

Hi guys! trying to post-install OCLP to enable wifi but got this popup, can you tell me if there's something wrong in my config.plist (attached) and how to disanle SIP as per OCLP requests to enable morder wifi post-install option.






Thanks!

config.plist

Cyberdevs
Cyberdevs
Posted
Posted

@razor7

You also need to add AMFIPass.kext

You can read the full instructions here:

https://community.macmeup.com/index.php?/topic/89-hackintosh-installing-macos-sonoma-beta/#comment-226

  • Like 1
fabiosun
fabiosun
Posted
Posted
8 minutes ago, razor7 said:

Hi guys! trying to post-install OCLP to enable wifi but got this popup, can you tell me if there's something wrong in my config.plist (attached) and how to disanle SIP as per OCLP requests to enable morder wifi post-install option.






Thanks!

config.plist 49.13 kB · 0 downloads



Have you cleaned Nvram on opencore boot menu?

then i advice to remove amfi bootarg and use amfipass.kext (1.41

razor7
razor7
Posted
Posted

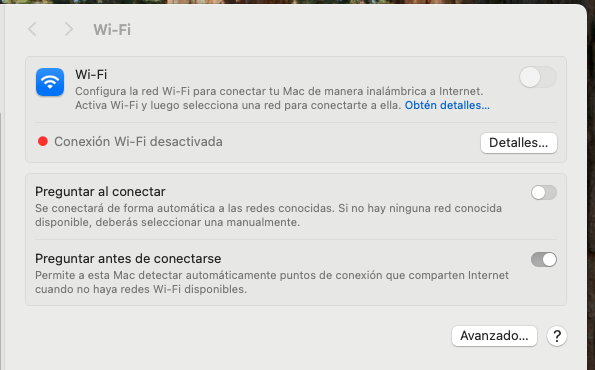

Tanks guys! resetting nvram did the trick and I was able to apply OPLP root patches, but after a reboot the wifi still doesn't work. My wifi card is a fenvi based on BCM43224



Attaching my config.plist after OPLC root patch applied

config.plist

miliuco
miliuco
Posted
  • Author
Posted (edited)

@razor7

If you change AirPortBrcmNIC.kext by AirPortBrcm4360.kext in config.plist makes it any difference? Only names, both are plugins of the same kext.


Edited by miliuco
Typo
razor7
razor7
Posted
Posted

Hi! for AirPortBrcmNIC I have

                <dict>
                    <key>Arch</key>
                    <string>x86_64</string>
                    <key>BundlePath</key>
                    <string>AirportBrcmFixup.kext/Contents/PlugIns/AirPortBrcmNIC_Injector.kext</string>
                    <key>Comment</key>
                    <string></string>
                    <key>Enabled</key>
                    <true/>
                    <key>ExecutablePath</key>
                    <string></string>
                    <key>MaxKernel</key>
                    <string>22.9.9</string>
                    <key>MinKernel</key>
                    <string>17.0.0</string>
                    <key>PlistPath</key>
                    <string>Contents/Info.plist</string>
                </dict>

                <dict>
                    <key>Arch</key>
                    <string>Any</string>
                    <key>BundlePath</key>
                    <string>IO80211FamilyLegacy.kext/Contents/PlugIns/AirPortBrcmNIC.kext</string>
                    <key>Comment</key>
                    <string></string>
                    <key>Enabled</key>
                    <true/>
                    <key>ExecutablePath</key>
                    <string>Contents/MacOS/AirPortBrcmNIC</string>
                    <key>MaxKernel</key>
                    <string></string>
                    <key>MinKernel</key>
                    <string>23.0.0</string>
                    <key>PlistPath</key>
                    <string>Contents/Info.plist</string>
                </dict>

And for AirPortBrcm4360 I have

                <dict>
                    <key>Arch</key>
                    <string>Any</string>
                    <key>BundlePath</key>
                    <string>AirportBrcmFixup.kext/Contents/PlugIns/AirPortBrcm4360_Injector.kext</string>
                    <key>Comment</key>
                    <string></string>
                    <key>Enabled</key>
                    <true/>
                    <key>ExecutablePath</key>
                    <string></string>
                    <key>MaxKernel</key>
                    <string>19.9.9</string>
                    <key>MinKernel</key>
                    <string>12.0.0</string>
                    <key>PlistPath</key>
                    <string>Contents/Info.plist</string>
                </dict>

What should I do because the only thing I see is the max kernel of AirPortBrcm4360_injector set to 19.9.9 which seems to be the right thing to do according to https://github.com/acidanthera/AirportBrcmFixup?tab=readme-ov-file#please-pay-attention



Did I miss something?

razor7
razor7
Posted
Posted (edited)

Well reviewing my AliExpress order from 08/26/2019 I got the right model so OCSysInfo says it's a BCM43224 but the bought model claimed to be BCM94352Z so, maybe OCSysInfo is wrong or I was scammed by the Ali Express vendor jeje.




Edited by razor7
miliuco
miliuco
Posted
  • Author
Posted

@razor7

I didn't explained myself well, I wanted to say: disable AirPortBrcmNIC.kext leaving only AirPortBrcm4360.kext for a BCM43224 chip but I'm afraid that BCM94352Z is not supported.

  • Like 1
notobo
notobo
Posted
Posted (edited)

Fenvi HB1200 is no longer made with BCM94360, instead it come with BCM94352, 0x14e4,0x43b1. So, you must for BT install all Brcm kexts with BlueToolFixup, BrcmFirmwareData and BrcmPatchRAM3.



However, on cd which come with card is still win drivers for 94360.



Do you have any knowledge on this matter?

Edited by notobo
  • Like 1
razor7
razor7
Posted
Posted (edited)

Thanks for the reply!

I have some experience creating my hackintosh. Back in the day I followed the Dortania guide step by step, and also modified the ACPI files for tailored config of my rig...



This is my current hardware, maybe RTL8188EE is creating some conflicts?

Hardware

Quote



─ CPU

  └── Intel(R) Xeon(R) CPU E5-2680 v4 @ 2.40GHz

      ├── Cores: 14 cores

      ├── Threads: 28 threads

      ├── SSE: SSE4.2

      └── SSSE3: Supported



─ Vendor

  ├── Model: iMacPro1,1

  └── Manufacturer: Acidanthera



─ GPU

  └── AMD Radeon RX 580

      ├── Vendor ID: 0x1002

      ├── Device ID: 0x67df

      ├── PCI Path: PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0)

      ├── ACPI Path: \_SB.PCI0.BR3A.H000

      └── Codename: Polaris 10



─ Network

  ├── BCM43224 802.11a/b/g/n

  │   ├── Device ID: 0x4353

  │   ├── Vendor: 0x14e4

  │   ├── PCI Path: PciRoot(0x0)/Pci(0x1c,0x3)/Pci(0x0,0x0)

  │   └── ACPI Path: \_SB.PCI0.RP04.D074

  ├── RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller

  │   ├── Device ID: 0x8168

  │   ├── Vendor: 0x10ec

  │   └── PCI Path: PciRoot(0x0)/Pci(0x1c,0x2)/Pci(0x0,0x0)

  └── RTL8188EE Wireless Network Adapter

      ├── Device ID: 0x8179

      ├── Vendor: 0x10ec

      └── PCI Path: PciRoot(0x0)/Pci(0x1c,0x1)/Pci(0x0,0x0)



─ Audio

  ├── C610/X99 series chipset HD Audio Controller

  │   ├── Device ID: 0x8d20

  │   ├── Vendor: 0x8086

  │   ├── PCI Path: PciRoot(0x0)/Pci(0x1b,0x0)

  │   └── ACPI Path: \_SB.PCI0.ALZA

  └── Ellesmere HDMI Audio [Radeon RX 470/480 / 570/580/590]

      ├── Device ID: 0xaaf0

      ├── Vendor: 0x1002

      ├── PCI Path: PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x1)

      └── ACPI Path: \_SB.PCI0.BR3A.H001



─ Input

  └── USB Receiver (USB)

      ├── Device ID: 0xc52b

      └── Vendor: 0x46d



─ Storage

  ├── Samsung SSD 970 EVO Plus 1TB

  │   ├── Type: Non-Volatile Memory Express (NVMe)

  │   ├── Connector: PCI-Express

  │   └── Location: External

  ├── KINGSTON SA2000M81000G

  │   ├── Type: Non-Volatile Memory Express (NVMe)

  │   ├── Connector: PCI-Express

  │   └── Location: Internal

  └── TEAM TM8FP6002T

      ├── Type: Non-Volatile Memory Express (NVMe)

      ├── Connector: PCI-Express

      └── Location: External



─ Displays

  ├── LGFULLHD (AMD Radeon RX 580)

  │   ├── Product ID: 0x5b55

  │   ├── Vendor ID: 0x1e6d

  │   ├── Serial: 0x0

  │   ├── Resolution: 1344x1080

  │   ├── Size (in inches): 22”

  │   ├── Display mode: Landscape

  │   ├── Connector: DisplayPort

  │   └── Aspect ratio: 5:4

  └── LGFULLHD (AMD Radeon RX 580)

      ├── Product ID: 0x5b55

      ├── Vendor ID: 0x1e6d

      ├── Serial: 0x0

      ├── Resolution: 1344x1080

      ├── Size (in inches): 22”

      ├── Display mode: Landscape

      ├── Connector: DisplayPort

      └── Aspect ratio: 5:4









config.plist



On 8/22/2025 at 1:41 PM, miliuco said:

@razor7

I didn't explained myself well, I wanted to say: disable AirPortBrcmNIC.kext leaving only AirPortBrcm4360.kext for a BCM43224 chip but I'm afraid that BCM94352Z is not supported.

Sorry to bother, but in your signature you state that you have a working Intel AX210 card with Sequoia, ¿is that correct? It's difficult to raise? Because I can buy one right away.

Edited by razor7
razor7
razor7
Posted
Posted

Thanks a lot guys! I decided to give up, mainly because my rig is a desktop son no real need of WiFi, and bluetooth just works as expected.



For AirDrop I'm using a really cool replacement called PairDrop, an open source web app that emulates AirDrop and even works multi platform, multi device and even on devices on WAN if you want
