Sonoma Wi-Fi solutions that do not require disabled SIP (e.g. Intel AX210)

[derpuma]

@eSaF

Hm okay, I will try this later. Thx.

Unfortunately I installed the wifi-bt card under sunoma, bought it extra cause my broadcom was not compatible without OpenCorePatcher.
But we will see.



Update: FYI that did not work...

Edited March 11, 2024 by derpuma

[Max.1974]

11 hours ago, derpuma said:

@Max.1974 Thanks for your reply. I managed the mapping of all USB Ports, nevertheless BT is not working.


These are the mapped Ports. The internal is the USB BT part.






Still Bluetooth-Controller: Adresse: NULL under Bluetooth...



It must be the KVM macOS which causes the problem, as the other guy here with the same issue I have, also uses a KVM macOS.

https://github.com/OpenIntelWireless/IntelBluetoothFirmware/issues/476



I also worked my way through this guide, but this also doesn't fix the problem.

I am really clueless, what else to do...

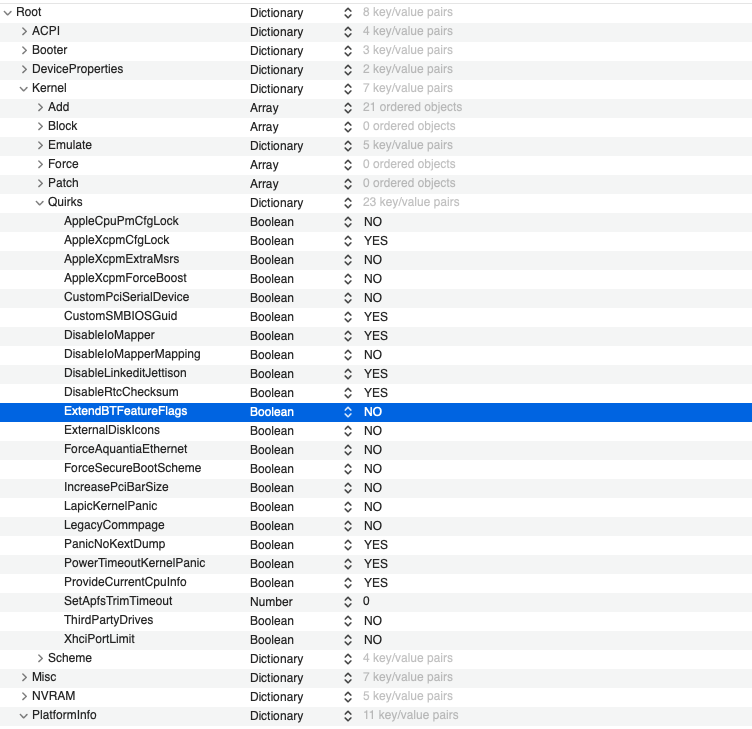

Check if you use Opencore if this parameter is enable:



if was, turn off (NO)



Need check your kexts, SSDTs, plist, maybe need use SSDTTime, and what a reason of not work.



Hackintosh is not easy, but need study hardware by hardware, Bios etc.



Check if your BT works fine with Windows, if is turn "ON" (ENABLE) on Bios.



Are you extract SSDT-RHUB and follow my video? Post here your SSDT to check for you and Kexts that you Map

Edited March 12, 2024 by Max.1974

[Max.1974]

@derpuma I report too, that many users from Opencore has the same problem. If you can test Clover, will be fine.

[derpuma]

@Max.1974

As mentioned before, I dont run my mac as a hackintosh. I run my macOS via Unraid KVM in a virtual machine.
ExtendBTFeatureFlags is off in my EFI.
Another KVM user reported the same issue under Sonoma too.
https://github.com/OpenIntelWireless/IntelBluetoothFirmware/issues/476
I am completely new to SSDT patching, so here is my SSDT attached.

Here is a link to my EFI.
I also attached my System Report plus some other reports.



SSDT.zip iMac Pro_System_Report.zip Reports.zip

[Max.1974]

Yes, I will check your EFI and SSDT but is difficult works on Virtual Machines. Thanks!!

[Max.1974]

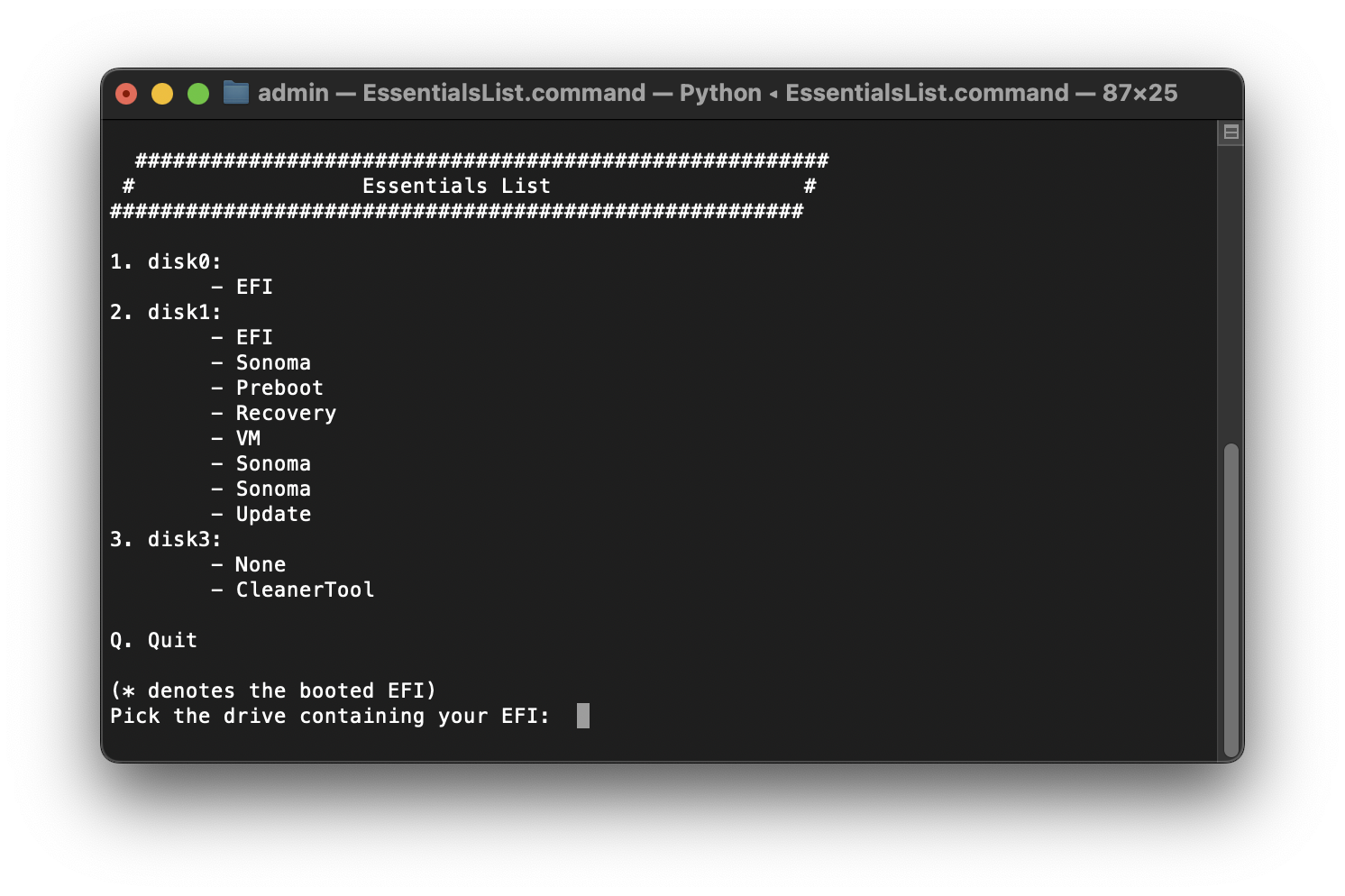

Run this 2 programs and send to me your ACPI Tables



And inform your Motherboard model and Processor.



I saw you have same GPU that mine.



https://github.com/LAbyOne/ACPIDump



And this



https://github.com/corpnewt/EssentialsList



Need Python installed





@derpuma

[logyon]

My AX210 intel card arrived today.



Works well under W11 and now trying to get it set up under mac osx ventura with the future options to upgrade to Sonoma as soon as i can with out any issues.



Not sure fully were to start.  I did try and add them to my efi file originally under kext and the plist i tried to update however my device would not get past the scroll bar for loading.



So i reverted back to my previous efi folder.  I have open core 9.8 running

[Max.1974]

Start here with @miliuco post on first page



And optional videos



Spoiler





Just follow vídeo, not need speak Portuguese

[derpuma]

@Max.1974 I really appreciate your help.

Attached you find my ACIP Dump.

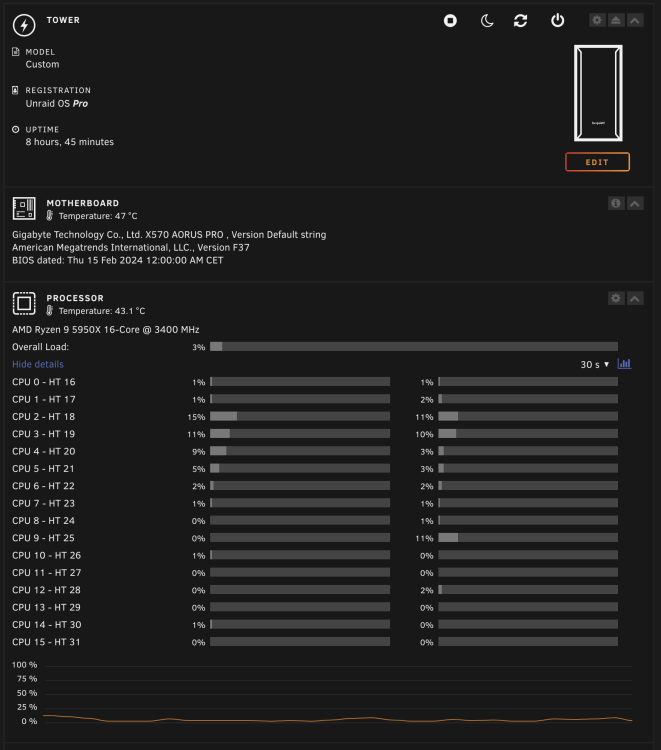

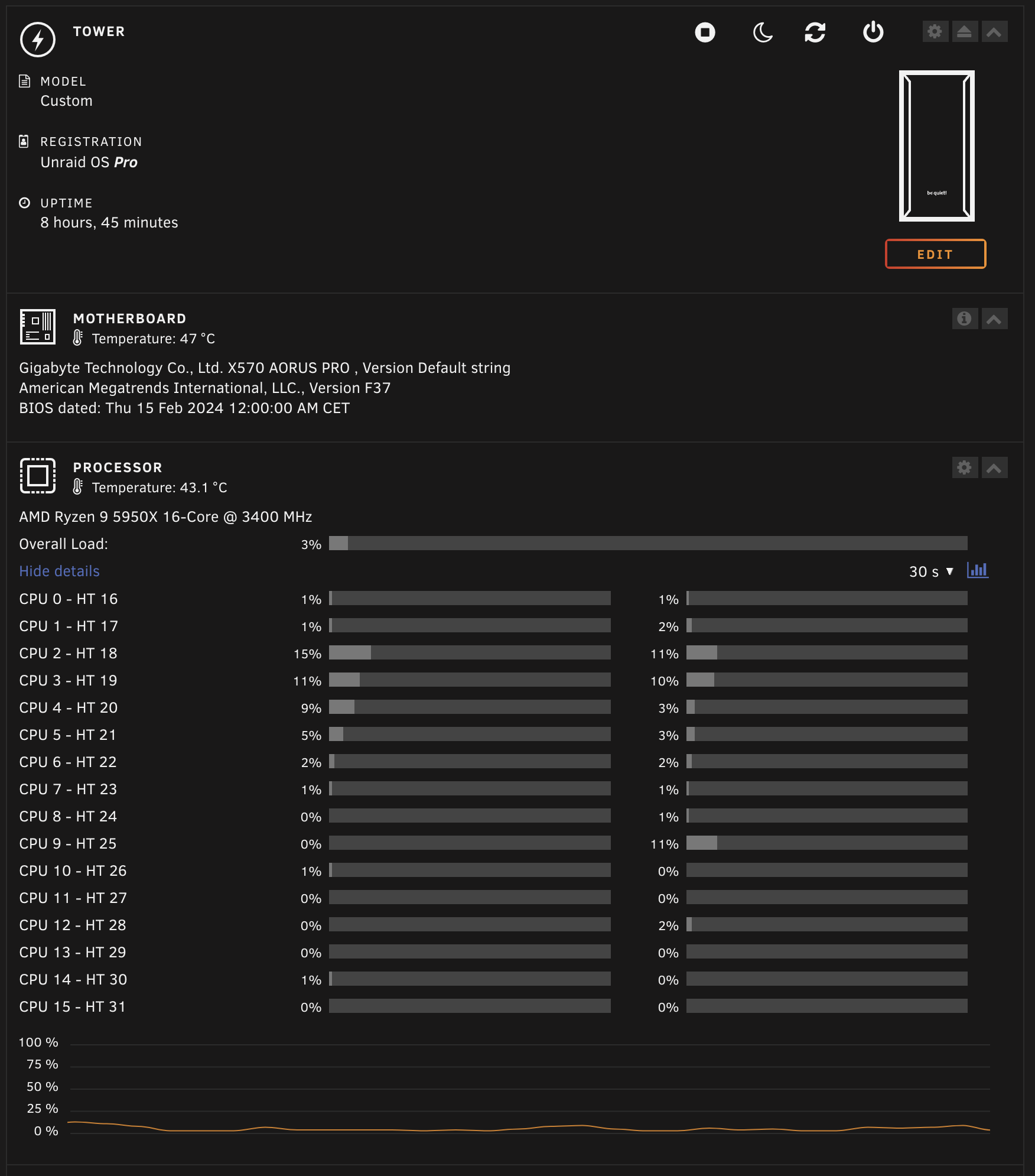

Also attached a info screenshot of my System: AMD Ryzen 7 5950X and Gigabyte Aorus X570 Pro, latest Bios F37. GPU AMD 6900XT.

What do you want me to do with EssentialList?


ACPI-Dump.zip

Edited March 12, 2024 by derpuma

[Max.1974]

And please use Clover because Opencore have been many issues

2 minutes ago, derpuma said:

@Max.1974 I really appreciate your help.

Attached you find my ACIP Dump.
Also attached a info screenshot of my System: AMD Ryzen 7 5950X and Gigabyte Aorus X570 Pro, latest Bios F37. GPU AMD 6900XT.

What do you want me to do with EssentialList?


ACPI-Dump.zip 34.91 kB · 0 downloads



Its Ok fine I will see





[Max.1974]

@derpuma So my friend, its a little difficult to works with Opencore on Ryzen in situation what happen with this bootloader.



Im never had a RyzenTosh but im research and compare your EFI, I try make some adjusts.



Im really recommend use Hackintosh on intel.



Try use this EFI, backup yours.



Please post results here.



If you need, follow step by step this video, not need speak Portuguese. Just follow and make your EFI if you need.



Spoiler







I hope help you



I do my best



Good Lucky





EFI RYZEN 9 5950X 16cores.zip

[logyon]

Update - Bluetooth is now working.



Now just to get the wifi to work with the airport native menu  rather than heliport



[Anto65]

https://github.com/OpenIntelWireless/itlwm/releases/tag/v2.3.0-alpha

[derpuma]

@Max.1974

Wow!!! I can not thank you enough. It indeed works now.
Can you explain me what you exactly did? I saw that you put some new kext into the EFI.

What do you mean is the change you did, that brought Bluetooth to life?
Just for my understanding!
I dropped you a PM...
I am really happy now.



I found two little Problems.
One is, AppleALC is not working, so no onboard sound. Maybe something to to with the next error?
Two errors in Validator:

Kernel->Add[0]->BundlePath contains illegal character!

Kernel->Add[3]->BundlePath contains illegal character!

CheckKernel returns 2 errors!



Completed validating /Volumes/EFI/EFI/OC/config.plist in 1 ms. Found 2 issues requiring attention.

So the Problems are with AirPort Utility.kext and Bluetooth File Exchange.kext.
Any Idea whats wrong there?

I will look into that tomorrow...

Edited March 12, 2024 by derpuma

[logyon]

Thanks to the last link that was posted with the wifi driver  - Now up and running with Ventura 13.6.5



Thinking about now upgrading to Sonoma Next



1 hour ago, Antonuccio said:

https://github.com/OpenIntelWireless/itlwm/releases/tag/v2.3.0-alpha



[Max.1974]

@derpuma my friend, so glad to help you, don't worry about me, you can count with me and other people here.



So pleasure help you!!



Im just study others EFI from GitHub and try use some parameters that is similar.



Hackintosh is like a garden, always we have something to do!!



God Bless you and all here!!





Spoiler



PM: AirPort Utility.kext and Bluetooth File Exchange.kext is a friend that compile, and use only Apple parameters. just to effort Bluetooth. Its not recognize by OC Team, but its not problem. Is optional, I use because like you said, gave me LIFE for my HID Proxy (Keyboard BT recognize on boot - BT Broadcom) to be better smooth and always connect without clicks after reboot. It's 100% Apple Xcode parameters, so don't worry, use with ANY BT resources.



https://github.com/hnanoto





If you not fix Audio, will try put on Devices properties. Its the reason that im ask to you run Essential List tool, you can extract with Hackintool too your Devices. If you not know, im explain.



Backup your EFI and I avoid to use OCAT or OCLP, but I prefer use just Xcode, Plist Editor Pro or ProperTree, MAciASl, Clover Configurator, Opencore Configurator. If you decide to use, is at on your risk.



You can run AIDA64 on Windows too to get exactly what is your Soud card. Or try use VoodooHDA kext instead to AppleALC. No use both kexts.









Edited March 12, 2024 by Max.1974

[Max.1974]

Hi my brother @eSaF I know, its not to offend but we get many users that not know USE OCAT, not like you, that have experience. I just try avoid newbie's users far way get trouble





The most important that is just Running Up Ryzentosh !!

[Anto65]

Dear MAX no offense



However, I believe the opposite because it is so simple and suitable for new users (am I wrong or were you using it until a few months ago? 😋 ) who would perhaps get lost with more complex tools like xcode or other



I would also like to point out that you state that OC is full of issues and to migrate to other bootloaders ... Please also no 🙈



Thanks anyway for the effort you put in, I really appreciate it

[Max.1974]

@Antonuccio

Mama mia bambini!!



Hello my friend, of course I don't offend, I'm almost halfway through my life, so I've had time to grow a little. We have a large community in Brazil and on Discord, my brother, and people don't have the ease of using it as you do.

As for Opencore, wonderful bootloader, but it is true to recognize that it is currently causing problems. I've seen several friends having problems with the OCAT, if it's not great, keep going. But the same Esaf once asked for help and I knew it was the use of OCAT. He knows too, because I warned him. But then it works, thank God. I don't use it and I don't recommend it.

Opencore Antonio is having problems, at least in Brazil, at least for me, regarding Bluetooth and such. Using Clover even AirDrop works with Intel!! But I want to say that this site was born with Chameleon, then Clover. I respect the creators of Opencore and have a lot of respect for everyone. But they are more concerned about OCLP, which even hackers are afraid to use, and abandoning the use of Opencore for Hackintoshes. If I can't say that Clover is far superior to Opencore, I'll be lying. Opencore is the result of Clover's many years of research. It's not an invention, it's an arm of Clover. And Clover needs him today. After years of using OC I decided from experience that today, currently and with all the adjustments (partly coming from OC) it is much superior. But I won't comment further on whether this could be a problem. I only say what I see, what I feel, and what I experience empirically. How many advanced users also had no problem with OC? Many. But this is not the case to discuss that. I just respect those who like it, but it doesn't work. And I, who don't even have Ryzen, managed to help a German today. Hugs!! Don't take it Personally.



Thanks for your effort and Lorys and all

Edited March 12, 2024 by Max.1974

[Anto65]

11 hours ago, Max.1974 said:

Opencore Antonio is having problems, at least in Brazil

 Maybe in Brazil there is another version of OC ... I'm joking of course



No one will be offended here I would just be careful with certain statements
on the other hand, if I come across a user with problems who uses Clover, I certainly won't tell them to migrate to Opencore or vice versa



As an old fox told me

" remember that if there is a problem, most of the time it is between the chair and the desk " 😆
Let's close it, I don't want to dirty this thread further... a hug

Edited March 13, 2024 by Antonuccio

[Max.1974]

When you have some time, please check here, translate and turn back this pages a little bit.



It's not my words but the developers and Russian users. Its not only in Brazil 😆



https://applelife.ru/threads/opencore-obsuzhdenie-i-ustanovka.2944066/page-859

[derpuma]

10 hours ago, Max.1974 said:

If you not fix Audio, will try put on Devices properties. Its the reason that im ask to you run Essential List tool, you can extract with Hackintool too your Devices. If you not know, im explain.



Backup your EFI and I avoid to use OCAT or OCLP, but I prefer use just Xcode, Plist Editor Pro or ProperTree, MAciASl, Clover Configurator, Opencore Configurator. If you decide to use, is at on your risk.



You can run AIDA64 on Windows too to get exactly what is your Soud card. Or try use VoodooHDA kext instead to AppleALC. No use both kexts.











@Max.1974 good morning and thank you for your explaition. Apple ALC worked with my EFI, when I am using the on you send me, my onboard Soundcard is not working. So there must have been a change, which influenced that.

My onboard soundcard is this one, based on ALC1200:
10:00.0 1022 1487 1458 A0C3 Disabl Advanced Micro Devices, Inc. [ Starship/Matisse HD Audio Controller               Multimedia controlle Audio device         /pci1022,1487@0 pci1022,1487    PciRoot(0x0)/Pci(0x2,0x6)/Pci(0x0,0x0)

Update: I found the problem with AppleALC. It was the kext!
The kext you put into my folder was only 453kb. I used my old one, which is 2,3MB and now onboard sound is back!

Thx a lot!



Edited March 13, 2024 by derpuma

[Max.1974]

3 hours ago, derpuma said:



@Max.1974 good morning and thank you for your explaition. Apple ALC worked with my EFI, when I am using the on you send me, my onboard Soundcard is not working. So there must have been a change, which influenced that.

My onboard soundcard is this one, based on ALC1200:
10:00.0 1022 1487 1458 A0C3 Disabl Advanced Micro Devices, Inc. [ Starship/Matisse HD Audio Controller               Multimedia controlle Audio device         /pci1022,1487@0 pci1022,1487    PciRoot(0x0)/Pci(0x2,0x6)/Pci(0x0,0x0)

Update: I found the problem with AppleALC. It was the kext!
The kext you put into my folder was only 453kb. I used my old one, which is 2,3MB and now onboard sound is back!

Thx a lot!





Very nice @derpuma yes your Kext is better for your audio!!!! So very Awesome!!



Enjoy my friend, if you need im here for help!!



God Bless you!!



[miliuco]

@Max.1974



Congrats! You have been able to help @derpuma to fix his issue. 👏



Edited March 13, 2024 by miliuco

[Max.1974]

7 hours ago, miliuco said:

@Max.1974



Congrats! You have been able to help @derpuma to fix his issue. 👏



Thank You my brother !!
