Sonoma Wi-Fi solutions that do not require disabled SIP (e.g. Intel AX210)

[prcmelo]

On 2/29/2024 at 10:57 PM, Max.1974 said:



Hi @prcmelo you can try use this program, works fine!



https://github.com/Plutoberth/SonyHeadphonesClient/releases/tag/v1.3.2



@Max.1974 thank you, friend!!! I'm gonna have a look at this app! 👍🏻

[derpuma]

So my card arrived today. It is the Ziyituod AX210S.

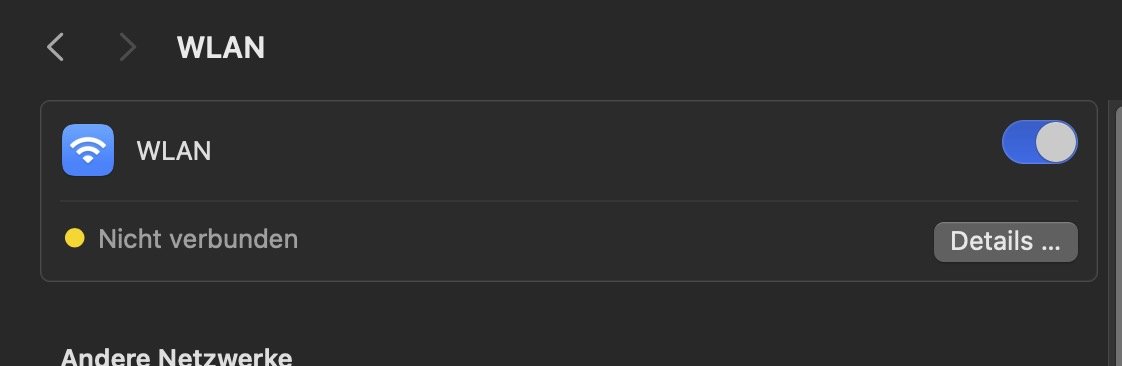

Wifi does work. Therefor I used the AirportItlwm.kext for Sonoma 14.3.x. I am on 14.3.1.

Bluetooth does not work. I tried it with the OpenIntelWireless Kext 2.4.0 and 2.3.0.

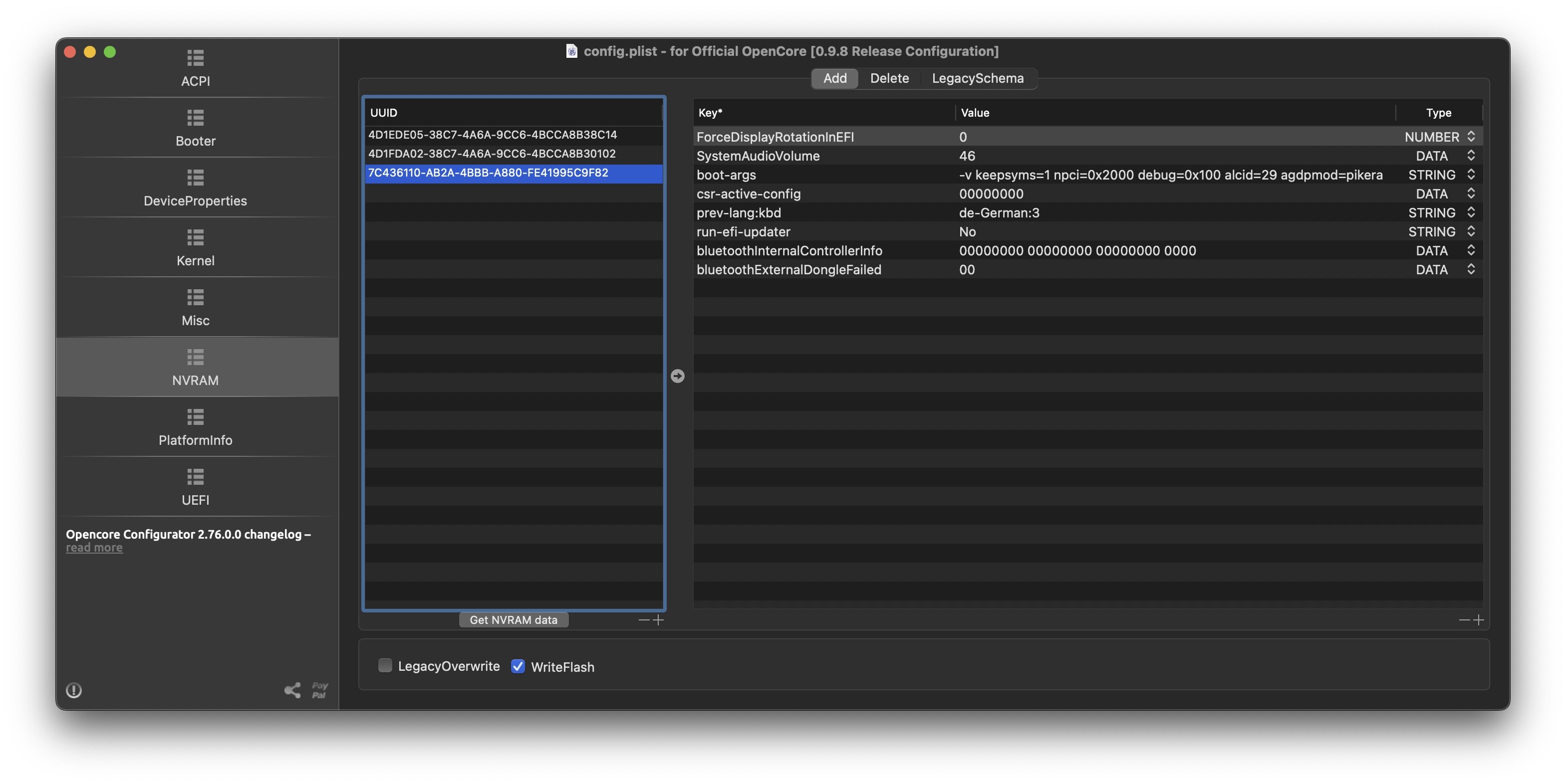

Any help with that? I attached my config.plist, if someone could look at it if something is wrong.
Thx.



config.plist



Spoiler

Edited March 5, 2024 by derpuma

[Max.1974]

@derpuma

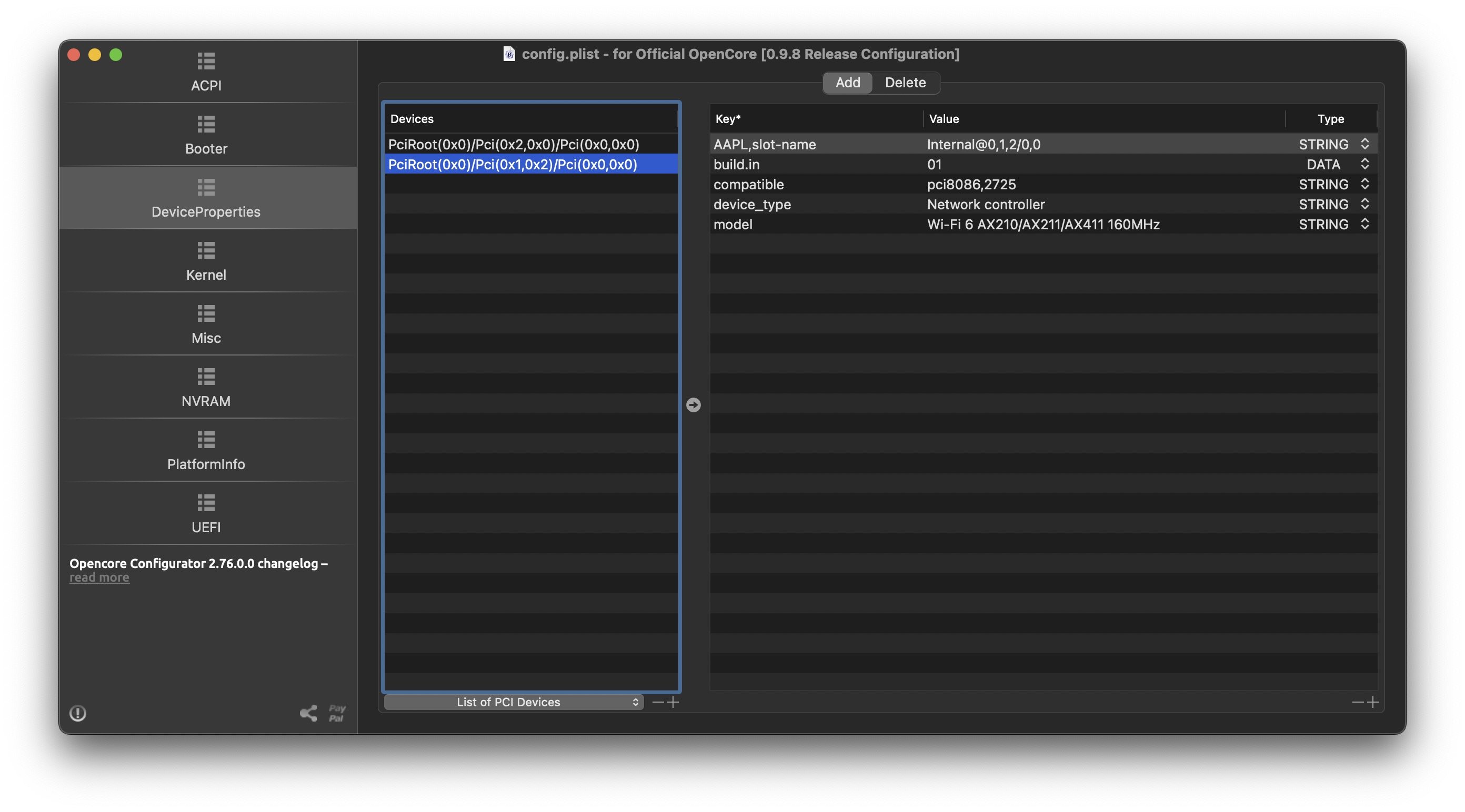

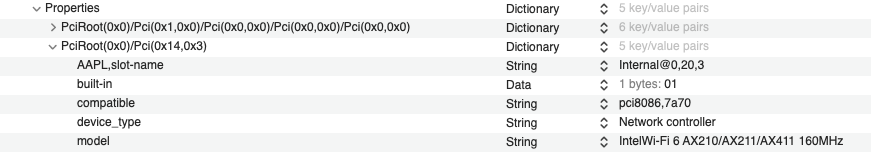

Hi, are you try put in Device Properties the extraction from Hackintool about your Card?

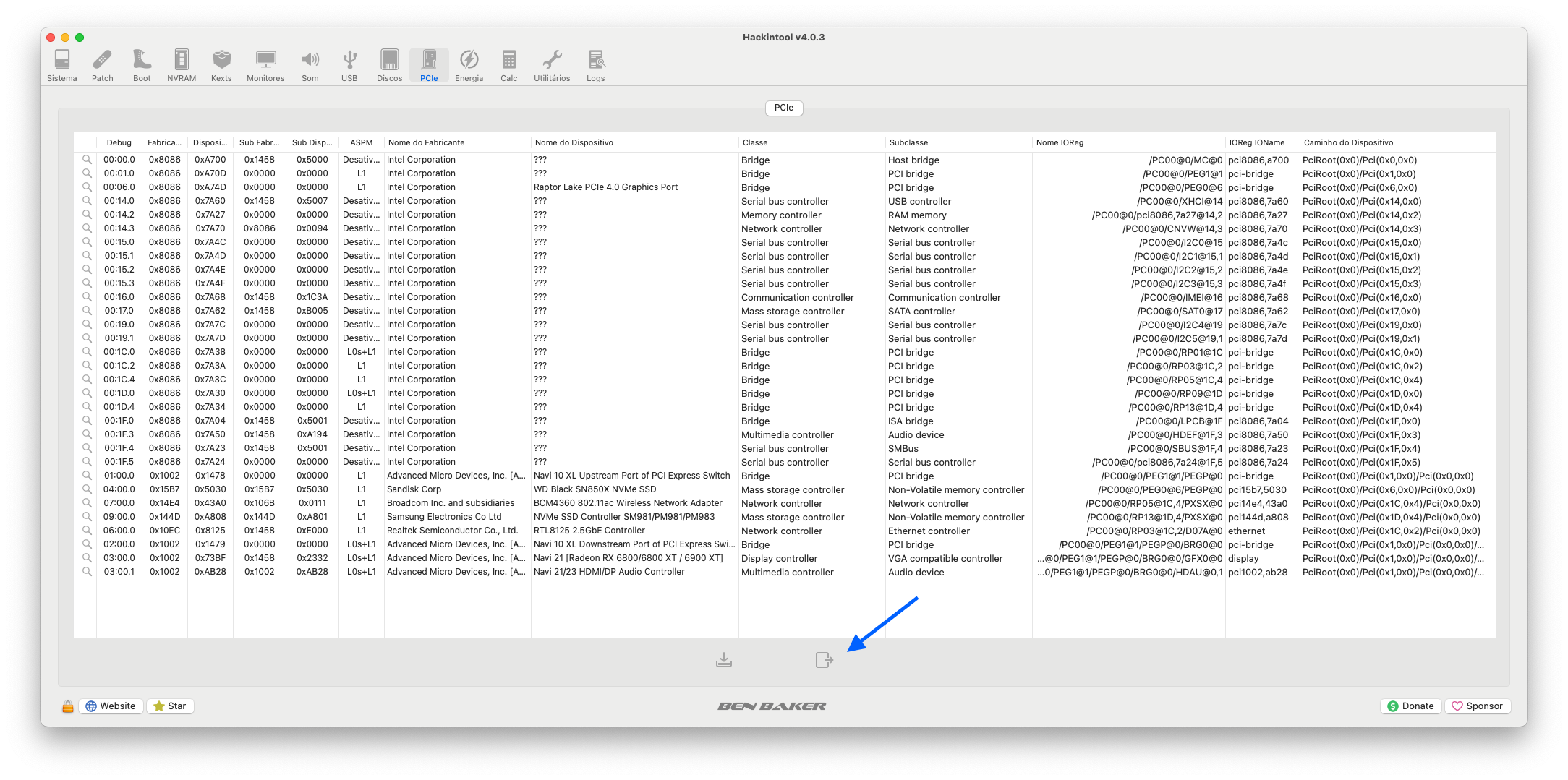

Check in Hackintool > PCie > and Export Button



See:

Spoiler





After that take pcidevices.plist extracted and copy your Wireless Card to Devices on your EFI config.plist









And if you want, test my useful  kexts for Intel Bluetooth

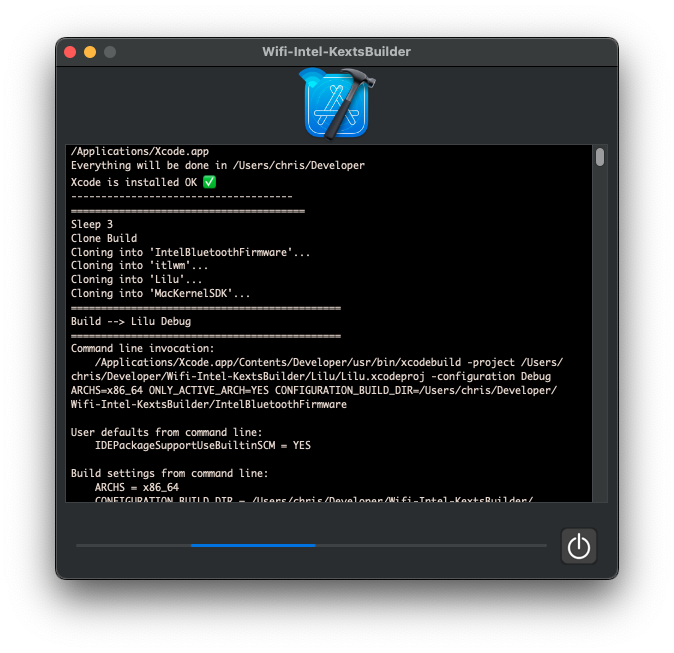

And check this program too created by @chris1111



https://github.com/chris1111/Wifi-Intel-KextsBuilder







Intel Bluetooth Kexts.zip

[Anto65]

I think I understand that the Wifi works

Has the Bluetooth cable been connected to the USB header 😛 ? If so, has the port been mapped? (internal 0xFF)

[Max.1974]

2 minutes ago, Antonuccio said:

I think I understand that the Wifi works

Has the Bluetooth cable been connected to the USB header 😛 ? If so, has the port been mapped? (internal 0xFF)



Yeah my Master @Antonuccio but im talk about compile Intel Bluetooth Kexts with program 😉



😆



[Anto65]

😄 I understood , that it is of little use if the port is not connected or mapped 🙃



EDIT : ok I also saw what miliuco specified , i see the pic too

Edited March 5, 2024 by Antonuccio

[miliuco]

@derpuma

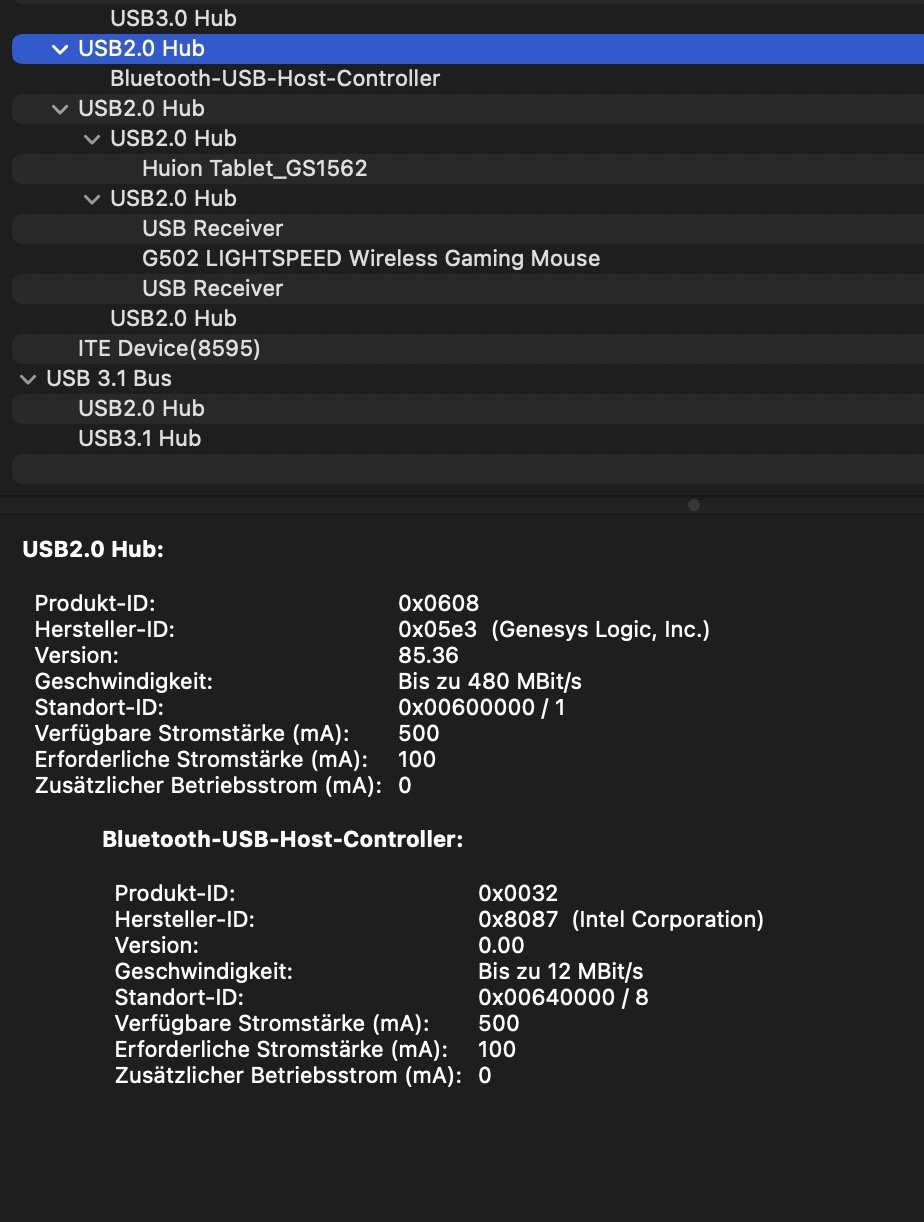

Stupid question: have you plugged the tiny cable from the AX210 card to the USB 2 port on the motherboard? >> Forget this, I see in your pic that  it's plugged .

Config.plist is okey.

These are the Bluetooth kexts I have on Sonoma, try it although I guess that this is not the issue.

BT-sonoma.zip



@Max.1974

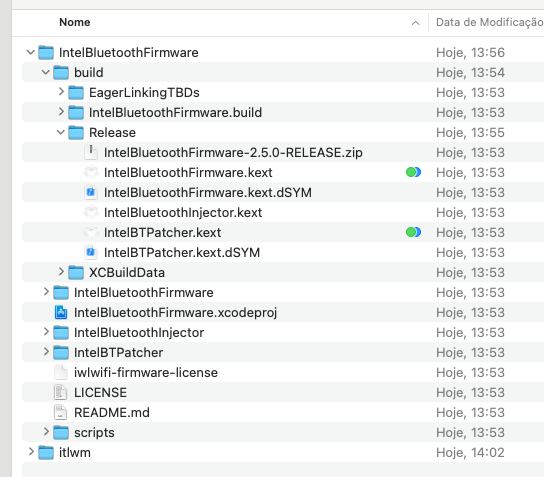

How do you compile IntelBluetoothFirmware? Terminal or within Xcode?





Edited March 5, 2024 by miliuco

[derpuma]

@miliuco @Max.1974

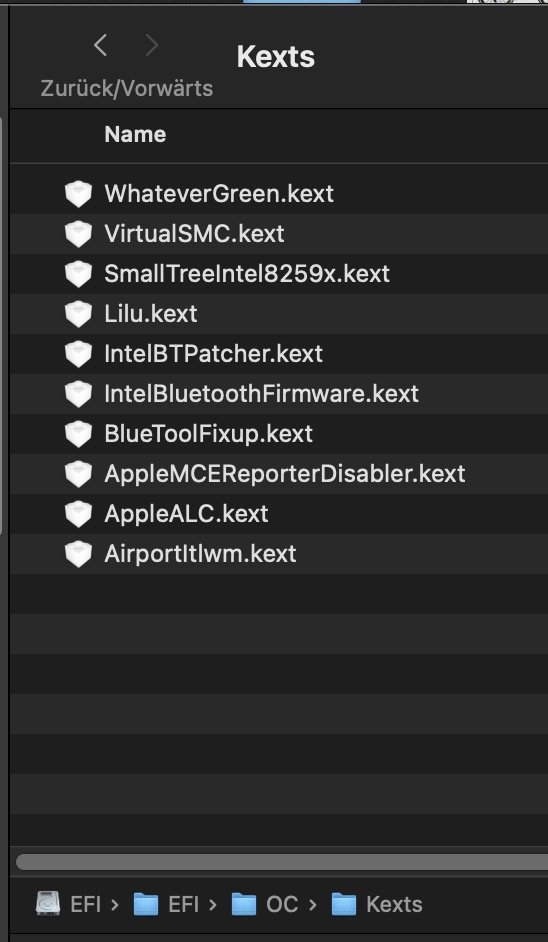

I used this three kext in EFI/OC/Kext:

IntelBTPatcher.kext V2.4.0
IntelBluetoothFirmware.kext V2.4.0
BlueToolFixup.kext V2.6.9

And I deleted: BrcmBluetoothInjector.kext form EFI/OC/Kext.

But BT does not work, does not find any pairing devices.

II used a BCM43602 via PCI-e Adapter before, but I guess this has nothing to do with the old card?
Do I need any other kext from BrcmPatchRAM-2.6.8-RELEASE, rathter then BlueToolFixup.kext?
I had some BRCM Kext in my L/E Folder which I deleted:
BrcmPatchRAM2.kext
BrcmFirmwareRepo.kext

Do I need newer Versions of this Kext in L/E?

BrcmPatchRAM3.kext and BrcmFirmwareRepo.kext of Release 2.6.8?

Here are my pci devices.
pcidevices.plist



Spoiler



Edited March 5, 2024 by derpuma

[miliuco]

@derpuma

Kexts are okey. I have the same card and don't need any other kext but the 3 basic. No BrcmPatchRAM3 nor BrcmFirmwareRepo.



/Library/Extensions folder: remove all kexts (if any) but EnergyDriver.kext, HighPointIOP.kext, HighPointRR.kext and SoftRAID.kext

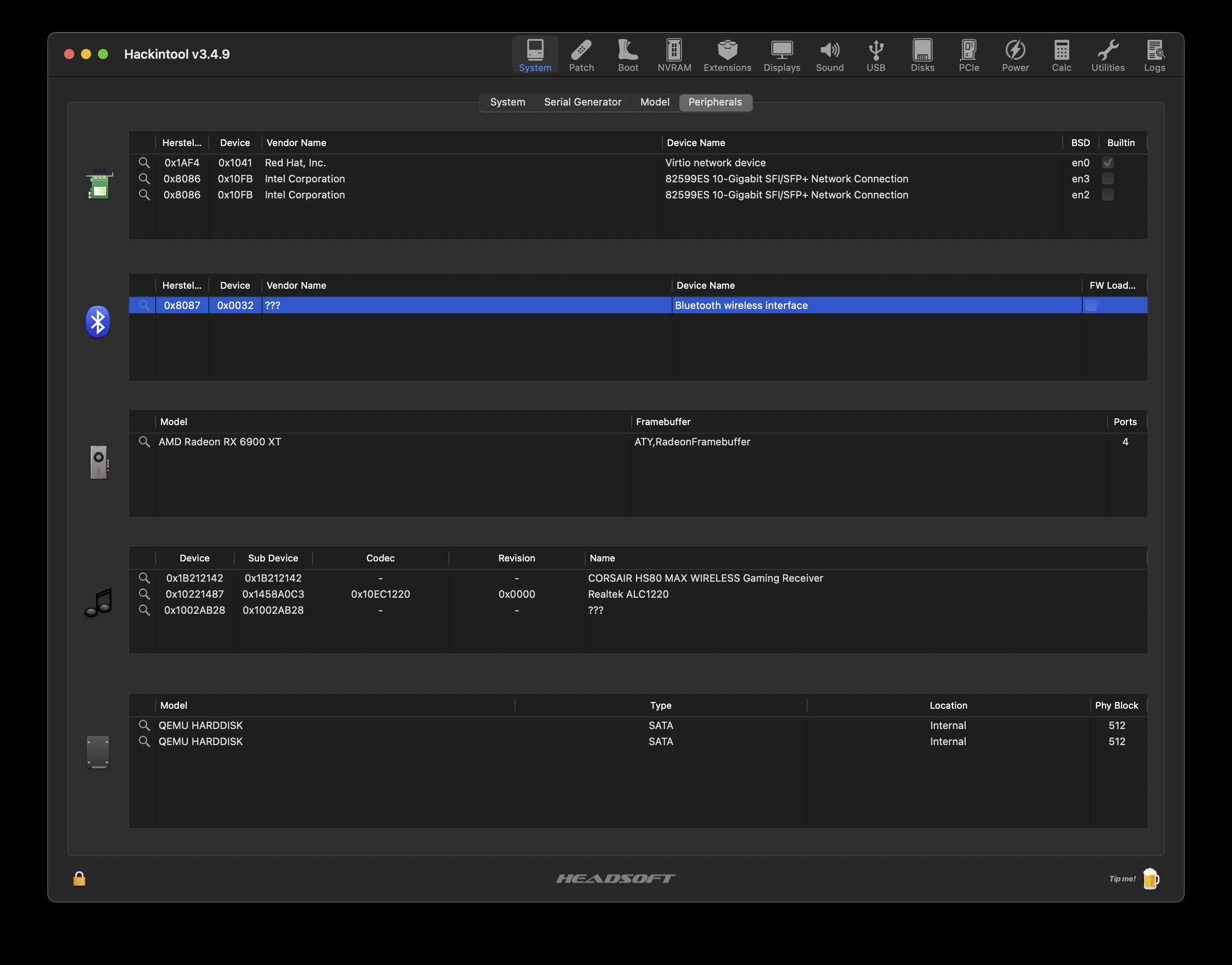

Question: are you inside a virtualized Sonoma? QEMU and Virtio devices are usual in non virtualized systems ? Sorry but mi knowledge about virtualization with QEMU is almost zero.



Edited March 5, 2024 by miliuco

[derpuma]

Yes, I am running my mac OS via Unraid VM. My PCIE devices are pass through! So they should work like on a regular hackintosh.

At least my other BCM43602 Card worked normal with pcie pass through.

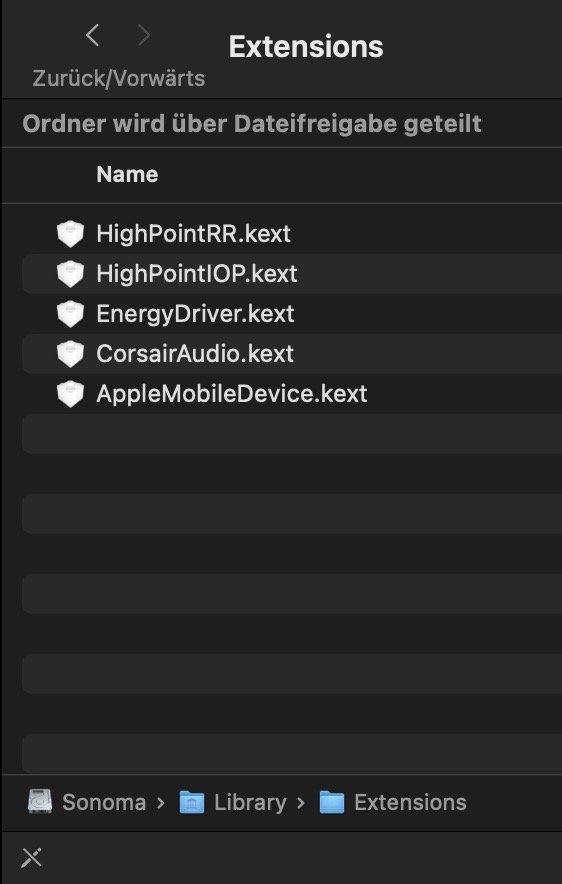

I deleted all kext in /L/E which I don't need and try again.



Spoiler

Edited March 5, 2024 by derpuma

[miliuco]

@derpuma

Understood. At this moment, I have no more ideas for you. Let me look for info.

In the meantime, maybe it's a good idea to post this as separate thread in the forum Multibooting and Virtualisation, to have more probabilities of getting help.

[derpuma]

Yes, I will prepare a thread in the UNRAID Forum.

[derpuma]

@miliuco

I booted from my old monterey with the identical opencore bootloader I used with sonoma.

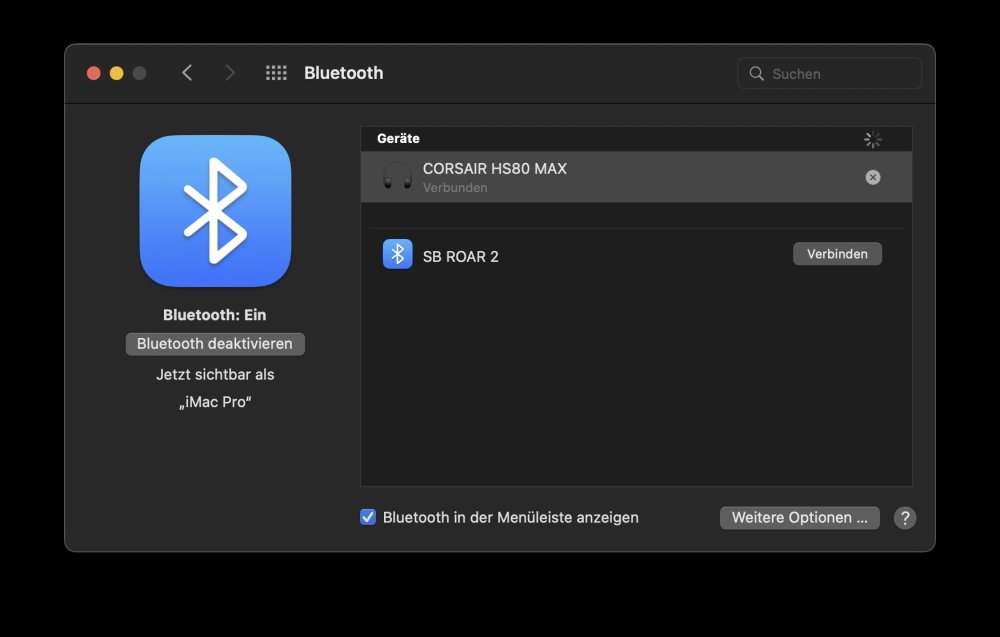

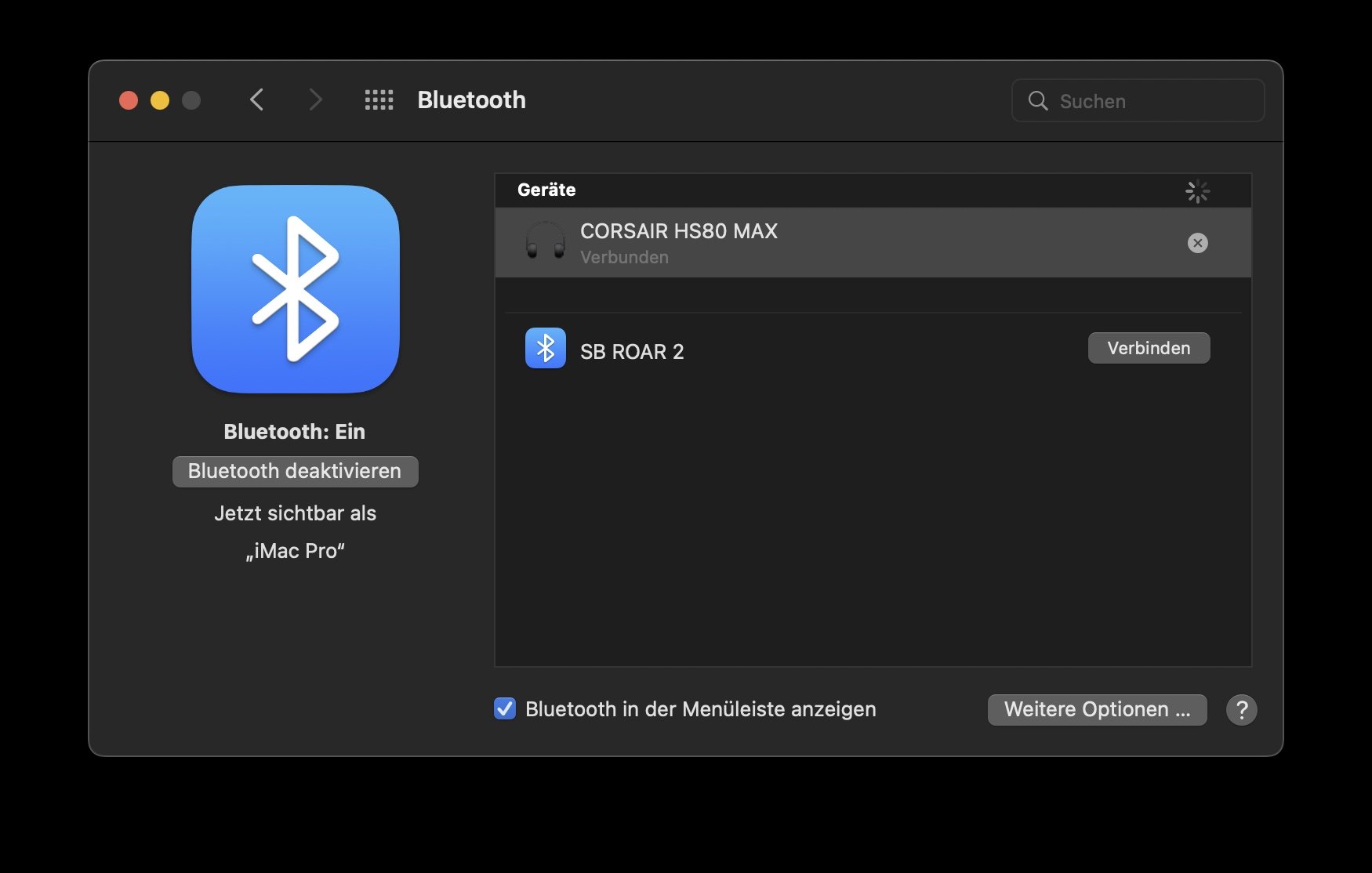

And see there, BT is working on monterey, so I think it has something to do with the BT Kext.
Which Version of Sonoma do you use? I am on 14.3.1.
Maybe I need other BT kexts?



Spoiler





[miliuco]

@derpuma

I have 14.3.1 in the main disk and 14.4 beta in the test disk. I have sent to you the kexts I have in 14.4. They are from version 2.4.0.

In 14.3.1 I have version 2.3.0. Try these that I attach and comment if there is any difference.



EDIT: ZIP file replaced.



14.3.1-kexts.zip

Edited March 6, 2024 by miliuco

[Max.1974]

@derpuma sorry if you got mapping ports, but in this cases, if necessary use some tools like Usbports from CorpNewT from GitHub to mapping your internal devices, with 255 parameters



If you not do it, it's more difficult to make works. It's necessary to get camera, usb bluetooth like internal devices.

[derpuma]

@Max.1974

Do you really thing it could be a port mapping issue? I mean Bluetooth works under Monterey with the same OpenCore Config.


@miliuco

Thanks, will try this kext this morning and report back.

[derpuma]

@miliuco

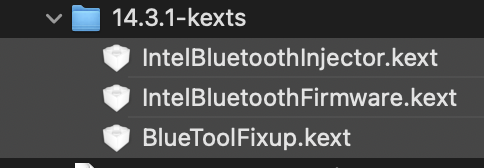

You confused me with your 14.3.1 Folder.
I guess you picked one wrong kext! Shouldn't be the IntelBTPatcherkext in it, instead of the IntelBluetoothInjector.kext.

[ichelash]

For me BT works..WiFi and Ethernet works, but when i go to settings it crashes the WiFi completely using AirportItlwm 2.3.0

[miliuco]

@derpuma

Sorry, I mixed the kexts, you're right, I replace the attachment in my previous post, get it, it's fixed.





1 hour ago, ichelash said:

For me BT works. WiFi and Ethernet works, but when i go to settings it crashes the WiFi completely using AirportItlwm 2.3.0



AirportItlwm is alpha stage, maybe it doesn't work fine in all systems.



Try this:

On Sonoma 14.3, try AirportItlwm.kext from this issue in the OpenIntelWireless GitHub:

https://github.com/OpenIntelWireless/itlwm/issues/937#issuecomment-1963569381

On Sonoma 14.4 beta, try this AirportItlwm.kext (different issue):

https://github.com/OpenIntelWireless/itlwm/issues/953#issuecomment-1920413379



Edited March 6, 2024 by miliuco

[ichelash]

1 hour ago, miliuco said:

@derpuma

Sorry, I mixed the kexts, you're right, I replace the attachment in my previous post, get it, it's fixed.







AirportItlwm is alpha stage, maybe it doesn't work fine in all systems.



Try this:

On Sonoma 14.3, try AirportItlwm.kext from this issue in the OpenIntelWireless GitHub:

https://github.com/OpenIntelWireless/itlwm/issues/937#issuecomment-1963569381

On Sonoma 14.4 beta, try this AirportItlwm.kext (different issue):

https://github.com/OpenIntelWireless/itlwm/issues/953#issuecomment-1920413379



I have the same kexts

[Max.1974]

11 horas atrás, derpuma disse:

@miliuco

Você me confundiu com sua pasta 14.3.1.
Acho que você escolheu um kext errado! Não deveria ser o IntelBTPatcherkext nele, em vez do IntelBluetoothInjector.kext.





Hi, with Monterey works because you are using IntelBluetoothInjector, but in Ventura and Sonoma not use this kext, is the recommendation instruction on OpenIntel Wireless GIT HUB



Olny use this with Sonoma or Ventura



Im post for you my kexts, are you tested ?

[Anto65]

https://openintelwireless.github.io/IntelBluetoothFirmware/FAQ.html#intelbluetoothinjector

[derpuma]

As you can see:

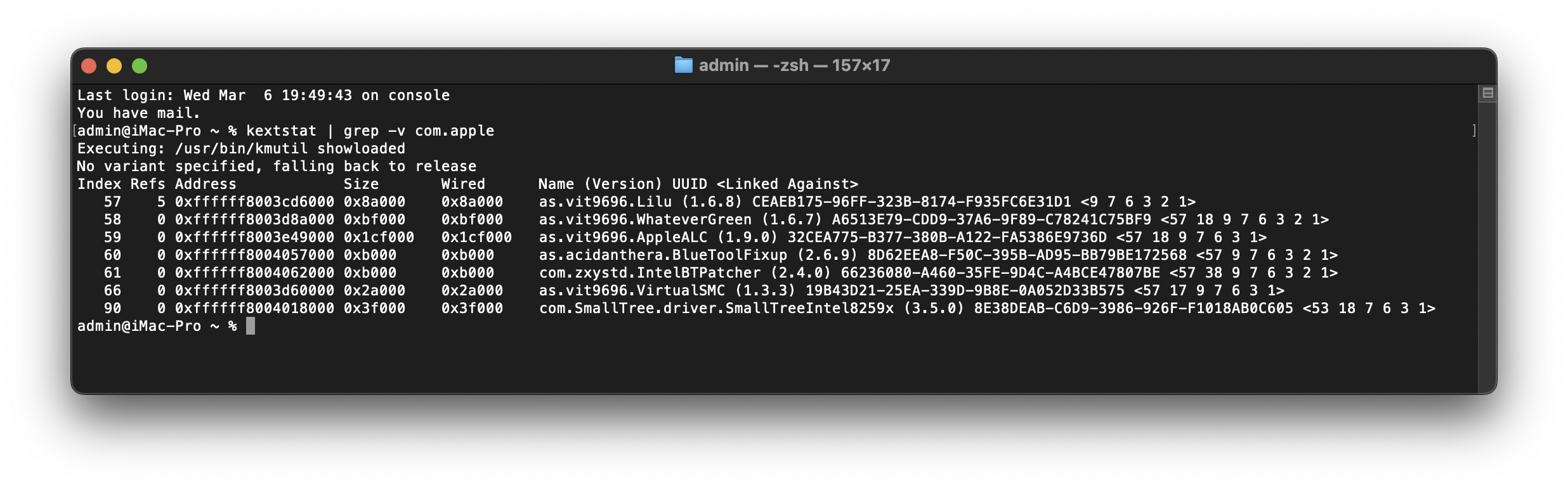

kextstat | grep -v com.apple  tells me that it does not load IntelBluetoothFirmware.kext while booting into Sonoma.

So the Question is, why does it not load the IntelBluetoothFirmware.kext?! Any ideas?

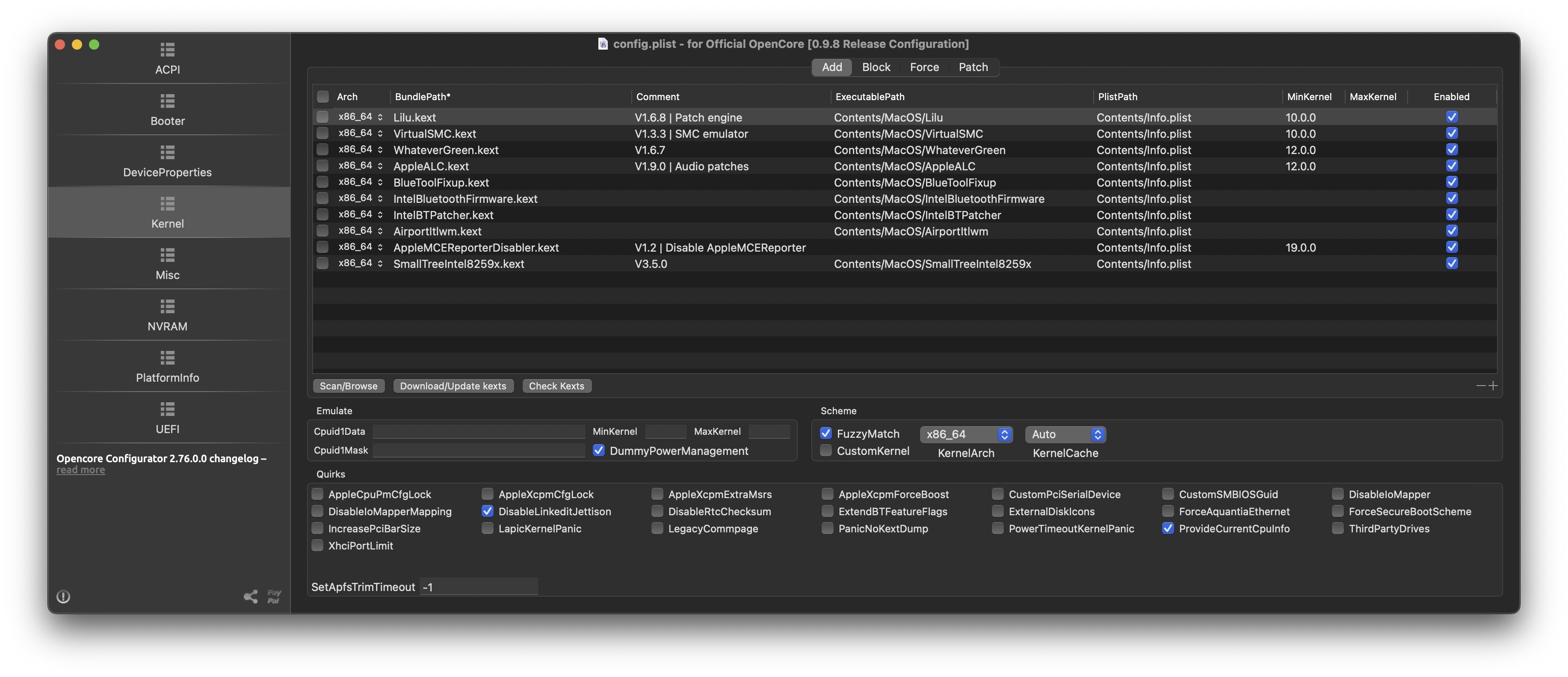

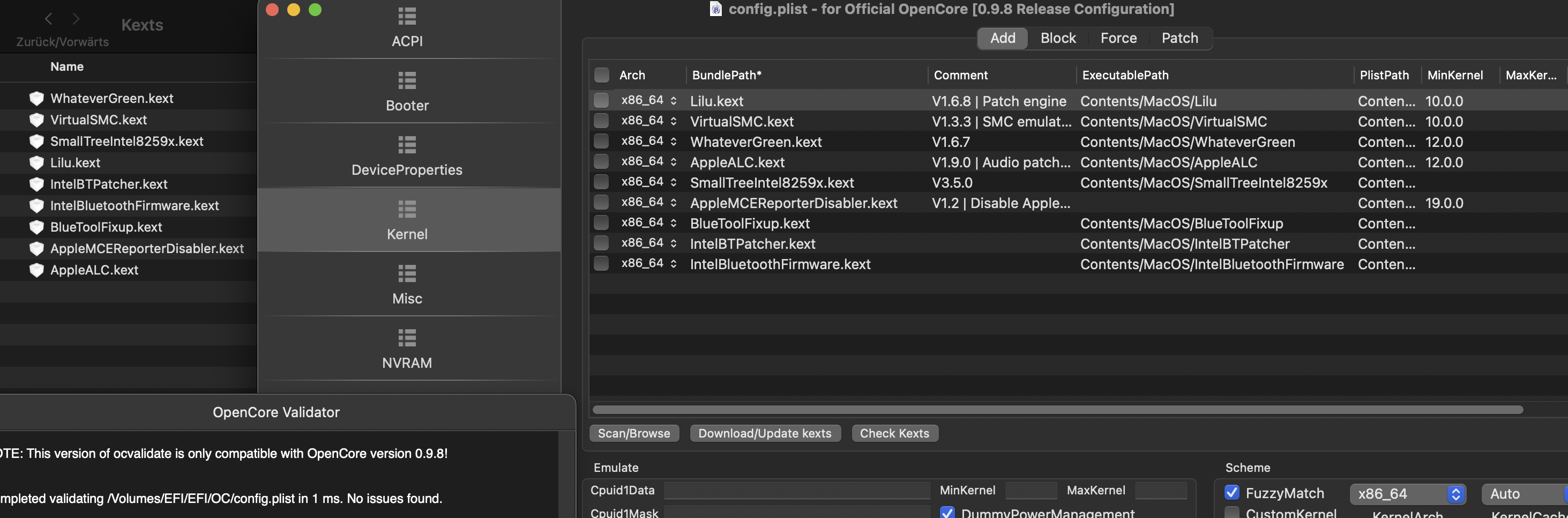

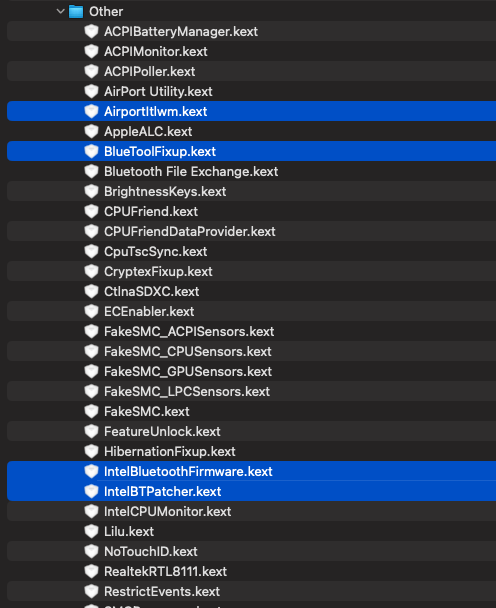

As you can see here, the kext folder has the kext and the rest of the config is also configured as it should.



Spoiler







[miliuco]

@derpuma

Put IntelBluetoothFirmware.kext before IntelBTPatcher.kext and BluetoolFixup.kext. In this order. Try and comment.

[derpuma]

7 minutes ago, miliuco said:

@derpuma

Put IntelBluetoothFirmware.kext before IntelBTPatcher.kext and BluetoolFixup.kext. In this order. Try and comment.



Same behaviour. Does not load IntelBluetoothFirmware.kext.
