Sonoma Wi-Fi solutions that do not require disabled SIP (e.g. Intel AX210)

[miliuco]

@derpuma

This issue has me completely confused. Why is it not loading? 🙁



[derpuma]

I don't know. I also tried to map my USB Ports in Windows, but it still does not load.
Is there a way to map the USB Ports directly under Sonoma?

[ichelash]

24 minutes ago, derpuma said:

I don't know. I also tried to map my USB Ports in Windows, but it still does not load.
Is there a way to map the USB Ports directly under Sonoma?

can you post you config without your serial..i want to check something...

[derpuma]

@ichelash

Sure, no problem.

config.plist



FYI, I deleted the USB Portmapping, as it did not gave me any benefits.

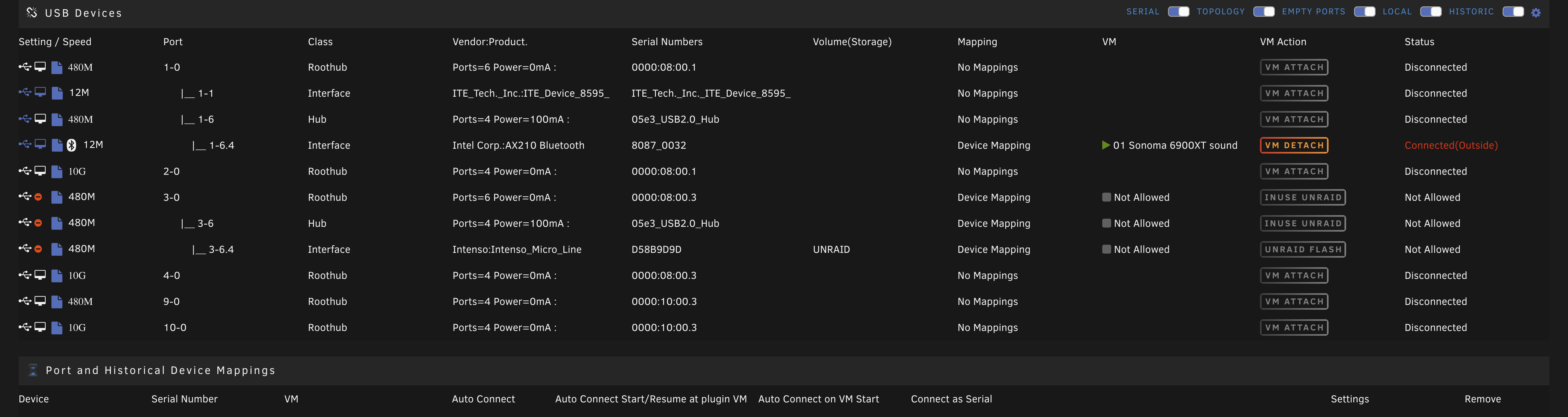

I can see the BT Part of the AX210s in UNRAIDs USB PLugin.
But it does not load while booting into Sonoma. It does while booting into Monterey.

Edited March 6, 2024 by derpuma

[ichelash]

9 hours ago, derpuma said:

@ichelash

Sure, no problem.

config.plist 22.23 kB · 2 downloads



FYI, I deleted the USB Portmapping, as it did not gave me any benefits.
I can see the BT Part of the AX210s in UNRAIDs USB PLugin.
But it does not load while booting into Sonoma. It does while booting into Monterey.

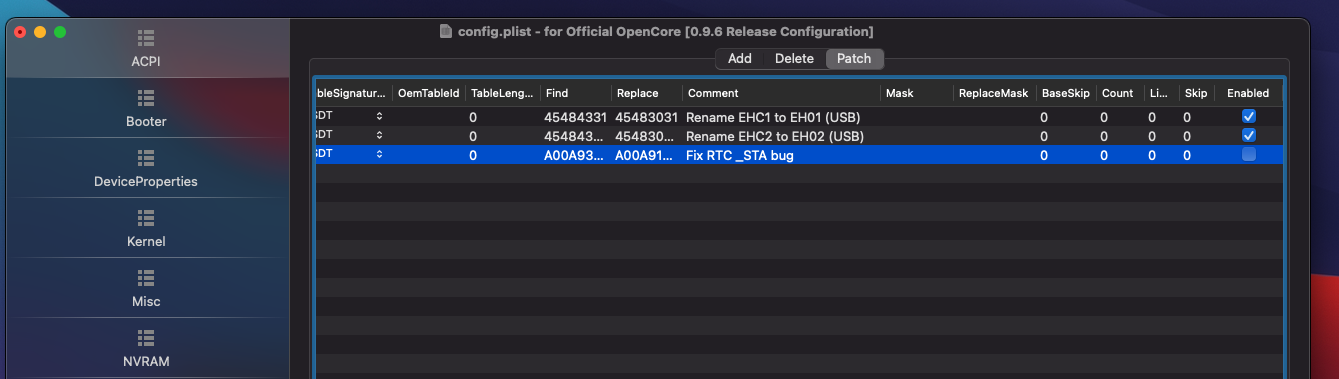

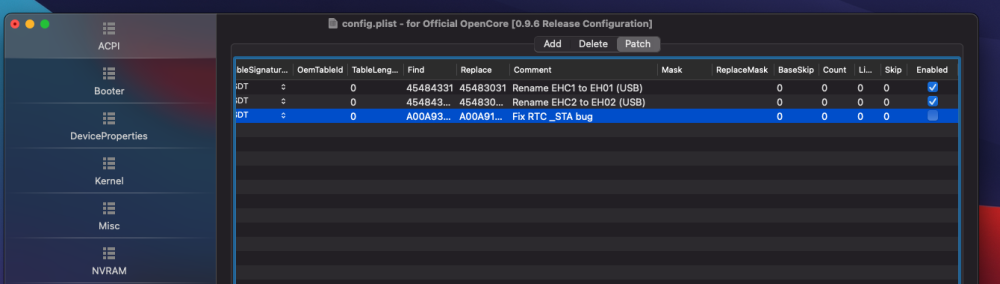

I don't see any issue with that config....so i'm unsure what's wrong..but can you try adding this patches 👇

[derpuma]

@ichelash That did not fix it too.

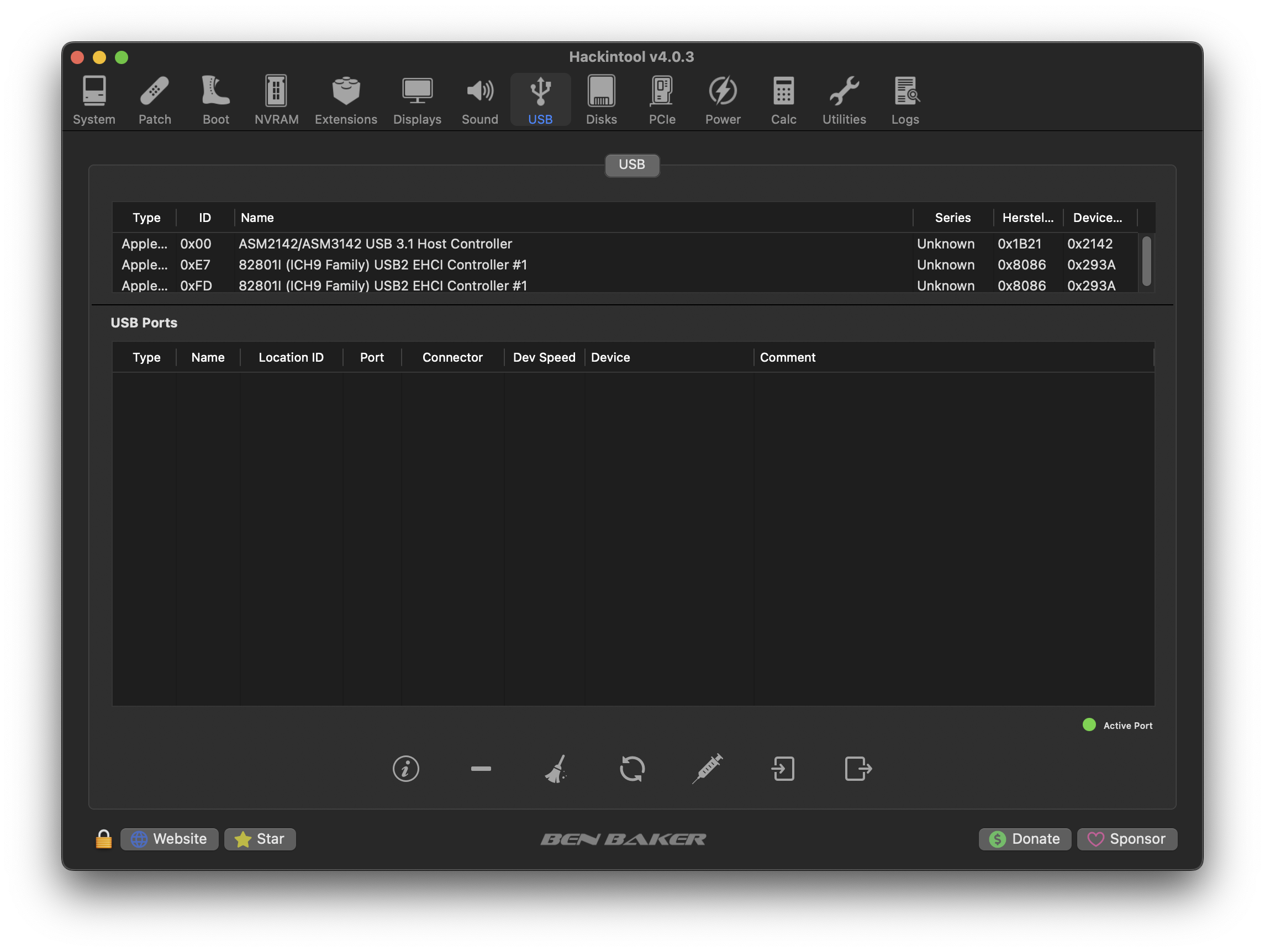

Problem I discovered now is, that my Hackintool does not show me any USB Ports at all.
I pressed wipe, but refresh does not load up any USB Ports again.
Any Idea why?



[ichelash]

1 minute ago, derpuma said:

@ichelash That did not fix it too.

Problem I discovered now is, that my Hackintool does not show me any USB Ports at all.
I pressed wipe, but refresh does not load up any USB Ports again.
Any Idea why?



Now try using USBinject all kext..instead and remove usbtool & utbmap see if it populate

[Anto65]

... enable port limit in kernel -> quirks to

[derpuma]

@ichelash I thought USBinject.kext is not nessecary in Sonoma anymore? I can try this.

@Antonuccio I can try this too...

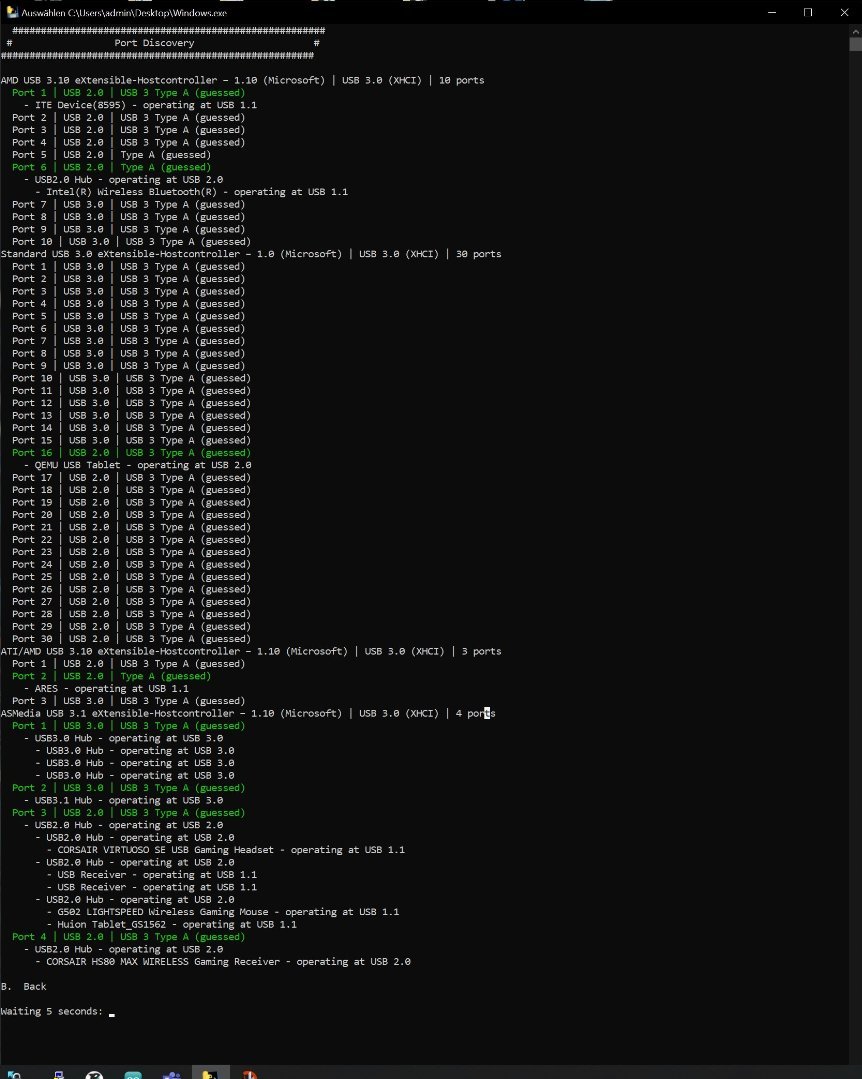

I'm currently running my Windows VM and the USB ports actually look fine there.
In Sonoma I need only the ASMedia USB 3.1 eXtensible host controller – 1.10 (Microsoft) | is enough for me USB 3.0 (XHCI) | 4 ports.

The AX210s BT USB should be the one on Port 6 I guess?


Update: Booting with USBinject.kext and Kernel Quirks XHCIPortLimit "on" did not bring the USB Ports back in Hackintool.

Edited March 7, 2024 by derpuma

[ichelash]

23 minutes ago, derpuma said:

@ichelash I thought USBinject.kext is not nessecary in Sonoma anymore? I can try this.

@Antonuccio I can try this too...



I'm currently running my Windows VM and the USB ports actually look fine there.
In Sonoma I need only the ASMedia USB 3.1 eXtensible host controller – 1.10 (Microsoft) | is enough for me USB 3.0 (XHCI) | 4 ports.

The AX210s BT USB should be the one on Port 6 I guess?


Update: Booting with USBinject.kext and Kernel Quirks XHCIPortLimit "on" did not bring the USB Ports back in Hackintool.

Send me full EFI

[derpuma]

@ichelash



This is the last EFI I tried. I included XhciPortLimit + ReleaseUsbOwnership and ExtendBTFeatureFlags. Also USBToolBox.kext and UTBMap.kext.
But this did not let me boot into Sonoma. OpenCore ended in a black screen after booting up Sonoma and Monitors did not show up OS.


[Anto65]

Try if you want 🙃



Add to the last working EFI  SSDT-XHC.aml.zip in ACPI and config.plist , delete UTBMAP, Usbinject..,Port limit

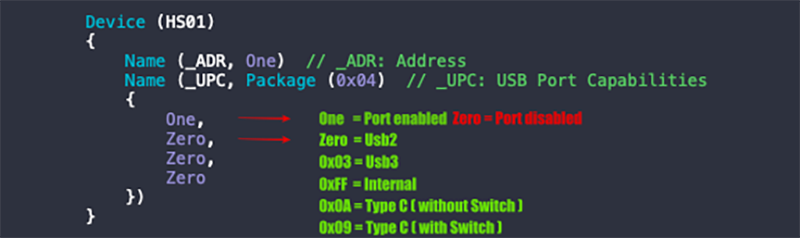

If the USBs are shown 🤞 you can enable/disable the ports or change the type of connector by following here the example ... if needed



Spoiler





Edited March 7, 2024 by Antonuccio

[derpuma]

@Antonuccio



Thx a lot for your effort and help.
I booted into Sonoma with this config.plist, but sill no USB Ports in Hackintool.

Do you think I should try a new Installation of Sonoma and try it there? I am not sure what'S messing up my USB Ports under Sonoma at all...


config.plist

[ichelash]

10 minutes ago, derpuma said:

@Antonuccio



Thx a lot for your effort and help.
I booted into Sonoma with this config.plist, but sill no USB Ports in Hackintool.

Do you think I should try a new Installation of Sonoma and try it there? I am not sure what'S messing up my USB Ports under Sonoma at all...


config.plist 22.01 kB · 1 download

Try this..https://filetransfer.io/data-package/0LuB5567#link

[derpuma]

33 minutes ago, ichelash said:

Try this..https://filetransfer.io/data-package/0LuB5567#link



No sorry, it does not work. I will try a new Install of Sonoma and try it there. There migth be something messed up with my Sonoma while updating it from Monterey?!
Not sure what it is, but an new installation will not take that much time with KVM, most time takes the creation of the boot image.
I report back!

[fabiosun]

@derpumahave you passed through your USb controller where you connect your AX210 BT cable?

you can also pass it as single USB device



Edited March 7, 2024 by mariosun

[derpuma]

7 minutes ago, mariosun said:

@derpumahave you passed through your USb controller where you connect your AX210 BT cable?

you can also pass it as single USB device





Sure, I did that. But this does not bring BT to life, if the IntelBluetoothFirmware.kext does not load at boot.



  <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x8087'/>
        <product id='0x0032'/>
        <address bus='1' device='4'/>
      </source>
      <alias name='hostdev9'/>
      <address type='usb' bus='0' port='2'/>
   </hostdev>



[fabiosun]

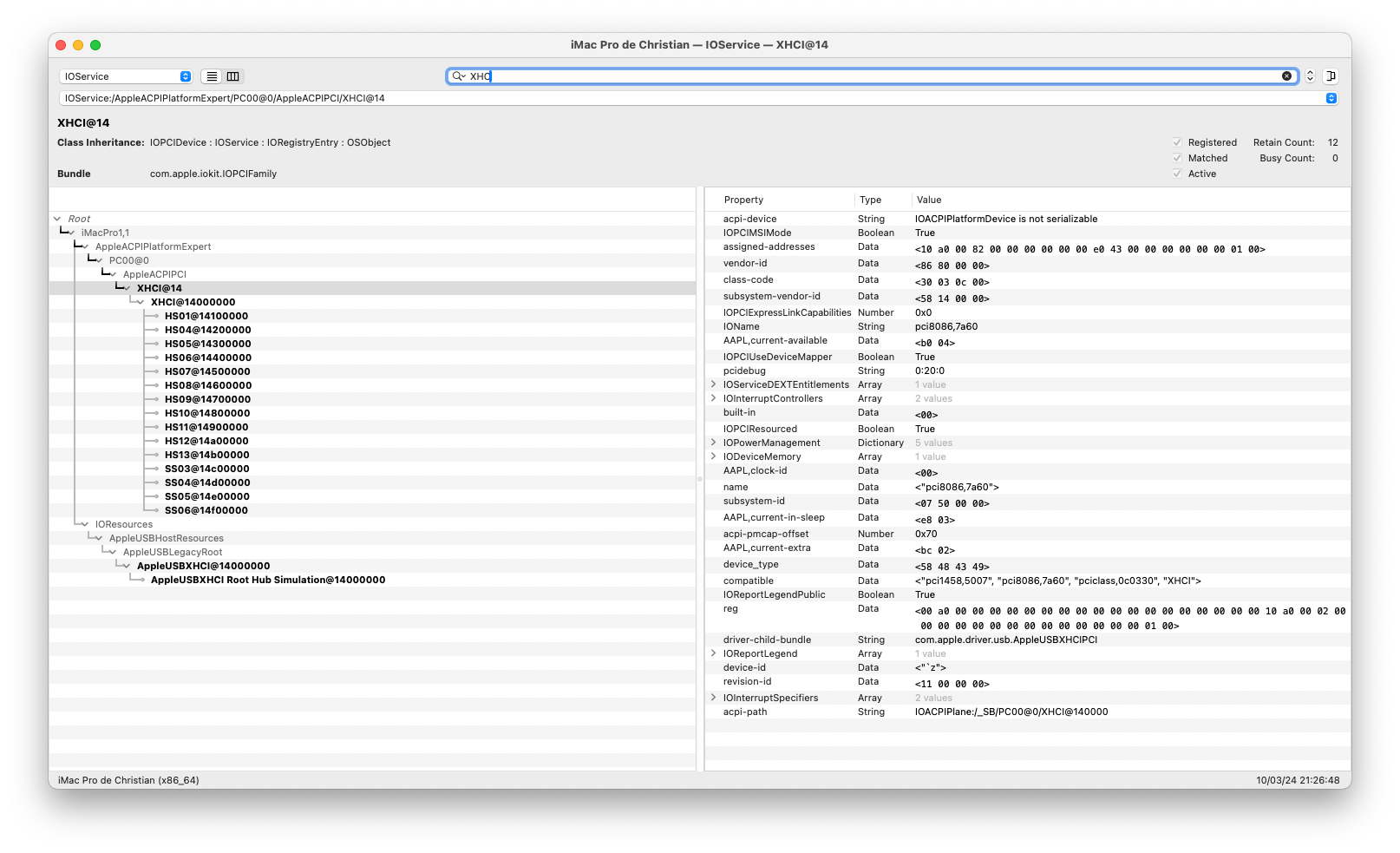

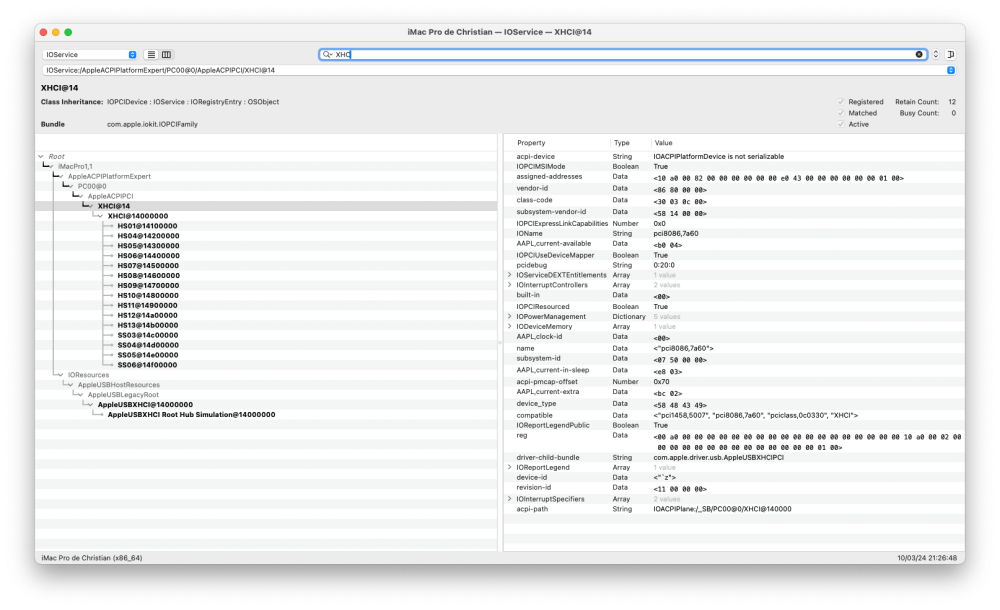

could you post an IOREG ?

Edited March 7, 2024 by mariosun

[derpuma]

My USBPorts are messed up and I am not able to get them back or restore them via USBInjectall.kext, Hackintool Reload USB or anyting else.

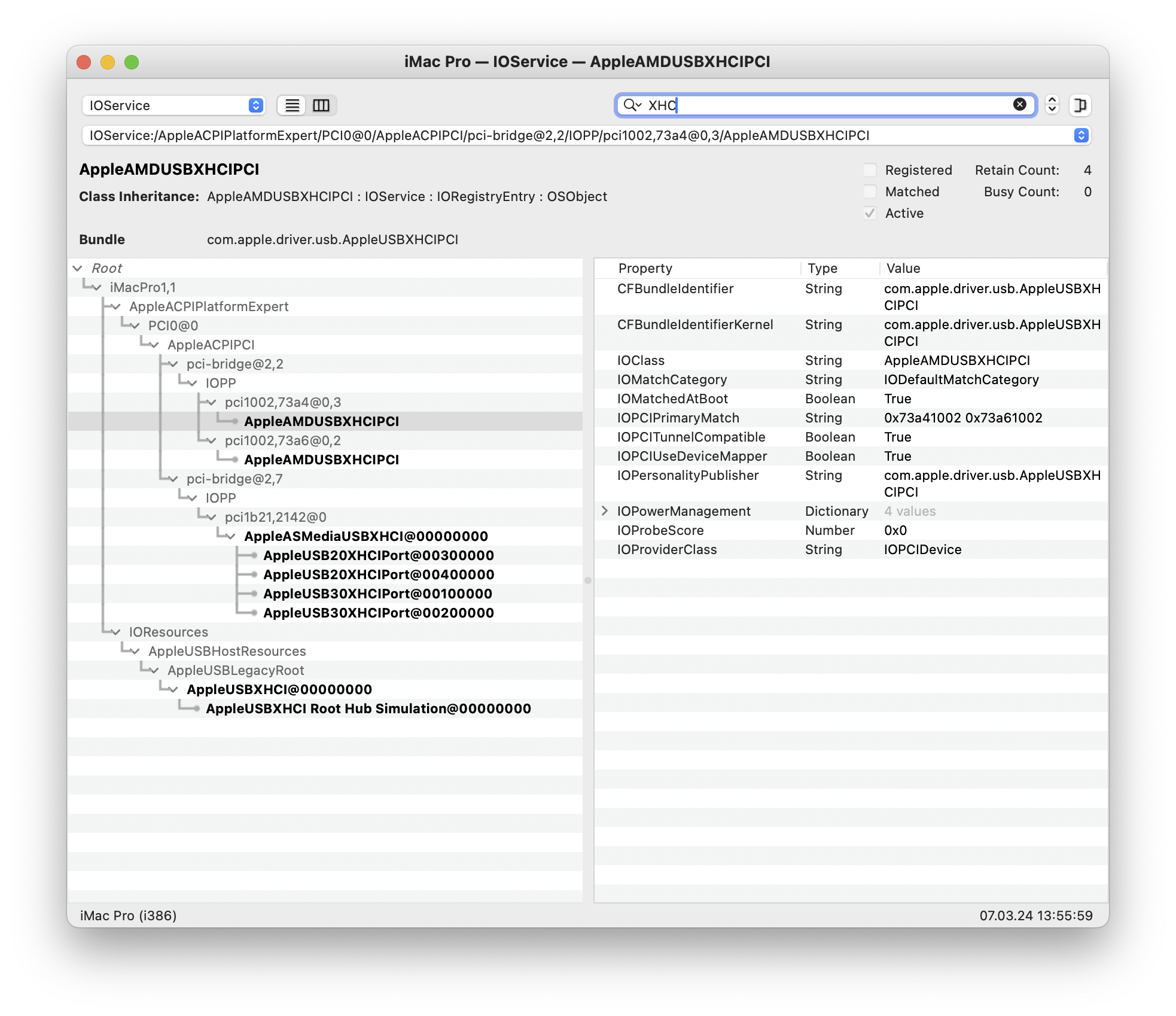

Hackintool does not load any USB Port. IOReg see screenshot.
Not sure why and how this is like it is, but I am going to install a new Sonoma now and try from there.
Right now I am struggeling in creating an img file fron the Sonoma Install App due to the immense diskspace it needs, which I do not have right now.
I need an img file cause in install into a virtual KVM.
Tools like Mist or AnymacOS also dont work increating and image...
I will report back when I am ready and how the new system behaves.

[derpuma]

Anyone updated to 14.4 and can confirm, that the BT is working with the kext from 14.4beta?

[miliuco]

@derpuma

Yes, it's working, get the final version here, now are 2 versions, Sonoma14 and Sonoma14.4.

[derpuma]

@miliuco Thx, I saw that. I meant more the BT kext files, as my BT is still not running under Sonoma, regardless which kext I use.

There are is at least on other with exactly the same Problem!
https://github.com/OpenIntelWireless/IntelBluetoothFirmware/issues/476

I wait for a response there...

[miliuco]

@derpuma

I have bluetooth kexts 2.4.0 from here and all is working fine. No such issue on my side.

[Max.1974]

14 hours ago, derpuma said:

Anyone updated to 14.4 and can confirm, that the BT is working with the kext from 14.4beta?



Yes working fine and im suggest you update to intel Airport Alpha kext from here:



https://github.com/OpenIntelWireless/itlwm/releases/tag/v2.3.0-alpha



Spoiler





I recommend you use this method if compatible with your ACPI Dump



https://github.com/5T33Z0/OC-Little-Translated/tree/main/03_USB_Fixes/ACPI_Mapping_USB_Ports



And after you compile your SSDT you can use first USBmap from CorpNewT (no use USBtoolbox), and them, after you create your Usbmap kexts, restart and run Hackintool and just Dump new Usbport kext with SSDTs and change on your EFI. Use only one kext USB.



If you wanted check this video about create your own SSDT-RHUB



Spoiler

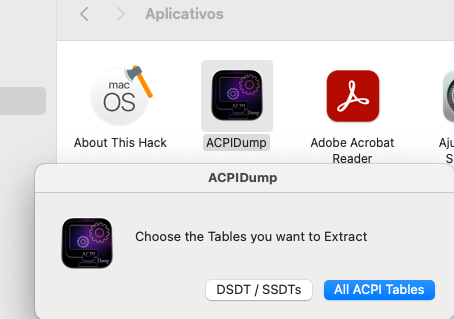

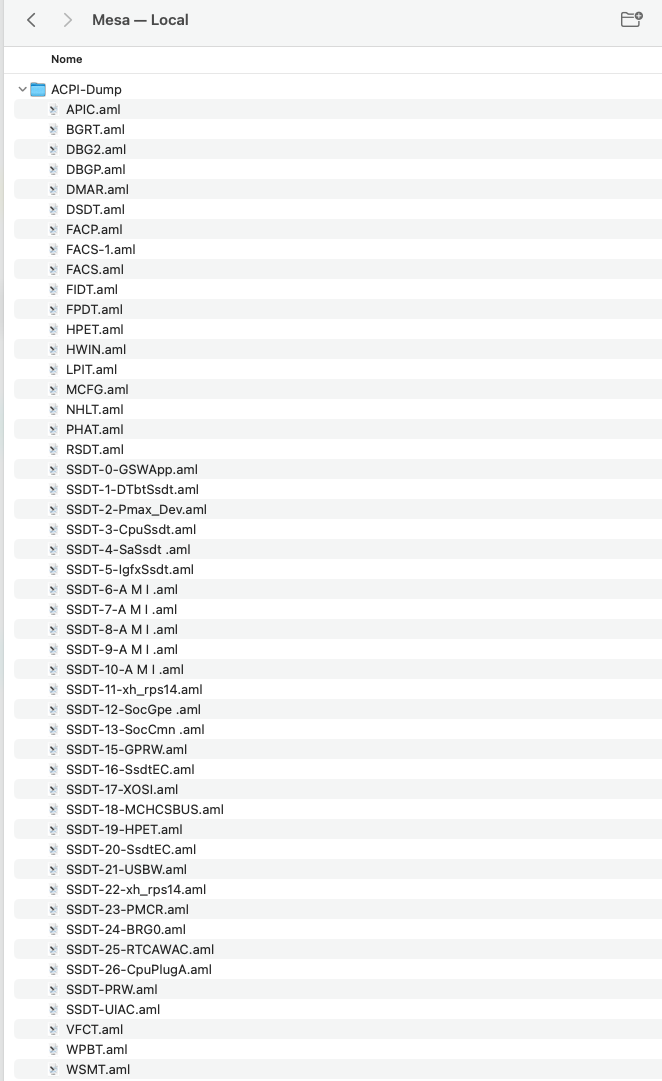

 You can use too this program to do your ACPI Dump is excellent



https://github.com/LAbyOne/ACPIDump/releases/tag/1.0





Spoiler





And most important think: IF you have issues, use ONLY USBinjectAll kext from here and left other kexts dump outside from your EFI (not include on mapping)



https://github.com/daliansky/OS-X-USB-Inject-All/releases/tag/v0.8.0





And IF you want see an video tutorial take look here



Spoiler





Not need speak Portuguese, just observe and DO IT





Good Lucky







Edited March 11, 2024 by Max.1974

[derpuma]

@Max.1974 Thanks for your reply. I managed the mapping of all USB Ports, nevertheless BT is not working.

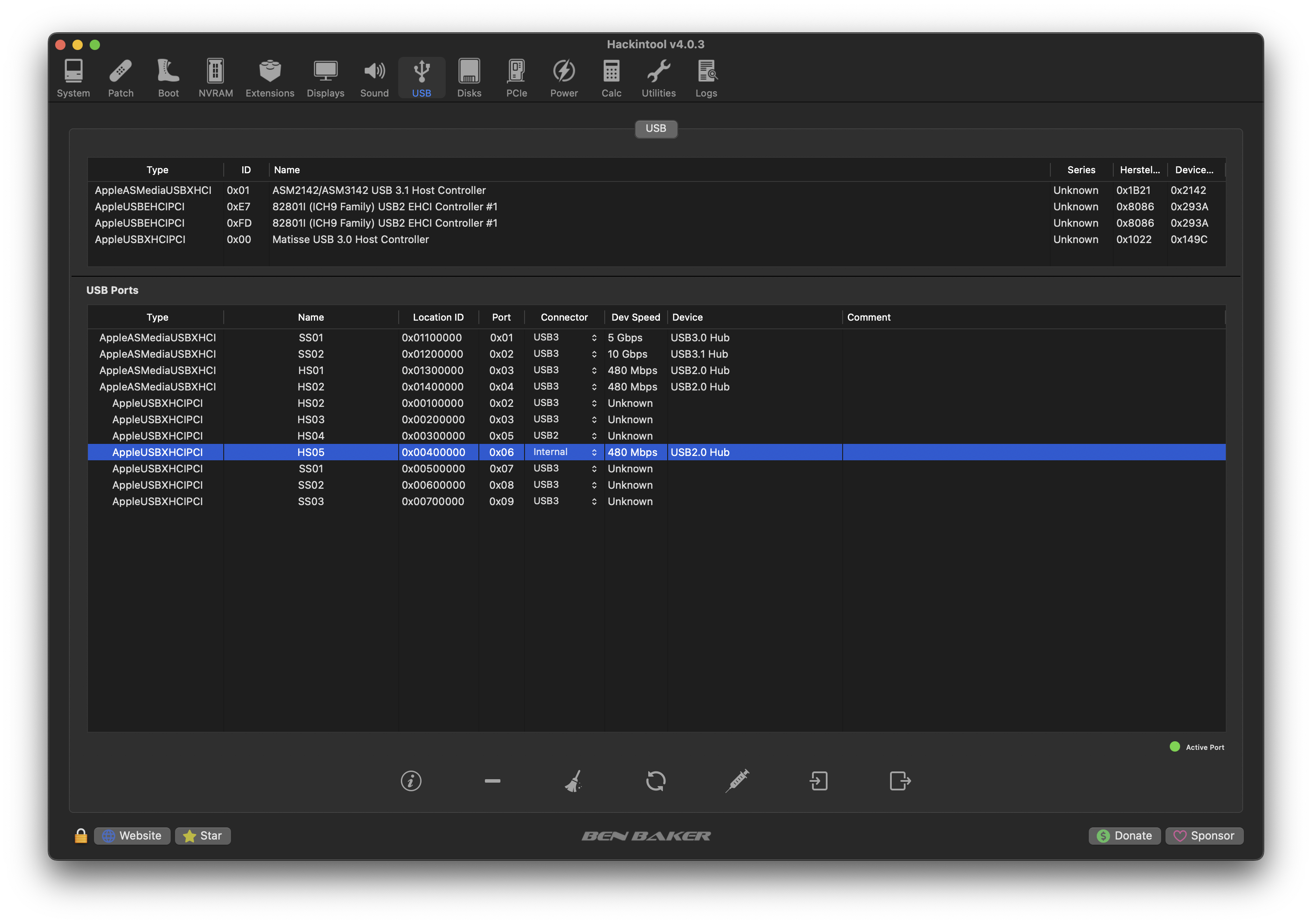

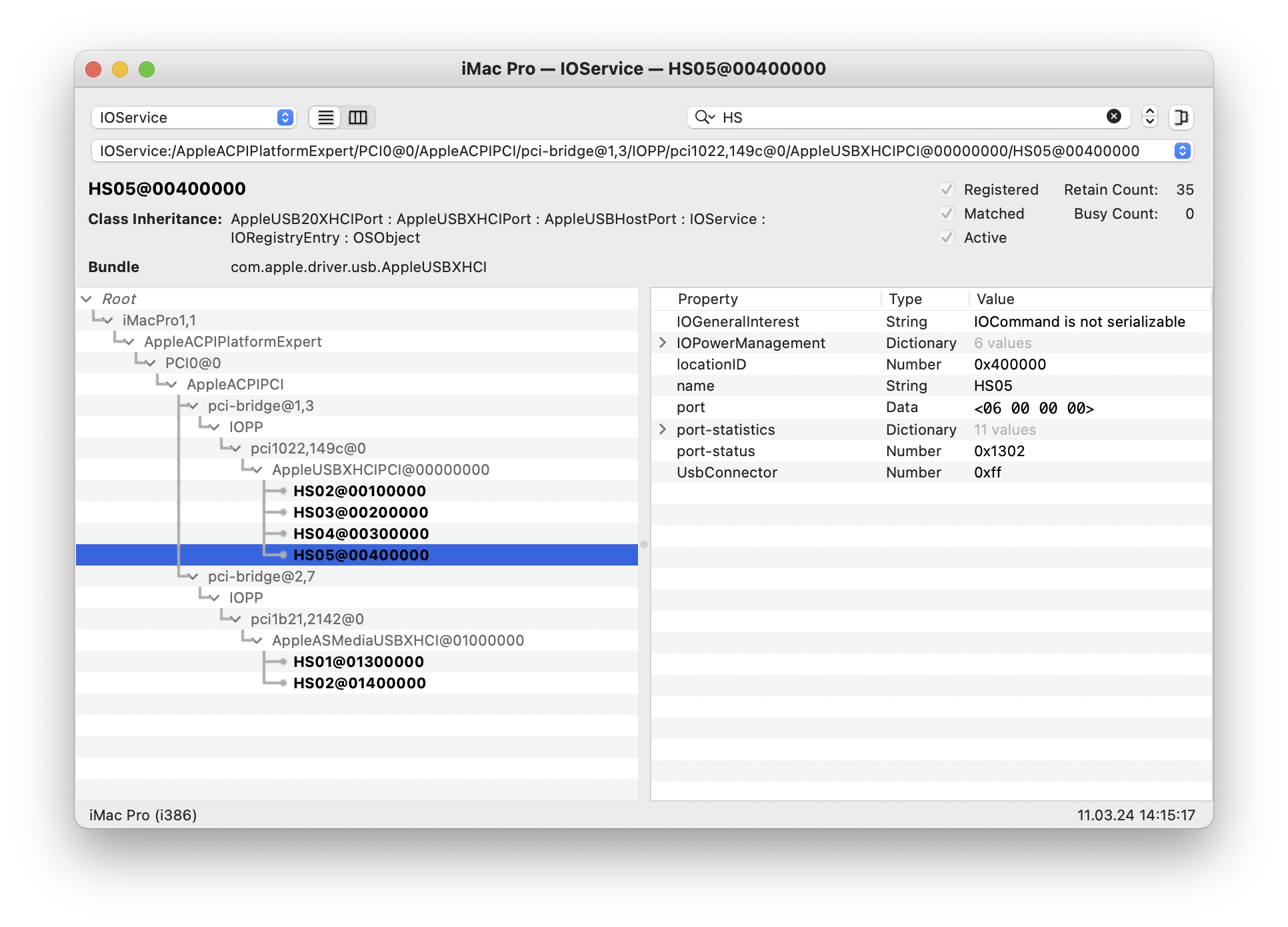

These are the mapped Ports. The internal is the USB BT part.




Still Bluetooth-Controller: Adresse: NULL under Bluetooth...



It must be the KVM macOS which causes the problem, as the other guy here with the same issue I have, also uses a KVM macOS.

https://github.com/OpenIntelWireless/IntelBluetoothFirmware/issues/476



I also worked my way through this guide, but this also doesn't fix the problem.

I am really clueless, what else to do...
