Whatevergreen makes not bootable after update, instant reboot after finishing boot.

anyone has the same issue? or i am not up to date in case this issue already surfaced.



EDIT: turns out it caused by CFG_PTPL2_TBL, removed, and it booted again




Quote

panic(cpu 6 caller 0xffffff801f7d38e3): Kernel trap at 0xffffff7fa0a462bf, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x0000000003000000, CR3: 0x000000081cddd043, CR4: 0x00000000001626e0
RAX: 0xffffff7fa0a46280, RBX: 0xffffff9067f57014, RCX: 0x0000000002000000, RDX: 0x0000000003000000
RSP: 0xffffffd072fcb9b0, RBP: 0xffffffd072fcb9c0, RSI: 0x0000000000008200, RDI: 0xffffff9067f57014
R8:  0xffffff9a003d69d0, R9:  0x00000000ffffffff, R10: 0x000000000000001d, R11: 0xffffffa066aa88b0
R12: 0xffffff7fb876bf21, R13: 0xffffff9067294400, R14: 0x0000000003000000, R15: 0x0000000000000005
RFL: 0x0000000000010206, RIP: 0xffffff7fa0a462bf, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x0000000003000000, Error code: 0x0000000000000002, Fault CPU: 0x6, PL: 0, VF: 1

Panicked task 0xffffff95339e9d40: 10 threads: pid 186: WindowServer
Backtrace (CPU 6), panicked thread: 0xffffff9066a82000, Frame : Return Address
0xffffffd072fcb360 : 0xffffff801f683e1d mach_kernel : _handle_debugger_trap + 0x41d
0xffffffd072fcb3b0 : 0xffffff801f7e3ca6 mach_kernel : _kdp_i386_trap + 0x116
0xffffffd072fcb3f0 : 0xffffff801f7d34fd mach_kernel : _kernel_trap + 0x51d
0xffffffd072fcb440 : 0xffffff801f623a60 mach_kernel : _return_from_trap + 0xe0
0xffffffd072fcb460 : 0xffffff801f6841ed mach_kernel : _DebuggerTrapWithState + 0xad
0xffffffd072fcb580 : 0xffffff801f6839a6 mach_kernel : _panic_trap_to_debugger + 0x2b6
0xffffffd072fcb5e0 : 0xffffff801ff164af mach_kernel : _panic + 0x84
0xffffffd072fcb6d0 : 0xffffff801f7d38e3 mach_kernel : _sync_iss_to_iks + 0x2c3
0xffffffd072fcb850 : 0xffffff801f7d35d2 mach_kernel : _kernel_trap + 0x5f2
0xffffffd072fcb8a0 : 0xffffff801f623a60 mach_kernel : _return_from_trap + 0xe0
0xffffffd072fcb8c0 : 0xffffff7fa0a462bf com.apple.kext.AMDRadeonX4000HWLibs : __ZN34AMDRadeonX4000_AMDRadeonHWLibsCAIL20callPlatformFunctionEPKcbPvS2_S2_S2_ + 0x16434f
0xffffffd072fcb9c0 : 0xffffff7fa0b00c60 com.apple.kext.AMDRadeonX4000HWLibs : __ZN34AMDRadeonX4000_AMDRadeonHWLibsCAIL20callPlatformFunctionEPKcbPvS2_S2_S2_ + 0x21ecf0
0xffffffd072fcb9d0 : 0xffffff7fa0affa80 com.apple.kext.AMDRadeonX4000HWLibs : __ZN34AMDRadeonX4000_AMDRadeonHWLibsCAIL20callPlatformFunctionEPKcbPvS2_S2_S2_ + 0x21db10
0xffffffd072fcba00 : 0xffffff7fa03c8d58 com.apple.kext.AMD9500Controller : __ZN22BaffinPowerPlayManager24setupPowerTuneParametersEv + 0x1c8
0xffffffd072fcba40 : 0xffffff7fa03c8583 com.apple.kext.AMD9500Controller : __ZN22BaffinPowerPlayManager10initializeEv + 0x2a3
0xffffffd072fcba70 : 0xffffff7fa03b7cdb com.apple.kext.AMD9500Controller : __ZN17AMD9500Controller19initializePowerPlayEv + 0x8b
0xffffffd072fcbaa0 : 0xffffff7fa040b81a com.apple.kext.AMDFramebuffer : __ZN14AMDFramebuffer14enableHardwareEv + 0x1ea
0xffffffd072fcbb00 : 0xffffff7fa03fcc20 com.apple.kext.AMDFramebuffer : __ZN14AMDFramebuffer16enableControllerEv + 0x20
0xffffffd072fcbb50 : 0xffffff7fb875bcc1 com.apple.iokit.IOGraphicsFamily : __ZN13IOFramebuffer4openEv + 0x60f
0xffffffd072fcbbe0 : 0xffffff7fa03fbda0 com.apple.kext.AMDFramebuffer : __ZN14AMDFramebuffer4openEv + 0x40
0xffffffd072fcbc10 : 0xffffff7fb8751f0e com.apple.iokit.IOGraphicsFamily : __ZN13IOFramebuffer13newUserClientEP4taskPvjPP12IOUserClient + 0x25e
0xffffffd072fcbca0 : 0xffffff801fe14aac mach_kernel : __ZN9IOService13newUserClientEP4taskPvjP12OSDictionaryPP12IOUserClient + 0x6c
0xffffffd072fcbd00 : 0xffffff801fe830cb mach_kernel : _is_io_service_open_extended + 0x17b
0xffffffd072fcbd60 : 0xffffff801f789b87 mach_kernel : _iokit_server_routine + 0x4967
0xffffffd072fcbdb0 : 0xffffff801f68a6cb mach_kernel : _ipc_kobject_set_kobjidx + 0x39b
0xffffffd072fcbe10 : 0xffffff801f65ecf3 mach_kernel : _ipc_kmsg_send + 0x243
0xffffffd072fcbe60 : 0xffffff801f675249 mach_kernel : _mach_msg_overwrite_trap + 0x2c9
0xffffffd072fcbef0 : 0xffffff801f7b6198 mach_kernel : _mach_call_munger64 + 0x1d8
0xffffffd072fcbfa0 : 0xffffff801f624246 mach_kernel : _hndl_mach_scall64 + 0x16
      Kernel Extensions in backtrace:
         com.apple.iokit.IOGraphicsFamily(594.0)[3ECB2385-311A-374E-9C0F-65639BA26A05]@0xffffff7fb8741000->0xffffff7fb876ffff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[03565C8B-2960-3B32-92FD-E6E86917FE61]@0xffffff8022203000->0xffffff802222efff
         com.apple.kext.AMD9500Controller(4.0.8)[73F58F88-8BFB-39FD-ADD4-B8D9169D4369]@0xffffff7fa037f000->0xffffff7fa03e3fff
            dependency: com.apple.AppleGraphicsDeviceControl(6.5.4)[3BBDC2AD-9889-3863-82EA-864DCE9D0DEF]@0xffffff7fb6f2c000->0xffffff7fb6f2ffff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[CF250EA9-AE5C-3215-BCF5-763DB70A0228]@0xffffff8021d60000->0xffffff8021d61fff
            dependency: com.apple.iokit.IOGraphicsFamily(594)[3ECB2385-311A-374E-9C0F-65639BA26A05]@0xffffff7fb8741000->0xffffff7fb876ffff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[03565C8B-2960-3B32-92FD-E6E86917FE61]@0xffffff8022203000->0xffffff802222efff
            dependency: com.apple.kext.AMDSupport(4.0.8)[C9BA70CD-D5CA-32B9-B28F-45EE36A83E3F]@0xffffff7fb6c28000->0xffffff7fb6cedfff
         com.apple.kext.AMDRadeonX4000HWLibs(1.0)[731EE448-F9F2-34F7-B05A-A986391D762D]@0xffffff7fa08e0000->0xffffff7fa0bddfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[03565C8B-2960-3B32-92FD-E6E86917FE61]@0xffffff8022203000->0xffffff802222efff
         com.apple.kext.AMDFramebuffer(4.0.8)[CCC9B796-5C11-38B9-807E-CAC9CE502386]@0xffffff7fa03fb000->0xffffff7fa041ffff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[CF250EA9-AE5C-3215-BCF5-763DB70A0228]@0xffffff8021d60000->0xffffff8021d61fff
            dependency: com.apple.iokit.IOGraphicsFamily(594)[3ECB2385-311A-374E-9C0F-65639BA26A05]@0xffffff7fb8741000->0xffffff7fb876ffff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[03565C8B-2960-3B32-92FD-E6E86917FE61]@0xffffff8022203000->0xffffff802222efff
            dependency: com.apple.kext.AMDSupport(4.0.8)[C9BA70CD-D5CA-32B9-B28F-45EE36A83E3F]@0xffffff7fb6c28000->0xffffff7fb6cedfff

Process name corresponding to current thread (0xffffff9066a82000): WindowServer
Boot args: -v npci=0x2000 debug=0x100 keepsyms=1 chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
21E230

Kernel version:
Darwin Kernel Version 21.4.0: Mon Feb 21 20:34:37 PST 2022; root:xnu-8020.101.4~2/RELEASE_X86_64
Kernel UUID: 9619904E-EA6D-3D08-89C4-B1C0451D39B8
KernelCache slide: 0x000000001f400000
KernelCache base:  0xffffff801f600000
Kernel slide:      0x000000001f410000
Kernel text base:  0xffffff801f610000
__HIB  text base: 0xffffff801f500000
System model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 30686498923
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x00000007250ed3ca
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x000038da6f8fe877 0x0000000000000000
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
  Foreign : 0xffffff8036028000 - 0xffffff8036036000
  Native  : 0xffffff8066df7000 - 0xffffffa066df7000
  Readonly: 0xffffff8533ac3000 - 0xffffff86cd45c000
  Metadata: 0xffffffeed3e12000 - 0xffffffeef4120000
  Bitmaps : 0xffffffeef4120000 - 0xffffffef00120000




Edited by Regi Yassin
4 hours ago, kushwavez said:

anyone can test Universal Control with an intel wifi?



edit: nvm, it doesn't work with Intel wifi

Universal Control, Airdrop, and Sidecar all rely on AWDL, which is sort of like Wi-Fi direct. Itlwm does not support AWDL, so features reliant on it will not work.

  • Like 3
57 minutes ago, 1Revenger1 said:

Universal Control, Airdrop, and Sidecar all rely on AWDL, which is sort of like Wi-Fi direct. Itlwm does not support AWDL, so features reliant on it will not work.

I could not have said that better 🙂

13 minutes ago, Bios-PC said:

can't use the system all the time I got crash after login



If you think it is related to I225 then I can suggest you to fake the device to something unreal for the kext will not load.

I can show you how to do this with Clover if you want.

  • Like 1
17 minutes ago, Slice said:

If you think it is related to I225 then I can suggest you to fake the device to something unreal for the kext will not load.

I can show you how to do this with Clover if you want.



I will disable the ethernet via bios and I will check

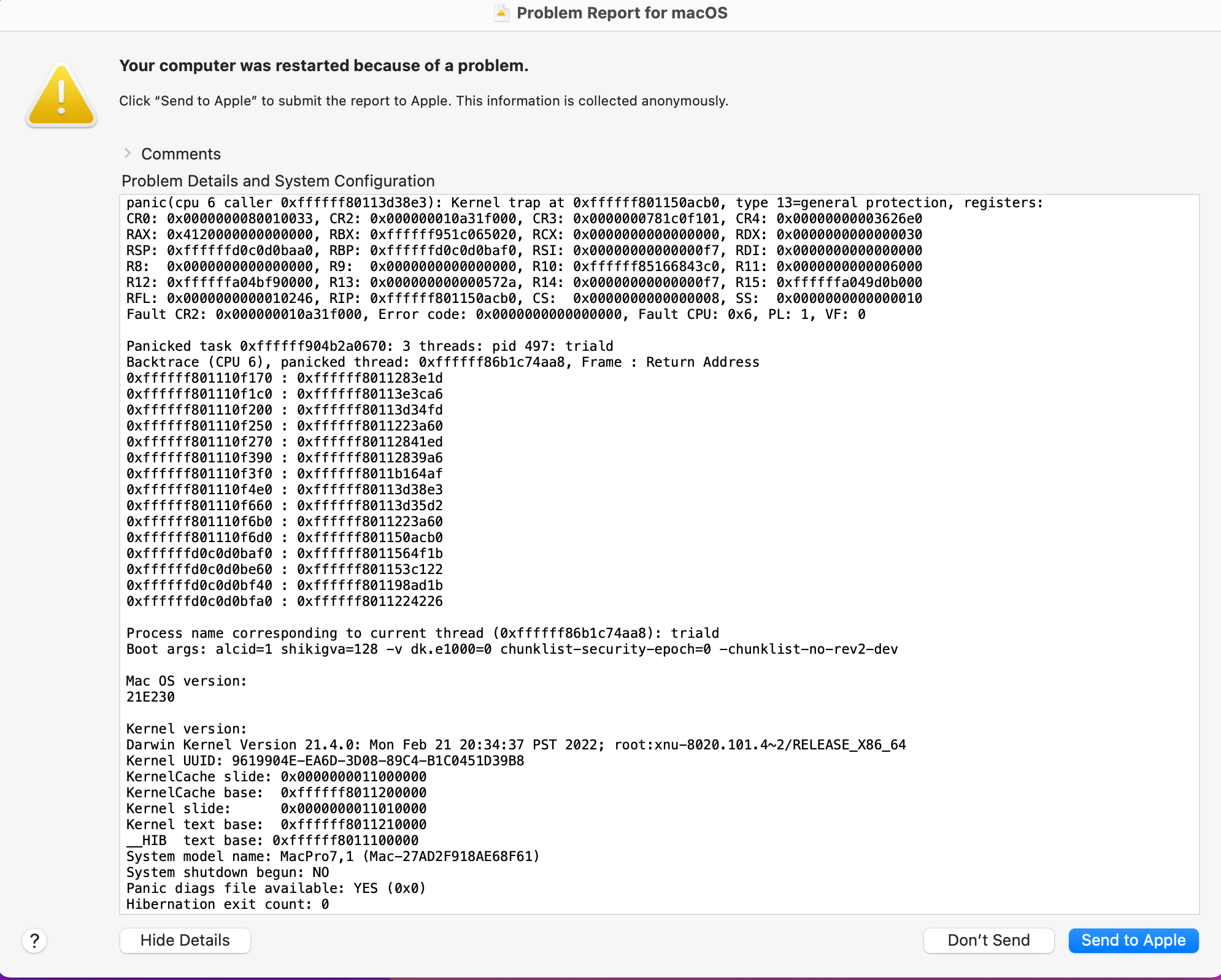

here is crash report



LWScreenShot 2022-03-16 at 16.02.47.png

44 minutes ago, blaatschaap said:

apparently for that ethernet kernel panic issue above you need to change the "dk.e1000=0" boot arg to "e1000=0"

I tried already.  no KP but I225 is still with " self-assigned IP address and will not be able to connect to the Internet"

Obviously with Preference network reset, etc...



Still need to run few more tests with other options associated with e1000=0

Edited by Ellybz
1 hour ago, miliuco said:

@Derty

Do you have this RX 6600 XT in the Z490 motherboard?  I say because I don't see it in the signature.



yes, I hadn't updated the signature... already...

I have three GA Z490 UD two with 10700, one with 10500, one with RX580, one with RX6600XT, and one with RX5500XT

  • Like 2
×
×
