OpenCore General Discussion

[onemanOSX]

8 hours ago, ic005k said:

Hello everyone!
When I use VoodooI2C.kext on OC, all functions are normal, but I can't restart or shut down normally (the desktop freezes when I restart or shut down, the system does not respond). What is the problem with this? VoodooI2C.kext can be shut down or restarted normally in Clover.
Please give pointers one or two, thank you!

A fix hopefully should be in order in the next official release.

[fangf2018]

12 hours ago, errorexists said:

remove the emuvarible an apfs.efi not needed then set show picker to yes

Apfs.efi boots fusiondrve. I have deleted it.showpicker=yes，Stuck in the System Menu Page

OC.zip

[Matgen84]

9 minutes ago, fangf2018 said:

Apfs.efi boots fusiondrve. I have deleted it.showpicker=yes，Stuck in the System Menu Page

OC.zip



@errorexists says: remove emuvariable, this driver is always present in Driver folder and config.plist. You can replace VboxHfs.efi by HFSPlus.efi, I think.

[fangf2018]

1 hour ago, Matgen84 said:



@errorexists says: remove emuvariable, this driver is always present in Driver folder and config.plist. You can replace VboxHfs.efi by HFSPlus.efi, I think.

According to the test you said, it's no use. Have you ever had such a problem? OpenCore doesn't have integrated Emulated NVRAM

Edited October 4, 2019 by fangf2018

[fangf2018]

OC Picker 有毒

[ianxpluto]

Hi everyone, due to some hardware issue, I did some test yesterday including refreshing bios. After refreshing bios, (same bios file, same config, driver, kext). OpenCore couldn't boot due to "Still waiting for root device". However, it worked very well before. Tried set ReleaseUsbOwnership to Yes but no luck.

Any idea about this issue? thx.

Attached my config

config.zip

Edited October 4, 2019 by ianxpluto

[karacho]

8 minutes ago, ianxpluto said:

After refreshing bios, (same bios file, same config, driver, kext).



Are you really sure about your Bios config? Text Below is from the Vanilla Guide.



Recommended BIOS settings:

• Disable:

  • Fast Boot

  • CFG Lock(MSR 0xE2 write protection)

  • VT-d (can be enabled if you set DisableIoMapper to YES)

  • CSM

• Enable

  • VT-x

  • Above 4G decoding

  • Hyper Threading

  • Execute Disable Bit

  • EHCI/XHCI Hand-off

  • OS type: Windows 8.1/10

[ianxpluto]

4 minutes ago, karacho_ak said:



Are you really sure about your Bios config? Text Below is from the Vanilla Guide.



Recommended BIOS settings:

• Disable:

  • Fast Boot

  • CFG Lock(MSR 0xE2 write protection)

  • VT-d (can be enabled if you set DisableIoMapper to YES)

  • CSM

• Enable

  • VT-x

  • Above 4G decoding

  • Hyper Threading

  • Execute Disable Bit

  • EHCI/XHCI Hand-off

  • OS type: Windows 8.1/10

Yes, I checked everything I can found in Bios config.

[Pavo]

16 minutes ago, ianxpluto said:

Yes, I checked everything I can found in Bios config.

Have you tried npci=2000 or npci=3000 as a bootarg?

[ianxpluto]

30 minutes ago, Pavo said:

Have you tried npci=2000 or npci=3000 as a bootarg?

No I haven’t, I’ll test it as soon as I can. Thx

What does that means?

Edited October 4, 2019 by ianxpluto

[Pavo]

22 minutes ago, ianxpluto said:

No I haven’t, I’ll test it as soon as I can. Thx

What does that means?

Some boards have messed up IRQ assignments and the PCI lanes get crossed which ends with you getting stuck at still waiting on root device.

[STLVNUB]

I don't use VoodooI2C.kext and have shutdown/restart freezes

[vandroiy2012]

58 minutes ago, STLVNUB said:

I don't use VoodooI2C.kext and have shutdown/restart freezes



VoodooI2C.kext is not a problem.

It is your unsupported chipset.

Broken NVRAM gives you shutdown/restart freezes.

Use DisableVariableWrite=true Booter quirck and read about LegacySchema in Configuration.pdf

Edited October 4, 2019 by vandroiy2012

[pinoli]

Hello everybody,

I have just started with OpenCore and I am trying to get Catalina on my PC.

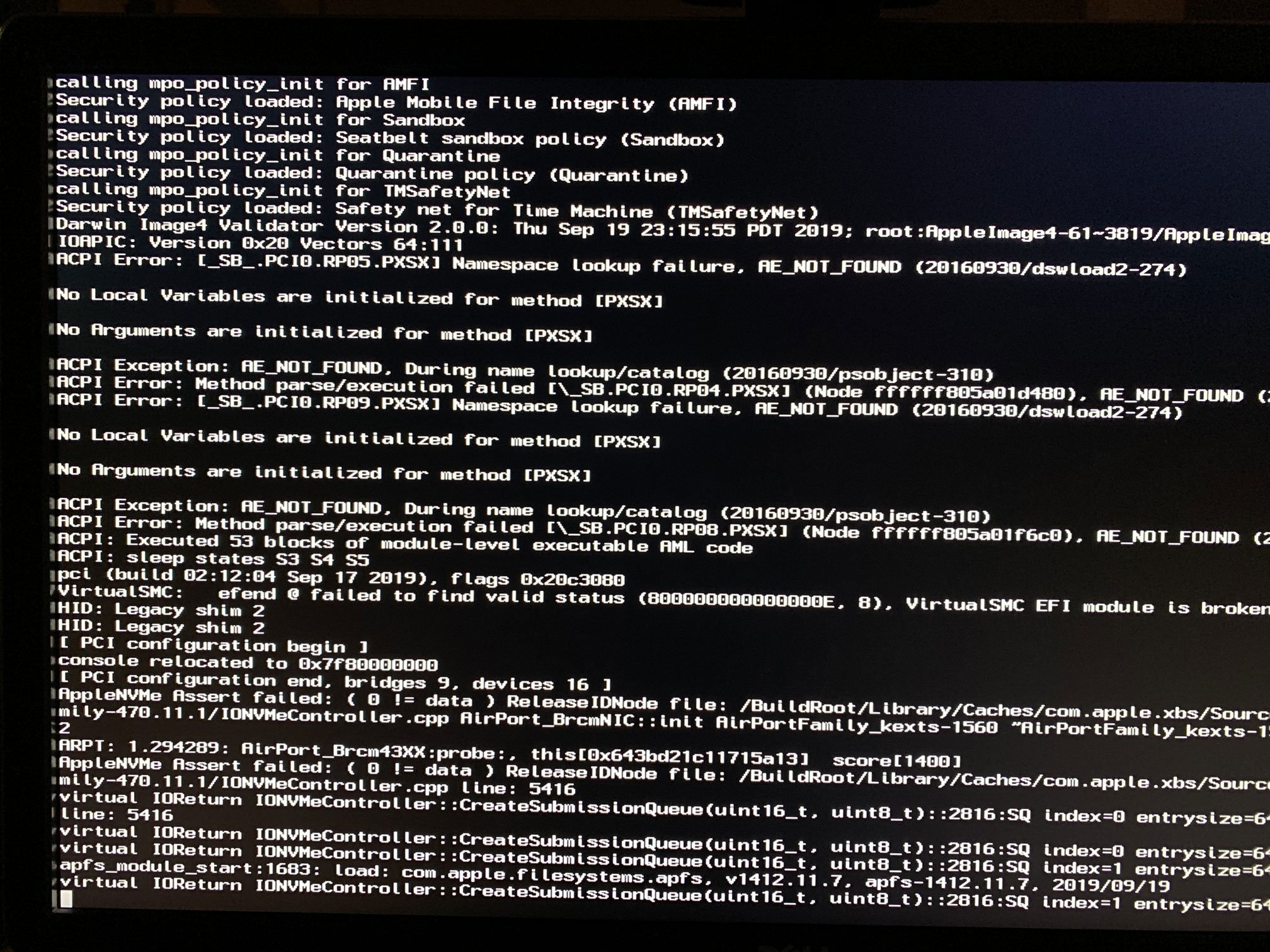

I followed the amazing OpenCore Vanilla Desktop Guide by khronokernel and tried to boot, but I am getting the error in the included screenshot.



I am on a Asus PRIME Z370-A with Intel i7 8700K, currently running latest macOS version (Mojave 10.14.6 supplemental update) with Clover.



I am using a custom SSDT-UCIA-ALL.asl that I transferred from my Clover EFi folder to my OC EFI folder. I am not using USBInjectAll.kext with OC, but I am not sure I can omit it. Anyway I am just starting, I would appreciate if anyone could point me in the right direction.



I also enclosed my broken.config.plist I am using with OC, please note that I removed MLB, Serial and UUID for privacy reasons and I activated FileVault support (at least I think I did)



Thanks.



P.S.: I read both khronokernel gitbook guide and the Configuration.pdf, again I am just starting with OC and not everything is still clear.

Edited October 5, 2019 by pinoli

[ianxpluto]

11 hours ago, Pavo said:

Some boards have messed up IRQ assignments and the PCI lanes get crossed which ends with you getting stuck at still waiting on root device.

Hi I can boot with npic=3000, but after I shutdown try to reboot I'll get the same erro.

[STLVNUB]

34 minutes ago, pinoli said:

Hello everybody,

I have just started with OpenCore and I am trying to get Catalina on my PC.

I followed the amazing Hackintosh Installation Guide by corpnewt and tried to boot, but I am getting the error in the included screenshot.



I am on a Asus PRIME Z370-A with Intel i7 8700K, currently running latest macOS version (Mojave 10.14.6 supplemental update) with Clover.



I am using a custom SSDT-UCIA-ALL.asl that I transferred from my Clover EFi folder to my OC EFI folder. I am not using USBInjectAll.kext with OC, but I am not sure I can omit it. Anyway I am just starting, I would appreciate if anyone could point me in the right direction.



I also enclosed my broken.config.plist I am using with OC, please note that I removed MLB, Serial and UUID for privacy reasons and I activated FileVault support (at least I think I did)



Thanks.



P.S.: I read both the gitbook guide and the Configuration.pdf, again I am just starting with OC and not everything is still clear.

Looks like the problem I had, what fixed it was an ACPI patch courtesy of Andres ZeroCross

config copy.plist.zip

Edited October 5, 2019 by STLVNUB

[STLVNUB]

And what fixed my sleep/restart/shutdown was VariableRuntimeDxe.efi

without further editing of config

Edited October 5, 2019 by STLVNUB

[LAbyOne]

Hi everyone,

it is just me ? ( my machine does funny things lately )

or someone else trying to build latest OC, noticed something probably is conflicting into OCSupportpkg

as Applesupportpkg now fails to build

error related to  OcCpuLib not found in OCdebugloglib by VerifyMsrE2



[ianxpluto]

8 hours ago, ianxpluto said:

Hi I can boot with npic=3000, but after I shutdown try to reboot I'll get the same erro.

I deleted my DSDT and install a new SSDT, everything looks great.

[Andres ZeroCross]

10 hours ago, pinoli said:

Hello everybody,

I have just started with OpenCore and I am trying to get Catalina on my PC.

I followed the amazing OpenCore Vanilla Desktop Guide by khronokernel and tried to boot, but I am getting the error in the included screenshot.



I am on a Asus PRIME Z370-A with Intel i7 8700K, currently running latest macOS version (Mojave 10.14.6 supplemental update) with Clover.



I am using a custom SSDT-UCIA-ALL.asl that I transferred from my Clover EFi folder to my OC EFI folder. I am not using USBInjectAll.kext with OC, but I am not sure I can omit it. Anyway I am just starting, I would appreciate if anyone could point me in the right direction.



I also enclosed my broken.config.plist I am using with OC, please note that I removed MLB, Serial and UUID for privacy reasons and I activated FileVault support (at least I think I did)



Thanks.



P.S.: I read both khronokernel gitbook guide and the Configuration.pdf, again I am just starting with OC and not everything is still clear.

Too many acpi error about RP05.PXSX, RP09.PXSX and RP08.PXSX, It's look you have used SSDT hot Patch with acpi renaming in Clover's config.plist.

Avoid ACPI renaming. Just do it in single DSDT without hotpatch if you don't understand how to renaming acpi with OC's config.plist

Edited October 5, 2019 by Andres ZeroCross

[rusty-bits]

3 hours ago, LAbyOne said:

Hi everyone,

it is just me ? ( my machine does funny things lately )

or someone else trying to build latest OC, noticed something probably is conflicting into OCSupportpkg

as Applesupportpkg now fails to build

error related to  OcCpuLib not found in OCdebugloglib by VerifyMsrE2



@LAbyOne I saw that, too

Build completes if OcSupportPkg is backed up to 5459af9, fails if OcSupportPkg is at 550c934 OcCpuLib: Expose TSC frequency retrieval API (or later)

[Andres ZeroCross]

8 hours ago, STLVNUB said:

And what fixed my sleep/restart/shutdown was VariableRuntimeDxe.efi

without further editing of config

I thought VariableRuntimeDxe.efi is depecreated in newest version of OpenCore (AppleSupportPk's driver)

Edited October 5, 2019 by Andres ZeroCross

[yobro]

I'm using a h310 board without native nvram support and I'm having some trouble setting a default boot device. I see that the default way to set it up is to use Startup Disks in System Preferences and afaik this is done using nvram.



I've set the nvram emulation up using LegacyEnable, added efi-boot-device and efi-boot-device-data to LegacySchema and confirmed that these values are indeed being restored but I'm still getting the first detected device as default instead of the disk I selected in Startup Disks.



I'm kind of lost here, is there anything else I could try? I've attached my (cleaned) config. I'm running OpenCore 0.5.1 compiled from source today.





config_clean.plist

Edited October 5, 2019 by yobro

[pinoli]

12 hours ago, STLVNUB said:

Looks like the problem I had, what fixed it was an ACPI patch courtesy of Andres ZeroCross

config copy.plist.zip

Thank you very much @STLVNUB, unfortunately I still get the same error, even with your patch.



Still having this problem, I am enclosing the entire EFI folder (MLB UUID and Serial have been deleted from config.plist).

12 hours ago, pinoli said:

Hello everybody,

I have just started with OpenCore and I am trying to get Catalina on my PC.

I followed the amazing OpenCore Vanilla Desktop Guide by khronokernel and tried to boot, but I am getting the error in the included screenshot.



I am on a Asus PRIME Z370-A with Intel i7 8700K, currently running latest macOS version (Mojave 10.14.6 supplemental update) with Clover.



I am using a custom SSDT-UCIA-ALL.asl that I transferred from my Clover EFi folder to my OC EFI folder. I am not using USBInjectAll.kext with OC, but I am not sure I can omit it. Anyway I am just starting, I would appreciate if anyone could point me in the right direction.



I also enclosed my broken.config.plist I am using with OC, please note that I removed MLB, Serial and UUID for privacy reasons and I activated FileVault support (at least I think I did)



Thanks.



P.S.: I read both khronokernel gitbook guide and the Configuration.pdf, again I am just starting with OC and not everything is still clear.



can anyone point me in the right direction? thanks

EFI.zip



Edited October 5, 2019 by pinoli
edit horror fixed

[yobro]

Just now, pinoli said:

Thank you very much @STLVNUB, unfortunately I still get the same error, even with your patch.



Still having this problem, I am enclosing the entire EFI folder (MLB UUID and Serial have been deleted from config.plist).



can anyone point me in the right direction? thanks



This could be the same error as I was seeing earlier today after updating my BIOS, you can try setting System Time and Alarm Source to Legacy RTC in BIOS instead of whatever the default is.
