ic005k Posted September 16, 2021 Share Posted September 16, 2021 23 minutes ago, 5T33Z0 said: I meant the name of the Parent drive. Understand. Currently I am using the "diskutil list" command to get the EFI partition, I will consider trying other methods. 27 minutes ago, 5T33Z0 said: But I'd like to grab entries to move them around instead of using the up and down arrows. Understand. The current mouse grab is used for multi-selection, and I may make improvements to this in the future. Link to comment Share on other sites More sharing options...
Eligos Posted September 28, 2021 Share Posted September 28, 2021 (edited) I have a question about OCAT. Is there a setting that lets us upgrade only to the stable release and not the developer release. ie, Stable 0.7.3 or Dev 0.7.4 Thanks! This app is simply amazing, makes upgrading opencore a breeze! Update: I think I answered my own question, all I have to do is use the version of OCAT for the version of OC that I need. All is good. Edited October 3, 2021 by Eligos Link to comment Share on other sites More sharing options...
jmacie Posted October 25, 2021 Share Posted October 25, 2021 I'm trying to update an EFI I got off github for my laptop. When I get to " hit "Synchronize OC Main Program" (Recycle Button) it is greyed out. My OCAT is updated and Syncronize works with my other EFIs. I tried to do a occonfig comparison but can't figure it out. Any help appreciated, Thanks johnm Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted October 25, 2021 Share Posted October 25, 2021 (edited) 13 hours ago, jmacie said: I'm trying to update an EFI I got off github for my laptop. When I get to " hit "Synchronize OC Main Program" (Recycle Button) it is greyed out. My OCAT is updated and Syncronize works with my other EFIs. I tried to do a occonfig comparison but can't figure it out. Any help appreciated, Thanks johnm You need to open the config.plist in OCAT first, save it and THEN synchronize it. It works fine over here – I just tested it. Maybe the downloaded EFI folder itsef is just not correct. Otherwise report an issue in OCAT support thread: Edited October 25, 2021 by 5T33Z0 Link to comment Share on other sites More sharing options...

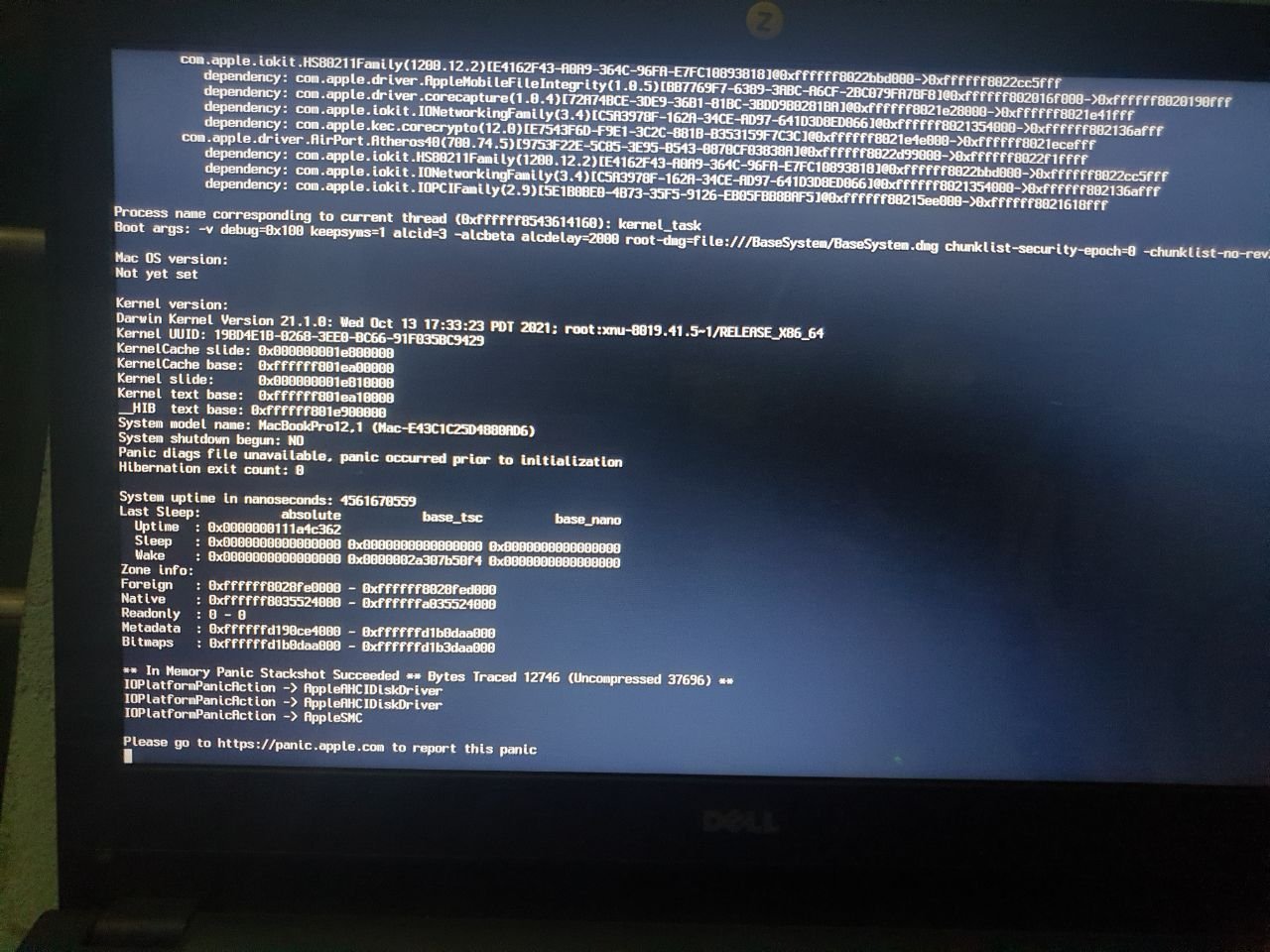

oldman20 Posted October 27, 2021 Share Posted October 27, 2021 strange, dont know why but im fine with OC 0.6.3, then update manual or using OCAT, my hack cant boot, stop right there opencore-2021-10-27-094854.txt Link to comment Share on other sites More sharing options...
jmacie Posted October 27, 2021 Share Posted October 27, 2021 @oldman20 did you read in the instructions : CAUTION: When updating from version ≤ 0.6.5, disabling Bootstrap is mandatory prior to updating OpenCore, to avoid issues. Disable `BootProtect` (set it to None), reboot, reset NVRAM and then update OpenCore. More details here. My suggestion: don't use Bootstrap unless you really have to (for example, if you have Windows and macOS installed on the same disk, like Laptops often do). Not doing this instruction caused my upgrade from below version 6.5 to not work 1 Link to comment Share on other sites More sharing options...
oldman20 Posted October 28, 2021 Share Posted October 28, 2021 (edited) 18 hours ago, jmacie said: @oldman20 did you read in the instructions : CAUTION: When updating from version ≤ 0.6.5, disabling Bootstrap is mandatory prior to updating OpenCore, to avoid issues. Disable `BootProtect` (set it to None), reboot, reset NVRAM and then update OpenCore. More details here. My suggestion: don't use Bootstrap unless you really have to (for example, if you have Windows and macOS installed on the same disk, like Laptops often do). Not doing this instruction caused my upgrade from below version 6.5 to not work excuse me, would you explain more clearly? I just using OCAT open config.plist 0.6.3 then press save, check again with OC Validate, run "Synchronize OC Main Program" and compare with Dortania's guide, but still cant boot? And after press save in OCAT, BootProtect is removed! stuck at this Edited October 28, 2021 by oldman20 Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted October 28, 2021 Share Posted October 28, 2021 @oldman20 Sorry, I can't do that. The instructions and the info in the link are pretty clear: if you've used bootstrap in OpenCore prior to v 065 you need to disable it befor upgrading, otherwise you mess up your UEFI Bios and need to perform a CMOS reset to get rid of bootstrap. Please upload your EFI folder so I cna check it out. Genereal advice: with a config as old as yours, it's recommended to start from scratch with the sample.plist and only copy over existing things you need: ACPI files and entries, device Properties, Quirk and kexts. Link to comment Share on other sites More sharing options...
jmacie Posted October 28, 2021 Share Posted October 28, 2021 @oldman20 You have edit your config.plist first before using OCAT. You have to disable "boot protect" set it to "none" which I took to mean setting securebootmodel to "disabled" in misc. then after you delete the "bootstrap" folder you update with OCAT and I used the Kext updater app that was mentioned. The part about boot protect in the instructions was confusing to me, and I asked about it, but no answer, so the only parameter I could find that was close to it was misc-securebootmodel. Hope if I'm wrong about that we get that straight. I did upgrade from 6.0 to 7.3 to 7.5 now, so working fine here. 1 Link to comment Share on other sites More sharing options...
oldman20 Posted October 28, 2021 Share Posted October 28, 2021 6 minutes ago, 5T33Z0 said: @oldman20 Sorry, I can't do that. The instructions and the info in the link are pretty clear: if you've used bootstrap in OpenCore prior to v 065 you need to disable it befor upgrading, otherwise you mess up your UEFI Bios and need to perform a CMOS reset to get rid of bootstrap. Please upload your EFI folder so I cna check it out. Genereal advice: with a config as old as yours, it's recommended to start from scratch with the sample.plist and only copy over existing things you need: ACPI files and entries, device Properties, Quirk and kexts. Here's my EFI folder 074 which is cant bootable, thank your help! 4 minutes ago, jmacie said: @oldman20 You have edit your config.plist first before using OCAT. You have to disable "boot protect" set it to "none" which I took to mean setting securebootmodel to "disabled" in misc. then after you delete the "bootstrap" folder you update with OCAT and I used the Kext updater app that was mentioned. The part about boot protect in the instructions was confusing to me, and I asked about it, but no answer, so the only parameter I could find that was close to it was misc-securebootmodel. Hope if I'm wrong about that we get that straight. I did upgrade from 6.0 to 7.3 to 7.5 now, so working fine here. Thank, i understand more! EFI074(cant-boot).zip @5T33Z0 and here's my old EFI folder 063 can bootable fine! EFI063(bootable).zip Link to comment Share on other sites More sharing options...

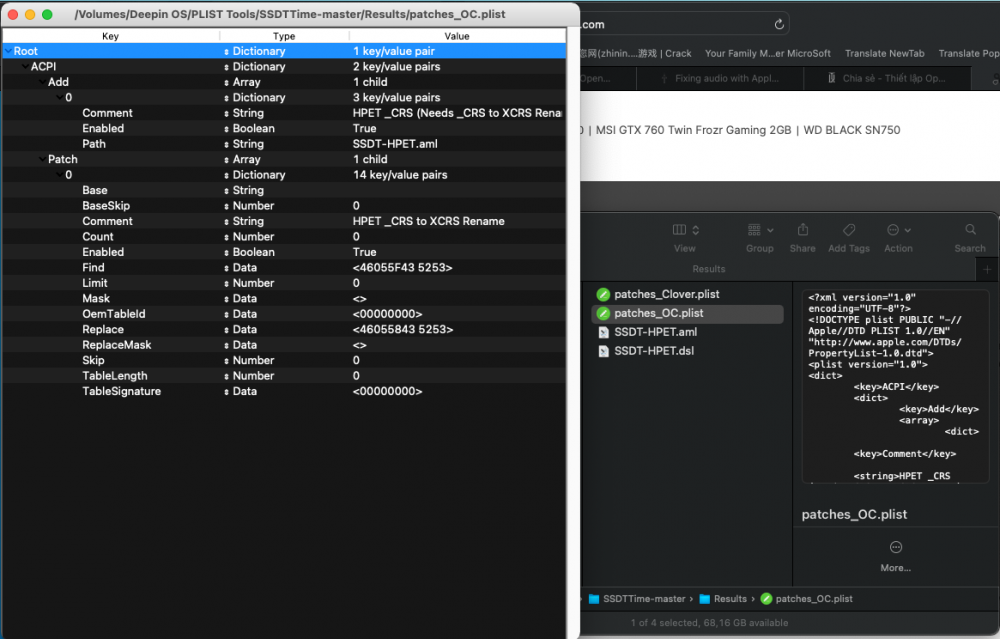

Guest 5T33Z0 Posted October 29, 2021 Share Posted October 29, 2021 @oldman20 This is the first time I've seen somebody adding a binary rename patch under ACPI >> add and just "change CRS to XCRS.aml" instead of adding it as a patch. The patch was even wrong and included wrong characters… incredible. How this thing booted before is a miracle to me. This is all I can do for you. If there are any other problems, either follow the OpenCore vanilla guide from start to finish or create a forum post. I am no longer wasting my time with this. EFI.zip Link to comment Share on other sites More sharing options...
oldman20 Posted October 29, 2021 Share Posted October 29, 2021 3 hours ago, 5T33Z0 said: @oldman20 This is the first time I've seen somebody adding a binary rename patch under ACPI >> add and just "change CRS to XCRS.aml" instead of adding it as a patch. The patch was even wrong and included wrong characters… incredible. How this thing booted before is a miracle to me. This is all I can do for you. If there are any other problems, either follow the OpenCore vanilla guide from start to finish or create a forum post. I am no longer wasting my time with this. EFI.zip 5.88 MB · 2 downloads thank so much, even check with OC Validate but no issues, strange Btw, still reboot panic. I will recheck carefully! Link to comment Share on other sites More sharing options...
dionnode Posted November 5, 2021 Share Posted November 5, 2021 Hi there, about backup current EFI, I am confused about this: You wrote: BACKUP YOUR CURRENT EFI FOLDER ON A FAT32 FORMATTED USB STICK! While quoted from Opencore wrote: For the USB, it must be formatted as GUID. Reason for this is that GUID will automatically create an EFI partition, ... This allows us to keep a working copy of OpenCore in case our update goes south Opencore suggest format: MAC OS Extended (Journaled) Scheme: GUID partition Map Could you explain about the difference of both ? Thqnk you. Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted November 5, 2021 Share Posted November 5, 2021 @dionnodeI know what the guide says. Technically it is not wrong, but this is only half the truth. In fact, formatting a USB flash drive in disk utility as macOS extended creates a hidden EFI Parttion which in FAT32 format which is 200 mb in size. In other words: formatting a USB stick to FAT32 eliminates the necessity of creating an Extra EFI Parition which is hidden and has to be mounted, because the USB flash drive already is the partition! Link to comment Share on other sites More sharing options...
oldman20 Posted November 16, 2021 Share Posted November 16, 2021 On 10/29/2021 at 7:00 AM, 5T33Z0 said: @oldman20 This is the first time I've seen somebody adding a binary rename patch under ACPI >> add and just "change CRS to XCRS.aml" instead of adding it as a patch. The patch was even wrong and included wrong characters… incredible. How this thing booted before is a miracle to me. This is all I can do for you. If there are any other problems, either follow the OpenCore vanilla guide from start to finish or create a forum post. I am no longer wasting my time with this. EFI.zip 5.88 MB · 5 downloads thank and sorry about late, your mean these patches? It was created by SSDTTime-Master after running with mine DSDT, is it wrong? Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted November 16, 2021 Share Posted November 16, 2021 It looks correct now. Can't remember how it was in the Config I updated. It has been 10 days which feel like 10 years to me Link to comment Share on other sites More sharing options...
oSxFr33k Posted June 4, 2022 Share Posted June 4, 2022 Thanks for sharing this great tool. Has the GUI changed since the first post? I can’t find the globe for example to update. Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted June 4, 2022 Share Posted June 4, 2022 The buttons have alt-text, so hovering over them will reveal theoir function. Link to comment Share on other sites More sharing options...
oSxFr33k Posted June 5, 2022 Share Posted June 5, 2022 (edited) Until I saw this thread I could not figure out why I could not boot anything past OC v0.7.1 Catalina for Coffee lake CPU/Z390 Motherboard and realized two things that took care of the issue which your Tool takes care of and you mention in the troubleshooting, SecureBootModel boot Monterey would boot just fine with SecureBootModel set to Default but not Catalina. Also Catalina partition would not show without MinVersion/Date set from 0 to -1. Is there a way to update the tool from OC v0.7.8 to v0.8.0? Thanks again for this masterful tool and for sharing this. Edited June 5, 2022 by oSxFr33k Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted June 5, 2022 Share Posted June 5, 2022 (edited) @oSxFr33k Download the latest version: https://github.com/ic005k/OCAuxiliaryTools/releases After that auto updating of the app should work again With the new version, you can also use Help > Download Upgrade Packages. For the rest, please refer to the manual on the github repo Edited June 5, 2022 by 5T33Z0 Link to comment Share on other sites More sharing options...
oSxFr33k Posted June 5, 2022 Share Posted June 5, 2022 (edited) OC 0.7.8 shows as the latest version? According to manual I can update the link to the latest Dev version etc nothing on how to update to the latest release version of OC? Edited: Never-mind the notes say it will not support online updates. Edited June 5, 2022 by oSxFr33k Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted June 5, 2022 Share Posted June 5, 2022 @oSxFr33k Like i said: read the documentation on the github site. There's an update guide which also explains how to switch to dev mode to use the latest nightly builds: https://github.com/5T33Z0/OC-Little-Translated/tree/main/D_Updating_OpenCore And it will update automatically. No idea where you got this info from, but it's wrong! Link to comment Share on other sites More sharing options...
oSxFr33k Posted June 5, 2022 Share Posted June 5, 2022 (edited) Yes I know that can be done but what about the release versions? This is what I read: https://github.com/5T33Z0/OC-Little-Translated/blob/main/D_Updating_OpenCore/README.md See last section Notes, second bullet. Edited: Sorry never mind I did not see from the drop down a latest version choice sorry about that as soon as I chose latest version it updated to v0.80 but I don't see this in the manual anywhere? Edited June 5, 2022 by oSxFr33k Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted June 5, 2022 Share Posted June 5, 2022 (edited) @oSxFr33k I updated the guide: https://github.com/5T33Z0/OC-Little-Translated/blob/main/D_Updating_OpenCore/README.md#release-builds-vs-dev-builds Edited June 21, 2022 by 5T33Z0 Link to comment Share on other sites More sharing options...
