OpenCanopy Icons

miliuco · September 8, 2023

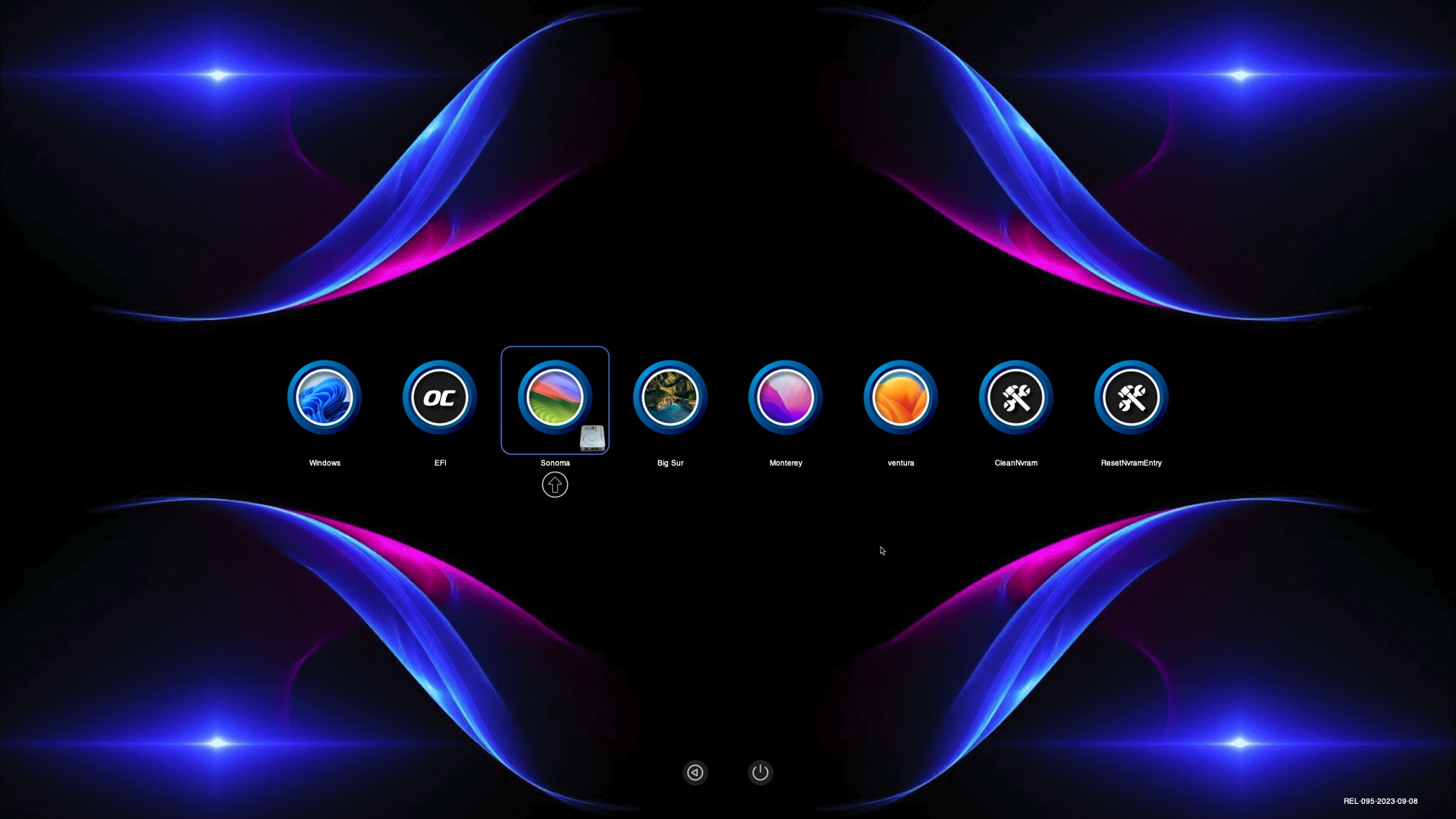

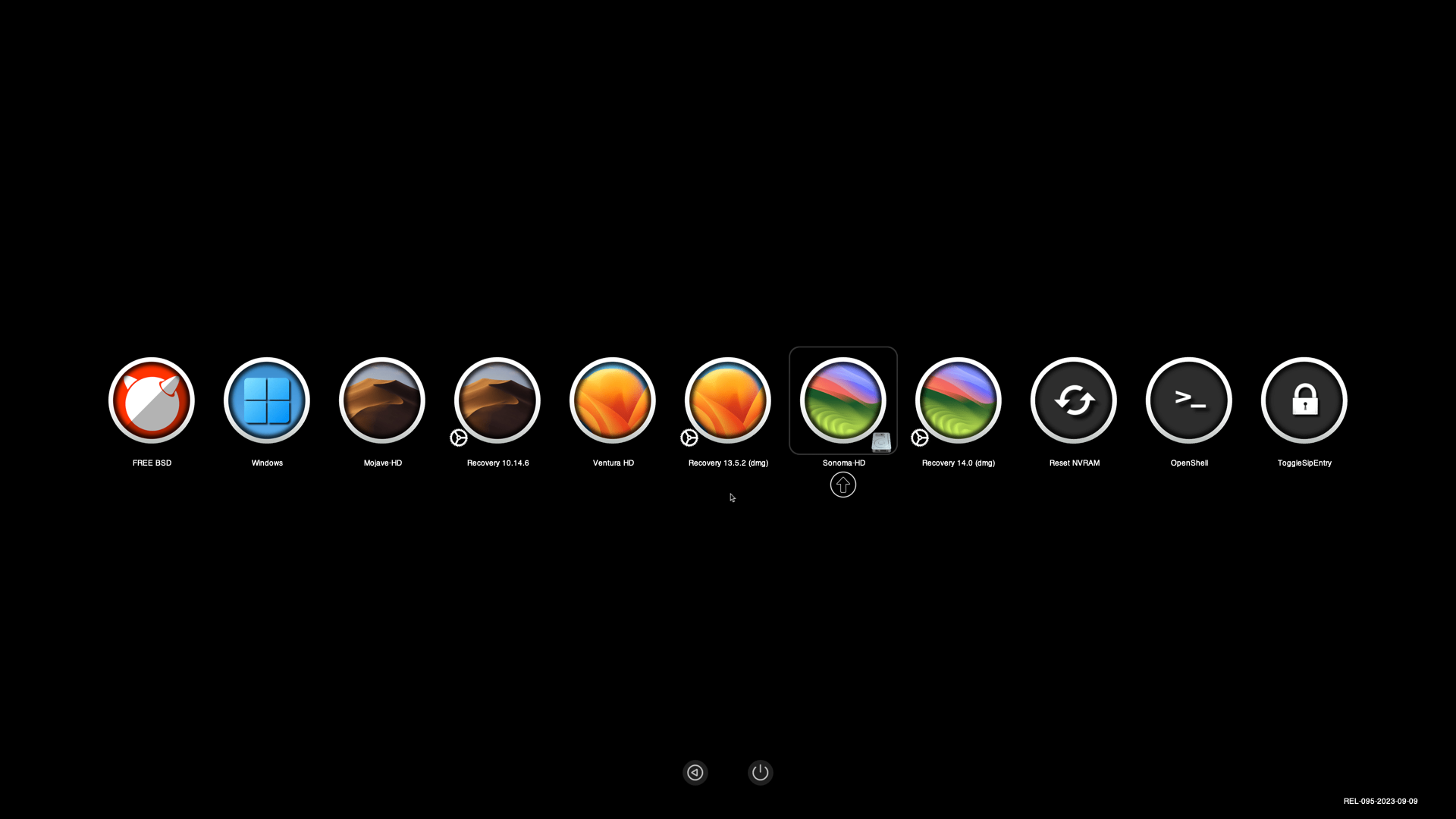

Very very nice! I like the disk only in the selected entry, cleaner design. The whole theme is excellent. Share it when finished, as usual 🙂

Edited September 8, 2023 by miliuco

chris1111 · September 8, 2023

18 hours ago, miliuco said:

@chris1111

Very very nice! I like the disk only in the selected entry, cleaner design. The whole theme is excellent. Share it when finished, as usual 🙂

Thanks @miliuco its ready

Attaching Files

Flavours-BlueFull.zip

Background.zip

Windows Icon replacement

Windows.icns.zip

config.plist

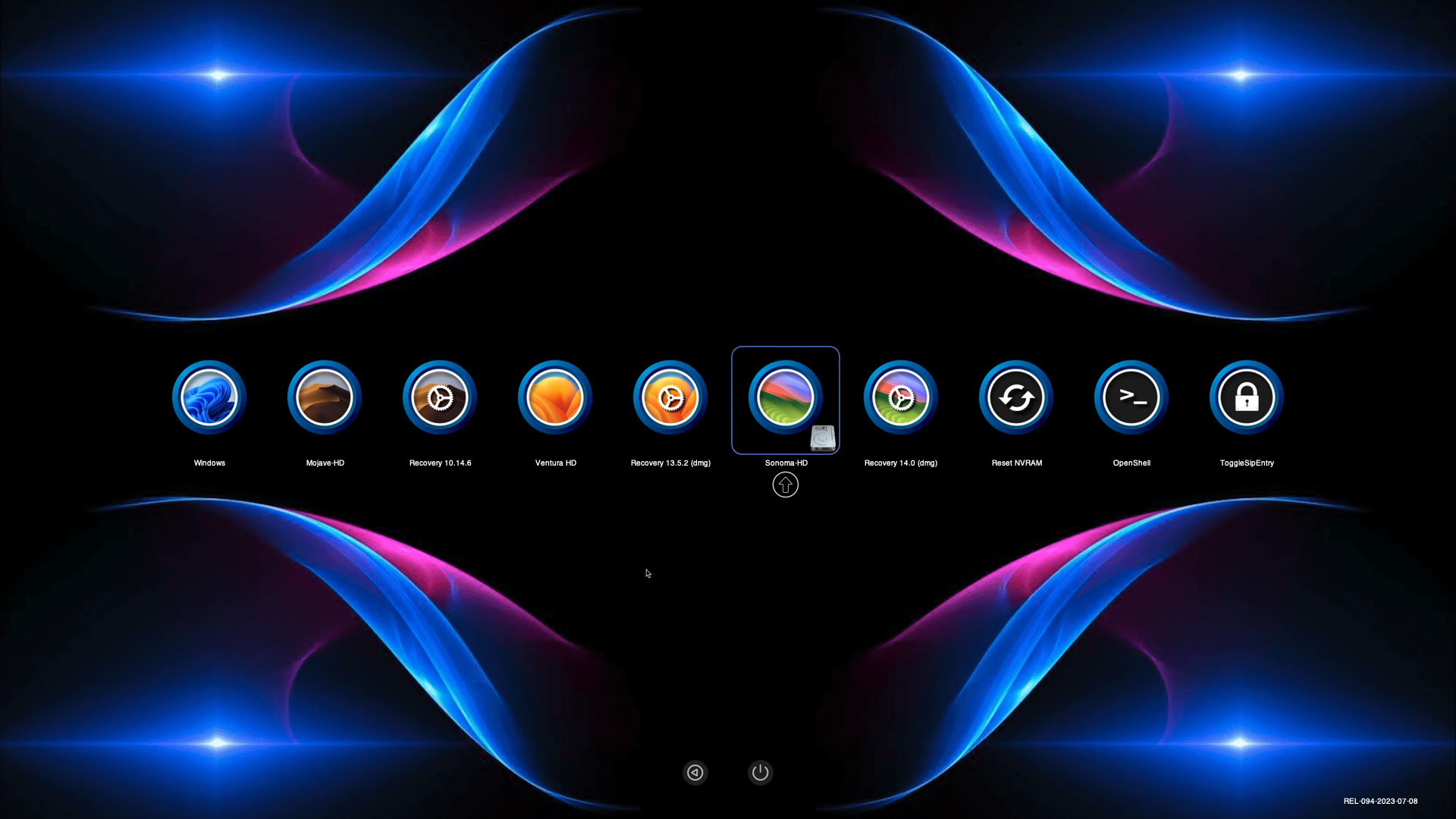

Misc -> Boot -> PickerVariant: chris1111\Flavours-BlueFull
Misc -> Boot -> PickerAtributes: 145

Choose your Background file, it is twice your screen you rename it Background.icns

Ex: if you have a 1280x800 screen you chosse Flavours-BlueFull-2560x1600.icns then rename to Background.icns then change in the themes

Background ➤ 2560x1440 = ➤ [5120×2880]
Background ➤ 1920x1200 = ➤ [3840×2400]
Background ➤ 1920x1080 = ➤ [3840×2160]
Background ➤ 1600x900 = ➤ [3200×1800]
Background ➤ 1366x768 = ➤ [2732x1536]
Background ➤ 1024x768 = ➤ [2048x1536]
Background ➤ 1440x900 = ➤ [2880×1800]
Background ➤ 1440x1080 = ➤ [2880×2160]
Background ➤ 1600x1200 = ➤ [3200×2400]
Background ➤ 1680x1050 = ➤ [3360×2100]
Background ➤ 1280x800 = ➤ [2560x1600]

If you don't want a Background, then delete it from the themes.

Show Icons in spoiler

Spoiler

naiclub · September 9, 2023

Spoiler

Beautiful, very pleasing.

Matgen84 · September 9, 2023

Hi All

I've read Flavours.md because I want to use ResetNvram.icns, ToogleSio.icns, ToogleSIP_enabled and ToogleSIP_disabled. Despite information, I don't understand how to do.

If someone can share an example from his config.plist....Please.

chris1111 · September 9, 2023

15 minutes ago, Matgen84 said:

Hi All

I've read Flavours.md because I want to use ResetNvram.icns, ToogleSio.icns, ToogleSIP_enabled and ToogleSIP_disabled. Despite information, I don't understand how to do.

If someone can share an example from his config.plist....Please.

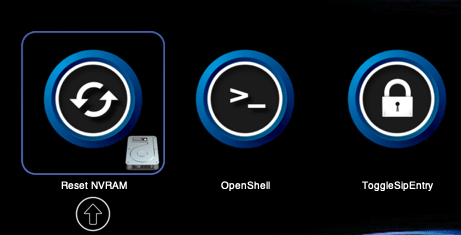

Hi @Matgen84 see this, please understand that this works for the Flavours theme configuration.

config.plist EX:

Misc -> Boot -> PickerVariant: chris1111\Flavours-BlueFull
Misc -> Boot -> PickerAtributes: 145

<key>Tools</key>
		<array>
			<dict>
				<key>Arguments</key>
				<string></string>
				<key>Auxiliary</key>
				<false/>
				<key>Comment</key>
				<string>Not signed for security reasons</string>
				<key>Enabled</key>
				<true/>
				<key>Flavour</key>
				<string>ResetNVRAM:NVRAMTool</string>
				<key>FullNvramAccess</key>
				<false/>
				<key>Name</key>
				<string>Reset NVRAM</string>
				<key>Path</key>
				<string>CleanNvram.efi</string>
				<key>RealPath</key>
				<false/>
				<key>TextMode</key>
				<false/>
			</dict>
			<dict>
				<key>Arguments</key>
				<string></string>
				<key>Auxiliary</key>
				<false/>
				<key>Comment</key>
				<string></string>
				<key>Enabled</key>
				<true/>
				<key>Flavour</key>
				<string>OpenShell:UEFIShell:Shell</string>
				<key>FullNvramAccess</key>
				<false/>
				<key>Name</key>
				<string>OpenShell</string>
				<key>Path</key>
				<string>OpenShell.efi</string>
				<key>RealPath</key>
				<false/>
				<key>TextMode</key>
				<false/>
			</dict>
			<dict>
				<key>Arguments</key>
				<string></string>
				<key>Auxiliary</key>
				<false/>
				<key>Comment</key>
				<string></string>
				<key>Enabled</key>
				<true/>
				<key>Flavour</key>
				<string>ToggleSip:NVRAMTool</string>
				<key>FullNvramAccess</key>
				<false/>
				<key>Name</key>
				<string>ToggleSipEntry</string>
				<key>Path</key>
				<string>ToggleSipEntry.efi</string>
				<key>RealPath</key>
				<false/>
				<key>TextMode</key>
				<false/>
			</dict>
		</array>
	</dict>

Matgen84 · September 9, 2023

9 minutes ago, chris1111 said:

Hi @Matgen84 see this, please understand that this works for the Flavours theme configuration.

config.plist EX:

Misc -> Boot -> PickerVariant: chris1111\Flavours-BlueFull
Misc -> Boot -> PickerAtributes: 145

<key>Tools</key>
		<array>
			<dict>
				<key>Arguments</key>
				<string></string>
				<key>Auxiliary</key>
				<false/>
				<key>Comment</key>
				<string>Not signed for security reasons</string>
				<key>Enabled</key>
				<true/>
				<key>Flavour</key>
				<string>ResetNVRAM:NVRAMTool</string>
				<key>FullNvramAccess</key>
				<false/>
				<key>Name</key>
				<string>Reset NVRAM</string>
				<key>Path</key>
				<string>CleanNvram.efi</string>
				<key>RealPath</key>
				<false/>
				<key>TextMode</key>
				<false/>
			</dict>
			<dict>
				<key>Arguments</key>
				<string></string>
				<key>Auxiliary</key>
				<false/>
				<key>Comment</key>
				<string></string>
				<key>Enabled</key>
				<true/>
				<key>Flavour</key>
				<string>OpenShell:UEFIShell:Shell</string>
				<key>FullNvramAccess</key>
				<false/>
				<key>Name</key>
				<string>OpenShell</string>
				<key>Path</key>
				<string>OpenShell.efi</string>
				<key>RealPath</key>
				<false/>
				<key>TextMode</key>
				<false/>
			</dict>
			<dict>
				<key>Arguments</key>
				<string></string>
				<key>Auxiliary</key>
				<false/>
				<key>Comment</key>
				<string></string>
				<key>Enabled</key>
				<true/>
				<key>Flavour</key>
				<string>ToggleSip:NVRAMTool</string>
				<key>FullNvramAccess</key>
				<false/>
				<key>Name</key>
				<string>ToggleSipEntry</string>
				<key>Path</key>
				<string>ToggleSipEntry.efi</string>
				<key>RealPath</key>
				<false/>
				<key>TextMode</key>
				<false/>
			</dict>
		</array>
	</dict>

Thansk a lo, my Bro.

Three questions:

* ResetNvramEntry and ToogSipEntry are Drivers: why there is in Tools sections (Config.pist) and Drivers folder (EFI directory and GitHub repo)

* ToogleSip has two labels. There are automatically declared or a Flavour must be necessary !

* Clearnvram or ResetNvramEntry, what is the good one ?

A the end: to see Tools, I press Space Bar. There is a possibility to hide them again from Opencore GUI. Please.

chris1111 · September 9, 2023

18 minutes ago, Matgen84 said:

Thansk a lo, my Bro.

Three questions:

* ResetNvramEntry and ToogSipEntry are Drivers: why there is in Tools sections (Config.pist) and Drivers folder (EFI directory and GitHub repo)

* ToogleSip has two labels. There are automatically declared or a Flavour must be necessary !

* Clearnvram or ResetNvramEntry, what is the good one ?

A the end: to see Tools, I press Space Bar. There is a possibility to hide them again from Opencore GUI. Please.

For the first two questions you would have to ask @mikebeaton
and the third question Clearnvram and ResetNvramEntry are different, refer to the manual for the best precise answer

chris1111 · September 9, 2023

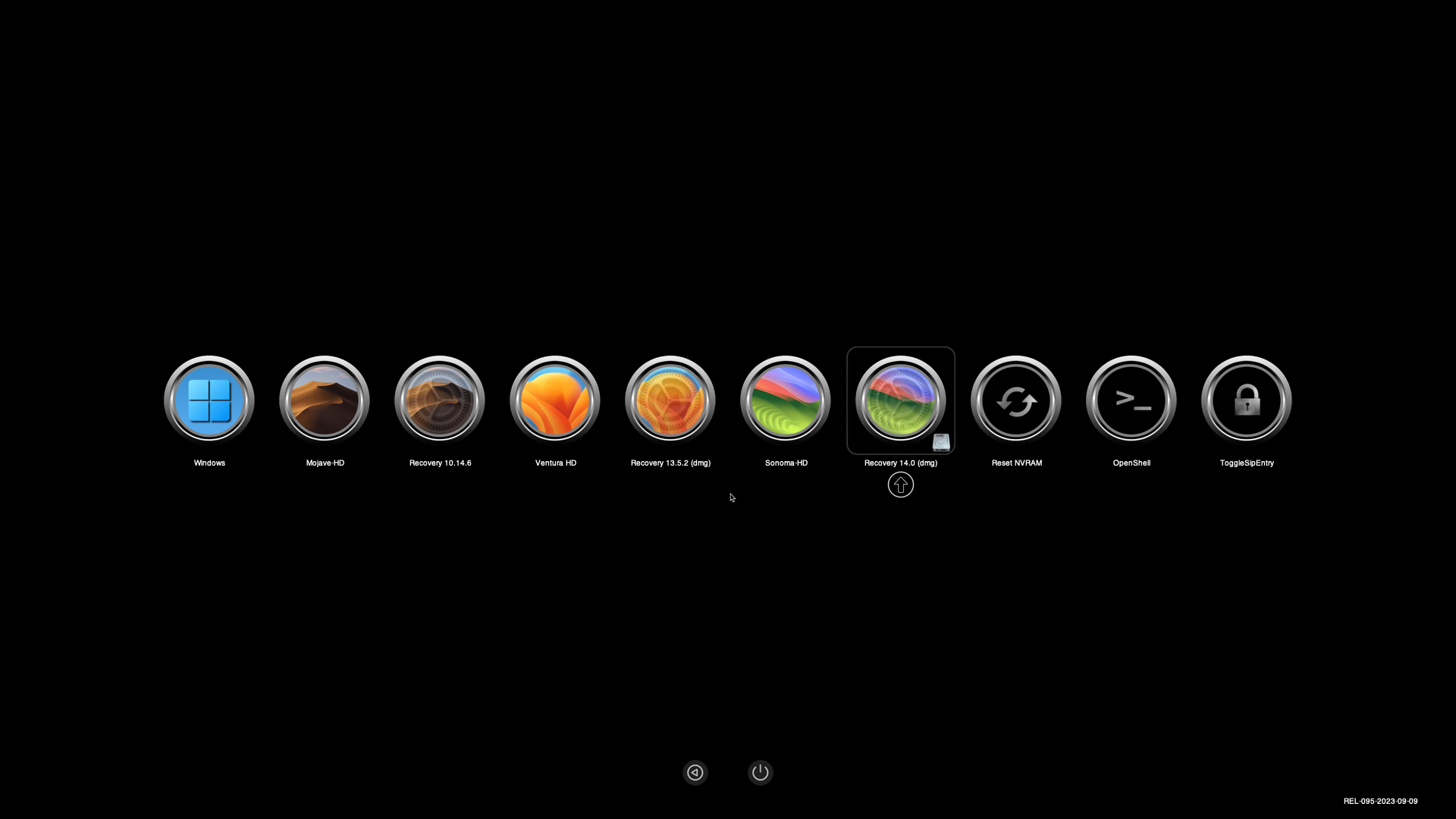

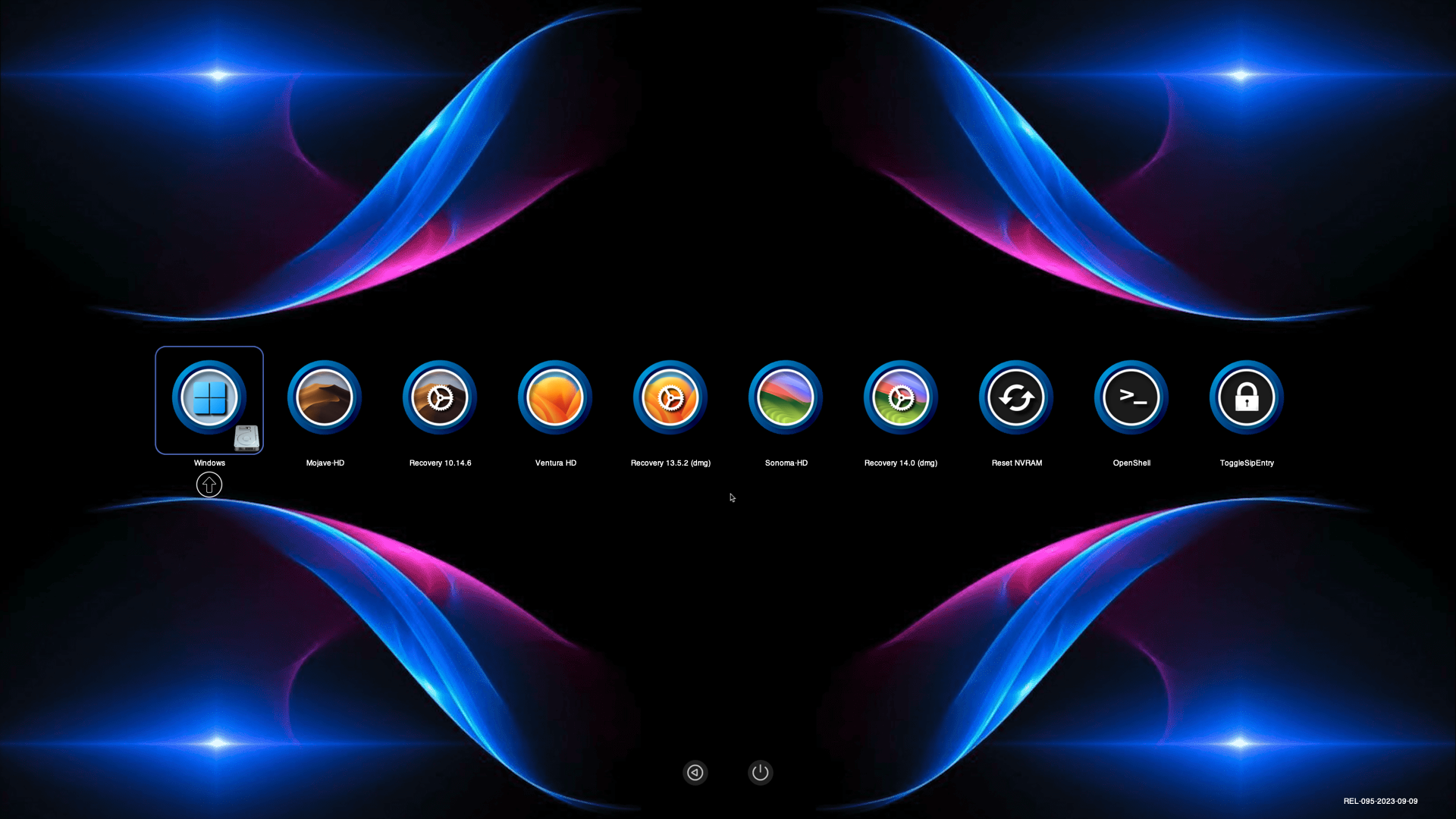

Differant Windows icon

In the theme, rename Windows.icns to Windows11Light.icns then use this one attaching

Windows.icns.zip

miliuco · September 9, 2023

@Matgen84

By default, there are 2 SIP labels but only 1 SIP icon (ToggleSIP.icns). About 2 different icons for SIP enabled / disabled, I don't know if the theme author has to create them or OpenCore puts any difference over ToggleSIP.icns. Flavour system has options for ToggleSIP_Enabled:ToggleSIP:NVRAMTool and ToggleSIP_Disabled:ToggleSIP:NVRAMTool which makes me assume that it does make some difference but I'm not sure.

2 hours ago, chris1111 said:

Differant Windows icon...

:thumbsup_anim:

Edited September 9, 2023 by miliuco

pananning · September 9, 2023

3 hours ago, chris1111 said:

Differant Windows icon

In the theme, rename Windows.icns to Windows11Light.icns then use this one attaching

Windows.icns.zip 20.29 kB · 4 downloads

Can the background picture be made dynamic?

miliuco · September 9, 2023

21 minutes ago, pananning said:

Can the background picture be made dynamic?

Are we asking too many things of @chris1111? 🙂

chris1111 · September 10, 2023

Next themes will be base on this Icons fabrications.

Spoiler

Sonoma+.png Ventura+.png Windows11+.png

chris1111 · September 10, 2023

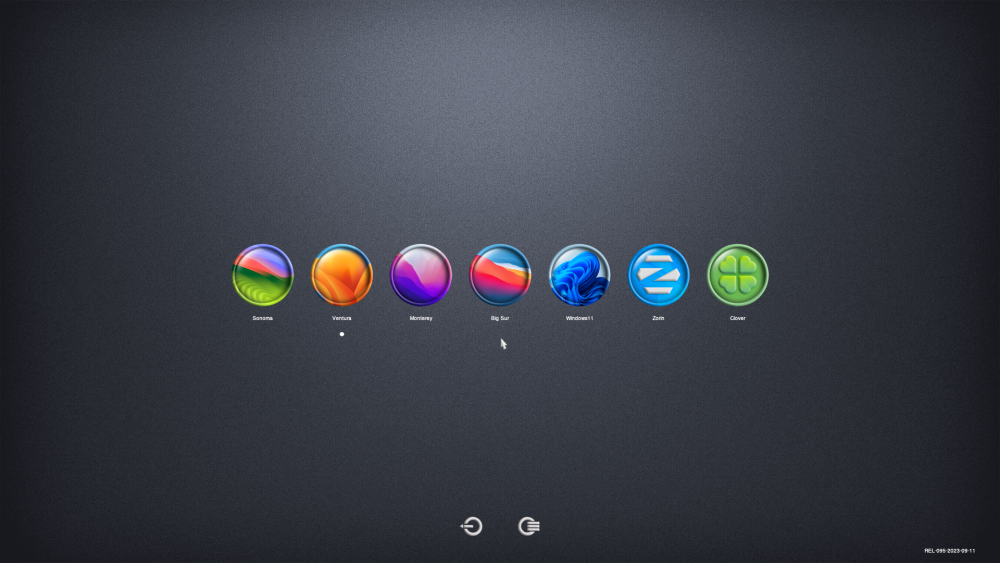

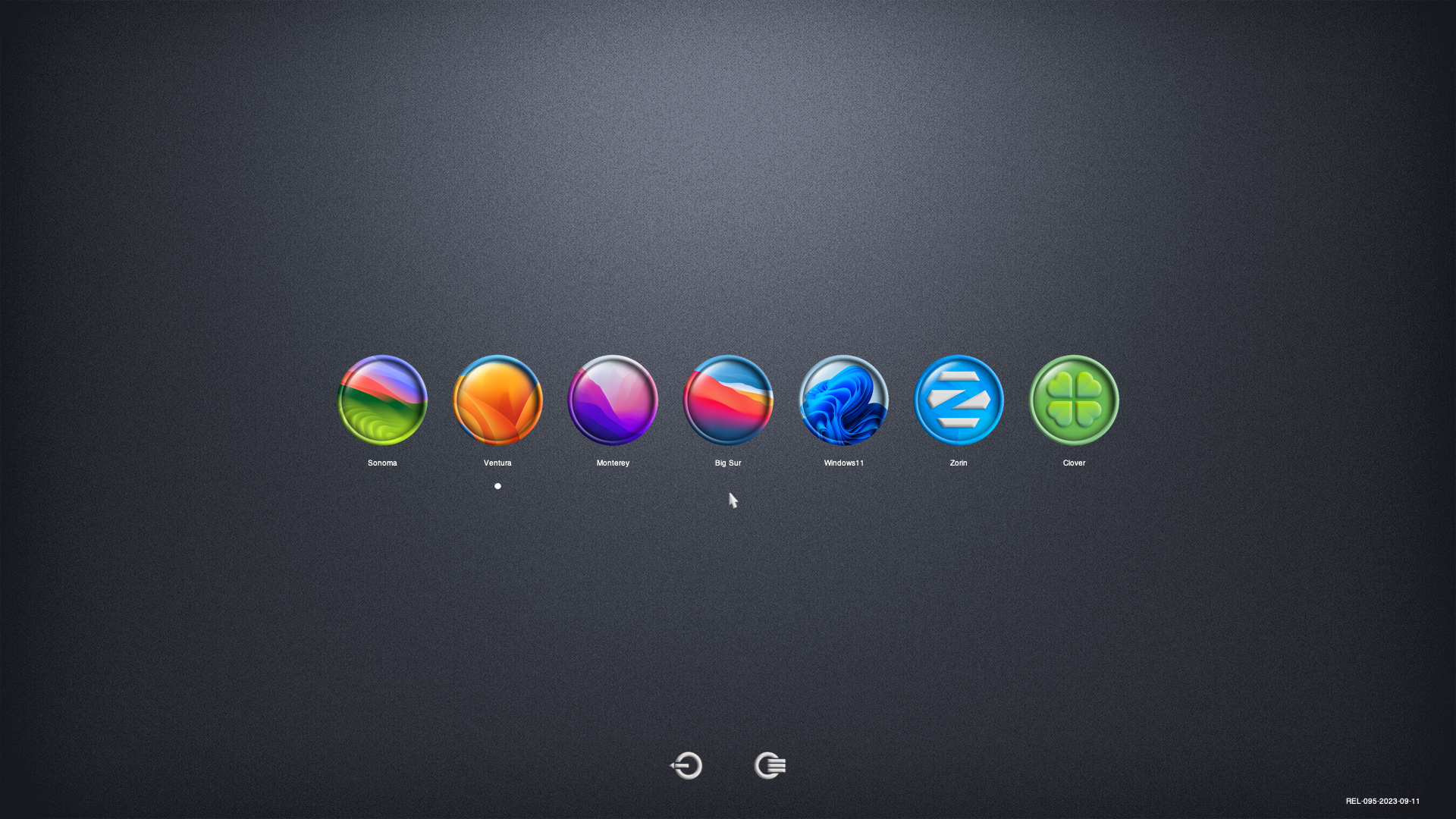

Another theme finish This theme lives up to its name!

You can see the icon is more bigger then my last one.

attaching Flavours-Nice theme

Flavours-Nice.zip

Enjoy :thumbsup_anim:

chris1111 · September 11, 2023

Origin Icon 512PX Flavours-Nice themes

Icons_512_Flavours-Nice.zip

chris1111 · September 20, 2023

Hi @miliuco A new Icon Set available soon when is complet finishing, another new innovation Recvovery HD is inside the Icons from transparency

Nice Icon set

miliuco · September 21, 2023

@chris1111

Amazing! Very very nice. I like this transparency a lot.
Quelle belle trouvaille !

Edited September 21, 2023 by miliuco

Anto65 · September 21, 2023

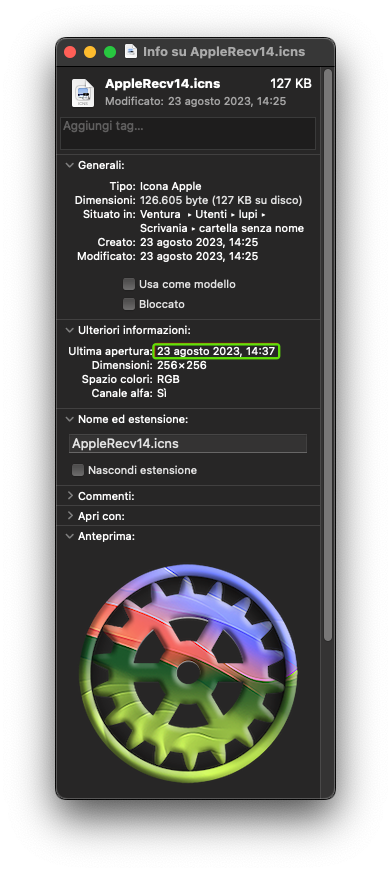

:hysterical: Nice work chris1111 👍 , I also thought of something similar for recovery ... I had some time last August

Spoiler

chris1111 · September 21, 2023

2 hours ago, antuneddu said:

Nice work chris1111 👍 , I also thought of something similar for recovery ... I had some time last August

Reveal hidden contents

Great Work

Edit “””did you share your work on GitHub?

Edited September 21, 2023 by chris1111
Edit

HmO · September 21, 2023

My custom theme

Spoiler

miliuco · September 21, 2023

@HmO

Nice!!! Where is to be downloaded? Thanks.

chris1111 · September 21, 2023

Themes Flavours-T is ready

config.plist Setup ⬇︎

Misc -> Boot -> PickerVariant: chris1111\Flavours-T
Misc -> Boot -> Picker Attributes: 145
Misc -> Boot -> Picker Mode->: External
Misc->Boot->Timeout->: 5
Misc->Boot->ShowPicker: true

Attaching theme here

Flavours-T.zip

Enjoy! 😄

Posted 23 hours ago

Hi @miliuco A new Icon Set available soon when is complet finishing, another new innovation Recvovery HD is inside the Icons from transparency

Nice Icon set

We have also two differant Windows11 Icons if you want changing

chris1111 · September 22, 2023

Another Icons style :lol: The good thing with Rond icon, is you can create lots of thing differant

Slice · September 22, 2023

15 hours ago, HmO said:

My custom theme

Reveal hidden contents

I can propose orange is ventura, green is sonoma and violet is monterey. Mojave should be brown?

HmO · September 22, 2023

2 hours ago, Slice said:

I can propose orange is ventura, green is sonoma and violet is monterey. Mojave should be brown?

15 hours ago, miliuco said:

@HmO

Nice!!! Where is to be downloaded? Thanks.

Icons

Icons.zip

Edited September 22, 2023 by HmO

Slice · September 22, 2023

3 hours ago, HmO said:

Icons

Icons.zip 666.75 kB · 5 downloads

Nice. Is there an vector origin of the apple?
