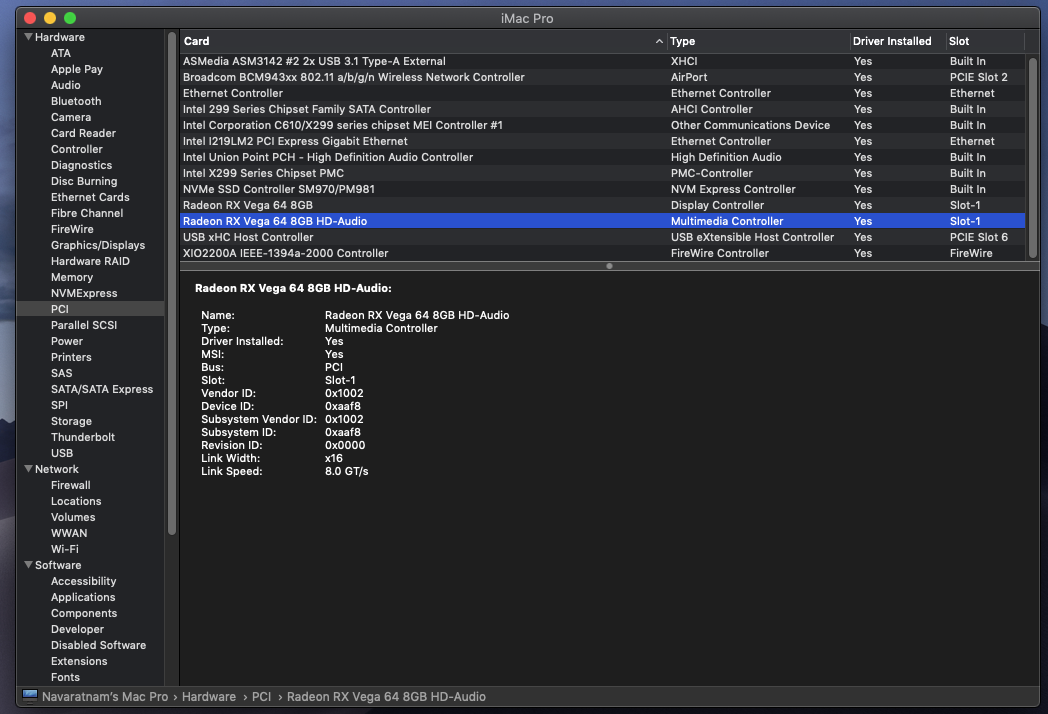

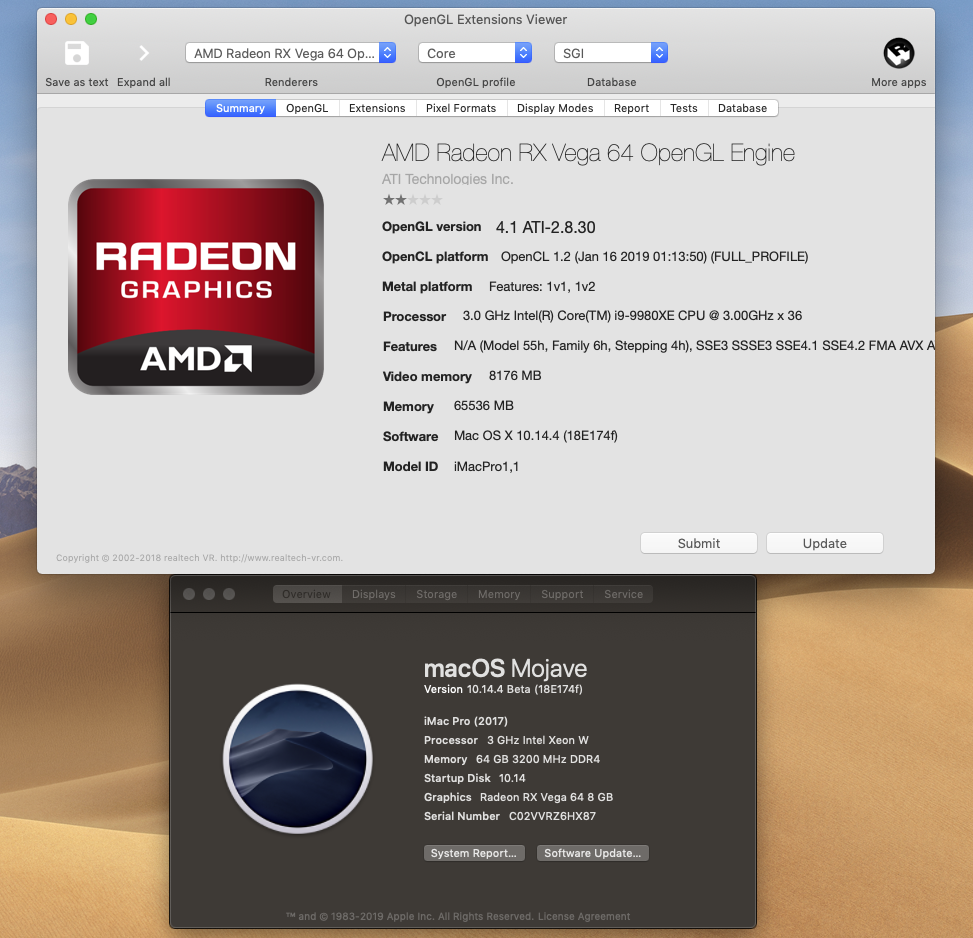

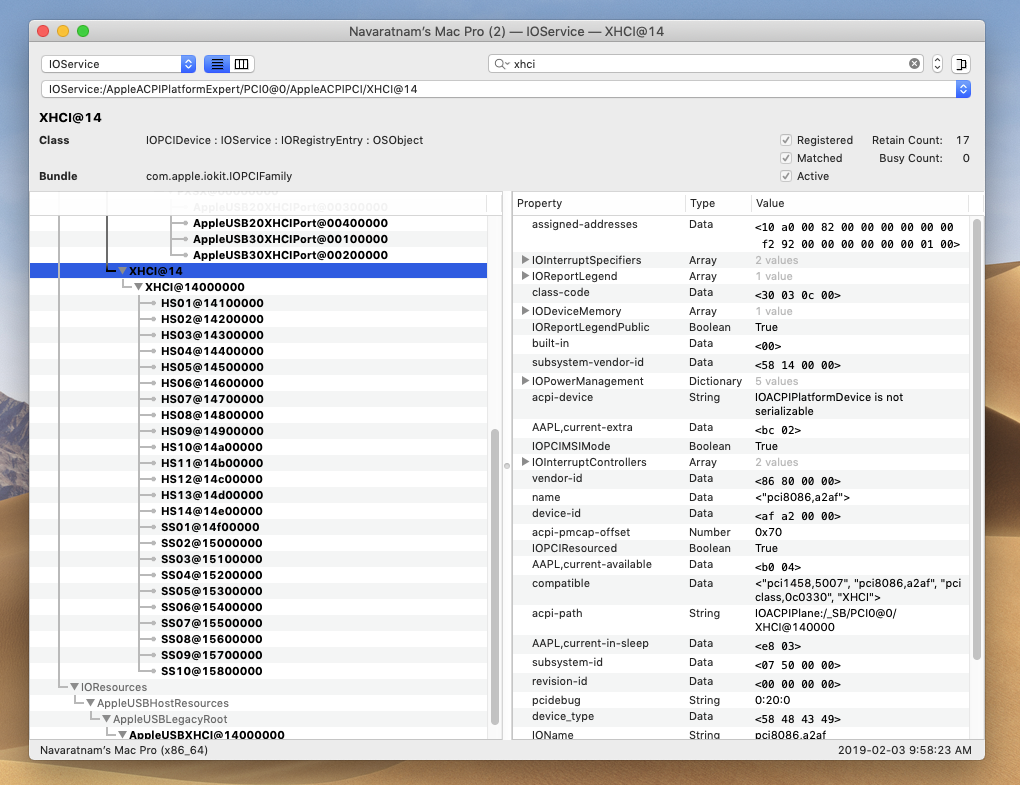

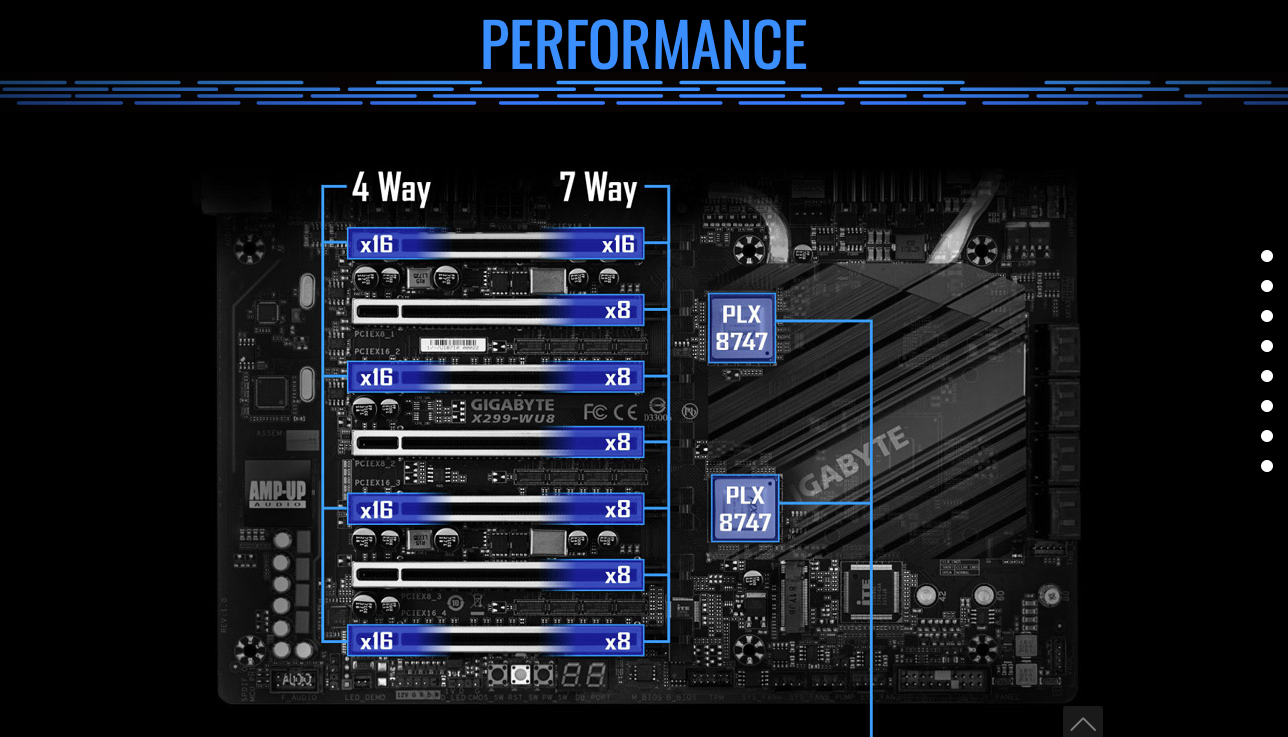

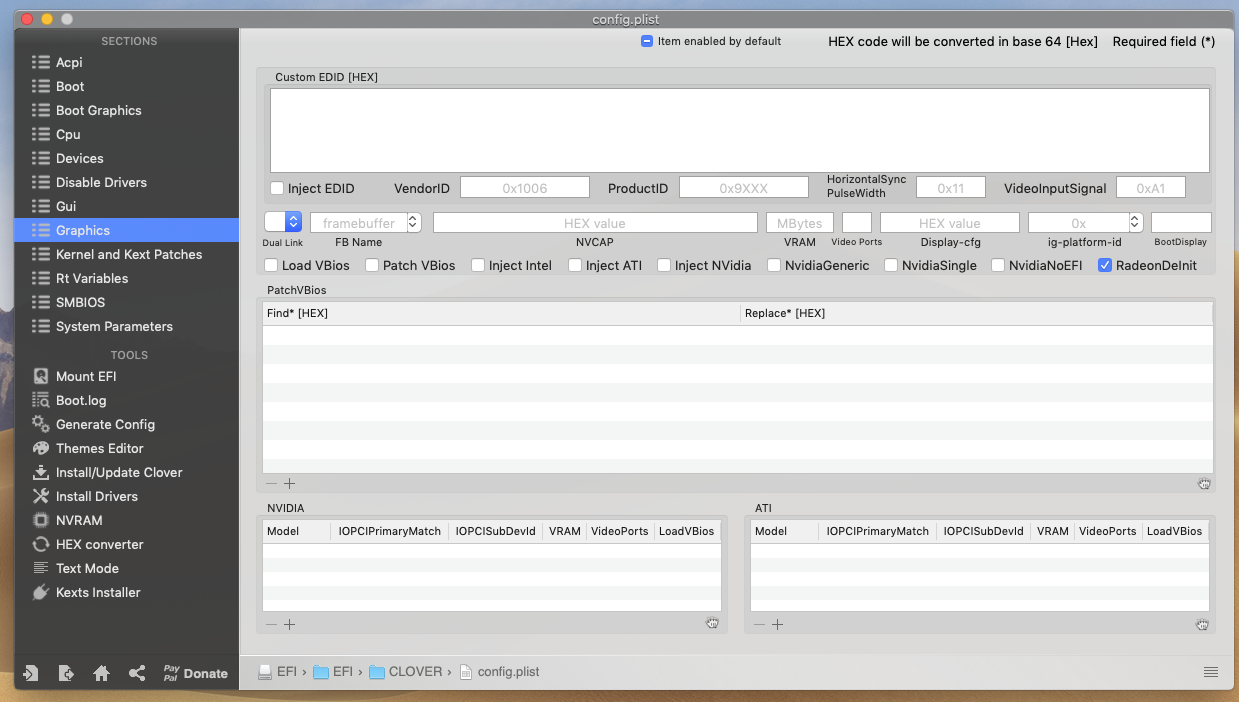

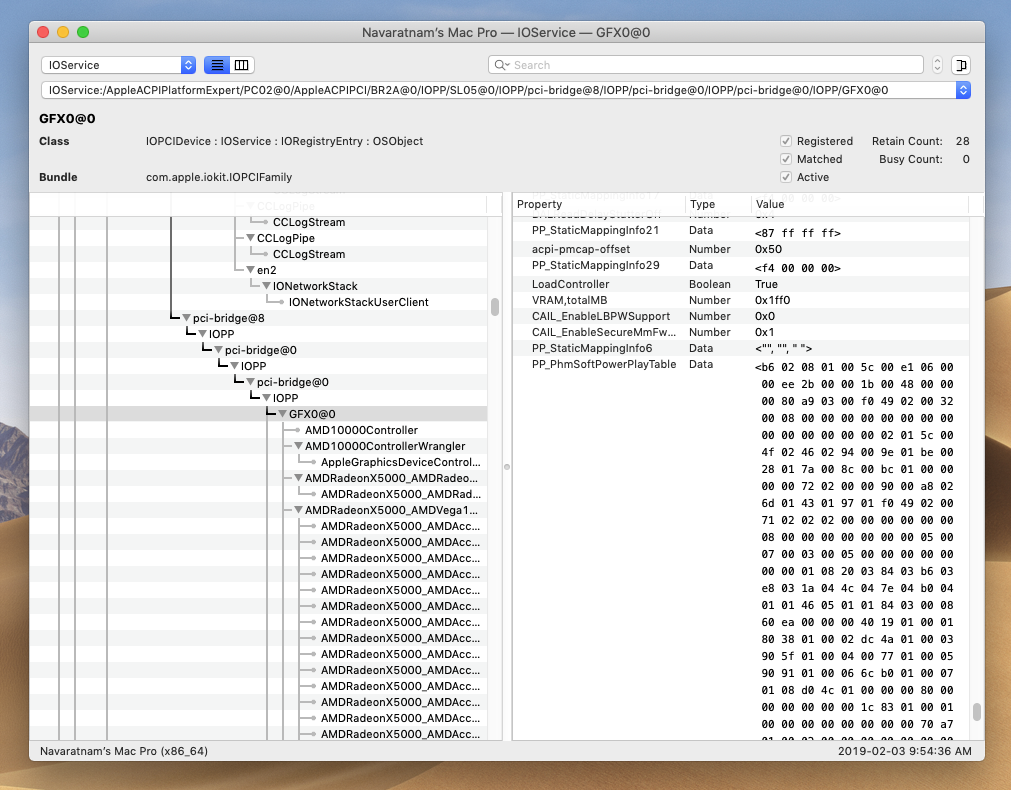

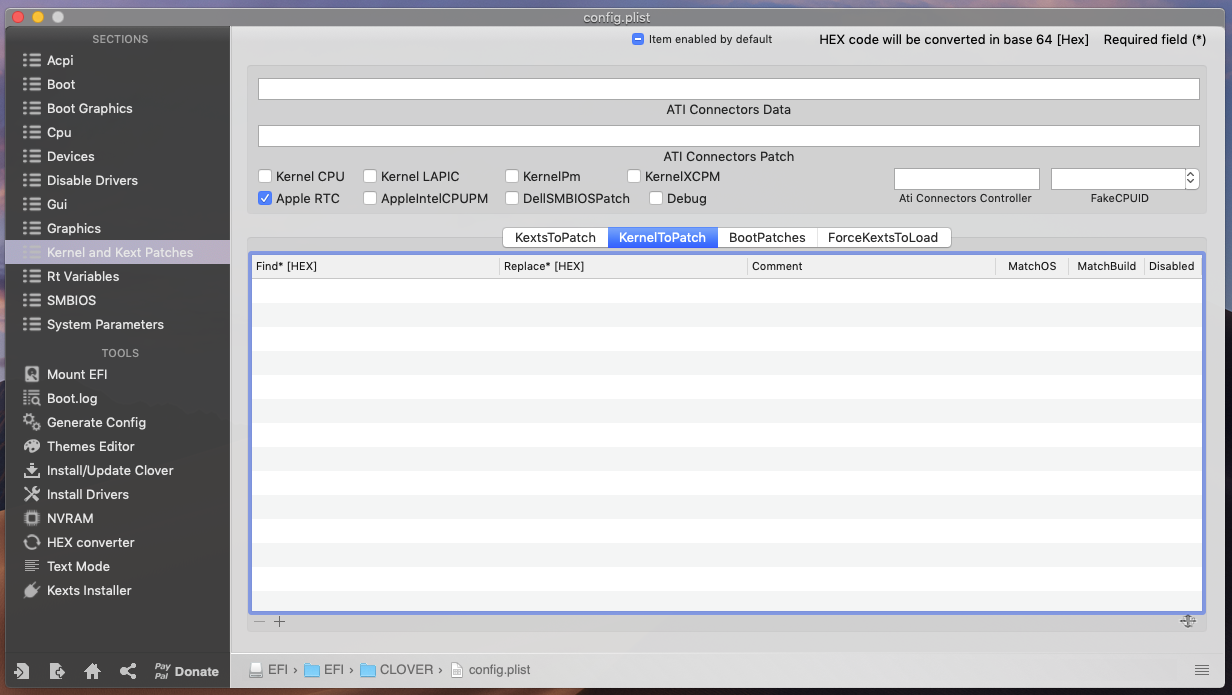

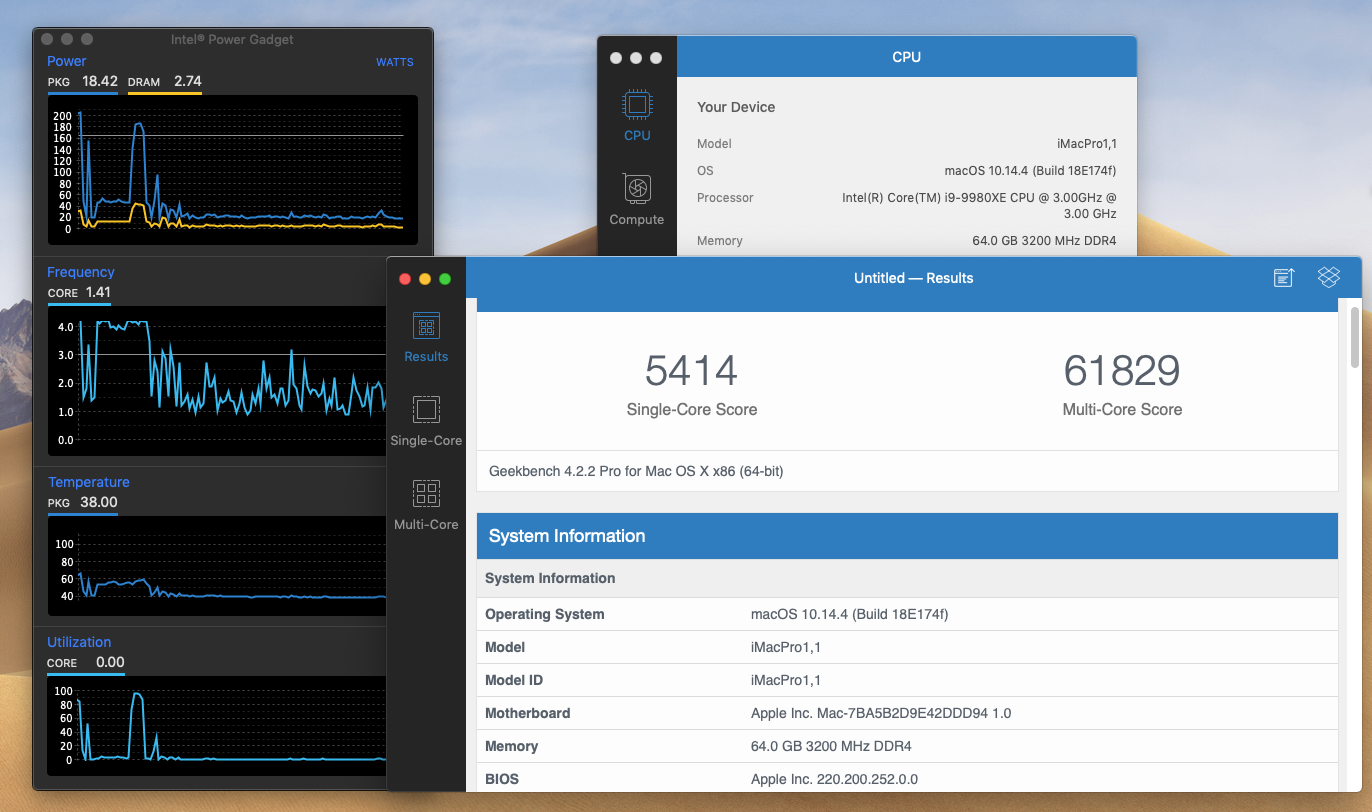

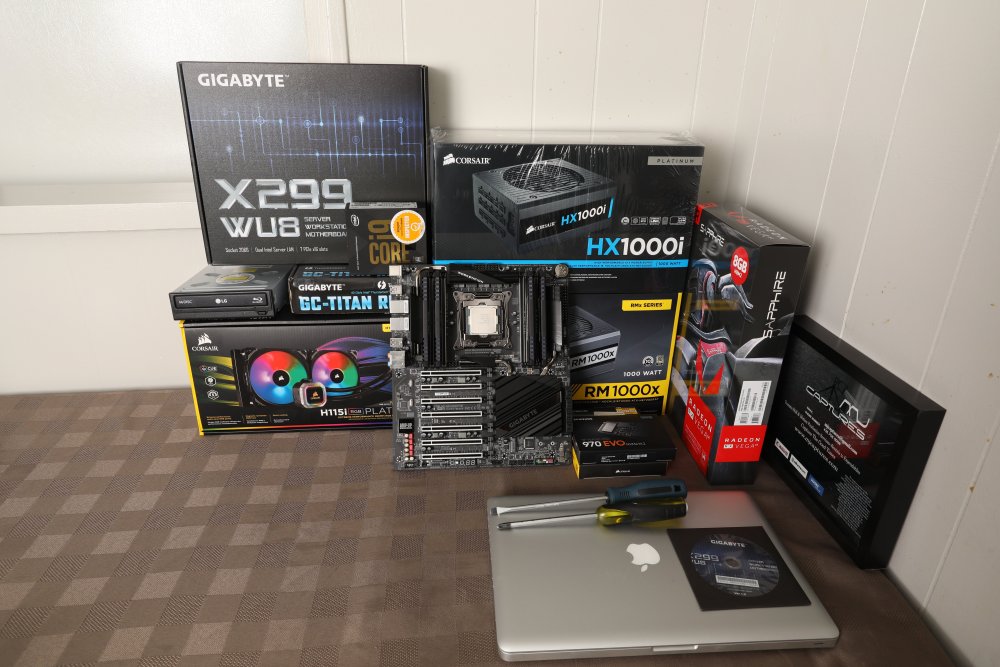

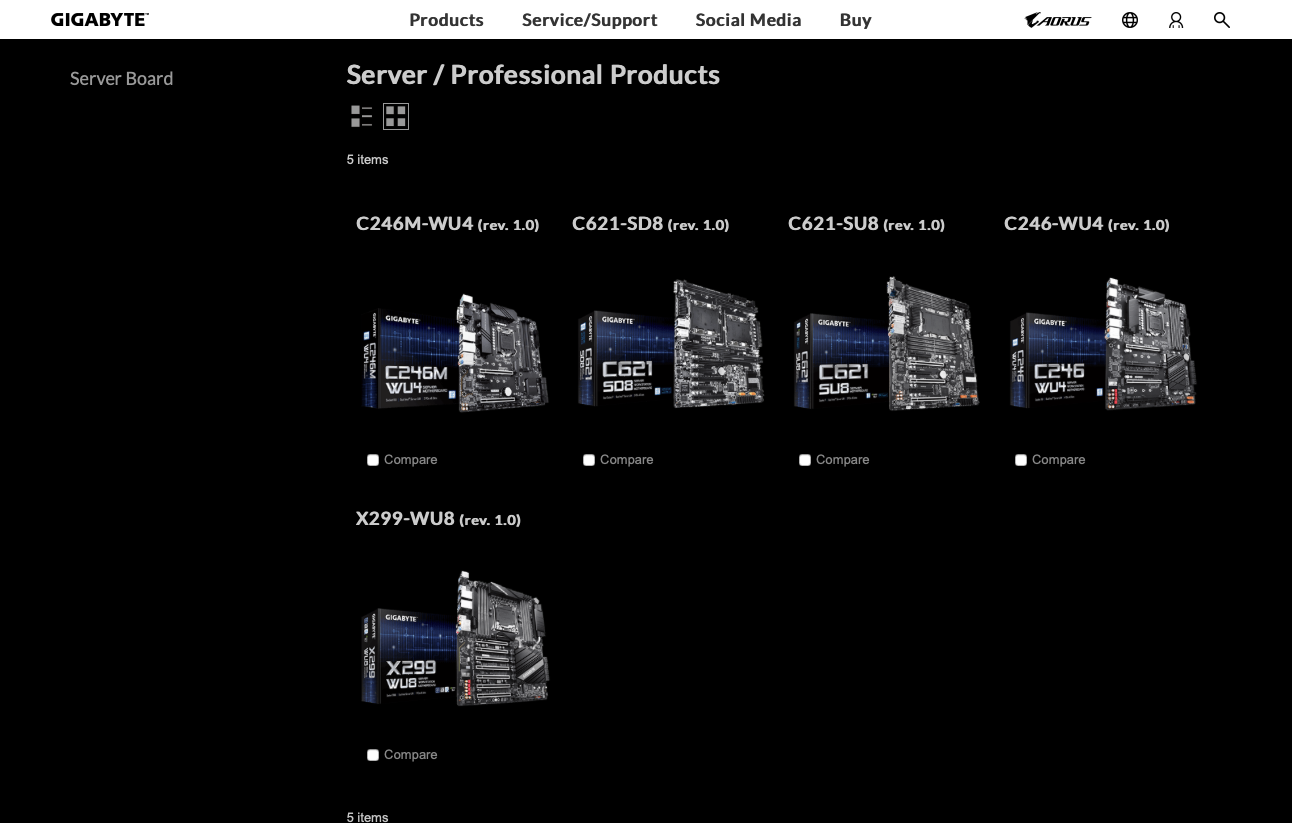

nmano Posted February 4, 2019 Share Posted February 4, 2019 (edited) X299 WU8 with Intel Core i9-9980XE Gigabyte X299 WU8 Intel Core i9-9980XE Extreme Edition Processor CORSAIR Vengeance RGB 64GB (4x16GB) DDR4 3200MHz C16 Desktop Memory Corsair H115i RGB Samsung SM 970 500GB Sapphire Radeon RX Vega 64 I already own Cooler Master COSMOS WIFI card Broadcom BCM943x FireWire IEEE-1394a OHCI Controller X299-WU8 I like this X299 server board some reason. Because this motherboard has 7 PCIex16 Slots design. Support Thunderbolt 3,PCIex4 M.2,USB 3.1,ALC 1220, Two RGBW Pin Headers. This board has 2 x USB 3.1 Gen 1 headers but not 2.0 headers. Bios Settings DSM-Disabled Extreme Memory Profile (X.M.P.) set to Profile 1 Change your CPU Clock Ratio 30 to 42 In Advanced CPU Core Settings Set Enhanced Multi-Core Performance to Enabled Set Energy Efficient Turbo to Disabled Eist Enabled C6/C7 Enabled XCPM machdep.cpu.brand_string: Intel(R) Core(TM) i9-9980XE CPU @ 3.00GHz This CPU support natively XCPM Because I don’t use any kernel patches or FakeCPUID Graphics Sapphire Radeon RX Vega 64 Open Clover Configurator thick RadeonDelnit Support kexts WhateverGreen.kext Lilu.kext VegaTab_64.kext I don’t rename some devices names via ACPI But Clover loader renames Automatically this devices GFX0,HDAU,HDEF I am very excited. XHCI This motherboard USB ports support natively. Because I don’t use any USB Injector.But I use port limit patched. Sleep work Now X299 KernelToPatch Comment xcpm_core_scope_msrs © Pike R. Alpha Find 31D2E891 FCFFFF MatchOS 10.14.x Replace 31D29090 909090 Comment xcpm_core_scope_msrs © Pike R. Alpha Find 31D2E851 FDFFFF MatchOS 10.15.x Replace 31D29090 909090 X299 KextsToPatch 10.14.x,10.15.x Comment SSD Trim Enabler Find 4150504C 45205353 4400 Name IOAHCIBlockStorage Replace 00000000 00000000 0000 Comment Disable board-id check to prevent no signal © lvs1974, Pike R. Alpha, vit9696 Find BA050000 00 MatchOS 10.14.x,10.15.x Name com.apple.driver.AppleGraphicsDevicePolicy Replace BA000000 00 Comment USB Port Limit Patch 1 - PMheart and daliansky Find 83FB0F0F Name com.apple.iokit.IOUSBHostFamily Replace 83FB3F0F Comment USB Port Limit Patch 2 - PMheart and daliansky Find 83F90F0F Name com.apple.driver.usb.AppleUSBXHCI Replace 83F93F0F Comment F1/F2 Key Patch 1 ©Wern Find 30783030 30373030 33612C30 78666630 31303032 31 Name com.apple.driver.AppleHIDKeyboard Replace 30783030 30373030 33612C30 78303030 37303033 61 Comment F1/F2 Key Patch 2 ©Wern Find 30783030 30373030 33622C30 78666630 31303032 30 Name com.apple.driver.AppleHIDKeyboard Replace 30783030 30373030 33622C30 78303030 37303033 62 Comment X299patch-1 Find 70A10000 MatchOS 10.14.x,10.15.x Name AppleHDAController Replace F0A20000 Comment X299patch-2 Find 868070A1 MatchOS 10.14.x,10.15.x Name AppleHDAController Replace 8680F0A2 Comment Rename Codec 1 Find 8B19D411 MatchOS 10.14.x,10.15.x Name AppleHDA Replace 2012EC10 Comment Rename Codec 2 Find 8D3DD411 MatchOS 10.14.x,10.15.x Name AppleHDA Replace 00000000 Comment Rename Codec 3 Find 8A19D411 MatchOS 10.14.x,10.15.x Name AppleHDA Replace 00000000 Comment ASUS 10- Gigabit XG-C100C Find 6275696C 742D696E MatchOS 10.14.x,10.15.x Name com.apple.driver.AppleEthernetAquantiaAqtion Replace 6275696C 742D696E Bluetooth Bluetooth has USB 2.0 header My Motherboard has 3.1 header I thing I need USB 3.1 to 2.0 Adapter. PCI Slot Information I update some SSDT for X299 All in one X299 All in one.zip X299 Each Devices 17 SSDT.zip I update EFI.zip If you like DSDT patches #Remove all SSDT in your EFI Before patch you have to Add ACPI patch in Clover Config Comment PC00 -> PCI0 Find 50433030 Replace 50434930 XHCI for USB 3 DTGP HDEF GFX0(VEGA64) HDAU HPET ARPT RTC IRQs RENAMED DEVICES SMBUS SHUTDOWN REMOVED DEVICES LPC0 GLAN IMEI SSD0(SM970) SAT1 PMC1 FIX WARNINGS And more enjoy. X299-Compile.rtf X299-DSDT-Device-Patch.rtf If you like Go to Gigabyte web site->Products->Server Motherboard->Professional Motherboard->X299-WU8 https://www.gigabyte.com/ca/Server-Professional-Products I really thank for everyone who support and help to this success. I update kexts. X299_Injector USB 3.kext.zip Edited October 27, 2019 by nmano 4 1 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted February 4, 2019 Share Posted February 4, 2019 You may need to disable/unplug AIO cooler header to get sleep working. Sent from my iPhone using Tapatalk 1 Link to comment Share on other sites More sharing options...
nmano Posted February 4, 2019 Author Share Posted February 4, 2019 4 minutes ago, SavageAUS said: You may need to disable/unplug AIO cooler header to get sleep working. Sent from my iPhone using Tapatalk Unplug what? I have Corsair H115i RGB Link to comment Share on other sites More sharing options...
SavageAUS Posted February 4, 2019 Share Posted February 4, 2019 Unplug what? I have Corsair H115i RGBYour cooler should have a USB cord attached that plugs into a motherboard header? To control the rgb and fan curves. That is what I needed to disable / unplug for macOS to sleep with my machine. H110iSent from my iPhone using Tapatalk 1 Link to comment Share on other sites More sharing options...
nmano Posted February 4, 2019 Author Share Posted February 4, 2019 1 hour ago, SavageAUS said: Your cooler should have a USB cord attached that plugs into a motherboard header? To control the rgb and fan curves. That is what I needed to disable / unplug for macOS to sleep with my machine. H110i Sent from my iPhone using Tapatalk Yes I have the USB cord but I did not connect that because My motherboard does have usb 2.0 header. Link to comment Share on other sites More sharing options...
SavageAUS Posted February 4, 2019 Share Posted February 4, 2019 Yes I have the USB cord but I did not connect that because My motherboard does have usb 2.0 header.Also the latest IPG prevents sleep. Sent from my iPhone using Tapatalk Yes I have the USB cord but I did not connect that because My motherboard does have usb 2.0 header.Also the latest IPG prevents sleep. Sent from my iPhone using Tapatalk 1 Link to comment Share on other sites More sharing options...
KGP-iMacPro Posted February 4, 2019 Share Posted February 4, 2019 10 hours ago, nmano said: X299 WU8 with Intel Core i9-9980XE Gigabyte X299 WU8 Intel Core i9-9980XE Extreme Edition Processor CORSAIR Vengeance RGB 64GB (4x16GB) DDR4 3200MHz C16 Desktop Memory Corsair H115i RGB Samsung SM 970 500GB Sapphire Radeon RX Vega 64 I already own Cooler Master COSMOS WIFI card Broadcom BCM943x FireWire IEEE-1394a OHCI Controller X299-WU8 I like this X299 server board some reason. Because this motherboard has 7 PCIex16 Slots design. Support Thunderbolt 3,PCIex4 M.2,USB 3.1,ALC 1220, Two RGBW Pin Headers. This board has 2 x USB 3.1 Gen 1 headers but not 2.0 headers. Bios Settings DSM-Disabled Extreme Memory Profile (X.M.P.) set to Profile 1 Change your CPU Clock Ratio 30 to 42 In Advanced CPU Core Settings Set Enhanced Multi-Core Performance to Enabled Set Energy Efficient Turbo to Disabled Eist Enabled C6/C7 Enabled XCPM machdep.cpu.brand_string: Intel(R) Core(TM) i9-9980XE CPU @ 3.00GHz This CPU support natively XCPM Because I don’t use any kernel patches or FakeCPUID Graphics Sapphire Radeon RX Vega 64 Open Clover Configurator thick RadeonDelnit Support kexts WhateverGreen.kext Lilu.kext VegaTab_64.kext I don’t rename some devices names via ACPI But Clover loader renames Automatically this devices GFX0,HDAU,HDEF I am very excited. XHCI This motherboard USB ports support natively. Because I don’t use any USB Injector.But I use port limit patched. Not work Sleep I test in windows 10 sleep worked but OSX not work that’s very sad. System-wide power settings: Currently in use: autorestart 0 Sleep On Power Button 1 hibernatefile /var/vm/sleepimage proximitywake 1 powernap 1 networkoversleep 0 disksleep 10 sleep 0 hibernatemode 0 ttyskeepawake 1 displaysleep 60 womp 1 Bluetooth Bluetooth has USB 2.0 header My Motherboard has 3.1 header I thing I need USB 3.1 to 2.0 Adapter. PCI Slot Information I update some SSDT for X299 All in one X299 All in one.zip X299 Each Devices 17 SSDT.zip I update EFI.zip If you like Go to Gigabyte web site->Products->Server Motherboard->Professional Motherboard->X299-WU8 https://www.gigabyte.com/ca/Server-Professional-Products I really thank for everyone who support and help to this success. Try to follow this well established guide and everything should work as expected.. Good luck.. KGP 1 Link to comment Share on other sites More sharing options...
nmano Posted February 5, 2019 Author Share Posted February 5, 2019 19 hours ago, SavageAUS said: Also the latest IPG prevents sleep. Sent from my iPhone using Tapatalk Also the latest IPG prevents sleep. Sent from my iPhone using Tapatalk I remove from DOCK Intel power Gadget still sleep not work Thanks. Link to comment Share on other sites More sharing options...
ekwipt Posted February 9, 2019 Share Posted February 9, 2019 nmano new board I see, if I upgrade this cycle this is the board I would have picked as well! 1 Link to comment Share on other sites More sharing options...

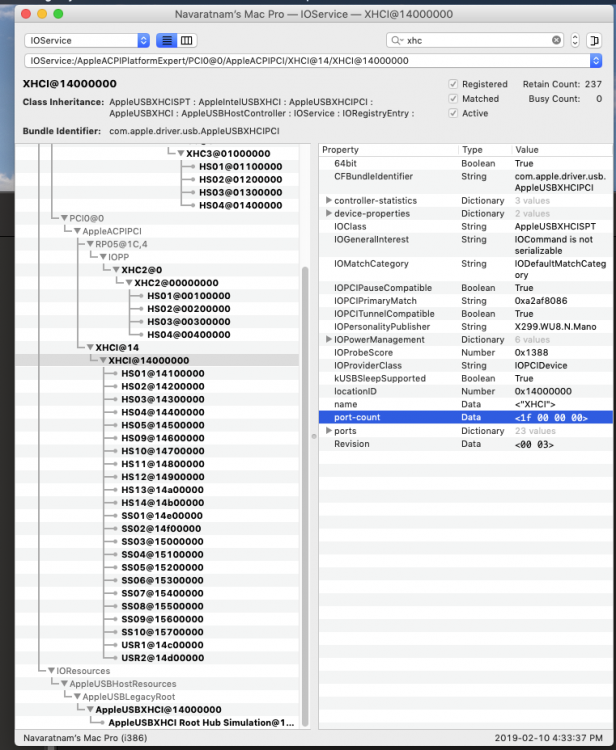

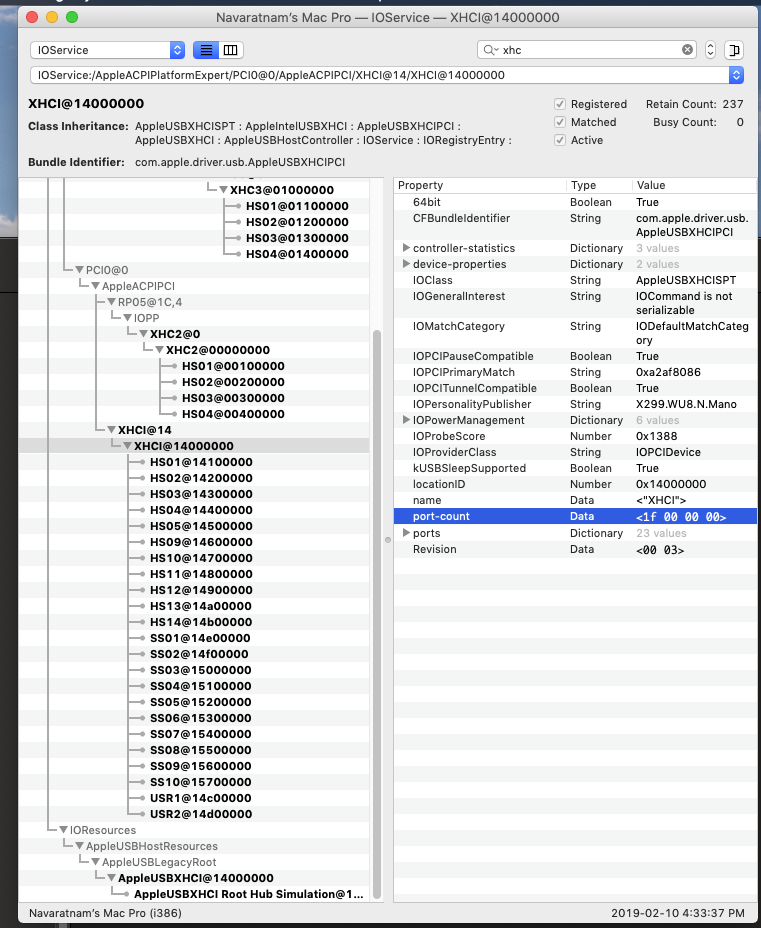

nmano Posted February 10, 2019 Author Share Posted February 10, 2019 (edited) Hi guys #Remove XHCI SSDT.aml #Remove _DSM to XDSM # set port count in your X299_Injector USB 3.kext (I have 31 ports I set 1F) #Now Create automatically All device ports. X299_Injector USB 3.kext.zip Edited February 10, 2019 by nmano Link to comment Share on other sites More sharing options...
nmano Posted March 4, 2019 Author Share Posted March 4, 2019 (edited) X299 DSDT patches #Remove all SSDT in your EFI Before patch you have to Add ACPI patch in Clover Config Comment PC00 -> PCI0 Find 50433030 Replace 50434930 XHCI for USB 3 DTGP HDEF GFX0(VEGA64) HDAU HPET ARPT RTC IRQs RENAMED DEVICES SMBUS SHUTDOWN REMOVED DEVICES LPC0 GLAN IMEI SSD0(SM970) SAT1 PMC1 FIX WARNINGS And more enjoy. X299-Compile.rtf X299-DSDT-Device-Patch.rtf Edited March 4, 2019 by nmano 1 Link to comment Share on other sites More sharing options...
thenightflyer Posted March 10, 2019 Share Posted March 10, 2019 (edited) I've a build similar to your, with Designare EX X299 instead of WU8. I upgraded my 7980XE with the new 9980XE and everything work without any kernel change Just like you only sleep, internal wi-fi and bluetooth don't work. Edited March 10, 2019 by thenightflyer 1 Link to comment Share on other sites More sharing options...
astroguy Posted March 28, 2019 Share Posted March 28, 2019 (edited) If you're still watching the thread ... can I ask what you folks use this setup for? And verify that you really truly surely got everything working except native sleep, and the wireless connections native to the motherboard (but you have alternatives that do work)? I am looking at building two of these and running Unix for work (with work money) but I am considering building another for home and trying to do a Hackintosh system for it. Purpose is a huge amount of planetary image processing. This is the build I was looking at: https://pcpartpicker.com/list/6YGhHh It primarily differs in the motherboard, which I was looking at because I don't need all the PCIE slots but need support for faster RAM and multiple M.2 slots. Edited March 28, 2019 by astroguy Link to comment Share on other sites More sharing options...
thenightflyer Posted March 29, 2019 Share Posted March 29, 2019 15 hours ago, astroguy said: If you're still watching the thread ... can I ask what you folks use this setup for? And verify that you really truly surely got everything working except native sleep, and the wireless connections native to the motherboard (but you have alternatives that do work)? I am looking at building two of these and running Unix for work (with work money) but I am considering building another for home and trying to do a Hackintosh system for it. Purpose is a huge amount of planetary image processing. This is the build I was looking at: https://pcpartpicker.com/list/6YGhHh It primarily differs in the motherboard, which I was looking at because I don't need all the PCIE slots but need support for faster RAM and multiple M.2 slots. I use it as music workstation but i'm sure it's ok for your purposes too. I saw the build you were looking but i prefer Gigabyte Designarex to Asus Prime because it has a better VRM. Link to comment Share on other sites More sharing options...
astroguy Posted March 29, 2019 Share Posted March 29, 2019 12 hours ago, thenightflyer said: I use it as music workstation but i'm sure it's ok for your purposes too. I saw the build you were looking but i prefer Gigabyte Designarex to Asus Prime because it has a better VRM. Thanks. Looking up VRM ... okay, voltage regulator module. As I do plan to overclock a bit (not something crazy like take a 3GHz up to 5, but more like see if I can get away with consistent 3.5-3.8 with all cores firing, since Turbo on 1 is 4.4 GHz), maybe this is something I need to pay attention to. However, doing a search on NewEgg for compatible motherboards that also have Thunderbolt 3 capabilities leaves me at only one option. Link to comment Share on other sites More sharing options...
astroguy Posted May 7, 2019 Share Posted May 7, 2019 (edited) Would any of you who got the i9-9980 chip working be willing to post your EFI folder? After a lot of experimentation, I got macOS 10.14.4 to install, but it's very unstable, to the point of not being usable. I suspect that I cobbled together too many fixes from various people so things are interfering with each other. Edited: I got it working with 10.13.6. Issue was 10.14.x has no support for NVIDIA anymore. Edited May 9, 2019 by astroguy 1 Link to comment Share on other sites More sharing options...
elephantsquid Posted October 11, 2019 Share Posted October 11, 2019 On 3/4/2019 at 10:17 AM, nmano said: .rtf file linked here shows me a 404. Can you provide again? X299 DSDT patches #Remove all SSDT in your EFI Before patch you have to Add ACPI patch in Clover Config Comment PC00 -> PCI0 Find 50433030 Replace 50434930 XHCI for USB 3 DTGP HDEF GFX0(VEGA64) HDAU HPET ARPT RTC IRQs RENAMED DEVICES SMBUS SHUTDOWN REMOVED DEVICES LPC0 GLAN IMEI SSD0(SM970) SAT1 PMC1 FIX WARNINGS And more enjoy. X299-Compile.rtf X299-DSDT-Device-Patch.rtf Link to comment Share on other sites More sharing options...
elephantsquid Posted October 11, 2019 Share Posted October 11, 2019 Disregard... in my above comment, the link works! 1 Link to comment Share on other sites More sharing options...
nmano Posted October 27, 2019 Author Share Posted October 27, 2019 I update X299 KernelAndKextPatches 10.14.x,10.15.x Link to comment Share on other sites More sharing options...
ammoune78 Posted April 10, 2020 Share Posted April 10, 2020 Hey @nmano, please can you share your OpenCore folder without sensitive data for the GA-x299 board, i can't get it working for both OpenCore and Clover, as we have the same hardware. Thanks Link to comment Share on other sites More sharing options...
