[Guide] Gigabyte GA-Z370N-WIFI + i7 8700K + UHD 630 + Mojave 10.14.6

65 posts in this topic

Recommended Posts

New guide available for macOS Catalina 10.15!





Installing macOS Mojave 10.14.6 on Gigabyte Z370N WIFI + i7 8700K + UHD 630




Changelog:



09/01/2019 15:57h GMT-0

- Updated to 10.14.6.



06/10/2019 00:44h GMT-0

- Completely rewritten.



10/17/2018 08:12h GMT-0

- Fix Kexts permissions commands adjusted.

- Removed FrameBuffer patch that is not needed.

- Added audio solution and HDMI.

- Unfortunately DisplayPort does not work.

- Replaced Wifi/BT with DW1560 (BCM94352Z)



10/11/2018 04:15h GMT-0

- Added USB 3.0 patch.

- Adjusted some steps.

- Changed text formatting.



10/11/2018 03:42h GMT-0

- Added missing UEFI configuration.



10/07/2018 00:36h GMT-0

- First version.



What works and what does not

- Processor: Intel Core i7-8700K -> Tick.png Work. All SpeedStep stages.
- Video Card: Intel UHD 630 -> Tick.png Work. QE/CI and Metal.
- Chipset: Intel Z370 -> Tick.png Work.
- HDMI 2.0 (1st) -> Tick.png Work.

- HDMI (2nd) -> Tick.png Work.

- DP -> Cross.png Not tested yet.

- Audio: ALC1220 -> Tick.png Work.

- HDMI Audio -> Tick.png Work.
- WiFi/Bluetooth -> Cross.png Not work. Replaced with BCM94360CS2.

- Ethernet (1st) -> Tick.png Work.
- Ethernet (2nd) -> Tick.png Work.
- USB3.0 -> Tick.png Work.
- Sleep -> Tick.png Work.

- Airdrop, Handoff, Instant Hotspot and Continuity -> Tick.png Work after replaced wireless.




Todo



- Make audio work.

- Make HDMI audio work.

- Test DisplayPort.

- Make second ethernet work.

- Replace Wifi/Bluetooth.

- Test DP.



What you need to install

- Running install of macOS
- One USB flash drive of 8GB or bigger
- macOS Mojave install app

- Clover Configurator
- Clover EFI

- Clover Configurator

- Some KEXTs and SSDT patches


How create create the install flash drive

Prepare install flash drive


Format the flash drive with GUID partition mapping and name it "Install".

- Open Disk Utility.
- Click in View, then "Show All Devices".
- Select the destination flash drive, then Erase.
- Name: Install, Format: Mac OS Extended (Journaled) and Scheme: GUID Partition Map



Create install flash drive

Open terminal and run this command:

sudo /Applications/Install\ macOS\ Mojave.app/Contents/Resources/createinstallmedia --volume /Volumes/Install --nointeraction

This will take about 30 minutes. / 8 minutes with USB 3.0






Install bootloader

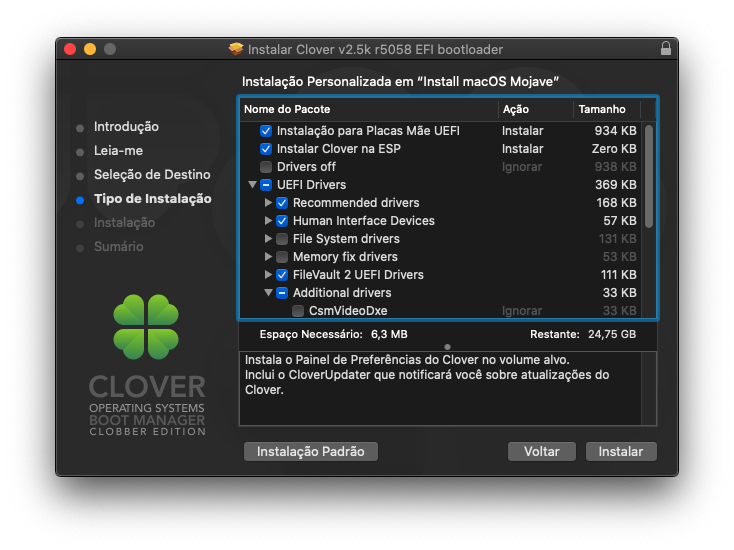

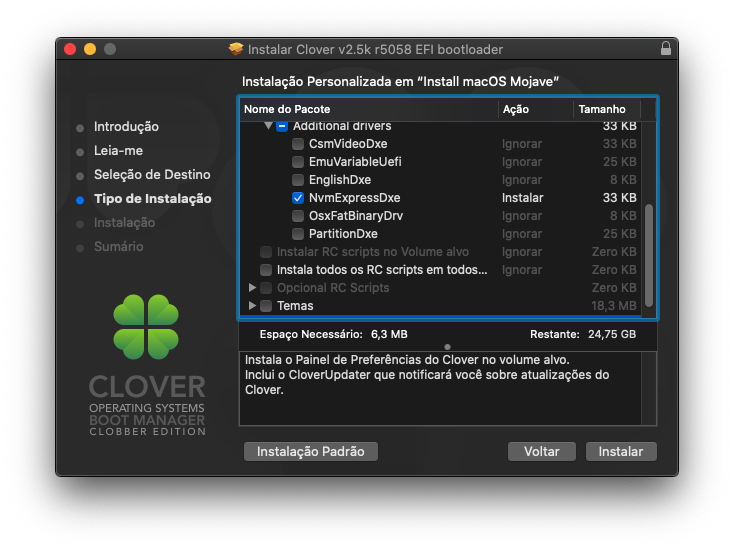

Download the CloverEFI (used 5058, from Automated Clover Builds) and install with this options on "Install macOS Mojave":


- Install for UEFI booting only
- Install Clover in the ESP
- UEFI Drivers - Recommended drivers (check all)
- UEFI Drivers - Human Interface Devices (check all)

- UEFI Drivers - FileVault 2 UEFI Drivers (check all, If you are going to use FileVault)

- UEFI Drivers - Additional drivers - NvmExpressDxe (if you are going to use NVMe)


1642205338_CapturadeTela2019-09-01as12_33_22.png.502101fa5117822ad1673af0dee1b97e.png230650598_CapturadeTela2019-09-01as12_33_29.png.a2df01790d3c650a7a905d53b8a8dfa6.png





Make things works


We'll make a full working flash drive, so follow these instructions:



Will be mounted the EFI partition of the flash drive.


Open the the /Volumes/EFI/CLOVER/config.plist inside this new partition with Clover Configurator (used 5.5.0.0)



Important modifications



config.plist



ACPI Page



- Check: SSDT - PluginType



BOOT Page



- Add: Arguments - darkwake=2

- Check: Legacy - XMPDetection=Yes



KERNEL AND KEXT PATCHES Page



- Check: KernelPm



RT VARIABLES Page



- Change: CsrActiveConfig - 0x3E7



SMBIOS Page



- Change: Macmini8,1 - Mac mini (Late 2018) | Intel Core i7-8700B @ 3.20 GHz

image.png.d7983d89c6c9f11764c6a21df347a526.pngimage.png.cdb90ea628dd29f89626fad75b29b4b0.png



- Click: Generate New (few times in the two buttons)






Need some Kexts in the folder /EFI/CLOVER/kexts/Other/



- Download the HWSensors 3 from here. I used the FakeSMC.kext, ACPIMonitor.kext, ITEIT87x.kext and IntelCPUMonitor.kext inside of DMG version r240.

Download the Lilu.kext from here. I used the version 1.3.8.




Intel UHD 630



ACPI Page

- Uncheck: Fixes - AddHDMI

- Uncheck: Fixes - FixDisplay

- Uncheck: Fixes - FixHDA



GUI Page

- Change: Screen Resolution - 3840x2160 (My monitor is 4K)


Need a Kext in the folder /EFI/CLOVER/kexts/Other/



Download the WhateverGreen.kext from here. I used the version 1.3.1.




Audio ALC 1220 and HDMI audio


BOOT Page

- Add: Arguments - alcid=11

DEVICES Page

- Change: Audio - Inject - 11

- Uncheck: Audio - AFGLowPowerState

- Uncheck: Audio - ResetHDA


Need a Kext in the folder /EFI/CLOVER/kexts/Other/



Download the AppleALC.kext from here. I used the version 1.4.0.




All USBs (2.0, 3.0, Type-C, internal)



KERNEL AND KEXT PATCHES Page - KextsToPatch



- Name*: com.apple.iokit.IOUSBHostFamily

- Find* [HEX]: 83FB0F0F

- Replace* [HEX]: 83FB3F0F

- Comment: USB Port Limit Patch 1 PMHeart/DalianSky

- MatchOS: 10.14.x



- Name*: com.apple.iokit.IOUSBHostFamily

- Find* [HEX]: 83FB0F0F

- Replace* [HEX]: 83FB3F0F

- Comment: USB Port Limit Patch 2 PMHeart/DalianSky

- MatchOS: 10.14.x



- Name*: com.apple.driver.usb.AppleUSBXHCI

- Find* [HEX]: 83FB0F0F

- Replace* [HEX]: 83FB3F0F

- Comment: USB Port Limit Patch 3 PMHeart/DalianSky

- MatchOS: 10.14.x



- Name*: com.apple.driver.usb.AppleUSBXHCI

- Find* [HEX]: 83FF0F0F

- Replace* [HEX]: 83FF3F0F

- Comment: USB Port Limit Patch 4 PMHeart/DalianSky

- MatchOS: 10.14.x



Need a Kext in the folder /EFI/CLOVER/kexts/Other/



Download the USBInjectAll.kext from here. I used the version 2018-1108.



Need SSDT patch in the folder /EFI/CLOVER/ACPI/patched/



- Download the SSDT-EC.aml, SSDT-UIAC.aml and SSDT-USBX attached bellow.



Wifi and Bluetooth (BCM94360CS)



Works out of box (plug 'n' play).





LAN Cards



Need a Kext for feach card in the folder /EFI/CLOVER/kexts/Other/



Download the IntelMausiEthrenet.kext from here. I used the version 2018-1031.

- Download the SmallTreeIntel82576.kext attached bellow. I do not remember where I found it.



Now you can start the instalation without problem (I guess).





How install



UEFI Setup Configuration and Installation

UEFI configuration

- Shutdown and insert the flash.
- Power on with DEL pressed to enter BIOS setup.
- Change value: Periphelrals - Initial Display to IGP
- Change value: Periphelrals - USB Configuration - XHCI Hand-off to ENABLE
- Change value: Chipset - VT-d to DISABLE
- Change value: Chipset - Internal Graphics to ENABLE
- Change value: Chipset - DVMT Pre-Allocated to 128M

- Save & Exit Setup



- Now, hold the F12

- In the list, select your flash drive.

- It will show twice. One with UEFI prefix and another without.

- Select with UEFI prefix. Ie.: "UEFI: Sandisk Cruzer"



The installer will start.


Format destination disk

Format the disk with GUID partition mapping and name it "HD".

- Select Disk Utility in the list, then press Continue.
- Click in View, then "Show All Devices".
- Select the destination Disk, then Erase.
- Name: HD, Format: APFS and Scheme: GUID Partition Map

Close Disk Utility.

Select "Install macOS", then Continue.
Follow instructions in screen.

After install

After first part install the system will reboot.

The second part of the installation will begin. This will take 16 minutes.


Post installation

Install bootloader

When the second part of install finish, the system will reboot again.

After performing the user initial setup and go to the desktop, you need to install Clover on internal disk.

Open the Clover installer inside flash drive that you copied before.

Use same options above but choose the system partition this time.

Now you need to replace the EFI folder inside your destination disk EFI parittion, with EFI folder inside flash card EFI partition.

If the flash drive EFI partition of your destination disk or flash drive is unmounted:

Mount with terminal "sudo diskutil mount /dev/rdiskXs1". To know what X is, use "diskutil list", most likely is 0 for destination disk and 1 for flash drive.



Then, eject the flash drive.



Last step



Move all Kexts from EFI partition to /Library/Extensions, with those commands in Terminal:

sudo cp -R /Volumes/EFI/EFI/CLOVER/kexts/10.14/* /Library/Extensions/
sudo chmod -R 755 /Library/Extensions
sudo chown -R root:wheel /Library/Extensions
sudo kextcache -i /

Restart the system.





It's done!





Updates



System update 10.14.6



- Download and open latest CloverConfigurator

- Open Mount EFI and click in Mount Partition in EFI Partitions list

- Click in Open Partition that appears

- Go to EFI -> CLOVER

- Backup config.plist and ACPI folder to desktop

- Go back and delete CLOVER folder

(If you restart now you can't boot in macOS - DON'T RESTART)

- Download latest Clover and install (link and config above)

- Replace config.plist and ACPI folder from your desktop



- Update Lilu.kext, AppleALC.kext, WhateverGreen.kext, HWSensors kexts (FakeSMC, ACPIMonitor, IntelCPUMonitor, ITEIT87x) in /Library/Extensions/

- Run:



sudo chmod -R 755 /Library/Extensions
sudo chown -R root:wheel /Library/Extensions
sudo kextcache -i /





- Install macOS Update 10.14.6 and restart





And last but not least

I would like to thank the following community members, by making these dream possible:
@crushers, @snatch, @apianti, @blackosx, @blusseau, @dmazar, @slice2009, @autumnrain, @phpdev32, @EMlyDinEsH, @RehabMan, @Scellow, @mitch_de, @Shailua, @Andy Vandijck, @maxfierke, @ArturXXX, @LexHimself, @brumas and all others members involved directly or indirectly.







Z370N-WIFI v2.zip

Edited by ludufre

Share this post


Link to post
Share on other sites
Advertisement

Followed this guide to a T and installed Mojave successfully. Great work!

I do seem to experience major artefacts/glitches in the window server though. Started occurring after switching from IntelGraphicsFixup to the new WhateverGreen. Any ideas?

Share this post


Link to post
Share on other sites

I'm sorry. Notifications were turned off ...



In addition to installing the Kexts, did you do the procedure below?





On 10/7/2018 at 12:16 AM, Luan Eduardo said:

config.plist (Clover Configurator):



- Uncheck: Acpi - Fixes - FixDisplay

- Uncheck: Acpi - Fixes - AddHDMI

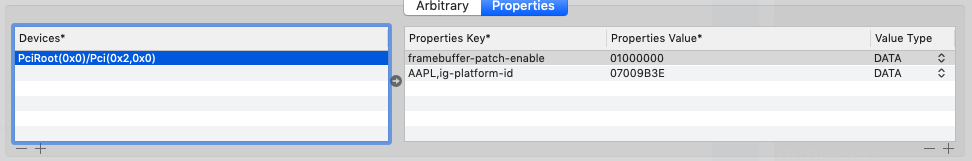

- Add value: Devices - Properties - Devices*: PciRoot(0x0)/Pci(0x2,0x0)

- Add value: Devices - Properties - Devices* - PciRoot(0x0)/Pci(0x2,0x0):

                 Propertie Key: framebuffer-patch-enable

                 Propertie Value: 01000000

                 Propertie Key: AAPL,ig-platform-id

                 Propertie Value: 07009B3E




- Change value: Gui - Screen Resolution to 3840x2160 (Your screen resolution, mine is 4k)

- Change value: Rt Variables - CsrActiveConfig to 0x3

- Select value: SMBIOS - Up/Down arrows - iMac18,1 - Intel Core i5-7360U @ 2.30Ghz (I know, it's not our processor, but is that option)

 image.png.676dbf1a708a6ad758c50302db3f05fb.pngimage.png.fd3643539222aa3eb215ca414573215a.png



Edited by Luan Eduardo

Share this post


Link to post
Share on other sites

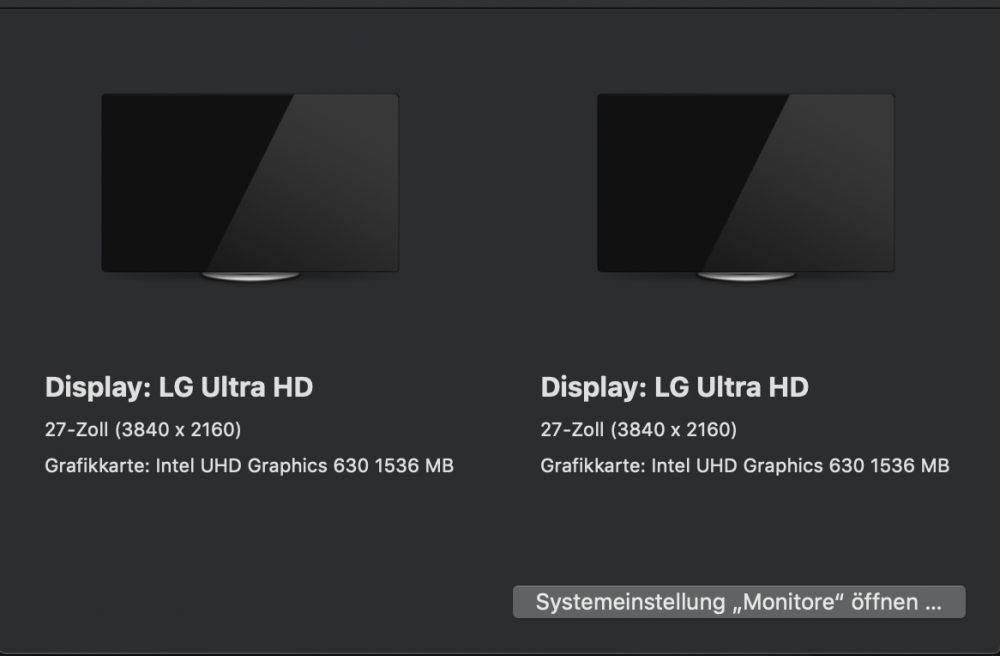

Displayport not working for me (monitor looses signal when driver is loaded), HDMI fine (even 4K@60Hz on 2.0 port).

I'm using iMac18,1 model, maybe need change that to enable DP port of the motherboard.

Share this post


Link to post
Share on other sites
3 hours ago, NeedForSpeed73 said:

Displayport not working for me (monitor looses signal when driver is loaded), HDMI fine (even 4K@60Hz on 2.0 port).

I'm using iMac18,1 model, maybe need change that to enable DP port of the motherboard.

I don't have the DP cable. Try and tell me if works.

Share this post


Link to post
Share on other sites

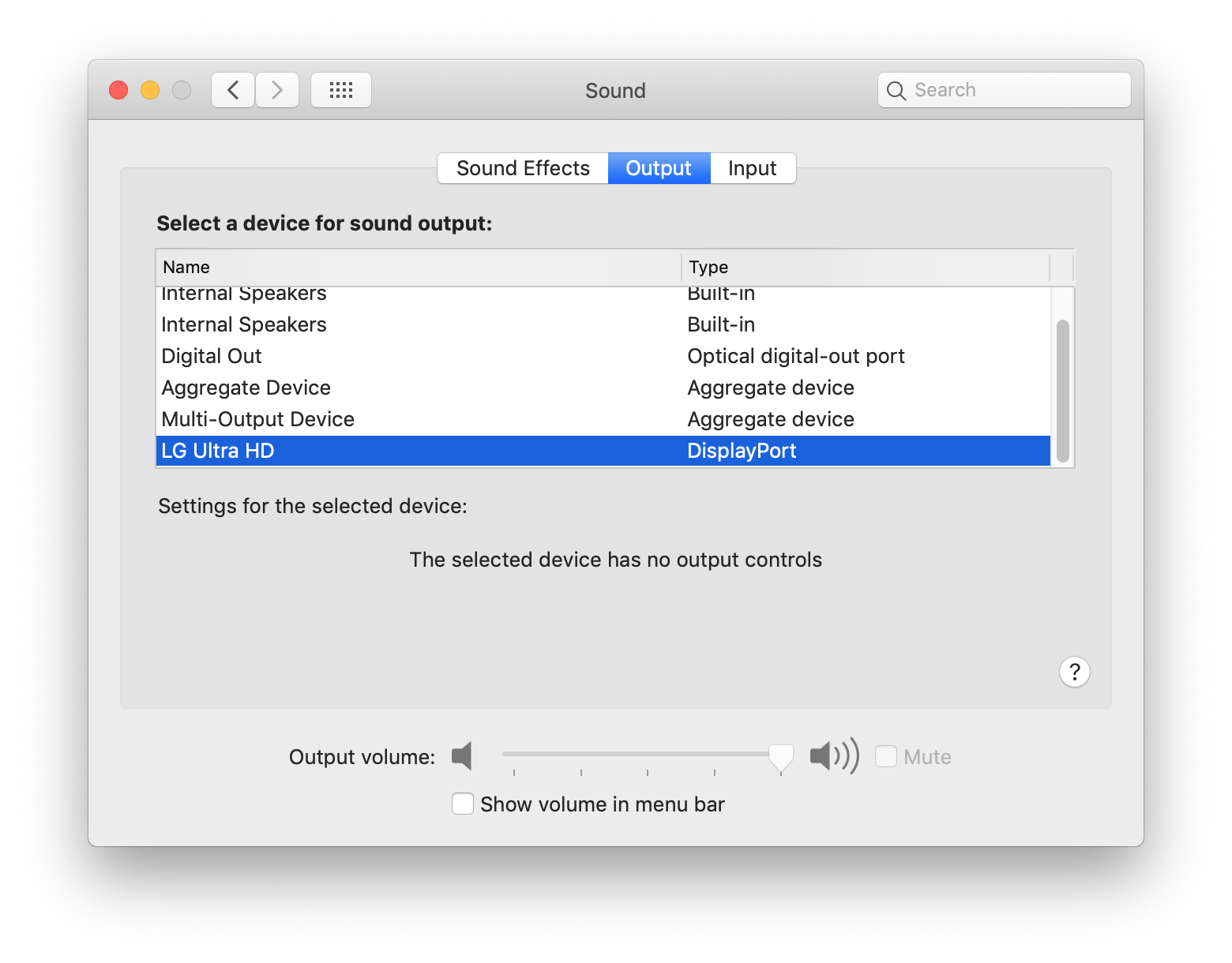

I have the same motherboard. So, this is what I did to make Audio Work:



In config.plist, Devices -> Audio -> Inject = 7



Reboot, and you will have audio over HDMI. Didn't test the actual audio ports.

Credits to Hackintosher forum.

Share this post


Link to post
Share on other sites
4 hours ago, Luan Eduardo said:

I don't have the DP cable. Try and tell me if works.

Tried many different ones (MacPro6,1 and various iMacs) with no luck. I will just reroute the cables and use HDMI.

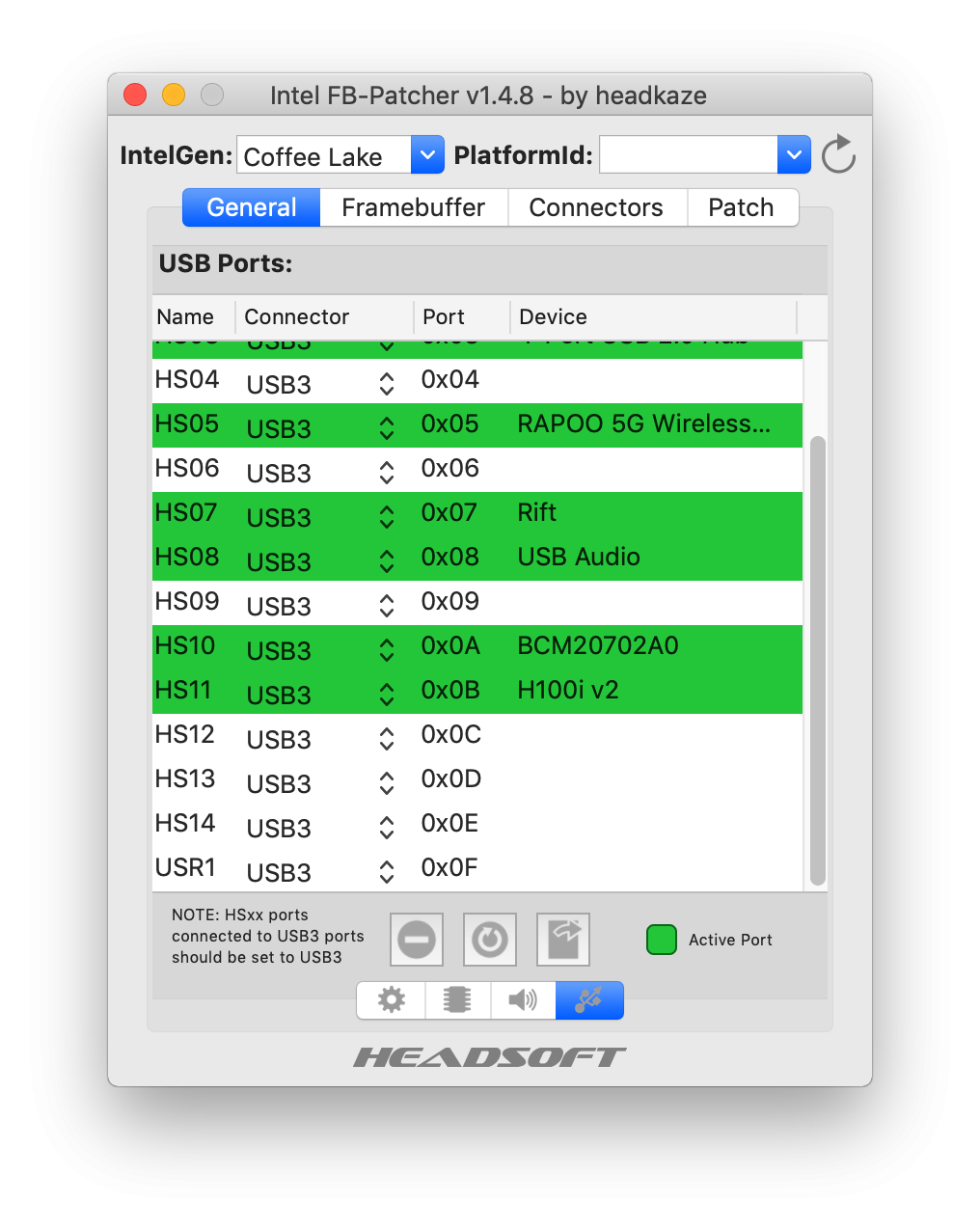

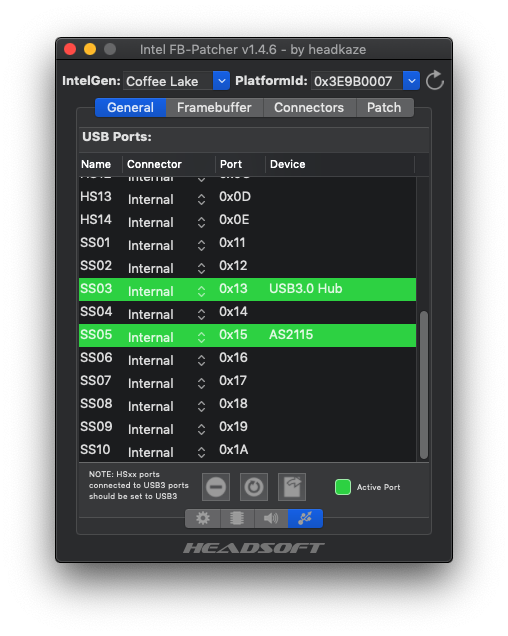

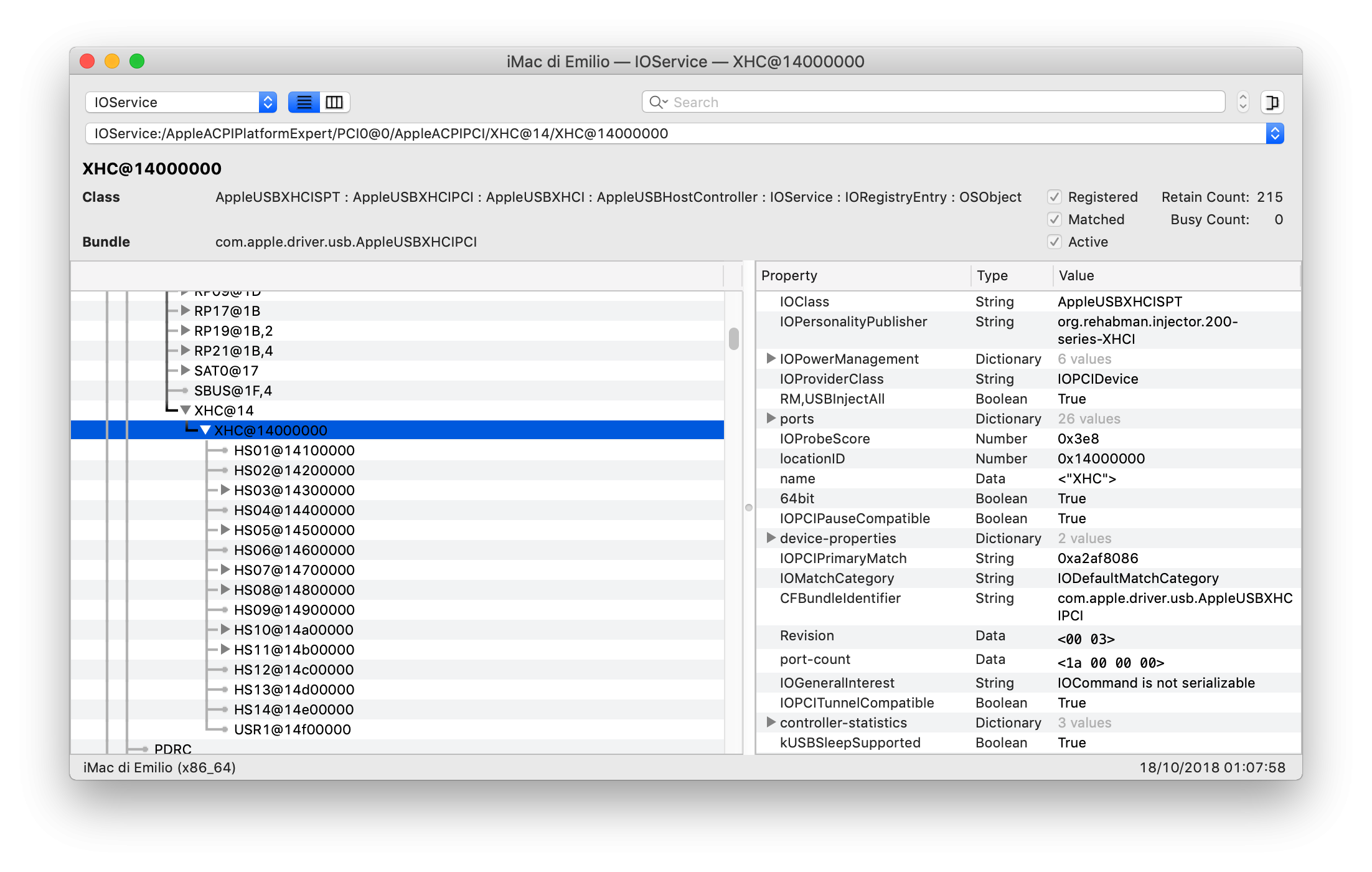

Now I have an annoying problem with external USB drives being recognized as internal ones (and that forces me to set internal disks as visible on desktop in Finder).
I didn't do a clean install but upgraded from High Sierra (where everything was working fine, DP included), guess my configs must be a bit messed up.:(

Share this post


Link to post
Share on other sites
1 hour ago, NeedForSpeed73 said:

Tried many different ones (MacPro6,1 and various iMacs) with no luck. I will just reroute the cables and use HDMI.
Now I have an annoying problem with external USB drives being recognized as internal ones (and that forces me to set internal disks as visible on desktop in Finder).
I didn't do a clean install but upgraded from High Sierra (where everything was working fine, DP included), guess my configs must be a bit messed up.:(



I bought a DP cable and I also have problems. It seems that the cable is infinitely reconnecting. I'll see about this later.



About the external driver appear as internal i have the same issue, I think the system think the USBs are internal. Look this:



image.png.b3e451b2247072a1760cc7e751adf82f.pngimage.png.31f5c69af7506f639a634a8551096726.png



I'll try to fix it.





5 hours ago, khamsakamal48 said:

I have the same motherboard. So, this is what I did to make Audio Work:



In config.plist, Devices -> Audio -> Inject = 7



Reboot, and you will have audio over HDMI. Didn't test the actual audio ports.

Credits to Hackintosher forum.



Actually I don't use HDMI audio. I'm testing audio_CloverALC right now. The audio output works, but input not work because of layout-id = 2 that I'm using in place of layout-id 1 that Mojave drop it.

Edited by Luan Eduardo

Share this post


Link to post
Share on other sites
3 hours ago, Luan Eduardo said:
4 hours ago, NeedForSpeed73 said:

Tried many different ones (MacPro6,1 and various iMacs) with no luck. I will just reroute the cables and use HDMI.

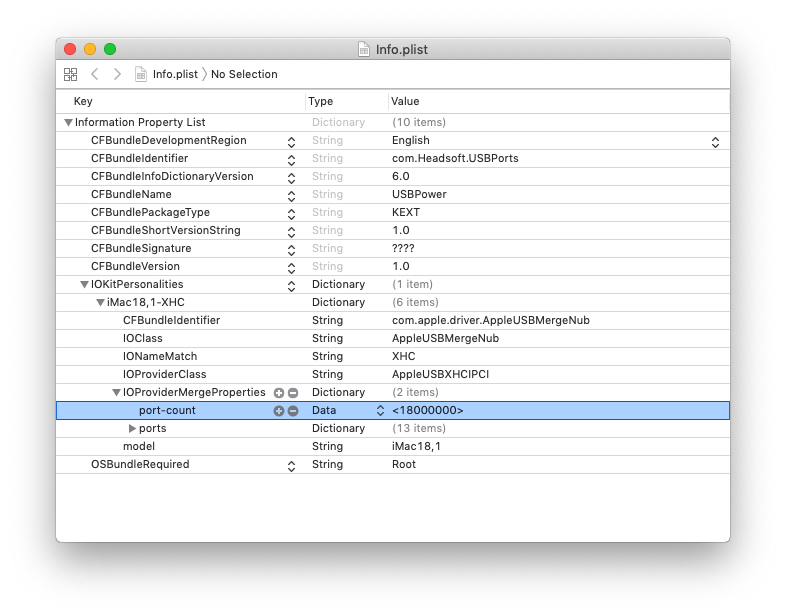

Now I have an annoying problem with external USB drives being recognized as internal ones (and that forces me to set internal disks as visible on desktop in Finder).
I didn't do a clean install but upgraded from High Sierra (where everything was working fine, DP included), guess my configs must be a bit messed up.:(



I bought a DP cable and I also have problems. It seems that the cable is infinitely reconnecting. I'll see about this later.



About the external driver appear as internal i have the same issue, I think the system think the USBs are internal. Look this:

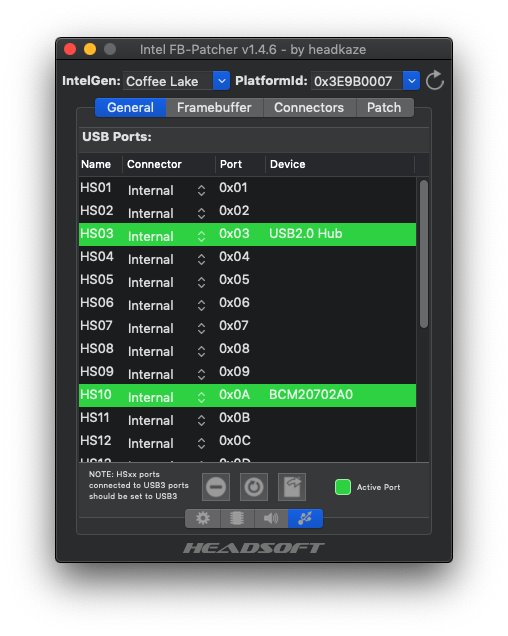

image.png.b3e451b2247072a1760cc7e751adf82f.pngimage.png.31f5c69af7506f639a634a8551096726.png



I'll try to fix it.



@NeedForSpeed73 Fixed it!



Followed this guide: Intel FB-Patcher v1.5.0



- Add USBInjextAll.kext to /EFI/CLOVER/Kexts/Other

- Add XHCI-300-series-injector.kext to /EFI/CLOVER/Kexts/Other

- Add Port Limit Patch (already patched in my guide)

- Restart

- Open Intel FB-Patcher

- Go to General > USB

- Insert and remove a USB 2.0 and USB 3.0 on each port

- All ports used becames Green

- Define alls connectors as USB3, except that used by the Bluetooth on Wifi Card must be Internal

- Select and delete others ports (not green)

- Click in Export

- Move the USBPorts.kext to /Library/Extensions

- Fix permissions and cache

- Remove USBInjectAll.kext, XHCI-300-series-injector.kext and Port Limit from Kernel and Kext Patches - KextsToPatch in config.plist

- Restart



In my case that my PC is on the bench and I don't have external ports, I have: HS03, HS04, HS05, HS06, HS07, HS08, HS10 (Internal Bluetooth), SS03, SS04, SS05, SS06, SS07, SS08.



Although I followed the procedure to the letter, I had a problem. After reopening the Intel FB-Patcher to verify, only until port 0x15 was appearing with USBPorts.kext that was generated. I needed to open the Kext Info.plist file with Xcode.app and change the port-count tag from <15000000> to <18000000>. 0x18 was the highest port I identified (SS08). Maybe it's an Intel FP-Patcher bug. After that, all the doors recognized normally.


Edited by Luan Eduardo

Share this post


Link to post
Share on other sites

Thanks Eduardo, I followed the your guide and at a certain point, I guess before the "cleanup" of USBInjectAll and XHCI-300 everything was working. THEN, I MESSED IT ALL UP: now no USB3 port work at all with 3.0 devices (2.0 are fine).
How can I revert back and start over? I tried to re-run the USB Mohave installer, but with no luck.

Edited by NeedForSpeed73

Share this post


Link to post
Share on other sites
On 10/7/2018 at 8:46 AM, Luan Eduardo said:

Installing macOS Mojave 10.14 on Gigabyte Z370N WIFI + i7 8700K + UHD 630




Changelog:



10/11/2018 04:15h GMT-0

- Added USB 3.0 patch.

- Adjusted some steps.

- Changed text formatting.



10/11/2018 03:42h GMT-0

- Added missing UEFI configuration.



10/07/2018 00:36h GMT-0

- First version.



What works and what does not

- Processor -> Tick.png Work. All SpeedStep stages.
- Video Card -> Tick.png Work. QE/CI and Metal.
- Chipset -> Tick.png Work.
- HDMI (1st) -> Tick.png Work.

- HDMI (2nd) -> Tick.png Work.

- DP -> Cross.png Not tested.

- Audio -> Cross.png Not work.
- WiFi/Bluetooth -> Cross.png Not work.

- Ethernet (1st) -> Tick.png Work.
- Ethernet (2nd) -> Cross.png Not work.
- USB3.0 -> Tick.png Work.
- Sleep -> Tick.png Work.




Todo



- Make audio work.

- Make HDMI audio work.

- Test DisplayPort.

- Make second ethernet work.

- Replace Wifi/Bluetooth.





What you need to install

- Running install of macOS
- One USB flash drive of 8GB or bigger
- macOS Mojave install app
- Clover EFI

- Clover Configurator

- Some KEXTs


How create create the install flash drive

Prepare install flash drive


Format the flash drive with GUID partition mapping and name it "Install".

- Open Disk Utility.
- Click in View, then "Show All Devices".
- Select the destination flash drive, then Erase.
- Name: Install, Format: Mac OS Extended (Journaled) and Scheme: GUID Partition Map



Create install flash drive

Open terminal and run this command:


sudo /Applications/Install\ macOS\ .app/Contents/Resources/createinstallmedia --volume /Volumes/Install--nointeraction

This will take about 30 minutes.





Install bootloader

Download the CloverEFI (used 4674) and install with this options on "Install macOS Mojave":


- Install for UEFI booting only
- Install Clover in the ESP
- UEFI Drivers - ApfsDriverLoader-64
- UEFI Drivers - AptioMemoryFix64


image.png.72397ab3e9ce542c2a618510f55e7461.pngimage.png.172a42dffb293f26265a7e00826953dd.png





Make things works

Will be created a partition named EFI and mounted in Desktop. Edit the /Volumes/EFI/CLOVER/config.plist inside this new partition, open with Clover Configurator (used 5.2.1.0)



Full UHD630 Acceleration



config.plist (Clover Configurator):



- Uncheck: Acpi - Fixes - FixDisplay

- Uncheck: Acpi - Fixes - AddHDMI

- Add value: Devices - Properties - Devices*: PciRoot(0x0)/Pci(0x2,0x0)

- Add value: Devices - Properties - Devices* - PciRoot(0x0)/Pci(0x2,0x0):

                 Propertie Key: framebuffer-patch-enable

                 Propertie Value: 01000000

                 Propertie Key: AAPL,ig-platform-id

                 Propertie Value: 07009B3E




- Change value: Gui - Screen Resolution to 3840x2160 (Your screen resolution, mine is 4k)

- Change value: Rt Variables - CsrActiveConfig to 0x3

- Select value: SMBIOS - Up/Down arrows - iMac18,1 - Intel Core i5-7360U @ 2.30Ghz (I know, it's not our processor, but is that option)

 image.png.676dbf1a708a6ad758c50302db3f05fb.pngimage.png.fd3643539222aa3eb215ca414573215a.png



Download those Kexts and put in /EFI/CLOVER/kexts/10.14/



Download the Lilu.kext from here. I used the version 1.2.7.

Download the WhateverGreen.kext. I used the version 1.2.3.RELEASE.





All USBs (2.0, 3.0, Type-C, internal)



config.plist (Clover Configurator):



- Add value: Kernel and Kext Patches - KextsToPatch:

                 Name*: com.apple.driver.usb.AppleUSBXHCI

                 Find* [HEX]: 83FB0F0F 83030500 00

                 Replace* [HEX]: 83FB0F90 90909090 90

                 Comment: disable port limit in XHCI kext (credit PMHeart)

                 MathOS: 10.14.x






Sleep/Wake



config.plist (Clover Configurator):



- Check: Boot - Arguments - dart=0





Mandatory Kexts



Download those Kexts and put in /EFI/CLOVER/kexts/10.14/



Download the FakeSMC.kext from here. I used the version 2018-0915.

Download the IntelMausiEthernet.kext from here. I used the version 2018-0424.





Put the Clover installer on the flash drive too.

Now you can start the instalation without problem (I guess).





How install



UEFI Setup Configuration and Installation

UEFI configuration

- Shutdown and insert the flash.
- Power on with DEL pressed to enter BIOS setup.
- Change value: Periphelrals - Initial Display to IGP
- Change value: Periphelrals - USB Configuration - XHCI Hand-off to ENABLE
- Change value: Chipset - VT-d to DISABLE
- Change value: Chipset - Internal Graphics to ENABLE
- Change value: Chipset - DVMT Pre-Allocated to 128M

- Change value: Chipset - Wake On Lan to DISABLE

- Save & Exit Setup



- Now, hold the F12

- In the list, select your flash drive.

- It will show twice. One with UEFI prefix and another without.

- Select with UEFI prefix. Ie.: "UEFI: Sandisk Cruzer"



The installer will start.


Format destination disk

Format the disk with GUID partition mapping and name it "HD".

- Select Disk Utility in the list, then press Continue.
- Click in View, then "Show All Devices".
- Select the destination Disk, then Erase.
- Name: HD, Format: APFS and Scheme: GUID Partition Map

Close Disk Utility.

Select "Install macOS", then Continue.
Follow instructions in screen.

After install

After first part install the system will reboot.

The second part of the installation will begin. This will take 16 minutes.


Post installation

Install bootloader

When the second part of install finish, the system will reboot again.

After performing the user initial setup and go to the desktop, you need to install Clover on internal disk.

Open the Clover installer inside flash drive that you copied before.

Use same options above but choose the system partition this time.

Now you need to replace the config.plist inside your destination disk EFI parittion with config.plist inside flash card EFI partition.

The flash drive EFI partition is unmounted. Mount with terminal "sudo diskutil mount /dev/rdiskXs1". To know what X is, use "diskutil list", most likely is 1.



Last step



Copy all Kexts from flash drive to /Library/Extensions, with those commands in Terminal:


sudo cp -R /Volumes/EFI/EFI/CLOVER/kexts/10.14/* /Library/Extensions/
sudo chmod -Rf 755 /Library/Extensions
sudo chown -Rf 0:0 /Library/Extensions
sudo kextcache -system-prelinked-kernel
sudo kextcache -system-caches

Restart the system.





It's done!



And last but not least

I would like to thank the following community members, by making these dream possible:
@crushers, @snatch, @apianti, @blackosx, @blusseau, @dmazar, @slice2009, @autumnrain, @phpdev32, @EMlyDinEsH, @RehabMan, @Scellow, @mitch_de, @Shailua, @Andy Vandijck, @maxfierke, @ArturXXX, @LexHimself, @brumas and all others members involved directly or indirectly.



Can You pls upload your EFI, here?

Share this post


Link to post
Share on other sites
6 hours ago, NeedForSpeed73 said:

Thanks Eduardo, I followed the your guide and at a certain point, I guess before the "cleanup" of USBInjectAll and XHCI-300 everything was working. THEN, I MESSED IT ALL UP: now no USB3 port work at all with 3.0 devices (2.0 are fine).
How can I revert back and start over? I tried to re-run the USB Mohave installer, but with no luck.



If you followed exactly my instructions and put the genereated USBPorts.kext inside /Library/Extensions, you probably don't fixed the permissions...



Run this in Terminal:

sudo chmod -R 755 /Library/Extensions
sudo chown -R root:wheel /Library/Extensions
sudo kextcache -system-prelinked-kernel
sudo kextcache -system-caches

If don't work, send me the USBPorts.kext and config.plist (remove your Serial, MLB, etc)



5 minutes ago, Justice King said:

Can You pls upload your EFI, here?



Of course, but i'm working right now. Later I attach this.

Edited by Luan Eduardo

Share this post


Link to post
Share on other sites
18 hours ago, Luan Eduardo said:
23 hours ago, khamsakamal48 said:

I have the same motherboard. So, this is what I did to make Audio Work:



In config.plist, Devices -> Audio -> Inject = 7



Reboot, and you will have audio over HDMI. Didn't test the actual audio ports.

Credits to Hackintosher forum.



Actually I don't use HDMI audio. I'm testing audio_CloverALC right now. The audio output works, but input not work because of layout-id = 2 that I'm using in place of layout-id 1 that Mojave drop it.



@khamsakamal48 Using AppleALC with Lilu I was able to make the onboard audio and HDMI work perfectly. Even with the microphone. The layout-id = 7 worked that a beauty.



Guide updated.

Share this post


Link to post
Share on other sites
5 hours ago, Luan Eduardo said:



If you followed exactly my instructions and put the genereated USBPorts.kext inside /Library/Extensions, you probably don't fixed the permissions...



Run this in Terminal:


sudo chmod -R 755 /Library/Extensions
sudo chown -R root:wheel /Library/Extensions
sudo kextcache -system-prelinked-kernel
sudo kextcache -system-caches

If don't work, send me the USBPorts.kext and config.plist (remove your Serial, MLB, etc)









Mess is growing: I re-run the Mojave installer and now I have problems with graphics (stutters and very long boot time due to IGPU retrying many times to do something). I attach pics of the USB situation and config.plist. But don't struggle too much on it: next week I will change some hardware on this machine (new discrete videocard) so I guess I'll do a clean install of both Windows and OSX; this one has been upgraded at least two times (since Sierra or maybe even ElCap) and I guess it's full of garbage.

Thanks for your time.

Schermata 2018-10-18 alle 01.08.14.png

Schermata 2018-10-18 alle 01.27.01.png

config.plist

Share this post


Link to post
Share on other sites

Hi @Luan Eduardo



please find my clover folder attached – I set up everything to use as little patching as possible.



DP and secondary eth work (needs modded FakePCIID_Intel_GbX.kext + SmallTreeIntel82576.kext) – running in dual-4k@60hz over here.



Also added ig-platform-id through ssdt-2 and some cosmetics (built-ins, device names etc).



Also all USB ports, including the front USB3.0 ones, work as expected.



Credits to @MaLd0n for the initial patched dsdt-version.



CLOVER.zip

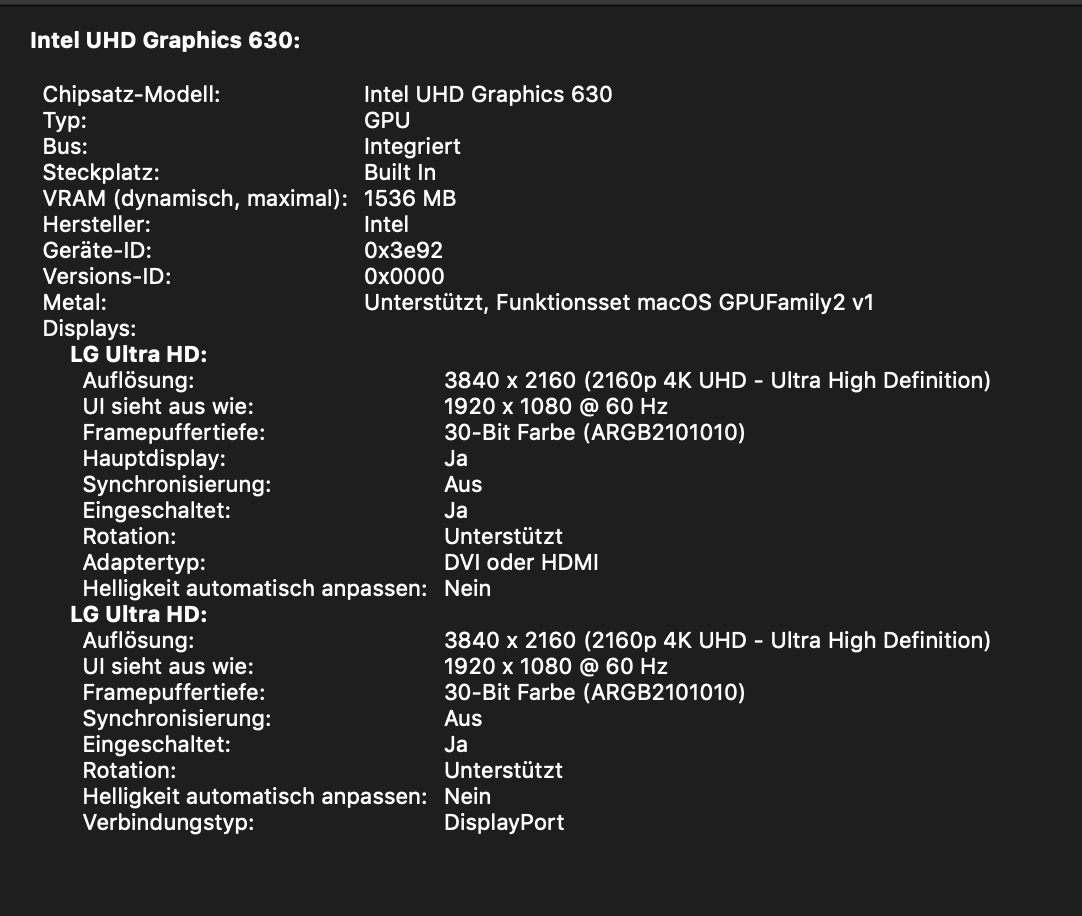

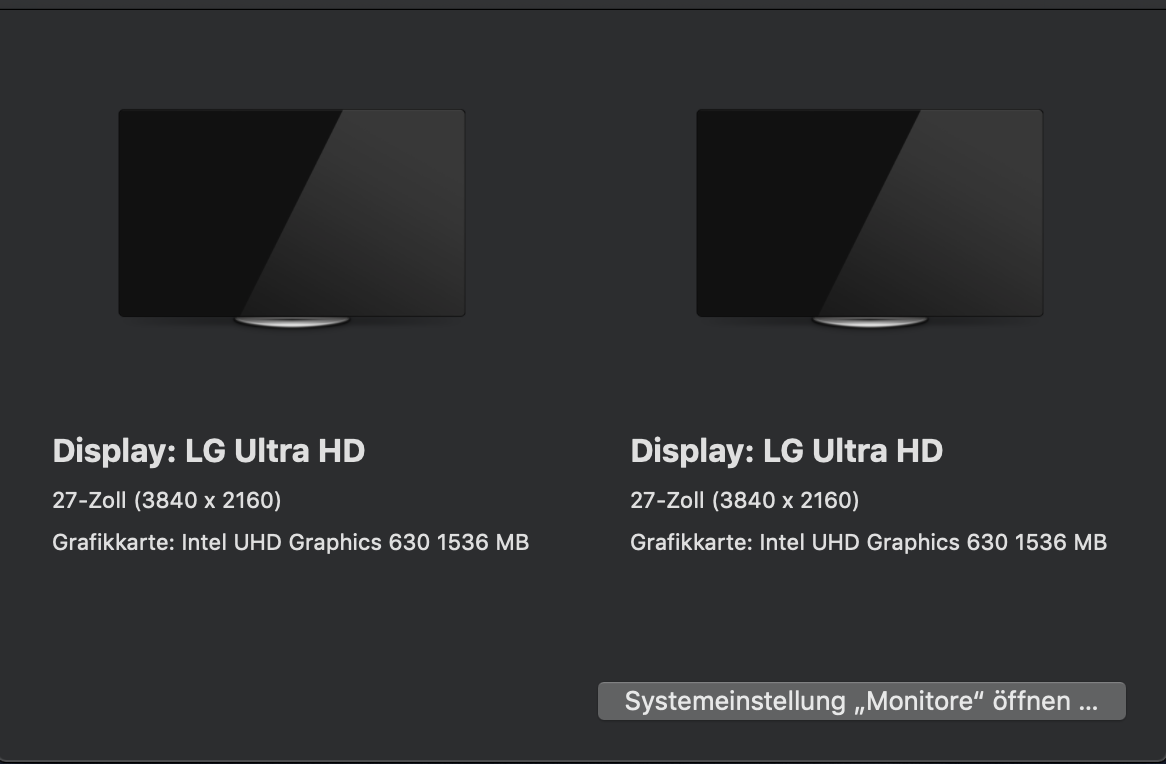

screenshot_dual4k60.thumb.png.e892d2d45790e027af974ef00b7b3139.pngscreenshot_dual4k60-2.thumb.png.022d6070b57dee1a8801da2c47f1ce1a.png



Edited by TheMaxx32000
added screenshots

Share this post


Link to post
Share on other sites

F5



btw: not sure if CodecCommander and WhateverGreen is needed – going to check on that next week



Edit: Forgot to say that I'm using an original Apple BCM94360CS2 WiFi/BT card via a NGFF adapter..

Edited by TheMaxx32000

Share this post


Link to post
Share on other sites
13 hours ago, TheMaxx32000 said:

F5



btw: not sure if CodecCommander and WhateverGreen is needed – going to check on that next week



Edit: Forgot to say that I'm using an original Apple BCM94360CS2 WiFi/BT card via a NGFF adapter..



My system only boot with F1, tried F2, F3, F4, F5 and the new F10, and only the F1 works.



Tried all the three MemoryFix of Clover, tried with only one Ram module too...



Tried serveral UEFI options. IGFX and Discrete Card, CSM on and off, Secure Boot on and off, with everything don't work...

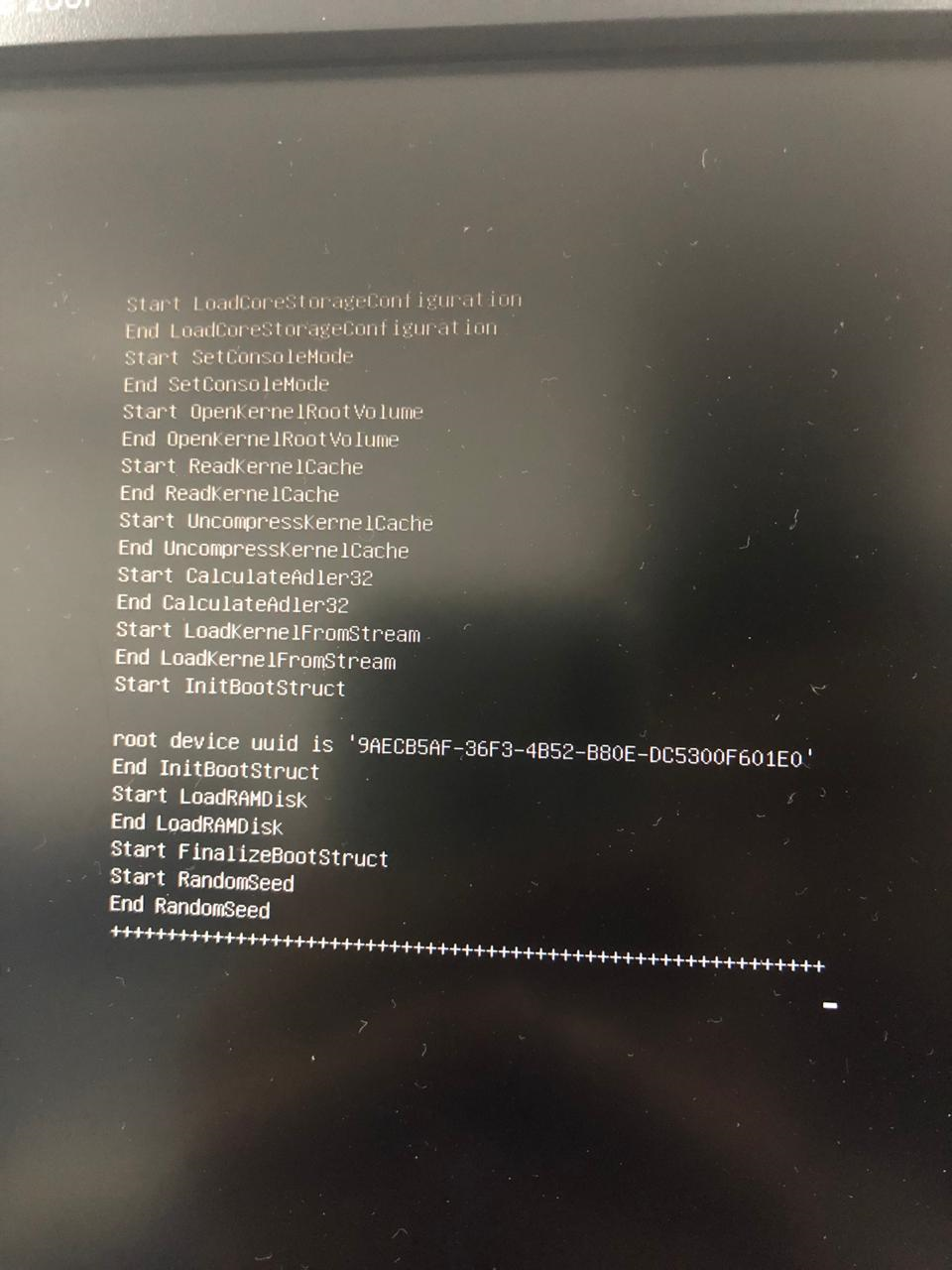

If boot with verbose, I stop in this:






If don't use verbose the system reboots in loop.

Share this post


Link to post
Share on other sites
4 minutes ago, TheMaxx32000 said:

I‘ll post my bios config for this setup early next week as I am not @home right now..



Thank you. Meanwhile, I'll stay in F1.

Share this post


Link to post
Share on other sites
On 10/18/2018 at 11:25 AM, TheMaxx32000 said:

Hi @Luan Eduardo



please find my clover folder attached

It works.No second NIC

my setup is

i5-8600, 960evo, 32gb, F10



On DP I am experiencing some random flickers and video artefacts and the display "reboots" often (goes off and comes back up rapidly).

HDMI appears to be solid atm will test more.



edit:

Changing the DP cable fixed all the problems. Oddly enough the cable works with no problem on High Sierra.



Edited by registracii

Share this post


Link to post
Share on other sites

Luan EduardoTnx.

All Works, but - "Download the BrcmFirmwareRepo.kext, BrcmPatchRAM.kext and BrcmNonPatchRAM.kext from here" - not correct link

And Bluetooth works only with all kext in package:

BrcmFirmwareRepo.kext, BrcmPatchRAM.kext BrcmNonPatchRAM.kext, BrcmFirmwareData.kext, BrcmPatchRAM2.kext and BrcmNonPatchRAM2.kext

Share this post


Link to post
Share on other sites

Hi @Luan Eduardo (I'm BR too hehe). Thanks for your post. It helped me a lot.

I hope I can help you too. I used some configs from my High Sierra setup in the mojave one and I managed to make DP and its audio interface work. I didn't tested the 2nd eth interface since I use only wifi.

I have the exactly same build you have (i8700, z370n wifi, bcm BCM94352Z). I'ts very similar to yours except for some arbitrary device properties and some kexttopatch.



I hope it helps you https://www.dropbox.com/s/v4ao0vqdzvk078m/EFI.zip?dl=0

Screen Shot 2018-10-21 at 12.43.46 PM.png

Share this post


Link to post
Share on other sites
On 10/19/2018 at 1:01 PM, TheMaxx32000 said:

I‘ll post my bios config for this setup early next week as I am not @home right now..



@TheMaxx32000 Can you pass me your EFI configuration?

I bought 32GB and started having problems on memtest86. Only solved with F10 version, but with it I can not start macOS, I'm using Windows in the meantime...



On 10/21/2018 at 12:44 PM, alexiley said:

Luan EduardoTnx.

All Works, but - "Download the BrcmFirmwareRepo.kext, BrcmPatchRAM.kext and BrcmNonPatchRAM.kext from here" - not correct link

And Bluetooth works only with all kext in package:

BrcmFirmwareRepo.kext, BrcmPatchRAM.kext BrcmNonPatchRAM.kext, BrcmFirmwareData.kext, BrcmPatchRAM2.kext and BrcmNonPatchRAM2.kext



@alexiley Fixed



On 10/20/2018 at 7:12 PM, registracii said:

It works.No second NIC

my setup is

i5-8600, 960evo, 32gb, F10



On DP I am experiencing some random flickers and video artefacts and the display "reboots" often (goes off and comes back up rapidly).

HDMI appears to be solid atm will test more.



edit:

Changing the DP cable fixed all the problems. Oddly enough the cable works with no problem on High Sierra.





@registracii It probably has something to do with Framebuffer.



On 10/21/2018 at 12:44 PM, ivan_htp said:

Hi @Luan Eduardo (I'm BR too hehe). Thanks for your post. It helped me a lot.

I hope I can help you too. I used some configs from my High Sierra setup in the mojave one and I managed to make DP and its audio interface work. I didn't tested the 2nd eth interface since I use only wifi.

I have the exactly same build you have (i8700, z370n wifi, bcm BCM94352Z). I'ts very similar to yours except for some arbitrary device properties and some kexttopatch.



I hope it helps you https://www.dropbox.com/s/v4ao0vqdzvk078m/EFI.zip?dl=0

Screen Shot 2018-10-21 at 12.43.46 PM.png



@ivan_htp Only being able to start the system with the BIOS / EFI version F1. But I'm being forced to use the F10 version because of the new memories. As soon as I can figure it out I'll take a look. Thank you.

Edited by Luan Eduardo

Share this post


Link to post
Share on other sites
On 10/21/2018 at 4:44 PM, ivan_htp said:

Hi @Luan Eduardo (I'm BR too hehe). Thanks for your post. It helped me a lot.

I hope I can help you too. I used some configs from my High Sierra setup in the mojave one and I managed to make DP and its audio interface work. I didn't tested the 2nd eth interface since I use only wifi.

I have the exactly same build you have (i8700, z370n wifi, bcm BCM94352Z). I'ts very similar to yours except for some arbitrary device properties and some kexttopatch.



I hope it helps you https://www.dropbox.com/s/v4ao0vqdzvk078m/EFI.zip?dl=0



gave it a try. All works well DP audio also, however I lost the BT audio. Connects to the device can be selected volume works but no sound is routed there.

also About This Mac wont load...not a bother just

Edited by registracii

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

Announcements

  • Similar Content

    • By froyo11
      Hi guys,

      This is my system configuration :
      Motherboard: Gigabyte b360m ds3h
      CPU: i3-8100 (UHD 630)
      OS: catalina 10.15.6

      I set up Catalina without whatevergreen.kext (open core)

      and I want to grab the integrated graphics(uhd630)

      So, I downloaded whatevergreen.kext and dragged efi>oc>kext.

      and open the open core configurator, added kennel tap.

      but, I saw the black screen!!

      how can I set up the uhd630..

      EFI 2.zip
    • By AudioGod
      I have put together this simple little guide for anybody wanting to use a Patched DSDT EFI with the same configuration as me.
      This is also a thread to discuss everything Z390 Master and try and help where we can and maybe make things a little better for you.

      A huge massive thank you to @glasgood @MaLd0n @larabee These three guys have helped me and talked me so much and are as helpful as you could ever get, Without them I wouldn't have a perfect working build like I do or be putting up this Guide & Discussion Thread sharing the hard work and countless hours that we have all put in to this.


      This EFI and Patched DSDT have been created to work with a Gigabyte Aorus Z390 Master using bios revision F11c, 9900k with a 5700 XT but has also been tested and verified fully working with the following Hardware

      CPU's
      8600K, 8700, 8700K, 9400K, 9600K, 9700K, 9900K, 9900KS (All KF Models work but use SMBios iMacPro1,1 instead)

      GPU's
      RX 560, 570, 580, 590, Vega 56, Vega 64, Radion VII, RX 5500, 5500 XT, 5600, 5600 XT, 5700, 5700 XT
      (If you have success with any different CPU or GPU's then please do let me know)


       @glasgood Has kindly put together a new simple Catalina install guide so Just Follow He's Guide For a Perfect Install. (glasgood put the guide together for the Z390 Pro but the two boards are so alike that you can follow this guide with no problems at all using the Z390 Master)


      HARDWARE USED
      • Intel I9 9900k @5.2Ghz
      • Gigabyte AORUS Z390 MASTER
      • Sapphire Reference RX 5700 XT (connected to the monitor via the DisplayPort)
      • Corsair Vengeance Pro RGB 32GB @3600mhz (2 x 16GB)
      • Corsair RM850x 80 Plus Gold Power Supply Unit
      • EK Custom Liquid Cooling Loop
      • Samsung 970 EVO Plus 1TB NVMe SSD macOS Catalina
      • Samsung 970 EVO 1TB NVMe SSD Windows 10 Pro
      • ABWB BCM94360CS2 802.11AC WI-FI With Bluetooth 4.0 PCI-Express (PCI-E)
      • Lian Li PC-O11DW Dynamic ATX Case







      WORKING
      • Sound
      • Ethernet Port
      • WiFi
      • SSD Trim
      • USB 3.0 & 2.0 (All ports Open Natively)
      • AirDrop
      • iCloud
      • Hardware Acceleration
      • iMessages
      • Facetime
      • Sleep & Wake
      • Sleep and Shutdown via the Power Button
      • Handoff
      • Netflix on Safari browser
      • Continuity
      • Sidecar (only works using the iMac19,1 EFI and with your igpu Enabled)


      EFI FOLDERS
      please note - You must flash your Z390 MASTER bios to revision F11e or Higher to use any of these EFI's, The DSDT is not designed for any other Bios revision
      Z390AORUSMASTER.zip  - Aorus Z390 Master Bios Firmware F11e

      CLOVER & OPENCORE EFIs
      Current EFIs Updated 04/08/2020


      Clover EFI Update v5120 - 04/08/2020 - Use with Bios revision F11e or Higher Only or Replace with the older F11c/F10 DSDT if you don't want to update the bios

      EFI Clover VEGA Navi 030820.zip - Vega, Navi (5700, 5700XT etc), Radeon VII DSDT SMBios 19,1 EFI
      EFI Clover Polaris NVIDIA 030820.zip - RX500 Polaris Series (RX590, 580, 570 etc) SMBios 19,1 EFI

      Please Note - I have now set KernelPM to No as standard so if you don’t have a unlocked MSR or not using my MSR Unlocked Bios Profile then go into the Clover Config.plist and set KernelPM to Yes or you won’t be able to boot up. An even better fix would be to unlock your MSR using my profile method.

      Note - If your not using a 5700 XT or any other Navi GPU then remove agdpmod=pikera from the boot arguments.


      OpenCore EFI Update v0.6.0 - 04/08/2020
      Myself and @texem have now created a OpenCore EFI done the way the OpenCore Devs intended it to be made, There is no DSDT in use so you can use this EFI on any supported GPU and the SSDTs have been made so they will not be used in any other Operating System apart from MacOS.

      OpenCore 060 Z390 Master 19,1 030820.zip - OpenCore v0.6.0, SMBios iMac19,1
      OpenCore 060 Z390 Master 1,1 030820.zip - OpenCore v0.6.0, SMBios iMacPro1,1 (IGPU Disabled)

      Note - If your not using a 5700 XT or any other Navi GPU then remove agdpmod=pikera from the boot arguments.
      Note 2 - Do not try to carry across your old OpenCore Config.plist to the new EFI as to many changes have occurred in 0.6.0 so please use the new Config.plist instead.


      PlistEdit Pro.zip - PlistEdit Pro (use to edit OpenCore)

      Using PlistEdit Pro add your details by modifying the following


      PLEASE NOTE - These EFIs are setup to be used with your msr Unlocked so make sure you use the F11e Unlocked Profile but if for any reason you can not unlock MSR then just modify following in the OpenCore config.plist :




      CFG Unlock (MSR) F11e BIOS Profile - The Easy Way
      Highly recommended if your using a Vega 56/64, Radeon VII or Navi GPU



      To Create Your Own Patched DSDT Message @MaLd0n using the link bellow
      https://www.olarila.com/forum/17-dsdt-patch-requests/
      (If you want a perfect setup then getting your own patched DSDT made would be the best thing to do, Mine will work perfectly fine but different hardware no matter how small a change it is can tend to have some sort of effect on the DSDT and your setup)


      If Your Not Using File Vault Then Please Disable Hibernate
      disablehibernate.command


      ADDITONAL DOWNLOADS
      Z390AORUSMASTER.zip  - Aorus Z390 Master Bios Firmware F11e
      Clover
      Clover Configurator
      Kext Updater
      RepairPermissions


      OPTIONAL DOWNLOADS
      BroadcomFix.zip   (Use these kexts if your Broadcom bluetooth/Wifi isn't working properly)
      Hackintool
      IORegistryExplorer
      Native Display Brightness with MonitorControl


      BIOS SETTINGS (Bios Revision F11e)

      • Enter BIOS → Press Delete → Enter Setup
      • Save & Exit → Load Optimized Defaults

      • Boot -> Windows 8/10 Features -> Win 8/10WHQL
      • Boot -> CSM Support -> Disabled (Can be set to Enabled if need be but try to have it set to Disabled first)
      • Favourites -> Extreme Memory Profile (X.M.P.) -> Profile1
      • Favourites -> VT-d -> Disabled (Can be set to Enabled or Disabled, Your choice)
      • Settings -> IO Ports -> Internal Display Output -> PCIe 1 Slot
      • Settings -> IO Ports -> Internal Graphics -> Enabled (Disabled If Using SMBios 1,1)
      • Settings -> IO Ports -> DVMT Pre-Allocated -> 64M
      • Settings -> IO Ports -> DVMT Total GFX0-Allocated -> 256M
      • Settings -> IO Ports -> Aperture Size -> 256MB
      • Settings -> IO Ports -> Wifi -> Disabled
      • Settings -> IO Ports -> Audio Controller -> Enabled
      • Settings -> IO Ports -> Above 4G Decoding -> Enabled
      • Settings -> IO Ports -> USB Configuration -> Legacy USB Support -> Auto
      • Settings -> IO Ports -> USB Configuration -> XHCI Hands-off -> Enabled
      • Settings -> Miscellaneous -> Software Guard Extensions (SGX) -> Disabled
      • Settings -> Platform Power -> Platform Power Management -> Enabled
      • Settings -> Platform Power -> ErP -> Enabled
      • Settings -> Platform Power -> RC6(Render Standby) -> Enabled

      • Save & Exit → Save & Exit Setup


      SCREENSHOTS

















    • By tonyx86
      **********************************************************************************
      In this thread, I have fully documented the installation of macOS Catalina on my HP EliteDesk 800 G4 Mini. It is a PERFECT HackMini8,1 and is running very well for me without any issues. I hope this documentation helps you to install macOS on your hack. Please leave feedback if you think there is anything I can improve and let me know if you have any questions.
      **********************************************************************************

      Background
      This is my first "modern" hack supporting UEFI and my first hack using Clover "on-the-fly" patches.  My previous hacks
      Laptop: Thinkpad T61 / Nvidia NVS 140m Laptop: Dell Latitude E6410 / Nvidia G3100m Desktop: Gigabyte G31 / GeForce 9600 Desktop: Biostar TH55HD / Sapphire Pulse RX580 (Google "Catalina Biostar TH55HD" and look for user name deeveedee)
      are all perfectly running Catalina and I patched them all "manually" - all DSDT patches applied with MaciSL with virtually no Clover on-the-fly patching and all booted Legacy Clover.  This UEFI hack was MUCH easier and took about 20 hours vs. a combined hundreds of hours for the old hacks.  I wanted a hack that was a little more future proof and I think this is it.  I hope you enjoy this as much as I am enjoying it.  It is a perfect MacMini8,1.



      My system specs
      HP EliteDesk 800 G4 Mini (I7-8700T / UHD 630 / Q370 Chipset / 32GB DDR4 RAM) 3 x DP Ports (connected to monitors using DP -> DVI adapters) 6 x USB 3.1 1 x USB Type-C 3.1 2 x NVMe SSD (M.2 PCIe x4 2280/2230 combo ports) 1 x SATA6 SSD 1 x Intel Ethernet RJ-45 Conexant CX20632 Audio Codec Unsupported M.2 PCIe x1 2230 Intel Wi-Fi.  A possible solution is here, but I am NOT offering any support for this.
      macOS Installation
      Important: You MUST BE LOGGED-IN to download attachments from this forum
      See macOS installation steps here See Known Issues here for additional installation steps that may not yet be included in my attached config files See CLOVER (UEFI) installation later in this first post
      See BIOS configuration in attached BIOS configuration PDF document
      See EFI and /L/E kexts in attached EliteDesk.zip archive See how I developed my installation methodology here See references here See instructions here for installing two M.2 2280 NVMe SSDs and one SATA HD / SSD
      What is not working
      Microphone port
      What is not tested
      USB c 3.1 port (I have partially tested the USB 3 functionality of the port and it seems to be working fine with the SSDT-UIAC.aml in the attached EliteDesk800.zip archive) Wi-Fi / Bluetooth (intentional since I have not yet replaced my Intel card). A possible solution is here, but I am not offering any support for this.

      What is working
      Everything not mentioned above Sleep / Wake Multiple displays with IGPU graphics acceleration, hot pluggable display ports and DP->DVI adapters USB 3.1 ports Audio (internal speaker and headphone jack) Ethernet Auto-sensing headphone jack automatically switches to internal speaker when headphones removed
      Known Issues and their solutions - see here

      BIOS Version / Configuration
      Version: 02.11.01 Rev.A See attached BIOS configuration in PDF document "HP EliteDesk 800 G4 Mini BIOS Configuration.pdf" Intel ME must be enabled for proper sleep / wake of UHD 630

      Clover Configuration
      Clover for UEFI booting only Install Clover in the ESP UEFI Drivers Recommended drivers DataHubDxe FSInject SMCHelper File System drivers ApfsDriverLoader VBoxHfs Memory fix drivers AptioMemoryFix Additional drivers NvmExpressDxe Install RC scripts on target volume Themes Choose your desired theme Install Clover Preference Pane (option not available when installing on USB thumb drive)
      UHD 630 Framebuffer Patching
      See here and here to understand my graphics properties for use with WhateverGreen.kext Read this to see my attempt at graphics patching without WhateverGreen.kext (WEG) to get a better understanding of what WEG is doing

      Current Versions
      Catalina 10.15.6 Clover (UEFI) r5119 Lilu.kext 1.4.5 WhateverGreen.kext 1.4.0 AppleALC.kext 1.5.0 IntelMausi 1.0.3 (Not IntelMausiEthernet)
      Credits To be provided

      ScreenShots


      HP EliteDesk 800 G4 Mini BIOS Configuration.pdf

      EliteDesk800 G4 Mini - Rev 1.0.zip
    • By fusion71au
      Making a High Sierra USB Installer Entirely From Scratch in Windows
      This is a proof of concept tutorial, to show it's possible to create a vanilla High Sierra installer, entirely from scratch, in Windows (even without App Store downloaded "Install macOS High Sierra.app" from a real Mac ).  @PikeRAlpha's link to Apple's Software Catalog provides us with all the URLs necessary to download the needed files directly from Apple instead of some dubious source from the internet...


      Pre-Requisites
      8GB or larger USB drive.  Edit: Recommend 16GB or larger for macOS Catalina 10.16 Boot Disk Utility v2.1.2017rev021b from @CVAD TransMac (free 15 day trial) Paragon Hard Disk Manager Free Download Installer Files Directly from Apple
      1)  Browse Apple's Regular Software Catalog and find the URLs to download the following 6 installer files...
      BaseSystem.dmg BaseSystem.chunklist InstallInfo.plist InstallESDDmg.pkg AppleDiagnostics.dmg AppleDiagnostics.chunklist (Hint - search page for "InstallESD" to find its URL and others nearby)

      to a folder named "SharedSupport" on your Windows NTFS drive.  A browser download manager (eg Chrono for Chrome, dTA for FireFox) is handy since InstallESD is >4GB ---> allows you to pause/resume interrupted download...

      2)  Rename InstallESDDmg.pkg to InstallESD.dmg
      3)  Edit InstallInfo.plist with WordPad/text editor to remove the chunklistURL and chunklistid keys for InstallESD, and renaming it from InstallESDDmg.pkg to InstallESD.dmg (example of edited file attached to this post)...
      Note:  You can verify the SHA1 checksum of your InstallESD.dmg and BaseSystem.dmg with the correct ones at this website.
      Boot Disk Utility to format the Installer USB and Restore OS X Base System HFS partition
      1.  Format USB with BDU & latest Clover ---> creates boot files in CLOVER partition + second FAT partition
      2.  Extract 4.hfs from \SharedSupport\BaseSystem.dmg with BDU --> save to it's local folder
      3.  Restore 4.hfs to USB second partition with BDU --->  2nd partition becomes bootable "OS X Base System"
      Paragon Hard Disk Manager to extend HFS Partition to its Full Extent
      Open Paragon Partition Manager Free and resize the second partition of the USB drive to the full size allowed.  Don't forget to apply the changes at the end...
      Transmac to Copy "SharedSupport" folder to OS X Base System
      1.  Open the TransMac program and navigate to the HFS+ Volume/Install macOS High Sierra.app/Contents folder.  Right click anywhere in the empty space on the RHS pane and select "Copy Here"...
      2.  In the next stage, select the "SharedSupport" folder we created above as the "Files and Folders to be copied to the Mac Volume"...

      Clover Settings
      Clover configuration is required now.  The default config.plist (in the Clover FAT32 partition of the USB) maybe sufficient to boot your machine if you’re lucky.  If not, the hackintosh-vanilla-desktop-guide has some good explanations on the various settings available and also offers sample configuration files based on CPU type.  Also, look at the Clover Wiki, Clover Instructions and Clover Configuration Thread for pointers and edit /EFI/Clover/config.plist accordingly with Wordpad or Notepad.
      The location of the important configuration files for Clover are summarized below
      config.plist--->EFI/CLOVER folder DSDT.aml with or without SSDT.aml--->EFI/CLOVER/ACPI/patched (don't need one if your DSDT is auto patched by Clover in config.plist) Kexts eg FakeSMC, NullCPUPowerManagement --->EFI/CLOVER/kexts/<osx version> or /Other. NB BootDiskUtility by default already has FakeSMC.kext installed here.  You may need to add VoodooPS2Controller for your laptop keyboard/trackpad to work. If UEFI booting, you will most likely need one of the OsxAptioFixDrv-64 drivers copied from /EFI/CLOVER/drivers-off/drivers64UEFI to /EFI/CLOVER/drivers64UEFI. If you want to use the installer to run High Sierra in Windows on VMware, you can follow my guide to set up the Virtual Machine and replace Clover's default config with EFI_Clover for VMware (which is compatible to run in VMware).  In the screenshots below, I have attached the USB Installer (in this case PhysicalDrive7) to my macOS Virtual Machine.  Reboot the system to the USB installer to install High Sierra ...
      What happens if we don't have access to TransMac or Paragon Hard Disk Manager?
      Not a problem, as long as we get "OS X Base System" bootable, we can launch terminal from the Utilities Menu to copy the SharedSupport folder over to the Installer app.  In essence, we will build the full installer app = 5GB+ on the target HD eg "Macintosh HD", by copying both the "small" installer app = 15MB (on "OS X Base System") and the SharedSupport folder from the NTFS volume (mounted in this example on /Volumes/DATA)...
      -bash-3.2# cd / -bash-3.2# cp -R Install\ macOS\ High\ Sierra.app /Volumes/Macintosh\ HD/ -bash-3.2# cp -R /Volumes/DATA/SharedSupport /Volumes/Macintosh\ HD/Install\ macOS\ High\ Sierra.app/Contents/
      ...then start installation with the startosinstall utility...
      -bash-3.2# /Volumes/Macintosh\ HD/Install\ macOS\ High\ Sierra.app/Contents/Resources/startosinstall --volume /Volumes/Macintosh\ HD --converttoapfs NO --applicationpath /Volumes/Macintosh\ HD/Install\ macOS\ High\ Sierra.app
      The above steps can be automated with the attached "startosinstall.command" script, which will assemble "Install macOS High Sierra.app" on "Macintosh HD" and launch the startosinstall utility targeting the "Macintosh HD" volume.  Copy/download to "Macintosh HD", then run in terminal (after attaching DATA USB with /Shared Support folder)...
      cd "/Volumes/Macintosh HD" chmod +x startosinstall.command ./startosinstall.command Updated Download Links for macOS Mojave 10.14.6_18G103
      Browse Apple's Regular Software Catalog and find the URLs to download the following 6 installer files...
      BaseSystem.dmg BaseSystem.chunklist InstallInfo.plist InstallESDDmg.pkg AppleDiagnostics.dmg AppleDiagnostics.chunklist
      Note: In Mojave, Apple has removed the --converttoapfs NO and --applicationpath arguments from the startosinstall utility....

      eg to use startosinstall for the above section "What happens if we don't have access to TransMac or Paragon Hard Disk Manager?", the syntax is now
      -bash-3.2# /Volumes/Macintosh\ HD/Install\ macOS\ Mojave.app/Contents/Resources/startosinstall --volume /Volumes/Macintosh\ HD
      This basically means that for Mojave, the default installation will always convert the target volume to the apfs file system.

      Updated Download Links for macOS Catalina 10.15.6_19G73
      Browse Apple's Regular Software Catalog and find the URLs to download the following 6 installer files...
      BaseSystem.dmg BaseSystem.chunklist InstallInfo.plist InstallESDDmg.pkg AppleDiagnostics.dmg AppleDiagnostics.chunklist
      startosinstall.command.zip
      InstallInfo.plist_edited_10.13.6.zip
      InstallInfo.plist_edited_10.14.6.zip
      InstallInfo.plist_edited_10.15.6.zip
    • By imacosiris
      Hi guys
      I already have a Hack running HighSierra and Clover.
      But I think to move to Open Core and install macOS Catalina.
      I just wonder if any one have any experience with this model of Gigabyte motherboard.
      I must add I use this hack as server to share videos no need audio for example, only network and storage

      My config is as follow
      Motherboard: gigabyte ga-h97m-d3h
      Processor : Intel i3 3,69 Mhz
      Memory : 32 GB 1600 Mhz DDR3
      Video Card: NVIDIA GeForce GT 710 (Nvidia Web Driver 387.10.10.10.40.105)

      System identify as iMac (27-inch, Late 2013)
      Current version 10.13.6

      Boot drive SSD Kingston HyperX Savage SHSS37A120G

      Any advice ??
      Br
×
