thefish2010
thefish2010
Posted
Posted (edited)
14 hours ago, Naki said:

What is your Host OS? Did this VM work fine before? IF so, what changed?
Such as new Windows Updates installed, and/or new Windows 10 OS version, or maybe move to a newer version of VMware Workstation (such as you moved from 15.0.2 or 15.0.3 to 15.1/etc)?



Was this VM in a shut down, or Saved/Suspended state?

As a rule, always a good idea to fully shutdown all macOS VMs before doing a major change such as Windows 10 version upgrade, or VMware Workstation version update/etc.

Usually, if you have Linux and Windows VMs too, you can leave those running/Suspended, no need to shut those down.

Then if/once your macOS VM(s) work(s), you can then not shut it down and just suspend it as usual. :)



Hey,



Thanks for the reply.  I'm on Windows 10 1903.  My Mac VM was working fine on Vmware 15.0.2.  When I went to update to Windows 10 1903, Windows actually required me to update Vmware to 15.1, saying that 15.0 was incompatible with it.  So then I updated to Vmware 15.1, and then was able to install Windows 10 1903.  The VM had been fully shutdown before either of these updates.  Now, when I try to boot the Mac VM up, it shows the apple logo, with a progress bar that takes a while to get to the halfway mark or so, and then reboots itself and does until I power it down.



I have tried deleting the .nvram file (which has worked before) but that didn't fix anything.  I have also tried unisntalling the unlocker and then putting it back, several times.  Neither of these worked.



Please let me know if you have any ideas.

Edited by thefish2010
Link to comment
Share on other sites
RubyKID
RubyKID
Posted
Posted
On 8/11/2019 at 1:53 PM, Naki said:

Does shutdown VM, then power back on work?



IF you did not run the macOS Unlocker, please do (latest version).



EDIT: Do NOT replace any files manually this way. Use Unlocker instead.

ok, try out tomorrow ,thnx.

i did, because paths havent been right in the unlocking script.



Link to comment
Share on other sites
  • 1 month later...
Aaron44126
Aaron44126
Posted
Posted (edited)

Tried unlocker 3.02 with the new VMware Workstation 15.5.0.

An existing macOS 10.14 VM boots fine.  However the option to select macOS as the operating system is missing in the VM configuration, so it might be difficult to set up a new macOS VM.

Edited by Aaron44126
Link to comment
Share on other sites
netgear
netgear
Posted
Posted
6 hours ago, Aaron44126 said:

Tried unlocker 3.02 with the new VMware Workstation 15.5.0.

An existing macOS 10.14 VM boots fine.  However the option to select macOS as the operating system is missing in the VM configuration, so it might be difficult to set up a new macOS VM.



Equal

Link to comment
Share on other sites
pjg61
pjg61
Posted
Posted
10 hours ago, Aaron44126 said:

Tried unlocker 3.02 with the new VMware Workstation 15.5.0.

An existing macOS 10.14 VM boots fine.  However the option to select macOS as the operating system is missing in the VM configuration, so it might be difficult to set up a new macOS VM.



Yupp.  Also, Gettools.exe fails in downloading the latest darwin.iso files.  The URL now appears invalid.  I think VMware reorganized their web site.

Link to comment
Share on other sites
Aaron44126
Aaron44126
Posted
Posted (edited)
1 hour ago, pjg61 said:

Yupp.  Also, Gettools.exe fails in downloading the latest darwin.iso files.  The URL now appears invalid.  I think VMware reorganized their web site.



I was able to grab the latest darwin.iso form the VMware Fusion 11.5 package, which also was released yesterday.  On a related note I notice that VMware Fusion 11.5 release notes indicate that macOS 10.15 is supported.  So, I suspect that there will not be any problem upgrading a VM to macOS 10.15 in VMware Workstation 15.5.

Edited by Aaron44126
Link to comment
Share on other sites
Naki
Naki
Posted
Posted (edited)
1 hour ago, JJTagy said:

In case you ever want to manually get tools: https://softwareupdate.vmware.com/cds/vmw-desktop/fusion/



Latest is 11.5.0 - drill down into the packages folder

Intesting! For 11.5, there is NO Packages folder, how do you drill down? :unsure:



Note: Older versions somehow do have such a Packages folder, strange? :huh:

Edited by Naki
Link to comment
Share on other sites
JJTagy
JJTagy
Posted
Posted (edited)

Oh good point. Didn’t look, assumed it was like before. Must be why assumption URL changed... Sorry, guess I am wrong.



UPDATE: So now they include them in the core package. In the zip - com.vmware.fusion.zip\payload\VMware Fusion.app\Contents\Library\isoimages

Edited by JJTagy
More information
Link to comment
Share on other sites
mkitchin
mkitchin
Posted
Posted

Donk, not sure of the bet way to send you a note. Thank you for the awesome work with unlocker. VMware workstation player 15.5 looks like it was released today. It appears that unlocker doesn't yet work with 15.5 on Windows (10). Not complaining, just letting you know. My previously created Mojave VMs still boot. There is no option for macOS in the selction menu although exiting machines show that OS in the drop down box. The radio button for macOS isn't there. The only error during the unlocker install is when it tries to download the latest tools. See below. It seems like the URL for downloading tools is no longer valid. IS there any other info I can provide you? **Sorry if you receive this note in your feed as well.


Unlocker 3.0.2 for VMware Workstation
=====================================
(c) Dave Parsons 2011-18

Set encoding parameters...
Active code page: 850

VMware is installed at: C:\Program Files (x86)\VMware\VMware Player\
VMware product version: 15.5.0.14665864

Stopping VMware services...

Backing up files...
C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx.exe -> C:\MacOS\unlocker-master\backup\x64\vmware-vmx.exe
1 File(s) copied
C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx-debug.exe -> C:\MacOS\unlocker-master\backup\x64\vmware-vmx-debug.exe
1 File(s) copied
File not found - vmware-vmx-stats.exe
0 File(s) copied
C:\Program Files (x86)\VMware\VMware Player\vmwarebase.dll -> C:\MacOS\unlocker-master\backup\vmwarebase.dll
1 File(s) copied

Patching...
File: C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx.exe

appleSMCTableV0 (smc.version = "0")
appleSMCTableV0 Address      : 0xaab9e0
appleSMCTableV0 Private Key #: 0xF2/242
appleSMCTableV0 Public Key  #: 0xF0/240
appleSMCTableV0 Table        : 0xaaba00
+LKS Key:
002 0xaaba48 +LKS 01 flag 0x90 0x1401389f0L 07
OSK0 Key Before:
241 0xaafd80 OSK0 32 ch8* 0x80 0x1401389f0L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK0 Key After:
241 0xaafd80 OSK0 32 ch8* 0x80 0x1401389f0L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
242 0xaafdc8 OSK1 32 ch8* 0x80 0x1401389f0L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63
OSK1 Key After:
242 0xaafdc8 OSK1 32 ch8* 0x80 0x1401389f0L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63

appleSMCTableV1 (smc.version = "1")
appleSMCTableV1 Address      : 0xaafe10
appleSMCTableV1 Private Key #: 0x01B4/436
appleSMCTableV1 Public Key  #: 0x01B0/432
appleSMCTableV1 Table        : 0xaafe30
+LKS Key:
004 0xaaff08 +LKS 01 flag 0x90 0x1401389f0L 01
OSK0 Key Before:
435 0xab7840 OSK0 32 ch8* 0x90 0x1401389f0L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK0 Key After:
435 0xab7840 OSK0 32 ch8* 0x90 0x1401389f0L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
436 0xab7888 OSK1 32 ch8* 0x90 0x1401389f0L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63
OSK1 Key After:
436 0xab7888 OSK1 32 ch8* 0x90 0x1401389f0L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63

File: C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx-debug.exe

appleSMCTableV0 (smc.version = "0")
appleSMCTableV0 Address      : 0xcab100
appleSMCTableV0 Private Key #: 0xF2/242
appleSMCTableV0 Public Key  #: 0xF0/240
appleSMCTableV0 Table        : 0xcab120
+LKS Key:
002 0xcab168 +LKS 01 flag 0x90 0x140171130L 07
OSK0 Key Before:
241 0xcaf4a0 OSK0 32 ch8* 0x80 0x140171130L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK0 Key After:
241 0xcaf4a0 OSK0 32 ch8* 0x80 0x140171130L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
242 0xcaf4e8 OSK1 32 ch8* 0x80 0x140171130L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63
OSK1 Key After:
242 0xcaf4e8 OSK1 32 ch8* 0x80 0x140171130L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63

appleSMCTableV1 (smc.version = "1")
appleSMCTableV1 Address      : 0xcaf530
appleSMCTableV1 Private Key #: 0x01B4/436
appleSMCTableV1 Public Key  #: 0x01B0/432
appleSMCTableV1 Table        : 0xcaf550
+LKS Key:
004 0xcaf628 +LKS 01 flag 0x90 0x140171130L 01
OSK0 Key Before:
435 0xcb6f60 OSK0 32 ch8* 0x90 0x140171130L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK0 Key After:
435 0xcb6f60 OSK0 32 ch8* 0x90 0x140171130L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
436 0xcb6fa8 OSK1 32 ch8* 0x90 0x140171130L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63
OSK1 Key After:
436 0xcb6fa8 OSK1 32 ch8* 0x90 0x140171130L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63

GOS Patching: C:\Program Files (x86)\VMware\VMware Player\vmwarebase.dll
GOS Patched: C:\Program Files (x86)\VMware\VMware Player\vmwarebase.dll

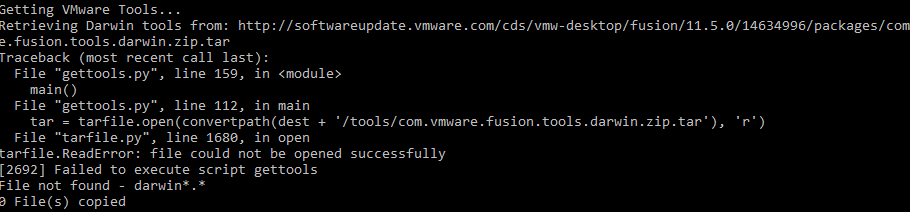

Getting VMware Tools...
Retrieving Darwin tools from: http://softwareupdate.vmware.com/cds/vmw-desktop/fusion/11.5.0/14634996/packages/com.vmware.fusion.tools.darwin.zip.tar
Traceback (most recent call last):
  File "gettools.py", line 159, in <module>
    main()
  File "gettools.py", line 112, in main
    tar = tarfile.open(convertpath(dest + '/tools/com.vmware.fusion.tools.darwin.zip.tar'), 'r')
  File "tarfile.py", line 1680, in open
tarfile.ReadError: file could not be opened successfully
[7176] Failed to execute script gettools
File not found - darwin*.*
0 File(s) copied

Starting VMware services...

Finished!
Press any key to continue . . .

Link to comment
Share on other sites
Naki
Naki
Posted
Posted

Help! How to use the script!? (or whatever that is)
I carefully chose to update to version 15.1.0 of VMware Workstation Pro, instead of latest - thinking only latest 15.5 has the issues. :huh:

I was WRONG - issue happens with version 15.1.0 too - Unlocker cannot find some files on the Fusion servers.

HELP!?? :(



Link to comment
Share on other sites
serezha
serezha
Posted
Posted

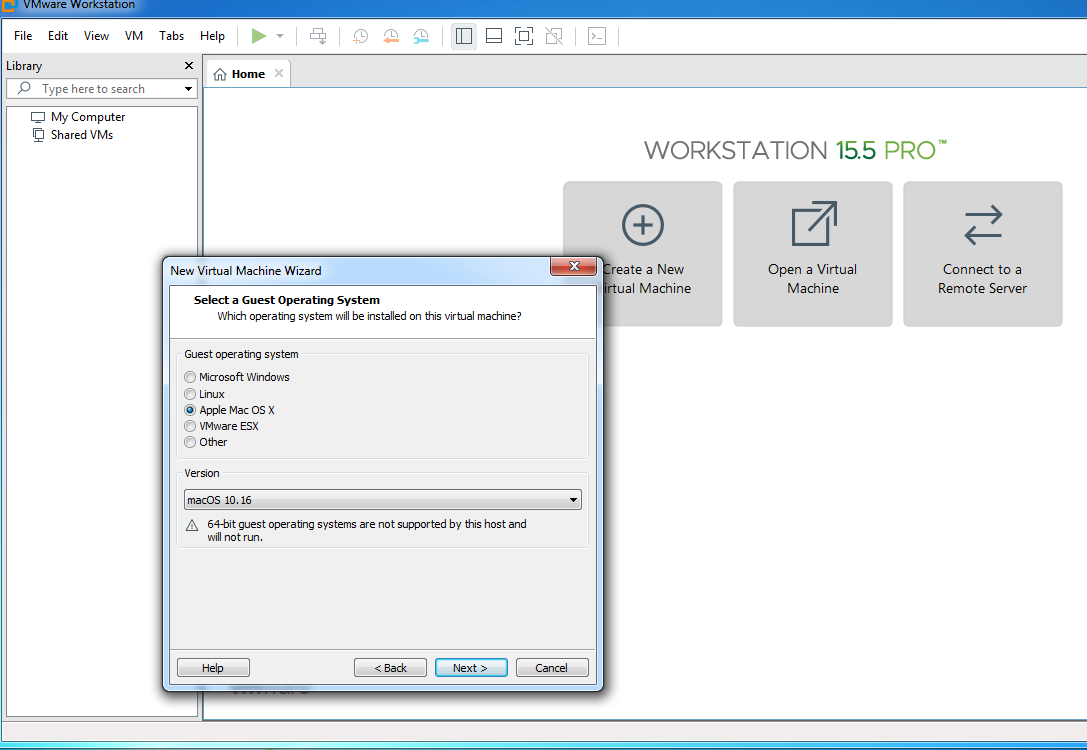

ok, with this patch with small modification vmware workstation 15.5 was successfully unlocked. Catalina installed without problems. But script can not download vmware tools automatically. Here is unlocker.py. Here is compiled unlocker. It was compiled with python 3. I am not python programmer, but patch was a little modified.



Enjoy!

Link to comment
Share on other sites
fugitiv3
fugitiv3
Posted
Posted (edited)
3 hours ago, serezha said:

ok, with this patch with small modification vmware workstation 15.5 was successfully unlocked. Catalina installed without problems. But script can not download vmware tools automatically. Here is unlocker.py. Here is compiled unlocker. It was compiled with python 3. I am not python programmer, but patch was a little modified.



Enjoy!



what do you mean was successfully unlocked?  did it download the  darwin.iso files  or  not?  do you see the option of Mac OS X when you want ot create VM?



edit: can confirm that the unlocker provided works but as mentioned above no tools are downloaded








Edited by fugitiv3
Link to comment
Share on other sites
pirilletti
pirilletti
Posted
Posted

To download the tools i.e for windows the two files :



darwin.iso
darwinPre15.iso


you should (for now) manually download

http://softwareupdate.vmware.com/cds/vmw-desktop/fusion/11.5.0/14634996/core/com.vmware.fusion.zip.tar


and extract the desired files from directory

com.vmware.fusion.zip\payload\VMware Fusion.app\Contents\Library\isoimages

as last step you must copy the two files into the Vmware Workstation directory



Link to comment
Share on other sites
matsuda0707
matsuda0707
Posted
Posted
7 hours ago, serezha said:

ok, with this patch with small modification vmware workstation 15.5 was successfully unlocked. Catalina installed without problems. But script can not download vmware tools automatically. Here is unlocker.py. Here is compiled unlocker. It was compiled with python 3. I am not python programmer, but patch was a little modified.



Enjoy!

Please post the unlocker.zip for more popular sites, such as google, or onedrive?

I am not the customer of MEGA, so I can not get it.

Link to comment
Share on other sites
mkitchin
mkitchin
Posted
Posted (edited)
2 hours ago, matsuda0707 said:

Please post the unlocker.zip for more popular sites, such as google, or onedrive?

I am not the customer of MEGA, so I can not get it.

I just shared it from MediaFire. https://www.mediafire.com/file/zuxndpijx6zrk61/unlocker.zip/file

**I have removed this from my MediaFire account because of possible viruses.

Edited by mkitchin
typo
Link to comment
Share on other sites
mkitchin
mkitchin
Posted
Posted (edited)
10 hours ago, serezha said:

ok, with this patch with small modification vmware workstation 15.5 was successfully unlocked. Catalina installed without problems. But script can not download vmware tools automatically. Here is unlocker.py. Here is compiled unlocker. It was compiled with python 3. I am not python programmer, but patch was a little modified.



Enjoy!

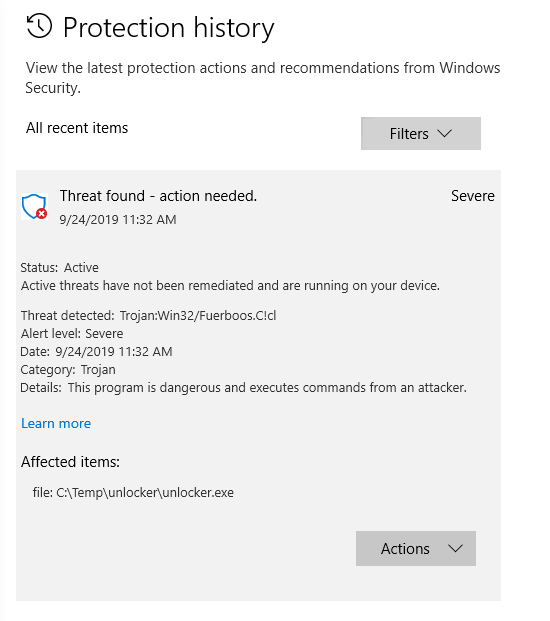

Windows defender is alerting that this has a virus in it.... See pic.

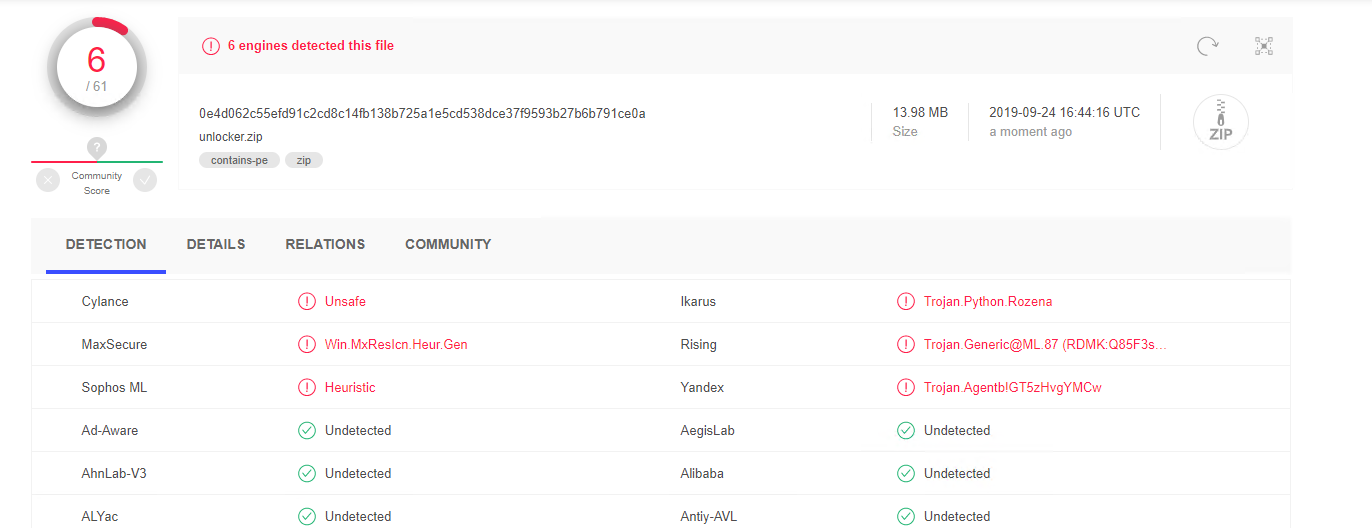

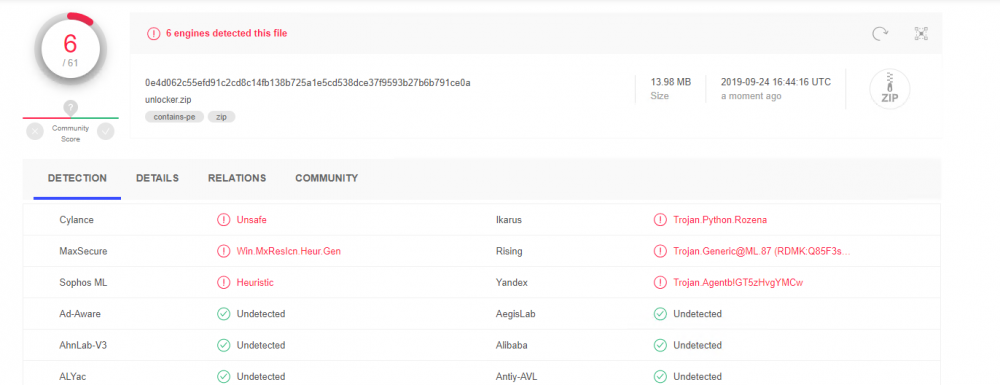

**Edit Online scan finds viruses as well. See second pic.

**I'm going to try to recompile with PyiInstaller



Edited by mkitchin
New info
Link to comment
Share on other sites
