JamesK Posted December 14, 2019 Share Posted December 14, 2019 9 hours ago, lucke said: Not work for me... @Jamesk, can you share your EFI folder...? Thanks in advance...!!! Not sure posting my EFI would do anyone without an identical system as mine. But if you post your EFI folder I can look to see where your issue(s) may be? I am thinking you have something in there that might be conflicting. I have confirmed both OpenCore and Clover x99 systems work with the new patches.(Not just my system). I personally use OpenCore myself. Link to comment Share on other sites More sharing options...
lucke Posted December 14, 2019 Share Posted December 14, 2019 (edited) 5 hours ago, JamesK said: Not sure posting my EFI would do anyone without an identical system as mine. But if you post your EFI folder I can look to see where your issue(s) may be? I am thinking you have something in there that might be conflicting. I have confirmed both OpenCore and Clover x99 systems work with the new patches.(Not just my system). I personally use OpenCore myself. For now, thanks, I'm still using clover, I still don't have much familiarity with open core. At the moment I followed the guide of the great KGP, and the system starts perfectly but I don't have xcpm working and especially sleep... EFI - lucke.zip EFI - lucke.zip Edited December 14, 2019 by lucke Link to comment Share on other sites More sharing options...
yapan4 Posted December 18, 2019 Share Posted December 18, 2019 (edited) On 9/25/2018 at 5:51 PM, nmano said: xcpm_pkg_scope_msrs 10.15.2 Comment String <-> _xcpm_pkg_scope_msrs by JamesK Disabled Boolean <-> No Find Data<-> 31D2E879 FDFFFF MatchOS String <-> 10.15.x Replace Data<-> 31D29090 909090 Hi, @JamesK This patch stoped working for me on Catalina 10.15beta3 (19D49f, Darwin 19.3.0) Edited December 19, 2019 by yapan4 1 Link to comment Share on other sites More sharing options...
igorexxa Posted December 19, 2019 Share Posted December 19, 2019 On 12/14/2019 at 2:42 PM, lucke said: For now, thanks, I'm still using clover, I still don't have much familiarity with open core. At the moment I followed the guide of the great KGP, and the system starts perfectly but I don't have xcpm working and especially sleep... EFI - lucke.zip EFI - lucke.zip With your EFI I could install Catalina on MSI X99A Sli Link to comment Share on other sites More sharing options...
nmano Posted December 19, 2019 Author Share Posted December 19, 2019 (edited) 21 hours ago, yapan4 said: Hi, @JamesK This patch stoped working for me on Catalina 10.15beta3 (19D49f, Darwin 19.3.0) xcpm_pkg_scope_msrs (c) Pike R. Alpha I check in 10.15.2 Kernel 31D2E879 FDFFFF The data is ok. Edited December 19, 2019 by nmano 1 Link to comment Share on other sites More sharing options...
yapan4 Posted December 19, 2019 Share Posted December 19, 2019 1 hour ago, nmano said: xcpm_pkg_scope_msrs (c) Pike R. Alpha I check in 10.15.2 Kernel 31D2E879 FDFFFF The data is ok. Sorry my mistake, i mean 10.15.3 beta 1 1 Link to comment Share on other sites More sharing options...
nmano Posted December 19, 2019 Author Share Posted December 19, 2019 8 minutes ago, yapan4 said: Sorry my mistake, i mean 10.15.3 beta 1 ok can you upload 10.15.3 beta 1 kernel I will check. 1 Link to comment Share on other sites More sharing options...
yapan4 Posted December 19, 2019 Share Posted December 19, 2019 9 minutes ago, nmano said: ok can you upload 10.15.3 beta 1 kernel I will check. kernel10153b1.zip 1 Link to comment Share on other sites More sharing options...
nmano Posted December 20, 2019 Author Share Posted December 20, 2019 (edited) Test This for 10.15.3 Beta1 xcpm_bootstrap © Pike RAlpha By N.Mano 10.15.X Find 8D43C43C 227722 Replace 8D43C13C 227722 xcpm_core_scope_msrs © Pike R. Alpha By N.Mano Find 31D2E8B4 5DFDFF Replace 31D29090 909090 xcpm_pkg_scope_msrs (c) Pike R. Alpha By N.Mano Find 31D2E848 FDFFFF Replace 31D29090 909090 _xcpm_SMT_scope_msrs #1 (c) Pike R. Alpha By N.Mano Find BE060000 005DE908 000000 Replace BE060000 005DC390 909090 _xcpm_SMT_scope_msrs #2 (c) Pike R. Alpha By N.Mano Find 31D2E825 FDFFFF Replace 31D29090 909090 Edited December 20, 2019 by nmano 2 Link to comment Share on other sites More sharing options...
yapan4 Posted December 20, 2019 Share Posted December 20, 2019 4 hours ago, nmano said: xcpm_pkg_scope_msrs (c) Pike R. Alpha By N.Mano Find 31D2E848 FDFFFF Replace 31D29090 909090 Confirm tested and working in Catalina 10.15.3beta1. Thank you, @nmano Hopefully Apple won't repeat this with each beta release 1 Link to comment Share on other sites More sharing options...
lucke Posted December 21, 2019 Share Posted December 21, 2019 (edited) On 12/19/2019 at 5:03 PM, igorexxa said: With your EFI I could install Catalina on MSI X99A Sli I hope.. test and report back... at the moment instead, for me, xcpm "null" on 10.5.2... Edited December 21, 2019 by lucke Link to comment Share on other sites More sharing options...

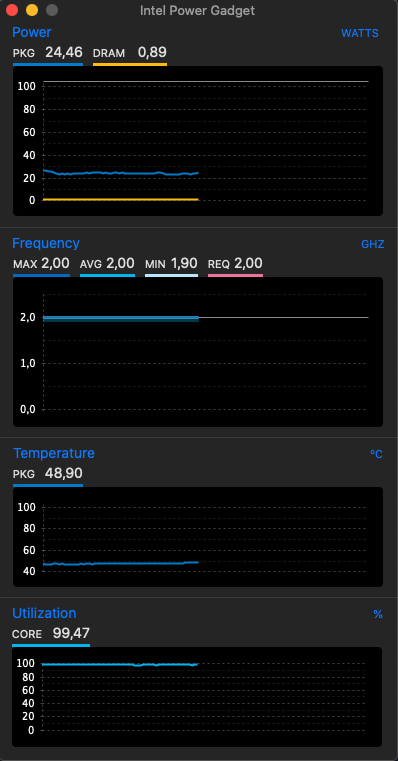

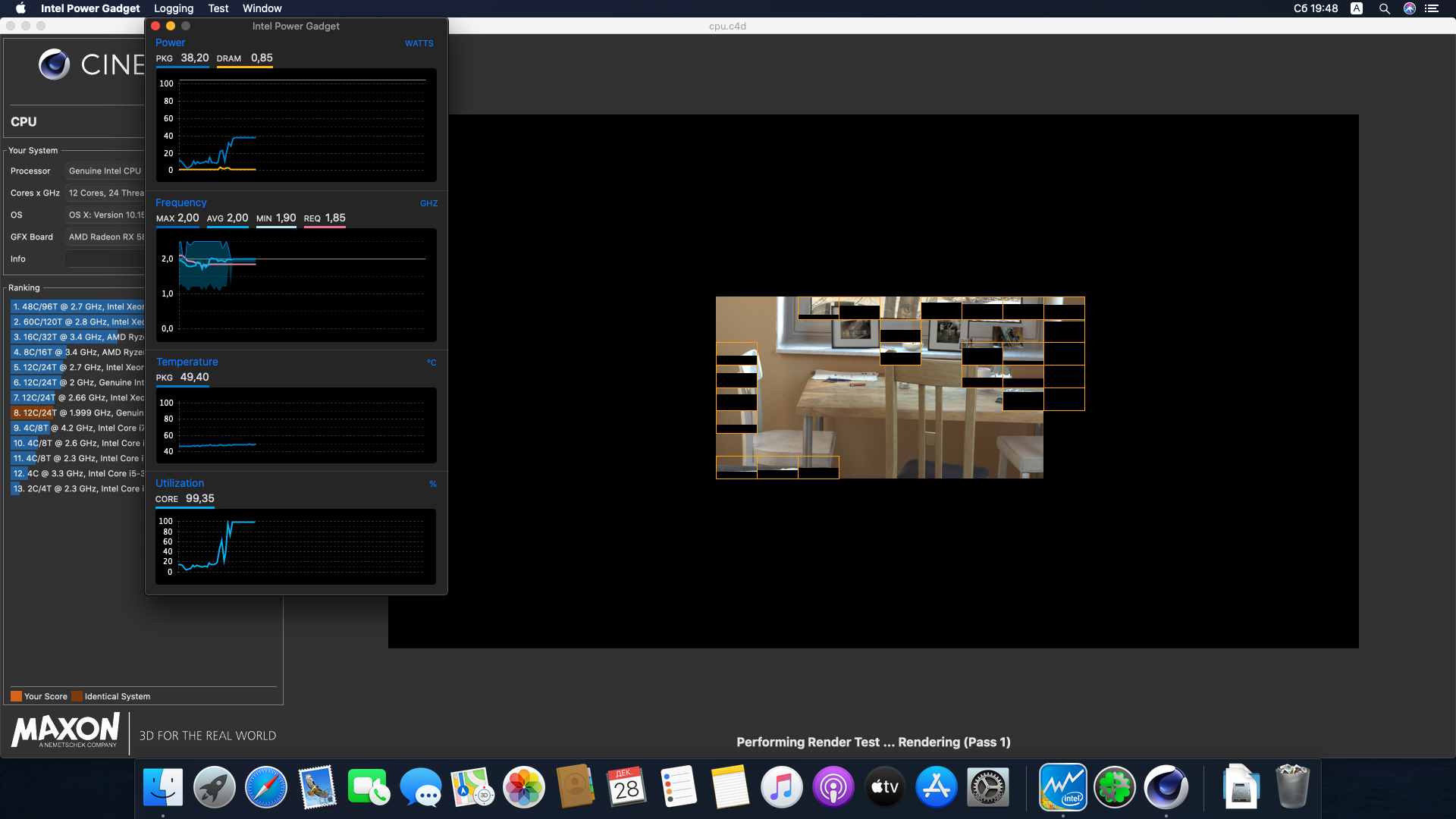

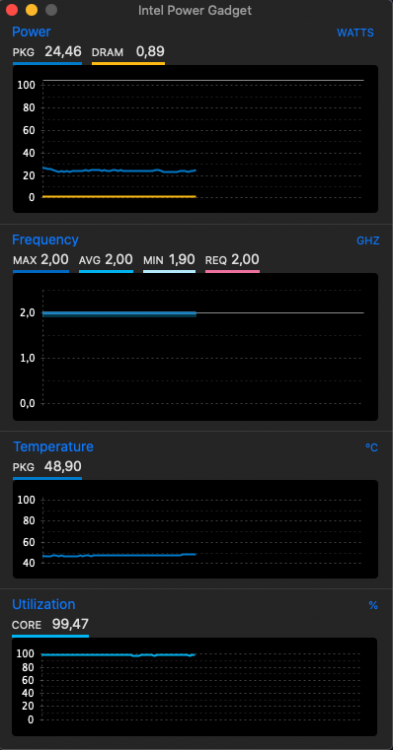

goxaniguana Posted December 28, 2019 Share Posted December 28, 2019 Hi, I have a small problem... Very strange xcpm working On first screenshot freq stuck at 2 ghz on second (KernelPM, KernelXCPM enabled in clover) freq max 2ghz too, but where my turbo boost in both options sleep working perfectly Specs: Asrock x99 extreme 4 xeon e5 2658v3 es Aorus rx 580 CLOVER 2.zip Link to comment Share on other sites More sharing options...
skyflying5 Posted December 29, 2019 Share Posted December 29, 2019 (edited) On 12/11/2019 at 9:28 AM, JamesK said: 10.15.2 WORKING KERNEL PATCHES! Comment: _xcpm_performance_patch by JamesK Find: 41C1E608 4963D689 D048C1EA 20 Replace: 41C1E608 B800FF00 0031D290 90 Comment: _xcpm_SMT_scope_msrs_1 by JamesK Find: BE060000 005DE908 000000 Replace: BE060000 005DC390 909090 Comment: _xcpm_SMT_scope_msrs_2 by JamesK Find: 31D2E844 FDFFFF Replace: 31D29090 909090 Comment: _xcpm_pkg_scope_msrs by JamesK Find: 31D2E879 FDFFFF Replace: 31D29090 909090 Comment: _xcpm_core_scope_msrs by JamesK Find: 31D2E857 FDFFFF Replace: 31D29090 909090 Patches work. Enjoy! now the 10.15.3 beta 1 cannot use this boot up normally could u update the kernel patches thx！！ Edited December 29, 2019 by skyflying5 Link to comment Share on other sites More sharing options...
Gudv1n Posted January 2, 2020 Share Posted January 2, 2020 On 12/29/2019 at 12:42 PM, skyflying5 said: now the 10.15.3 beta 1 cannot use this boot up normally could u update the kernel patches thx！！ Attach kernel pls. Link to comment Share on other sites More sharing options...
scypher Posted January 21, 2020 Share Posted January 21, 2020 What frequency and idle temps do you find while idling using these Kext Patches? Specifically the 5960x. Link to comment Share on other sites More sharing options...

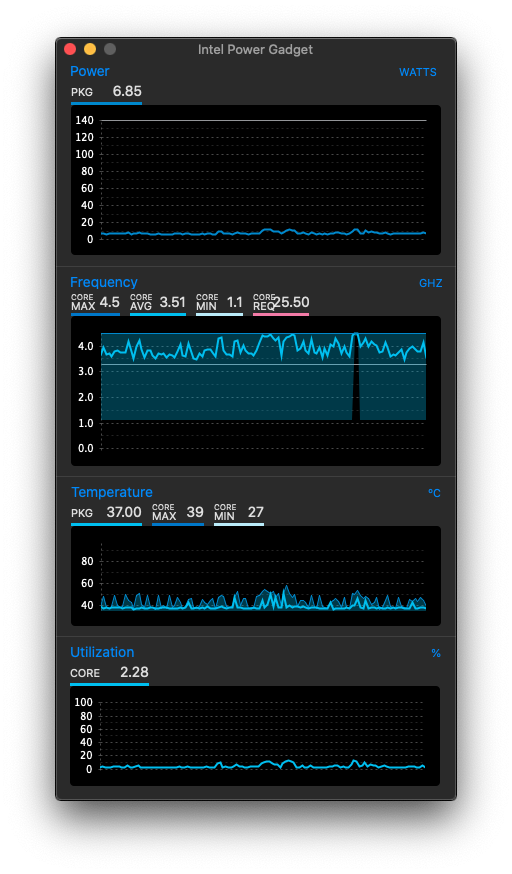

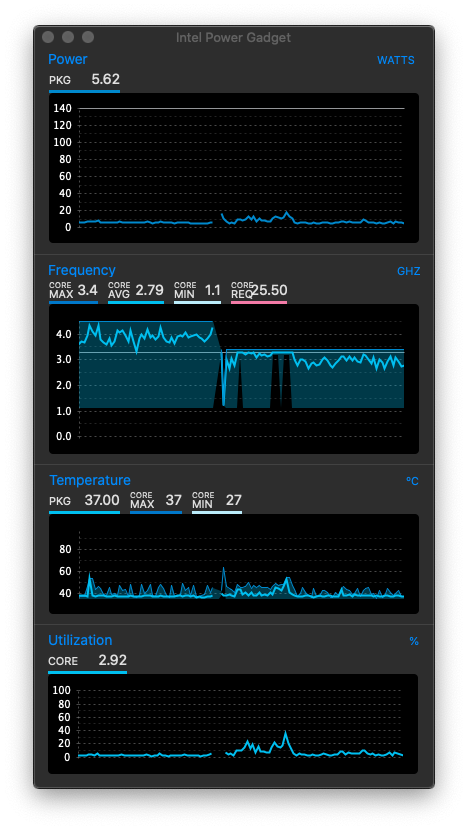

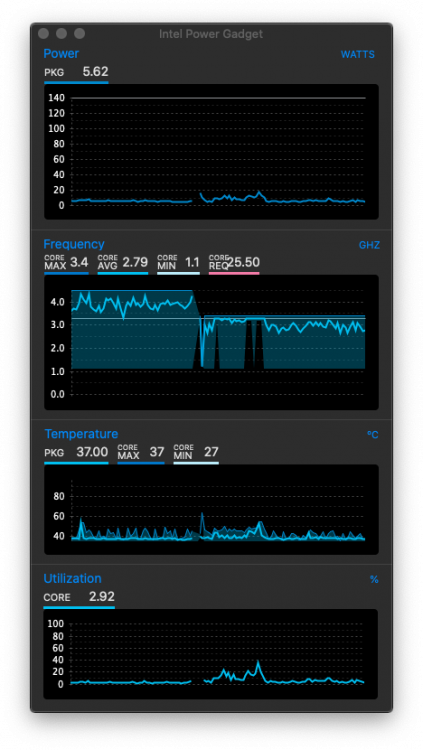

Jasper Levi Posted January 23, 2020 Share Posted January 23, 2020 I am using the patches for 10.15.2 but I am facing this really weird problem, that my CPU reverts to its regular frequency after sleep-wake. So, my i7 5820K, which I have overclocked to 4.5 GHz at a 100MHz BCLK (see fresh-boot.png), comes back to its top speed of 3.3GHZ (see attached sleepwake.png showing CPU frequencies, before and after a sleep-wake). Any idea what could be causing this? Am attaching my EFI folder for inspection. My config is: CPU Intel i7 5820K Motherboard: Gigabyte X99 UD4 Graphics: Sapphire Radeon RX5700 XT 8GB RAM: 32GB 2400 Corsair Vengence LPX DDR4 SSD: Samsung EVO 256GB Power Supply: Corsair RM750 CPU Cooler: CoolerMaster MasterLiquid ML240L RGB Thanks jasperlevi-EFI.zip Link to comment Share on other sites More sharing options...
lucke Posted January 27, 2020 Share Posted January 27, 2020 On 1/23/2020 at 7:39 PM, Jasper Levi said: I am using the patches for 10.15.2 but I am facing this really weird problem, that my CPU reverts to its regular frequency after sleep-wake. So, my i7 5820K, which I have overclocked to 4.5 GHz at a 100MHz BCLK (see fresh-boot.png), comes back to its top speed of 3.3GHZ (see attached sleepwake.png showing CPU frequencies, before and after a sleep-wake). Any idea what could be causing this? Am attaching my EFI folder for inspection. My config is: CPU Intel i7 5820K Motherboard: Gigabyte X99 UD4 Graphics: Sapphire Radeon RX5700 XT 8GB RAM: 32GB 2400 Corsair Vengence LPX DDR4 SSD: Samsung EVO 256GB Power Supply: Corsair RM750 CPU Cooler: CoolerMaster MasterLiquid ML240L RGB Thanks jasperlevi-EFI.zip Try this: https://www.google.it/amp/s/pikeralpha.wordpress.com/2017/01/12/debugging-sleep-issues/amp/ 1 Link to comment Share on other sites More sharing options...
Jasper Levi Posted February 1, 2020 Share Posted February 1, 2020 On 1/28/2020 at 12:25 AM, lucke said: Try this: https://www.google.it/amp/s/pikeralpha.wordpress.com/2017/01/12/debugging-sleep-issues/amp/ Thanks. It wasn't this, though. I had this kext called 'RTCMemoryFixup.kext' in my EFI/Clover/kexts folder. Once I deleted that one, I am getting consistent performance before and after sleep. 1 Link to comment Share on other sites More sharing options...
lucke Posted February 1, 2020 Share Posted February 1, 2020 4 hours ago, Jasper Levi said: Thanks. It wasn't this, though. I had this kext called 'RTCMemoryFixup.kext' in my EFI/Clover/kexts folder. Once I deleted that one, I am getting consistent performance before and after sleep. Perfect! 1 Link to comment Share on other sites More sharing options...
lucke Posted February 3, 2020 Share Posted February 3, 2020 (edited) Do you have any news on the xcpm performance patch for 10.15.3? I inserted the nmano patches for beta1 (without the performance patches because they are missing) and launching: AppleIntelInfo.kext - MSR_PMG_CST_"section:" MSR_PMG_CST_CONFIG_CONTROL........(0xE2) : 0x1E000005 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 0 (not enabled) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 0 (disabled/unsupported) - C1 State Auto Demotion............... : 0 (disabled/unsupported) - C3 State Undemotion.................. : 0 disabled/unsupported) - C1 State Undemotion.................. : 0 (disabled/unsupported) - Package C-State Auto Demotion........ : 0 (disabled/unsupported) - Package C-State Undemotion........... : 0 (disabled/unsupported) Only C6 state is enabled. When in 10.15.2: MSR_PMG_CST_CONFIG_CONTROL........(0xE2) : 0x1E000005 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 0 (not enabled) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 0 (disabled/unsupported) - Package C-State Undemotion........... : 0 (disabled/unsupported) also C6 state... Edited February 3, 2020 by lucke Link to comment Share on other sites More sharing options...
yapan4 Posted February 5, 2020 Share Posted February 5, 2020 On 2/3/2020 at 2:45 PM, lucke said: Do you have any news on the xcpm performance patch for 10.15.3? I inserted the nmano patches for beta1 (without the performance patches because they are missing) and launching: AppleIntelInfo.kext - MSR_PMG_CST_"section:" MSR_PMG_CST_CONFIG_CONTROL........(0xE2) : 0x1E000005 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 0 (not enabled) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 0 (disabled/unsupported) - C1 State Auto Demotion............... : 0 (disabled/unsupported) - C3 State Undemotion.................. : 0 disabled/unsupported) - C1 State Undemotion.................. : 0 (disabled/unsupported) - Package C-State Auto Demotion........ : 0 (disabled/unsupported) - Package C-State Undemotion........... : 0 (disabled/unsupported) Only C6 state is enabled. When in 10.15.2: MSR_PMG_CST_CONFIG_CONTROL........(0xE2) : 0x1E000005 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 0 (not enabled) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 0 (disabled/unsupported) - Package C-State Undemotion........... : 0 (disabled/unsupported) also C6 state... The same in my case when xcpm_bootstrap © Pike R. Alpha is enabled. If you system can boot without it just disable this kernel patch Link to comment Share on other sites More sharing options...
yapan4 Posted February 5, 2020 Share Posted February 5, 2020 Hi, @nmano. Probably for 10.15.4beta1(Darwin 19.4.0) some kernel patches need updating again, because xcpm_pkg_scope_msrs (c) Pike R. Alpha By N.Mano Find 31D2E848 FDFFFF Replace 31D29090 909090 has stopped working Please help kernel10154b1.zip 1 Link to comment Share on other sites More sharing options...
nmano Posted February 6, 2020 Author Share Posted February 6, 2020 22 hours ago, yapan4 said: Hi, @nmano. Probably for 10.15.4beta1(Darwin 19.4.0) some kernel patches need updating again, because xcpm_pkg_scope_msrs (c) Pike R. Alpha By N.Mano Find 31D2E848 FDFFFF Replace 31D29090 909090 has stopped working Please help kernel10154b1.zip thanks I will check tomorrow, 2 Link to comment Share on other sites More sharing options...
lucke Posted February 7, 2020 Share Posted February 7, 2020 13 hours ago, nmano said: thanks I will check tomorrow, If you have some time..., would you take a look for 10.15.3...??!?? thanks! 1 Link to comment Share on other sites More sharing options...
nmano Posted February 8, 2020 Author Share Posted February 8, 2020 10.15.3 [19D76] xcpm_core_scope_msrs © Pike R. Alpha Modify 10.15.3 N.Mano Comment String <-> xcpm_core_scope_msrs © Pike R. Alpha Disabled Boolean <-> No Find Data<-> 31D2E857 D2FFFF MatchOS String <-> 10.15.x Replace Data<-> 31D29090 909090 xcpm_core_scope_msrs © Pike R. AlphaModify 10.15.4 N.Mano Comment String <-> _xcpm_SMT_scope_msrs_2 (c) Pike R. Alpha Disabled Boolean <-> No Find Data<-> 31D2E83E 9AFFFF MatchOS String <-> 10.15.x Replace Data<-> 31D29090 909090 xcpm_bootstrap_HASwell_E © Pike R. Alpha Comment String <-> xcpm_bootstrap_HASwell_E © Pike R. Alpha 10.13,10.14,10.15 Disabled Boolean <-> No Find Data<-> 8D43C43C 227722 MatchOS String <-> 10.15.x Replace Data<-> 8D43C13C 227722 xcpm_pkg_scope_msrs (c) Pike R. Alpha Modify 10.15.3 N.Mano Comment String <->xcpm_pkg_scope_msrs (c) Pike R. Alpha Modify 10.15.4 N.Mano Disabled Boolean <-> No Find Data<-> 31D2E8CE 88FFFF MatchOS String <-> 10.15.x Replace Data<-> 31D29090 909090 _xcpm_SMT_scope_msrs #1 (c) Pike R. Alpha Comment String <->_xcpm_SMT_scope_msrs #1 (c) Pike R. Alpha Disabled Boolean <-> No Find Data<-> BE060000 005DE908 000000 MatchOS String <-> 10.15.x Replace Data<-> BE060000 005DC390 909090 _xcpm_SMT_scope_msrs #2 (c) Pike R. Alpha Modify N.Mano 10.15.3 Comment String <->_xcpm_SMT_scope_msrs #2 (c) Pike R. Alpha Disabled Boolean <-> No Find Data<-> 31D2E83E 9AFFFF MatchOS String <-> 10.15.x Replace Data<-> 31D29090 909090 _xcpm_ performance_patch @PMheart/Pike R. Alpha/Modify 10.15.3/ 10.15.4 N.Mano Comment String <->__xcpm_ performance_patch @PMheart/Pike R. Alpha Disabled Boolean <-> No Find Data<-> 41C1E608 4963D689 D048C1EA 20 MatchOS String <-> 10.15.x Replace Data<-> 41C1E608 B800FF00 0031D290 90 C6/C7_If=E2-Enabled=0x7E000403 Modify BY N.Mano Comment String <->_C6/C7_If=E2-Enabled=0x7E000403 Pike R. Alpha Disabled Boolean <-> No Find Data<-> E2000000 4C000000 00000000 00000000 0F040000 00000000 0500001E MatchOS String <-> 10.12.x,10.13.x,10.14.x,10.15.x Replace Data<-> E2000000 4C000000 00000000 00000000 0F040000 00000000 0304007E BY N.Mano/Pike R. Alpha Sierra xcpm MSR Patch 4 / xcpm support Pike R. Alpha Comment String <->xcpm support Pike R. Alpha Disabled Boolean <-> No Find Data<-> 42060000 DC330000 00000000 00000000 1F000000 00000000 18000000 00000000 00000000 00000000 00000000 00000000 MatchOS String <->10.12.x,10.13.x,10.14.x,10.15.x Replace Data<-> 42060000 00000000 00000000 00000000 1F000000 00000000 18000000 00000000 00000000 00000000 00000000 00000000 0x82D390/MSR_PP0_POLICY 0x63a Modify N.Mano Comment String <->xcpm support Pike R. Alpha Disabled Boolean <-> No Find Data<-> 3A060000 DC330000 00000000 00000000 1F MatchOS String <->10.12.x,10.13.x,10.14.x,10.15.x Replace Data<-> 3A060000 00000000 00000000 00000000 00 Disable panic kext logging on 10.14.4+ Release kernel Disable panic kext logging on 10.14.4+ Release kernel Comment String <->Disable panic kext logging on @PMheart/Pike R. Alpha Disabled Boolean <-> No Find Data<-> 8A0284C0 7447 MatchOS String <->10.14.x,10.15.x Replace Data<-> 8A0284C0 EB47 10.15.4 Beta 1 xcpm_core_scope_msrs © Pike R. Alpha Modify 10.15.4 N.Mano Comment String <-> xcpm_core_scope_msrs © Pike R. Alpha Disabled Boolean <-> No Find Data<-> 31D2E857 D2FFFF MatchOS String <-> 10.15.x Replace Data<-> 31D29090 909090 xcpm_core_scope_msrs © Pike R. AlphaModify 10.15.4 N.Mano Comment String <-> _xcpm_SMT_scope_msrs_2 (c) Pike R. Alpha Disabled Boolean <-> No Find Data<-> 31D2E8E9 F9FEFF MatchOS String <-> 10.15.x Replace Data<-> 31D29090 909090 xcpm_bootstrap_HASwell_E © Pike R. Alpha Comment String <-> xcpm_bootstrap_HASwell_E © Pike R. Alpha 10.13,10.14,10.15 Disabled Boolean <-> No Find Data<-> 8D43C43C 227722 MatchOS String <-> 10.15.x Replace Data<-> 8D43C13C 227722 xcpm_pkg_scope_msrs (c) Pike R. Alpha Modify 10.15.4 N.Mano Comment String <->xcpm_pkg_scope_msrs (c) Pike R. Alpha Modify 10.15.4 N.Mano Disabled Boolean <-> No Find Data<-> 31D2E8CE 55E7FF MatchOS String <-> 10.15.x Replace Data<-> 31D29090 909090 _xcpm_SMT_scope_msrs #1 (c) Pike R. Alpha Comment String <->_xcpm_SMT_scope_msrs #1 (c) Pike R. Alpha Disabled Boolean <-> No Find Data<-> BE060000 005DE908 000000 MatchOS String <-> 10.15.x Replace Data<-> BE060000 005DC390 909090 _xcpm_SMT_scope_msrs #2 (c) Pike R. Alpha Modify N.Mano 10.15.4 Comment String <->_xcpm_SMT_scope_msrs #2 (c) Pike R. Alpha Disabled Boolean <-> No Find Data<-> 31D2E83E 61FFFF MatchOS String <-> 10.15.x Replace Data<-> 31D29090 909090 _xcpm_ performance_patch @PMheart/Pike R. Alpha/Modify 10.15.4 N.Mano Comment String <->__xcpm_ performance_patch @PMheart/Pike R. Alpha Disabled Boolean <-> No Find Data<-> 41C1E608 4963D689 D048C1EA 20 MatchOS String <-> 10.15.x Replace Data<-> 41C1E608 B800FF00 0031D290 90 C6/C7_If=E2-Enabled=0x7E000403 Modify BY N.Mano Comment String <->_C6/C7_If=E2-Enabled=0x7E000403 Pike R. Alpha Disabled Boolean <-> No Find Data<-> E2000000 4C000000 00000000 00000000 0F040000 00000000 0500001E MatchOS String <-> 10.12.x,10.13.x,10.14.x,10.15.x Replace Data<-> E2000000 4C000000 00000000 00000000 0F040000 00000000 0304007E BY N.Mano/Pike R. Alpha Sierra xcpm MSR Patch 4 / xcpm support Pike R. Alpha Comment String <->xcpm support Pike R. Alpha Disabled Boolean <-> No Find Data<-> 42060000 DC330000 00000000 00000000 1F000000 00000000 18000000 00000000 00000000 00000000 00000000 00000000 MatchOS String <->10.12.x,10.13.x,10.14.x,10.15.x Replace Data<-> 42060000 00000000 00000000 00000000 1F000000 00000000 18000000 00000000 00000000 00000000 00000000 00000000 0x82D390/MSR_PP0_POLICY 0x63a Modify N.Mano Comment String <->xcpm support Pike R. Alpha Disabled Boolean <-> No Find Data<-> 3A060000 DC330000 00000000 00000000 1F MatchOS String <->10.12.x,10.13.x,10.14.x,10.15.x Replace Data<->3A060000 00000000 00000000 00000000 00 Disable panic kext logging on 10.14.4+ Release kernel Disable panic kext logging on 10.14.4+ Release kernel Comment String <->Disable panic kext logging on @PMheart/Pike R. Alpha Disabled Boolean <-> No Find Data<-> 8A0284C0 7447 MatchOS String <->10.14.x,10.15.x Replace Data<-> 8A0284C0 EB47 2 1 Link to comment Share on other sites More sharing options...
