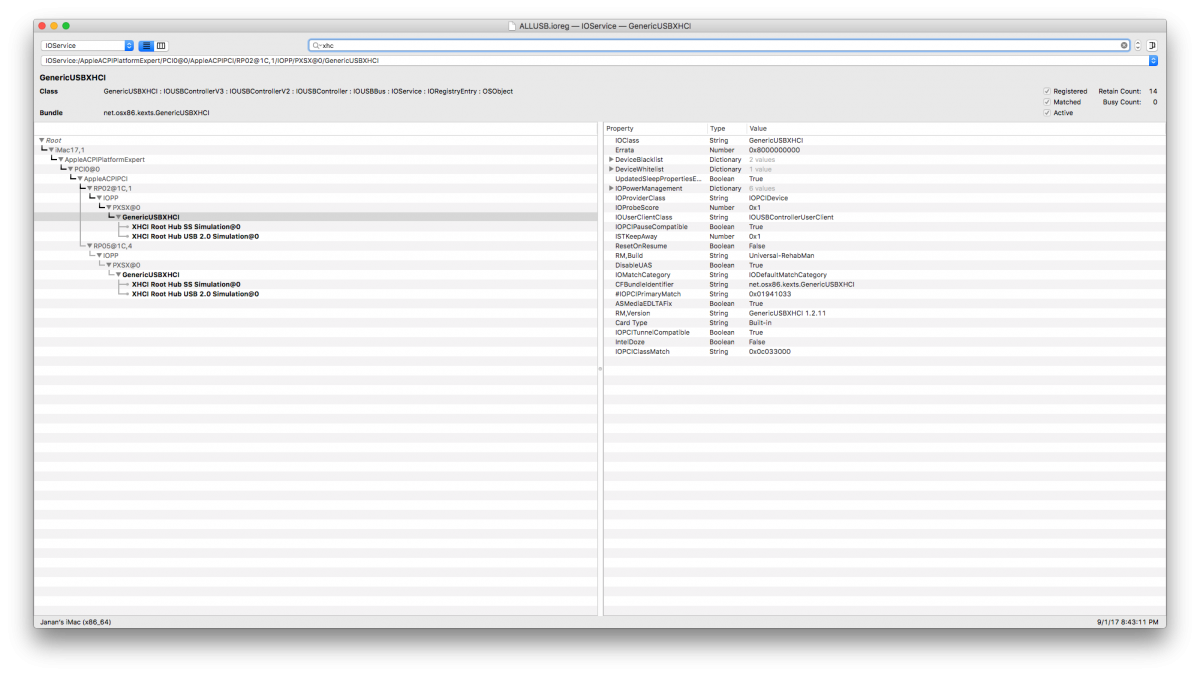

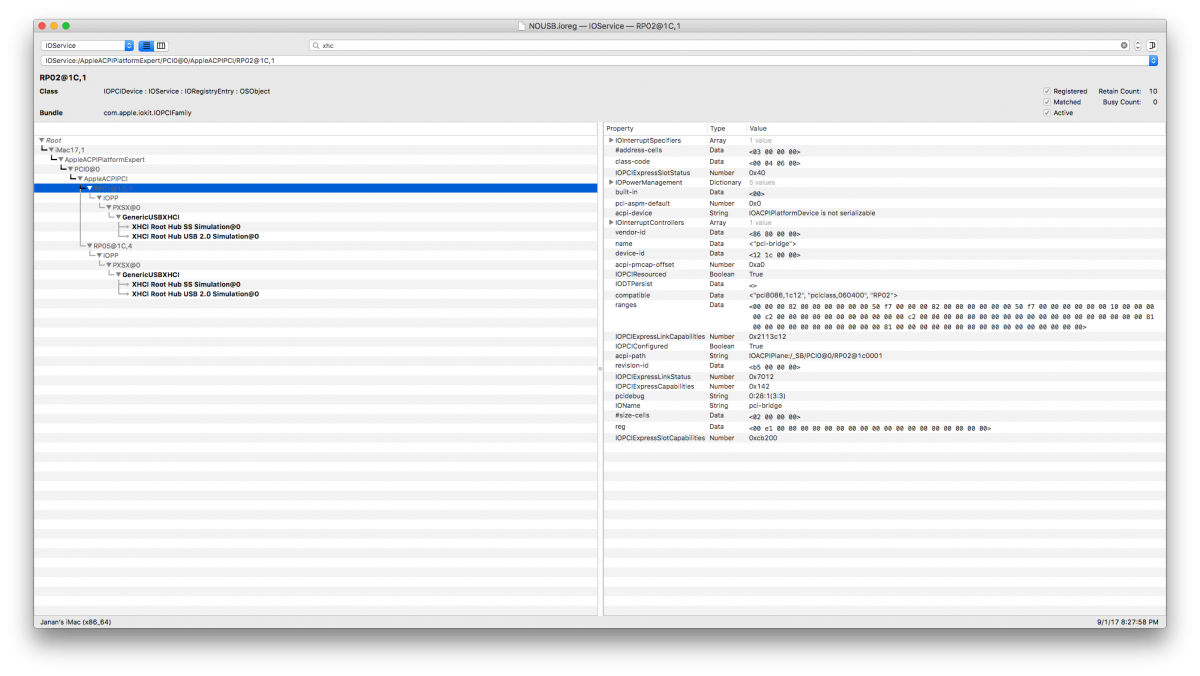

Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 unfortunately the ALLUSB file is unusable as you can see it doesn't show any USB 3.0 devices detected. Can you do something else. I need you to remove GenericUSBXHCI kext and add the USBInjectAll.kext and save those two IOReg files and send the results back to me. Update: Your ASmedia USB 3.0 port's ID is not present in the custom-SSDT-UIAC template, we have two options. Option 1: Try using the following kext that I attached. Option 2: I change the device ID in the template with yours and hope for it to work. Try option 1 and see if it makes any difference and let me know. Use the mxHC without using the genericUSBXHCI and USBInjectAll. add these ACPI fixes to your config.plist using clover configurator. change EHC1 to EH01 change EHC2 to EH02 change XHC1 to XHC mXHCD.kext.zip Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488331 Share on other sites More sharing options...
Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 should I remove GenericUSBXHCI.kext and USBInjectAll.kext before adding mXHCD.kext Yes remove those and test only with mXHCD with the ACPI patches Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488342 Share on other sites More sharing options...
newsman1 Posted September 1, 2017 Author Share Posted September 1, 2017 ok I did remove both kext and I add it the new one, and I also add the change EHC1 to EH01 change EHC2 to EH02 but I could not find the change XHC1 to XHC on the ACPI fixes config.plist.zip Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488352 Share on other sites More sharing options...
Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 Comment: change XHC1 to XHC Find: 58484331 Replace: 584843 Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488355 Share on other sites More sharing options...

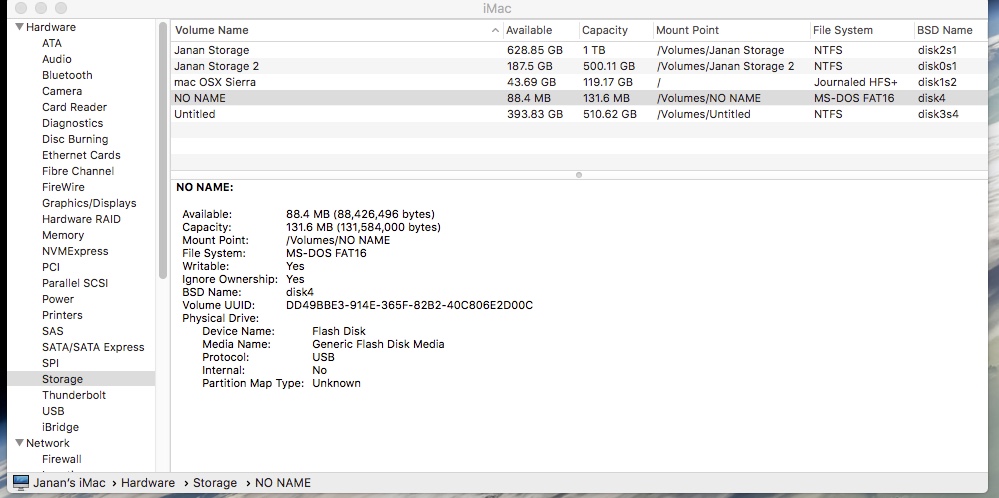

newsman1 Posted September 1, 2017 Author Share Posted September 1, 2017 ok I did option 1 but every thing still the same all ports are working (2.0 & 3.0) but on the system info it does not recognize the 3.0 ports as USB but it does recognize it as storage but the ports are working Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488363 Share on other sites More sharing options...
Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 Do they operate at usb 3.0 speed? Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488366 Share on other sites More sharing options...
newsman1 Posted September 1, 2017 Author Share Posted September 1, 2017 here is a new reading for you to check if you want too update: I can not post the ALLUSB reading because its bigger then 10 mb and I'm not allowed more then that NEWNOUSB.ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488369 Share on other sites More sharing options...
Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 I will check it as soon as I get back to my desk Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488373 Share on other sites More sharing options...
newsman1 Posted September 1, 2017 Author Share Posted September 1, 2017 I have the IOJones reading if that will work let me know please thanks Do they operate at usb 3.0 speed?Sent from my iPhone using Tapatalk no it does not Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488399 Share on other sites More sharing options...
Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 I have the IOJones reading if that will work let me know please thanks no it does not send me your iojones file as well. this file is the same. Also send me the latest EFI folder that you are using. I want to make sure everything is in place. Remove Apple folders and themes. Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488417 Share on other sites More sharing options...
newsman1 Posted September 1, 2017 Author Share Posted September 1, 2017 here is both files EFI.zip ALLUSB.iojones.zip Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488459 Share on other sites More sharing options...
Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 I can still see that the GenericUSBXHCI is loading. and there's another patch in the config.plist that is not for macOS Sierra. it's for high Sierra. Use this config and before booting your pc with the new config run a kext cache cleanup. config.plist.zip Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488463 Share on other sites More sharing options...
newsman1 Posted September 1, 2017 Author Share Posted September 1, 2017 yes I'm sorry man I did not delete the GenericUSBXHCI properly the first time, but I did now and none of the 3.0 ports are working only the 2.0 are working do you want me to do a new reading of the IOReg files and send it to you Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488480 Share on other sites More sharing options...
Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 Well that's ok please do a kext cache clean up first and then replace your config with the last one I sent you and after that send me your ioreg/iojones file. Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488487 Share on other sites More sharing options...
newsman1 Posted September 1, 2017 Author Share Posted September 1, 2017 ok all done and here is the files, NOUSB reading has 1 USB plugged (mouse & keyboard) ALLUSB.ioreg.zip NOUSB.ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488507 Share on other sites More sharing options...
Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 Ok that's good. Is there any USB 3.0 device recognized and if so can you do a speed test? Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488528 Share on other sites More sharing options...

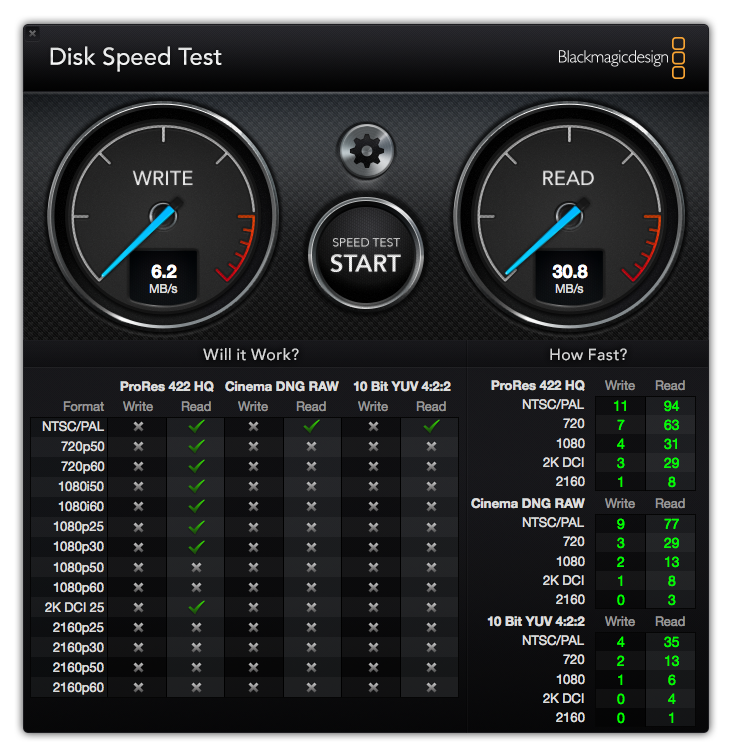

newsman1 Posted September 1, 2017 Author Share Posted September 1, 2017 I have 4 USB 3.0 devices plugged in to the USB 3.0 ports and all are not working I did I speed test on the 2.0 ports with a 2.0 USB device Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488555 Share on other sites More sharing options...
Cyberdevs Posted September 1, 2017 Share Posted September 1, 2017 I have 4 USB 3.0 devices plugged in to the USB 3.0 ports and all are not working I did I speed test on the 2.0 ports with a 2.0 USB device I'm sorry man. The Asmedia controller is more challenging than I thought. I'm not sure if I'll be able to help you with this. There's someone that has a somewhat similar mobo like yours (Asus p8z77-v pro) with Asmedia USB controller. I will ask him how he activated all his USB 3.0 ports and I will let you know. This is his EFI folder may be you can test it and see if makes a difference. EFI 2.zip Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488559 Share on other sites More sharing options...

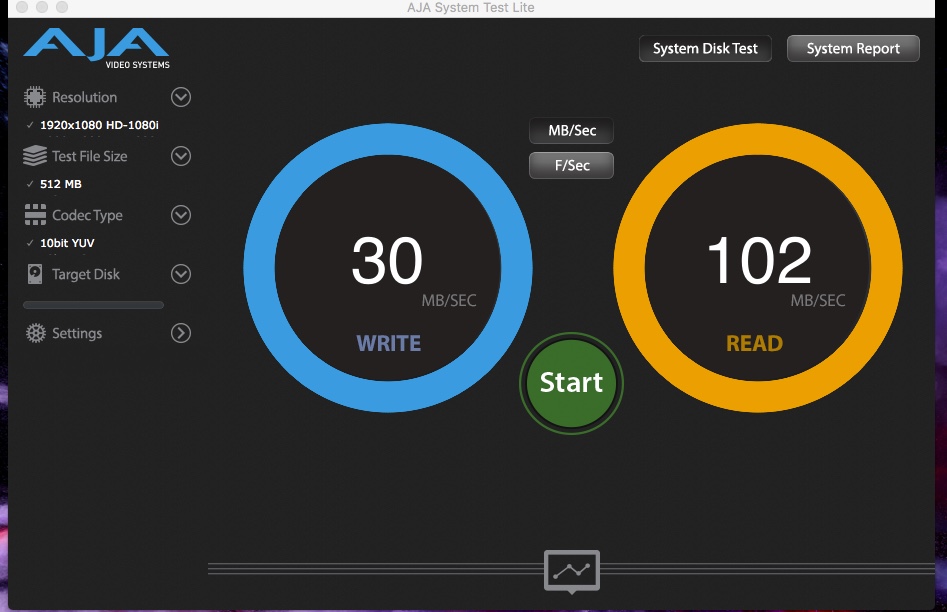

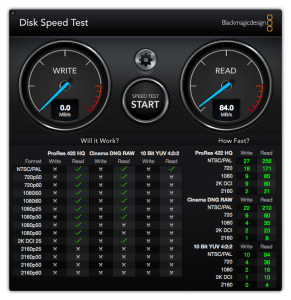

newsman1 Posted September 1, 2017 Author Share Posted September 1, 2017 I did try the EFI folder but that was big no go, may be I did not know how to customize it for my board properly because I could not get back to my Sierra installation and I had to use Sierra install USB to get back so what I did right now is I put back every thing to my Owen EFI folder and my Owen config.plist and I also put back GenericUSBXHCI.kext again and the 3.0 USB port are working but they are recognized as storage device and I did a speed test this what I got Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2488598 Share on other sites More sharing options...
Cyberdevs Posted September 3, 2017 Share Posted September 3, 2017 Ok man, I asked my friend about his ASmedia controller and he said that he disabled it and he is just using Intel USB controller on his board. There are several topics in here that discuss ASmedia USB 3.0 controller you can check them out and see if you can find a way to use on your board. Cheers. Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2489107 Share on other sites More sharing options...
newsman1 Posted September 3, 2017 Author Share Posted September 3, 2017 yes I've been reading about it too and it's a pain. I have one small problem left and that is the audio it's working fine when I'm running iTunes but and try to play .mkv file or even 1080p videos on youtube the audio starts to cutoff and it give me the breaking sound, is that part of the hackintosh or there is somthing could be done to fix this problem? Thanks for all help on trying to get my ASmedia controller to work though 1 Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2489390 Share on other sites More sharing options...
Cyberdevs Posted September 3, 2017 Share Posted September 3, 2017 The audio should be working without any issues. What you need for Audio is AppleALC.kext, Lilu.kext (just make sure you have the latest versions) proper Layout-ID which I believe is 1. You can try removing the ResetHDA or adding the AFGLowPowerState and see if that resolves the issue. Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2489434 Share on other sites More sharing options...
newsman1 Posted September 3, 2017 Author Share Posted September 3, 2017 I did update the AppleALC.kext & Lilu.kext and a I played a .mkv video and it seems to work fine now, but I will keep testing it for a few days and I will report back Thanks again :thumbsup_anim: Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2489473 Share on other sites More sharing options...
Cyberdevs Posted September 3, 2017 Share Posted September 3, 2017 I did update the AppleALC.kext & Lilu.kext and a I played a .mkv video and it seems to work fine now, but I will keep testing it for a few days and I will report back Thanks again :thumbsup_anim: Great You're welcome Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2489474 Share on other sites More sharing options...
newsman1 Posted September 10, 2017 Author Share Posted September 10, 2017 Hi cyberdevs, just a question I did purchased a PCIe USB 3.0 card http://www.sonnettech.com/product/allegrousb3pcie4port.html so I can get USB 3.0 on my machine, now do I need to remove the GenericUSBXHCI.kext before installing the new card or should I just keep it Thanks, Link to comment https://www.insanelymac.com/forum/topic/326150-asus-p8z68v-pro-rev10-probelm-installing-sierra/page/4/#findComment-2492386 Share on other sites More sharing options...
