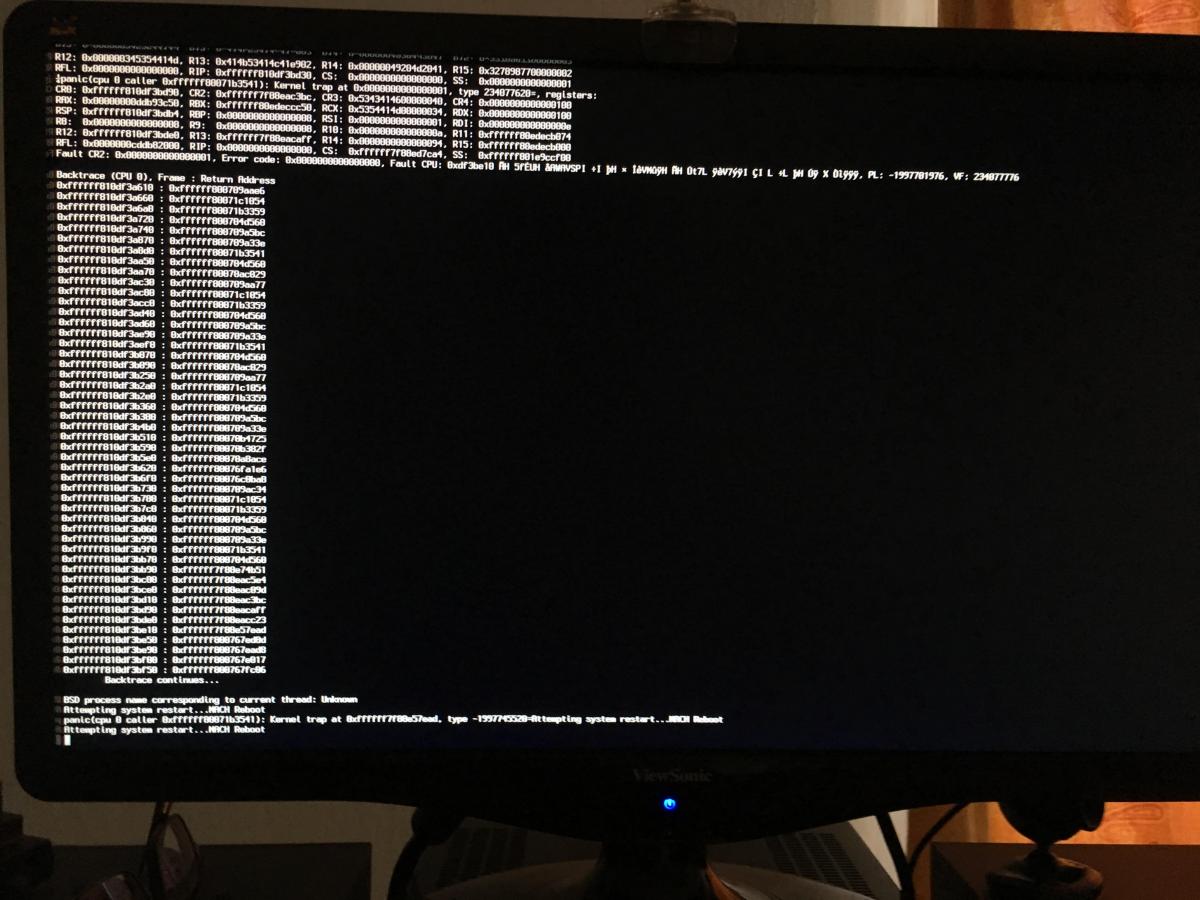

talmazi Posted June 8, 2017 Share Posted June 8, 2017 (edited) Hello, I'm having a problem and I can not solve the problem I've already researched in several forums and nothing I think is just the GA-Z77X-UD5H card models I think the problem may be related to AppleACPIPlatform.kext. Please help me. Edited June 8, 2017 by talmazi Edited topic title 1 Link to comment Share on other sites More sharing options...
Gigamaxx Posted June 8, 2017 Share Posted June 8, 2017 Hello, I'm having a problem and I can not solve the problem I've already researched in several forums and nothing I think is just the GA-Z77X-UD5H card models I think the problem may be related to AppleACPIPlatform.kext. Please help me. Try adding FakeSMCKext to System/Library/Extensions folder and or Clover Kext folder 10.12 or other. FakeSMC.kext.zip Link to comment Share on other sites More sharing options...
talmazi Posted June 8, 2017 Author Share Posted June 8, 2017 Hello thank you for the attention plus the problem still persists as I said I think the problem may be related to AppleACPIPlatform.kext. There will be my attached EFI file. EFI.zip Link to comment Share on other sites More sharing options...

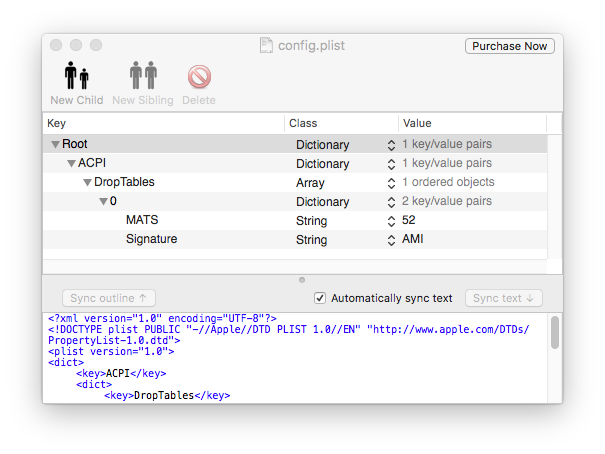

MrArmmani Posted June 8, 2017 Share Posted June 8, 2017 Hello, try this. 1. Goto Clover Options 2. Then ACPI Patching 3. Then Tables Dropping 3. Then Put a checkmark (select) Drop "MATS" AMI " 52 It Should boot up and also like Gigamaxx said, make sure you put FakeSMC in the clover / kexts / other folder. 1 Link to comment Share on other sites More sharing options...
gengik84 Posted June 8, 2017 Share Posted June 8, 2017 talmazi Topic title = "help help help help help..." This is incorrect Please remeber from rules Your topic does not deserve any more attention than others seeking help hence topic titles must reflect their content, and topic titles containing things like: 'please help' 'look here' 'cash reward' 'urgent' or other inaccurate descriptions will be removed. This includes all-caps titles. Link to comment Share on other sites More sharing options...
talmazi Posted June 8, 2017 Author Share Posted June 8, 2017 Please you may be more specific I can not. Link to comment Share on other sites More sharing options...
gengik84 Posted June 8, 2017 Share Posted June 8, 2017 Please you may be more specific I can not. Sure..you can Edit first post, Use full Editor ... after you can edit the title Link to comment Share on other sites More sharing options...
talmazi Posted June 8, 2017 Author Share Posted June 8, 2017 Hello ? Link to comment Share on other sites More sharing options...
TheRacerMaster Posted June 8, 2017 Share Posted June 8, 2017 You just need: <key>DropTables</key> <array> <dict> <key>Signature</key> <string>MATS</string> </dict> </array> You could find this on the High Sierra thread. I've booted 10.13 on my UD5H. Everything seems to still work. 2 Link to comment Share on other sites More sharing options...
talmazi Posted June 8, 2017 Author Share Posted June 8, 2017 Ok I got the boot with the Clover v4084 thanks a lot. I will share with some colleagues who are also having the same problem. Link to comment Share on other sites More sharing options...
Allan Posted June 9, 2017 Share Posted June 9, 2017 Hello ? @gengik84 was talking about your Topic Title, not your config.plist Link to comment Share on other sites More sharing options...
ci2own Posted September 22, 2017 Share Posted September 22, 2017 Hello, try this. 1. Goto Clover Options 2. Then ACPI Patching 3. Then Tables Dropping 3. Then Put a checkmark (select) Drop "MATS" AMI " 52 It Should boot up and also like Gigamaxx said, make sure you put FakeSMC in the clover / kexts / other folder. Thank you very much! This solved my problem. Link to comment Share on other sites More sharing options...
capy10 Posted December 13, 2017 Share Posted December 13, 2017 z77z-ud5-th High Sierra boot issue I seem to be having the same issue. I created the USB, I tried updating from the Sierra 10,12,6 with no success. The apple symbol just looks at me I do have the GTX 970 Card installed. originally I did have high Sierra installed 10.13.1, but when I updated to 10.13.2 I couldn't boot with my GC installed on ly the internal graphics so I went and installed Sierra so I can get some work done, however all my backups are in high Sierra so I can get my apps to restore until I get high Sierra back installed. now I can get high Sierra to install with or without the TGX 970.. WTF ... can someone please help me? Thanks guys Link to comment Share on other sites More sharing options...
capy10 Posted December 14, 2017 Share Posted December 14, 2017 You just need: <key>DropTables</key> <array> <dict> <key>Signature</key> <string>MATS</string> </dict> </array> You could find this on the High Sierra thread. I've booted 10.13 on my UD5H. Everything seems to still work. I tried adding that to my config and it didn’t work, still have to use options in clover to disable before boot.... could you post a larger example of your config please Thank u Link to comment Share on other sites More sharing options...
MaLd0n Posted December 14, 2017 Share Posted December 14, 2017 I tried adding that to my config and it didn’t work, still have to use options in clover to disable before boot.... could you post a larger example of your config please Thank u try CLOVER.zip update ur Clover https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.4k_r4334.zip/download 1 Link to comment Share on other sites More sharing options...
virginiapatriot Posted December 21, 2017 Share Posted December 21, 2017 I have lots of problems with High Sierra. Dropping MATS did get it to install, but I can't get my GTX 960 to work with the web driver and I've got no audio at all, except USB. gIOScreenLockState 3 error just loops and the video driver will not start Link to comment Share on other sites More sharing options...
mytablet Posted February 5, 2018 Share Posted February 5, 2018 try CLOVER.zip update ur Clover https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.4k_r4334.zip/download @ MaLd0n Thank you VERY MUCH!!! Worked really well with APFS on SSD on ZA77x-UD5h rev 1.1 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 5, 2018 Share Posted February 5, 2018 @ MaLd0n Thank you VERY MUCH!!! Worked really well with APFS on SSD on ZA77x-UD5h rev 1.1 Fine Tune Check here http://www.insanelymac.com/forum/topic/323052-sierra-on-intel-5-6-7-8-9-and-10-chipset-series Link to comment Share on other sites More sharing options...
