MaLd0n

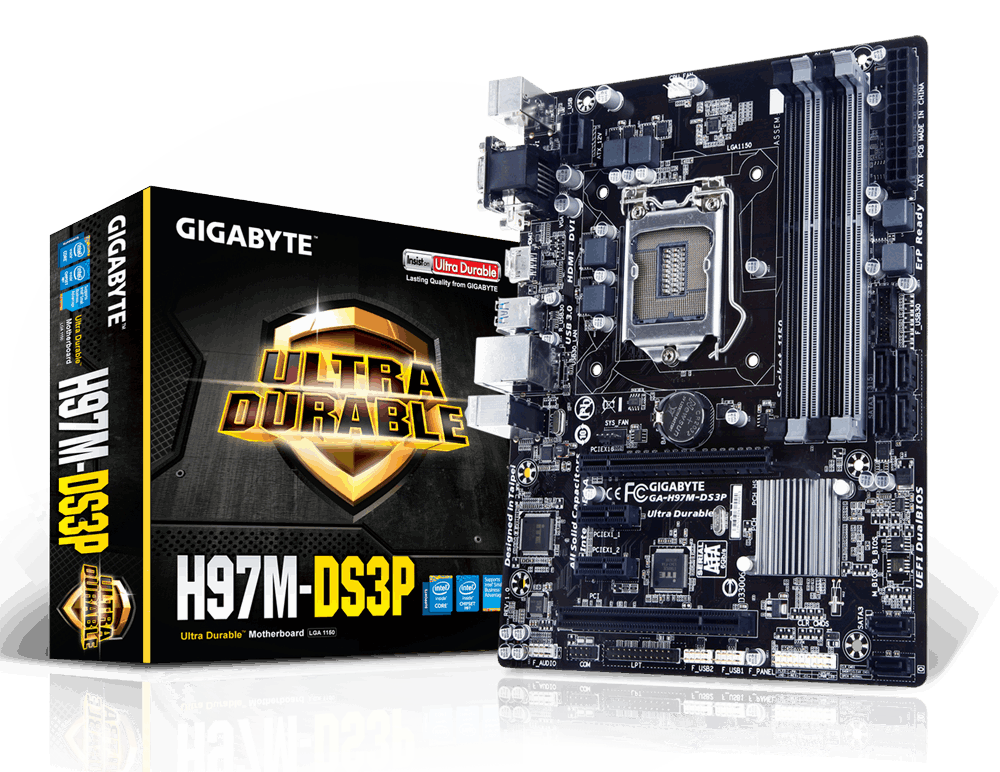

[Guide] Sierra / High Sierra on GA H97M-DS3P / DSDT

9 posts in this topic

Recommended Posts

Now have a Olarila app, just download app and clover folder for your Chipset!


Install MacOS with Olarila Image, Step by Step, Install and Post Install



https://olarila.com/forum/viewtopic.php?f=50&t=8685



First...
If you need DSDT edits...
-Post your full Clover folder with original tables in Origin folder(Extract with F4 in Clover boot screen)
-Run it, post files generated in your desktop
Installation

--Create a bootable copy of macOS Sierra
Check out the link

--Create a bootable copy of macOS HighSierra
Check out the link

--Install Clover in USB stick

--Replace with my Clover folder

--Install Sierra/High Sierra and boot into system!

Post Installation

--Install Clover in HDD/SSD and replace with my folder

--Reboot and activate video!

-Nvidia WebDriver Sierra
-Nvidia WebDriver High Sierra
-Cuda

-DSDT
My DSDT

-Patches
-FIX ERRORS AND WARNINGS
-HPET
-SATA
-DMAC
-SLPB
-DARWIN
-LPC
-XHCI
-HDEF
-RTC
-IRQs
-SBUS
-MIKEY
-BUS1
-MCHC
-ALS0
-SHUTDOWN
-LAN
-EC
-PNLF
-HDMI







-FakeSMC

-Audio
-LAN

-Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!

We're all here to have fun and learn from each other!

ENJOY!
