34 minutes ago, gengik84 said:

Allega ioreg e la efi

4k screen

i7 6700 hq

hd 530 + 960m

1tb hhd + 256 gb sssd

elan1000

-------------------------------------

i test more about fix hd530 - fix but i think doesn't right because in setting we can see SKL CRB + 1.5GB vram
for fix i used this :

-------------------------------------------------------------------------
provo di più sulla correzione hd530 - risolvo ma penso non sia giusto perché nell'impostazione possiamo vedere SKL CRB + 1.5GB vram per la correzione ho usato questo:


https://github.com/Floris497/m…reDisplay-patcher.command

-----------------------------------

i fixed keyboard backlight with this code

# Patch by EMlyDinEsH (www.osxlatitude.com)# Enables 16 keyboard backlight levels control to work using my kexts AsusNBFnKeys and Smart Touchpad
# This patch meant for the notebooks up to Ivy Bridge.
# Insert backlight auto off control sync field for Smart Touchpad and Asus Fn Keys driver
into device label ATKD code_regex Name\s\(BOFF,\sZero\) remove_matched;
into device label ATKD insert begin Name (BOFF, Zero) end;
# Insert method SKBL for setting keyboard backlight level
into method label SKBL parent_label ATKD remove_entry;
into Device label ATKD insert begin
Method (SKBL, 1, NotSerialized)\n
            {\n
                If (Or (LEqual (Arg0, 0xED), LEqual (Arg0, 0xFD)))\n
                {\n
                    If (And (LEqual (Arg0, 0xED), LEqual (BOFF, 0xEA)))\n
                    {\n
                        Store (Zero, Local0)\n
                        Store (Arg0, BOFF)\n
                    }\n
                    Else\n
                    {\n
                        If (And (LEqual (Arg0, 0xFD), LEqual (BOFF, 0xFA)))\n
                        {\n
                            Store (Zero, Local0)\n
                            Store (Arg0, BOFF)\n
                        }\n
                        Else\n
                        {\n
                            Return (BOFF)\n
                        }\n
                    }\n
                }\n
                Else\n
                {\n
                    If (Or (LEqual (Arg0, 0xEA), LEqual (Arg0, 0xFA)))\n
                    {\n
                        Store (KBLV, Local0)\n
                        Store (Arg0, BOFF)\n
                    }\n
                    Else\n
                    {\n
                        Store (Arg0, Local0)\n
                        Store (Arg0, KBLV)\n
                    }\n
                }\n
                Store (DerefOf (Index (KBPW, Local0)), Local1)\n
                ^^PCI0.LPCB.EC0.WRAM (0x04B1, Local1)\n
                Return (Local0)\n
            }\n
end;
# Insert keyboard backlight 16 levels buffer
into device label ATKD code_regex Name\s\(KBPW,\sBuffer\s\(0x10\)\s*\n\s*\{\s*\/\*\s0000\s\*\/\s*0x00,\s0x11,\s0x22,\s0x33,\s0x44,\s0x55,\s0x66,\s0x77,\s*\/\*\s0008\s\*\/\s*\s0x88,\s0x99,\s0xAA,\s0xBB,\s0xCC,\s0xDD,\s0xEE,\s0xFF\s*\}\) remove_matched;
into device label ATKD insert begin
Name (KBPW, Buffer (0x10)\n
   {\n
      0x00, 0x11, 0x22, 0x33, 0x44, 0x55, 0x66, 0x77, 0x88, 0x99, 0xAA, 0xBB, 0xCC, 0xDD, 0xEE, 0xFF\n
   })
end;
#into device label ATKD code_regex Name\s\(PWKB,\sBuffer\s\(0x04\)\s*\n\s*\{\s*0x00,\s0x55,\s0xAA,\s0xFF\s*\}\) remove_matched
#into device label ATKD insert begin
#Name (PWKB, Buffer (0x10)\n
#   {\n
#      0x00, 0x11, 0x22, 0x33, 0x44, 0x55, 0x66, 0x77, 0x88, 0x99, 0xAA, 0xBB, 0xCC, 0xDD, 0xEE, 0xFF\n
#   })
#end;
# Insert method GKBL for reading keyboard backlight level
into method label GKBL parent_label ATKD remove_entry;
into Device label ATKD insert begin
Method (GKBL, 1, NotSerialized)\n
            {\n
               If (LEqual (Arg0, 0xFF))\n
                {\n
                    Return (BOFF)\n
                }\n
                Return (KBLV)\n
            }\n
end;

----------------------------------

for battery number i used ASUS55SL patch

per il numero di batteria ho usato la patch ASUS55SL

--------------------------------------------

now problem for fixing : ora problema per il fissaggio:


touchpad model elan1000

ad pci list to setting

CLOVER.zip

and my  ioreg file https://drive.google.com/file/d/1mUxuWjNdkTUIsYYHdr3p_W6PU0WiDjHL/view?usp=sharing

Edited by darkbluecode
Link to comment
Share on other sites

36 minutes ago, gengik84 said:

@darkbluecode

Sostituisci dsdt e config

riavvia

posta ioreg

darkbluecode.zip

i do this but rebooted and the system doesn't boot and I changed the config file to my old config and booted.

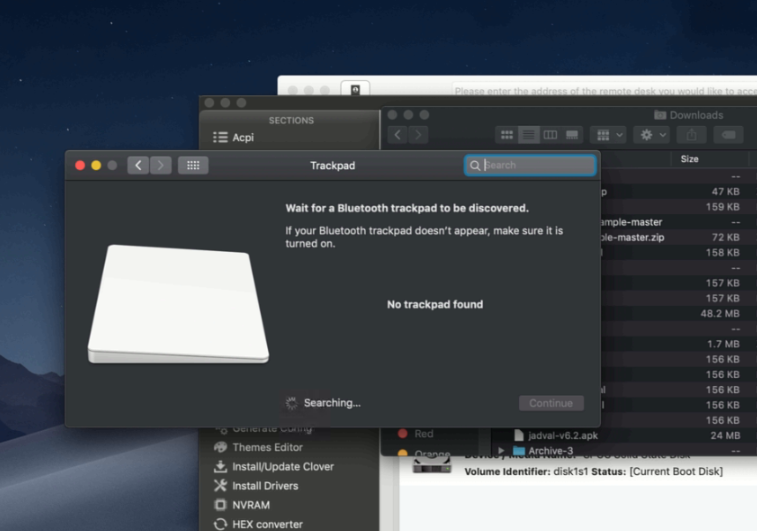

after that touchpad work but in system touchpad doesn't work and the system like to search it !!!

lo faccio, ma riavviato e il sistema non si avvia e ho cambiato il file di configurazione nella mia vecchia configurazione e avviato.

dopo che il touchpad funziona ma nel touchpad di sistema non funziona e il sistema piace cercarlo !!!

shahram’s MacBook Pro.zip

Sketch (4).png

Link to comment
Share on other sites

6 minutes ago, gengik84 said:

Strano

ioreg è ok.. il dsdt è ok riguardo al trackpad

Lascia solo VodooI2C+VoodooI2CElan+VoodooI2CHID

rimuovi:

VoodooI2CFTE.kext

VoodooI2CUPDDEngine.kext

MR. I installed i2c ketexs in s/l/e and most I uninstall?

SIG. Ho installato i ketx i2c in s / l / e e molti di quelli che ho disinstallato?
