[Guide] Sierra / High Sierra on Gigabyte GA H110M-S2 / DSDT

146 posts in this topic

Recommended Posts



First...
If you need DSDT edits for SkyLake, KabyLake or CoffeeLake...
-Post your full Clover folder with original tables in Origin folder(Extract with F4 in Clover boot screen)
-Post Ioreg, extract with Ioreg Explorer
-Run it, post files generated in your desktop
Installation

--Create a bootable copy of macOS Sierra
Check out the link

--Create a bootable copy of macOS HighSierra
Check out the link

--Paste my EFI folder into EFI partition


--Install Sierra/High Sierra and boot into system!

Post Installation

--Paste my EFI folder into EFI partition


--Reboot and activate video!

-Nvidia WebDriver Sierra
-Nvidia WebDriver High Sierra
-Cuda

--DSDT
My DSDT with Skylake patches

Patches
-FIX ERRORS AND WARNINGS
-HPET
-SATA
-DMAC
-SLPB
-DARWIN
-LPC
-XHCI
-PLUGIN TYPE
-HDAS to HDEF
-HDEF
-RTC
-IRQs
-SBUS
-BUS1
-MCHC
-ALS0
-SHUTDOWN
-LAN
-USBX
-PMCR
-EC
-PNLF
-HDMI

-Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!

We're all here to have fun and learn from each other!

ENJOY!



Share this post


Link to post
Share on other sites

Ofc



The mobo is low price but amazin'.



Sleep, etc etc. All is fine.



DSDT + SSDT pike + Kexts inside folder ;)

Thanks, appreciated your job and fast answer.

Share this post


Link to post
Share on other sites

hi everybody.

I've some question about this topic.



1) how's possible to use this MB to make an Hackintosh... without HDMI and DVI??  :surprised:



2) more important for me: I had a similar MB (h110m-S2H with hdmi and dvi) and installed my Hack without problems. I bought a new one (and i bought the same RAM, processor, ssd, etc...) for a friend but it has F20 BIOS instead F4 of the previous.  It does not wont boot!!! No way.  :(



What can I do? SSDT way? or Clover? (Gigabyte says that I can't downgrade BIOS to F4...)



Thanks for your help.



m.

Share this post


Link to post
Share on other sites

boot with usb stick and send me files

-Post ur full Clover folder with original tables, press F4 in Clover Boot Screen, files generate in Clover/Acpi/origin
-Post Ioreg, extract with Ioreg Explorer
-Run it, post files generate in ur desktop

up here if u have problem

Share this post


Link to post
Share on other sites

My Config.

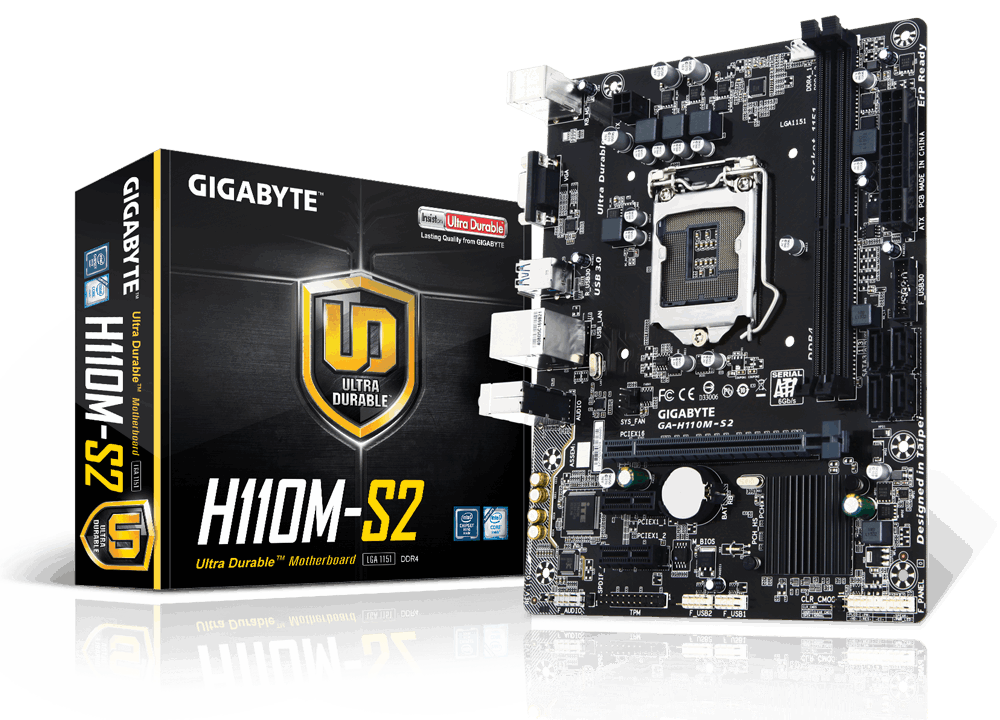

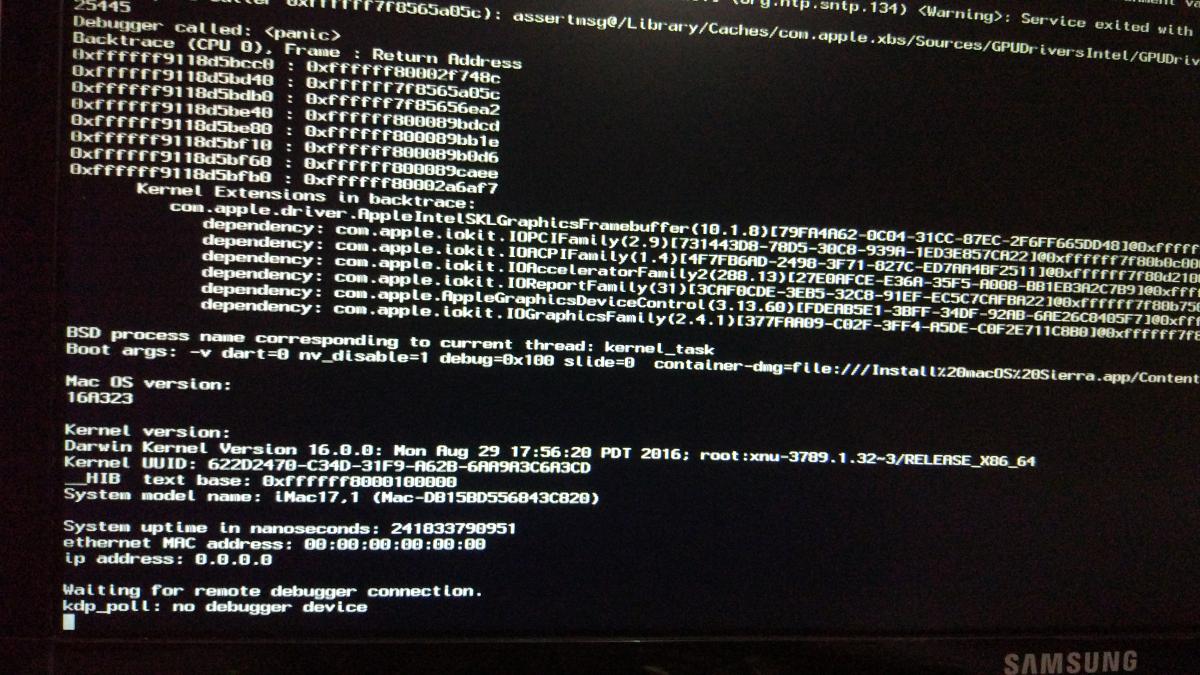

    Gigabyte GA-H110M-S2

    I am using msi nvidia geforce gtx 750 ti

   Bios F20



Sir,



    I installed Mac Sierra 10.12 and I installed WebDriver-367.15.10.05f01.pkg



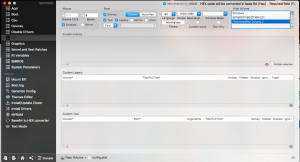

My config.plist



nada_drv=1. dart=0 inject kexts=Yes

inject System Id=Yes

NvidiaWeb=Yes

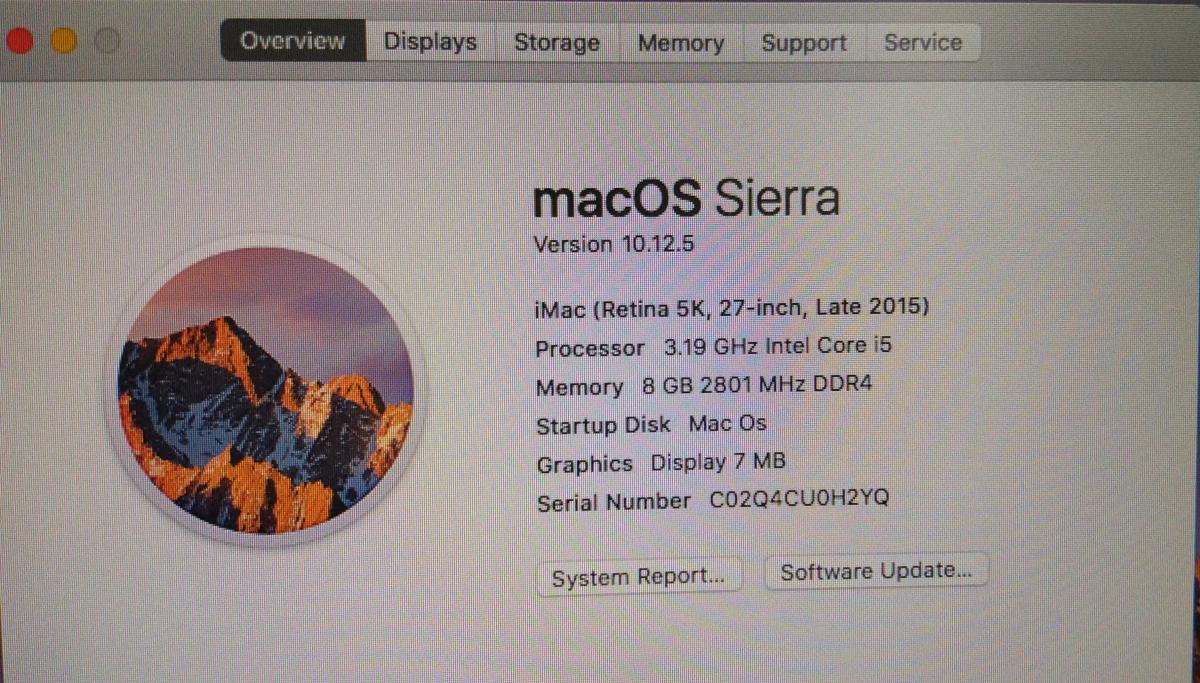

But Still booting Graphics Disabled showing Graphics Display 7 MB



Sir Please Help me

Share this post


Link to post
Share on other sites

My Config.



    Gigabyte GA-H110M-S2

    I am using msi nvidia geforce gtx 750 ti

    Intel Core i5 -6500 CPU

   Bios F20



Sir,



    I installed Mac Sierra 10.12.5 and I installed WebDriver-378.05.05.15f01.pkg





Graphics Card is Detected but Memory is showing 0 MB and installed sound driver  ALC887/888b but no sound output device is detecting



Sir Please Help me, I am attaching my clover folder with generated table by using F4 Key

CLOVER.zip

Share this post


Link to post
Share on other sites
