innerd Posted May 13, 2024 Share Posted May 13, 2024 Hi, so I'll post here from now on. I have a um3402ya, I have voodooHDA installed as per guide "how to make VoodooHDA working..." but I have no audio output from speakers, actually I'm using as replace for now a bluetooth headphones and everything works as intended. What can I do? Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820009 Share on other sites More sharing options...
Slice Posted May 13, 2024 Author Share Posted May 13, 2024 I think you want to get a sound from audio jack on motherboard? Other channels like bluetooth, USB or HDMI are not at VoodooHDA control. If yes then prepare dump by getdump utility. Also exclude AudioDxe.efi if you have it. Or disable startup sound made any way. Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820012 Share on other sites More sharing options...
innerd Posted May 13, 2024 Share Posted May 13, 2024 No, actually its a laptop, I was the one in the AppleALC topic. dump.txt Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820013 Share on other sites More sharing options...

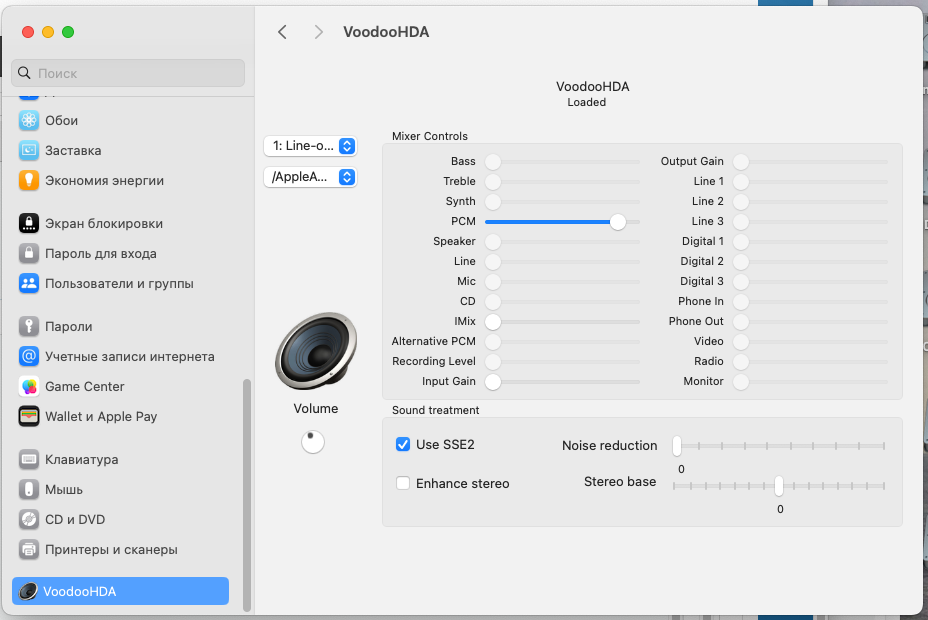

Slice Posted May 13, 2024 Author Share Posted May 13, 2024 1 hour ago, innerd said: No, actually its a laptop, I was the one in the AppleALC topic. dump.txt 22.67 kB · 0 downloads According to the dump you should have an output to internal speaker nid: 23 Name: pin: Speaker (Analog) Widget cap: 0x0040058d PWR UNSOL AMP_OVR OUT_AMP STEREO Association: 0 (0x00000001) Pin cap: 0x0001001c PDC HP OUT EAPD Pin config: 0x90170110 Pin control: 0x00000040 OUT EAPD: 0x00000002 Output amp: 0x80000000 mute=1 step=0 size=0 offset=0 Output val: [0x00 0x00] connections: 3 enabled 1 | + <- nid=2 [audio output] (selected) + [DISABLED] <- nid=3 [audio output] + [DISABLED] <- nid=6 [audio output] [DISABLED] Just output val = 0 Do you have prefPane? There are PCM and Volume controls I can also propose to patch config for Headphone output to be 0x0221101F This way it will use same DAC as internal Speaker and they will be switchable by jack. <key>NodesToPatch</key> <array> <dict> <key>Codec</key> <integer>0</integer> <key>Config</key> <string>0x0221101f</string> <key>Node</key> <integer>33</integer> <key>Type</key> <integer>4</integer> </dict> Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820016 Share on other sites More sharing options...

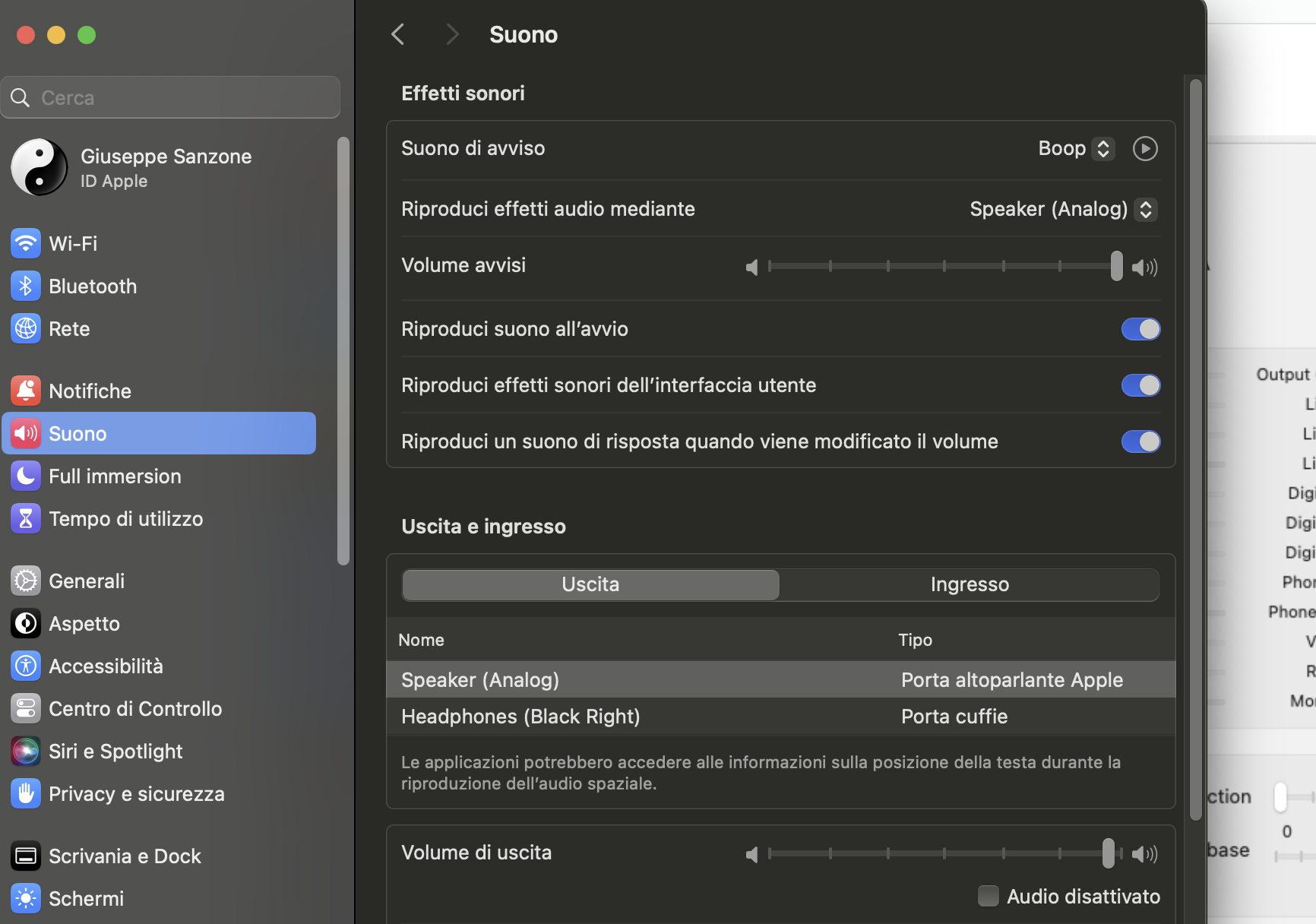

innerd Posted May 13, 2024 Share Posted May 13, 2024 I do have speaker as output but audio doesn't work anyway. As I said in the AppleALC thread this model as a problem in linux too with the audio (and I can confirm it before the latest kernel that fixed it). In linux, before the 6.7, I could use a workaround with one ssdt file, without the audio card was recognized but simply I hadn't any sound from it (like here on macOS). I don't know if its related Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820026 Share on other sites More sharing options...
Slice Posted May 13, 2024 Author Share Posted May 13, 2024 Looks like iMix is not influenced? Your audio chip has 3 output nodes 2,3,6 but chip itself has only one output. Now we sent sound to node 2. No audio. May be try to sent to node 3 or node 6? Is there any similar information from linux? Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820030 Share on other sites More sharing options...
innerd Posted May 13, 2024 Share Posted May 13, 2024 This is what I know about the problem on linux Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820034 Share on other sites More sharing options...

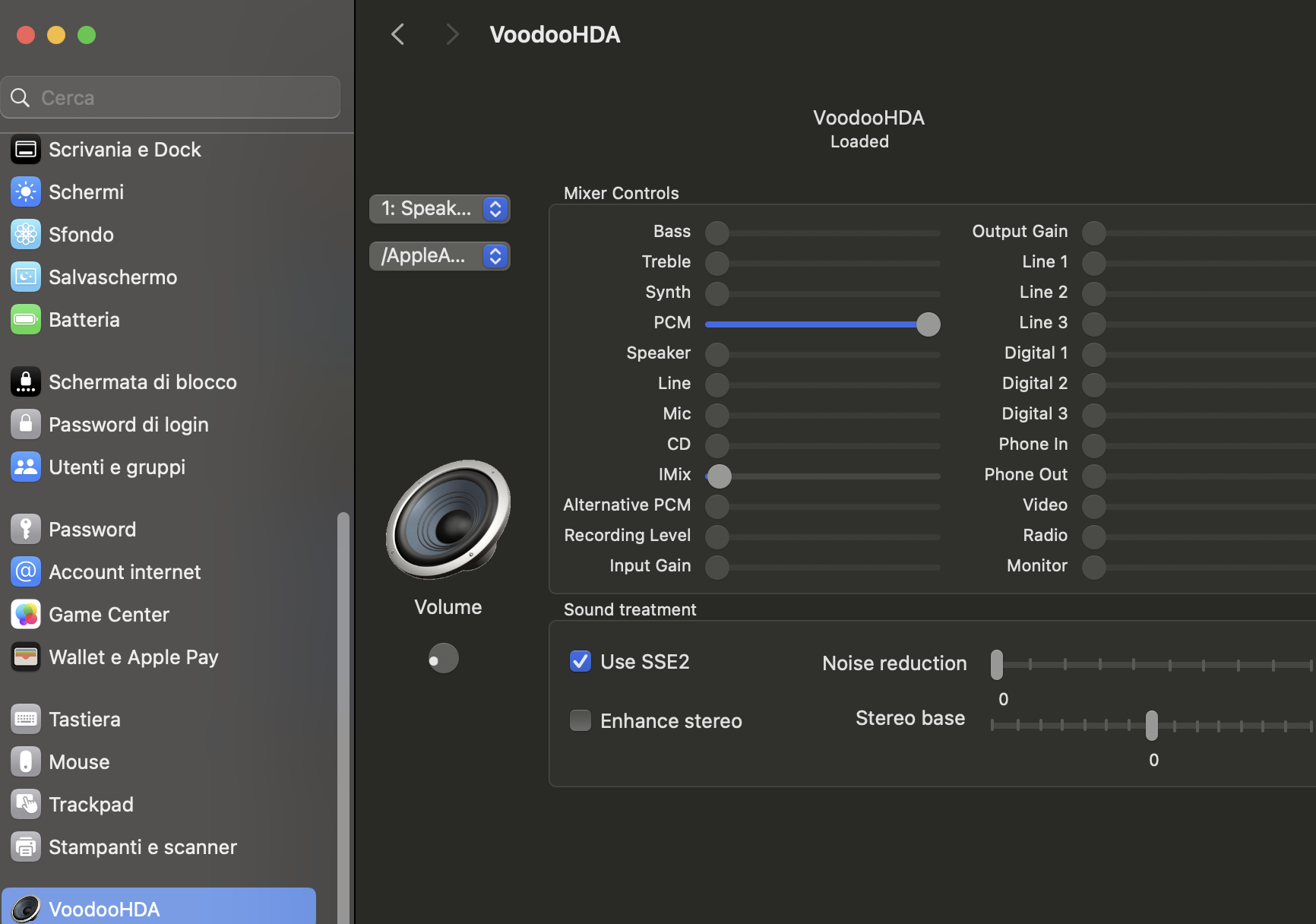

Slice Posted May 16, 2024 Author Share Posted May 16, 2024 On 5/13/2024 at 11:45 PM, innerd said: This is what I know about the problem on linux I see on your picture iMix = 0. Did you move it? Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820166 Share on other sites More sharing options...
innerd Posted May 16, 2024 Share Posted May 16, 2024 Yes, still no sound Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820171 Share on other sites More sharing options...
Slice Posted May 16, 2024 Author Share Posted May 16, 2024 6 hours ago, innerd said: Yes, still no sound Sometimes this may help <key>Devices</key> <dict> <key>Audio</key> <dict> <key>ResetHDA</key> <true/> </dict> Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820186 Share on other sites More sharing options...
innerd Posted May 16, 2024 Share Posted May 16, 2024 Is it on clover? I have OpenCore right now Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820187 Share on other sites More sharing options...
Slice Posted May 17, 2024 Author Share Posted May 17, 2024 Yes, on Clover. Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820197 Share on other sites More sharing options...
innerd Posted May 17, 2024 Share Posted May 17, 2024 (edited) Ill try clover in these days. Edit: tried, still no luck here, probably its the amplifier problem attached to the speakers like linux, maybe needs a "driver" Edited May 20, 2024 by innerd 1 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820201 Share on other sites More sharing options...

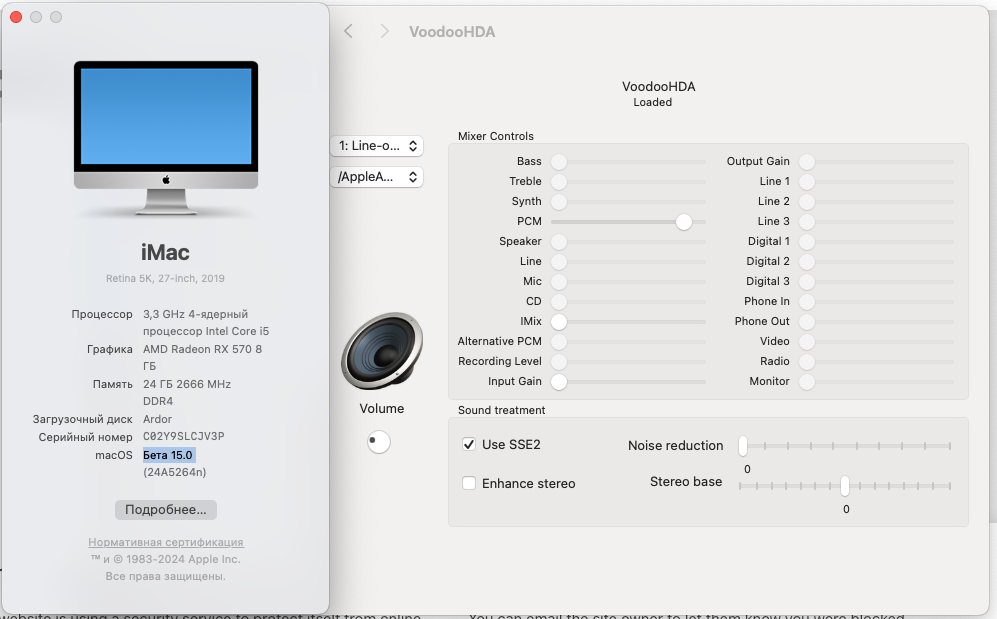

Slice Posted June 11, 2024 Author Share Posted June 11, 2024 Sequoia + 4 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2820978 Share on other sites More sharing options...

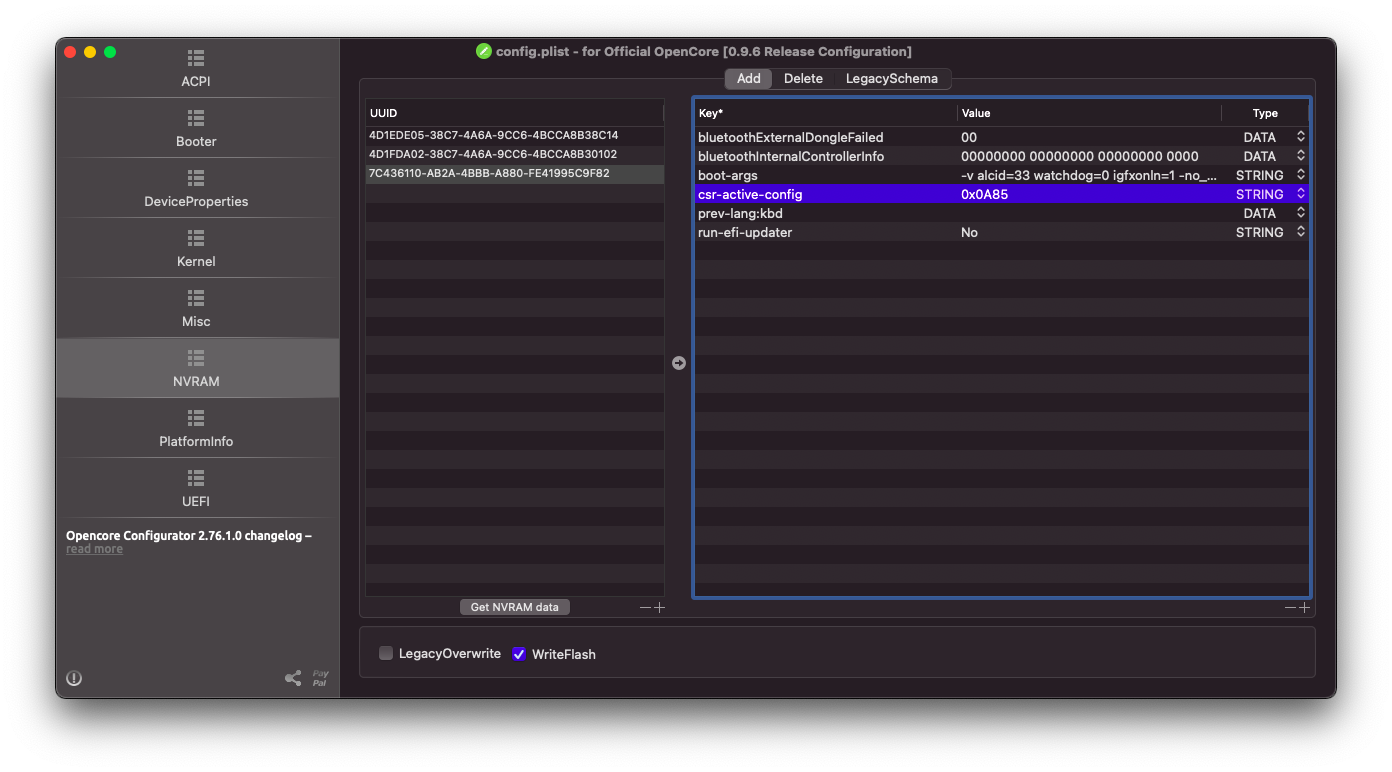

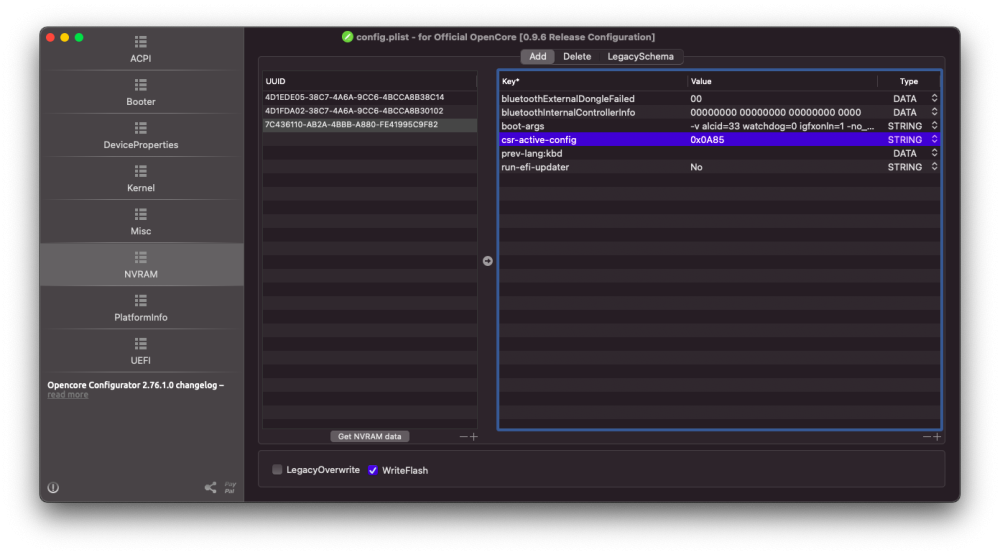

SPYAM Posted July 24, 2024 Share Posted July 24, 2024 On 4/29/2021 at 12:28 PM, Slice said: I manage to make it working under Big Sur. As well as in Sonoma 1. Set restricted enabled SIP <key>CsrActiveConfig</key> <string>0x0A85</string> 2. Delete other old sound kext (VoodooHDA or AppleALC) from EFI folder. 3. Reboot I did exactly everything you said, but the sound driver was not recognized! can you help/ big sur 11.7 open core 1 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2823278 Share on other sites More sharing options...
Slice Posted July 25, 2024 Author Share Posted July 25, 2024 One moment. If there is Opencore then csr-active-config can't be string. It is Clover's feature. AFAIK you have to write <data> <85 0A 00 00> 1 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2823321 Share on other sites More sharing options...

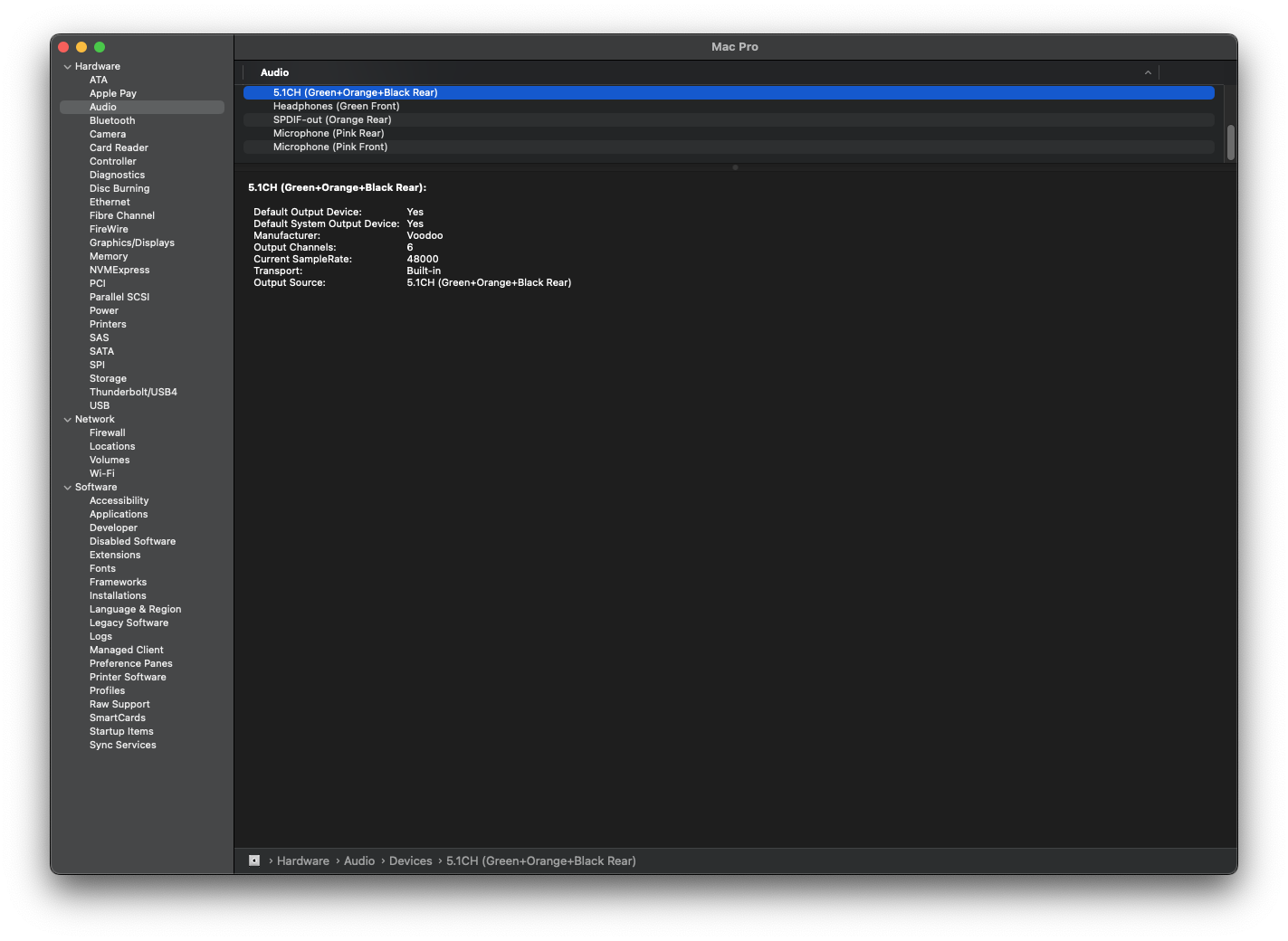

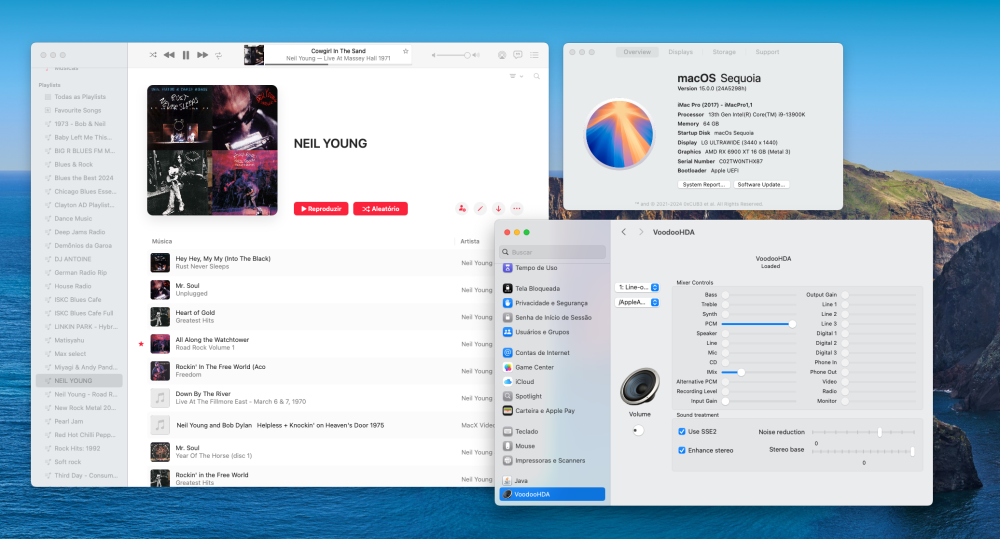

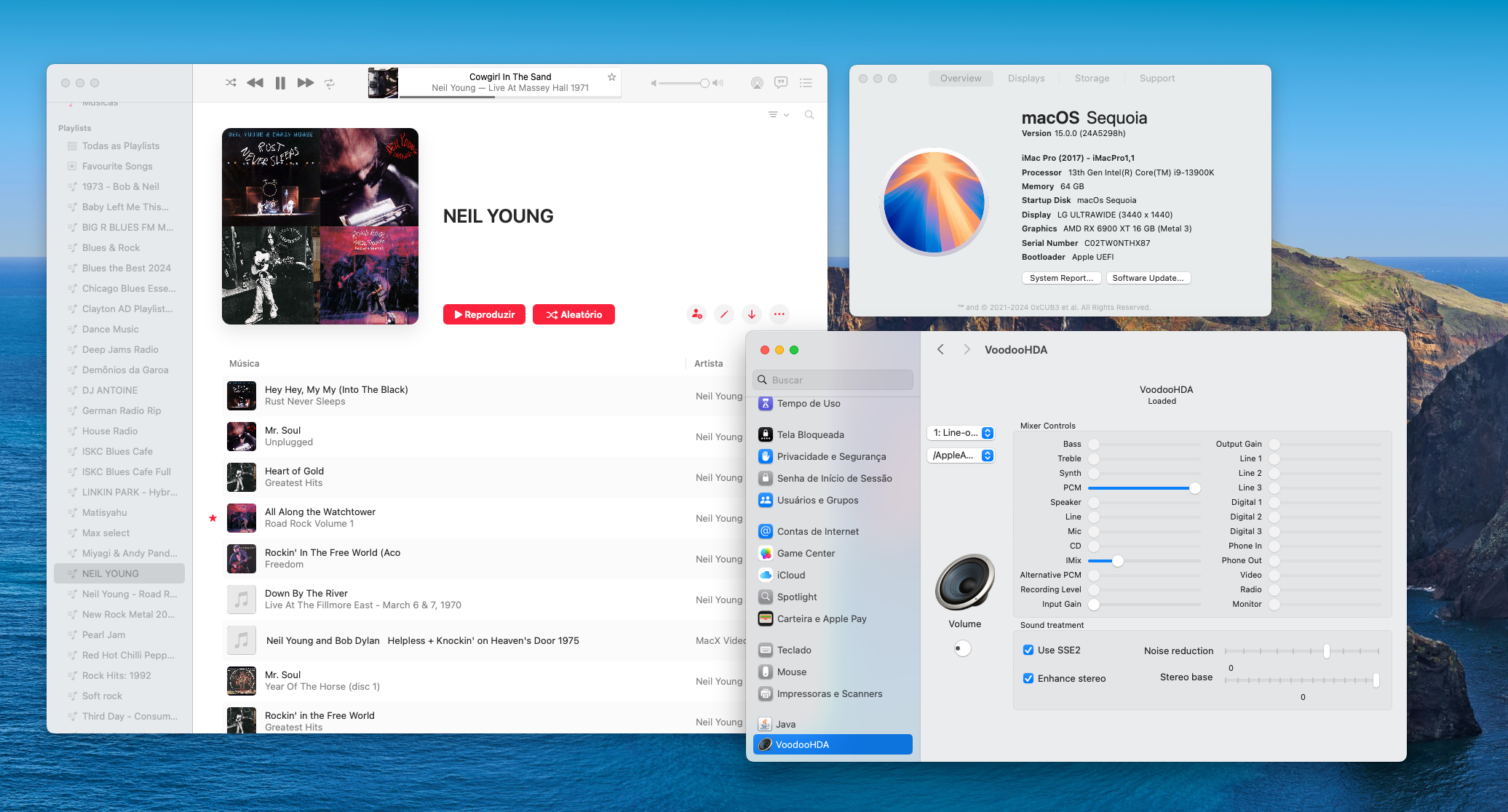

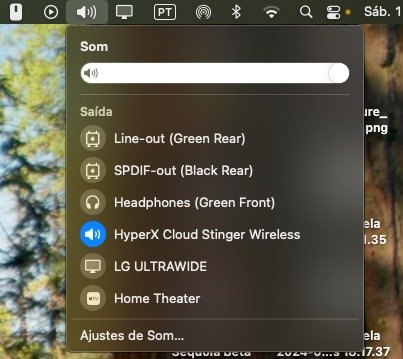

Max.1974 Posted July 25, 2024 Share Posted July 25, 2024 Hi all. Here I tested VoodoHDA, a little noise with iGain but I think is working good. Sequoia beta 4 (not compiled) need use this command in Terminal to install VoodooHDA.prefPane (difficult) : Quote xattr -cr and/or Quote xattr -d -r -s com.apple.quarantine <drag app here> Dump Z790 ALC897.txt.zip Spoiler 3 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2823333 Share on other sites More sharing options...

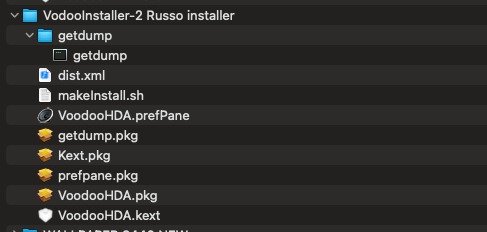

Max.1974 Posted August 10, 2024 Share Posted August 10, 2024 (edited) Hi guys, im found old script from AppleLife.Ru and when run create a pkgs to install VoodooHDa. It's very nice and easy to use. Just put the last kext version and VoodooPerfPane app inside folder. Important you change VoodooHDA.kext from ziped folder to your VoodooHDA compiled or last version from GitHub Open Terminal in macOs and type: sudo -i password: **** cd <drag your folder with scripts> drag makeInstall.sh and type enter its done! Now just run VoodooHDA.pkg Works to me for Clover and Opencore. Check SIP recommended * SIP Clover 0xA87 * SIP Opencore 850A0000 Zip files: VoodooHDA Kext 3.0.2 Git Hub VodooHDA Installer kext 3.0.2 from github.zip Source: AppleLife.RU Spoiler Edited September 23, 2024 by Max.1974 Better video uploaded on YT 2 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2823924 Share on other sites More sharing options...

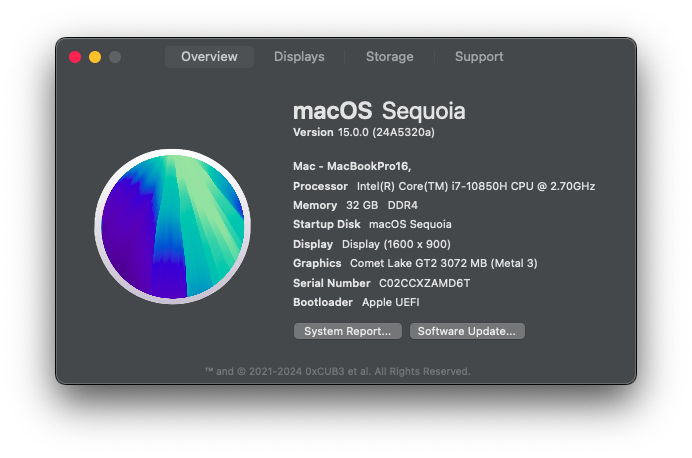

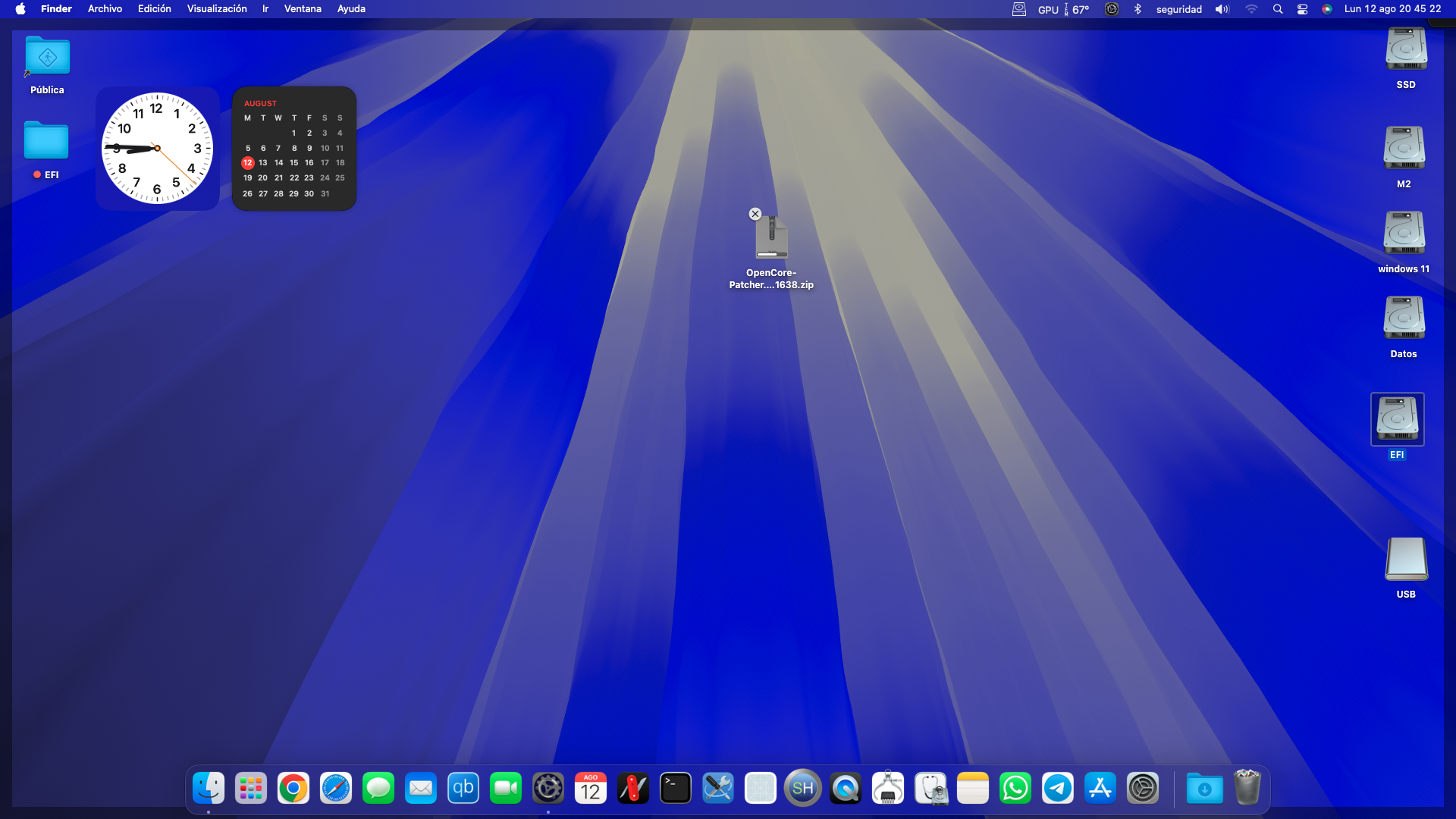

kaoskinkae Posted August 12, 2024 Share Posted August 12, 2024 beta 6 macOS Sequoia perfect USB fat32 and EFI 1 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2824017 Share on other sites More sharing options...
taqieallah Posted August 12, 2024 Share Posted August 12, 2024 BETA 6 DOne and efi mount working good 1 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2824020 Share on other sites More sharing options...

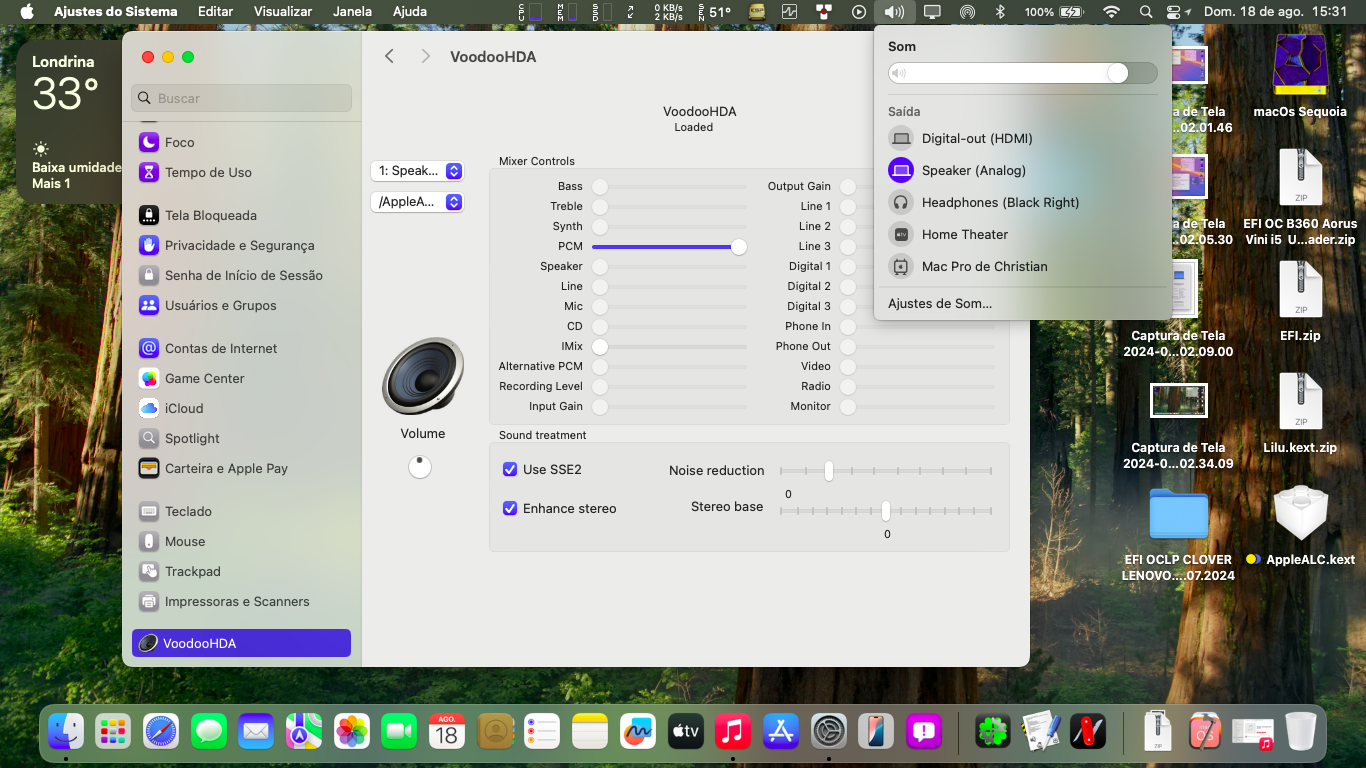

Max.1974 Posted August 18, 2024 Share Posted August 18, 2024 VoodooHDA run perfectly with Lenovo E470 2 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2824251 Share on other sites More sharing options...
Shaneee Posted September 23, 2024 Share Posted September 23, 2024 I have this strange behaviour where I get feedback through the speakers when something on the screen is moving even just the mouse cursor. I'll link a video where I'm scrolling this topic and getting the feedback. https://streamable.com/qos3l5 1 1 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2825799 Share on other sites More sharing options...
Max.1974 Posted September 23, 2024 Share Posted September 23, 2024 (edited) 1 hour ago, Shaneee said: I have this strange behaviour where I get feedback through the speakers when something on the screen is moving even just the mouse cursor. I'll link a video where I'm scrolling this topic and getting the feedback. https://streamable.com/qos3l5 Hi @Shaneee I recommend you compile VoodooHDA.kext in your specific machine Would you please try again with Kext download from GitHub version 3.0.2 PS: I update post above, and the kext from GitHub, but you can change for your, or compiled for your Hardware as you need. Thanks Edited September 23, 2024 by Max.1974 1 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2825803 Share on other sites More sharing options...
Max.1974 Posted September 23, 2024 Share Posted September 23, 2024 13 minutes ago, naiclub said: Hide contents Wrong thread, please help me fix it. Hi @naiclub can I help you? Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2825806 Share on other sites More sharing options...
naiclub Posted September 23, 2024 Share Posted September 23, 2024 3 minutes ago, Max.1974 said: Hi @naiclub can I help you? Thank you my dear friend. I posted the wrong thread. I was going to post macOS Sequoia 15.1 in the wrong room. 1 Link to comment https://www.insanelymac.com/forum/topic/314406-voodoohda-312/page/28/#findComment-2825807 Share on other sites More sharing options...
