simras Posted July 5, 2016 Share Posted July 5, 2016 Hello i start this thread because it is impossible for me to pass DSMOS has arrived error. I mount a mackintosh for a friend the configuration is Asus x99-a, 5820k, gtx 970. My bios is up to date, secure boot, serial port, usb 3.0, vt-d are disabled, SATA on AHCI I link here my EFI folder with kexts and config.plist that i use. For boot flags i use npci=0x2000 nv_disable=1, for driver i use FakeSMC, VoodooTSCSync with edited .plist with "11", NullCPUPowerManagement, a SSDT. So if someone can help me.. Thanks CLOVER.zip Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/ Share on other sites More sharing options...
Dwarfy Posted July 5, 2016 Share Posted July 5, 2016 Hi, Try these files, replace them with yours. simras.zip Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2247868 Share on other sites More sharing options...
simras Posted July 5, 2016 Author Share Posted July 5, 2016 I delete the SSDT, replace the fakeSMC and add the another kext and replace config.plist boot and get the error with one more "this is an unknown cpu model" Retry by re-adding the SSDT same error. Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2247877 Share on other sites More sharing options...
gengik84 Posted July 5, 2016 Share Posted July 5, 2016 Try, delete CsmVideoDxe Try, connecting to other video output Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2247879 Share on other sites More sharing options...
Dwarfy Posted July 5, 2016 Share Posted July 5, 2016 Another guy I've helped has used this EFI modified by me. If you get aptiofix kp, then change AptioFix driver. ASUS_224.zip Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2247882 Share on other sites More sharing options...
simras Posted July 5, 2016 Author Share Posted July 5, 2016 I know that i can't boot with OsxAptioFix2Drv-64.efi its bug directly ! edit : i replace my EFi folder with the ASUS 224 and added VoodooTSCSync and NullCPUManagent. I get unknown CPU model, DSMOS has arrived, bluetooth blablabla Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2247885 Share on other sites More sharing options...
Dwarfy Posted July 5, 2016 Share Posted July 5, 2016 I know that i can't boot with OsxAptioFix2Drv-64.efi its bug directly ! edit : i replace my EFi folder with the ASUS 224 and added VoodooTSCSync and NullCPUManagent. I get unknown CPU model, DSMOS has arrived, bluetooth blablabla Why are you adding extra things to it? Try it without those two kexts first. Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2247888 Share on other sites More sharing options...
simras Posted July 5, 2016 Author Share Posted July 5, 2016 Ok i simply boot with the ASUS 224 EFI folder and I get unknown CPU model, DSMOS has arrived, bluetooth blablabla. But my cpu is not dependent to VoodooTSCSync normally ???? Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2247892 Share on other sites More sharing options...
Dwarfy Posted July 5, 2016 Share Posted July 5, 2016 VoodooTSCSync should not be needed after 10.11.3, as apple then got more core support. Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2247896 Share on other sites More sharing options...
simras Posted July 6, 2016 Author Share Posted July 6, 2016 And for NullCPUPowerManagement i don't understand why i need it ? depend of if i have a ssdt ? Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248016 Share on other sites More sharing options...
Fljagd Posted July 6, 2016 Share Posted July 6, 2016 Salut Il faut désactiver le port com dans le bios Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248017 Share on other sites More sharing options...
simras Posted July 6, 2016 Author Share Posted July 6, 2016 Salut Il faut désactiver le port com dans le bios Ou est ce que ca se situe c'est en rapport avec quoi ? parce que sur internet je trouve rien.. Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248088 Share on other sites More sharing options...

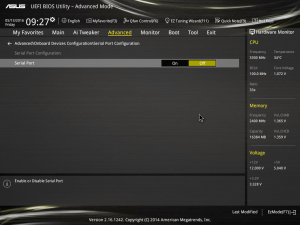

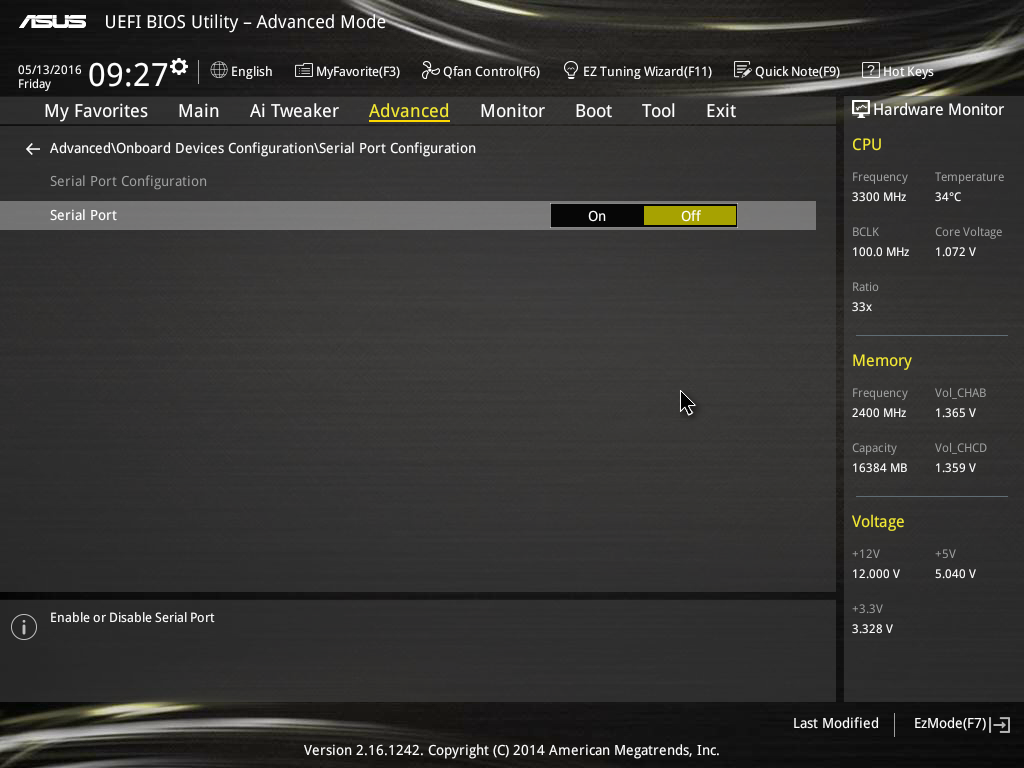

Fljagd Posted July 6, 2016 Share Posted July 6, 2016 Ou est ce que ca se situe c'est en rapport avec quoi ? parce que sur internet je trouve rien.. voici Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248089 Share on other sites More sharing options...
simras Posted July 6, 2016 Author Share Posted July 6, 2016 voici Ah oui je l'ai précisé dans mon premier message que je l'avais deja désactivé, question est ce que tu peux me dire a quoi sert NullCPUPowermanagmenet ? est ce qu'il est en rapport avec le ssdt ? est ce qu'il faut avoir soit l'un soit l'autre ou les deux en meme temps ? Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248090 Share on other sites More sharing options...
Fljagd Posted July 6, 2016 Share Posted July 6, 2016 Ah oui je l'ai précisé dans mon premier message que je l'avais deja désactivé, question est ce que tu peux me dire a quoi sert NullCPUPowermanagmenet ? est ce qu'il est en rapport avec le ssdt ? est ce qu'il faut avoir soit l'un soit l'autre ou les deux en meme temps ? pas besoin de nullcpu ni de dsdt ou de ssdt, ni de voodootscsyn Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248091 Share on other sites More sharing options...
simras Posted July 6, 2016 Author Share Posted July 6, 2016 pas besoin de nullcpu ni de dsdt, ni de voodtscsyn OK je vais essayer de booter en enlevant les trois pas besoin d'un flags spécial du genre cpus=1 ou d'options a mettre dans le config.plist ? Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248093 Share on other sites More sharing options...
Fljagd Posted July 6, 2016 Share Posted July 6, 2016 OK je vais essayer de booter en enlevant les trois pas besoin d'un flags spécial du genre cpus=1 ou d'options a mettre dans le config.plist ? voici mon config.plist si tu veux si tes web drivers ne sont pas encore installer nv_diable=1 config.plist.zip Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248094 Share on other sites More sharing options...
simras Posted July 6, 2016 Author Share Posted July 6, 2016 voici mon config.plist si tu veux si tes web drivers ne sont pas encore installer nv_diable=1 Oui webdivers tkt je connais pour le flag, bah plus simplement tu peux pas m'envoyer ton dossier EFI en entier ??? Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248095 Share on other sites More sharing options...
Fljagd Posted July 6, 2016 Share Posted July 6, 2016 Oui webdivers tkt je connais pour le flag, bah plus simplement tu peux pas m'envoyer ton dossier EFI en entier ??? le voici EFI.zip Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248097 Share on other sites More sharing options...
simras Posted July 6, 2016 Author Share Posted July 6, 2016 Et donc au niveau du BIOS comme c'est la seule chose qui peut changer on est d'accord ta désactivé secure boot, serial port, et vt-d, SATA est sur AHCI, ta fait rien d'autres ? Parce que moi je boot sur ma clef 3.0 branché a un port 2.0 à l'avant de l'ordi. Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248098 Share on other sites More sharing options...
Fljagd Posted July 6, 2016 Share Posted July 6, 2016 Et donc au niveau du BIOS comme c'est la seule chose qui peut changer on est d'accord ta désactivé secure boot, serial port, et vt-d, SATA est sur AHCI, ta fait rien d'autres ? Parce que moi je boot sur ma clef 3.0 branché a un port 2.0 à l'avant de l'ordi. oui tu as bon Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248099 Share on other sites More sharing options...

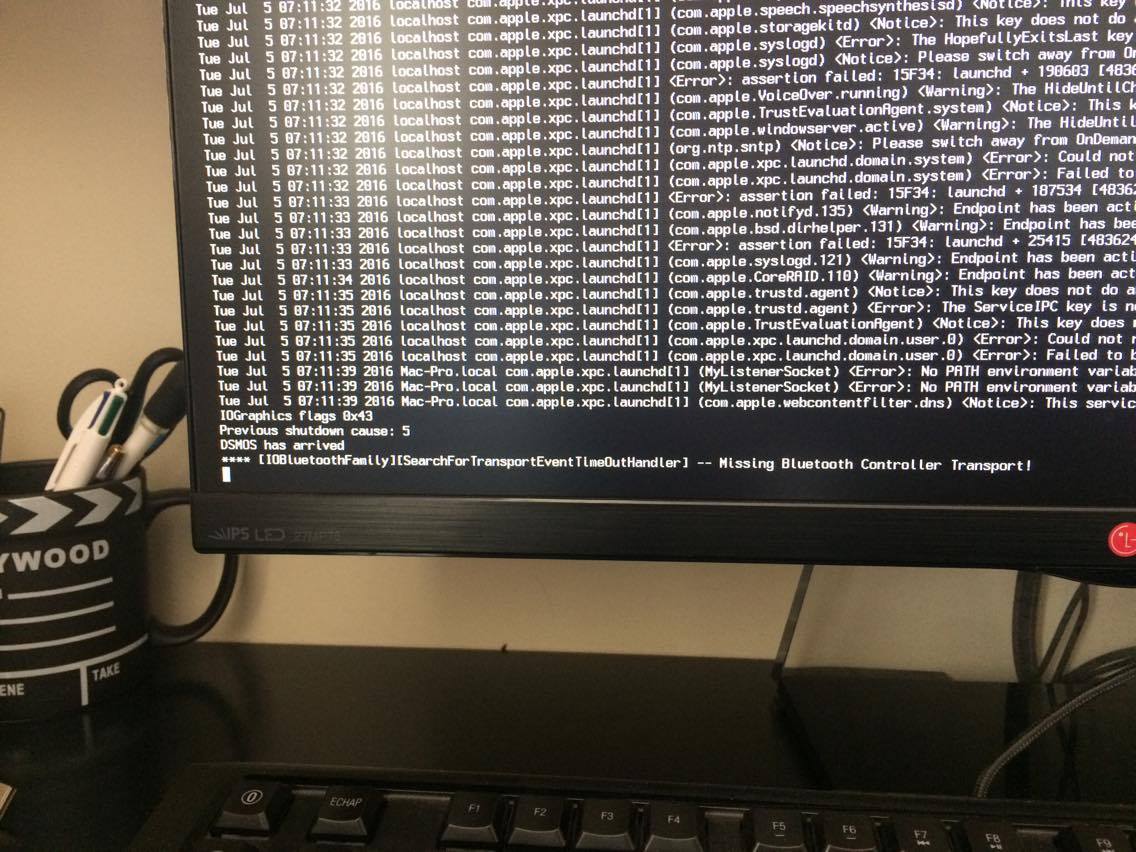

simras Posted July 6, 2016 Author Share Posted July 6, 2016 La dans le bios j'ai activé XHCI parce que ta des patchs pour ca. J'ai seulement remplacé ton dossier, ajouté -v et nv_disable=1 et je tombe plus sur DSMOS has arrived mais Missing bluetooth truc du genre Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248102 Share on other sites More sharing options...
Fljagd Posted July 6, 2016 Share Posted July 6, 2016 La dans le bios j'ai activé XHCI parce que ta des patchs pour ca. J'ai seulement remplacé ton dossier, ajouté -v et nv_disable=1 et je tombe plus sur DSMOS has arrived mais Missing bluetooth truc du genre tu as fais ta clé avec? As tu mis ton bios à jour? Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248103 Share on other sites More sharing options...
simras Posted July 6, 2016 Author Share Posted July 6, 2016 Je pense je vais refaire une clef propre. je l'ai fais avec ##### pour El Capitan 10.11.5 et presque sur mon bios est a la dernière version je l'ai mis a jour ya pas longtemps, sauf que par rapport a ta capture d'écran du serial port bah moi j'ai pas cette couleur "jaune" mais moi c'est bleu. Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248106 Share on other sites More sharing options...
Fljagd Posted July 6, 2016 Share Posted July 6, 2016 Je pense je vais refaire une clef propre. je l'ai fais avec ##### pour El Capitan 10.10.5 et presque sur mon bios est a la dernière version je l'ai mis a jour ya pas longtemps, sauf que par rapport a ta capture d'écran du serial port bah moi j'ai pas cette couleur "jaune" mais moi c'est bleu. oui pour ta clé bof !!!! La couleur c'est parce que la photo date un peu si tu as un mac tu peux utiliser ça ou ça Link to comment https://www.insanelymac.com/forum/topic/312908-dsmos-5820k-x99-a-el-capitan/#findComment-2248108 Share on other sites More sharing options...
