HD5650m 1002_68c1 vaio VPCEB1M1E No LVDS Black Screen qe/ci works

[Nikita123]

Hi everyone,

I have been trying for a while now to install Mac OS X El capitan 10.11.4 on the Sony Vaio VPCEB1M1E with limited succes.



I am using Clover (latest version)

The biggest problem is no LVDS detected and the notebook has a blackscreen as soon as OS X starts.

I have created several config files, and if I disable Inject ATI i can login to the system without QE/CI. Wi-Fi works, AR9285.

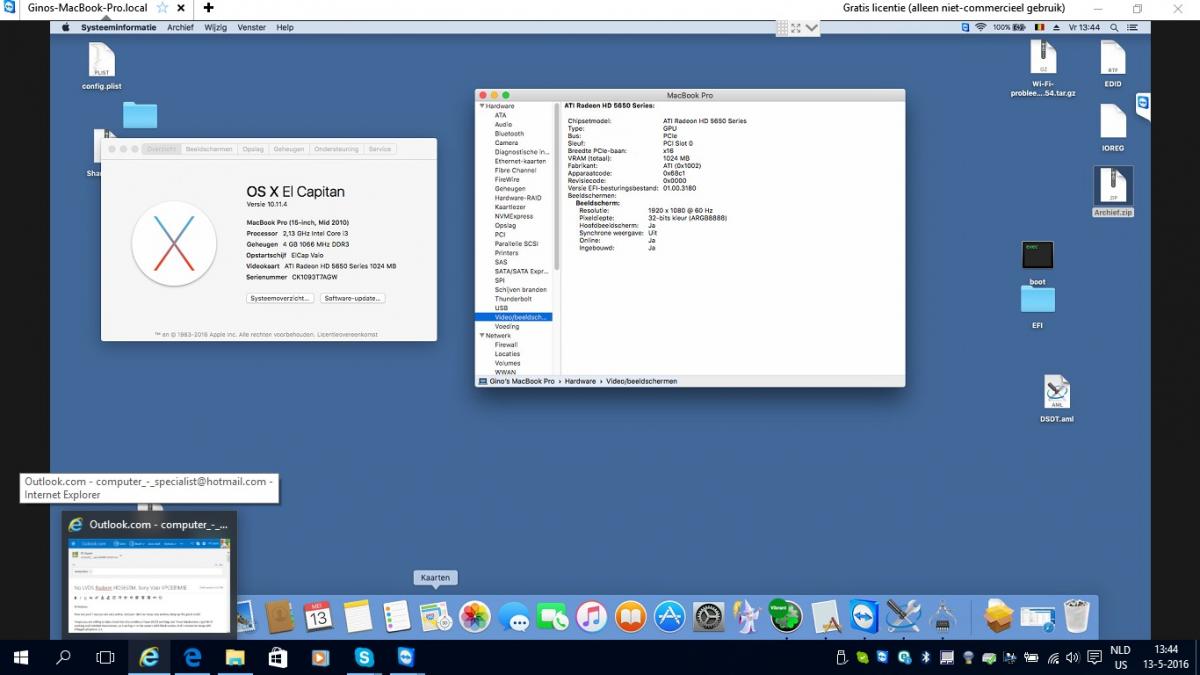

So I installed teamviewer, reboot, enable ATI config, got blackscreen, but logged in with teamviewer and QE/CI is working. I created an IOREG this way with IORegistryExplorer 2.1 and I have also attached my entire EFI partition, all unpatched ACPI tables are included. I think the problem is wrong connector info. Have tried several different framebuffers, Hoolock, Orangutan, Vervet, all give blackscreen on LVDS.

Device ID: 68c1

There are several config files, config4 is the bootconfig I used to make the IOreg.

VGA is not working , have not been able to test HDMI (yet).



Here is my entire EFI Folder: https://www.dropbox.com/s/ig134fl6pdq193a/Archief.zip?dl=0

I found the following topics about the problem and there only seems to be a chameleon solution:

http://yun.baidu.com/share/link?uk=3355666171&shareid=42351891&third=0&adapt=pc&fr=ftw

http://www.insanelymac.com/forum/topic/248751-mobility-radeon-hd-5650-qeci-work-262-update/

http://www.insanelymac.com/forum/to...d5000-and-hd4000-series-support-in-chameleon/
http://www.insanelymac.com/forum/to...vds-qeci-1600x900-need-help-with-personality/



I hope someone can solve this.



Good hack to you all,



Nikita

IOREG.zip

EDID.txt

[artur_pt]

hello



vaio always have graphics problems ..



have u try this ?

<key>Inject</key>
<dict>
<key>ATI</key>
<true/>

<key>LoadVBios</key>
<true/>

<key>InjectEDID</key>
<true/>

<key>FBName</key>
<string>Eulemur</string>

good hack

[Nikita123]

I believe I did, I tried many framebuffers, I also tried custom EDID and extract the vbios and place in ROM folder in clover.



I will test this specific setting as soon as I can with and without custom EDID.



Thanks for your reply Arthur

[Nikita123]

<key>Graphics</key>

<dict>

<key>FBName</key>

<string>Eulemur</string>

<key>Inject</key>

<dict>

<key>ATI</key>

<true/>

<key>Intel</key>

<false/>

<key>NVidia</key>

<false/>

</dict>

<key>InjectEDID</key>

<true/>

<key>LoadVBios</key>

<true/>

<key>NvidiaSingle</key>

<false/>

<key>PatchVBios</key>

<true/>

</dict>





It is not working.



I tried with and without Patch vbios and also with and without Custom EDID.



Any other hints?

config2.plist.zip

[artur_pt]

hello



in mine 5470 don't use this

<key>NvidiaSingle</key>
<false/>
<key>PatchVBios</key>
<true/>
</dict>

good hack
