[Guida] Asrock H110M-ITX/ac

300 posts in this topic

Recommended Posts






Materiale occorrente:

Versione osx ufficiale non antecedente a 10.11.4

Kext Ethernet:

AppleIntelE1000.kext oppure IntelMausiEthernet

Pacchetto fine guida: FakeSmc+sensors e app HWMonitor estratti dall’ultimo pkg (6.19.1406) scaricabile da qui   reso compatibile anche per Broadwell/Skylake

Aggiornamento:

Pacchetto-2 fine guida: FakeSmc+sensors e app HWMonitor estratti dall’ultimo pkg (6.23.1417), offre maggior supporto per Skylake

Intel Power Gadget



Impostazioni Bios oltre alle solite:

Grafica primaria “onboard” con 128 mb di memoria dedicata

CSM disable

Legacy usb support: Enable





Iniziamo a preparare la usb come da mia guida seguendo la parte per installazione di Clover in UEFI.

Ho fatto una piccola variazione installando il driver64UEFI …OsxAptioFix2Drv al posto dell’altro.

Questo ci permettere di non avere restrizioni a nvram e di usare successivamente CsrActiveConfig= 0x3, quindi di avere SIP abilitata in percentuale maggiore.



Installato clover, importate il config plist e modificate:

Boot: lasciate selezionato solo il verbose (-V)

Acpi: deselezionate tutti i fix sia old che new way, lasciate flaggato solo Generate C e P states

Device: Usb/Inject lasciate attiva  iniezione Fix Ownership... serve a prevenire/ oltrepassare il blocco  a "AppleUSBLegacyRoot.....enabling legacy matching"

Graphics: inject intel ed inserite  su ig-platform-id = 0x19120000

Se usate altri processori con relative intel HD , controllate qui il giusto Platform ID, quello a voi adeguato

SMbios: impostate Imac 17.1 avendo l’accortezza di usare un seriale non riconosciuto da Apple.



In questa versione di osx non ho avuto necessità di inserire la patch Apic di @Piker sul config.plist

Salvate la modifica apportata al config.plist

Mettete Fake che trovate allegato nella relativa cartella, nella quale ho inserito anche i sensor che vi serviranno successivamente per monitorare il vostro hardware



A questo punto riavviate e fate il boot da usb.

Finito il processo di installazione….












Per far riconoscere correttamente le ram, ho usato clover…

La grafica non presenta alcun artefatto ed è visualizzata correttamente



Avvio da HD/SSD montiamo la partizione EFI, copiamo e sostituiamo la cartella efi con quella funzionante della usb.

Riavviate normalmente senza usb



A questo punto, tramite lo script di @Piker (versione beta) creiamo SSDT.aml per il Power Management da copiare in EFI/Clover/acpi/patched ,  successivamente è importante deselezionare i Generate C e P states sul config.plist prima di riavviare.



Istruzioni





curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/Beta/ssdtPRGen.sh

invio

chmod +x ~/ssdtPRGen.sh

invio

~/ssdtPRGen.sh

Per cercare la tabella SSDT:

Clicca su "VAI" in alto sul finder, tieni premuto il tasto "Alt", vedrai apparire la cartella "Libreria"

Recati successivamente nella cartella ssdtPRGen

Al suo interno trovi SSDT.aml, copialo dove ti ho detto





Risultato










Audio:

Scaricate Ssdt a fine guida e mettetelo in EFI/Clover/acpi/patched



importate il config dell’hd:

Nella sezione device/audio/inject inseriamo 1

Salviamo e riavviamo.

 Montiamo la partizione EFI dell’hd…

Scarichiamo qui per El Capitan

Scarichiamo qui per Sierra

Lanciamo lo script di @Toleda, dopo aver risposto alle domande, riavviamo e successivamente rechiamoci in Preferenze audio/uscita ed impostiamo quella che stiamo utilizzando.





Metodo alternativo: AppleALC.kext

Nella sezione device/audio/inject inseriamo 1

Collocare AppleALC nella relativa cartella in EFI

*Nota: Dalla versione 1.1.0 scaricare qui e collocare anche questo kext insieme ad AppleALC

Aggiungere questo rename sul config, nella sezione Acpi/DSDT-patches

Salviamo e riavviamo

Comment                    Find             Replace

Rename HDAS to HDEF        48444153         48444546

Per Audio HDMI:

Montiamo nuovamente la partizione EFI

Scarichiamo qui

Lo script oltre ad aggiungere la patch sul config.plist,ci creerà automaticamente un ssdt nel relativo percorso in EFI, per abilitare l'audio



Risultato








SSD: per chi a tale disco è  possibile abilitare il trim dando questo comando sul terminale:

sudo trimforce enable










Per monitorare il vostro hardware, copiate l’app allegata nel pachetto in applicazioni








….Bhè la vita residua del ssd non è proprio veritiera,.... :hysterical:  :hysterical:


ma il resto lo è.... ^_^

Potete confrontare usando Intel Power Gadget .... :P



Geekbench










iGPU test










Aggiornamento WIFI:

per chi possiede come me lo stesso modulo, su Sierra inseriamo, nella sezione Kernel and kext Patches.... questa patch (credits @Darkvoid)

Name             Find              Replace
AirPortBrcm4360  81F952AA00007529  81F952AA00006690

In fondo alla guida troverete Fakesmc.kext modificato da me per far funzionare il wifi...

Non è necessario ulteriori kext o patch

:)

Aggiornamento glitch... (Thanks to @Piker R.Alpha). (Non più necessaria da 10.12.4)



 Nella sezione Devices/Add Properties del config.plist aggiungete questa patch...

Per non sbagliare copiate ed incollate sul vostro

Device       Key*              Value       ValueType
IntelGFX     AAPL,GfxYTile     01000000    data

Oltre a questo dovrete aggiungere il rename GF0 to IGPU  nella sezione Acpi/DSDT-patches come da foto

Patches                  Find       Replace
change GFX0 to IGPU      47465830   49475055

Immagini sotto spoiler, per esempio..

















Aggiornamento:da 10.12.5 serve un ulteriore kext per la grafica integrata ed è IntelGraphicsFixUP e ovviamente lilu.kext



Non funziona:

Wifi essendo intel  Risolto Sostituito con Broadcom BCM94352Z...Funziona con DSDT patch o ToledaARPT.kext o FakePCIID.kext

Sleep….

Audio HDMI integrato  Risolto

work in progress…..





***Nota: Se possedete una scheda video oltre a fake e relativi sensors, aggiunte anche quello apposito per poter monitorare la GPU.

            Lo trovate allegato nel pacchetto "Sensors GPU"...

Mi raccomando usate la stessa versione  inerente ai kext e relativa app HWmonitor che state usando !

Pacchetto.zip

Ssdt.zip

FakeSMC-BCM4352Z.kext.zip

Pacchetto-2.zip

FakeSMC-BCM4352Z.kext.2zip.zip

Sensors GPU.zip

Share this post


Link to post
Share on other sites
Advertisement

Nice guide, thanks for that. I have the same config, but only difference is that my motherboard is ASRock H170M ITX/ac. I have the following problem:




Did you encounter this error?

Share this post


Link to post
Share on other sites

Ho installato HWMonitor  presente qui, ma mi appare solo l'HDD, devo impostare qualcosa per far apparire anche la cpu skylake?.... e in teoria dovrebbe esserci anche la gpu.



Ho seguito la guida per l'audio ma non sembra cambiare molto nel mio caso.



grazie

Share this post


Link to post
Share on other sites



Hi.... :)

Your problem is Fakesmc ... it is not loaded.

Check that you have in EFI/Clover/kext/10.11
Check on config.plist ... inject kext = Yes
Try again





You are right, injects kexts was disabled. This solved the problem until the point where I am at the Apple Bootlogo, I can move the mouse, but the loading bar doesn't do anything. Again any help with your experience would be much appreciated.

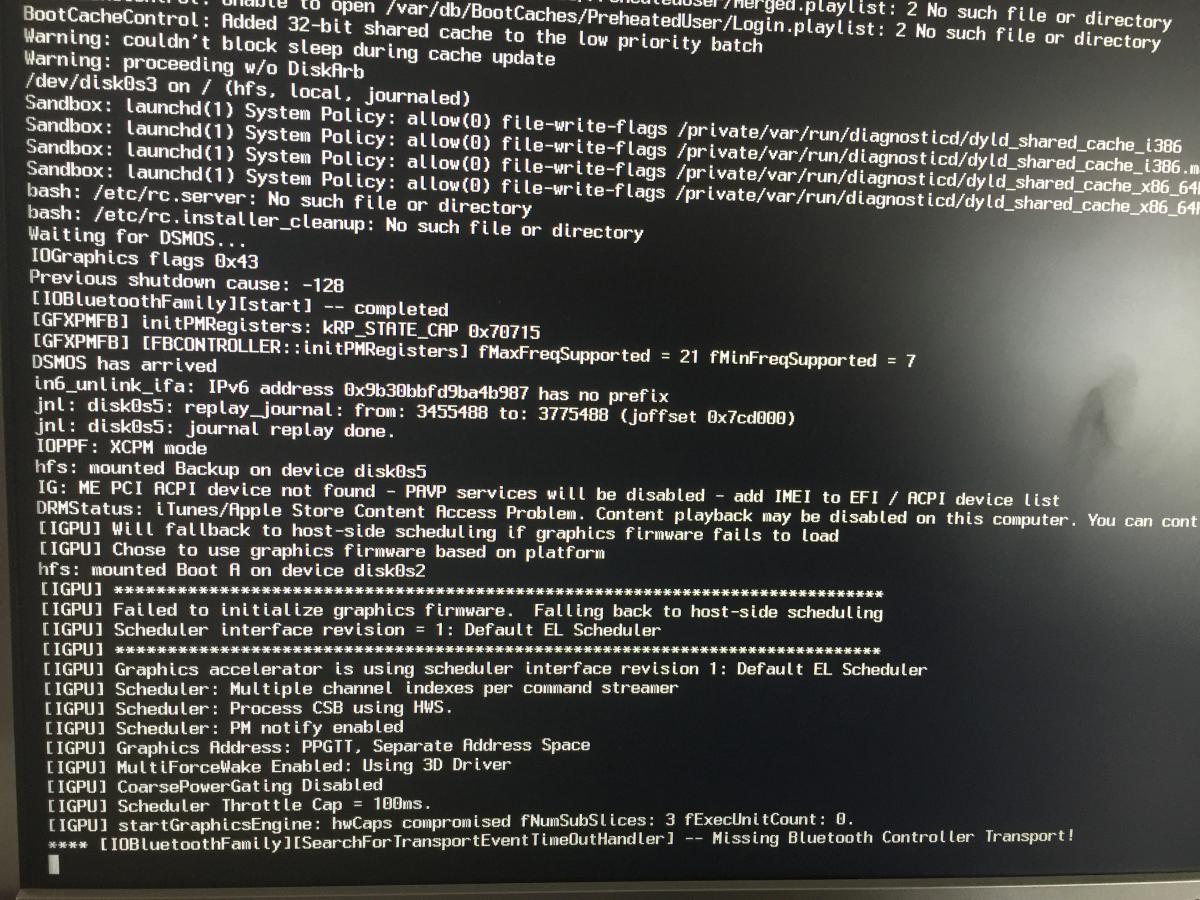

This is the log where DSMOS has arrived, before the stuck boot logo:








EDIT: dart=0 flag fixed it (i don't event know what it is)



Thanks for all the help!

Share this post


Link to post
Share on other sites

You are right, injects kexts was disabled. This solved the problem until the point where I am at the Apple Bootlogo, I can move the mouse, but the loading bar doesn't do anything. Again any help with your experience would be much appreciated.



This is the log where DSMOS has arrived, before the stuck boot logo:








EDIT: dart=0 flag fixed it (i don't event know what it is)



Thanks for all the help!

Your issue was caused from a bios settings, Vt-d, you have to disabled it.

Share this post


Link to post
Share on other sites

Ho installato HWMonitor  presente qui, ma mi appare solo l'HDD, devo impostare qualcosa per far apparire anche la cpu skylake?.... e in teoria dovrebbe esserci anche la gpu.



Ho seguito la guida per l'audio ma non sembra cambiare molto nel mio caso.



grazie

Hai messo nella cartella kext, oltre a fakesmc anche i sensor?

Alla gui di clover premi F4, attendi qualche secondo, poi avvia osx...

Comprimi e posta la cartella clover

Share this post


Link to post
Share on other sites

Hai messo nella cartella kext, oltre a fakesmc anche i sensor?

Alla gui di clover premi F4, attendi qualche secondo, poi avvia osx...

Comprimi e posta la cartella clover

I sensor in quella cartella vanno bene per tutte le versioni di  skylake, o devo cercarne una per la mia cpu?

Stesso discorso per la gpu



grazie

Share this post


Link to post
Share on other sites

Hey gengik84, did you choose a replacement Wireless card for your motherboard? I've installed AR5B195 Wifi+BT combo, but while Bluetooth works, it still can't detect all my Bluetooth devices, so I've ordered a BCM94352HMB. It should be a better option.

Share this post


Link to post
Share on other sites

Hey gengik84, did you choose a replacement Wireless card for your motherboard? I've installed AR5B195 Wifi+BT combo, but while Bluetooth works, it still can't detect all my Bluetooth devices, so I've ordered a BCM94352HMB. It should be a better option.

Hi, I have ordered the same wifi card... :)

I am waiting to receive it ... unfortunately, it will take several days.... ^_^

Share this post


Link to post
Share on other sites

Hi, I have ordered the same wifi card... :)

I am waiting to receive it ... unfortunately, it will take several days.... ^_^



Same here... China? :)

Btw, I've found SSDT-i3-6100.aml from another guide if you want correct CPU Power Management.

Share this post


Link to post
Share on other sites

Same here... China? :)

Btw, I've found SSDT-i3-6100.aml from another guide if you want correct CPU Power Management.



Yes .... from China ...



If you follow this guide, you can build your own SSDT for CPU power management... ;)

Share this post


Link to post
Share on other sites

Ciao!

Una domanda... come si comporta quando lo mandi in sleep?

Ciao... :)

come ho scritto non funziona, e 9 volte su 10 si riavvia...una volta ma raramente si riattiva con schermo nero...

Ci sono molti processi che vanno in crash, e ancora non sono ,purtroppo, riuscito a risolvere...

Share this post


Link to post
Share on other sites

Immagino tu abbia già provato applertc patch ma senza successo

si, ho provato quella patch...anche se non serve a nulla perché non vi è un reset del bios

Share this post


Link to post
Share on other sites

Per dei problemi simili ricordo che si era ovviato (non per skylake però) con i Fixes "FixShutdown" "SlpSmiAtWake" e "Halt Enabler"

Share this post


Link to post
Share on other sites

Per dei problemi simili ricordo che si era ovviato (non per skylake però) con i Fixes "FixShutdown" "SlpSmiAtWake" e "Halt Enabler"



First of all sorry for not speaking Italian, but there's no one else with a similar Motherboard around here! I wanted to ask you, what is your boot-time right after clover? I got something like 25 seconds which is bad for the kind of configuration I have. Grazie!

Share this post


Link to post
Share on other sites

Also to report back on Sleep, if we disable "Suspend to RAM" from BIOS, then Sleep works OK. But it doesn't seem like the proper Sleep that happens on real Macs. If you figure out anything new would you please let me know? Thanks.

Share this post


Link to post
Share on other sites

First of all sorry for not speaking Italian, but there's no one else with a similar Motherboard around here! I wanted to ask you, what is your boot-time right after clover? I got something like 25 seconds which is bad for the kind of configuration I have. Grazie!



25 sec seems too long anyway (unless you're using a mechanical drive), take a look by booting verbose and focus on which part is slowing the boot process.



Also to report back on Sleep, if we disable "Suspend to RAM" from BIOS, then Sleep works OK. But it doesn't seem like the proper Sleep that happens on real Macs. If you figure out anything new would you please let me know? Thanks.



How goes the sleep process? I mean, tell me the result of the sleep process.

Suspend to RAM is necessary for sleep:



"Suspend-to-RAM (STR) occurs when a system enters a low-power state. Information on system configuration, open applications, and active files is stored in main memory (RAM ), while most of the system's other components are turned off."

Share this post


Link to post
Share on other sites

25 sec seems too long anyway (unless you're using a mechanical drive), take a look by booting verbose and focus on which part is slowing the boot process.





How goes the sleep process? I mean, tell me the result of the sleep process.

Suspend to RAM is necessary for sleep:



"Suspend-to-RAM (STR) occurs when a system enters a low-power state. Information on system configuration, open applications, and active files is stored in main memory (RAM ), while most of the system's other components are turned off."



I will look at the boot-time problem and report back.

In the meantime for Sleep, if I enable "Suspend to RAM", then this is the output:

denniss-imac:~ dk$ pmset -g log | grep -i failure
2016-04-15 01:56:56 +0300 Failure     Drivers Failure panic during wake due to XHC(XHC),SAT0(AppleIntelPchSeriesAHCI),RP16(),GLAN(IntelMausi):

Share this post


Link to post
Share on other sites
Guest
You are commenting as a guest. If you have an account, please sign in.
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By jc84
      Last Updated 2016-June-20

      OSX 10.11.5
      This is what i have done so far to get my SP3 i5 256 working. Booting from SSD in USB3 Case as I am testing I do not want to mess with my Internal SP3 SSD.

      The build in not perfect but works. still early days.
      chat with us and share https://gitter.im/julianjc84/jc84_SP3_hookups

      Updates Notes
      I require the use of USBInjectAll.kext to fix the USBports for USB wifi adapter. Seems to only effect me with USB booting. OS,s installed on internal SSD seem to not have usb issue.

      Issues:
      minor video artifacts once system is booted below menu bar. No Battery
      What work and work great
      Intel 4400HD QI QE, Accelerated Video SDcard Reader Front Camera Rear Camera Trim Support Sound build in. Touch, Single input http://monstersoft.com/sp3/VoodooI2C.kext.5ms.zip do not use DSDT Surface Pro 4 Touch Cover, Single Input
      Tools



      Clover - Clover_v2.3k_r3424


      Clover Configuration .plist


      .kext used
      Touch - Single Input User Environment

      Battery Fixes - incomplete, HELP


    • By Appler
      I have using 10.11.4 with driver 346.03.06f01 for quite sometimes with no problems, but after trying to edit files to mod about my mac. I got this problem upon reboot. Can't Select NVIDIA Web Driver in System Pref.
      I tried reinstalled the driver still no luck.


      Edit: Solve by change Nvidia Version to b01 then change back to f01

    • By Moosehead1
      Hi guys,

      I recently updated my Hackintosh from OS X 10.11.3 to 10.11.4 and after rebooting it came up with the prohibitory symbol. I can only boot up in safe mode and when I did that it loaded up a screen almost like I was installing El Capitan again (I think it might have been for the update?). But now I cannot boot into OS X now. I didn't think the update would have any issues for my Hackintosh because there didn't seem to be any specific hardware related fixes in the update.

      [EDIT]

      I also booted up in verbose and I get this...
      OsxAptioFixDrv: Starting overrides for System\Library\CoreServices\boot.efi OsxAptioFixDrv: Error - requested memory exceeds our allocated relocation block Requested mem: 1CA00000 - 1D1FFFFF, Pages:800, Size:800000 Reloc block: BE615000 - C8D64FFF, Pages:A750, Size: A750000 Reloc block can handle mem requests: 0 - A74FFFF Exiting in 30 secs ... Error allocating 0x800 page at 0x000000001ca00000 alloc type 2 Error loading kernel cache (0x9) Boot failed, sleeping for 10 seconds before exiting...
    • By Bintan Siregar
      Hi, is anybody know kext/driver for Intel HD with Clarkdale based processor?
      I just found this tutorial http://www.insanelymac.com/forum/topic/286092-guide-1st-generation-intel-hd-graphics-qeci/page-1

      But i think it's just works on laptop not for computer. My motherboard is Booster H55 HD, with i3 540 processor. I just successfully installed El Capitan 10.11.4 on my computer, the problem is intel hd graphic driver, I can't get native resolution and lag display. I don't have dedicated gpu, I just want to use internal graphic, can anybody help? thank you.
    • By indibil
      Hola a todos!

      He instalado en mi GA-G31M-ES2L El Capitan 10.11.4 utilizando esta guía:

      https://www.reddit.com/r/hackintosh/comments/43hzgd/ancient_g31mes2l_board_working_with_el_capitan/

      Y como no hay driver para la red de la placa base, en el tutorial han utilizado una tarjeta de red RLT8111, pero yo en este ordenador tenía una RLT8169 que me funcionaba perfectamente con 10.6.8.

      Este ordenador hace de servidor multimedia, y siempre tengo puesta una dirección IP fija, es decir, utilizo DHCP con dirección manual.

      He instalado el driver RTGMac_v2.0.6 (no he encontrado otro más actualizado) y me reconoce la tarjeta de red perfectamente, con DHCP el router me asigna una dirección y tengo red e internet sin problemas, pero si elijo DHCP con dirección manual y le pongo la misma que tenía antes, o cualquier otra, coge la máscara de subred, el router, pero no los servidores de DNS ni el dominio local. No tengo acceso a internet. He probado a colocarlo todo manualmente y tampoco, sólo funicona DHCP con dirección IP asignada por el router.

      Sabéis a qué se debe? cómo puedo solucionarlo? en 10.6.8 no había problema. El router es el mismo, no ha cambiado nada.

      No se si pillar otra tarjeta de red PCIe RLT8111, pero no se dónde he leído que "El Capitán" necesita que los drivers estén registrados por Apple. Lo he leído en un post en inglés y no me he enterado mucho.

      Es que desde iAtkos ML que instalé en otro PC no he vuelto a hacer un hackintosh y me da la sensación de que las cosas han cambiado un poco y estoy algo perdido.

      Gracias!!
      RTGMac_v2.0.6.zip
×
