WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 It's a start i guess. DSDT-3.aml 3.zip Link to comment Share on other sites More sharing options...

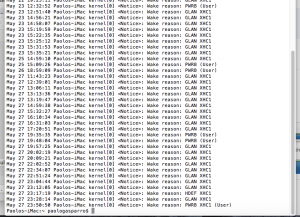

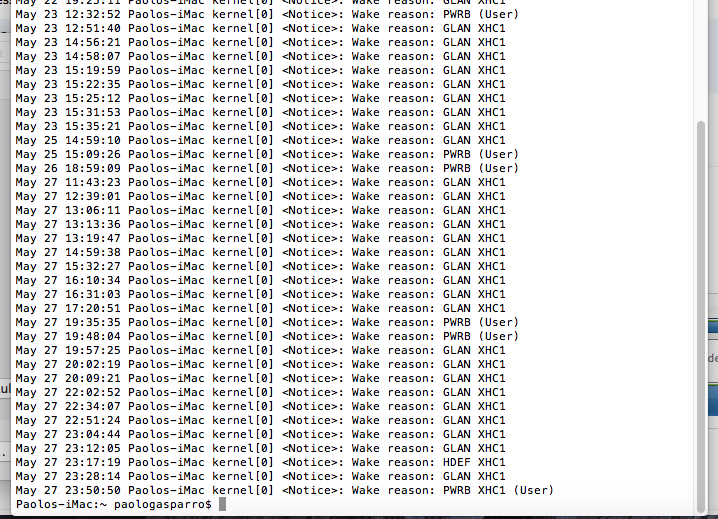

Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 It's a start i guess. still not workking.... now it says : PWRB XCH1 (user) Do you think i need a ssdt? Link to comment Share on other sites More sharing options...
WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 If Clover generates one it's not needed. Added a few essential patches, found that they where missing in the DSDT. It's not the _PWR in the devices. PWRB is because you pressed the power button, as it states (user) DSDT-3.aml 4.zip Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 If Clover generates one it's not needed. Added a few essential patches, found that they where missing in the DSDT. It's not the _PWR in the devices. PWRB is because you pressed the power button, as it states (user) not working........anyway i dont press power button.... i pressed enter key on the PS2 keyboard to wake up on the first sleep..... EDIT: I noticed that after computer wakes from the first sleep, i cant power off yosemite...i click on turn off , screen goes black but computer is still on... Link to comment Share on other sites More sharing options...
Allan Posted May 28, 2015 Share Posted May 28, 2015 Try this: DSDT.aml.zip Link to comment Share on other sites More sharing options...
Paologas91 Posted May 28, 2015 Author Share Posted May 28, 2015 Try this: DSDT.aml.zip Same problem.......cant go in sleep for the second time...... cant power off computer after the second time........ cpu frequency strangely higher than when i turn on pc first time........ weird flash red light on the case after the first wake....... Link to comment Share on other sites More sharing options...
wegface Posted May 28, 2015 Share Posted May 28, 2015 Check and recheck everything from bios, for anything silly there, as thread seems to be going in circles! Your hardware should be straight forward. I think the dsdt is irrelevant here tbh. Good luck friend! Link to comment Share on other sites More sharing options...
Paologas91 Posted May 28, 2015 Author Share Posted May 28, 2015 Check and recheck everything from bios, for anything silly there, as thread seems to be going in circles! Your hardware should be straight forward. I think the dsdt is irrelevant here tbh. Good luck friend! i dont know what options should i check in bios??? thanks.... Link to comment Share on other sites More sharing options...
wegface Posted May 28, 2015 Share Posted May 28, 2015 Load Optimized Defaults before doing anything else. If your CPU supports VT-d, find the setting and disable it. If your system has CFG-Lock, find the setting and disable it. If your system has Secure Boot Mode, find the setting and disable it. Set OS Type to Other OS, if applicable. Link to comment Share on other sites More sharing options...
hodenhagen Posted May 28, 2015 Share Posted May 28, 2015 pressed enter key on the PS2 keyboard to wake up on the first sleep.. Link to comment Share on other sites More sharing options...
Paologas91 Posted May 28, 2015 Author Share Posted May 28, 2015 Load Optimized Defaults before doing anything else. If your CPU supports VT-d, find the setting and disable it. If your system has CFG-Lock, find the setting and disable it. If your system has Secure Boot Mode, find the setting and disable it. Set OS Type to Other OS, if applicable. 1) done 2) already disabled 3) could not find cfg-lock 4) already disabled 5) could not find other os anyway what should i select in driver64UEFI of clover when i install bootloader? i was only selecting OsxAptioFxDrv... Link to comment Share on other sites More sharing options...
Paologas91 Posted May 28, 2015 Author Share Posted May 28, 2015 If Clover generates one it's not needed. Added a few essential patches, found that they where missing in the DSDT. It's not the _PWR in the devices. PWRB is because you pressed the power button, as it states (user) isnt there another way to resolve the problem? i am driving crazy.....thanks for help....... Link to comment Share on other sites More sharing options...

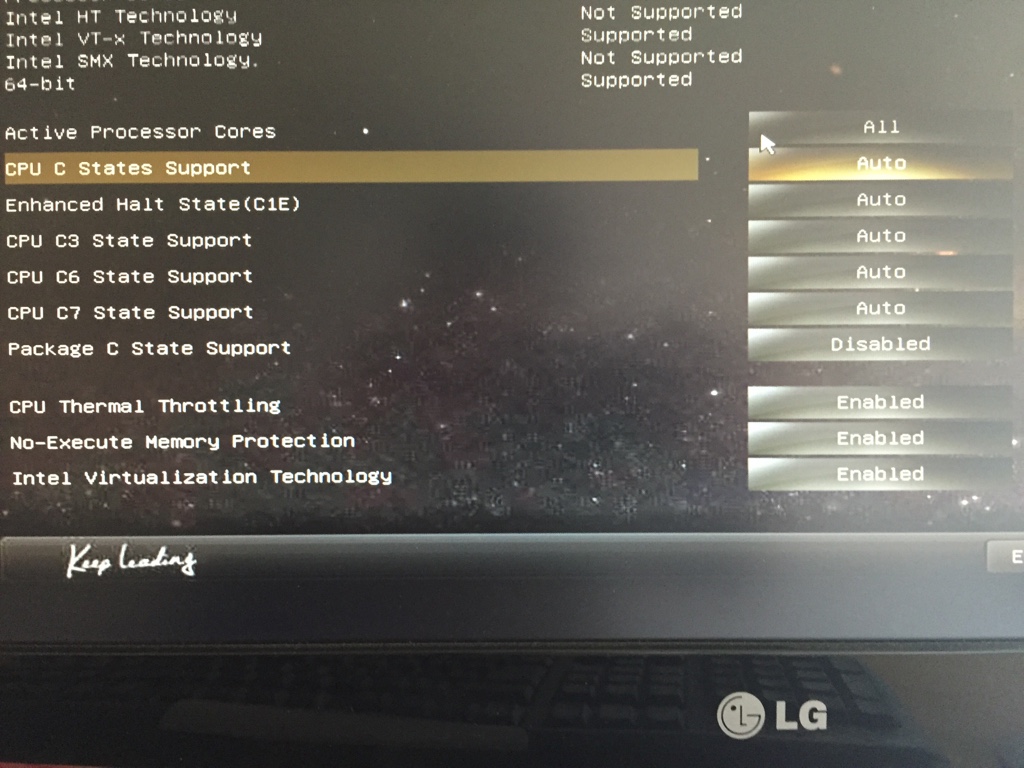

Paologas91 Posted May 28, 2015 Author Share Posted May 28, 2015 Hey guys! I found the problem! I set "package C state support" from disabled to auto and now i am able to sleep / wake all times i want! Are the settings in my bios correct? Or i should modify something? 1 Link to comment Share on other sites More sharing options...
wegface Posted May 28, 2015 Share Posted May 28, 2015 great! knew dsdt was not the cause bios setting are the one thing have to do on ones own! Link to comment Share on other sites More sharing options...
Paologas91 Posted May 28, 2015 Author Share Posted May 28, 2015 great! knew dsdt was not the cause bios setting are the one thing have to do on ones own! weg now i have only speedstep problem.. .when i wake frequency does not get minimum (800Mhz)... how can I do? i am in chat if u want.. For example i found a guide for AsRock H97 Pro4 (with i5-4460) that has this settings to work: Advanced / CPU Configuration [CPU PM (native XCPM mode) & flawless Sleep and Wake]: CPU C States Support = Enabled Enhanced Halt Support (C1E) = Enabled CPU C3 State Support = Disabled CPU C6 State Support = Auto CPU C7 State Support = Auto Package C State Support = C6 Link to comment Share on other sites More sharing options...
Paologas91 Posted May 28, 2015 Author Share Posted May 28, 2015 weg now i have only speedstep problem.. .when i wake frequency does not get minimum (800Mhz)... how can I do? i am in chat if u want.. For example i found a guide for AsRock H97 Pro4 (with i5-4460) that has this settings to work: Advanced / CPU Configuration [CPU PM (native XCPM mode) & flawless Sleep and Wake]: CPU C States Support = Enabled Enhanced Halt Support (C1E) = Enabled CPU C3 State Support = Disabled CPU C6 State Support = Auto CPU C7 State Support = Auto Package C State Support = C6 With the settings described above i resolved the issue with speedstep With the settings described above i resolved the issue with speedstepi only had to set fixshutdown in clover configurator because after the first sleep Mac OS X does not shut down. 1 Link to comment Share on other sites More sharing options...
Allan Posted May 28, 2015 Share Posted May 28, 2015 Make a test: How to check your states – Using AICPMInfo, MSRDumper or AppleIntelInfo Link to comment Share on other sites More sharing options...
Paologas91 Posted May 28, 2015 Author Share Posted May 28, 2015 Make a test: How to check your states – Using AICPMInfo, MSRDumper or AppleIntelInfo how can i open the project code? which app should i use? Link to comment Share on other sites More sharing options...
Allan Posted May 28, 2015 Share Posted May 28, 2015 how can i open the project code? which app should i use? Xcode.... Link to comment Share on other sites More sharing options...

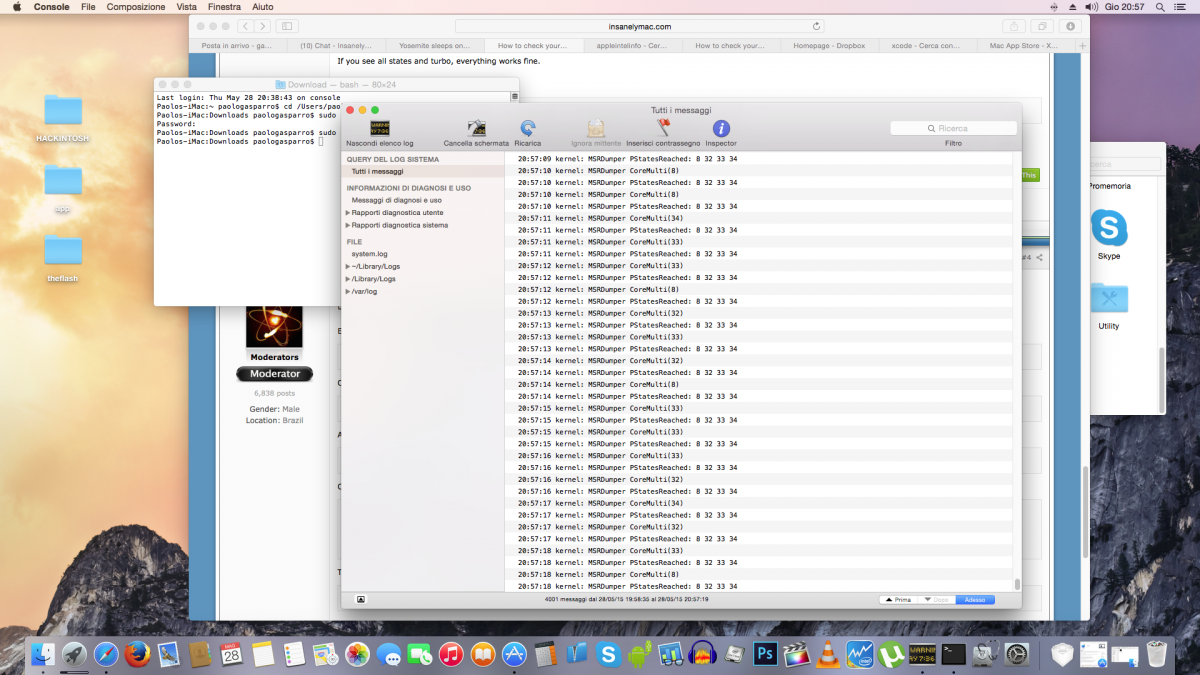

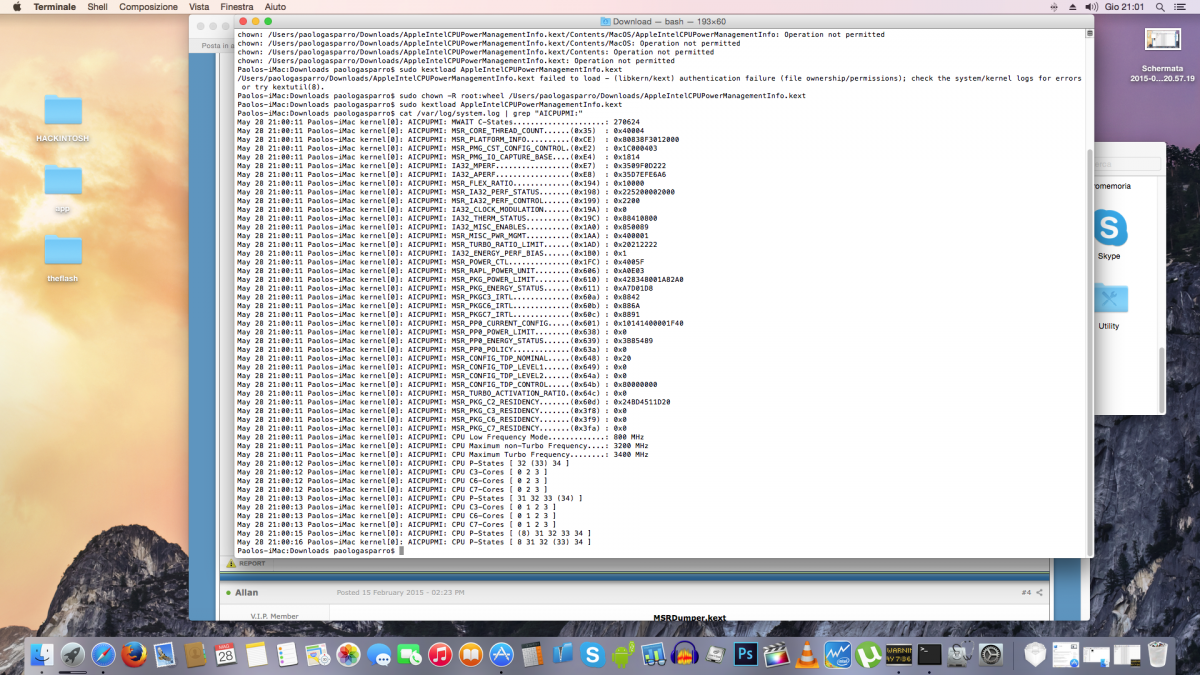

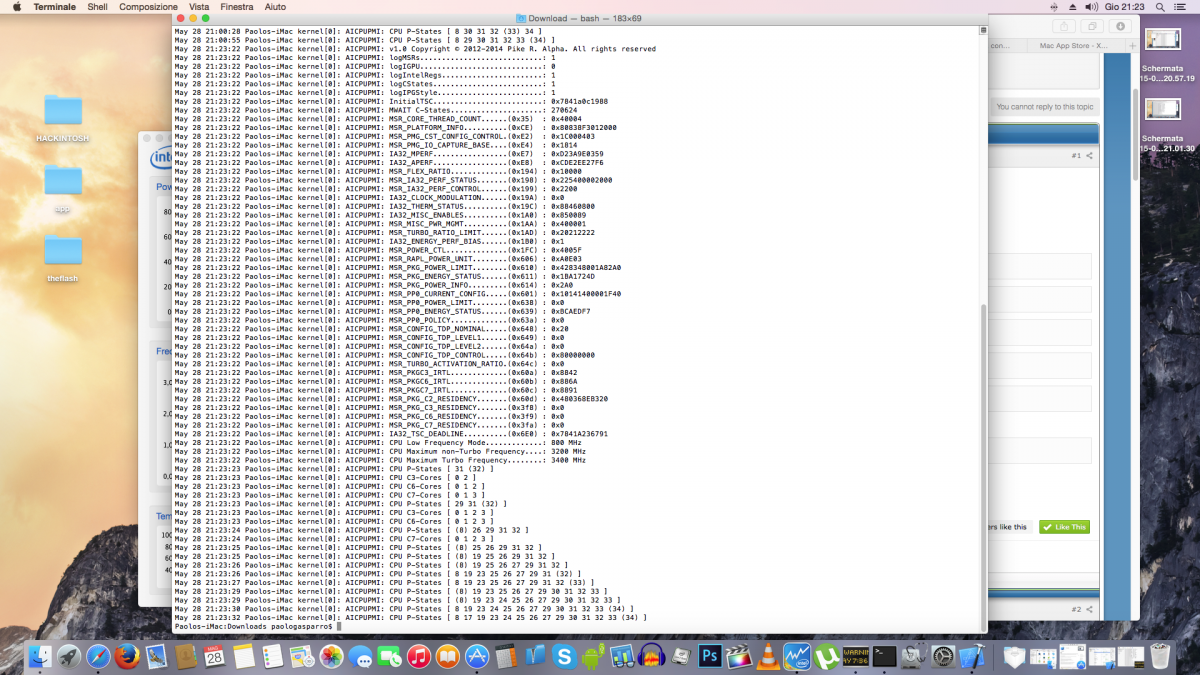

Paologas91 Posted May 28, 2015 Author Share Posted May 28, 2015 Xcode.... i done all the tests....the first screen is msrdumper.kext, the second is appleintelCPUpowermanagementinfo and the third AppleIntelinfo.kext. What do u think? Link to comment Share on other sites More sharing options...
Allan Posted May 29, 2015 Share Posted May 29, 2015 Ok, with AppleIntelInfo, you can see that all your states is working great. Check in Intel's site: http://ark.intel.com/pt-br/products/80817/Intel-Core-i5-4460-Processor-6M-Cache-up-to-3_40-GHz Link to comment Share on other sites More sharing options...
