Paologas91 Posted May 27, 2015 Share Posted May 27, 2015 Hi there, i have a problem with sleep/wake. My yosemite auto-sleeps on the first time, then i wake and on the second time he does not sleeps more...screen stays black and computer does not suspend... i tried all darkwake options... i read somewhere that could be fixed by modifying dsdt... u could help me? thanks for help! Link to comment Share on other sites More sharing options...
WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 Hi, After the first time sleep/wake, open up terminal and type: pmset -g assertions The output should be similar to this: Assertion status system-wide: BackgroundTask 0 ApplePushServiceTask 0 UserIsActive 0 PreventUserIdleDisplaySleep 0 PreventSystemSleep 0 ExternalMedia 0 PreventUserIdleSystemSleep 1 NetworkClientActive 0 Listed by owning process: pid 1479(Unison): [0x000000950001017e] 11:57:31 NoIdleSleepAssertion named: "Unison Transfers" Kernel Assertions: 0x4=USB id=500 level=255 0x4=USB mod=27-05-15 02:43 description=EHC1 owner=AppleUSBEHCI id=501 level=255 0x4=USB mod=27-05-15 02:55 description=XHC1 owner=AppleUSBXHCI id=502 level=255 0x4=USB mod=27-05-15 02:48 description=EHC2 owner=AppleUSBEHCI In my case Unison will prevent sleep. 2 Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 Hi, After the first time sleep/wake, open up terminal and type: pmset -g assertions The output should be similar to this: Assertion status system-wide: BackgroundTask 0 ApplePushServiceTask 0 UserIsActive 0 PreventUserIdleDisplaySleep 0 PreventSystemSleep 0 ExternalMedia 0 PreventUserIdleSystemSleep 1 NetworkClientActive 0 Listed by owning process: pid 1479(Unison): [0x000000950001017e] 11:57:31 NoIdleSleepAssertion named: "Unison Transfers" Kernel Assertions: 0x4=USB id=500 level=255 0x4=USB mod=27-05-15 02:43 description=EHC1 owner=AppleUSBEHCI id=501 level=255 0x4=USB mod=27-05-15 02:55 description=XHC1 owner=AppleUSBXHCI id=502 level=255 0x4=USB mod=27-05-15 02:48 description=EHC2 owner=AppleUSBEHCI In my case Unison will prevent sleep. This is what happens to me : Last login: Wed May 27 14:52:42 on console Paolos-iMac:~ paologasparro$ pmset -g assertions 2015-05-27 15:00:41 +0200 Assertion status system-wide: BackgroundTask 0 ApplePushServiceTask 0 UserIsActive 0 PreventUserIdleDisplaySleep 0 PreventSystemSleep 0 ExternalMedia 0 PreventUserIdleSystemSleep 0 NetworkClientActive 0 Kernel Assertions: 0x10c=USB,BT-HID,MAGICWAKE id=502 level=255 0x4=USB mod=27/05/15 17:02 description=XHC1 owner=AppleUSBXHCI id=503 level=255 0x100=MAGICWAKE mod=27/05/15 15:10 description=en0 owner=en0 id=505 level=255 0x8=BT-HID mod=01/01/70 01:00 description=com.apple.driver.IOBluetoothHIDDriver owner=IOAppleBluetoothHIDDriver Paolos-iMac:~ paologasparro$ Link to comment Share on other sites More sharing options...
WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 Can you post your DSDT? And for the record, this is about the system in your signature? Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 Can you post your DSDT? And for the record, this is about the system in your signature? yes the configuration in the signature its mine thanks for help........ here the dsdt... dsdt.zip Link to comment Share on other sites More sharing options...
WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 The intel 9 series usb patch from palms repo was applied? It does not differ from the 7/8 series patch, so i applied the usb3.0 multiplex patch. Don't know if it is an USB issue, but worth a try. Can you also type in terminal: syslog |grep -i "Wake reason" DSDT.aml.zip 1 Link to comment Share on other sites More sharing options...

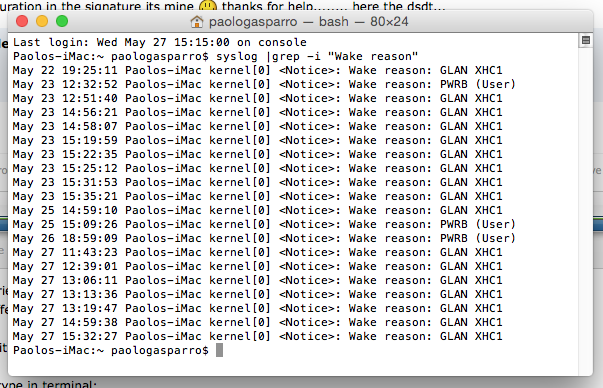

Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 The intel 9 series usb patch from palms repo was applied? It does not differ from the 7/8 series patch, so i applied the usb3.0 multiplex patch. Don't know if it is an USB issue, but worth a try. Can you also type in terminal: syslog |grep -i "Wake reason" this is the output... Link to comment Share on other sites More sharing options...

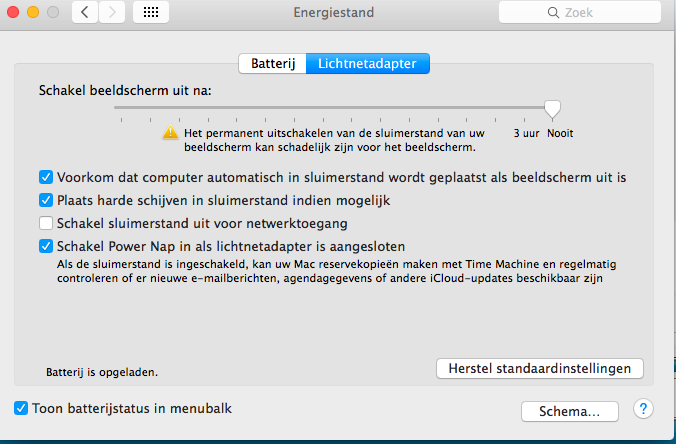

WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 Under power management disable the option about network access. Netwerktoegang = Network Access. About the USB, might be causing the issue, let me know if the DSDT solves the issue. 1 Link to comment Share on other sites More sharing options...
Allan Posted May 27, 2015 Share Posted May 27, 2015 About the USB, might be causing the issue, let me know if the DSDT solves the issue. Sometimes removing _PRW in USB Devices into DSDT can resolve. 1 Link to comment Share on other sites More sharing options...
WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 Sometimes removing _PRW in USB Devices into DSDT can resolve. Did not work for me in the past, in my own DSDT i used the patch from RehabMan's repo: Name (_PRW, Package (0x02) // _PRW: Power Resources for Wake { 0x6D, 0x03 }) Changed from the standard 0x09, 0x04. Might just be that just disabling the Network thing solves it. 1 Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 Did not work for me in the past, in my own DSDT i used the patch from RehabMan's repo: Name (_PRW, Package (0x02) // _PRW: Power Resources for Wake { 0x6D, 0x03 }) Changed from the standard 0x09, 0x04. Might just be that just disabling the Network thing solves it. i tried disabling the network option but it has no effect.....still having problem... EDIT: I found this link where a guy has my problem and fixed it......what do u think? http://olarila.com/forum/viewtopic.php?f=31&t=4065 Link to comment Share on other sites More sharing options...
mnfesq Posted May 27, 2015 Share Posted May 27, 2015 I added this to my XHC Device: Method (_DSM, 4, NotSerialized) { Store (Package (0x04) { "device-id", Buffer (0x04) { 0x03, 0x0C, 0x30, 0x00 }, "AAPL,clock-id", Buffer (One) { 0x01 } }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) } It may only get my USB recognized. If that's all it does, sorry. My H_EC device does not have/need a _PRW method and our chipsets aren't that different. Link to comment Share on other sites More sharing options...
WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 It comes down to what Alan and i discussed above. I made the changes to _PRW under EHC1 EHC2 and XHC1. If it does not work, remove _PRW from those devices and see if that changes anything. DSDT-2.aml.zip 1 Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 It comes down to what Alan and i discussed above. I made the changes to _PRW under EHC1 EHC2 and XHC1. If it does not work, remove _PRW from those devices and see if that changes anything. ok so i tried but still not working.....but i noticed something weird... after the first sleep, there is another problem: cpu speedstep minimum does not get more 0.80mhz... and the red light on the case ( i think is hdd light) is flashing every second........ maybe its this the problem it wont let me sleep the second time...... so i think the answer to my problem is that the system after the first sleep is not like when i start pc for the first time..... i dont know if i am explaning..... but this is what i see! anyway a friend gave me this new dsdt that i am using (with LCP loading) so i am using this now. DSDT.aml.zip Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 Nobody knows what can I do ? Link to comment Share on other sites More sharing options...
WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 Besides the DSDT, do you also have an SSDT? And which boot loader are you using? Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 Besides the DSDT, do you also have an SSDT? And which boot loader are you using? I am using UEFI clover bootloader. Clover generates me SSDT...that is what my friend said to me when he gave me the config.plist today.... Link to comment Share on other sites More sharing options...
hodenhagen Posted May 27, 2015 Share Posted May 27, 2015 can be a problem with bluetooth or wifi , but this wake reason GLAN is some with Ethernet, try change the kext Ethernet for other that work to your card Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 Sometimes removing _PRW in USB Devices into DSDT can resolve. how can i remove _PWR in USB devices? i attach my dsdt ....thank u ! can be a problem with bluetooth or wifi , but this wake reason GLAN is some with Ethernet, try change the kext Ethernet for other that work to your card i already disabled wake-up by ethernet on power saving with no results...... EDIT: GLAN is not some with ethernet because i press the mouse button to resume system .. i am sure of this... DSDT.aml.zip Link to comment Share on other sites More sharing options...
WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 _PWR removed from EHC1, EHC2, XHC1. DSDT-3.aml.zip Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 _PWR removed from EHC1, EHC2, XHC1. thank u lex...but with this dsdt still not work sleep.......alternatives? Link to comment Share on other sites More sharing options...

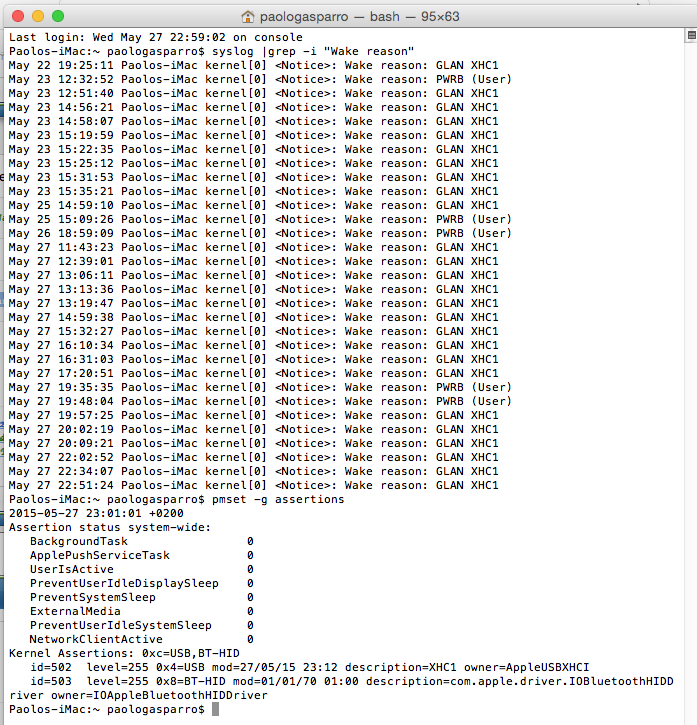

WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 Well, the DSDT has been edited multiple times, the Network option has been disabled, could you do another: syslog |grep -i "Wake reason" And also: pmset -g assertions Link to comment Share on other sites More sharing options...
Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 Well, the DSDT has been edited multiple times, the Network option has been disabled, could you do another: syslog |grep -i "Wake reason" And also: pmset -g assertions it tells GLAN but i only left-click mouse to wake the system (the first sleep) Link to comment Share on other sites More sharing options...
WaldMeister Posted May 27, 2015 Share Posted May 27, 2015 _PWR also removed from GLAN. DSDT-3.aml 2.zip Link to comment Share on other sites More sharing options...

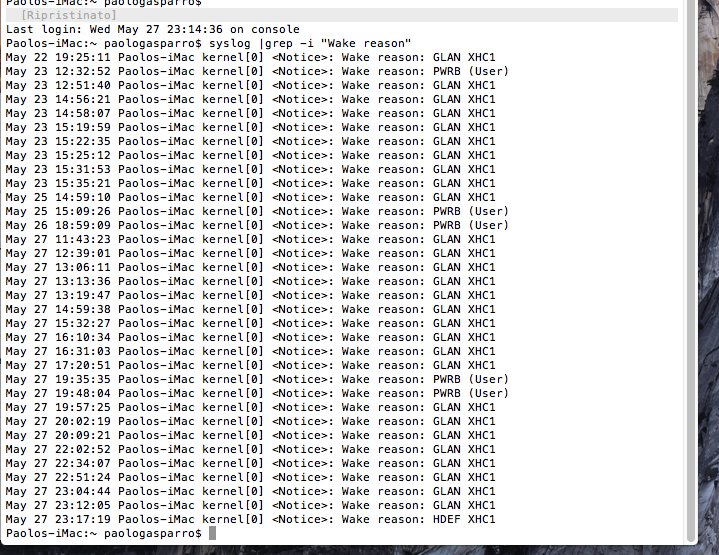

Paologas91 Posted May 27, 2015 Author Share Posted May 27, 2015 _PWR also removed from GLAN. still not working but now with the last dsdt the result of syslog |grep -i "Wake reason" has changed as u see in screenshot (HDEF) Link to comment Share on other sites More sharing options...
