ammar_dv Posted January 22, 2015 Share Posted January 22, 2015 I have a laptop , Fujitsu LifeBook AH530 , with the following specifications : CPU : ( Arrandale ) Intel Core i3 350M Graphics Adapter: Intel Graphics HD 2000 Display: 15.6 inch, 16:9, 1366x768 pixels, Audio : Realtek® codec ALC269 Atheros AR9285 Wireless Network Adapter I installed Yosemite OS but I could not get the audio working nor the graphics , I tried for weeks but every time I try to install kexts the laptop can not boot and get stuck . . . . so please I need help to get the graphics and the audio (including the Microphone) working . attached is compressed file that includes the following : DSDT.aml Intel_reg_dumper.txt System Devices.txt acpidump.out apic.dat boot.dat dsdt.dat facp.dat facs.dat hpet.dat mcfg.dat rsdp.dat rsdt.dat slic.dat ssdt1.dat ssdt2.dat ssdt3.dat ssdt4.dat ssdt5.dat xsdt.dat (I extracted these file using Linux UBUNTU) thanks. Fujitsu AH530.rar 1 Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/ Share on other sites More sharing options...
Allan Posted January 22, 2015 Share Posted January 22, 2015 Check here for your video graphics: [GUIDE] 1st Generation Intel HD Graphics QE/CI And for audio, see this: http://www.hackintoshosx.com/files/file/4260-alc-269-kext-dsdt/ 1 Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2104746 Share on other sites More sharing options...
ammar_dv Posted January 22, 2015 Author Share Posted January 22, 2015 thanks Allan , but , I already tried the Guide for the 1st generation Intel HD Graphics for weeks with no result , every time I get a black screen then I had to reboot with "-x" flag and then delete the kexts , ... - before I had "Mavericks OS 10.9" installed , and I used the 'Guide' you mentioned and it was successful , I also managed to get the audio working ( but not the microphone !) , - with 'mavericks os' I only could connect to wifi when it has no password (could never connect to wifi network that was protected by password) , but with Yosemite it connects ok . I don't know why I can not get the Graphics working , I would also need the microphone to use it with skype, * about the second link : http://www.hackintoshosx.com/files/file/4260-alc-269-kext-dsdt/ , I will try this later and see if it works I appreciate if you have any suggestions why the graphics did not work ., will DSDT edit work ? and how ?! Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2104792 Share on other sites More sharing options...
Allan Posted January 22, 2015 Share Posted January 22, 2015 You try all steps in 1st generation Intel HD Graphics guide? 2 Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2104810 Share on other sites More sharing options...
ammar_dv Posted January 22, 2015 Author Share Posted January 22, 2015 yes , I guess I tried all the steps required , it succeeded when I was using 'Mavericks 10.9' , and I managed to get the full native resilution which is 1366x768 pixels , but when upgraded to Yosemite 10.10 , only got the basic resolution and the picture was not good . . . ** the only thing I did not try is editing DSDT , I am not sure how to do it of if it is necessary . . . Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2104819 Share on other sites More sharing options...
Allan Posted January 23, 2015 Share Posted January 23, 2015 You made a backup of all the kexts? Because if yes, you need just reinstall. 1 Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2104979 Share on other sites More sharing options...
ammar_dv Posted January 30, 2015 Author Share Posted January 30, 2015 finally today , after erasing and re-installing Yosemite 10.10 for the third time in one day , almost everything is working fine (except the battery indicator is missing) , I think the problem was a mix of not using the correct kext and the right boot flags. 1. to get the graphic card working I used the following boot flags : kext-dev-mode=1 GraphicsEnabler=Yes UseKernelCache=No 2. I downloaded the "Intel HD Graphics QECI 10.10" kexts from the link Allan posted above and installed the main four kexts and I chose the fifth one from "Single Link/Alternate/LCD+VGA/ .... LW1/AppleIntelHDGraphicsFB.kext" - (a copy of this file is attached) 3. and copied the "Resolution.dylib" to "/Extra/Modules/Resolution.dylib" - (a compressed copy is attached) 4. "repair permissions" and "rebuild cache" using some kext utility and then reboot. ( I think this step was my main problem in previous installations , maybe using the "UseKernelCache=No" this time helped . . . ) 5. now for the sound and microphone I just used the kext "VoodooHDA.kext" version 2.8.6 (a copy is attached ) , after installation, perform the "repair permissions" and "rebuild cache" then reboot. the sound quality is not perfect . . . . but at least the microphone is working now , and I could not get the "battery status to show on menu bar" although it was showing normally in previous installation attempts ,... another problem is battery is drained much quicker than when using the laptop with Windows 8.1 , and of course the usual "sleep / wake" problem . * so after all , I did not need for a DSDT edits . . . . VoodooHDA.kext.zip AppleIntelHDGraphicsFB.kext.zip Resolution.dylib.zip 2 Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2107170 Share on other sites More sharing options...
kd503_b Posted March 27, 2015 Share Posted March 27, 2015 How did you rebuild the cache? Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2123671 Share on other sites More sharing options...
WaldMeister Posted March 27, 2015 Share Posted March 27, 2015 Use a program like iKext or kext utility. Or open up a terminal window and type: sudo touch /System/Library/Extensions sudo kextcache -u / 1 Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2123701 Share on other sites More sharing options...

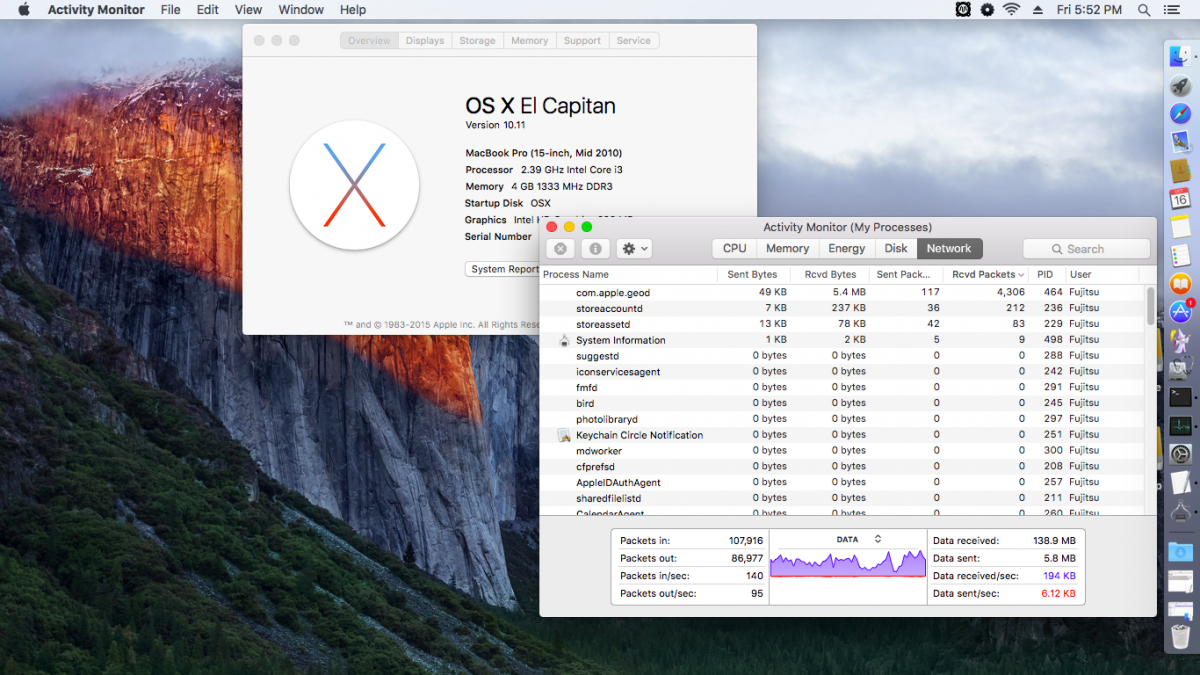

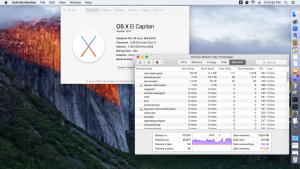

ammar_dv Posted October 16, 2015 Author Share Posted October 16, 2015 today I have re-installed El Capitan , graphics works [ but only after using 'Natit.kext' ] , wifi network works , audio works even much better quality than it was with 'Yosemite' , . . . now I am using 'Clover' , and there is no more BOIS reset , which is great ... problem is : 1 . Bluetooth not working , it was working when I was using 'Yosemite' , . . . 2 . Battery indicator not working , ... * also , I noticed for the first time that there are some processes such as "nsurlsessiond" consumes 'huge' amount of data on the background , now I have to check "Activity Monitor" overtime and then to see if something is using the network on background . . . ( I use Terminal to stop the nsurlsessiond ) I hope some can help me solve the Bluetooth and the Battery Indicator issues, thanks ! (all details of my pc is listed in the first post) 1 Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2178455 Share on other sites More sharing options...
kd503_b Posted October 16, 2015 Share Posted October 16, 2015 Can you attach the kext that you are using for the keyboard an the trackpad? Does the hdmi ot the vga works? Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2178483 Share on other sites More sharing options...
ammar_dv Posted October 16, 2015 Author Share Posted October 16, 2015 I did not test the HDMI nor the VGA ports ... , yet ! about the kext for the keyboard and trackpad , I use "VoodooPS2Controller.kext" , you will find it attached , I had to use an external USB keyboard and an external USB mouse at my first attempts to install El Capitan , but it is possible to add this kext to Clover (EFI/CLOVER/kexts/Other ) at the time of making the USB so the keyboard will work at the 'first' boot and immediately install the kext ! ** I am still searching for solutions for the 'Bluetooth' and the 'Battery Indicator'.... VoodooPS2Controller.kext.zip 1 Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2178510 Share on other sites More sharing options...

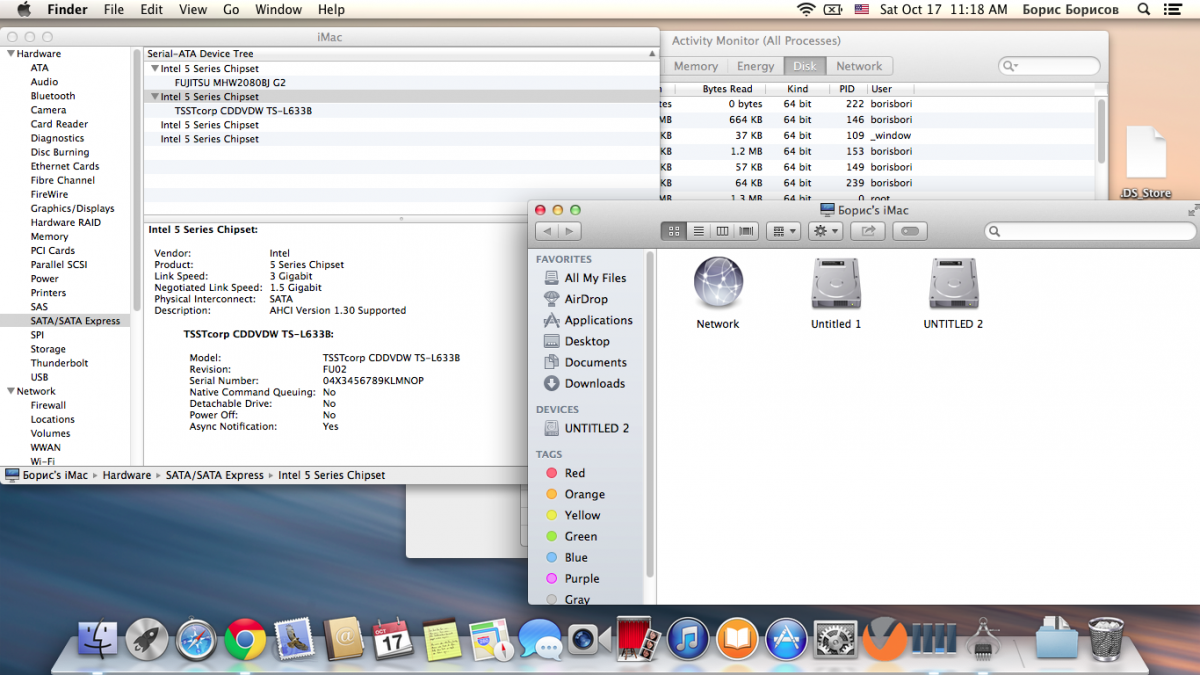

kd503_b Posted October 17, 2015 Share Posted October 17, 2015 Thank you very much for the kext, i will try it. I managed to get my battery indicator with VoodooBattery kext, but i eventually removed it because it was taking more time to boot and my battery is dead anyway. I tried the voodoo kext but it didn't work, probably i will never get that keyboard working... Also i noticed something weird - i see my cd in the system information window but it doesn't show up in finder. Do you have an idea how to fix it? Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2178700 Share on other sites More sharing options...
ammar_dv Posted October 17, 2015 Author Share Posted October 17, 2015 after installing the "VoodooPS2Controller.kext" make sure to re-build cache , ... about the CD Drive , in my case it only appears when I insert a disc inside it .... Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2178839 Share on other sites More sharing options...
kd503_b Posted October 17, 2015 Share Posted October 17, 2015 I used kext utility so the cache was rebuilt. I don't know, should i put some other kexts like ApplePS2Controller, ApplePS2Keyboard? I've been trying to get that keyboard working for months with no success, probably i will never suceed... Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2178878 Share on other sites More sharing options...
ammar_dv Posted October 17, 2015 Author Share Posted October 17, 2015 what did you use to install your OSX ? Clover OS X El Capitan-V5 from http://www.insanelymac.com/forum/topic/307003-clover-os-x-el-capitan-usb/ or did you use other installer ?maybe you have to re-install from the beginning , me myself installed it many times until I finally got it working 'except Bluetooth and Battery Indicator' , * when you prepare the installation USB try to add the VoodooPS2Controller.kext to the folder "EFI/CLOVER/kexts/Other" Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2178919 Share on other sites More sharing options...
kd503_b Posted October 19, 2015 Share Posted October 19, 2015 I have installed Maverics with chameleon bootloader. Most probably I can't make it work because I didn't put the voodooo kext in the extra folder. I'll try reinstalling in with the kext in the extra folder. Thanks for the help. Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2179465 Share on other sites More sharing options...
ammar_dv Posted October 25, 2015 Author Share Posted October 25, 2015 * I still need help to solve the Bluetooth and the Battery Indicator issues, any suggestions ? Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2181961 Share on other sites More sharing options...
kd503_b Posted October 25, 2015 Share Posted October 25, 2015 Did you tried Vooodooo Battery kext? Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2182006 Share on other sites More sharing options...
ammar_dv Posted October 25, 2015 Author Share Posted October 25, 2015 yes , I did try it , actually Batter Indicator worked fine when I installed Yosemite , I tried to use the same Yosemite kexts in El Capitan but did work, also Bluetooth worked in Yosemite but when upgraded to El Capitan did not work .... Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2182070 Share on other sites More sharing options...
Amit_ Posted November 4, 2015 Share Posted November 4, 2015 yes , I did try it , actually Batter Indicator worked fine when I installed Yosemite , I tried to use the same Yosemite kexts in El Capitan but did work, also Bluetooth worked in Yosemite but when upgraded to El Capitan did not work .... why r u using El Capitan with Intel HD 1st gen.... it is so slow and laggy. I'd recommend using 10.8 ML like I am. Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2185425 Share on other sites More sharing options...
ammar_dv Posted November 6, 2015 Author Share Posted November 6, 2015 actually quite the opposite ! I tried Mavericks , Yosemite and now El Capitan , ... between these three El Capitan seems to be the more better (except for the Bluetooth and Battery indicator) , specially that some new software will not work on older OSX versions such as the XCode 7. Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2185965 Share on other sites More sharing options...
artur_pt Posted November 7, 2015 Share Posted November 7, 2015 hello use rehabman kext for bat and test this dsdt DSDT.aml.zip good hack 1 Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2186275 Share on other sites More sharing options...

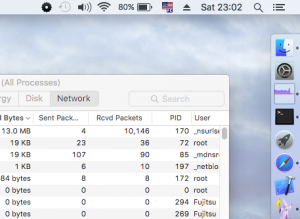

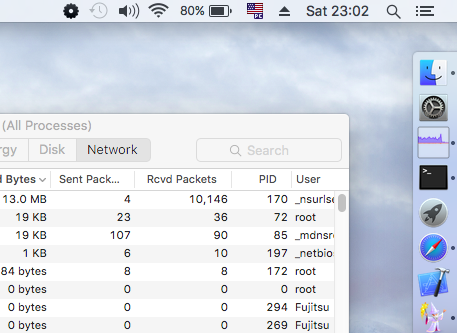

ammar_dv Posted November 7, 2015 Author Share Posted November 7, 2015 artur_pt. thanks very much ! now the battery indicator works . . . . so , remaining the bluetooth ... any suggestions ? Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2186407 Share on other sites More sharing options...
artur_pt Posted November 7, 2015 Share Posted November 7, 2015 hello what bt u have ? post dev id and vendor id where u see u have a compatible one ? good hack Link to comment https://www.insanelymac.com/forum/topic/304064-need-help-bluetooth-battery-indicator-fujitsu-ah530/#findComment-2186424 Share on other sites More sharing options...
