Workstation 11/12, Player 7/12, Fusion 7/8 and ESXi 6 Mac OS X Unlocker 2

mindragon · September 18, 2015

Hello,

I have a PC (SuperMicro Xeon (2012 series) / Nvidia 400 series / 24gb RAM) running Windows 10 and VMWare Workstation 12. I have Yosemite running and updated to the latest with the VMWare Tools. I tried VMWare tools from several sources but I am not able to get more than 1024x768 for a resolution.

Any ideas?

roswellian · September 19, 2015

@mindragon I met the same problem...hasn't found any solution yet.

versari · September 19, 2015

I tried VMWare tools from several sources but I am not able to get more than 1024x768 for a resolution.

Any ideas?

@mindragon I met the same problem...hasn't found any solution yet.

Go to VMware Workstation preferences and open Display section.
Make sure no check boxes are selected in Autofit group.
In Full screen group choose Center guest radio button.
Click OK.
Power on OS X VM.
Play with screen resolution settings in OS X.

roswellian · September 19, 2015

Go to VMware Workstation preferences and open Display section.

Make sure no check boxes are selected in Autofit group.

In Full screen group choose Center guest radio button.

Click OK.

Power on OS X VM.

Play with screen resolution settings in OS X.

Thanks!!! that works really well!

teoad · September 22, 2015

I'm having trouble installing OS X Yosemite on a Windows computer using VMware Workstation 12 (I can downgrade if it makes it any easier).

I have a .dmg file which I have converted to a .iso file. I have run the newest Unlocker 2 as admin, created a OS X 10.10 virtual machine and added smc.version = "0" to the VMX-file. The CD-ROM is pointed to the Yosemite .iso file.

But when I start the virtual machine it can't boot from my .iso. Nothing happens, no error message, I just get the VMware "BIOS" screen where I can choose between hard drive, CD-ROM etc. Any tips?

MSoK · September 22, 2015

I'm having trouble installing OS X Yosemite on a Windows computer using VMware Workstation 12 (I can downgrade if it makes it any easier).

I have a .dmg file which I have converted to a .iso file. I have run the newest Unlocker 2 as admin, created a OS X 10.10 virtual machine and added smc.version = "0" to the VMX-file. The CD-ROM is pointed to the Yosemite .iso file.

But when I start the virtual machine it can't boot from my .iso. Nothing happens, no error message, I just get the VMware "BIOS" screen where I can choose between hard drive, CD-ROM etc. Any tips?

teoad,

You do not need to convert the .dmg to a .iso, if you have created the .dmg with the script in the second post of the thread, link below:

http://www.insanelymac.com/forum/topic/290949-how-to-install-os-x-10x-snow-leopard-lion-mountain-lion-mavericks-and-yosemite-in-vmware-workstation-1011-or-player-67/

fumero · September 23, 2015

Could someone help me?? I cant find a way to patch the unlock 2.0.7 in VMWare WorkStation Player 12, when i click the windows installer with administrative rights the process is abruptely interrupted and nothing happens, very unlike the youtube videos, the option to install MAC OS X is not visible in VMWare Workstation Player 12.

I tried to install python 3.x.x but that didn t help too.

Can someone shed a light on this problem??

Donk · September 23, 2015

Could someone help me?? I cant find a way to patch the unlock 2.0.7 in VMWare WorkStation Player 12, when i click the windows installer with administrative rights the process is abruptely interrupted and nothing happens, very unlike the youtube videos, the option to install MAC OS X is not visible in VMWare Workstation Player 12.

I tried to install python 3.x.x but that didn t help too.

Can someone shed a light on this problem??

Open an elevated command prompt and then run win-install.cmd. You will then see the output which may help with debugging the problem.

fumero · September 23, 2015

Open an elevated command prompt and then run win-install.cmd. You will then see the output which may help with debugging the problem.

Did not work either, after opened the elevated prompt cmd and run win-install it still ends abruptely.

Donk · September 24, 2015

Did not work either, after opened the elevated prompt cmd anr run win-install it still ends abruptely.

No output at all?

fumero · September 24, 2015

No output at all?

I managed to get a print screen and this what happens:

In the end it says IO Error #13: xcopy is not recognized as a input or output command, a operable program or batch files.

Anyway to resolve this problems?? I tried to uninstall VMWare Workstation Player 12 and install VMWare Player 7.1.2 and got tha same error.

Donk · September 24, 2015

I managed to get a print screen and that what what happens:

In the end it says IO Error #13: xcopy is not recognized as a input or output command, a operable program or batch files.

Anyway to resolve this problems?? I tried to uninstall VMMware Workstation Player 12 and install VMWare Player 7.1.2 and got tha same error.

Looks like the vmwarebase.dll is open so must be a process still using it. Is the host Portuguese Windows 10? I could get a copy and try it out.

fumero · September 24, 2015

Looks like the vmwarebase.dll is open so must be a process still using it. Is the host Portuguese Windows 10? I could get a copy and try it out.

Yes, it is Windows 10 but is Portuguese-Brazilian(PT-BR).

Donk · September 24, 2015

Yes, it is Windows 10 but is Portuguese-Brazilian(PT-BR).

OK downloading from MSDN now. WIll be tomorrow UK time before I can test.

I have tested it and works fine. Here is the output you should see:

VMware Unlocker 2.0.7
========================
(c) Dave Parsons 2011-15
VMware is installed at: C:\Program Files (x86)\VMware\VMware Player\
Stopping VMware services...
Backing up files...
C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx.exe -> C:\Users\vmware\Downloads\unlocker207\backup\x64\vmware-vmx.exe
1 arquivo(s) copiado(s)
C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx-debug.exe -> C:\Users\vmware\Downloads\unlocker207\backup\x64\vmware-vmx-debug.exe
1 arquivo(s) copiado(s)
Arquivo não encontrado  - vmware-vmx-stats.exe
0 arquivo(s) copiado(s)
C:\Program Files (x86)\VMware\VMware Player\vmwarebase.dll -> C:\Users\vmware\Downloads\unlocker207\backup\vmwarebase.dll
1 arquivo(s) copiado(s)
Patching...
File: C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx.exe
appleSMCTableV0 (smc.version = "0")
appleSMCTableV0 Address      : 0xb3fa30
appleSMCTableV0 Private Key #: 0xF2/242
appleSMCTableV0 Public Key  #: 0xF0/240
appleSMCTableV0 Table        : 0xb3b620
+LKS Key:
002 0xb3b668 +LKS 01 flag 0x90 0x1401214f0L 07
OSK0 Key Before:
241 0xb3f9a0 OSK0 32 ch8* 0x80 0x140121570L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK0 Key After:
241 0xb3f9a0 OSK0 32 ch8* 0x80 0x1401214f0L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
242 0xb3f9e8 OSK1 32 ch8* 0x80 0x140121570L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK1 Key After:
242 0xb3f9e8 OSK1 32 ch8* 0x80 0x1401214f0L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63


appleSMCTableV1 (smc.version = "1")
appleSMCTableV1 Address      : 0xb3b600
appleSMCTableV1 Private Key #: 0x01B4/436
appleSMCTableV1 Public Key  #: 0x01B0/432
appleSMCTableV1 Table        : 0xb33b60
+LKS Key:
004 0xb33c38 +LKS 01 flag 0x90 0x1401214f0L 01
OSK0 Key Before:
435 0xb3b570 OSK0 32 ch8* 0x90 0x140121570L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK0 Key After:
435 0xb3b570 OSK0 32 ch8* 0x90 0x1401214f0L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
436 0xb3b5b8 OSK1 32 ch8* 0x90 0x140121570L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK1 Key After:
436 0xb3b5b8 OSK1 32 ch8* 0x90 0x1401214f0L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63


File: C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx-debug.exe
appleSMCTableV0 (smc.version = "0")
appleSMCTableV0 Address      : 0xcd1d30
appleSMCTableV0 Private Key #: 0xF2/242
appleSMCTableV0 Public Key  #: 0xF0/240
appleSMCTableV0 Table        : 0xccd920
+LKS Key:
002 0xccd968 +LKS 01 flag 0x90 0x140160110L 07
OSK0 Key Before:
241 0xcd1ca0 OSK0 32 ch8* 0x80 0x140160270L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK0 Key After:
241 0xcd1ca0 OSK0 32 ch8* 0x80 0x140160110L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
242 0xcd1ce8 OSK1 32 ch8* 0x80 0x140160270L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK1 Key After:
242 0xcd1ce8 OSK1 32 ch8* 0x80 0x140160110L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63


appleSMCTableV1 (smc.version = "1")
appleSMCTableV1 Address      : 0xccd900
appleSMCTableV1 Private Key #: 0x01B4/436
appleSMCTableV1 Public Key  #: 0x01B0/432
appleSMCTableV1 Table        : 0xcc5e60
+LKS Key:
004 0xcc5f38 +LKS 01 flag 0x90 0x140160110L 01
OSK0 Key Before:
435 0xccd870 OSK0 32 ch8* 0x90 0x140160270L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK0 Key After:
435 0xccd870 OSK0 32 ch8* 0x90 0x140160110L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
436 0xccd8b8 OSK1 32 ch8* 0x90 0x140160270L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK1 Key After:
436 0xccd8b8 OSK1 32 ch8* 0x90 0x140160110L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63


GOS Patching: C:\Program Files (x86)\VMware\VMware Player\vmwarebase.dll
GOS Patched flag @: 0x44c120
GOS Patched flag @: 0x44c160
GOS Patched flag @: 0x44c1a0
GOS Patched flag @: 0x44c1e0
GOS Patched flag @: 0x44c220
GOS Patched flag @: 0x44c260
GOS Patched flag @: 0x44c2a0
GOS Patched flag @: 0x44c2e0
GOS Patched flag @: 0x44c320
GOS Patched flag @: 0x44c360
GOS Patched flag @: 0x4c44d8
GOS Patched flag @: 0x4c4518
GOS Patched flag @: 0x4c4558
GOS Patched flag @: 0x4c4598
GOS Patched flag @: 0x4c45d8
GOS Patched flag @: 0x4c4618
GOS Patched flag @: 0x4c4658
GOS Patched flag @: 0x4c4698
GOS Patched flag @: 0x4c46d8
GOS Patched flag @: 0x4c4718
GOS Patched: C:\Program Files (x86)\VMware\VMware Player\vmwarebase.dll
C:\Users\vmware\Downloads\unlocker207\tools\darwin.iso -> C:\Program Files (x86)\VMware\VMware Player\darwin.iso
C:\Users\vmware\Downloads\unlocker207\tools\darwin.iso.sig -> C:\Program Files (x86)\VMware\VMware Player\darwin.iso.sig
2 arquivo(s) copiado(s)
Starting VMware services...
Finished!

Can you capture the start of the installation? Scroll up in the command window and look for the top lines from unlocker installer.

fumero · September 25, 2015

OK downloading from MSDN now. WIll be tomorrow UK time before I can test.

I have tested it and works fine. Here is the output you should see:

VMware Unlocker 2.0.7
========================
(c) Dave Parsons 2011-15
VMware is installed at: C:\Program Files (x86)\VMware\VMware Player\
Stopping VMware services...
Backing up files...
C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx.exe -> C:\Users\vmware\Downloads\unlocker207\backup\x64\vmware-vmx.exe
1 arquivo(s) copiado(s)
C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx-debug.exe -> C:\Users\vmware\Downloads\unlocker207\backup\x64\vmware-vmx-debug.exe
1 arquivo(s) copiado(s)
Arquivo não encontrado  - vmware-vmx-stats.exe
0 arquivo(s) copiado(s)
C:\Program Files (x86)\VMware\VMware Player\vmwarebase.dll -> C:\Users\vmware\Downloads\unlocker207\backup\vmwarebase.dll
1 arquivo(s) copiado(s)
Patching...
File: C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx.exe
appleSMCTableV0 (smc.version = "0")
appleSMCTableV0 Address      : 0xb3fa30
appleSMCTableV0 Private Key #: 0xF2/242
appleSMCTableV0 Public Key  #: 0xF0/240
appleSMCTableV0 Table        : 0xb3b620
+LKS Key:
002 0xb3b668 +LKS 01 flag 0x90 0x1401214f0L 07
OSK0 Key Before:
241 0xb3f9a0 OSK0 32 ch8* 0x80 0x140121570L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK0 Key After:
241 0xb3f9a0 OSK0 32 ch8* 0x80 0x1401214f0L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
242 0xb3f9e8 OSK1 32 ch8* 0x80 0x140121570L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK1 Key After:
242 0xb3f9e8 OSK1 32 ch8* 0x80 0x1401214f0L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63


appleSMCTableV1 (smc.version = "1")
appleSMCTableV1 Address      : 0xb3b600
appleSMCTableV1 Private Key #: 0x01B4/436
appleSMCTableV1 Public Key  #: 0x01B0/432
appleSMCTableV1 Table        : 0xb33b60
+LKS Key:
004 0xb33c38 +LKS 01 flag 0x90 0x1401214f0L 01
OSK0 Key Before:
435 0xb3b570 OSK0 32 ch8* 0x90 0x140121570L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK0 Key After:
435 0xb3b570 OSK0 32 ch8* 0x90 0x1401214f0L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
436 0xb3b5b8 OSK1 32 ch8* 0x90 0x140121570L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK1 Key After:
436 0xb3b5b8 OSK1 32 ch8* 0x90 0x1401214f0L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63


File: C:\Program Files (x86)\VMware\VMware Player\x64\vmware-vmx-debug.exe
appleSMCTableV0 (smc.version = "0")
appleSMCTableV0 Address      : 0xcd1d30
appleSMCTableV0 Private Key #: 0xF2/242
appleSMCTableV0 Public Key  #: 0xF0/240
appleSMCTableV0 Table        : 0xccd920
+LKS Key:
002 0xccd968 +LKS 01 flag 0x90 0x140160110L 07
OSK0 Key Before:
241 0xcd1ca0 OSK0 32 ch8* 0x80 0x140160270L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK0 Key After:
241 0xcd1ca0 OSK0 32 ch8* 0x80 0x140160110L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
242 0xcd1ce8 OSK1 32 ch8* 0x80 0x140160270L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK1 Key After:
242 0xcd1ce8 OSK1 32 ch8* 0x80 0x140160110L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63


appleSMCTableV1 (smc.version = "1")
appleSMCTableV1 Address      : 0xccd900
appleSMCTableV1 Private Key #: 0x01B4/436
appleSMCTableV1 Public Key  #: 0x01B0/432
appleSMCTableV1 Table        : 0xcc5e60
+LKS Key:
004 0xcc5f38 +LKS 01 flag 0x90 0x140160110L 01
OSK0 Key Before:
435 0xccd870 OSK0 32 ch8* 0x90 0x140160270L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK0 Key After:
435 0xccd870 OSK0 32 ch8* 0x90 0x140160110L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
436 0xccd8b8 OSK1 32 ch8* 0x90 0x140160270L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK1 Key After:
436 0xccd8b8 OSK1 32 ch8* 0x90 0x140160110L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63


GOS Patching: C:\Program Files (x86)\VMware\VMware Player\vmwarebase.dll
GOS Patched flag @: 0x44c120
GOS Patched flag @: 0x44c160
GOS Patched flag @: 0x44c1a0
GOS Patched flag @: 0x44c1e0
GOS Patched flag @: 0x44c220
GOS Patched flag @: 0x44c260
GOS Patched flag @: 0x44c2a0
GOS Patched flag @: 0x44c2e0
GOS Patched flag @: 0x44c320
GOS Patched flag @: 0x44c360
GOS Patched flag @: 0x4c44d8
GOS Patched flag @: 0x4c4518
GOS Patched flag @: 0x4c4558
GOS Patched flag @: 0x4c4598
GOS Patched flag @: 0x4c45d8
GOS Patched flag @: 0x4c4618
GOS Patched flag @: 0x4c4658
GOS Patched flag @: 0x4c4698
GOS Patched flag @: 0x4c46d8
GOS Patched flag @: 0x4c4718
GOS Patched: C:\Program Files (x86)\VMware\VMware Player\vmwarebase.dll
C:\Users\vmware\Downloads\unlocker207\tools\darwin.iso -> C:\Program Files (x86)\VMware\VMware Player\darwin.iso
C:\Users\vmware\Downloads\unlocker207\tools\darwin.iso.sig -> C:\Program Files (x86)\VMware\VMware Player\darwin.iso.sig
2 arquivo(s) copiado(s)
Starting VMware services...
Finished!

Can you capture the start of the installation? Scroll up in the command window and look for the top lines from unlocker installer.

Here it is:

It says REG is not recognized as a input or output command, operable program or batch files and the unlocker does not seem recognize where vmware player is installed at.

Taking print screens of installation process is a pain because everything happens so fast like one second.

Donk · September 25, 2015

Here it is:

It says REG is not recognized as a input or output command, operable program or batch files and the unlocker does not seem recognize where vmware player is installed at.

Taking print screens of installation process is a pain because everything happens so fast like one second.

You don't need to take a screenshot you should be able to copy the text from the command window. Run the unlocker this way:

1. Right click on the Start Menu and select "Prompt de Comando (Admin)"

2. Change to the unlocker folder using -> cd "unlocker folder"

3. Run win-install.cmd

4. Resize and scroll the command window to select all the text.

As for the problem I have no idea, do you have some sort of batch file blocker or AV running? Basically none of the bultin Windows commands are working which isn't the fault of the unlocker. I see you have Kaspersky and Malwarebytes installed.

fumero · September 25, 2015

You don't need to take a screenshot you should be able to copy the text from the command window. Run the unlocker this way:

1. Right click on the Start Menu and select "Prompt de Comando (Admin)"

2. Change to the unlocker folder using -> cd "unlocker folder"

3. Run win-install.cmd

4. Resize and scroll the command window to select all the text.

As for the problem I have no idea, do you have some sort of batch file blocker or AV running? Basically none of the bultin Windows commands are working which isn't the fault of the unlocker. I see you have Kaspersky and Malwarebytes installed.

I´ve already tried the steps that you mentioned but i cant resize the cmd window because it closes super fast.

I finally managed to get the Apple MAC OS X appear in the menu of vmware player.

I download the Process Explorer from www.sysinternals.com and killed process tree of vmware-authd.exe,this is where the vmwarebase.dll is still open and working, only doing this i was able to make mac os x appear in menu

Here is the proof:

jst68 · October 1, 2015

I am having problems to get this to work on ESXi 6. I installed unlocker using putty and I see it having created the unlocker folder as expected. However, when I boot a working DMG image, it simply stops at various stages (depending on the OSX version).

What am I missing?

Thank you!

Insanelysucks · October 1, 2015

have you used a "patched" DMG? if you are using, os x mavericks or yosemite it needs to be a "patched" dmg file or it wont work.
El capitan dont work yet sadly enough so to get el capitan you need to upgrade either os x mavericks or yosemite

http://www.insanelymac.com/forum/topic/290949-how-to-install-os-x-10x-snow-leopard-lion-mountain-lion-mavericks-and-yosemite-in-vmware-workstation-1011-or-player-67/

jst68 · October 1, 2015

Thank you for getting back to me!

Well, I have tried an old Mountain Lion DMG, an extracted Maverick DMG and an extracted Yosemite DMG. The old Mountain Lion DMG stops loading on the Apple Logo and the Maverick DMG doesn't load at all. The Yosemite DMG starts loading, but eventually presents me a circle symbol with a line through which indicates that it has failed loading (happens at around 70% completion on the load indicator).

I have also looked at the link you provided. Yes, I have used the described method to extract the Maverick and Yosemite DMG. Is there any patching I need to do after extracting the DMGs?

In any case, I was expecting the Mountain Lion DMG to work since I have been using it on OSX 5.5 in the past.

As a last resort, I have also tried adding CPUID and changing the hardware version from 11 to 10 (shouldn't be required on ESXi, right?). No luck!

Any other ideas?

LuXs · October 2, 2015

i havent tried it on ESXi 6 or ESXi since i didnt need to since i use workstation 12 pro :/
If you dont get it to work let me know i will just test it on my esxi 6 test system.

You use either the CMI or CYI tool to make the dmg files becuase this is known to work as i understand you did this if not then do that. Nothing else is needed except using that.
When i make a new virtual machine i use Hardware compatibility 12 but i now 11 works on both mavericks, yosemite and el capitan havent tried the older versions since i dont need them.

The only things i change from standard settings are, 1 cpu and 2 cores, 4gb ram and i make the harddrive 1 large size i dont split it.

did you add smc.version = 0 into the .vmx file thats inside the folder that holds all the files for that VM machine?

jst68 · October 2, 2015

Yes, I did add smc.version = 0 to the .vmx file. No luck!

I currently don't have my Mac laptop with me, but I will try to build another image from scratch to see if something went wrong along the way.

kalaskvast · October 2, 2015

I've successfully patched workstation 11.1.2 on linux 64 and my OSX VM works great. But if I make it a shared VM the vmware gui always crashes when I try to change that vm's settings. I get this:

Unexpected signal: 11.

VMware Workstation Error:
VMware Workstation unrecoverable error: (vmui)

It works for other OS types (e.g. MSDOS), but when I go into the settings for a shared VM it doesn't show OSX as an available option. I would guess the crash is because the VM is set to OSX, but that's not found in the list? I've also tried with workstation 12 and get the same result.

leander091 · October 3, 2015

hi,

with the new workstation 12 on Archlinux with intel hd graphics 4600 and unlocker 2.0.7 i cannot install or boot an version of osx Mavericks

anymore. In windows 10 on the same pc the vm boots fine It looks like de vm hangs when it tried to load the interface.

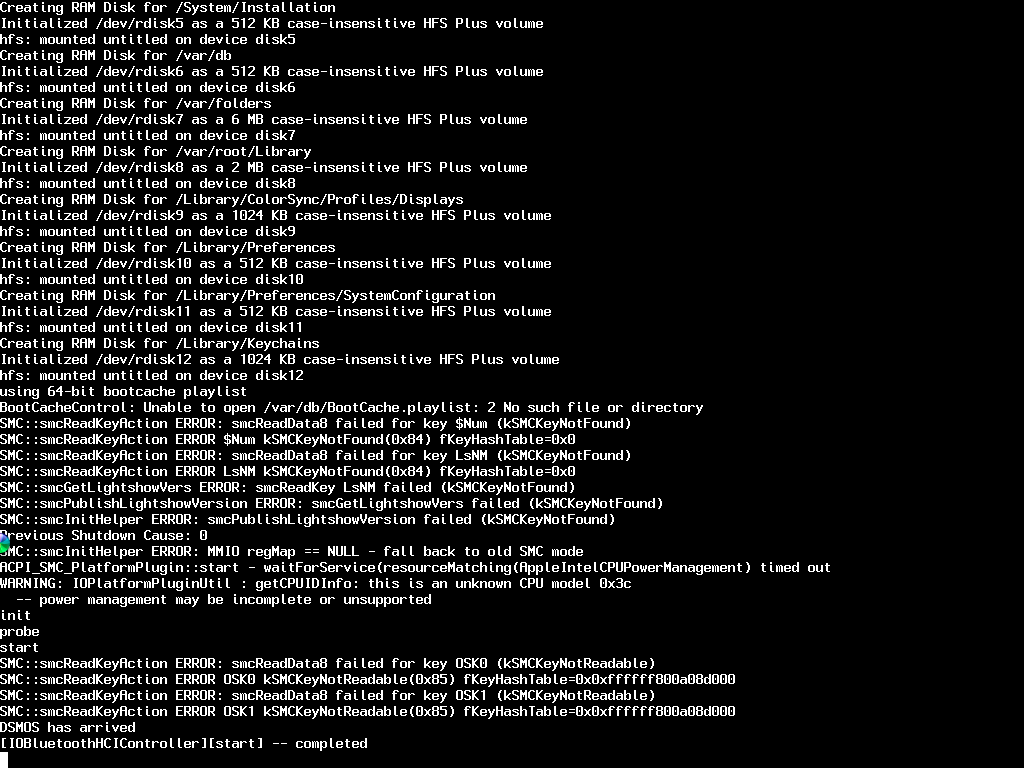

Here is an screenshot of the vm and the vmware.log

https://gist.github.com/leander091/3c70e19d6a523ee5febb

am05mhz · October 4, 2015

Hello, I'm new to hackintosh-ing,

I have tried using unlocker 2.0.3, 2.0.4, and 2.0.7 with no success to make VMWare show macs in the VM creation process.

Below is the log of unlocker 2.0.7, as you can see, when it patches vmwarebase.dll, nothing happened.

Oh, btw, I am using Win 10 Pro with Intel i5 2nd gen, and VMWare workstation 11.0.0 build-2305329, installed in E:\

Anyone have an idea of whats causing the problem? or can someone send me an already patched vmwarebase.dll?

Thanks

Edit:

on another note, I have tried disabling all VMWare services before patching with the same result.

appleSMCTableV1 (smc.version = "1")
appleSMCTableV1 Address      : 0xb516a0
appleSMCTableV1 Private Key #: 0x01B4/436
appleSMCTableV1 Public Key  #: 0x01B0/432
appleSMCTableV1 Table        : 0xb49c00
+LKS Key:
004 0xb49cd8 +LKS 01 flag 0x90 0x1403d38e0L 01
OSK0 Key Before:
435 0xb51610 OSK0 32 ch8* 0x90 0x1403d3960L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK0 Key After:
435 0xb51610 OSK0 32 ch8* 0x90 0x1403d38e0L 6F 75 72 68 61 72 64 77 6F 72 6B 62 79 74 68 65 73 65 77 6F 72 64 73 67 75 61 72 64 65 64 70 6C
OSK1 Key Before:
436 0xb51658 OSK1 32 ch8* 0x90 0x1403d3960L 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSK1 Key After:
436 0xb51658 OSK1 32 ch8* 0x90 0x1403d38e0L 65 61 73 65 64 6F 6E 74 73 74 65 61 6C 28 63 29 41 70 70 6C 65 43 6F 6D 70 75 74 65 72 49 6E 63


GOS Patching: E:\VMPlayer\vmwarebase.dll
GOS Patched: E:\VMPlayer\vmwarebase.dll
F:\hackintosh\unlocker207\tools\darwin.iso -> E:\VMPlayer\darwin.iso
F:\hackintosh\unlocker207\tools\darwin.iso.sig -> E:\VMPlayer\darwin.iso.sig
2 File(s) copied
Starting VMware services...
Finished!

Workstation 11/12, Player 7/12, Fusion 7/8 and ESXi 6 Mac OS X Unlocker 2

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
