abhishekcal Posted June 18, 2015 Share Posted June 18, 2015 @Pavo I am using 10.10.3 with clover. After following the instructions card is showing as AMD r9 290 but the memory is 7mb. How can i get the full 4GB? Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146220 Share on other sites More sharing options...
Pavo Posted June 18, 2015 Share Posted June 18, 2015 @Pavo I am using 10.10.3 with clover. After following the instructions card is showing as AMD r9 290 but the memory is 7mb. How can i get the full 4GB? specify a FB name like Futomaki 1 Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146221 Share on other sites More sharing options...
abhishekcal Posted June 18, 2015 Share Posted June 18, 2015 specify a FB name like Futomaki Thanks for the reply @Pavo The FB name i defined in the Config is Baladi My Graphics card is Sapphire R9 290. Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146225 Share on other sites More sharing options...
Monq Posted June 20, 2015 Share Posted June 20, 2015 I think this has stopped working with El Capitan... Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146716 Share on other sites More sharing options...
Pavo Posted June 20, 2015 Share Posted June 20, 2015 I think this has stopped working with El Capitan... Nope still works Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146745 Share on other sites More sharing options...
Monq Posted June 20, 2015 Share Posted June 20, 2015 Nope still works The screen turns off at the login screen. Like on Yosemite without those Clover configuration options. Also, I see you have a 290X, which is not what I have, a regular 290. Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146779 Share on other sites More sharing options...
Pavo Posted June 20, 2015 Share Posted June 20, 2015 if you get the 290 working in 10.10 you can use the same method to get it working in 10.11 just add rootless=0 as a bootflag Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146785 Share on other sites More sharing options...
Monq Posted June 21, 2015 Share Posted June 21, 2015 if you get the 290 working in 10.10 you can use the same method to get it working in 10.11 just add rootless=0 as a bootflag That I did, I don't know what to say, I'll keep looking at it Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146857 Share on other sites More sharing options...
Monq Posted June 21, 2015 Share Posted June 21, 2015 Nah nothing. Same exact configuration, save for having moved /kexts/10.10 to /kexts/10.11. It just does not work. I hope more people will come around to say the same to know I'm not alone. Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146893 Share on other sites More sharing options...
Pavo Posted June 21, 2015 Share Posted June 21, 2015 Nah nothing. Same exact configuration, save for having moved /kexts/10.10 to /kexts/10.11. It just does not work. I hope more people will come around to say the same to know I'm not alone. upload your vbios Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2146979 Share on other sites More sharing options...
Monq Posted June 21, 2015 Share Posted June 21, 2015 upload your vbios What is that Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147013 Share on other sites More sharing options...
Pavo Posted June 21, 2015 Share Posted June 21, 2015 your gfx card bios, use GPU-Z in Windows to dump it, or use DarwinDumper in OS X Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147037 Share on other sites More sharing options...
Monq Posted June 22, 2015 Share Posted June 22, 2015 your gfx card bios, use GPU-Z in Windows to dump it, or use DarwinDumper in OS X Remove .doc from the extension. Hawaii.rom.doc Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147143 Share on other sites More sharing options...
Pavo Posted June 22, 2015 Share Posted June 22, 2015 Remove .doc from the extension. use 0x100267b0 as FakeID, inject Ati, use Baladi FB and use this FB patch Find: 000400000403000000010300120403030004000004030000000101001102010100040000040300000001020021030202000400000403000000010400220504040004000004030000000105001000050500040000040300000001060020010606 Replace: 000800000402000000010200220502030004000004030000000101011204010100040000040300000001020021030202040000001402000000010300110203040004000004030000000105001000050500020000040200000001040110000406 Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147193 Share on other sites More sharing options...
Monq Posted June 22, 2015 Share Posted June 22, 2015 use 0x100267b0 as FakeID, inject Ati, use Baladi FB and use this FB patch Find: 000400000403000000010300120403030004000004030000000101001102010100040000040300000001020021030202000400000403000000010400220504040004000004030000000105001000050500040000040300000001060020010606 Replace: 000800000402000000010200220502030004000004030000000101011204010100040000040300000001020021030202040000001402000000010300110203040004000004030000000105001000050500020000040200000001040110000406 Thank you but it does not work. The system turns on as if there was no GPU acceleration at all. Do I need to keep the ATIConnectorsController/ATIConnectorsData/ATIConnectorsPatch settings from Yosemite? Well, just to avoid a pointless discussion, I am going to attach my current config.plist file. config.plist.doc Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147221 Share on other sites More sharing options...
Pavo Posted June 22, 2015 Share Posted June 22, 2015 Thank you but it does not work. The system turns on as if there was no GPU acceleration at all. Do I need to keep the ATIConnectorsController/ATIConnectorsData/ATIConnectorsPatch settings from Yosemite? Well, just to avoid a pointless discussion, I am going to attach my current config.plist file. You had a few things wrong in the Graphics section, no need for setting Dual Link, VRAm or ports and no need to load vbios or patch vbios, I have corrected your config see attached. Also how are you saving these files, they have a .doc extension, you should not be using wordpad notepad or texteditor to work with a .plist it can corrupt it. config.plist.zip Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147231 Share on other sites More sharing options...
Monq Posted June 22, 2015 Share Posted June 22, 2015 You had a few things wrong in the Graphics section, no need for setting Dual Link, VRAm or ports and no need to load vbios or patch vbios, I have corrected your config see attached. Also how are you saving these files, they have a .doc extension, you should not be using wordpad notepad or texteditor to work with a .plist it can corrupt it. I'm adding that extension by hand because the forum does not allow me to upload files with .rom or .plist extensions. I will try that, thank you. Nothing. Thank you very much for your time anyway Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147236 Share on other sites More sharing options...
Pavo Posted June 22, 2015 Share Posted June 22, 2015 I'm adding that extension by hand because the forum does not allow me to upload files with .rom or .plist extensions. I will try that, thank you. Nothing. Thank you very much for your time anyway right click and compress them into a .zip file and the forum will allow you to upload them, I am working on a new patch today maybe something has changed in 10.11 1 Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147240 Share on other sites More sharing options...
Monq Posted June 23, 2015 Share Posted June 23, 2015 OK thank you, looking forward to it. Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147410 Share on other sites More sharing options...
RandomSquirrel Posted June 23, 2015 Share Posted June 23, 2015 hey, i tried this method and everything is running smoothly on a fresh os x 10.0.3 yosemite install. thanks so far. however (as said in the op), only one of my three monitors is working. which is super-nasty, b/c if i wanted to stick to a single screen i'd use a macbook. has there been any recent workarround? Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147600 Share on other sites More sharing options...

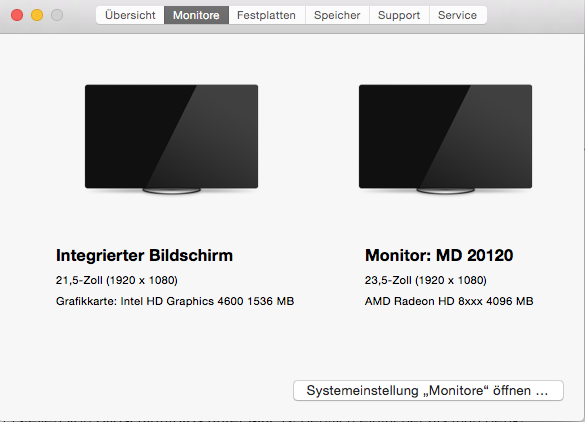

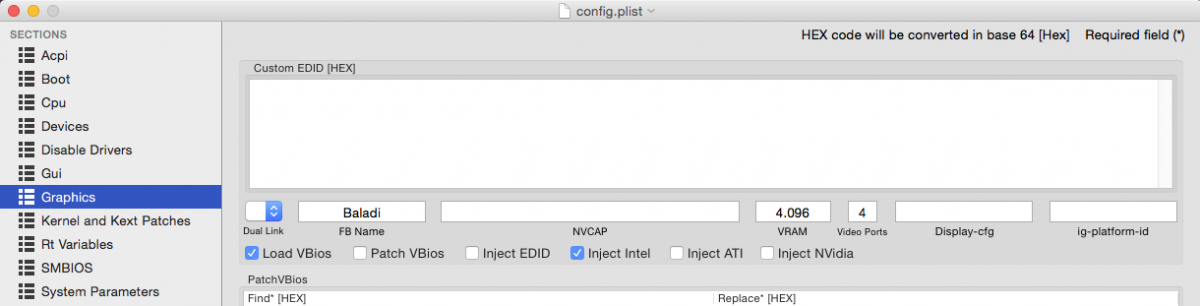

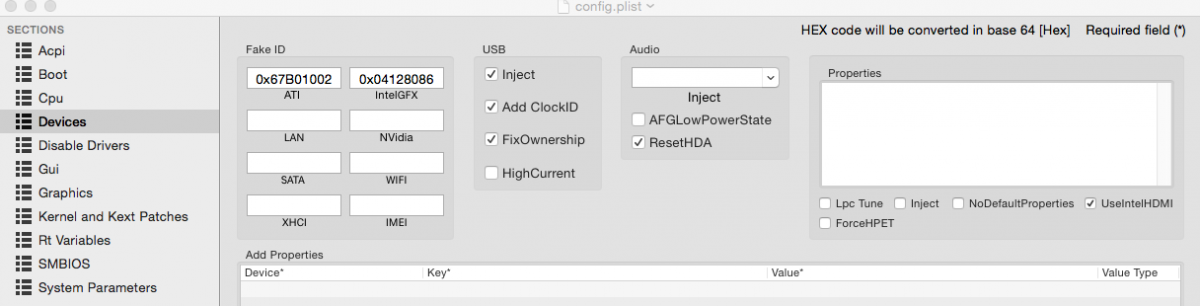

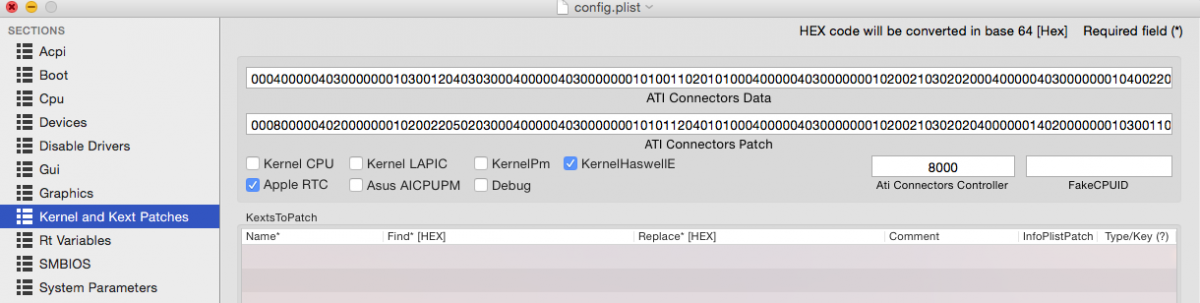

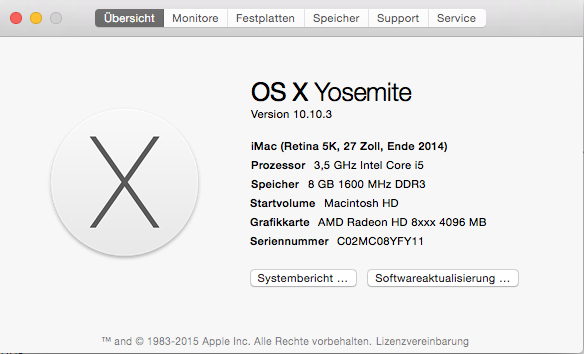

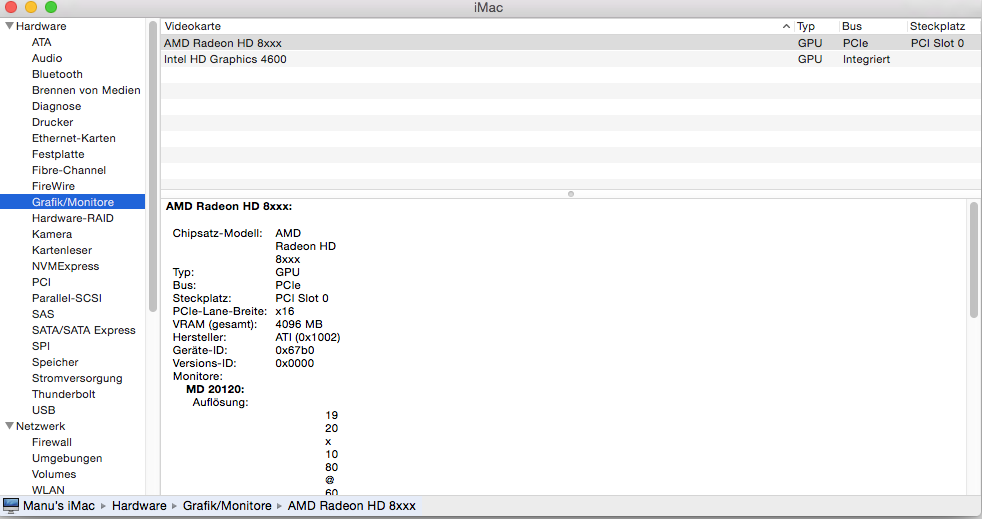

Buddz1990 Posted June 24, 2015 Share Posted June 24, 2015 Sorry for my bad english but i have some information i want to share with you guys ! This is for everyone with a Sapphire Radeon R9 290 Tri-X OC AND a Intel HD Graphics 4600 Desktop who is using Clover as their bootloader - i finally could get both units to work proper with full acceleration on 10.10.3, which means i can usw 2 Displays without any glitches or slowdowns or something =) BIG THANKS to the Member Audiohacks for sending me the oh so needed files for the R9 ! First of all enter your UEFI/BIOS and set the intel gpu as the initial gpu What i did for the R9 to get to work: 1. Install the Kexts R9 290 10.10.3 Files.zip ( i repeat: i did this on 10.10.3 so i dont know about other versions ) 2. open your clover config.plist in Devices -> ATI -> paste 0x67B01002 in Graphics -> FB Name -> paste Baladi VRAM -> paste 4096 Video Ports -> 4 Check LoadVBios in Kernel and Kext Patches -> ATI Connectors Data paste: 000400000403000000010300120403030004000004030000000101001102010100040000040300000001020021030202000400000403000000010400220504040004000004030000000105001000050500040000040300000001060020010606 -> ATI Connectors Patch paste: 000800000402000000010200220502030004000004030000000101011204010100040000040300000001020021030202040000001402000000010300110203040004000004030000000105001000050500020000040200000001040110000406 ATI Connectors Controller -> 8000 Save and reboot and now your R9 290 should work fine with one port in use (ive tested hdmi and dvi) What i did to get the Intel HD Graphics 4600 Desktop to work: 1. open your clover config.plist in Devices -> IntelGFX -> paste 0x04128086 on the right sight check ->UseIntelHDMI in Graphics -> check Inject Intel Save and reboot and now also the Intel GPU should run flawlessly Check out the screenshots below! im so happy to finally get what i wanted all the time..ive been trying around for so long and been searching the net like hell and somehow it all worked now =) i really hope i could help someone with this little guide! bless! Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2147699 Share on other sites More sharing options...
SyNuS_XL Posted June 24, 2015 Share Posted June 24, 2015 Thank you so much!Just got my Saphire tri-x working in 10.10.3. Also tested a XFX r9 290 4gb core edition but no joy. thanks again!! Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2148003 Share on other sites More sharing options...
khaihon Posted June 24, 2015 Share Posted June 24, 2015 Thank you so much! Just got my Saphire tri-x working in 10.10.3. Also tested a XFX r9 290 4gb core edition but no joy. thanks again!! What happens on your XFX? Do you get a hanging blank screen or does it still "kinda" works? Also, are the port arrangements the same on your XFX and Sapphire cards? Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2148014 Share on other sites More sharing options...
SyNuS_XL Posted June 24, 2015 Share Posted June 24, 2015 What happens on your XFX? Do you get a hanging blank screen or does it still "kinda" works? Yes with 7 mb showing in about this mac Also, are the port arrangements the same on your XFX and Sapphire cards? Yes as far as i know Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2148015 Share on other sites More sharing options...
SyNuS_XL Posted June 25, 2015 Share Posted June 25, 2015 Does anyone know how to set this up for my UHD tv (40puk6809) if it all possible? Link to comment https://www.insanelymac.com/forum/topic/298443-r9-290-non-x-yosemited-help/page/5/#findComment-2148301 Share on other sites More sharing options...
