Power management for Sandy/Ivy Bridge/Haswell CPUs

copil · September 19, 2014

Allaп

i use macmini 5,1

ok now change smbios

Allan · September 19, 2014

Ok.

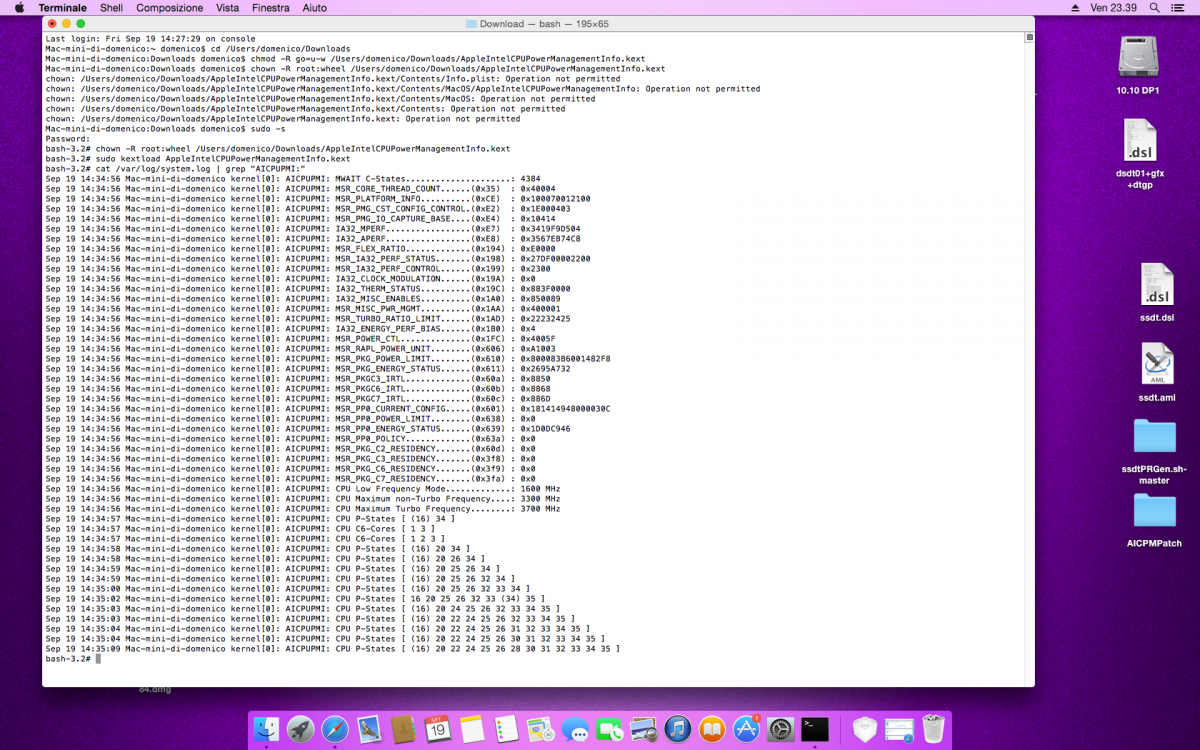

Change your SMBios and run AICPM info again.

copil · September 19, 2014

Allaп

i changed smbios in imac 12,2 the pc is not restarted because of the intel hd 3000 work with ge=yes

i injected the hd 3000 in dsdt and everything is ok on dp1.

if I upgrade in dp8.. i have to re-run the patch of ssdt - appleintelcpupowermanagement?

i have a modified rom 4003 http://biosrepo.wordpress.com/asus/z68/

i can install the official rom 4105 of site asus with this change?

thanks so much

Allan · September 22, 2014

Allaп

i changed smbios in imac 12,2 the pc is not restarted because of the intel hd 3000 work with ge=yes

i injected the hd 3000 in dsdt and everything is ok on dp1.

if I upgrade in dp8.. i have to re-run the patch of ssdt - appleintelcpupowermanagement?

i have a modified rom 4003 http://biosrepo.wordpress.com/asus/z68/

i can install the official rom 4105 of site asus with this change?

thanks so much

If you upgrade your OS X, you have re-path again the AICPM.

And if you upgrade the BIOS, you need a new DSDT.

copil · September 22, 2014

Allaп

thank you.

i want to install the original bios

thanks for your suggestions

Allan · September 22, 2014

NP

If you want, try this SSDT, and report.

SSDT.aml.zip

copil · September 22, 2014

Allaп

thanks to you

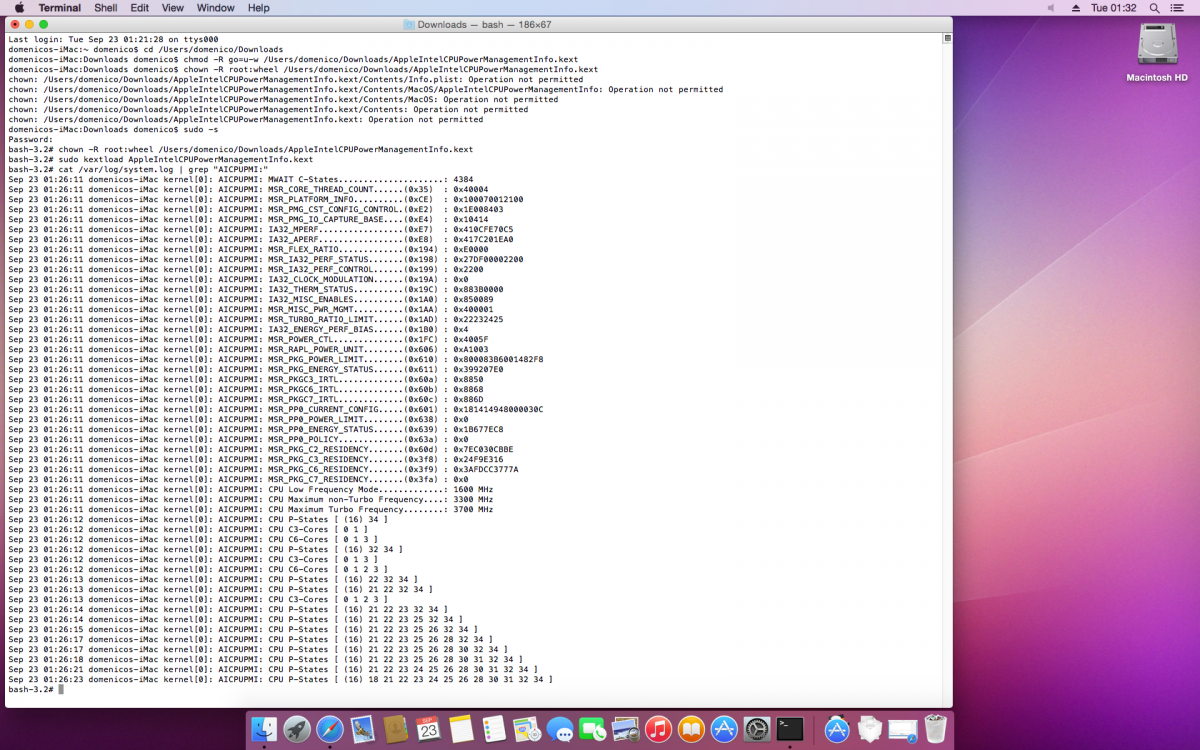

now i have this

ps

i installed the original bios asus 4105

recreated dsdt, put your ssdt in Extra

Allan · September 23, 2014

Nice.

Try this.

While you are doing the test, try running something heavy, like NovaBench/GeekBench.

And observe the results.

copil · September 23, 2014

Allan

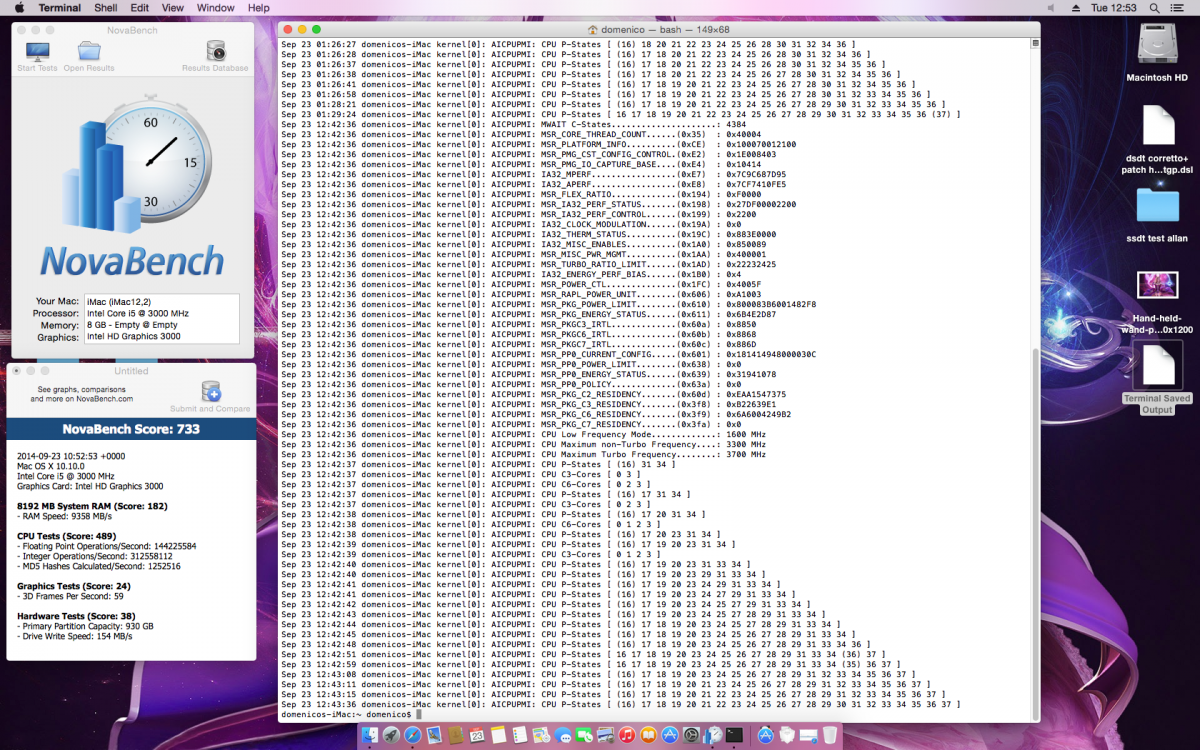

with NovaBench

i attached dsdt (bios 4105 from asus) that use + terminal output + ioreg

thanks for the instructions

Terminal Saved Output.zip

domenico’s iMac.zip

dsdt correct+patch hd 3000+dtgp.dsl.zip

StoneTemplePilots · September 23, 2014

com_intel_driver_EnergyDriver[0xffffff801904c700]::start(0xffffff8017704b00)
start
[iOBluetoothHCIController][start] -- completed
DSMOS has arrived
X86PlatformPlugin::getCPUCStates - CPU1 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUCStates - CPU2 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUCStates - CPU3 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUCStates - CPU4 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUCStates - CPU5 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUCStates - CPU6 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUCStates - CPU7 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
flow_divert_kctl_disconnect (0): disconnecting group 1
hfs: mounted OS X Yosemite on device disk5s2

Using ozmosis v1479 (latest) and a patched SSDT I have trouble to make xcpm work correctly.

However speedstep appears to be functional:

Bildschirmfoto_2014_09_23_um_13_21_40.pn

I attached SSDT and DSDT of my P8Z77-V LX v2501. All hardware details in my signature.

ssdtPRGen.sh -w 3 -x 1

displays:

ssdtPRGen.sh v0.9 Copyright (c) 2011-2012 by † RevoGirl
             v6.6 Copyright (c) 2013 by † Jeroen
             v13.9 Copyright (c) 2013-2014 by Pike R. Alpha
-----------------------------------------------------------
Bugs > https://github.com/Piker-Alpha/ssdtPRGen.sh/issues <

Override value: (-w) Ivy Bridge workarounds, now set to: 3!
Override value: (-x) XCPM mode, now set to: 1!

System information: Mac OS X 10.9.5 (13F34)
Brandstring 'Intel(R) Core(TM) i7-3770 CPU @ 3.40GHz'

Scope (_PR_) {296 bytes} with ACPI Processor declarations found in the DSDT (ACPI 1.0 compliant)
Generating ssdt.dsl for a 'iMac13,2' with board-id [Mac-FC02E91DDD3FA6A4]
Ivy Bridge Core i7-3770 processor [0x306A9] setup [0x0701]
With a maximum TDP of 77 Watt, as specified by Intel
Number logical CPU's: 8 (Core Frequency: 3400 MHz)
Number of Turbo States: 5 (3500-3900 MHz)
Number of P-States: 24 (1600-3900 MHz)
Injected C-States for CPU0 (C1,C3,C6)
Injected C-States for CPU1 (C1,C2,C3)

Intel ACPI Component Architecture
ASL Optimizing Compiler version 20130117-64 [Jan 19 2013]
Copyright (c) 2000 - 2013 Intel Corporation

ASL Input:     /Users/lightserver/Desktop/ssdt.dsl - 314 lines, 9606 bytes, 72 keywords
AML Output:    /Users/lightserver/Desktop/ssdt.aml - 2181 bytes, 28 named objects, 44 executable opcodes

Compilation complete. 0 Errors, 0 Warnings, 0 Remarks, 0 Optimizations

results to:

XCPM: registered
Previous Shutdown Cause: 5
NVDAStartup: Official
SMC::smcInitHelper ERROR: MMIO regMap == NULL - fall back to old SMC mode
NVDAGK100HAL loaded and registered
init
probe
X86PlatformPlugin::getCPUPStates - CPU0 APSS and _PSS evaluations failed!
X86PlatformPlugin::getCPUPStates - acpiPSArrayObj is not an valid OSArray
X86PlatformPlugin::publishACPIStates - Failed to get CPU P States!
X86PlatformPlugin::publishACPIStates - Failed to get max non-turbo PState. Set max non-turbo PState to default value 1
X86PlatformPlugin::getCPUCStates - CPU1 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUPStates - CPU1 APSS and _PSS evaluations failed!
X86PlatformPlugin::getCPUPStates - acpiPSArrayObj is not an valid OSArray
X86PlatformPlugin::publishACPIStates - Failed to get CPU P States!
X86PlatformPlugin::getCPUCStates - CPU2 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUPStates - CPU2 APSS and _PSS evaluations failed!
X86PlatformPlugin::getCPUPStates - acpiPSArrayObj is not an valid OSArray
X86PlatformPlugin::publishACPIStates - Failed to get CPU P States!
X86PlatformPlugin::getCPUCStates - CPU3 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUPStates - CPU3 APSS and _PSS evaluations failed!
X86PlatformPlugin::getCPUPStates - acpiPSArrayObj is not an valid OSArray
X86PlatformPlugin::publishACPIStates - Failed to get CPU P States!
X86PlatformPlugin::getCPUCStates - CPU4 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUPStates - CPU4 APSS and _PSS evaluations failed!
X86PlatformPlugin::getCPUPStates - acpiPSArrayObj is not an valid OSArray
X86PlatformPlugin::publishACPIStates - Failed to get CPU P States!
X86PlatformPlugin::getCPUCStates - CPU5 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUPStates - CPU5 APSS and _PSS evaluations failed!
X86PlatformPlugin::getCPUPStates - acpiPSArrayObj is not an valid OSArray
X86PlatformPlugin::publishACPIStates - Failed to get CPU P States!
X86PlatformPlugin::getCPUCStates - CPU6 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUPStates - CPU6 APSS and _PSS evaluations failed!
X86PlatformPlugin::getCPUPStates - acpiPSArrayObj is not an valid OSArray
X86PlatformPlugin::publishACPIStates - Failed to get CPU P States!
X86PlatformPlugin::getCPUCStates - CPU7 ACST and _CST evaluations failed!
X86PlatformPlugin::getCPUCStates - _CST did not return a package
X86PlatformPlugin::getCPUPStates - CPU7 APSS and _PSS evaluations failed!
X86PlatformPlugin::getCPUPStates - acpiPSArrayObj is not an valid OSArray
X86PlatformPlugin::publishACPIStates - Failed to get CPU P States!
flow_divert_kctl_disconnect (0): disconnecting group 1
hfs: mounted OS X Yosemite on device disk6s2
NTFS driver 3.11 [Flags: R/W].
com_intel_driver_EnergyDriver[0xffffff8018fa1300]::start(0xffffff801758ab00)
start

DSDT+SSDT.zip

midi-sama · September 23, 2014

Hey guys, I have an i7-3520M (like on MBP 9,2) and I tried many SSDTs but I can't get more than 4 normal states: 12 20 24 29! (I get 4 extra but they are turbo mode 30 32 34 36!) And that makes my laptop really hot and the battery can barely get 3 hours of working! On windows I can get 4 hours and maybe plus! I tried these flags with piker's script:

-p i7-3520M -w 3

-p i7-3520M -w 1

-p i7-3520M -w 2

-p i7-3520M -w 3 -x 1

-p i7-3520M -w 3 -lfm

-p i7-3520M -w 3 -m macbookpro9,2

And others ...

So what can I do?

For info: I use -xcpm flag on clover.

Allan · September 23, 2014

Allan

with NovaBench

i attached dsdt (bios 4105 from asus) that use + terminal output + ioreg

thanks for the instructions

Congrats!

Finnaly u have all states! :thumbsup_anim:

Hey guys, I have an i7-3520M (like on MBP 9,2) and I tried many SSDTs but I can't get more than 4 normal states: 12 20 24 29! (I get 4 extra but they are turbo mode 30 32 34 36!) And that makes my laptop really hot and the battery can barely get 3 hours of working! On windows I can get 4 hours and maybe plus! I tried these flags with piker's script:

-p i7-3520M -w 3

-p i7-3520M -w 1

-p i7-3520M -w 2

-p i7-3520M -w 3 -x 1

-p i7-3520M -w 3 -lfm

-p i7-3520M -w 3 -m macbookpro9,2

And others ...

So what can I do?

For info: I use -xcpm flag on clover.

This command is wrong: -p i7-3520M -w 3 -m macbookpro9,2

Try this SSDT: SSDT.aml.zip

And follow the instructions that I gave for @copil. NovaBench etc...

copil · September 23, 2014

Allan

with your help

thanks for everything

midi-sama · September 23, 2014

This command is wrong: -p i7-3520M -w 3 -m macbookpro9,2

Try this SSDT: SSDT.aml.zip

And follow the instructions that I gave for @copil. NovaBench etc...

yeah yeah, sorry the command was wrong but it's similar! (I wrote it right btw, I was just in a hurry and on phone ) anyway, thanks for the SSDT, and nothing new! I'l start the instruction you said (still looking for them ) and I'll report later Thanks

copil · September 24, 2014

Allan

I installed clover 2916 in legacy mode with this option

*install boot0af in mbr

*cloverefi 64-bits sata

*emuvariableuefi-64

*osxaptiofixdrv-64

*partitiondxe-64

generate p e c states need to be activated or not in config.plist?

thanks for all

Allan · September 24, 2014

No, is not necessary use C and P states.

copil · September 24, 2014

Allan

thanks man

Allan · September 24, 2014

NP

Time2win · September 24, 2014

Hello Allan,

How about my machine please : an HP ProBook 4540s, Intel Core i3-3110M, HD 4000.

i am using Clover UEFI, -xpcm enabled, SMBIOS is Macbook Pro 9,2 and getting this P States: 12, 18, 21, 24

Is that correct or is there anything to do for improvement

Allan · September 24, 2014

Hi Bro!

Remove the -xpcm, and create a SSDT for you.

Time2win · September 24, 2014

Hi Bro!

Remove the -xpcm, and create a SSDT for you.

Thank you Allan for the quick reply, i forgot to notice that i am using an SSDT and without the -xpcm i lose one p stat and i get only 12, 21, 24.

Here is my SSDT : https://www.dropbox.com/s/vjwtf9r1kt9yruz/ssdt.aml?dl=0

Allan · September 25, 2014

Ok, use this command:

curl -o ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/master/ssdtPRGen.sh
chmod +x ssdtPRGen.sh
./ssdtPRGen.sh

And send me your config.plist.

Marius_rg · September 27, 2014

How can I use the script with a small overlock? I have modified the BLK in Bios to 103 (from 100) on a i7-4790 and Asus Maximus Formula VI. Right now I get a message at boot "kernel[0]: XCPM: P-state table mismatch (error:0x12)"

Edit: If I use the -turbo frequency, I get an extra P state which is causing that error.

Thank you.

aankun.ganteng · September 28, 2014

.....

Note: For those who are having difficulty with power management ... take a look to see if the kexts: X86PlatformPlugin, ACPI_SMC_PlatformPlugin, AppleLPC are loaded, type kextstat the terminal to see ...

....

Hi, I can't found ACPI_SMC_PlatformPlugin and AppleLPC on kextstat output

only X86PlatformPlugin

this is output from "--> cat /var/log/system.log | grep "AICPUPMI:"

Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: logMSRs............................: 1
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: logIGPU............................: 0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: logCStates.........................: 1
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: logIPGStyle........................: 1
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MWAIT C-States.....................: 270624
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_CORE_THREAD_COUNT......(0x35)  : 0x40004
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PLATFORM_INFO..........(0xCE)  : 0x80838F3012300
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PMG_CST_CONFIG_CONTROL.(0xE2)  : 0x1E000005
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PMG_IO_CAPTURE_BASE....(0xE4)  : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: IA32_MPERF.................(0xE7)  : 0xCC5610105
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: IA32_APERF.................(0xE8)  : 0xC5BA0AD1A
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_FLEX_RATIO.............(0x194) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_IA32_PERF_STATUS.......(0x198) : 0x240700002600
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_IA32_PERF_CONTROL......(0x199) : 0x2700
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: IA32_CLOCK_MODULATION......(0x19A) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: IA32_THERM_STATUS..........(0x19C) : 0x88390800
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: IA32_MISC_ENABLES..........(0x1A0) : 0x850089
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_MISC_PWR_MGMT..........(0x1AA) : 0x400001
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_TURBO_RATIO_LIMIT......(0x1AD) : 0x27272727
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: IA32_ENERGY_PERF_BIAS......(0x1B0) : 0x5
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_POWER_CTL..............(0x1FC) : 0x4005F
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_RAPL_POWER_UNIT........(0x606) : 0xA0E03
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PKG_POWER_LIMIT........(0x610) : 0x42FFF8001AFFF8
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PKG_ENERGY_STATUS......(0x611) : 0xC95FAE2
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PKGC3_IRTL.............(0x60a) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PKGC6_IRTL.............(0x60b) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PKGC7_IRTL.............(0x60c) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PP0_CURRENT_CONFIG.....(0x601) : 0x10141400001FFF
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PP0_POWER_LIMIT........(0x638) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PP0_ENERGY_STATUS......(0x639) : 0x3AFCB0B
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PP0_POLICY.............(0x63a) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_CONFIG_TDP_NOMINAL.....(0x648) : 0x23
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_CONFIG_TDP_LEVEL1......(0x649) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_CONFIG_TDP_LEVEL2......(0x64a) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_CONFIG_TDP_CONTROL.....(0x64b) : 0x80000000
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_TURBO_ACTIVATION_RATIO.(0x64c) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PKG_C2_RESIDENCY.......(0x60d) : 0x75BB2C53F2C
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PKG_C3_RESIDENCY.......(0x3f8) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PKG_C6_RESIDENCY.......(0x3f9) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: MSR_PKG_C7_RESIDENCY.......(0x3fa) : 0x0
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: CPU Low Frequency Mode.............: 800 MHz
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: CPU Maximum non-Turbo Frequency....: 3500 MHz
Sep 28 07:58:52 Alistair kernel[0]: AICPUPMI: CPU Maximum Turbo Frequency........: 3900 MHz
Sep 28 07:58:53 Alistair kernel[0]: AICPUPMI: CPU P-States [ 34 (35) 38 ]
Sep 28 07:58:53 Alistair kernel[0]: AICPUPMI: CPU C3-Cores [ 0 1 3 ]
Sep 28 07:58:53 Alistair kernel[0]: AICPUPMI: CPU C6-Cores [ 0 1 3 ]
Sep 28 07:58:53 Alistair kernel[0]: AICPUPMI: CPU C7-Cores [ 0 1 3 ]
Sep 28 07:58:53 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 31 34 35 38 ]
Sep 28 07:58:54 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 28 31 34 (35) 38 ]
Sep 28 07:58:54 Alistair kernel[0]: AICPUPMI: CPU C3-Cores [ 0 1 2 3 ]
Sep 28 07:58:54 Alistair kernel[0]: AICPUPMI: CPU C6-Cores [ 0 1 2 3 ]
Sep 28 07:58:54 Alistair kernel[0]: AICPUPMI: CPU C7-Cores [ 0 1 2 3 ]
Sep 28 07:58:54 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 28 29 31 34 35 38 ]
Sep 28 07:58:57 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 28 29 30 31 34 35 38 ]
Sep 28 07:59:01 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 28 29 30 31 33 34 35 38 ]
Sep 28 07:59:02 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 28 29 30 31 32 33 34 (35) 38 ]
Sep 28 07:59:12 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 28 29 30 31 32 33 34 35 (37) 38 ]
Sep 28 07:59:14 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 27 28 29 30 31 32 33 34 35 37 38 ]
Sep 28 07:59:34 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 25 27 28 29 30 31 32 33 34 (35) 37 38 ]
Sep 28 07:59:41 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 25 26 27 28 29 30 31 32 33 34 35 37 38 ]
Sep 28 08:00:00 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 20 25 26 27 28 29 30 31 32 33 34 35 37 38 ]
Sep 28 08:00:00 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 20 23 25 26 27 28 29 30 31 32 33 34 35 37 38 (39) ]
Sep 28 08:00:05 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 18 20 23 25 26 27 28 29 30 31 32 33 34 (35) 37 38 39 ]
Sep 28 08:00:06 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 18 20 21 23 25 26 27 28 29 30 31 32 33 34 35 37 38 39 ]
Sep 28 08:00:10 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 18 19 20 21 23 25 26 27 28 29 30 31 32 33 34 (35) 37 38 39 ]
Sep 28 08:00:12 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 15 18 19 20 21 23 25 26 27 28 29 30 31 32 33 34 35 37 38 39 ]
Sep 28 08:00:14 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 15 18 19 20 21 23 24 25 26 27 28 29 30 31 32 33 34 35 37 38 (39) ]
Sep 28 08:00:16 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 15 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (35) 37 38 39 ]
Sep 28 08:00:40 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 15 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 37 38 39 ]
Sep 28 08:00:45 Alistair kernel[0]: AICPUPMI: CPU P-States [ 8 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (35) 37 38 39 ]
Sep 28 08:02:05 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 37 38 39 ]
Sep 28 08:02:16 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 ]
Sep 28 08:12:07 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 ]
Sep 28 08:12:13 Alistair kernel[0]: AICPUPMI: CPU P-States [ (8) 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 ]

is this good enough?? because there is a always gap between 8 and 12

my hardware is asus z97 + intel i5 4690

thanks for the guide btw

cheers

edit :

after more that 1 hour the 10 and 11 is there

maybe just have to wait long enough

Allan · September 28, 2014

Hi, I can't found ACPI_SMC_PlatformPlugin and AppleLPC on kextstat output

only X86PlatformPlugin

this is output from "--> cat /var/log/system.log | grep "AICPUPMI:"

is this good enough?? because there is a always gap between 8 and 12

my hardware is asus z97 + intel i5 4690

thanks for the guide btw

cheers

edit :

after more that 1 hour the 10 and 11 is there

maybe just have to wait long enough

The result is right, you have now the minimum and maximum states!

Congrats :lol:

Power management for Sandy/Ivy Bridge/Haswell CPUs

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
