TeoTheCool Posted May 16, 2013 Share Posted May 16, 2013 How did u activate the new ones, since they're unsupported with our cards? Link to comment Share on other sites More sharing options...
timp Posted May 17, 2013 Share Posted May 17, 2013 But in case of Keplers I really don't know where to dig - nvidia drivers, card configs, vga bios difference or something else. Hay, What do you think about looking at how the displays are configured? I ask because I've been trying to get a K3000m in a Dell M6700 working. I've experienced much the same as you. However I've found that the internal LCD works, and with CE/CI, but the backlight is off. I can connect using desktop sharing and see in ioreg that the card is initialized and working. I can also change resolutions. So it's getting the internal LCD's EDID okay. However when I connect an external display on any port it hangs the graphics system(I can still SSH in). I also read that Kepler cards for the first time support 4 displays simultaneously. This implies some changes in the way the displays are connected and defined. Could it be that different things need to be injected for this new setup? One anomaly I noticed on the M6700, all the 4 displays have a 'port-number' property set to 9. Looking at the ioreg from an nvidia retina mac. It's port-numbers are 0, 1, 2, 3. If this is the 'port' in the same meaning as with Intel HD graphics. There is no way they should be the same. 1 Link to comment Share on other sites More sharing options...

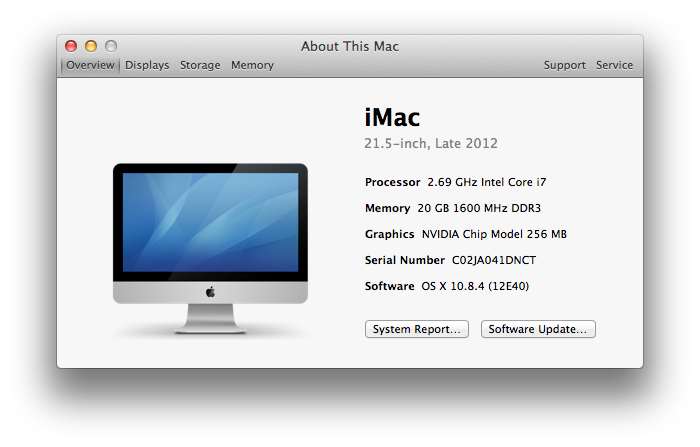

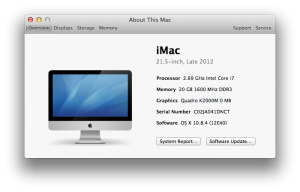

joshhh Posted May 17, 2013 Share Posted May 17, 2013 Yes, I think all our problems in display configs or NVCAP + some PC specific bios code. It's good that you got QE/CI working even in VNC session. I didn't get it at all for now but try to reinstall OSX with latest 10.8.4 dev update E52 + new nvidia drivers. On my system I got displays 0-1-2-3, but no action on connection any external display. I've got some info in ATM window about graphics... Will be great if you can save IOReg + System Profiler files via VNC + get all other dumps with DarwinDump 2.7.0 Hay, What do you think about looking at how the displays are configured? I ask because I've been trying to get a K3000m in a Dell M6700 working. I've experienced much the same as you. However I've found that the internal LCD works, and with CE/CI, but the backlight is off. I can connect using desktop sharing and see in ioreg that the card is initialized and working. I can also change resolutions. So it's getting the internal LCD's EDID okay. However when I connect an external display on any port it hangs the graphics system(I can still SSH in). I also read that Kepler cards for the first time support 4 displays simultaneously. This implies some changes in the way the displays are connected and defined. Could it be that different things need to be injected for this new setup? One anomaly I noticed on the M6700, all the 4 displays have a 'port-number' property set to 9. Looking at the ioreg from an nvidia retina mac. It's port-numbers are 0, 1, 2, 3. If this is the 'port' in the same meaning as with Intel HD graphics. There is no way they should be the same. 1 Link to comment Share on other sites More sharing options...
timp Posted May 21, 2013 Share Posted May 21, 2013 Yes, I think all our problems in display configs or NVCAP + some PC specific bios code. I've been digging around in the NVidia bios DCB tables. Seems quite clear that the contents are different between kepler mobile cards and others. Including, surprisingly the dump I have from a K4000 destop card. Could this be why Kepler desktop cards work but mobile cards don't? All the tables I have looked at are version 0x40. As an example here is the DCB table from a Dell M6700 K3000m. Looks like some kind of multi line entries.. It very similar in the GTX680M bios I have too. 130F 0001 3400 0100 1F1F 0001 1000 0200 1F2F 0001 3000 0200 D65F 0108 2000 420F 925F 0108 2000 0200 C64F 0108 1000 420F 824F 0108 1000 0200 8F3F 0108 3000 0200 B68F 0304 1000 420F 7F8F 0304 1000 0200 A67F 0202 1000 420F 627F 0202 1000 0200 6F6F 0202 1000 0200 009F 0402 0000 0000 0F9F 0401 0000 0000 0F00 0000 0000 0000 And the code from a K4000(also similar to a FX3700m) 000F 0002 0000 0000 020F 0001 3000 0200 A61F 8102 1000 420F 621F 0102 1000 0200 B62F 8204 1000 420F 722F 0204 1000 0200 8F30 0300 3000 0200 0F00 0000 0000 0000 0F00 0000 0000 0000 0F00 ..... And the code from an iMac's 675mx B601 8104 1000 220F D612 8201 2000 220F 1212 0201 2000 0200 C624 8308 1000 220F 0224 0308 1000 0200 0E00 0000 0000 0000 0F00 0000 0000 0000 0F00... I get the impression that the NVDAResman.kext is responsible for parsing the DCB table and getting the connectors set up right. I'm hoping to modify the DCB table in the K3000m dump and use Chameleon's video bios loader to load it at boot time. Thing is, what should go in the table? The code from Linux's Nouveau driver helps but it's not enough... See http://lxr.free-elec...bdev/bios/dcb.h http://lxr.free-elec...bdev/bios/dcb.c Update.. Unfortunately using the UseNvidiaRom option with Chameleon(build 2238) makes the machine reboot or corrupts the display before even starting the kernel. So I can't try modding the DCB table.. 1 Link to comment Share on other sites More sharing options...
IDDPioneer Posted June 4, 2013 Share Posted June 4, 2013 @joshhh, @timp Maybe we can patch the binary of the NVDAResman.kext to make it work with our mobile kepler, if it works OOB with Desktop Kepler, maybe patching some bytes we can make it to work but we need collaborators, organization, distribution of the work and mainly Compromising MINDS. Interested people send mail here: iddpioneer_ymail.com - replace _ with @ Link to comment Share on other sites More sharing options...
joshhh Posted June 5, 2013 Share Posted June 5, 2013 OKUntil last week I've got following possibilities of kepler stuck:- GPU difference with desktop versions- BIOS difference- VBIOS difference- DRIVERSWhat I've figured out on last weekDesktop card + OSX = WorkingMobile MXM card + OSX = Working - on Alienware and Clevo laptops Mobile keplers forks fine and in system BIOS there is no sing of GPU vbios. So card on mobile GPU is independent as desktop solutionMobile integrated card + OSX = Not WorkingSo we've got some differences in vbios and drivers. Our vbioses integrated as module of main laptop BIOS rom but in MacBooks it also integrated into main rom... and in macbooks it's working!ALSO in attachment vbioses from mobile MXM GTX680 (GK104) and GTX660M (GK107) from Dell/Alienware and Clevo laptopsMXM-vbios-keplers.zip @joshhh, @timpMaybe we can patch the binary of the NVDAResman.kext to make it work with our mobile kepler, if it works OOB with Desktop Kepler, maybe patching some bytes we can make it to work but we need collaborators, organization, distribution of the work and mainly Compromising MINDS.Interested people send mail here: iddpioneer_ymail.com - replace _ with @ 1 Link to comment Share on other sites More sharing options...
IDDPioneer Posted June 5, 2013 Share Posted June 5, 2013 Thanks for all the info, I am thinking if we can make it work by changin the dsdt or by modding the VBIOS do you have a bios of a real mac ? Link to comment Share on other sites More sharing options...
joshhh Posted June 5, 2013 Share Posted June 5, 2013 Yes! I've got all stuff from Macbook Pro Retina 15" in this post http://www.insanelymac.com/forum/topic/284767-anyone-mobile-kepler-6xxm-working/page__st__60#entry1915493 Thanks for all the info, I am thinking if we can make it work by changin the dsdt or by modding the VBIOS do you have a bios of a real mac ? Link to comment Share on other sites More sharing options...
kelobb Posted June 10, 2013 Share Posted June 10, 2013 Did You try loading any of this ROM from chameleon option, maybe our cards would be visible - with a bit of luck. Doubt it, but maybe it's worth to try. Link to comment Share on other sites More sharing options...
joshhh Posted June 10, 2013 Share Posted June 10, 2013 tried, didn't help Did You try loading any of this ROM from chameleon option, maybe our cards would be visible - with a bit of luck. Doubt it, but maybe it's worth to try. Link to comment Share on other sites More sharing options...
joshhh Posted June 11, 2013 Share Posted June 11, 2013 Repeat, not all 6xx cards is Keplers 670M is Fermi, so don't post anything about it here Try freezefix app by Dan542 works for my GTX 670m and 10.8.4 12E55. ORIGINAL POST FROM SOMEone OSX WEBSITE: Hello, people! My GTX 670m is working to 1 month without freeze. I'm using freezefix. - BY ME. BY DAN542: Just place it anywhere you like and run it, it'll be invisible (you may see a window with a white triangle blink, though). In case you want it to be opened automatically every time on start up, just add it in System Preferences, I believe it's somewhere under Users and Groups. Link to comment Share on other sites More sharing options...
joshhh Posted June 13, 2013 Share Posted June 13, 2013 Installed first beta of 10.9 and still no luck with Keplers, stuck after NVDAStartup official... 1 Link to comment Share on other sites More sharing options...
joshhh Posted June 29, 2013 Share Posted June 29, 2013 Another attempt to find out what's wrong with mobile keplers With additional debug info I get lines in log with NVDAHal NVDAgl registering - this is acceleration modules for QE/CI I get it working on retinabook. But when we remove NVDAResman we lost it. So some checks in driver stop loading osx to GUI Some shots from 10.8.5/10.9DP2 Link to comment Share on other sites More sharing options...
slayer2333 Posted June 29, 2013 Share Posted June 29, 2013 Would you please let me know how you could get that much details in your verbose mode? I'm interrested in that. Link to comment Share on other sites More sharing options...
joshhh Posted June 30, 2013 Share Posted June 30, 2013 -v -f and debug=0x100 or debug=0x144 and maybe io=0xffffffff Would you please let me know how you could get that much details in your verbose mode? I'm interrested in that. Link to comment Share on other sites More sharing options...
IDDPioneer Posted July 1, 2013 Share Posted July 1, 2013 Thanks joshhh by what I am seeing that "probe fail" is the problem, So I think we need to discover what that probe is, or hack the binary to pass by it as it passes by a desktop kepler. Link to comment Share on other sites More sharing options...
TeoTheCool Posted July 2, 2013 Share Posted July 2, 2013 I always wondered if netkas would know what to do in this case, since he seems like the best GPU "hacker" on the OSX scene imo. Maybe someone should point this recent find at him Link to comment Share on other sites More sharing options...
joshhh Posted July 2, 2013 Share Posted July 2, 2013 OK! I've decompiled NVDAResman with hopper disassembler If someone can try to find probe function asm file is attached below NVDAResman.asm.zip Link to comment Share on other sites More sharing options...
IDDPioneer Posted July 4, 2013 Share Posted July 4, 2013 I´ve found 26 ocurrences of probe functions in the asm file. And in the start of the line it may be the offsets of the binary file? if it is we should make a patch for the binary. Link to comment Share on other sites More sharing options...
joshhh Posted July 5, 2013 Share Posted July 5, 2013 Really don't know if all of 26 occurrences is related to this problem. But in case of bios whitelist patching most of offsets is relative and we don't need to worry about it... I´ve found 26 ocurrences of probe functions in the asm file. And in the start of the line it may be the offsets of the binary file? if it is we should make a patch for the binary. Link to comment Share on other sites More sharing options...
Freshmaker™ Posted July 11, 2013 Share Posted July 11, 2013 Hey guys, any new ideas on this one? Link to comment Share on other sites More sharing options...
joshhh Posted July 11, 2013 Share Posted July 11, 2013 Yeah! Only one idea - sell pc laptop and buy mac one Hey guys, any new ideas on this one? 1 Link to comment Share on other sites More sharing options...
IDDPioneer Posted July 19, 2013 Share Posted July 19, 2013 I am thinking in buying a new laptop With: Intel Core i7 Haswell - 4700MQ Nvidia GeForce GTX 765M GPU - 2GB Video RAM This will be compatible ? or is better to take another with a GT 670M with fermi ? OBS: Remember that GT 765M is GK106 NOT GK107. Maybe these chip codes can be the Aquiles foot of the hackintosh acceleration. Did anyone knows that ? Link to comment Share on other sites More sharing options...
AREOS Posted July 21, 2013 Share Posted July 21, 2013 Thanks joshhh by what I am seeing that "probe fail" is the problem, So I think we need to discover what that probe is, or hack the binary to pass by it as it passes by a desktop kepler. The "probe fail" is not related to your problem, it also happens in my fermi laptop and in a macbook with 320M and booth are working. does someone have an ioregistry explorer save from a laptop with a working Mobile Kepler card? Link to comment Share on other sites More sharing options...
joshhh Posted July 21, 2013 Share Posted July 21, 2013 Here it is, IOReg dump from my current Macbook Pro Retina 15 inch. After few month of kepler headaches with Lenovo W530 laptop I've sold it and bought Apple one. Hope this info may help to people with Keplers in laptops Andrew’s MacBook Pro.zip The "probe fail" is not related to your problem, it also happens in my fermi laptop and in a macbook with 320M and booth are working. does someone have an ioregistry explorer save from a laptop with a working Mobile Kepler card? Link to comment Share on other sites More sharing options...
