Slice
Slice
Posted
Posted

10.6.x same. I test all 10.6.x

My cpu is sandybridge i5 2450m.

Already vanillia booted in 10.6.8.

not work AsusAICPUPM and kexttopatch in 10.6.8




나의 LG-F410S 의 Tapatalk에서 보냄

SandyBridge was not supported in 10.6.3. If was first introduced in 10.6.8

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

SandyBridge was not supported in 10.6.3. If was first introduced in 10.6.8

Official image exist for sandy bridge. Maybe 10.6.6i or 10.6.7



I have a two image.



I can install. But need patch aicpum.



Some sandy laptop users(rehabman, me) use 10.6.8



Rehabman can kernel cache and kext patch.



But i cant it.



Add#1.

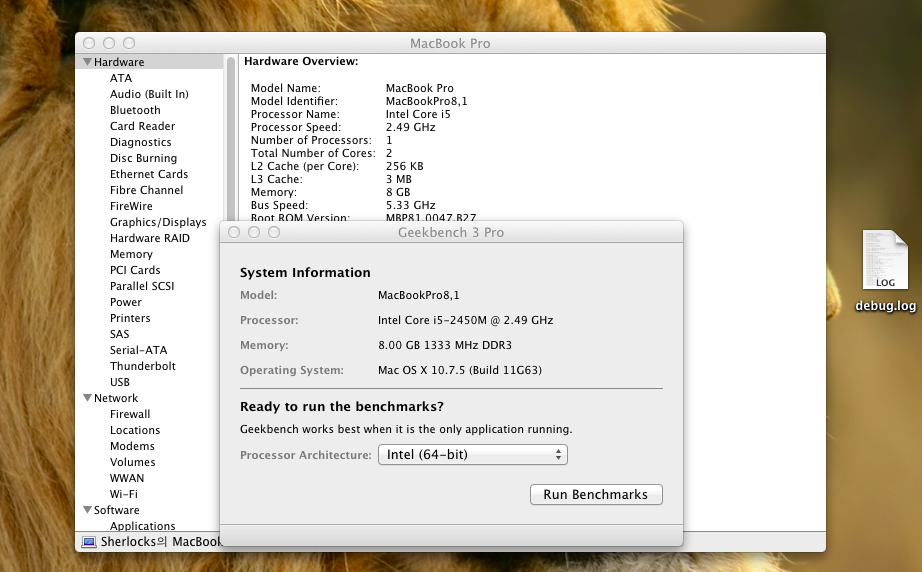

I test same clover status to install lion 10.7.5



Good works. AICPUM and kexttopatch feature in clover.



Why osx 10.7.5 works? And 10.6.8 not work. I install same method.



I used to osx 10.7~10.11. No problem in clover.



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
Dr. Hurt
Dr. Hurt
Posted
Posted

These are times I get...



Grub Exfat

SATA disk (MBR) 1:074

USB disk (MBR) 1:417



Grub NTFS

SATA disk (MBR)

0:961

0:943

0:944

SATA disk (GPT)

0:944

0:944



EDK2 Fat Driver

SATA disk (GPT) 0:926

USB disk (MBR) 0:926



VBox HFS

SATA disk (GPT)

0:926

1:118 on system partition

USB disk (MBR)

1:100 on system partition



So none is especially snappy.



Grub EXFAT is bundled into boot[367].  You can disable by

./ebuild.sh -D NO_GRUB_DRIVERS



Your values are significantly higher than mine.



It might be worth mentioning that I have scan legacy and tools disabled.

What's intriguing is the difference between exfat and the other partitions. Is the difference merely driver-related or is clover doing unnecessary scanning of the partitions?

Link to comment
Share on other sites
Micky1979
Micky1979
Posted
Posted

@Sherlock, what I'm saying looks stupid, but you can try to remove AppleIntelCPUPowerManagement.kext.bak?

I see that Clover load (or try to load) also kexts renamed with other extensions other than "kext"...at least this appear in bootlog, not sure those/these extensions are loaded

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

@Sherlock, what I'm saying looks stupid, but you can try to remove AppleIntelCPUPowerManagement.kext.bak?

I see that Clover load (or try to load) also kexts renamed with other extensions other than "kext"...at least this appear in bootlog, not sure those/these extensions are loaded

Already tried it. Its same.



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

if it were an IVY then i would probaly agree with you that clover AsusAICPUPM is not working on 10.6.8

My ProBook 4530s is Sandy Bridge. SL does not not support Ivy Bridge.

Rehabman did you use Probook installer?

No.

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

My ProBook 4530s is Sandy Bridge. SL does not not support Ivy Bridge.



No.



i make kernel cache by this method

http://www.insanelymac.com/forum/topic/279023-should-i-update-the-kext-caches-how-do-i-do-this/



10.7~10.10 use same kernel cache method. so i havent boot problem.



but 10.6 difference.

/System/Library/Caches/com.apple.kext.caches/Startup/Extensions.mkext



use. also i see clover bootloader can use this /System/Library/Caches/com.apple.kext.caches/Startup/Extensions.mkext



i surely rebuild Extensions.mkext. then reboot still have aicpum panic



today i can boot without cache option with no patch aicpum.kext

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Will they work if you boot "Without cache"?

I confirm that i can boot without cache option.



I rebuild cache with kext utility or kext wizard. Then reboot system. But not work AICPUM. So i get kernel panic.





나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

I confirm that i can boot without cache option.



I rebuild cache with kext utility or kext wizard. Then reboot system. But not work AICPUM. So i get kernel panic.

Points to a kernel cache problem -- the kexts are loading "outside of cache" and therefore not patched. Perhaps you have it set in your config.plist?

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Points to a kernel cache problem -- the kexts are loading "outside of cache" and therefore not patched. Perhaps you have it set in your config.plist?

I attached EFI with config.plist

#10058.



I think config.plist nop



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

I attached EFI with config.plist

#10058.

Your ACPI/patched is a bit of a mess (dynamic SSDTs should not be there). Also, your config.plist is wrong as far as ACPI configuration for the files you have in APCI/patched. Since you have patched SSDTs there, you need SortedOrder to specify SSDT load order.



You should try Kext Wizard to rebuild cache.

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Your ACPI/patched is a bit of a mess (dynamic SSDTs should not be there). Also, your config.plist is wrong as far as ACPI configuration for the files you have in APCI/patched. Since you have patched SSDTs there, you need SortedOrder to specify SSDT load order.



You should try Kext Wizard to rebuild cache.

Is it related in kernel cache?



There is no problem 10.7~10.11



Also 10.6 feature is good. Just cache problem and kexttopatch.



Can you give me config.plist file?



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

OK... feeling like I'm "talking to a wall" here.



Did you use Kext Wizard to rebuild cache?

Ofc. I use kext wizard and i confirm permission and s/l/cache/startup/extension.kext file. Then reboot.



I got AICPUM kp.



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

Ofc. I use kext wizard and i confirm permission and s/l/cache/startup/extension.kext file. Then reboot.



I got AICPUM kp.

Did you do a fresh install to be certain it isn't something else you changed that is preventing your system from booting using kernelcache?

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Did you do a fresh install to be certain it isn't something else you changed that is preventing your system from booting using kernelcache?

Yes. Very clean install



I dont touch everything.







나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

i last report it



because i sent many times for report to improve clover bootloader



i installed vanilla 10.6.7(officail DVD Dmg, not upgrade image) for sandybridge cpu and graphic natively support

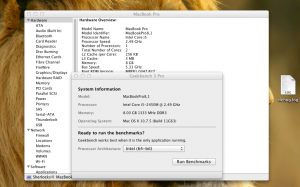

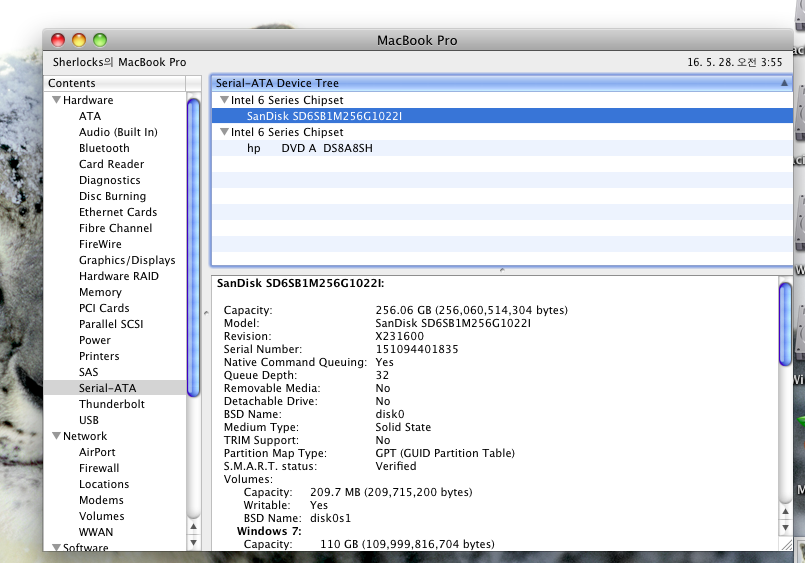

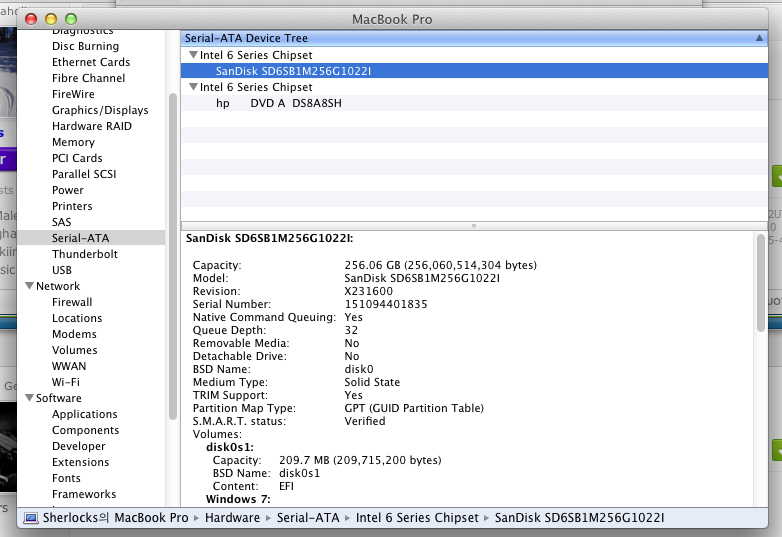

confirm attached image. and i attached normal clover debug.log with booted nullcpu.kext



i try to test many times kext wizard or kext utillity or terminal command to rebuild cache.

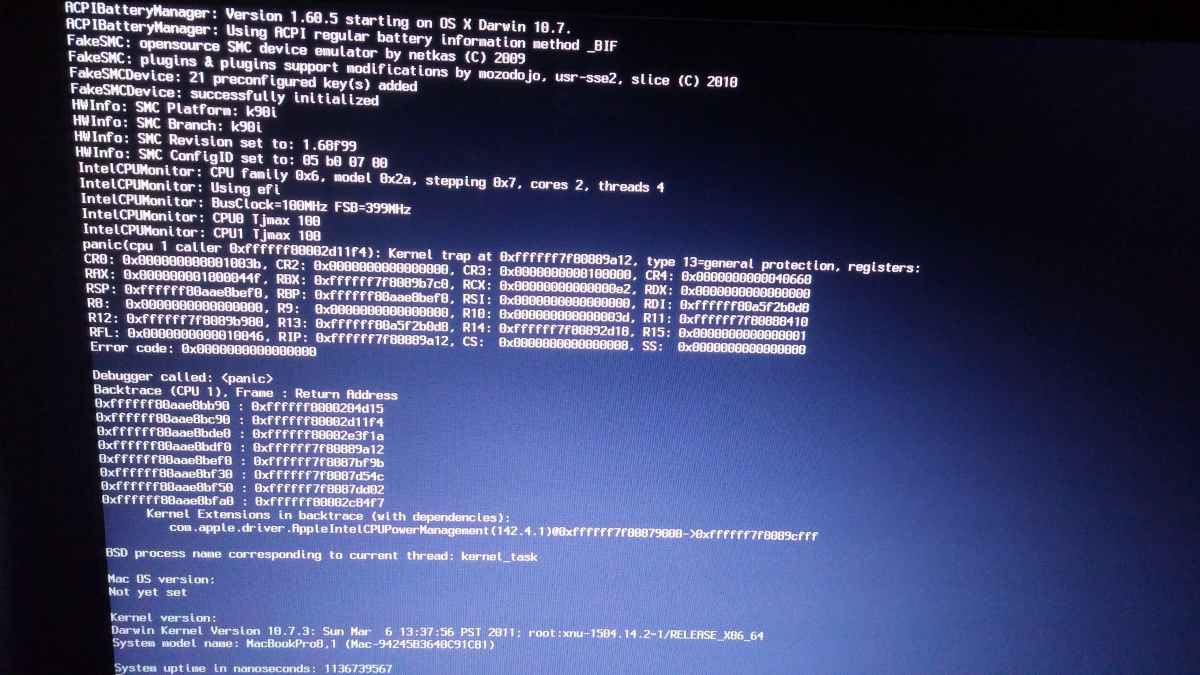

then reboot, normal boot. i cant boot. confim attached picture

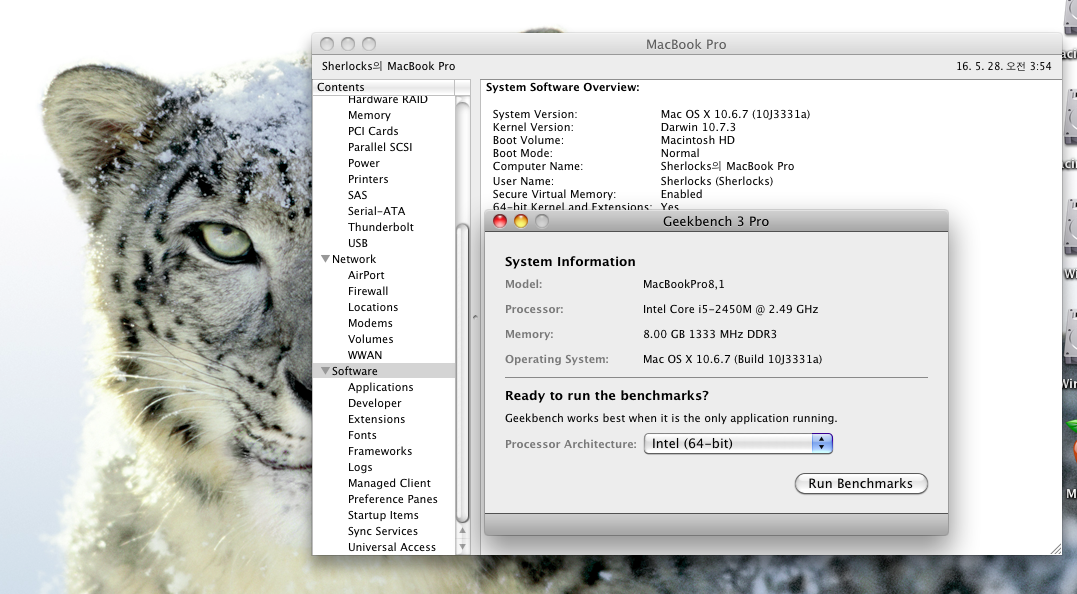

if you dont believe me, check vanilla kernel version 10.7.3 in pic





as result, my system isnt work AICPUM and KextToPatch in clover.

but without cache(use patched AICPUM or NullCPU) works KextToPatch in clover



AICPUM - normal boot not work, without cache boot not work

KextToPatch - Normal boot not work, without cache boot work





my english is bad. i'm so sorry.



thanks in advanced

debug.log.zip

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

i installed vanilla 10.6.7(officail DVD Dmg, not upgrade image)

Install with retail SL DVD (10.6.3) obtained directly from Apple. Upgrade to 10.6.8 with the combo update.

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Install with retail SL DVD (10.6.3) obtained directly from Apple. Upgrade to 10.6.8 with the combo update.

I tested it before install 10.6.7



10.6.7 DVD image is retail for Sandy



Also not related in cache



I had many many test and confirm old snow leopard thread. As result, no effect.



If i want to work, i have to modify kext by me, AHCIPort(trim enable), AICPUM(to avoid panic and to work powermanagement). Then rebuild cache, normal boot. Thats good work.



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
telepati
telepati
Posted
Posted

Goto MSI forum & request UEFI GOP. Flash vbios. Remove EDID, csm drivers, patch vbios. Disable csm in BIOS.



@cecekpawon as you said I request UEFI GOP from MSI forum and I flashed vbios and now looked like down below;








Request UEFI GOP.  Done

Flash vbios. Done





Remove EDID How to do it

CSM Drivers What is it and where am I found it?

Patch vbios. with clover configurator or how?

Disable CSM in BIOS. I can do it by myself :)  :P

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

10.6.7 DVD image is retail for Sandy

There is no such thing as a 10.6.7 DVD. Apple provided only SL 10.6 and 10.6.3. Current SL DVD from apple.com is 10.6.3.

Link to comment
Share on other sites
Micky1979
Micky1979
Posted
Posted



Remove EDID How to do it

CSM Drivers What is it and where am I found it?

Patch vbios. with clover configurator or how?

Disable CSM in BIOS. I can do it by myself  :)   :P

1) from your config.plist (if any)

2) from EFI/CLOVER/driversXXUEFI if any (read 4) not needed if CSM is disabled )

3) from your confi.plist (if already there, you will know better than us because no one have edited the "Graphics" section other than You)

4) Sure. "Compatibility Support Module" is used to boot using legacy bios (bootsector reading instead of U-EFI). not needed with Clover UEFI.



:)
