mitch_de

FakeSMC + plugins SLICE branch

59 posts in this topic

Recommended Posts

In the last days IntelCPUMonitor (32/64Bit) , (MHz+Temp+Voltages for Intel CPU by SMC) got updates.



EDIT: Newer (than the attached in set.zip ) REV 505 was made 24.01.2012, LInk below ,

"Now rev505 (Version 1.0.1) with corrections for Merom and SandyBridge as well as some other tuning."

http://www.projectos...655

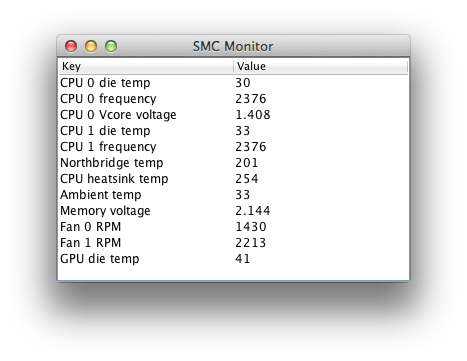

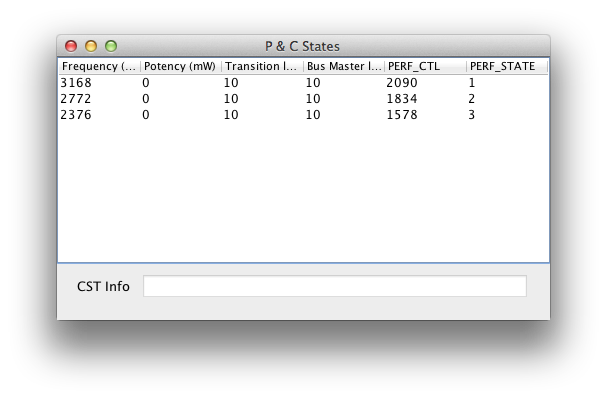

You can usew SMC Monitor to chek the SMC values + PSTATES:

http://www.insanelym...howtopic=247185



I use IntelCPUMonitor in /S/L/E.

For first tests you can use kextload to check if it works - recommended before you install it in /S/L/E



EDIT: Added SMC Monitor Link and removed before attached set.zip (older SMC Monitor , older IntelCPUMonitor 15.01.12)



EDIT: updated titile to FAKESMC slice branch

Share this post


Link to post
Share on other sites

Hello,



I find IntelCPUMonitor made by slice (15.01.2012)

http://www.projectosx.com/forum/index.php?showtopic=1644&st=100&p=16615entry16615

but your file is different (IntelCPUMonitor from you has 37KB, this one from slice has 82KB and different info.plist)

Share this post


Link to post
Share on other sites

Does it still requires setting the correct tjmax manually in plist, or it detects the right values automatically?

Share this post


Link to post
Share on other sites

I don't had to set tjmax even with older versions.

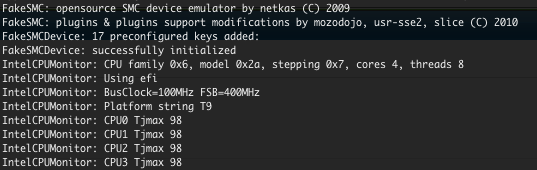

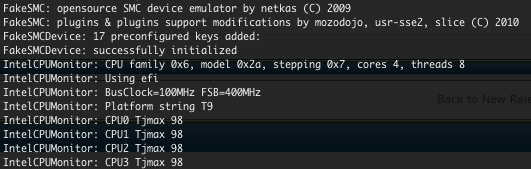

Console says at boot:

kernel: User defined TjMax=0
kernel: IntelCPUMonitor: CPU Tjmax 90

and it's working.

Share this post


Link to post
Share on other sites

Good to know. Slice fixed some tjmax things (cpu type related and in general) in the past 6 months in that IntelCPUMonitor.

Share this post


Link to post
Share on other sites

Please check rev504 and report about FSBFrequency

MacBook:NewFolder slice$ ioreg -lw0 -pIODeviceTree | grep FSBFrequency
   |	   "FSBFrequency" = <00c2eb0b00000000>
MacBook:NewFolder slice$

Share this post


Link to post
Share on other sites

Please check rev504 and report about FSBFrequency

MacBook:NewFolder slice$ ioreg -lw0 -pIODeviceTree | grep FSBFrequency
|	   "FSBFrequency" = <00c2eb0b00000000>
MacBook:NewFolder slice$



Regis-Mac-Pro:~ regiyassin$ ioreg -lw0 -pIODeviceTree | grep FSBFrequency
| |	 "FSBFrequency" = <8de8f50500000000>
Regis-Mac-Pro:~ regiyassin$



im using rev504 IntelCPUMonitor.kext



is there something wrong with my rig?



Share this post


Link to post
Share on other sites

Regis-Mac-Pro:~ regiyassin$ ioreg -lw0 -pIODeviceTree | grep FSBFrequency
| |	 "FSBFrequency" = <8de8f50500000000>
Regis-Mac-Pro:~ regiyassin$



im using rev504 IntelCPUMonitor.kext



is there something wrong with my rig?

it happens to me also, i5-2410M

New rev505 for you

Share this post


Link to post
Share on other sites

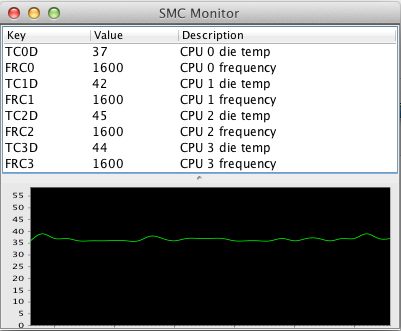

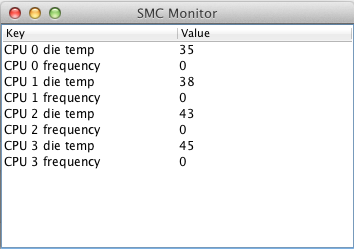

New 505 shows frequency correctly with my Sandy Bridge system. Voltage readings are still messed up.

Share this post


Link to post
Share on other sites

i think rev505 works for me,

Regis-Mac-Pro:~ regiyassin$ ioreg -lw0 -pIODeviceTree | grep FSBFrequency
   | |	 "FSBFrequency" = <40e7f50500000000>
Regis-Mac-Pro:~ regiyassin$


Share this post


Link to post
Share on other sites

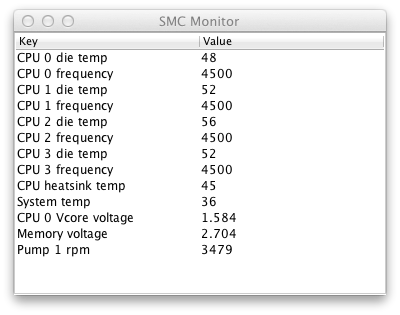

Correct Vcore reading should be 1.392, memory voltage reading should be about 1.65 V.




Share this post


Link to post
Share on other sites
