surfcaster
surfcaster
Posted
Posted

Hello Maldon this DSDTSE extracted with windows, is an Asus laptop with i3, my intention is to install Lion GM can you take a look?

Mobile Intel® HM55 Express Chipset

Intel® Core™ i3 Procesador 370M : 2.4 GHz

NVIDIA® GeForce® G 310M, 1GB DDR3 VRAM e Intel GMA HD

1 x entrada de Micrófono

1 x Salida de auriculares

1 x puerto VGA Mini D-sub 15-pin para monitor externo

1 x USB 3.0

2 x Puertos USB 2.0

1 x entrada de LAN RJ45

1 x HDMI



dsdt

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Mobile Intel® HM55 Express Chipset

Intel® Core™ i3 Procesador 370M : 2.4 GHz

NVIDIA® GeForce® G 310M, 1GB DDR3 VRAM e Intel GMA HD

1 x entrada de Micrófono

1 x Salida de auriculares

1 x puerto VGA Mini D-sub 15-pin para monitor externo

1 x USB 3.0

2 x Puertos USB 2.0

1 x entrada de LAN RJ45

1 x HDMI

model?

dsdt.surfcaster.zip

Link to comment
Share on other sites
APCTK
APCTK
Posted
Posted
Do not use DSDT from other computer, in many cases even if the mobo and BIOS version are the same, the amount of memory, number of used memory slots, etc. can cause problems.





These patches were created using DSDT Editor and uses this new feature that extracts the DSDT, applies the patches, fixes known compile errors, compiles and saves the patched dsdt.aml in your desktop.







If you are using the Mac OS version of DSDT Auto-Patcher, do NOT use a DSDT replacement in Chameleon when you run the app, or it will be used as base for patching instead of the original one from BIOS. If you have a dsdt.aml in / or /Extra (or a specified file for DSDT key in com.apple.Boot.plist), remove it and reboot before running the Auto-Patcher.



Last updated on 05/04/2011

-New Mobos/Notebooks supported.

-Updated Patches

-More compilation errors auto fixed



(etc... etc...)



Hello,

I've got a new problem with DSDT Auto-Patcher. :)



It didn’t work with my system:



- Gigabyte GA-EX58UD5P (BIOS F13U)

- Intel 6 Core i990x

- 16 Gb RAM

- SATA HD and DVD

- nVidia 8400GS (GraphicsEnabler: Yes)

- Chameleon 2 RC5 v.823 (CStates + PStates YES)

- OS X 10.6.7

- Info File: EX58UD5_990x.zip



First times I worked very well with CPU i960 4 Core/8 Threads (F12 BIOS) with the first DSDT made by DSDT-Auto Patcher (the dsdt.aml file is in the "DSDT 1" directory).



But upgrading to CPU 990x (and F13U BIOS) I only saw 6 Core / 8 Threads (not 12) in OS X.

So I'm trying again DSDT-Auto Patcher, but it didn't work: you'll can see that errors in output in zip file.



Trying to help you, I extract via both OS X Terminal and Windows Everest the file in directory "DSDT 2" and "DSDT 3".

I also execute your "Run_Me" script: the output Zip is also in the Info File.



Any idea? Please MaLd0n save me! :D





DSDT Auto-Patcher is a Great Work for all the community! :D



APCTK.

Link to comment
Share on other sites
manmal
manmal
Posted
Posted
...Tecra M5...

send me complete files

http://www.insanelymac.com/forum/index.php...st&id=81816



Hi, here are the files. I had to remove Firewire kexts and nvidia has not recognized. But firewire is needed in this computer for audio/video purpose ... it's a texas instruments chipset, as you can see ... perhaps something has to be patched to get firewire working (dsdt or other tables but dunno how/which).

Here is send_me file:

TecraM5_send_me.zip

Thanks!

Mal

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
HP ProBook 4520s

dsdt.hannah187.zip

If you use VoodooHda, use AppleHDADisabler in S/L/E

http://www.insanelymac.com/forum/index.php...t&p=1580979



Hi, here are the files. I had to remove Firewire kexts and nvidia has not recognized. But firewire is needed in this computer for audio/video purpose ... it's a texas instruments chipset, as you can see ... perhaps something has to be patched to get firewire working (dsdt or other tables but dunno how/which).

dsdt.manmal.zip

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Hi, thanks mald0n but unfortunately it doesn't work on M5 Tecra Toshiba. Firewire still gives kernel panic and nvidia is not recognized at all. I updated to 10.6.7 but same result. Do you think might something be done with it?

Thanks!

Mal

Video

use GraphicsEnabler=Yes



FireWire

use search forum

I hope someone can help you

Link to comment
Share on other sites
hannah187
hannah187
Posted
Posted
dsdt.hannah187.zip

If you use VoodooHda, use AppleHDADisabler in S/L/E

http://www.insanelymac.com/forum/index.php...t&p=1580979



Hi MaLd0n

Many thanks for your kindness.

These are the actions I have taken since:



1. I have downloded dsdt.hannah187.zip and extracted the dsdt.aml

2. I have placed these dsdt.aml in Snow Leopard root / and also in /Extra folder.

3. I have downloaded and installed the following kexts from these location:

http://www.insanelymac.com/forum/index.php...0&p=1580979

(Post #1)

AppleACPIPS2Nub.kext

VoodooPS2Controller.kext

GenericBrightness.kext

4. I could not find any AppleHDADisabler related text in this link so do not know what to do.



After performing all the above tasks, I had restarted my Laptop (Running Chameleon V2.0 RC5 -r747) and I do not see any improvements as yet.



Following are still not working:

1. No Sound

2. USB ports (hence cannot use external mouse and keyboard)

3. Brightness Control



When you get a sec could please suggest what else I need do please.



Kind regards

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Following are still not working:

1. No Sound

2. USB ports (hence cannot use external mouse and keyboard)

3. Brightness Control



Audio

use VoodooHda and AppleHdaDisabler in S/L/E

see the first post



run on terminal

perl -e 'open(CMD, "ioreg -lw0 \| grep DSDT|") or die; while(<CMD>) { chomp; if($_ =~ /\"DSDT\.?\d?\"=<([^>]*)>/) { $buff = $1; open(PIP, "|xxd -r -p > ~/Desktop/dsdt.aml") or die; print PIP "$1"; } }'

DSDT generate in desktop

send me



Use DSDT in Extra or Root

Link to comment
Share on other sites
hannah187
hannah187
Posted
Posted
Audio

use VoodooHda and AppleHdaDisabler in S/L/E

see the first post



run on terminal

perl -e 'open(CMD, "ioreg -lw0 \| grep DSDT|") or die; while(<CMD>) { chomp; if($_ =~ /\"DSDT\.?\d?\"=<([^>]*)>/) { $buff = $1; open(PIP, "|xxd -r -p > ~/Desktop/dsdt.aml") or die; print PIP "$1"; } }'

DSDT generate in desktop

send me



Use DSDT in Extra or Root



Hi MaLd0n,



The dsdt.aml you sent earlier, I did put in root as well as at /Extra. Nothing happened after rebooting.

See attached dsdt.aml after running your perl script.

I have looked into my S/L/E and could not find any VoodooHda and AppleHdaDisabler kexts.



Can you please tell me where I can get it from?



I the meanwhile I keep searching for these .kexts



Regards

dsdt.rar

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
The dsdt.aml you sent earlier, I did put in root as well as at /Extra. Nothing happened after rebooting.

See attached dsdt.aml after running your perl script.

I have looked into my S/L/E and could not find any VoodooHda and AppleHdaDisabler kexts.



USB

USB3?



Audio

AppleHdaDisabler

http://www.insanelymac.com/forum/index.php...st&id=91708



VoodooHda

http://www.nawcom.com/osx86/files/10.6/Audio/VoodooHDA/



put in S/L/E

after

double click in Kext Utility



HP Pavilion KZ240AA-AR6

Intel Pentium Dual CPU E2220 @ 2.40GHz

dsdt_amarullz.zip

NativePM and Restart Fix

see the first post

Link to comment
Share on other sites
hannah187
hannah187
Posted
Posted
USB

USB3?



Audio

AppleHdaDisabler

http://www.insanelymac.com/forum/index.php...st&id=91708



VoodooHda

http://www.nawcom.com/osx86/files/10.6/Audio/VoodooHDA/



put in S/L/E

after

double click in Kext Utility





You are so quick..



No USB3 (that is that my 3 USB ports are not BLUE In colour and Windows Device manager has got not reference re: USB3.



I have installed AppleHdaDisabler from your post..



Downloaded VoodooHda from nawcom and installed but now getting Kernel Panic.



I will delete and both of the these kexts in single user mode and then only install VoodooHda and see what happens.. will post the outcome here..



thanks again



Regards





A little while later:



I have installed this VoodooHda



http://www.nawcom.com/osx86/files/10.6/Audio/VoodooHDA/

2.7.2



I am having Kernel Panic.. hence I had logged in as single user and deleted this kext and computer is running ..thought I give you this input...



regards

Link to comment
Share on other sites
daviduco
daviduco
Posted
Posted
NativePM use Chameleon

see the first post



post a photo --> KP

use -v



I'm using Chameleon, i've done that NativePM thing and it still hangs.



I can't post a photo, everytime i use -v the system boots succesfully, it just hangs when i don't use -v and that way i can't see KP...

Link to comment
Share on other sites
manmal
manmal
Posted
Posted
Video

use GraphicsEnabler=Yes



FireWire

use search forum

I hope someone can help you



hi,

thanks but GraphicsEnabler=Yes gives me a black screen. External monitor works fine tho ... for firewire i don't have any clue .... i guess i will give up.

Thanks for the effort.

Mal

Link to comment
Share on other sites
c0ke
c0ke
Posted
Posted
…





you have to use the native power management

see the first post

dsdt.c0ke.zip





Hi MaLd0n



I'm sorry for delayed reply.

It works great, now I can put my inspiron 1545 in sleep mode and it seems that bootup and system are working quickly!



Now I would like to use AppleHDA instead of VoodooHDA, but I cannot figure how to do:

my card should be:



Codec : IDT 92HD71B7X

Vendor Id : 0x111d76b2

Subsystem Id : 0x102802aa



here's a codec dump from ubuntu. Could you suggest me how to enable it?

Thank you very much!



EDIT: I understand that the dsdt you gave me was prepared for the use with voodoohda, isn't it?

I've found that deviato has my same sound card and here he posted his patched appleHDA with his own dsdt.aml:



http://deviato.wordpress.com/2010/11/22/ap...-9-9f12-10-6-5/



I would like to mantain your dsdt advantages but using appleHDA kexts, do you have some advice?

codec_dump0.txt

Link to comment
Share on other sites
LinearBurn
LinearBurn
Posted
Posted

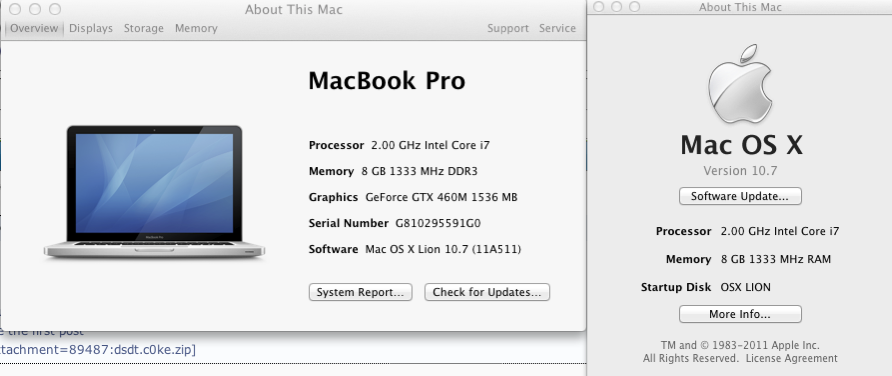

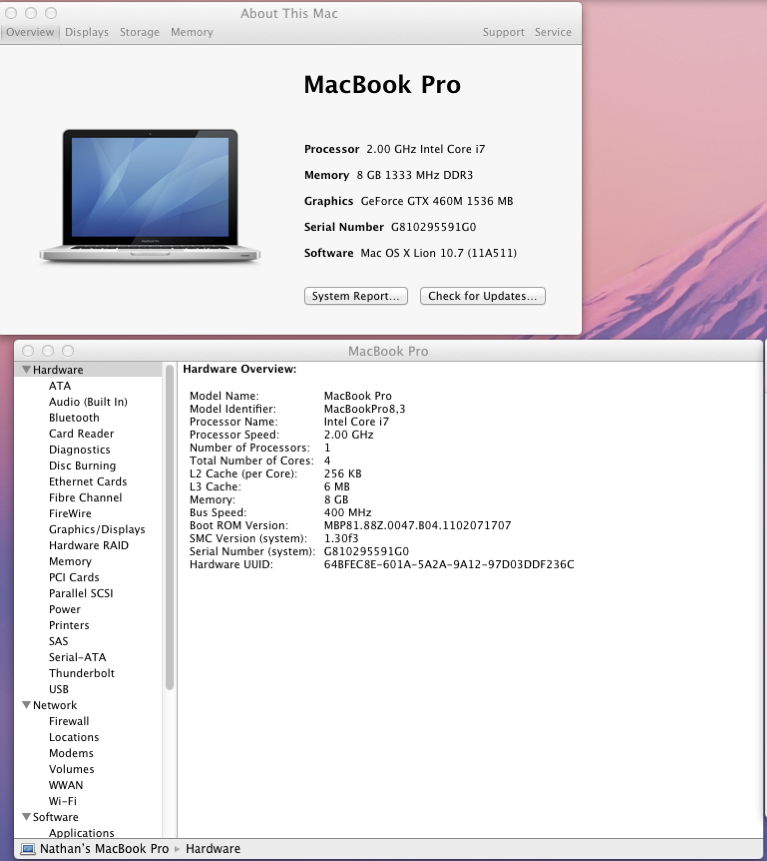

my new laptop running lion its a model g73sw rev 3 core i7 8g ram link to laptop however i added a ssd http://www.newegg.com/Product/Product.aspx...N82E16834230028



i have sent you my run me from this laptop in hope you can fix the dsdt

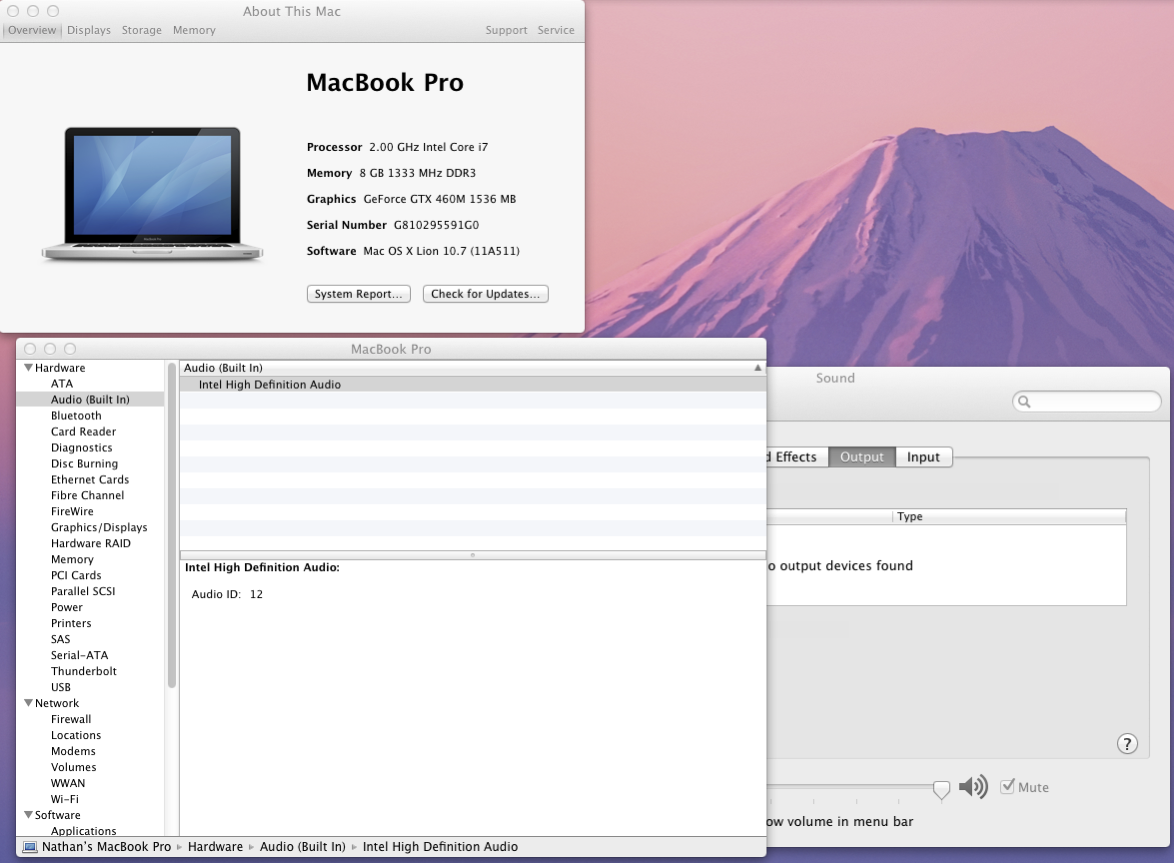

my current problems voodoohda is very unstable hope you can fix the detected on board using native applehda

arthros region problem i tried patching it via your post but it won't patch hopeing for a soultion like this so i can use the native kext



http://www.insanelymac.com/forum/index.php?showtopic=234570





USB card reader detection problem ..... trying to use anyCARDREADER next but it is just like my reader is not being used at all by apple osx lion



.... hopeing to get this as close to a real mac as posable so if there is any kexts i don't need after the dsdt patch please let me know



i hope we can add this laptop to the auto patcher



best regards

LinearBurn

send_me_2.zip

sysinfo.tiff


sysinfo2.tiff

audio.tiff



Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
...



USB

try it

USBBusFix=Yes

do you use original kexts or use USB roll back?



Audio

try another version



I'm using Chameleon, i've done that NativePM thing and it still hangs.



I can't post a photo, everytime i use -v the system boots succesfully, it just hangs when i don't use -v and that way i can't see KP...

:worried_anim:



GraphicsEnabler=Yes gives me a black screen. External monitor works fine

Example

Try changing order in _DOD

					Method (_DOD, 0, NotSerialized)
				{
					Return (Package (0x03)
					{
						0x00010110,
						0x00010100,
						0x0200
					})
				}

0x0100 = CRT

0x0110 = LCD



...

look at the deviato's DSDT and apply the same patch

use AppleHDA + DSDT

Try it

Link to comment
Share on other sites
