congomonster Posted April 15, 2010 Share Posted April 15, 2010 Hi, sold my macbook a while ago, and build a new system for ubuntu. I want to know just for fun, if it possible to install snow leopard on a Gigabyte GA-H55M-USB3 with a core i5-661 processor with integrated graphics. thanks Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/ Share on other sites More sharing options...
everdone Posted April 15, 2010 Share Posted April 15, 2010 Yes Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1449417 Share on other sites More sharing options...
Crawley Posted April 17, 2010 Share Posted April 17, 2010 dude, you're genius! any clue how it can be done? Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1450230 Share on other sites More sharing options...
neil43 Posted April 17, 2010 Share Posted April 17, 2010 Check out tonymacx86. Visit My Website I am in the process of bringing up an i3-530 on a GA H55M-UD2H using this guide. The on board graphics may not be supported at this time in OS X. I have my machine where it boots into the installed Snow Leopard 10.6.0 via Tony's [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] CD. The next step is to update to 10.6.3 and tweak things to boot directly. I plan to change the video card before going forward. neil Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1450277 Share on other sites More sharing options...
congomonster Posted April 17, 2010 Author Share Posted April 17, 2010 ohhh, yeahhhh, got it working! After i tried all boot cd i took tonymacsx86 P55 Boot CD and i came to the installation screen. I switched to the Snow Leopard Retail disc and started with boot:busratio=25 for my core i5 661. After that there was white lines with some errors and falses, but i came to the install screen. I chose the disk utility and formated my harddrive with hfs+ journaled and GUID Partition. I took 30 min to install, it was really slow and at the end there was an installation failed! and i restated. I took tonymacs boot cd back in and selected the hard drive and booted with boot:busratio=25 again. After a short moment of waiting i could finish the installation. I have now a running Mac OS X 10.6. My Motherboard is the GA-H55M-USB3, the bios is F6, and i changed HPET to 64 and for the Hard drives AHCI. What can i do now for the Sound, Network, and Graphics ? The Graphics stuck at 1024 x 768. And can i save update from 106 to 10.6.3 ? Try to make some pictures Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1450357 Share on other sites More sharing options...
congomonster Posted April 18, 2010 Author Share Posted April 18, 2010 combo update 10.6.3 just worked but don't get the other things to run. anyone can help please? Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1451180 Share on other sites More sharing options...
Crawley Posted April 19, 2010 Share Posted April 19, 2010 have you tried voodoohda for sound? as far as I know, integrated graphics on i3s is not supported... Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1451658 Share on other sites More sharing options...
everdone Posted April 19, 2010 Share Posted April 19, 2010 On my H55 sound, ethernet and on-board video will work. Video requires setting a resolution using the Graphics Mode key in com.apple.boot.plist (such as 1900x1200x32), you cannot change resolution and there is no enhanced graphics. Sound requires a modified AppleHDA plus Enabler, put the HDA in S/L/E and Enabler in E/E. Ethernet works with Realtek1000SL in S/L/E. I use DigitalDreamers script to install the kexts as well as DSDT mod, bootloader and Qoopz kernal. The sound kexts came from a grouping of P55 audio kexts I found on this site, the rest from DDs package. I was going to try the 10.6.3 v1.1 update to see if there is better support for on-board video, but unfortunately, the memory decided to roll over and die yesterday, so that machine is down until new memory chips are acquired! Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1451727 Share on other sites More sharing options...
timgradywy Posted April 22, 2010 Share Posted April 22, 2010 Sounds awesome. I just finished a uATX build with an i7-860 and was considering an i3-530 mini-ITX build for a media extender. I've been debating whether to use Windows 7 (eww) or run it as a hackintosh. I've also been trying to decide what to do for graphics. Considering trying to use the build in graphics, but also considering a 9400gt low profile card for easier digital sound output. Please keep us updated with your progress. Tim Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1453761 Share on other sites More sharing options...
chat2me Posted April 26, 2010 Share Posted April 26, 2010 combo update 10.6.3 just worked Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1455943 Share on other sites More sharing options...

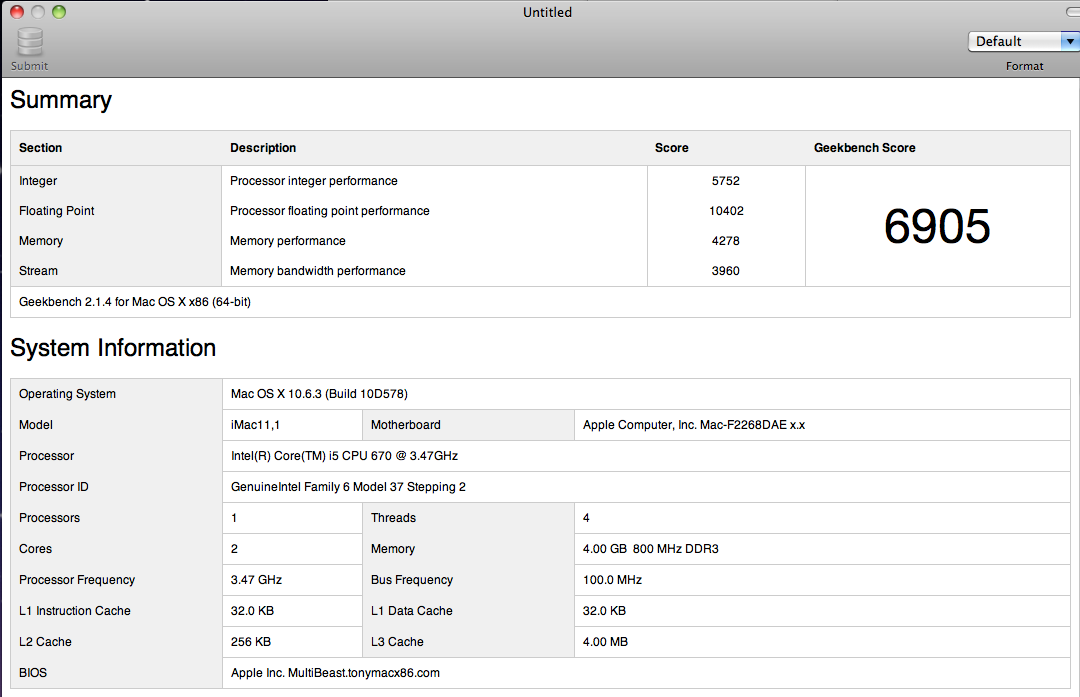

icu Posted June 15, 2010 Share Posted June 15, 2010 Just finished install snow leopard 10.6.3 on h55m-usb3, everything work out of the box. Audio, 8800GTS, NiC card. Until I update with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] with legacy audio, that when my onboard audio stop working. GeekBench score 6905 (while playing slingplayer) Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1489311 Share on other sites More sharing options...
rage5676 Posted August 21, 2010 Share Posted August 21, 2010 can some help me with this i am trying this with a msi h55 and a intel i5 650 and it keeps restarting and a ati 5770 video card Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1533953 Share on other sites More sharing options...
Mohamed Khairy Posted August 21, 2010 Share Posted August 21, 2010 can some help me with this i am trying this with a msi h55 and a intel i5 650 and it keeps restartingand a ati 5770 video card busratio=16 Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1533956 Share on other sites More sharing options...
rage5676 Posted August 21, 2010 Share Posted August 21, 2010 ok i got it to in stall but with out my video card and only in safe mode y cant i get the video card to work can some one help me Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1534280 Share on other sites More sharing options...
Mohamed Khairy Posted August 21, 2010 Share Posted August 21, 2010 ok i got it to in stall but with out my video card and only in safe mode y cant i get the video card to work can some one help me use aty_init for card but it will work in 32bit Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1534286 Share on other sites More sharing options...
rage5676 Posted August 21, 2010 Share Posted August 21, 2010 this is what i am runing 3.2GHz Intel Core i5 processor 650 with Intel Turbo Boost and Hyperthreading technologies<li>Intel H55 chipset<li>6GB DDR3 SDRAM<li>1TB SATA hard drive<li>DVD+/-RW optical drive<li>Radeon 5770 <li>Eight-channel high-definition audio CODEC with jack sensing<li>104-key keyboard<li>Optical mouse<li>10/100/1000 gigabit ethernet<li>Front panel 19-in-1 digital multimedia card reader<li>Eight USB 2.0 ports<li>Six audio ports<li>Two PS/2 keyboard/mouse ports<li>HDMI port<li>VGA port<li>DVI port<li>RJ-45 port<li> what do i install to get it all to work Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1534376 Share on other sites More sharing options...
Mohamed Khairy Posted August 21, 2010 Share Posted August 21, 2010 first disable integated gfx and set sata to achi then there boot cd in my guide use it with retail 10.6.3 dvd then use this flag arch=i386 and setup normal and update to 10.6.4 and grafices update 1.0 you now get grafics and updated mac install boot loader and kexts needed for your MB Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1534414 Share on other sites More sharing options...
rage5676 Posted August 23, 2010 Share Posted August 23, 2010 now i cant even start up on the real tail 10.6.3 everything in not working at all i get is the bad apple now how do i fix this Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1535182 Share on other sites More sharing options...
Krishna21 Posted August 23, 2010 Share Posted August 23, 2010 In the future for any Intel Core iX users, instead of using busratio, simply download [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] Supported, it's made for Core iX processors and no need for busratio=xx just -v, and you're greeted with Install Succeded And you can use [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] to go to 10.6.4. Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1535199 Share on other sites More sharing options...
rage5676 Posted August 23, 2010 Share Posted August 23, 2010 that worked thanks but how do i get my 5770 video card to work ? i have to take it out just to get the computer to start up on 10.6.3 what do i do ?and what kexet do i in stall? what should i used in [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] i am lost Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1535872 Share on other sites More sharing options...
skullmonkey Posted December 18, 2010 Share Posted December 18, 2010 Just a quick question, hoping for quick short answer. Is it possible on GA-H55N-USB3 mb to get the ONBOARD HDMI (or DVI) to get 1080p on my tv, (to get OSX work properly?) I don't want to get extra Graphic Card. Is is possible to use the onboard Intel H55 HD Graphic to work? S@ Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1604434 Share on other sites More sharing options...
seanmcd Posted December 18, 2010 Share Posted December 18, 2010 Hi, sold my macbook a while ago, and build a new system for ubuntu. I want to know just for fun, if it possible to install snow leopard on a Gigabyte GA-H55M-USB3 with a core i5-661 processor with integrated graphics. thanks Yes - many have done it on that board - but I don't think the integrated graphics work at the moment. Link to comment https://www.insanelymac.com/forum/topic/215643-possible-to-install-on-h55-chipset/#findComment-1604719 Share on other sites More sharing options...
