gu3d3s Posted August 24, 2006 Share Posted August 24, 2006 Hi all, I have a Soundmax id 808624d5, this work after instal 10.4.6, but i no have a MIC sound. any help me a configure this!? thanks Link to comment Share on other sites More sharing options...
mABNER Posted August 29, 2006 Share Posted August 29, 2006 i'm starting to get really anoyed with this. it shows the controls, the slidebars, in quicktime it even show the vis bars pumping up and down.... God give me a light before a grab the hammer downstairs and smash this ******* **** into pieces just as i did with the othe ones and my console.... HELP!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! : Link to comment Share on other sites More sharing options...
dapapst Posted August 31, 2006 Share Posted August 31, 2006 Also got problems with my soundcard over here. It's a AD1986a (VEN_11D4, DEV_1986) on ICH7-M (VEN_8086, DEV_27D8). I've tried to change the AudioAC97 (to ADS78), the AudioHDA (changed to my ICH7 IDs) and also the AudioAzalia (also changed to the referring IDs). But still -> No Sounddevice Is there a general problem with AD1986a on ICH7-M or am I just not smart enough Any help appriciated Link to comment Share on other sites More sharing options...
feanaro Posted August 31, 2006 Share Posted August 31, 2006 I don't seem to get it working. followed the howto in the wiki (http://wiki.osx86project.org/wiki/index.php/Audio), but the driver fails to load, saying: 16IOAC97AudioCodec is not compatible with its superclass, 9IOService superclass changed? kextload: a link/load error occured for kernel extension AppleAC97AudioIntelICH.kext load failed for extension AppleAC97AudioIntelICH.kext (run kextload with -t for diagnostic output) My ID (according to windows) are vendor: 11D4, device: 198B (soundmax integrated thingy on a Asus M2N-E system board. Can someone please help? I have spend days on this, but sound is still nog working. Link to comment Share on other sites More sharing options...
Archion Posted August 31, 2006 Share Posted August 31, 2006 My ID (according to windows) are vendor: 11D4, device: 198B (soundmax integrated thingy on a Asus M2N-E system board. Can someone please help? I have spend days on this, but sound is still nog working. I have the same chipset as you, what we need is the data sheet on the chip set, but it is nowhere to be found on the analog site or the soundmax site, with vendor id we only have one half of the equation, we need the device revision id from the data sheet translated from ascii, but they dont seem to want to get off of it. Link to comment Share on other sites More sharing options...
chinabean Posted September 1, 2006 Share Posted September 1, 2006 i also have a adi 1986a vender:11d4 dev:1986 have tried just about everything. The ADS78 in AppleAC97CodecAD198x.kext doesnt change anything. Can't see any sound device... Please help! Link to comment Share on other sites More sharing options...
feanaro Posted September 1, 2006 Share Posted September 1, 2006 Archion, can you explain: why is it only half of the puzzle to get the vendor and device IDs? I thought that was al that was needed. And how are we going to te able to lay hands on the other information needed? I know a thing or two about *nix systems, but am not very experienced when it comes to hardware, I'm afraid. Link to comment Share on other sites More sharing options...
Archion Posted September 1, 2006 Share Posted September 1, 2006 Archion, can you explain: why is it only half of the puzzle to get the vendor and device IDs? I thought that was al that was needed. And how are we going to te able to lay hands on the other information needed? I know a thing or two about *nix systems, but am not very experienced when it comes to hardware, I'm afraid. See this post in this topic code edits for sound Link to comment Share on other sites More sharing options...
mongrel Posted September 4, 2006 Share Posted September 4, 2006 hi, im a noob on this subject, and this might be the wrong spot to post this, but here it is. ive got realtek ac'97 audio ven id 1039 and dev id 7102. it no work. any way to make it go? ty Link to comment Share on other sites More sharing options...
feanaro Posted September 6, 2006 Share Posted September 6, 2006 Ok Archion, I think I get that... Anything that can be done about it? Please let me know when you have some progress. Link to comment Share on other sites More sharing options...
Adam Smith Posted September 8, 2006 Share Posted September 8, 2006 Hi, I nearly have sound working it seems as I have a AD1981BL (http://www.analog.com/en/prod/0,2877,AD1981BL,00.html) but device manager reports the string: PCI\VEN_1002&DEV_4341&SUBSYS_06DB103C&REC00\3&... I've tried the unlikely <key>PNPVendorID</key> of AC10 as per lucose's instrux but it still won't work. Does anybody have any other suggestions? Thanks for any help! AS Link to comment Share on other sites More sharing options...
gu3d3s Posted September 9, 2006 Share Posted September 9, 2006 hi guys, any body have a microphone working in soundmax board? Link to comment Share on other sites More sharing options...
Adam Smith Posted September 9, 2006 Share Posted September 9, 2006 In the finish I installed a USB Sound Blaster for £10.00 which works very well on the "MacOSx 10.4.3 8F1111A Patched Jas v4.2b".iso AS. Link to comment Share on other sites More sharing options...
dilator Posted September 30, 2006 Share Posted September 30, 2006 I have the same chipset as you, what we need is the data sheet on the chip set, but it is nowhere to be found on the analog site or the soundmax site, with vendor id we only have one half of the equation, we need the device revision id from the data sheet translated from ascii, but they dont seem to want to get off of it. hiya i also have the M2N32 with SoundMAX 1998B. everest displays the following information Codec ID 11D4198B / 00000000 Codec Revision 00100200 Device ID 10DE-0371 Subsystem ID 1043-81F6 Device Class 0403 (High Definition Audio) Hardware ID HDAUDIO\FUNC_01 & VEN_11D4 & DEV_198B & SUBSYS_104381F6 & REV_1002 Tried the AppleAC97AudioIntelICH method The AppleAC97Codec198x help doesn't make sense with the Codec ID listed here - its certainly not ASCII! Any ideas? Cheers Link to comment Share on other sites More sharing options...
Callysto Posted September 30, 2006 Share Posted September 30, 2006 Have you tried Azalia it could work with that although you don't get audio input Link to comment Share on other sites More sharing options...

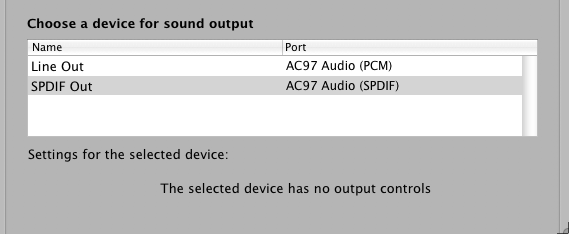

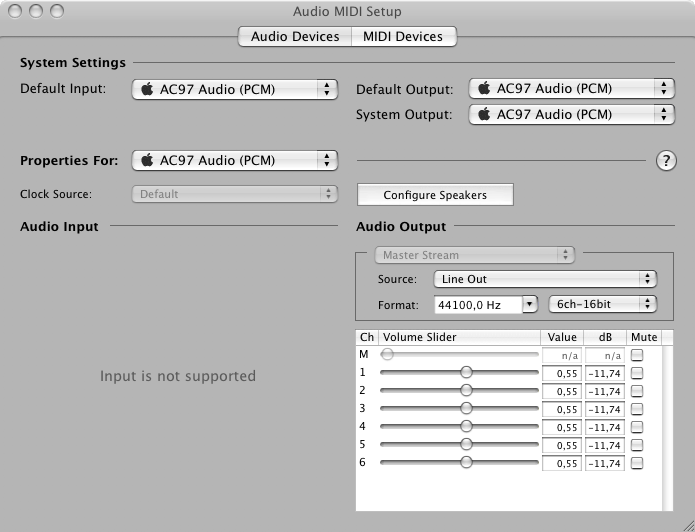

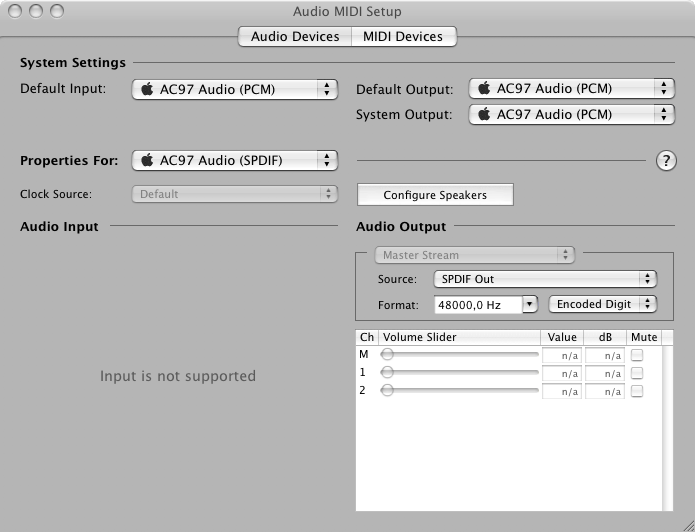

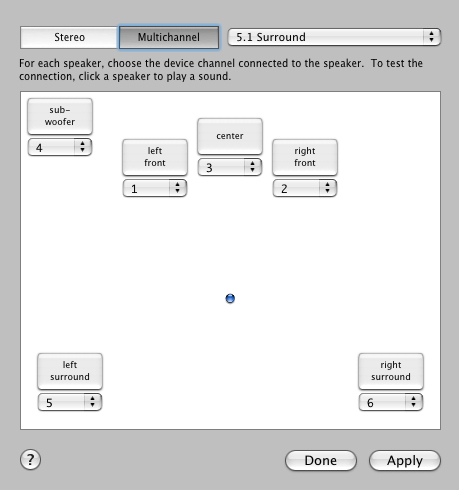

fabioxx Posted October 1, 2006 Share Posted October 1, 2006 Hi everyone! First of all I apologize for my bad english. I have asus p4c800 deluxe with soundmax AC97 (ICH5, string is "24d58086") integrated audio and I can hear good stereo sound and mic works too, but no way to have surround sound. Moreover currently I have a cpu only sse2 capable ( P4 Northwood 2.6C ) and a graphic card with no QE/CI (Ati 8500), so maybe I will not manage to obtain surrond due to lack of something in my pc, but I ask you the same. I installed a new QT plugin found HERE in the forum, is there any chance to have almost spdif digital sound through my logitech Z-5500 system with my settings? Did anyone with this hardware can hear dolby digital with his pc? Thank you. 1- sound output choice in system pref 2- line out config in midi setup app 3- I can configure multi channel when line out selected and hear white noise from each speaker, but QT decode ac3 audio always in two channel 4- spdif digital output selected but no surround sounds with coaxial cable connected, seems digital data don't flow from QT in the cable In a couple of week I'll have an Ati 9800 pro + prescott 3 ghz sse3 capable cpu, I hope I will manage to obtain surround sound in my system, is the last thing I need to say it is complete. Bye. Link to comment Share on other sites More sharing options...
some1inbetween Posted October 8, 2006 Share Posted October 8, 2006 hey guys i found this ad1981 codec/vendor id from a source file maybe it might help a bit.. http://cvs.opensolaris.org/source/xref/on/...udio1575_impl.h /* AD1981 codec vendor ID */ 390 #define AD1981_VID1 0x4144 391 #define AD1981_VID2 0x5374 i also have ad1981 soundmax hd and no sound.. enjoy! Link to comment Share on other sites More sharing options...
Rammjet Posted October 8, 2006 Share Posted October 8, 2006 /* AD1981 codec vendor ID */ 390 #define AD1981_VID1 0x4144 391 #define AD1981_VID2 0x5374 That says you use ADS74 in AppleAC97CodecAD198x.kext 0x4144 - hex 41 = "A" 0x4144 - hex 44 = "D" 0x5374 - hex 53 = "S" 0x5374 - hex 74 ... 74 Link to comment Share on other sites More sharing options...
PolishOX Posted October 9, 2006 Share Posted October 9, 2006 @Rammjet Is there a separate trick to getting AUDIO IN (built in Mic) to work? I have AD1981 and my ID is in AppleAC97CodecAD198x.kext... Sound OUT works great...now trying to get my built in MIC working. Link to comment Share on other sites More sharing options...
Rammjet Posted October 9, 2006 Share Posted October 9, 2006 Very few of the sound driver hacks have proven to allow sound in. You can get a really inexpensive USB sound device on eBay for sound in. Link to comment Share on other sites More sharing options...
Mal Posted November 6, 2006 Share Posted November 6, 2006 Hi, I have an AD 1986A Sound Device and I can't get it working for the life of me. I am running JaS 1.4.6 patched to JaS 1.4.7. The motherboard is an ASUS P5GPL-X: http://www.asus.com/products4.aspx?l1=3&am...amp;modelmenu=1 I have tried all the stuff in this thread (ADS78, etc...) and I have gotten the kext to load, but not on reboot. And still not sound in any case. I'm pretty sure my VendorID = 0x11D4 and DeviceID = 0x1986 What happens seems to be that I have an HD Audio Device in my "Audio MIDI Setup" and a Volume Control. But in my "System Profiler" it says "Audio (Built In)" - "No Built-in Audio" Has anyone had a similar problem and really resolved this issue? Any help would be great. Thanks a bunch. - Mal Link to comment Share on other sites More sharing options...
nbhusain Posted November 6, 2006 Share Posted November 6, 2006 Hi, I have an AD 1986A Sound Device and I can't get it working for the life of me. I am running JaS 1.4.6 patched to JaS 1.4.7. The motherboard is an ASUS P5GPL-X: http://www.asus.com/products4.aspx?l1=3&am...amp;modelmenu=1 I have tried all the stuff in this thread (ADS78, etc...) and I have gotten the kext to load, but not on reboot. And still not sound in any case. I'm pretty sure my VendorID = 0x11D4 and DeviceID = 0x1986 What happens seems to be that I have an HD Audio Device in my "Audio MIDI Setup" and a Volume Control. But in my "System Profiler" it says "Audio (Built In)" - "No Built-in Audio" Has anyone had a similar problem and really resolved this issue? Any help would be great. Thanks a bunch. - Mal i'm having the same problem, i can see the volume control but i hear no sound, and i also have same audio codec (ad1986a) but different mobo (asus p5rd1-vm uli m5461 sound controler) Link to comment Share on other sites More sharing options...
Mal Posted November 6, 2006 Share Posted November 6, 2006 Is there anyway to get the Device & Vendor IDs without going to Windoze? Besides the obvious of course... Link to comment Share on other sites More sharing options...
PolishOX Posted November 6, 2006 Share Posted November 6, 2006 ID's do not start with 0x... So your ids are: 11D4 and 1986 You can see your ids inside of OSX by going to: About This Mac: More Info Hope this helps you. Good luck on pursuing your hac! Link to comment Share on other sites More sharing options...
Mal Posted November 7, 2006 Share Posted November 7, 2006 Yeah thanks I kinda knew both of those things tho I was just wondering if there was kinda like a x86 generic Unix/BSD hardware probing tool as I don't have Windoze on this box, and frankly don't want it. Just wanna check what the Device and Vendor ID is for the ICH6 is. I understand that is most likely 2668 & 8086, would it be different for certain mobos? Ta. - Mal Link to comment Share on other sites More sharing options...
