isk k Posted March 12, 2016 Share Posted March 12, 2016 Hello, when I tried to pach my native DSDT.aml the compiler shows some errors.I used pjalm patches.Thank you. MB: Z87М-D3H Video:MSI GTX 960 Gaming 2GB Link to comment Share on other sites More sharing options...
spakk Posted March 12, 2016 Share Posted March 12, 2016 upload your dsdt + ioreg file 1 Link to comment Share on other sites More sharing options...
isk k Posted March 12, 2016 Author Share Posted March 12, 2016 https://drive.google.com/folderview?id=0B0OhcxWMLQ9wQVFoQTBENVpuQVE&usp=sharing That is not patched DSDT.You can find out them in Pjalm's repository. Link to comment Share on other sites More sharing options...
al6042 Posted March 12, 2016 Share Posted March 12, 2016 Hi Ioan, try the attached DSDT. One of the errors came from the change of SAT0 to SATA, which was not consistent through the whole patch. The other one from the change from PEGP to PEG0. I changed both entries manually. Have fun. DSDT.aml.zip 1 Link to comment Share on other sites More sharing options...
isk k Posted March 12, 2016 Author Share Posted March 12, 2016 Hi Ioan, try the attached DSDT. One of the errors came from the change of SAT0 to SATA, which was not consistent through the whole patch. The other one from the change from PEGP to PEG0. I changed both entries manually. Have fun. Thank you.Is this patched DSDT for motherboard and graphic? Link to comment Share on other sites More sharing options...
isk k Posted March 12, 2016 Author Share Posted March 12, 2016 When I patched DSDT with MB and Graphics patches it shows 7 other errors. Link to comment Share on other sites More sharing options...
al6042 Posted March 13, 2016 Share Posted March 13, 2016 Yes, the DSDT contains Patches for MB and Graphics. Those 7 other errors came from the already mentioned SAT0 and PEGP Situation, which I corrected manually... Does the DSDT work as expected? 1 Link to comment Share on other sites More sharing options...
isk k Posted March 13, 2016 Author Share Posted March 13, 2016 Yes, the DSDT contains Patches for MB and Graphics. Those 7 other errors came from the already mentioned SAT0 and PEGP Situation, which I corrected manually... Does the DSDT work as expected? Thank you!Can you tell me how can I correct these errors for the future. Link to comment Share on other sites More sharing options...

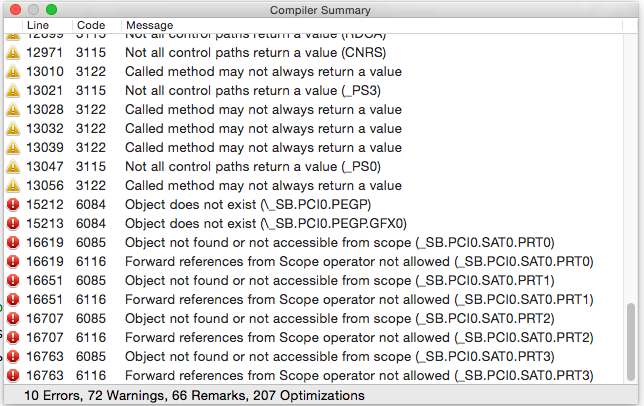

al6042 Posted March 13, 2016 Share Posted March 13, 2016 Sure... In your screenshot the errors were: "Object does not exist" means, that the object isn't available anymore, after the usage of the patches. In that case you must be aware which object was changed by those patches. Since PEGP was changed to PEG0 you just have to rename the lines 15212 and 15213 to point to (\_SB.PCI0.PEG0) and (\_SB.PCI0.PEG0.GFX0) Since SAT0 was changed to SATA you just have to rename the lines 16619, 16651, 16707 and 16763 to point to (\_SB.PCI0.SAT0.xxxx) and (\_SB.PCI0.SATA.xxxx) 2 Link to comment Share on other sites More sharing options...

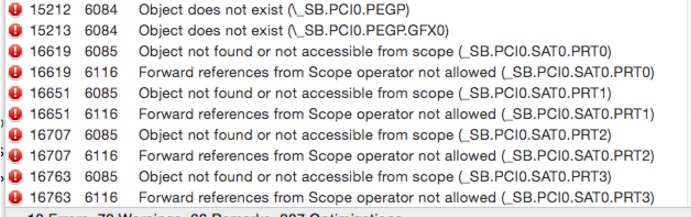

isk k Posted March 13, 2016 Author Share Posted March 13, 2016 Sure... In your screenshot the errors were: DSDT_Error_with_Pjalm_patches_-_DSDT_-_InsanelyMac_Forum.jpg "Object does not exist" means, that the object isn't available anymore, after the usage of the patches. In that case you must be aware which object was changed by those patches. Since PEGP was changed to PEG0 you just have to rename the lines 15212 and 15213 to point to (\_SB.PCI0.PEG0) and (\_SB.PCI0.PEG0.GFX0) Since SAT0 was changed to SATA you just have to rename the lines 16619, 16651, 16707 and 16763 to point to (\_SB.PCI0.SAT0.xxxx) and (\_SB.PCI0.SATA.xxxx) I tried this DSDT it does not work, OS X cannot be started with it.Is there a way to delete DSDT file from clover boot screen? Link to comment Share on other sites More sharing options...
artur_pt Posted March 13, 2016 Share Posted March 13, 2016 hello test this one DSDT.aml.zip what u mean by patched for graphics ? must use nvidia web drivers and remember if u use a patched dsdt .. disable all clover dsdt fix good hack 1 Link to comment Share on other sites More sharing options...
René_ Posted March 13, 2016 Share Posted March 13, 2016 I tried this DSDT it does not work, OS X cannot be started with it.Is there a way to delete DSDT file from clover boot screen? If you want to boot without the DSDT, go to options > DSDT name. And remove the DSDT.aml name. 1 Link to comment Share on other sites More sharing options...
