C6 / C7 low power states on a Hackintosh?

power Haswell c6 c7 Hackintosh

  • Please log in to reply
9 replies to this topic

#1
Dontview

Dontview

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
  • Gender:Male
  • Location:Germany

Hello everyone,



i plan to buy myself a new power supply. Since i have a Haswell (i5-4570) CPU, I was wondering if the low power states would work on my hackintosh. Otherwise, this investment would be rather senseless I guess.



Currently, I use the Intel Power Gadget in order to analyze the power consumption of my CPU. In Idle, it consummate around 44 W. In full load, it consummate around 59 W. if C6 and C7 are working, it should by much more less than 44W.



Anyway, it would be nice if someone could confirm that C6 and C7 is working.
If anyone has any experience, it would be also nice to know how high the power consumption of these states are using a hackintosh.



Thank you guys,



Timo



#2
wastez

wastez

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 171 posts
  • Gender:Male
I have exactly the same CPU like you but mine has in idle total Package Power 5 - 6 W without using the integrated graphicscard.

Are you using a ssdt? Because your idle power Output is too high.

#3
Ramalama

Ramalama

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 273 posts
  • Gender:Not Telling
  • Location:Germany

i7-4558U 3-5W idle with integrated iris5100

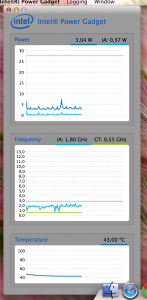

attached screeshot

Attached Files



#4
Dontview

Dontview

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
  • Gender:Male
  • Location:Germany

Ok...the strange part is, that my intel power gadget ist not working properly. That might explain my high results.
It shows a power consumption between 0,45 - and 0,55 W.


Any suggestions how i could fix this?

I am definitely using a ssdt .....



I attached i picture of my intel power gadget results, my clover configuration and my current ssdt file...

Thanks :)

Attached Files



#5
Ramalama

Ramalama

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 273 posts
  • Gender:Not Telling
  • Location:Germany

can you make an ioreg?



#6
Dontview

Dontview

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
  • Gender:Male
  • Location:Germany

Sure.

Thanks in advance..





Attached Files



#7
Ramalama

Ramalama

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 273 posts
  • Gender:Not Telling
  • Location:Germany

Sure.

Thanks in advance..







You ioreg seems good for me... (CPU related)



Can you check with dpcidump or with hwmonitor your psteps?



how much you get, and if it's stucked to highest step or something?



#8
Maniac10

Maniac10

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,262 posts
  • Gender:Not Telling

Pike's AppleIntelCPUPowerManagementInfo kext can tell you a bit more about power management.



#9
Dontview

Dontview

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
  • Gender:Male
  • Location:Germany

Hey,

i know from AppleIntelCPUPowerManagementInfo kext, HWMonitor and Intel Power Gadget (Log) that 800, 3200, 3400 and 3600 mhz working. I am quite sure the Intel Power Gadget is not working correctly but my hacki is.



#10
Slice

Slice

    InsanelyMacaholic

  • Local Moderators
  • 3,199 posts
  • Gender:Male
  • Location:Moscow

Ok...the strange part is, that my intel power gadget ist not working properly. That might explain my high results.
It shows a power consumption between 0,45 - and 0,55 W.


Any suggestions how i could fix this?

I am definitely using a ssdt .....



I attached i picture of my intel power gadget results, my clover configuration and my current ssdt file...

Thanks :)

Use, please PNG graphics for attachments.
