Hi,

Let me introduce my build.
(already shown @ tonymacx86.com)

It's a PowerMac G5 late 2004 (I suppose) ; I'm using BlackCH Front panel kit.

Hardware :

- Intel i7 3770 @ 4,3 GHz
- GTX TITAN (Zotac)
- AsRock Z77 Pro 4-M
- DDR3 Corsair Dominator Platinum 1600 (16GB : 8x2)
- OCZ Agility 3 (120 GB)
- WD Caviar Green 15-EARS (1,5TB x 2)
- LG BR Combo reader/writer
- LEPA G750-MAS
- Bluetooth dongle
- D-link DWA-127 Wireless N150
- Scythe Mugen 2 revB (CPU Cooler)
- Noctua PC NF-P14 FLX 140 mm (PSU Fan Cooler)

I went through an easy-way, using Dremel to cut out the rear panel, just enough to get to the different plugs and stick the motherboard with the original G5 stands off.

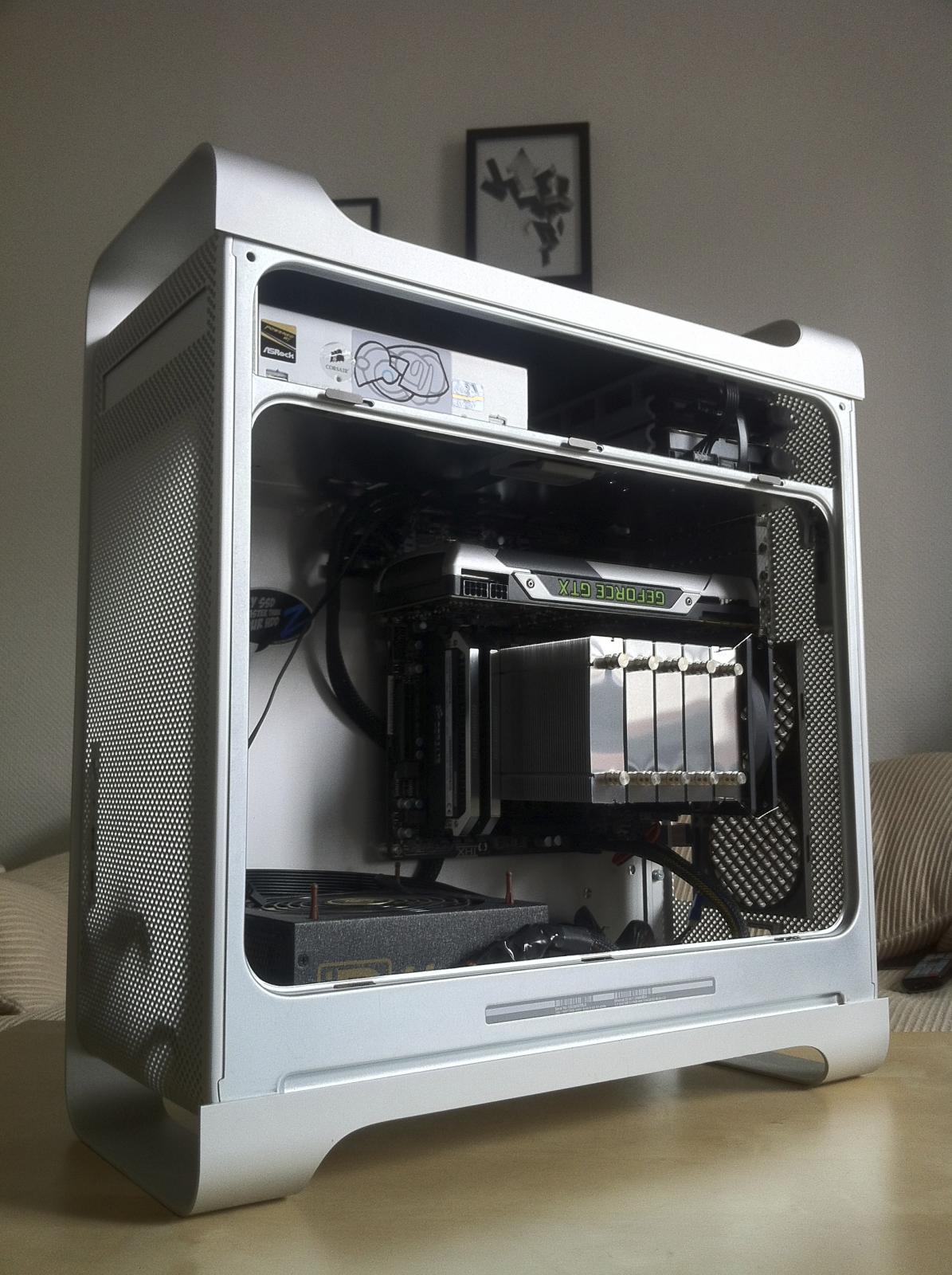

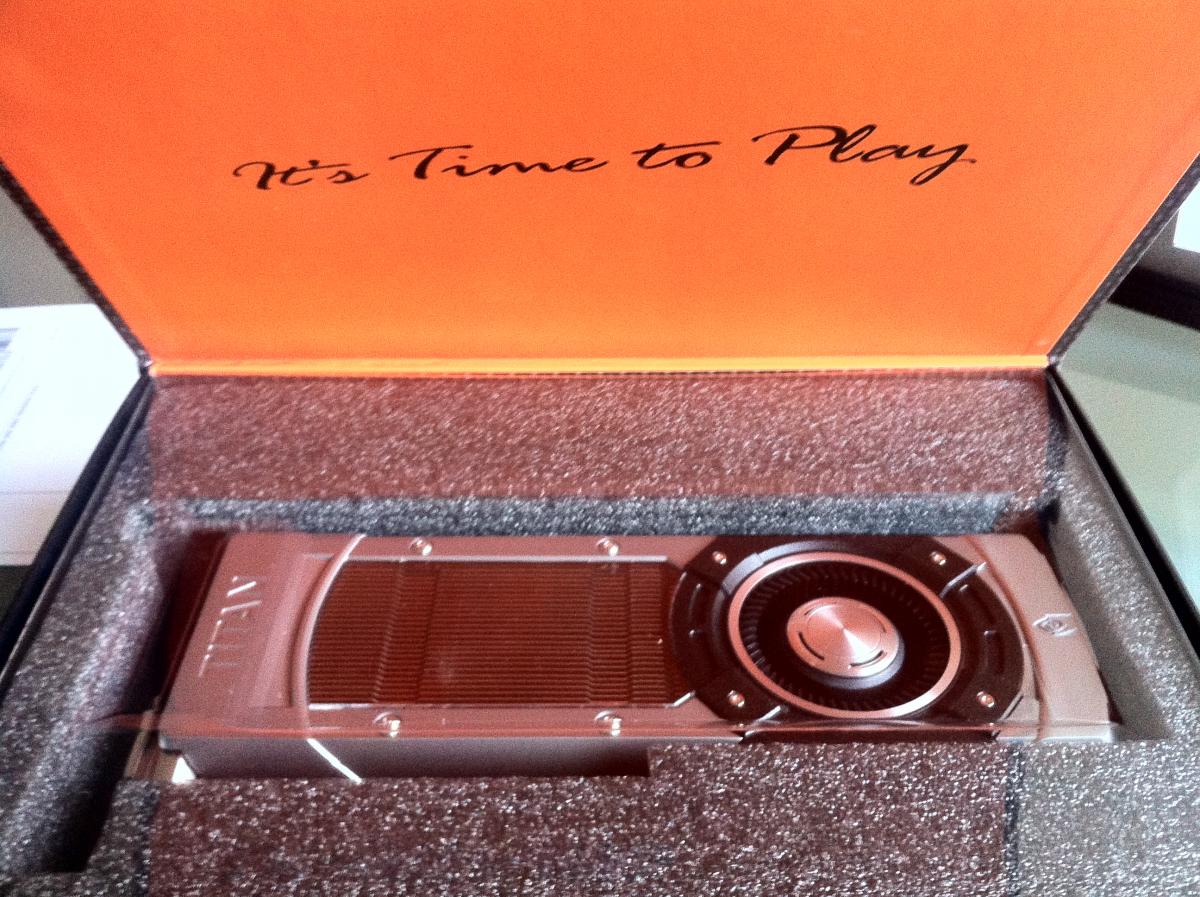

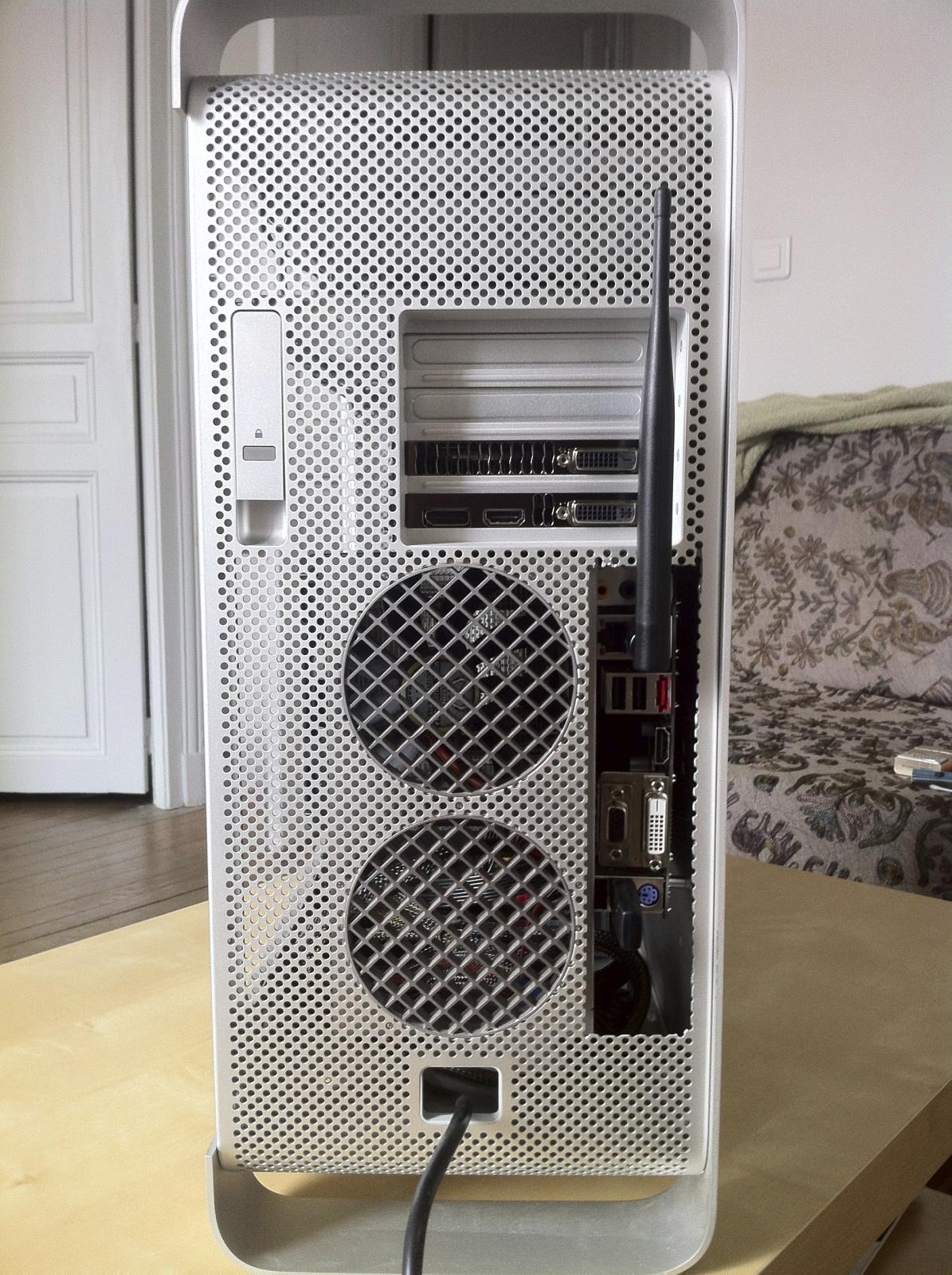

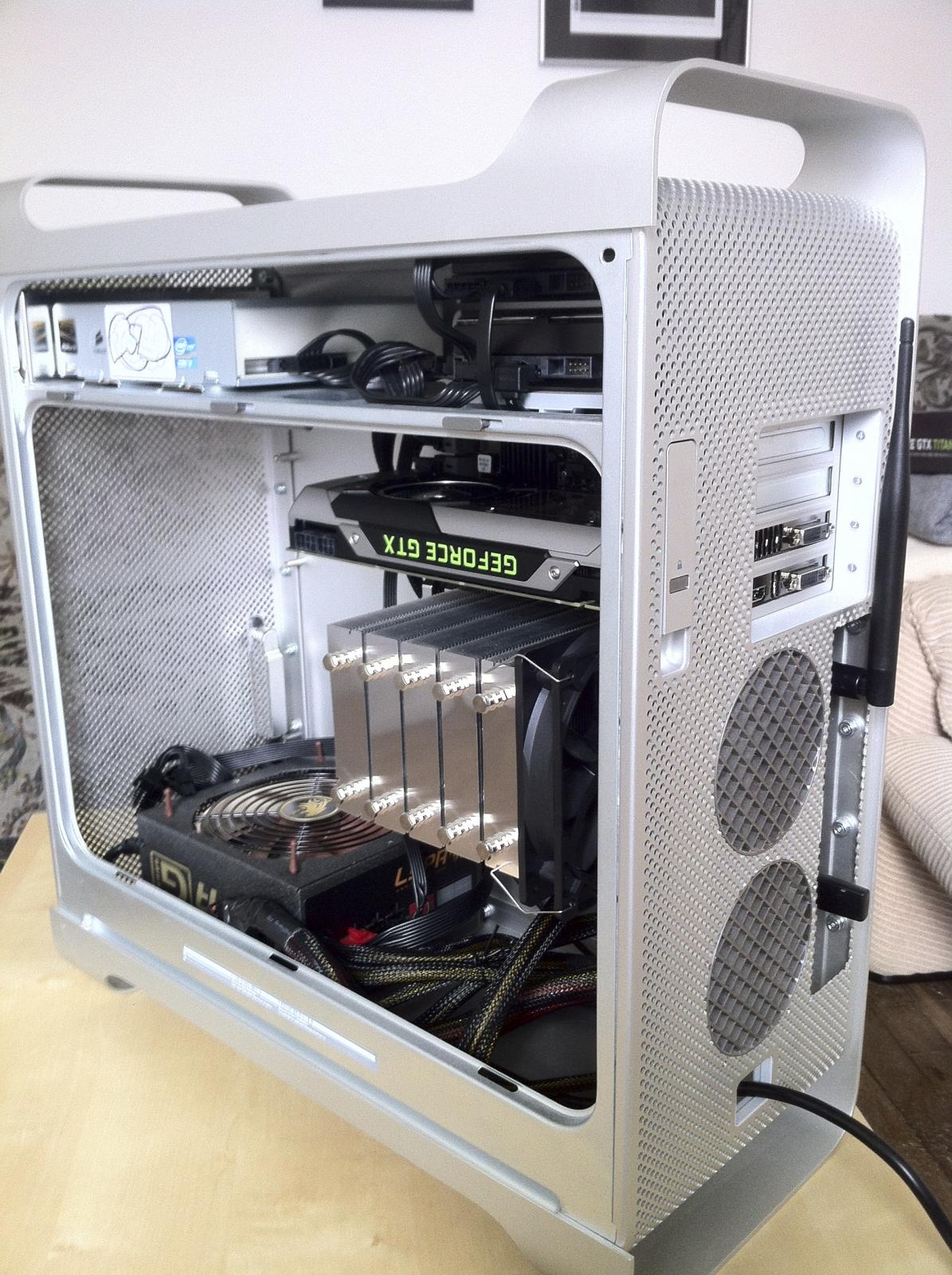

Attached File  IMG_0045.jpg   233.02KB   178 downloads

Attached File  IMG_0047.jpg   299.04KB   233 downloads

Attached File  IMG_0049.jpg   341.94KB   229 downloads

Attached File  IMG_0061.JPG   165.14KB   200 downloads

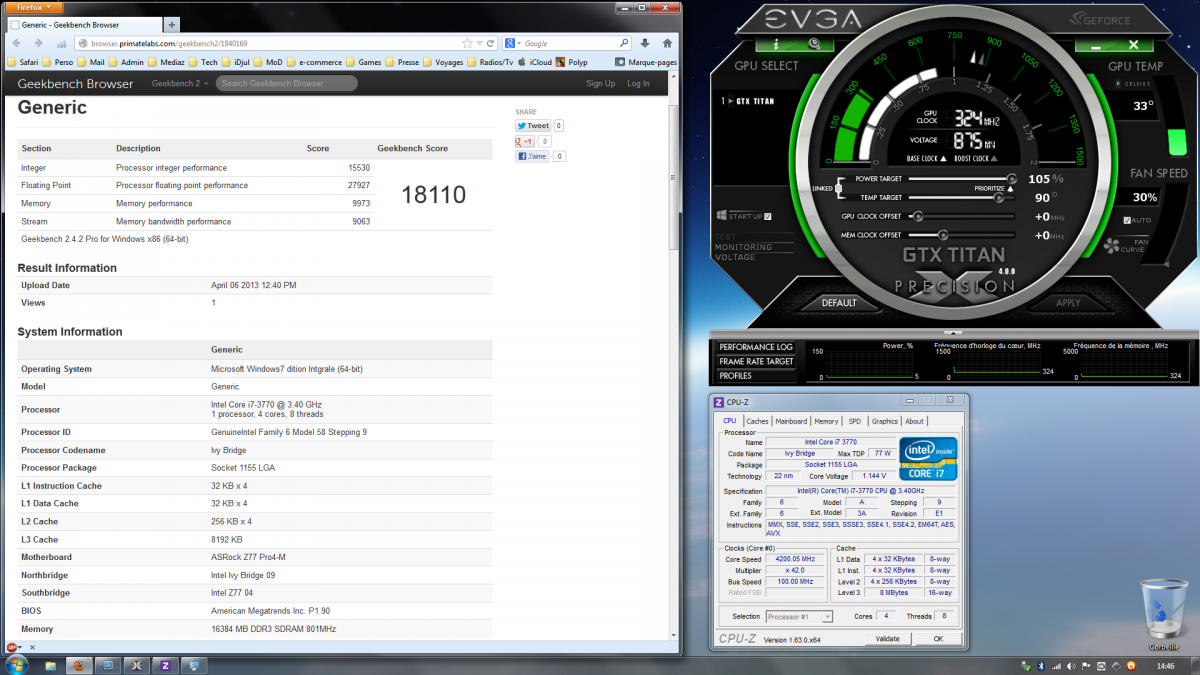

Attached File  GeekBench.PNG   462.75KB   57 downloads

#2
KingOssy

KingOssy

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
is that a samsung tv on your g5 ?

#3
maximus

maximus

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 107 posts
  • Gender:Male
  • Location:Croatia
  • Interests:Everything IT related, Hi-Fi audio, good books
I am starting to like those G5 cases alot.

#4
The Real Deal

The Real Deal

    InsanelyMac Legend

  • Donators
  • 886 posts
  • Gender:Male
  • Location:France
Hi,
Any pics during the build process ?

#5
WhatTheTech

WhatTheTech

    Macmodder Addict

  • Retired
  • 458 posts
  • Gender:Male
Fantastically clean mod, really well done on this!

#6
djulink

djulink

    InsanelyMac Protégé

  • Members
  • Pip
  • 47 posts

is that a samsung tv on your g5 ?

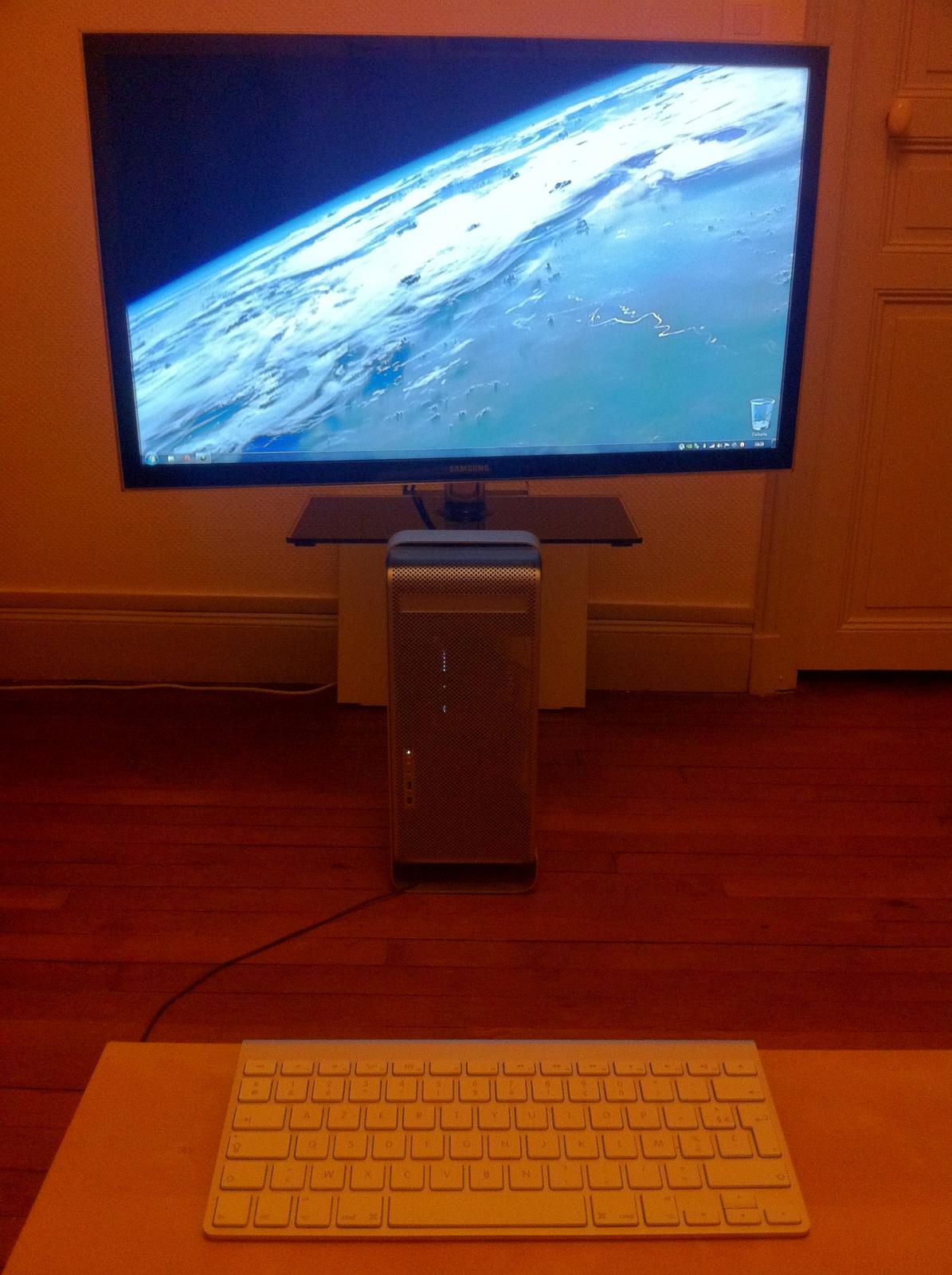

Yep, and strange as it seems, it's steady :

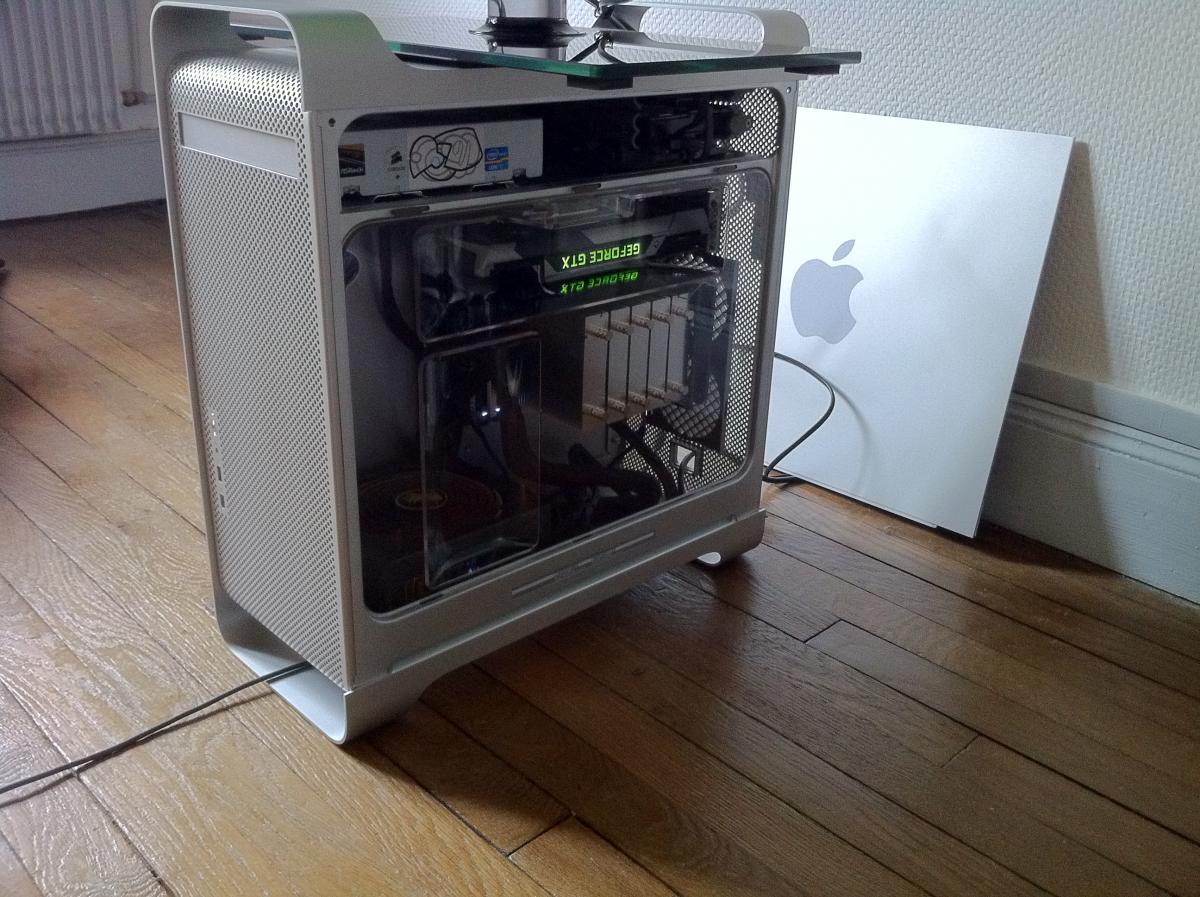

Attached File  IMG_0026.jpg   204.61KB   43 downloads


Hi,
Any pics during the build process ?

Not much :

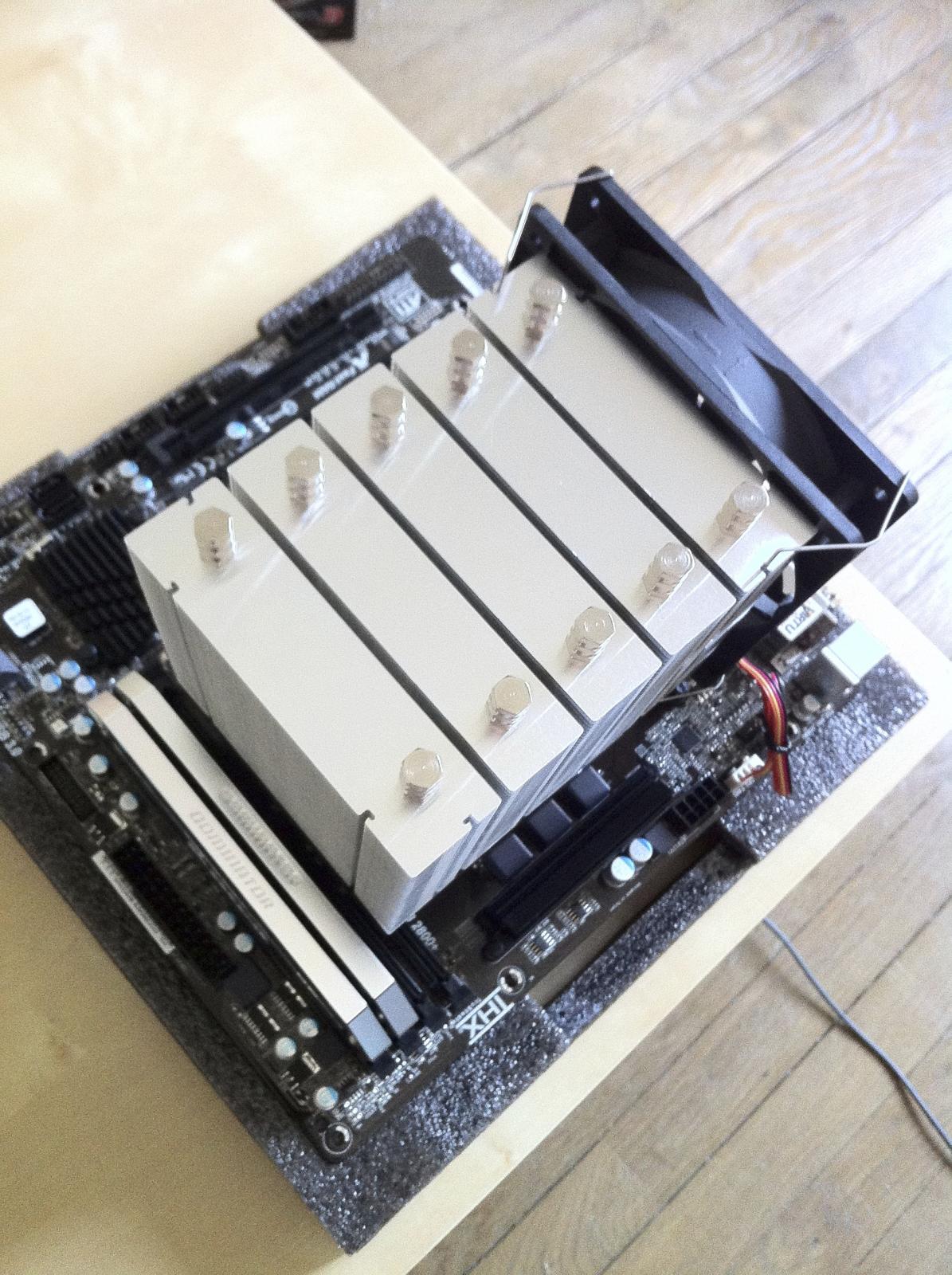

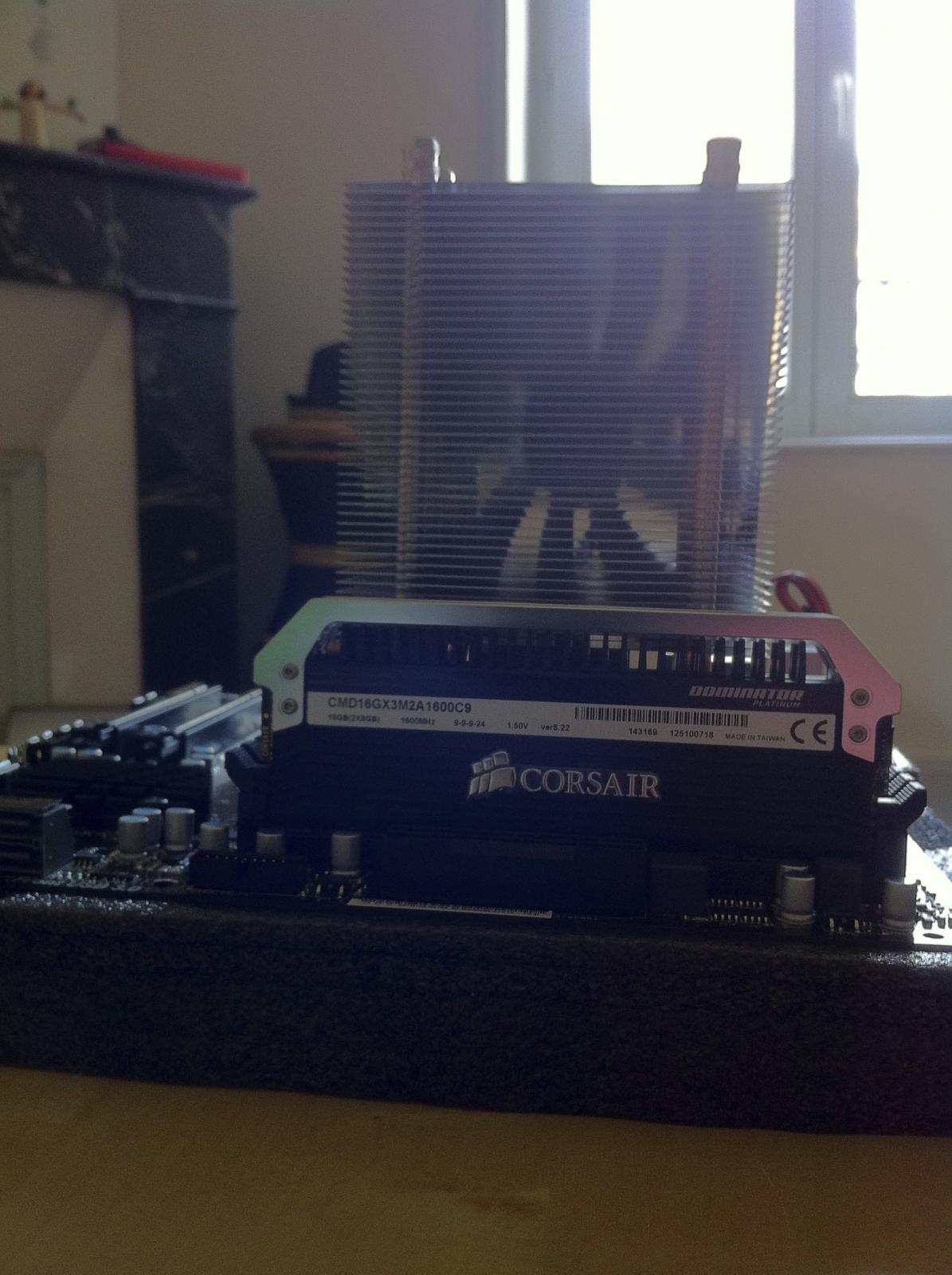

Attached File  IMG_0016.jpg   279.82KB   33 downloads

Attached File  IMG_0017.jpg   160.02KB   21 downloads

Attached File  IMG_0043.JPG   189.02KB   19 downloads


Fantastically clean mod, really well done on this!

Txs, it's a never ending addiction ^_^

#7
Mr.D.

Mr.D.

    There are those who call me...

  • Local Moderators
  • 545 posts
  • Gender:Male
  • Location:Wyoming
  • Interests:Music editing/Remixing, hiking, orienteering, 4 wheeling, reading (yes like books and such), and...
Very well done mod. Surprised you have the mod posted without issue on 'he who shall not be named''s site - it being a non-gigabyte board and all. Got OSX running on there yet?

#8
djulink

djulink

    InsanelyMac Protégé

  • Members
  • Pip
  • 47 posts

Very well done mod. Surprised you have the mod posted without issue on 'he who shall not be named''s site - it being a non-gigabyte board and all. Got OSX running on there yet?


Not yet - about OSX running, this machine gaming profile is keeping me with win 7 at the moment; fortunately I'm writing to you from my 2011 MBA work machine :)
I did not have any problems posting on Tony's site, and found - after reading - "strange" points of view about it here... I guess, after all, we're all modders, right ?

#9
MiniHack

MiniHack

    InsanelyMac Legend

  • Donators
  • 626 posts
  • Gender:Male
I like this very much djulink.

I wish I could afford a Titan though as it'd look very nice in my mod....sponsors anyone?!?

#10
streelydan

streelydan

    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts
Great looking mod!

I have just started working on a G5 mod very similar to yours. I am also keeping the apple HDD caddy, using a mATX board and locating the PSU up front on the deck.

One question: How did you secure the PSU to the chassis? did you make a bracket or is it just placed on the deck?

I will be posting a thread of my build soon, I am making a bracket to hold the PSU in place.

#11
djulink

djulink

    InsanelyMac Protégé

  • Members
  • Pip
  • 47 posts
@MiniHack
I wanted, for once in my life at least, to buy the high end GPU of the moment; my wife does not appreciate tremendous graphics as I do, I guess... :wink2:

@streelydan
I used a simple velcro to hold it down, and it's working perfectly (no metal contact vibrations and - with the Noctua Fan - no sound at all)

#12
Baudouin

Baudouin

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 414 posts
  • Gender:Male
  • Location:Brussels, Belgium
Posted Image

This is one of the less "back panel cut" I remember having seen. Congratz. Do you already know how you will put the final touch for the connectors opening ?

#13
djulink

djulink

    InsanelyMac Protégé

  • Members
  • Pip
  • 47 posts

Posted Image

This is one of the less "back panel cut" I remember having seen. Congratz. Do you already know how you will put the final touch for the connectors opening ?


Well, I don't know yet... but am thinking of it.
Any ideas are most welcome

#14
Baudouin

Baudouin

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 414 posts
  • Gender:Male
  • Location:Brussels, Belgium
I remember what aquamac did, but there is no infos how it was done. Could anyway help you find a way.

Posted Image

Posted Image

#15
djulink

djulink

    InsanelyMac Protégé

  • Members
  • Pip
  • 47 posts

I remember what aquamac did, but there is no infos how it was done. Could anyway help you find a way.


Yep... I remember when I was "dreaming", looking at his mods ; that would be the holy grail to get something like that

#16
Baudouin

Baudouin

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 414 posts
  • Gender:Male
  • Location:Brussels, Belgium
Give me some weeks and I will find the way to make your dream come true. :moil:

#17
MiniHack

MiniHack

    InsanelyMac Legend

  • Donators
  • 626 posts
  • Gender:Male
Baudouin - to get a simple panel like that is not desperately hard but it is motherboard specific and you also have to have a motherboard that has a layout that supports having such a big gap between the IO panel and the PCI-e slots. The type of holy grail panel shown came from the careful selection of a mobo that works with the confines of the case and then the acceptance of which compromise to make.....

It does though look fantastic.

Any standard IO will require the rect. panel to be really hard up against the PCI slots and also (on the pro) will not quite fit on the "flat" of the rear panel while retaining the original 5 slots.

On the G5 the problem is slightly different in that the IO of a mATX board is cramped by the height to be not quite accessible through the slot without doing more surgery to move the fans.

Still, the difficulty in getting a clean mod is what keeps us all interested isn't it?

IMHO it is a question of choosing what is the best compromise for you and then going with it.

BTW, allegedly support may be coming in 10.8.4 for your lovely GPU.....

Even more jealous now.

;)

#18
Baudouin

Baudouin

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 414 posts
  • Gender:Male
  • Location:Brussels, Belgium

Baudouin - to get a simple panel like that is not desperately hard but it is motherboard specific and you also have to have a motherboard that has a layout that supports having such a big gap between the IO panel and the PCI-e slots. The type of holy grail panel shown came from the careful selection of a mobo that works with the confines of the case and then the acceptance of which compromise to make.....

It does though look fantastic.

Any standard IO will require the rect. panel to be really hard up against the PCI slots and also (on the pro) will not quite fit on the "flat" of the rear panel while retaining the original 5 slots.

On the G5 the problem is slightly different in that the IO of a mATX board is cramped by the height to be not quite accessible through the slot without doing more surgery to move the fans.

Still, the difficulty in getting a clean mod is what keeps us all interested isn't it?

IMHO it is a question of choosing what is the best compromise for you and then going with it.


I totally agree with you MiniHack. I have been thinking for a while how to manage this. I have to check the dimensions of the IO from the AsRock Z77 Pro 4-M to make an opening which matches. What amazed me is there was no cut made by djulink to move the fans here.

#19
MiniHack

MiniHack

    InsanelyMac Legend

  • Donators
  • 626 posts
  • Gender:Male

I totally agree with you MiniHack. I have been thinking for a while how to manage this. I have to check the dimensions of the IO from the AsRock Z77 Pro 4-M to make an opening which matches. What amazed me is there was no cut made by djulink to move the fans here.



Yes, but you can see the area at the top of the IO is cramped in as a result....but it is pretty good as only some audio ports look to be blocked and they are not used anyway.

The method would work really well with a board that has low profile IO. Could nicely finish it off using similar method to how I do my mATX kits. Suspend a trim plate off the 2 x 92mm fan carrier with a couple of 10mm standoffs to give a three quarters border to an IO shield. Could trim the raw surround of the case with a bit of edge trim (like on fan blow holes) and it'd tidy it up a bit more too.

#20
Baudouin

Baudouin

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 414 posts
  • Gender:Male
  • Location:Brussels, Belgium
@ MininHAck
I looked closely and carefully your pix on your site and now I do understand what you are meaning. Thanks .

@ djulink
I think there is only one holy grail back panel I/O for each Mobo, that makes the dream bigger.

Btw, you get one grail already with your dreamed graphic card.
