can't find IDE HD on Disk Utility

IDE HD Not appear on Disk Uti

  • Please log in to reply
28 replies to this topic

#1
AlvinGenius

AlvinGenius

    InsanelyMac Protégé

  • Members
  • Pip
  • 36 posts
Hey guys .

i installed ( iAtkos l2 ) on GA-G31M-S2L

when installing , in Disk utility .. can't find IDE HD , i just found SATA HD and DVD Drive

and after installing and enter to Lion .. still can't see my IDE HD on Disk utility

and this IDE HD works great and i installed Windows 7 on it ..

and in boot menu .. i can see 2 HD's SATA / IDE

and i choose SATA bcz i installed Lion On it ... and in Chameleon Bootloader i can see partitions on the IDE HD ..

now i want this HD appear on My LION in disk utility ..


i've IOATAFamily.kext installed :) and jMicron

Attached Files



#2
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,111 posts
  • Gender:Male
  • Location:Brazil

i've IOATAFamily.kext installed


Everybody does, it comes with OS X. You need JMicronATA.kext.

#3
AlvinGenius

AlvinGenius

    InsanelyMac Protégé

  • Members
  • Pip
  • 36 posts

Everybody does, it comes with OS X. You need JMicronATA.kext.

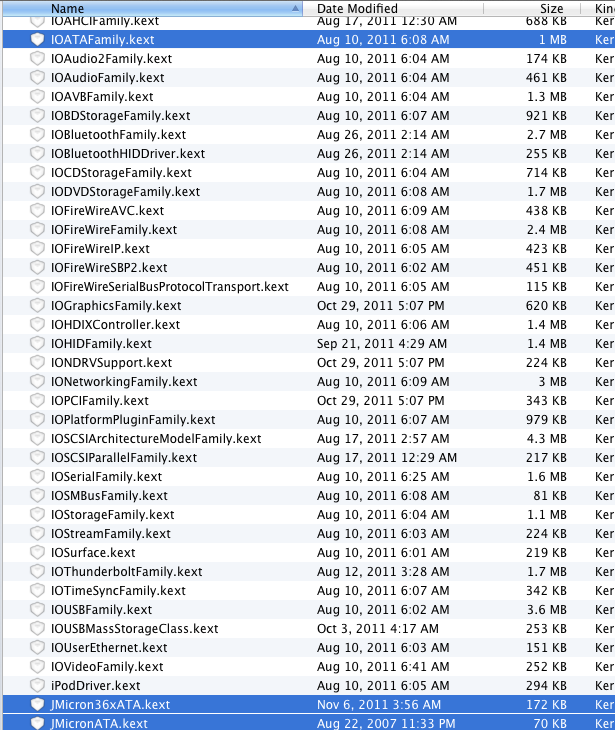

Look at attached Pic u will see that there is a jMicronATA.kext

#4
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,111 posts
  • Gender:Male
  • Location:Brazil
Don't try to use two drivers for the same hardware at the same time.

Check kernel.log in console.app (type console in Spotlight) for error messages related to your jmicron drivers during boot, there must be a conflict or something.

I don't have any jmicron hardware here so I'm not sure, it's possible that there is a newer version of JMicronATA specifically for Lion, maybe the ones you are using are too old or 32-bit only.

#5
AlvinGenius

AlvinGenius

    InsanelyMac Protégé

  • Members
  • Pip
  • 36 posts
but.. if i've error in kexts ... u forgot that when i installing Mac Lion ... i don't see IDE HD in Disk Utility ... ( when installing ) >>> ?

#6
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,111 posts
  • Gender:Male
  • Location:Brazil
Okay fine, don't do what I suggested.

Good luck!

#7
kdtt

kdtt

    InsanelyMac Protégé

  • Members
  • PipPip
  • 76 posts
I think you better remove jmicronata.kext
That kext is probably from apple and 172kb kext is what I have on my hackintosh.

#8
alaskantraveler

alaskantraveler

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 118 posts
  • Gender:Male
  • Location:Central Arizona Desert
  • Interests:Single Carburetor GoldWings
    BlackPowder Revolvers
    PC based OSX

    AMD...
This might seem dumb, and I am not sure if it will work in Lion, but it does in Snow Leopard, which won't show the IDE drives either at installation or in Disk Utility as installed.
Use Kext Utility to install ATIATA.kext in /System/Library/Extensions.

You never know, It may work for you.

#9
AlvinGenius

AlvinGenius

    InsanelyMac Protégé

  • Members
  • Pip
  • 36 posts

This might seem dumb, and I am not sure if it will work in Lion, but it does in Snow Leopard, which won't show the IDE drives either at installation or in Disk Utility as installed.
Use Kext Utility to install ATIATA.kext in /System/Library/Extensions.

You never know, It may work for you.


ok .. i'll try it

#10
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,111 posts
  • Gender:Male
  • Location:Brazil
I doubt that ATIATA.kext will work with a JMicron hard drive controller, don't install drivers for hardware that you don't have.

(before someone beats me on top of the head with this, yes I know that SuperVIAATA.kext drives Marvell controllers).

Tons of motherboards (usually Gigabyte) use JMicron ATA controllers, look around, see what other people are doing on Lion. I'm sure it's easy to fix.

#11
kdtt

kdtt

    InsanelyMac Protégé

  • Members
  • PipPip
  • 76 posts
You have 2.
Both of them ATA controller, JmicronATA,Jmicron36xATA.

#12
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,111 posts
  • Gender:Male
  • Location:Brazil
Maybe he'll believe it now. :wink2:

#13
himac59

himac59

    InsanelyMac Protégé

  • Members
  • PipPip
  • 59 posts
I the past i had succes with SuperVIAATA.kext

for some ide/ata chipsets
http://www.osx86.net...?do=file&id=337

#14
sureshtrb

sureshtrb

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:dammam
let me try too

#15
alaskantraveler

alaskantraveler

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 118 posts
  • Gender:Male
  • Location:Central Arizona Desert
  • Interests:Single Carburetor GoldWings
    BlackPowder Revolvers
    PC based OSX

    AMD...

I the past i had succes with SuperVIAATA.kext

for some ide/ata chipsets
http://www.osx86.net...?do=file&id=337


That is for VIA ata chipset.
ATIATA.kext is for ATI chipset
And there is also one for NVidia ata chipset.

#16
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,905 posts
  • Gender:Male

Yeah, but i think these kexts are all meant to prevent the "root device error" when you're booting OSX from a PATA disk or with a motherboard that doesn't support AHCI.



The issue experienced by TS is exactly the same i experience for so long a time with my AMD machine that i simply decided to live with it: i cannot see my Windows 8 PATA disk from OSX, even if i boot in IDE mode with a proper

AppleATIATA.kext

installed - to be very precise, i just restarted the system in IDE mode right now to prove the my point: I can do it just fine, the kext is reported loading at boot time in verbose mode, but it only detects my SATA OSX startup disk, and shows no sign of my PATA Windows 8 disk. The id of my PATA controller, 0x439c1002, is already included in the

Info.plist

, so i'm rather certain that if i needed, i could boot OSX from the PATA disk just the way i do with the current disk. Only seeing the PATA disk from OSX when it's not itself the startup disk seems to be the problem here.



I didn't exhaust all troubleshooting steps, though, since i confess i didn't try dealing with master/slave configurations (in fact, i never needed to do it even with Windows, so i'm not familiarized with how it works and if it would make a difference), but the knowledge i gathered as for now is that a working ATA kext could give you PATA or IDE OSX boot, but it's not enough to make a PATA disk to appear in disk utility, either in the installer or in the running system.



All the best!



#17
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
Attached File  HARD DISK IDE KEXTS.zip   455.73KB   197 downloads

#18
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,905 posts
  • Gender:Male
Thank you, iFire!

The ATIPATA kext looked promising. Unfortunately, it's 32-bit only.

All the best!

#19
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,905 posts
  • Gender:Male
P.S.: may i relink to your package of kexts in the AMD section? I think it's likely many AMD users have to deal with ATI, nVidia and JMicron chipsets, specially with older machines, which won't have any option other than IDE mode.

All the best!

#20
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,905 posts
  • Gender:Male
P.P.S.: back just to say thank you to you, iFire: since Mountain Lion is 64-bit-only, i tried ATIPATA.kext on Lion (which i can boot in 32-bit kernel mode): worked as advertised, and now i have full access to the Windows PATA disk, including in Disk Utility. The next has some instability issues and gave me a kernel panic when i tried to unmount the disk, but i'm not going to unmount/mount this disk all the time (i did it to enable read & write ntfs support, so i doubt i'll do it again).

All the best!
