Hardware Compatibility List - Leopard 10.5.2

Mebster

By Mebster,
in OSx86 10.5 (Leopard)

 Share
368 posts in this topic

Recommended Posts

Rhynri
Rhynri
Posted
Posted
Current OS X Version: 10.5.2



Desktop/Laptop? Laptop



Prebuilt? (Y/N) Y

Manufacturer: Gateway

Model: M285-E Tablet PC - Complete Specification here



Install Methods summary: Kalyway 10.5.2 DVD - Default installation + Power Management Bundle



BIOS setup options: USB Legacy: Disabled ; Intel VT: Enabled ;

Audio: AppleHDAPatcher v1.20 + Sigmatel 9250.txt

LAN: Works

SATA & IDE: Works



Processor: Intel Core2Duo

Processor Model: T5500

Speed:1.66ghz

Recognized as what in System Profiler: Properly Recognized



Video Card:

What type of card (PCI Express/AGP/Integrated):PCIe

NVIDIA/ATI/Intel: ATI

Model:x1400 Mobile

Memory: 64MB GDDR3 Base / 256mb w/HyperMemory

Board Manufacturer: N/A

Patches used: None

QE/CI: Yes - Fluid - No Artifacts/Mouse Tearing

All resolutions available: 1024x768 Reported - See note.



Notes: Display is crystal clear, fullsized, doesn't appear to be stretched - perhaps native resolution with misreporting in the OS.  USB will not work by default unless legacy mode is disabled.  Sigmatel 9250 .txt for HDA Patcher here



Some additional information.



USB - Hardware Growler tells me that devices (usb keys, HDD drives) are being recognized, but they don't mount.

Ethernet - Apparently only works for gigabit connections.

Video - is indeed running 1024x768, but stretches in a very clean manner.

Sound - Is a bit LOUD by default, be sure to bring those mixer levels down.

TabletPC - Work In Progress to be sure.  I've gotten it recognized, but no functionality as of yet.

OSX-fan
OSX-fan
Posted
Posted

This installs fine but still no wireless with my acer 5633, anyone know which option to select if there is a way ??? Please PM me if so any replies will get lost on here thanks



No USB either but at least I don't need the DVD in the drive now to boot up

gregor123
gregor123
Posted
Posted

Current OS X Version: 10.5.2 Leo4All v3



Desktop



Does EFI and/or the Vanilla kernel work?

Vanilla 9.2.2



(in following sections, if you don't know or not sure, write "unknown")

Motherboard

Manufacturer: Gigabyte

Motherboard Model: P35-DS3

Chipset: Intel

BIOS Version: Newest , Revision: Rev. 2

BIOS setup options: No AHCI

Audio: Works, ALC889a (dl the kext and install it)

LAN: Works out of the box!

SATA & IDE: Works out of the box!



Processor

Processor Model: Intel Q6600 G0

Speed: 2400mhz

Recognized as what in System Profiler: Intel® Core2 Quad CPU Q6600 @ 2.4Ghz



Video Card

What type of card (PCI Express/AGP/Integrated): PCIe

NVIDIA/ATI/Intel: NVIDIA

Model: 8800 GTS

Memory: 320mb

Board Manufacturer: MSI

Patches used: None

All resolutions available: Yes.

Dual Monitor: Yes!



Wireless/Wired Card

Zydas USB Stick won't work.

blukanon
blukanon
Posted
Posted

OS=Kallyway 10.5.2(latest)



Laptop

Prebuilt=Yes

Manufacturer-Tohsiba

Toshiba A105-s2236=Model



I did not test any of the kernels (not used)



Install summary-Kallyway 10.5.2 used w/nero 8 Trial at lowest speeds w/normal options checked



Motherboard

Manufacturer-Unknown

motherboard model-unknown

Audio-Perfect

Lan-Yes

Sata & ide -yes



Processor

Processor model-intel celeron M

speed-1.6



Video card

PCI

Intel

Model-Unknown

memory-1.5 Gigs

Board Manufacturer-Unknown intel most likely

patches-None

Qe/CI:seems Fine

All resolutions available



Other-Nothing but a PCI atheros wireless card (but the full info i dont know)



Hope this helps.

JokersBestFriend
JokersBestFriend
Posted
Posted

Notebook Toshiba Satellite P20-962 finaly works fast (but only SSE2 & VESA)



Current OS X Version: 10.5.2  (9C31) Darwin 9.20  up with  iATKOS & Kalyway Combo



Notebook   Prebuilt



Manufacturer:  TOSHIBA

Model:  Satellite  P20-962  with  17" SVGA LCD Display (dual monitor support)



Install Methods summary:

iATKOSv1.0R2 LEO 10.5.1 Standard with Darwin x86 loader (EFI dont works), SSE2 Kernel with both remove options & AGPGART 2.49 for graphics & Network RTL8139.

After 1st start direct Kalyway Combo 10.5.2 Upg. Package & GFX Full 1.1 Upd. Package (standard with opt. AGPGART & 8139 & Cardbus) in one step.





OSx86 in Dual Boot (Xista) down under Acronis boot loader (partitioned as 1st in MBR with Darwin x86 loader)





Motherboard



Manufacturer:  Toshiba

Motherboard Model:  Satellite P20  (DBQ02)

Chipset:  intel Springdale  i865PE

BIOS Version:  Phoenix , Revision:  1.5

BIOS setup options: nativ

Audio:  Realtek ALC202 AC`97 works without patch  (later AC97.kext upgrate from Kalyway

LAN:  Realtek RTL8139 works out of the box with 8139.kext

No SATA on board, IDE works out of the box, 2 Devives (1*HDD 160GB, 1*DVD RW)



Processor

Processor Model:  intel P4 Northwood HT  (Northbridge/Southbridge)

Speed:  3.0 GHz

Recognized as what in System Profiler:  MacPro 3.1  P4  2.99 GHz  1CPU



Video Card  - integrated  AGP 8x



nVIDIA

Model:  Geforce FX Go5700    (10de-0348)

Memory:  64 MB RAM

Board Manufacturer:  Toshiba

Patches used: AGPGART 2.49  (Natit, Titan, NVinject & more tested, but no chance)

QE/CI:  Dual Monitor supported



All resolutions available? No, only poor 1024*768*32 in DARWIN VESA 3.0    :P



Wireless - integrated

Manufacturer: Atheros

Model: AR5001X

Works? No, but detected (always testing)

Patches: Orangeware 3.3  not supported on intel machine



Sound Card - on motherboard @ integrated harman/kardon soundsystem



Other Accessories



USB:  4* USB 2.0  working without patches (1* eyeTV on USB Stick, works

                                                             1* Logitech optical wireless mouse, working

                                                             1* Ext. Storage & TM Disk (sleep mode), perfect

                                                             1* 8 GB USB Stick, OK)



FIREWIRE: 1* 1394  working without patches



Cardbus: detected (cardbus kext from GFX Full 1.1 Package), testing



Touchpad: pad & 2 buttons (without any patches)



Power Management supported, working on disk, USB & LCD mode, with sleep & wake up



boot time by 45 seconds, System works fast, no shutdown/restart problems, thx2all   :P



:P  TimeMachine works fine. (after 2 fixes from LEO4AllV2 release).



No offical TM Update! cause integrated new Kernel 9.22 not working at this time   :P

xktheonekx
xktheonekx
Posted
Posted

Current OS X Version: 10.5.2



Desktop



Prebuilt? N



Install Methods summary: Kalyway 10.5.2 DVD Intel_AMD (SSE2/SSE3) EFI V8



Does EFI and/or the Vanilla kernel work?

partitioned as GUID, EFI v8 + Vanilla Kernel)





Motherboard

Manufacturer: ECS

Motherboard Model: 945GZT-M

Chipset: Intel® 945GZ, Intel® ICH7

BIOS Version: , Revision: 1/1/2007

BIOS setup options: CPU TM FUNCTION: ENABLED, EXCUTE DISABLE BIT: ENABLED, ENHANCED HALT: ENABLED, APIC MODE: ENABLED

Audio:

LAN: YES

SATA & IDE: YES



Processor

Processor Model: E4300

Speed: 1.8GHZ

Recognized as what in System Profiler: 1.8GHZ INTEL CORE 2 DUO



Video Card

Model: INTEL GMA950

Memory: 8MB (SHARED)

Board Manufacturer: ECS

Patches used: NONE USED (GMA950 DRIVERS ON DISC USED)

QE/CI: YES/YES

All resolutions available?



Other PCI/PCI-e Components NONE

Wireless/Wired Card NONE

Interface: ON BOARD

Manufacturer: REALTEK

Model: RTL8100C

Works? Y

Patches: USED DEFAULT ENABLED DRIVERS ON DISK



Sound Card

Interface: ON BOARD

Manufacturer: REALTEK

Model: ALC883

Works? Y

Patches: USED DEFAULT ENABLED DRIVERS ON DISK



Other Accessories

NONE





THIS BOARD AND PROCESSOR WORK PERFECTLY! USING DEFAULT SETTINGS ON INSTALL DISK ENABLED, INTEL GMA950 DRIVER INSTALLED



945GZT-M, INTEL CORE2DUO E4300, 80GB IDE HD, IDE NEC DVD+RW ND-1100A, 1GB PC5300

ehchan
ehchan
Posted
Posted

Current OS X Version: 10.5.2



Desktop/Laptop? Desktop



Prebuilt? (Y/N) No



Install Methods summary: Kalyway 10.5.2 Intel/AMD



Does EFI and/or the Vanilla kernel work? unknown



(in following sections, if you don't know or not sure, write "unknown")

Motherboard

Manufacturer:Epox

Motherboard Model:EP-9NPA Ultra

Chipset:nForce 4 Ultra

BIOS Version: , Revision:unknown

BIOS setup options: Normal, LAN Disabled

Audio: Works out of the box? yes, with nvidia AC97 patch

LAN: Works out of the box? partial with forcedeth (no afp access for some reason) a Realtek PCI card worked perfectly

SATA & IDE: IDE yes, SATA not tested



Processor

Processor Model:Athlon 64 X2 4200+ Socket 939

Speed:2.2Ghz

Recognized as what in System Profiler: Unknown 2.2Ghz



Video Card (if you have integrated and PCI/AGP, use this template twice)

What type of card (PCI Express/AGP/Integrated): PCIe

NVIDIA/ATI/Intel?Nvidia

Model:6600GT

Memory:128MB

Board Manufacturer:Gigabyte

Patches used:NVInject 0.2.0 128

QE/CI:y/y

All resolutions available? so far up to 1280x1024



Other PCI/PCI-e Components (USB are listed in Other Accessories below)

Wireless/Wired Card (for PCI/PCI-e cards only)

Interface: PCI/PCI-e?PCI

Standard (Wireless only): (example: 801n)

Manufacturer:??

Model:Realtek

Works? (Y/N, if "Y", list patches)Y

Patches:





Other Accessories (USB/FIREWIRE)

Type (Webcam, External Sound Card, USB bluetooth dongle, etc.):onboard firewire

Name:

Manufacturer:

Works? (Y/N, if "Y", list patches, if needed)y

Patches/Work out of the box?

identity
identity
Posted
Posted

zephyroth kalyway & leo4all

processor: amd athlon x2 dual core 4400+

motoherboard asus m2npv-vm

graphics:geforce 6150 no qe/ci (using macvidia or by removing nvdaresman).....

nforce 430 lan working with nforcethernetcontroller link:

audio soundmax hd audo working...(no audio in) link:

everything working fine but no qe/ci.....



installation guide:http://forum.insanelymac.com/lofiversion/index.php/t83688.html

BooToo
BooToo
Posted
Posted

Current OS X Version: 10.5.2



Desktop Home made



Prebuilt: No



Install Methods summary: (Kaliway 1.5.2 default + Nvinjet 256Mo working other (Leo4all, ...) crash during installation



Does EFI and/or the Vanilla kernel work? No, used default options from Kaliway DVD which is not Vanilla



Motherboard

Manufacturer: Asrock

Motherboard Model: Conroe1333-1394

Chipset: 945GC A2 + ICH7

BIOS Version: 1.0

BIOS setup options:

- voltage settings at the bottom of chipset page to HIGH

- under CPU settings: No Execute option is Disabled

Audio: Realtek ACL888 works out of the box

LAN: Realtek RTL8111B / RTL8111C works out of the box

SATA & IDE: SATA works out of the box - IDE not tested



Processor

Processor Model: E6550

Speed: 2.33

Recognized as what in System Profiler: Intel Core 2 Duo 2.33GHz



Video Card

What type of card: PCI Express

NVIDIA

Model: 8600GT

Memory: 256

Board Manufacturer: Asus

Patches used: No

QE/CI: Don't know what that is

All resolutions available: Yes



No Other PCI/PCI-e Components



Other Accessories

Bluethooth USB Key

Manufacturer: MSI

Work out of the box with Kaliway 1.5.2 (chipset Broadcom) but not with the wireless Mighty mouse (Detected but not possible to "register" the mouse)



So far, very stable BUT sleep not working well (wake up sucessfully but no more ethernet card...)

BooToo
BooToo
Posted
Posted

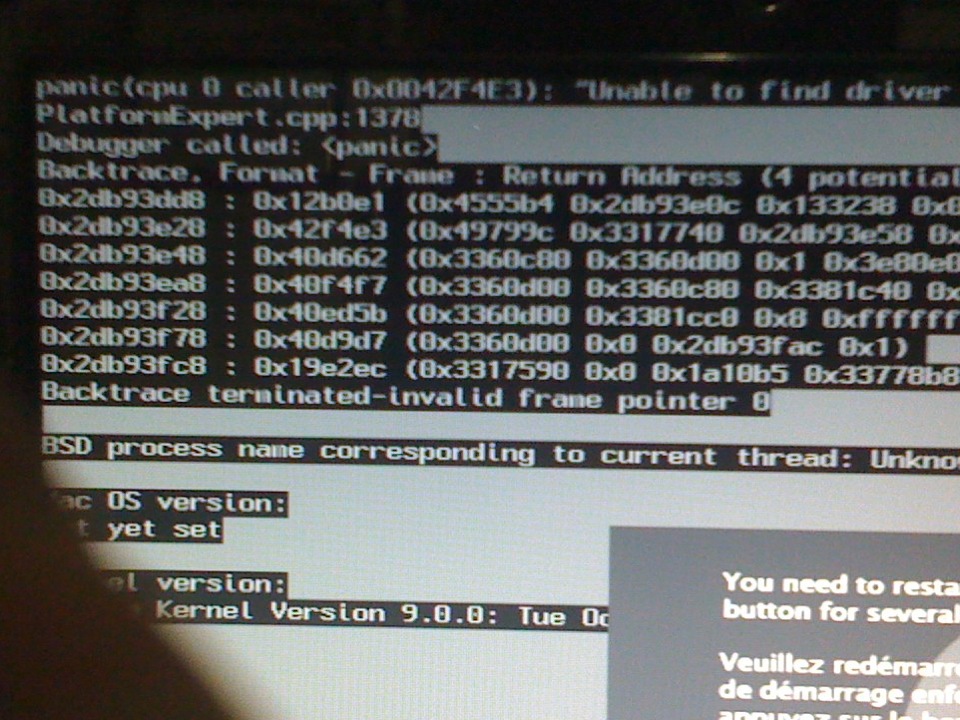

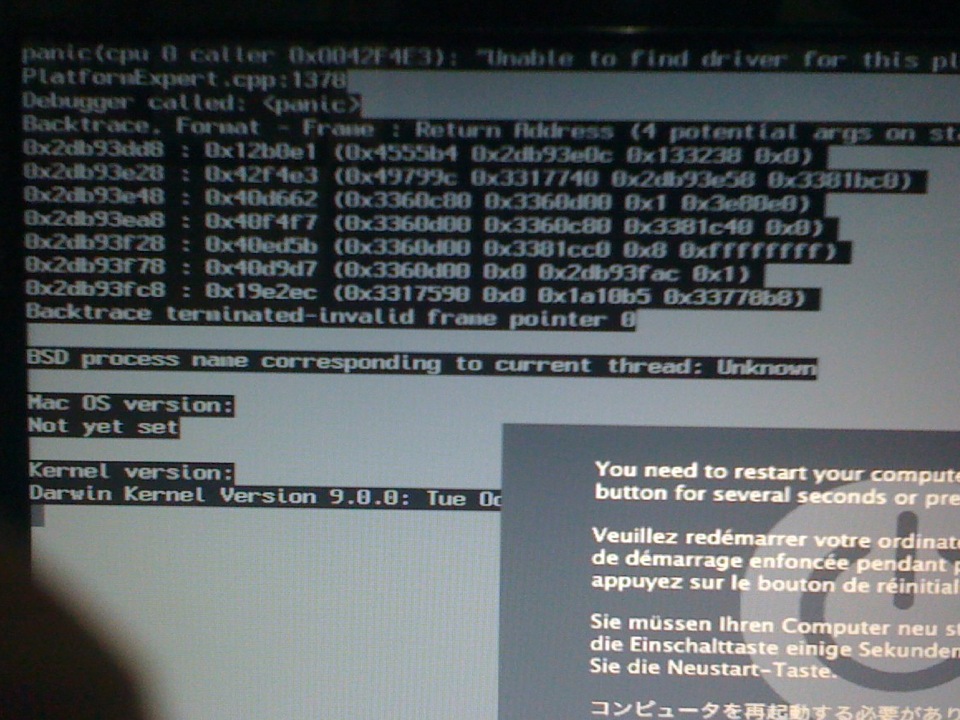

After installing Kaliway 10.5.2 and when my computer starts it will just show a blank screen after rebooting.and i try to install zeproth 10.5.2 it will say CPU panic.what does it means?



What is your configuration?

Gives as many details as possible (see my signature for an example)

pro_viruz
pro_viruz
Posted
Posted

Hi Bootoo,



thanks for fast reply..here is my system configuration:





CPU Arch : 1 CPU - 2 Cores - 2 Threads

CPU PSN : AMD Turion 64 X2 Mobile Technology TL-60

CPU EXT : MMX(+) 3DNow!(+) SSE SSE2 SSE3 x86-64

CPUID : F.8.2 / Extended : F.48

CPU Cache : L1 : 2 x 64 / 2 x 64 KB - L2 : 2 x 512 KB

Core : Trinidad (90 nm) / Stepping : BH-F2



Freq : 2009.07 MHz (200.91 * 10)

MB Brand : Quanta

MB Model : 30B8

NB : NVIDIA GeForce Go 6100 rev A2

SB : NVIDIA nForce 410/430 MCP rev A3



GPU Type : GeForce Go 7200

GPU Clocks : Core 450 MHz / RAM 700 MHz

DirectX Version : 10.0



RAM : 2048 MB DDR2 Dual Channel

RAM Speed : 334.8 MHz (CPU/6) @ 5-5-5-13

Slot 1 : 1024MB (PC2-5300)

Slot 1 Manufacturer : Samsung

Slot 2 : 1024MB (PC2-5300)

Slot 2 Manufacturer : Samsung



hope you can help me with this..



p.s it only succesfully once on kaliway,but after i restart. it wont boot up.

alchemizt
alchemizt
Posted
Posted

LOADED THE KALYWAY 10.5.2, RAN FORMAT FOR HFS JOURNALED, 10 MINUTES LATER UP AND RUNNING, NO GLITCHES NO PROBLEMS, FASTEST BOOT AND SYSTEM LOAD IVE SEEN, RUNS ILIFE, LOGIC PRO 8, CUBASE 4, REASON 4, RME FIREFACE 800, AXIOM 61, USED APPLE UPDATE......NO PROBLEMS AT ALL! EVERYTHING VERY FAST.



HARDWARE; GIGABYTE GA-P35-DS3L MOTHERBOARD, INTEL Q6600 PROCESSOR, CORSAIR 4 GIGS DDR2-800 CL 5-5-5-12 MEMORY, WESTERN DIGITAL CAVIAR 250 GIG 16M CACHE SATA HARD DRIVE, NVIDIA 7900 GT KO 512M PCIX VIDEO CARD.



XBENCH RESULTS 166.94

BooToo
BooToo
Posted
Posted

Sorry but not competent with AMD...

Looks like a laptop right?



Have a look at the list of compatible components below:

http://wiki.osx86project.org/wiki/index.php/Main_Page



You can also try the list of compatible laptop here:

http://wiki.osx86project.org/wiki/index.ph...0.5.2/Portables



From a general point of view, you need to ask yourself 2 questions:

- Is my hardware compatible? (Installed sucessfully by someone else is the best)

- Do I have the right Bios version and the right parameters in it



If you can answer YES to these 2, it should be dead easy...

Good luck :D

Daft_Punk
Daft_Punk
Posted
Posted

Current Version: 10.5.2 (Kalyway)



Laptop



Prebuilt: Yes



Manufacturer: Hewlett Packard (HP)

Model: Pavilion dv9540us



Install Method:



Part 1: http://www.youtube.com/watch?v=Gd6YcIw0Aik

Part 2:



Motherboard

Manufacturer: Quanta

Motherboard Model: 30CB

Chipset: Intel GM965

BIOS Version: F.08 , Revision: Unknown

BIOS setup options: None, only error checking features enabled.

Audio: Used 268Installer2 then Azalia Audio, then 268Installer2 again for my Realtek HD Audio (268)

LAN: Used r1000 patch

SATA & IDE: Works out of the box



Processor

Processor Model: Intel Core 2 Duo

Speed: 1.5GHz

Recognized as what in System Profiler: Intel Core 2 Duo



Video Card

What type of card: PCI Express x16

NVIDIA

Model: 8600M GS

Memory: 256 VRAM, 768 shared by system

Board Manufacturer: Hewlett Packard (HP)

Patches used: NVinject 4.1, NVinjectGO, NVinject 256MB

QE/CI: Fully supported



Other PCI/PCI-e Components

Wireless

Interface: PCI-e

Wireless: a/g/n

Manufacturer: Intel

Model: Intel 4965 a/g/n

Works? No.

Patches: None available



Other PCI/PCI-e Components (USB are listed in Other Accessories below)

Wired Card

Interface: PCI/PCI-e?

Manufacturer: Realtek

Model: Realtek RTL8168B/8111B Family PCI-E Gigabit Ethernet NIC

Works? Yes

Patches: r1000 (included in the 10.5.2 kalyway disc)



Other Accessories (USB/FIREWIRE)

Type: Webcam

Name: HP Webcam

Manufacturer: Chicony Technologies

Works? No.



Note: my fingerscanner thingy is recognized in OS X, but i don't think ther is something for OS X to use it with...

Ishimaru
Ishimaru
Posted
Posted

Current OS X Version: Kalyway 10.5.2



Desktop



Prebuilt? N



Install Methods summary: (List all methods tested, check preferred method - the one you are writing about now)



Does EFI and/or the Vanilla kernel work? Y

(in following sections, if you don't know or not sure, write "unknown")

Motherboard

Manufacturer: Intel

Motherboard Model: DG33BU

Chipset: G33 Express

BIOS Version: , Revision: Unknown

BIOS setup options: SATA needs IDE for install, AHCI after

Audio: Y

LAN: N (needed to buy Netgear adapter)

SATA & IDE: Y (only SATA)



Processor

Processor Model: Intel Core 2 Quad Q9300

Speed: 2.5Ghz

Recognized as what in System Profiler: 2.5ghz Unknown



Video Card (if you have integrated and PCI/AGP, use this template twice)

What type of card (PCI Express/AGP/Integrated): PCI-e

NVIDIA

Model: 8600GT

Memory:266MB

Board Manufacturer: EVGA

Patches used: nvinject

QE/CI:Both

All resolutions available? Y

TheRock
TheRock
Posted
Posted

Current OS X Version: 10.5.2



Desktop/Laptop: Desktop



Prebuilt: N



Install Methods summary: LEO4ALLv2

EFI v8 using ls8 pre-script. GUID Partition map.

Everything's working perfectly.





Motherboard

Manufacturer: ASUS

Motherboard Model: MAXIMUS-EXTREME

Chipset: X38 + ICH9R

BIOS Version: 1004

Audio: AD1988

LANs: 2 x MARVEL YUKON, not still works, but installed one PCI Realtek 8139 NIC and work perfectly. I will examine the malfunction of the Marvel Yukon later

SATA: seems to work: only HD installed Maxtor SATA II 160 Gb on 3d AHCI (controller mode) port



Processor

Processor Model: Intel Core 2 Quad - All cores working

Speed: 2.4GHz (Q6600) OC'ed to 3.61 GHz

Recognized as what in System Profiler: 3.61 Ghz



Memory

2x1 Gb OCZ DDR3 1600 MHz (recognized from System Profiler as 106 MHz) I must correct this...



Video Card

What type of card: PCI Express

NVIDIA

Model: 8800GT

Memory: 320 MB

Board Manufacturer: POINT OF VIEW

Patches used: NVinject from 10.5.2 (v.33)

QE/CI: Yes

All resolutions available: Yes

Monitor: Philips P200 correctly recognized at maximu resolution of 1600x1200 @ 71 Hz

Dual Monitor: not still tried.



Misc

AHCI activated in BIOS.

J-Micron controller disactivated in BIOS.

OS installed via USB DVD Player

Still testing all the environment... when finished i'll post my final result with the benchmark

Khan_Man
Khan_Man
Posted
Posted

The Specs

D915GAG intel board

P4 3.0 GHz Prescott (630) processor

x1900xtx

2 gig ram

80 gig seagate sata HD



The install

Kalyway 10.5.2 DVD Intel_Amd

formated MBR, drive name leo

I turned off languages, fonts,

used kabyl kernel

ATYinject for 19xx series

audio I left stock

network I left stock

wifi I turned off

Mobo_chips, I used AppleOnboardPCATA and AppleGenericPCATA (turned off all the others)

Turn off all 3rd party apps

Patches used the Lastnetkassmbios

turn off the French keyboard support but turned on the TimeMachineFix and USBPCGen



Booted perfectly first time. Wow. QE, CI, network, sound.... some trouble with sleep (I'll have to look into this).



Thanks Kaly and all the other contributers. I'll try to do my small part.



Khan

DvdX
DvdX
Posted
Posted

Computer: Laptop

Dell Inspirion 5150



CPU 3.06Ghz P4 with HT

RAM: 512MB RAM

Video: GeForce 5200 GO



Installed with iATKOS V 1.0i (10.5.1)

Bootloader: Darwin

ALL Patches

Drivers: VGA: Nvidia: Natit

System: AppleSMBIOS.kext

Network: Broadcom drivers



What Works: Sound, Wifi, Ethernet, DVD Player

What Doesn't work: No Battery meter, DVD-RW drive only reads as Combo Drive (Read DVD/Write CD)





Use the Kalyway 10.5.2 ComboUpdate file from "usual places" to update to the newest version...it takes a LONG time to boot after running the update (over a minute of black screen after the Apple symbol and spinning circle at bottom) but it will load. Remember, you can install SOME updates from the Start Menu, just NO Airport updates and NO Security Updates.....

Coca-Cola
Coca-Cola
Posted
Posted

Current OS X Version: 10.5.2



Desktop



Install Methods summary: Kalyway 10.5.2 (1x dvd burn)



Does EFI and/or the Vanilla kernel work? Yes



Motherboard

Manufacturer: Abit

Motherboard Model: IP35 Off-limits

Chipset: Ip35

BIOS Version: , Revision:

BIOS setup options: SATA set as IDE

Audio: Works out of the box? Yes, but only stereo.

LAN: Works out of the box? Yes

SATA & IDE: Yes, IDE CD-ROM Works after installation only (need sata dvd drive to install)



Processor

Processor Model: Intel Core 2 Duo E8200

Speed: 2,8Ghz

Recognized as what in System Profiler: 2.72 Ghz Unknown



Video Card

What type of card (PCI Express/AGP/Integrated): PCI-Express

NVIDIA

Model: 8800GT

Memory:512 mb

Board Manufacturer: PNY

Patches used: Nvinject 512

QE/CI: Yes

All resolutions available? Yes

mikey_V
mikey_V
Posted
Posted

ok i tried installing kalyway & iAtkos on my Sony VAIO VGN-FS920 Laptop but they both failed:



is there something else i can use? i've read and read but have gotten nowhere



Specs:

-------------------------

CPU-Z version 1.44.2

-------------------------



Processors Map

------------------------------------------------------------------------------------



Number of processors 1

Number of threads 1



Processor 0

-- Core 0

-- Thread 0





Processors Information

------------------------------------------------------------------------------------



Processor 1 (ID = 0)

Number of cores 1 (max 1)

Number of threads 1 (max 1)

Name Intel Pentium M 740

Codename Dothan

Specification Intel® Pentium® M processor 1.73GHz

Package Socket 479 mPGA (platform ID = 5h)

CPUID 6.D.8

Extended CPUID 6.D

Brand ID 22

Core Stepping C0

Technology 90 nm

Core Speed 798.1 MHz (6.0 x 133.0 MHz)

Rated Bus speed 532.1 MHz

Stock frequency 1733 MHz

Instructions sets MMX, SSE, SSE2

L1 Data cache 32 KBytes, 8-way set associative, 64-byte line size

L1 Instruction cache 32 KBytes, 8-way set associative, 64-byte line size

L2 cache 2048 KBytes, 8-way set associative, 64-byte line size

FID/VID Control yes

FID range 6.0x - 13.0x

max VID 1.356 V

Features XD





Chipset

------------------------------------------------------------------------------



Northbridge Intel i915GMS/i910GML rev. 03

Southbridge Intel 82801FBM (ICH6-M) rev. 03

Memory Type DDR2

Memory Size 1024 MBytes

Channels Dual

Memory Frequency 266.0 MHz (1:2)

CAS# 4.0

RAS# to CAS# 4

RAS# Precharge 4

Cycle Time (tRAS) 12

Memory SPD

------------------------------------------------------------------------------



DIMM #1



General

Memory type DDR2

Module format SO-DIMM

Manufacturer (ID) Infineon (C100000000000000)

Size 512 MBytes

Max bandwidth PC2-4300 (266 MHz)

Part number 64T64020HDL3.7A

Serial number --------

Manufacturing date Week 14/Year 06



Attributes

Number of banks 2

Data width 64 bits

Correction None

Nominal Voltage 1.80 Volts

EPP no

XMP no



Timings table

Frequency (MHz) 200 266 266

CAS# 3.0 4.0 5.0

RAS# to CAS# delay 3 4 4

RAS# Precharge 3 4 4

TRAS 9 12 12

TRC 12 16 16



DIMM #2



General

Memory type DDR2

Module format SO-DIMM

Manufacturer (ID) Nanya Technology (7F7F7F0B00000000)

Size 512 MBytes

Max bandwidth PC2-4300 (266 MHz)

Part number M2N51264TUH8A2F-37

Serial number --------

Manufacturing date Week 05/Year 07



Attributes

Number of banks 2

Data width 64 bits

Correction None

Nominal Voltage 1.80 Volts

EPP no

XMP no



Timings table

Frequency (MHz) 200 266 266

CAS# 3.0 4.0 5.0

RAS# to CAS# delay 3 4 4

RAS# Precharge 3 4 4

TRAS 9 12 12

TRC 12 16 16

UFO
UFO
Posted
Posted

Toshiba Satellite A135-S4467

Kalyway leo iso used (10.5.2) successfully working

Processor: Core 2 Duo SS3

945GM chipset

Audio and Lan and firewire works

video: GMA950 max resolution 1280*800 changeable

QE fully working

DVD burner works

5-in-1 card reader doesn't work

Atheros wireless doesnt work

PCMCIA(CardBus) doesn't work

linksys PCMCIA doesnt work

I used the raltek 856 kext to help me with the audio

no battery meter . . .

sleep doesn't work!

headphones jack doesn't work .

Guest
This topic is now closed to further replies.
 Share
Go to topic listing
×
×
  • Create New...
