jalavoui Posted November 10, 2024 Share Posted November 10, 2024 do you have a full log? 1 Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827689 Share on other sites More sharing options...
Stezza88 Posted November 10, 2024 Author Share Posted November 10, 2024 (edited) 10 minutes ago, jalavoui said: do you have a full log? up x.log Edited November 10, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827690 Share on other sites More sharing options...

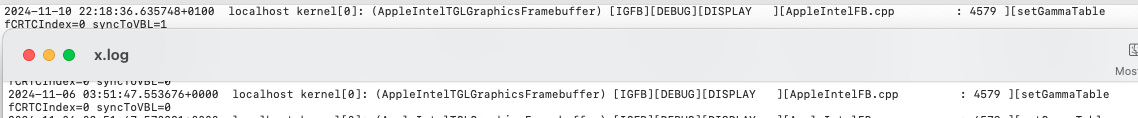

jalavoui Posted November 10, 2024 Share Posted November 10, 2024 (edited) looks like your card is working. is this so ? only diff from mine is synctovbl - yours is on top synctovbl=1 Edited November 10, 2024 by jalavoui 1 Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827691 Share on other sites More sharing options...
Stezza88 Posted November 10, 2024 Author Share Posted November 10, 2024 Just now, jalavoui said: looks like your card is working. is this so ? No. Black screen and square mouse Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827692 Share on other sites More sharing options...

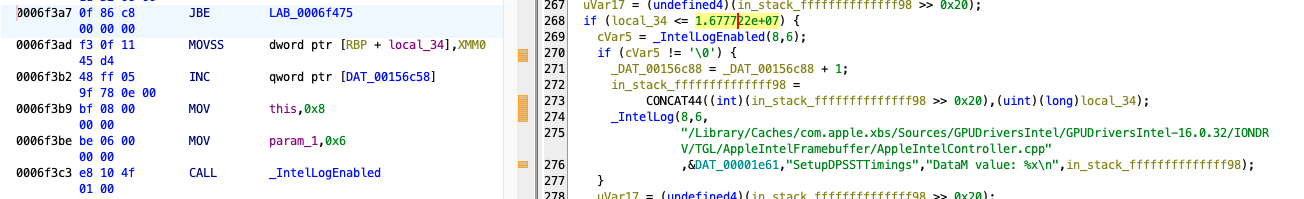

jalavoui Posted November 10, 2024 Share Posted November 10, 2024 (edited) found a cause (maybe 2 much hacks) check is here. but the value read is so wrong patching this might be a bad idea this is link size check patch. well you can try let me check bytes to change k here you go changed bytes 0f 82... to 48 e9 use a bigger byte chain so they dont exist somewherelse the pixel value is wrong. idk why this happened. this patch will pass a wrong value... this is the field with the wrong value Edited November 10, 2024 by jalavoui 1 Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827693 Share on other sites More sharing options...
Stezza88 Posted November 10, 2024 Author Share Posted November 10, 2024 (edited) 30 minutes ago, jalavoui said: found a cause (maybe 2 much hacks) patches acrive maybe I can disable something {&kextG11FBT, f2, r2, arrsize(f2), 1}, {&kextG11FBT, f3, r3, arrsize(f3), 1}, {&kextG11FBT, f6b, r6b, arrsize(f6b), 1}, //jalapatch {&kextG11FBT, f7, r7, arrsize(f7), 1}, {&kextG11FBT, f10, r10, arrsize(f10), 1}, {&kextG11FBT, f13, r13, arrsize(f13), 1}, {&kextG11FBT, f15, r15, arrsize(f15), 1}, {&kextG11FBT, f19, r19, arrsize(f19), 1}, {&kextG11FBT, f20, r20, arrsize(f20), 1}, Edited November 10, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827694 Share on other sites More sharing options...

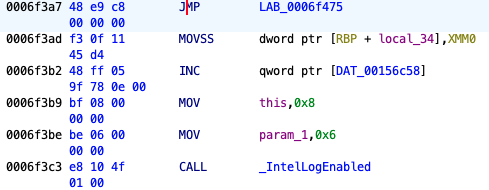

jalavoui Posted November 10, 2024 Share Posted November 10, 2024 (edited) don't you miss previous patches? the base patches are fine ups i patched the wrong part of code. that previous patch is for link size check this is the data size check so change to a jump Edited November 10, 2024 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827695 Share on other sites More sharing options...

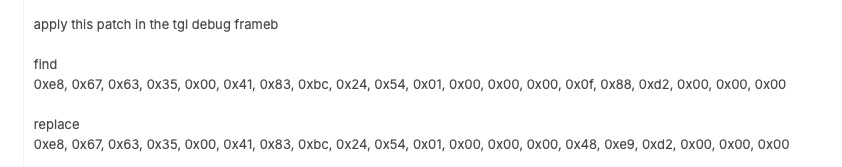

Stezza88 Posted November 10, 2024 Author Share Posted November 10, 2024 (edited) 4 minutes ago, jalavoui said: don't you miss previous patches? the base patches are fine CRT patch stucks on boot static const uint8_t f6a[]= {0xe8, 0x37, 0xa9, 0x30, 0x00, 0x41, 0x83, 0xbc, 0x24, 0x54, 0x01, 0x00, 0x00, 0x00, 0x0f, 0x88, 0xd2, 0x00, 0x00, 0x00}; static const uint8_t r6a[]= {0xe8, 0x37, 0xa9, 0x30, 0x00, 0x41, 0x83, 0xbc, 0x24, 0x54, 0x01, 0x00, 0x00, 0x00, 0x48, 0xe9, 0xd2, 0x00, 0x00, 0x00}; Edited November 10, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827696 Share on other sites More sharing options...
jalavoui Posted November 10, 2024 Share Posted November 10, 2024 (edited) static const uint8_t f6a[]= {0xe8, 0x37, 0xa9, 0x30, 0x00, 0x41, 0x83, 0xbc, 0x24, 0x54, 0x01, 0x00, 0x00, 0x00, 0x0f, 0x88, 0xd2, 0x00, 0x00, 0x00}; this is not found let me chek this is what i posted earlier. it exists lol i just read you tryed to hack my bytes don't do that bad things happen so use this patch +data size check that i just posted i wonder how you get that log without this patch. but dam i was rigth all this problems is cause of bad agdc timmings Edited November 10, 2024 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827697 Share on other sites More sharing options...

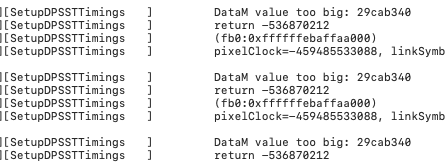

Stezza88 Posted November 10, 2024 Author Share Posted November 10, 2024 (edited) LinkM value too big: 53c4cf000 x.log 8 minutes ago, jalavoui said: static const uint8_t f6a[]= {0xe8, 0x37, 0xa9, 0x30, 0x00, 0x41, 0x83, 0xbc, 0x24, 0x54, 0x01, 0x00, 0x00, 0x00, 0x0f, 0x88, 0xd2, 0x00, 0x00, 0x00}; this is not found let me chek this is what i posted earlier. it exists lol i just read you tryed to hack my bytes don't do that bad things happen so use this patch +data size check that i just posted I don't found yours! Are we using the same tgl framebuffer? Have you updated it? Edited November 10, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827698 Share on other sites More sharing options...
jalavoui Posted November 10, 2024 Share Posted November 10, 2024 (edited) yes the debug version. the link patch is already posted. funny it also fails my 1st tought was to patch the pixel field but idk if it gonna work Edited November 10, 2024 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827699 Share on other sites More sharing options...
Stezza88 Posted November 10, 2024 Author Share Posted November 10, 2024 (edited) 22 minutes ago, jalavoui said: static const uint8_t f6a[]= {0xe8, 0x37, 0xa9, 0x30, 0x00, 0x41, 0x83, 0xbc, 0x24, 0x54, 0x01, 0x00, 0x00, 0x00, 0x0f, 0x88, 0xd2, 0x00, 0x00, 0x00}; this is not found let me chek this is what i posted earlier. it exists lol i just read you tryed to hack my bytes don't do that bad things happen so use this patch +data size check that i just posted i wonder how you get that log without this patch. but dam i was rigth all this problems is cause of bad agdc timmings I downloaded the last sle internal, opened le tgl fb in IDA PRO and I don't found your byte sequence!!!! I found mine! I find "E8 37 A9 30 00 41 83 bc 24 54 01 00 00 00 0f 88 d2 00 00 00" not yours! yours not exist Edited November 10, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827700 Share on other sites More sharing options...
jalavoui Posted November 10, 2024 Share Posted November 10, 2024 (edited) hmm sec. you're right about E8 37 A9 30 00 41 83 bc 24 54 01 00 00 00 0f 88 d2 00 00 00 gonna reload the bin in ghidra strange thing k so ghidra as this bytes e8 67 63 35 00 41 83 bc 24 54 01 00 00 00 0f 88 d2 00 00 00 and ida pro E8 37 A9 30 00 41 83 BC 24 54 01 00 00 00 0F 88 D2 00 00 00 can't find any of this bytes in binary with hexedit... gonna check with bninja got other bytes ... well try with the bytes you found - guess it works change last part 0x0f 0x88 to 0x48 0xe9 if you don't a kp with lilu message then the patch is found Edited November 10, 2024 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827701 Share on other sites More sharing options...
Stezza88 Posted November 10, 2024 Author Share Posted November 10, 2024 (edited) 15 minutes ago, jalavoui said: hmm sec. you're right about E8 37 A9 30 00 41 83 bc 24 54 01 00 00 00 0f 88 d2 00 00 00 gonna reload the bin in ghidra strange thing k so ghidra as this bytes e8 67 63 35 00 41 83 bc 24 54 01 00 00 00 0f 88 d2 00 00 00 and ida pro E8 37 A9 30 00 41 83 BC 24 54 01 00 00 00 0F 88 D2 00 00 00 can't find any of this bytes in binary with hexedit... gonna check with bninja Very strange : both the patch stall to me... so... Edited November 10, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827702 Share on other sites More sharing options...

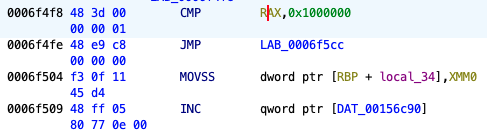

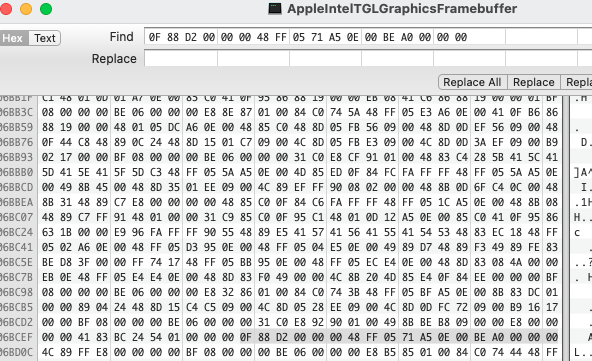

jalavoui Posted November 10, 2024 Share Posted November 10, 2024 (edited) yeah sometimes i get that bug. i think its a decompiler issue. when this happens i try other bytes. sec k this are bytes near the jump. check find 0f 88 d2 00 00 00 48 ff 05 71 a5 0e 00 be a0 00 00 00 replace 48 e9 d2 00 00 00 48 ff 05 71 a5 0e 00 be a0 00 00 00 this bytes works. they exist in the binary. hexedit dont lie dam dissasemblers!! data size bytes checked find 0f 86 c8 00 00 00 f3 0f 11 45 d4 48 ff 05 9f 78 0e 00 bf 08 00 00 00 rep 48 e9 c8 00 00 00 f3 0f 11 45 d4 48 ff 05 9f 78 0e 00 bf 08 00 00 00 link pass bytes checked find 0f 82 c8 00 00 00 f3 0f 11 45 d4 48 ff 05 80 77 0e 00 rep 48 e9 c8 00 00 00 f3 0f 11 45 d4 48 ff 05 80 77 0e 00 i dont like this hack but give it a try Edited November 11, 2024 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827703 Share on other sites More sharing options...

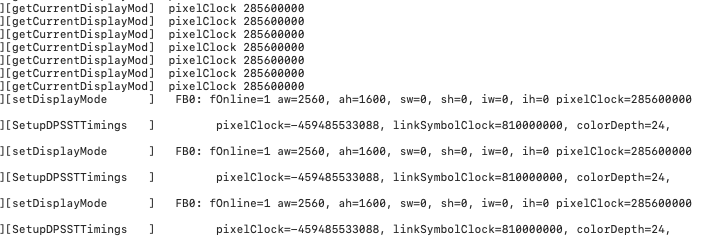

Stezza88 Posted November 11, 2024 Author Share Posted November 11, 2024 (edited) Bad signals... black screen with square mouse.. 2024-11-11 01:12:07 (AppleIntelTGLGraphicsFramebuffer) [IGFB][DEBUG][DISPLAY ][AppleIntelController.cpp : 7724 ][SetupDPSSTTimings ] pixelClock=-446376717216, linkSymbolClock=810000000, colorDepth=24, noLanes=4 2024-11-11 01:12:07 (AppleIntelTGLGraphicsFramebuffer) [IGFB][DEBUG][DISPLAY ][AppleIntelController.cpp : 7777 ][SetupDPSSTTimings ] DataM value: 570f698 2024-11-11 01:12:07 (AppleIntelTGLGraphicsFramebuffer) [IGFB][DEBUG][DISPLAY ][AppleIntelController.cpp : 7784 ][SetupDPSSTTimings ] LinkM value too big: 53c335000 2024-11-11 01:12:07 (AppleIntelTGLGraphicsFramebuffer) [IGFB][DEBUG][DISPLAY ][AppleIntelController.cpp : 7785 ][SetupDPSSTTimings ] return -536870212 ... (AppleIntelTGLGraphicsFramebuffer) [IGFB][DEBUG][DISPLAY ][AppleIntelFB.cpp : 4131 ][setAttributeForConne] Bad Scale value = 65536 (AppleIntelTGLGraphicsFramebuffer) [IGFB][DEBUG][DISPLAY ][AppleIntelFB.cpp : 4149 ][setAttributeForConne] Bad Scale value = 65536 (AppleIntelTGLGraphicsFramebuffer) [IGFB][DEBUG][DISPLAY ][AppleIntelFB.cpp : 4166 ][setAttributeForConne] Bad Scale value = 65536 x.log Edited November 11, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827704 Share on other sites More sharing options...

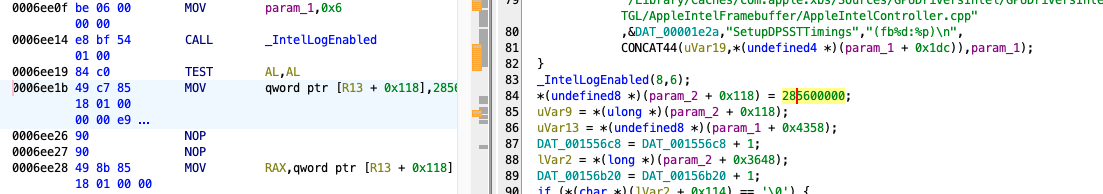

jalavoui Posted November 11, 2024 Share Posted November 11, 2024 (edited) link check failed? wtf let me see the patch is ok. did u use the link patch? right the pixel field as wrong value so the link patch not enough let me try a field patch so this means i'll hack the field to get this value... k here they are find 84 c0 0f 84 dd 00 00 00 48 ff 05 80 7d 0e 00 49 8b 85 18 01 00 00 rep 84 c0 49 c7 85 18 01 00 00 00 e9 05 11 90 90 49 8b 85 18 01 00 00 the rep value is the previous pixel value 0x1105E900 = 285 600 000 this is very bad practice and i dont know the guy who did this ! Edited November 11, 2024 by jalavoui 1 Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827705 Share on other sites More sharing options...
Stezza88 Posted November 11, 2024 Author Share Posted November 11, 2024 no.. do it now Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827706 Share on other sites More sharing options...
Stezza88 Posted November 11, 2024 Author Share Posted November 11, 2024 (edited) Better log, but same result... pixelClock=-438333250464 Bad Scale value = 65536 Bad Scale value = 65536 Bad Scale value = 65536 x.log Edited November 11, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827707 Share on other sites More sharing options...

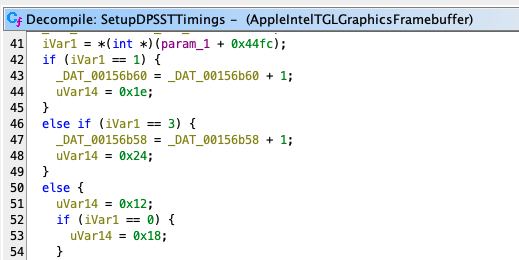

jalavoui Posted November 11, 2024 Share Posted November 11, 2024 (edited) did you apply last patch. the log show other value if none of this work you will have to find where the calculation fails can be here or from previous call or wrong value here (there's a wg patch for this) this is a calculation issue. check wg after all this you now are pro at patches Edited November 11, 2024 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827708 Share on other sites More sharing options...
Stezza88 Posted November 11, 2024 Author Share Posted November 11, 2024 (edited) With pixel patch, black screen mouse squared x.log Edited November 11, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827709 Share on other sites More sharing options...
Stezza88 Posted November 11, 2024 Author Share Posted November 11, 2024 (edited) . Edited November 11, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827710 Share on other sites More sharing options...

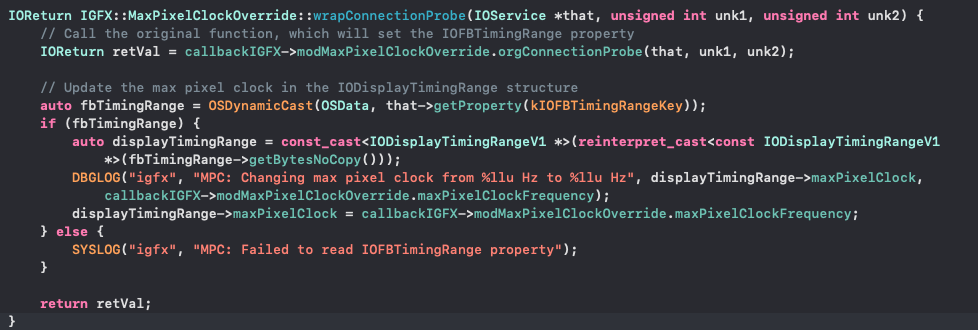

jalavoui Posted November 11, 2024 Share Posted November 11, 2024 (edited) check also wg from github well you can see my hacks also if you want. theyre old code from icl frame Edited November 11, 2024 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827711 Share on other sites More sharing options...

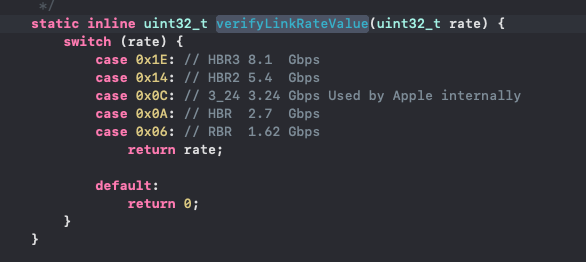

Stezza88 Posted November 11, 2024 Author Share Posted November 11, 2024 (edited) 7 minutes ago, jalavoui said: check also wg from github well you can see my hacks also if you want. theyre old code from icl frame Fix the invalid maximum link rate issue on some laptops (Dell XPS 15 9570, etc.) Add the enable-dpcd-max-link-rate-fix property to IGPU, otherwise a kernel panic would happen due to a division-by-zero. Or instead of this property, use the boot-arg -igfxmlr. Starting from v1.3.7, it also fixes the invalid max link rate value read from the extended DPCD buffer. This fixes the kernel panic on new laptops, such as Dell Inspiron 7590 with Sharp display. Starting from v1.4.4, it probes the maximum link rate value automatically if the property dpcd-max-link-rate is not specified, and it now supports Ice Lake platforms. You could also manually specify a maximum link rate value via the dpcd-max-link-rate for the builtin display. Typically use 0x14 for 4K display and 0x0A for 1080p display. All possible values are 0x06 (RBR), 0x0A (HBR), 0x14 (HBR2) and 0x1E (HBR3). If an invalid value is specified or property dpcd-max-link-rate is not specified, the driver will probe the maximum link rate from DPCD instead. If the probed value is not supported by the driver (which should rarely happen), you need to manually specify a valid one, otherwise the graphics driver will trigger a kernel panic due to a division-by-zero later. MAX_LINK_RATE value is valid Edited November 11, 2024 by ASUS Vivobook Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827712 Share on other sites More sharing options...

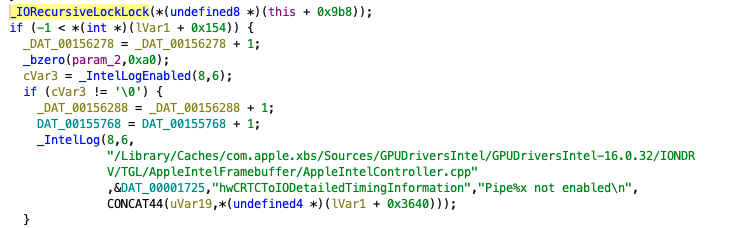

jalavoui Posted November 11, 2024 Share Posted November 11, 2024 (edited) dam wg code to check still the problem started with pipe 0 error. can this be a matter of putting the right values in con zero patch? i doubt a bit Edited November 11, 2024 by jalavoui 1 Link to comment https://www.insanelymac.com/forum/topic/360106-acer-pt14-51-laptop-howto/page/11/#findComment-2827713 Share on other sites More sharing options...
