Anto65 Posted May 5 Share Posted May 5 @MorenoAv I would like you to understand that it is not the official OC that breaks Windows but the DSDT ( if this were the case we should all use OC Mod ) If you have ways to build the official OC and disable the DSDT as mentioned above you will see that Windows boot without problems ( maybe something like this is missing !? "If (_OSI("Darwin")) ... " but my skills are not enough for this ) As for the Wi-Fi, I honestly didn't quite understand where the problem was...probably as identified by deeveedee's long eye on an old ioskywalk. kext... However, it is important that you solved it 3 Link to comment Share on other sites More sharing options...
MorenoAv Posted May 5 Share Posted May 5 Well in my limited understanding of OC I don't know what breaks the windows, but I'll ask, if it is the DSDT that breaks the windows why with OC MOD the same DSDT don't break the windows, because of the no ACPI? Me too I don't know why that has happened bit when I have time I'll find it, comparing the others EFi with this one until I find the culprit... 1 Link to comment Share on other sites More sharing options...
eSaF Posted May 5 Share Posted May 5 32 minutes ago, MorenoAv said: Well in my limited understanding of OC I don't know what breaks the windows, but I'll ask, if it is the DSDT that breaks the windows why with OC MOD the same DSDT don't break the windows, because of the no ACPI? Me too I don't know why that has happened bit when I have time I'll find it, comparing the others EFi with this one until I find the culprit... I found this EFI Folder here - https://github.com/alienator88/ASUS-TUF-Z390M-Pro-Gaming-Hackintosh-OpenCore - on GitHub. I think the specs are not far off your own although I suspect the files and OC within are slightly outdated. Looking inside the ACPI Folder the owner is using SSDT files oppose to an all in one DSDT. Maybe doing a comparison to your own will give an insight to what your problem is/was??? Also it may encourage you to forgo the DSDT File and use SSDT Files like the attached EFI instead which I think will offer more scope and control of your rig. At the end of the day, whatever you choose to do good luck. Cheers. ASUS-TUF-Z390M-Pro-Gaming-Hackintosh-OpenCore-Ventura.zip 5 Link to comment Share on other sites More sharing options...
eSaF Posted May 5 Share Posted May 5 I've taken the liberty and updated the OC version and kext files within the attached EFI Folder. To give you the choice to try it on a spare USB Drive. You will have to furnish the config.plist with your machine data. I noticed from the 'Read Me' within, the OP did not use OCLP but the other alternative for wifi but that is easily remedied. ASUS-TUF-Z390M-Pro-Gaming-Hackintosh-Updated-OpenCore-Ventura.zip 4 2 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 6 Share Posted May 6 10 hours ago, MorenoAv said: EFI Folder without serials an my wifi/bluetooth card is a Fenvi T-919 EFI MorenoAv.zip 7 1 Link to comment Share on other sites More sharing options...
deeveedee Posted May 6 Share Posted May 6 (edited) @MaLd0n Another way that OC can break Windows is with ACPI patches that unconditionally change ACPI. I do the IRQ fixes with SSDTs instead of OC ACPI patches (e.g., I don't use config.plist > ACPI > Patch for IRQ fixes) so that I can condition them on _OSI("Darwin"). Why don't the ACPI patches like "TMR IRQ 0 Fix" affect Windows? Just asking, because I don't know - not challenging your wisdom. Thank you. EDIT: Although, after I started disabling HPET, I no longer needed IRQ fixes. Edited May 6 by deeveedee 3 Link to comment Share on other sites More sharing options...
Slice Posted May 6 Share Posted May 6 TMR is obsolete device not needed by macOS nor by Windows. It just occupies IRQ. 3 Link to comment Share on other sites More sharing options...
deeveedee Posted May 6 Share Posted May 6 (edited) @Slice So the only reason that the TMR, RTC and PIC IRQ ACPI patches don't affect Windows is because they are unnecessary? As I mentioned, I stopped applying IRQ patches after I started disabling HPET (which Apple did, I think starting with Mac Models in 2018). Edited May 6 by deeveedee 2 Link to comment Share on other sites More sharing options...
Slice Posted May 6 Share Posted May 6 2 hours ago, deeveedee said: @Slice So the only reason that the TMR, RTC and PIC IRQ ACPI patches don't affect Windows is because they are unnecessary? As I mentioned, I stopped applying IRQ patches after I started disabling HPET (which Apple did, I think starting with Mac Models in 2018). I said nothing about RTC and PIC. They are not obsolete. 1 Link to comment Share on other sites More sharing options...
deeveedee Posted May 6 Share Posted May 6 @Slice - @MaLd0n 's Proposed config.plist includes unconditional ACPI patches that change TMR, RTC and PIC IRQs. My question remains - if not obsolete, why don't these changes affect Windows? I'm asking because I don't know - not because I'm challenging anyone. 2 1 Link to comment Share on other sites More sharing options...
Slice Posted May 6 Share Posted May 6 I don't know how Windows lives. Once I tested 3D graphics in Windows with two cases HPET switched on in BIOS and off. The results are different but Windows works in both cases. 1 Link to comment Share on other sites More sharing options...
RobertX Posted May 9 Share Posted May 9 (edited) ...just my 2 cents worth...I disabled HPET here in bios and was unable to boot to desktop, {do not enter sign over apple logo)... took a few restarts to correct, had to restart monterey from clover 5145, clear NVRAM, then reboot from clover 5157 to sonoma recovery, used disk utility on ssd, then finally reboot with clover 5157 to sonoma...this with smbios iMac 19,1 Edited May 9 by RobertX 2 Link to comment Share on other sites More sharing options...
deeveedee Posted May 9 Share Posted May 9 (edited) 10 hours ago, RobertX said: ...just my 2 cents worth...I disabled HPET here in bios and was unable to boot to desktop, I should have been clearer about "disable HPET." Apple has been disabling HPET in ACPI since 2018 Mac models (including your iMac19,1). I have never disabled HPET in BIOS and am not sure of the effects. If you look at the EFI posted by MaLd0n, you'll see that his SSDT sets HPTE=0. This causes HPET._STA = 0 for that particular ACPI. Yours may be different. Edited May 9 by deeveedee 1 2 Link to comment Share on other sites More sharing options...
Slice Posted May 9 Share Posted May 9 HPET is needed for AppleIntelCPUPowerManagement.kext which is used up to IvyBridge CPU. 1 1 Link to comment Share on other sites More sharing options...
deeveedee Posted May 9 Share Posted May 9 Agreed. For older SMBIOS, I do not set HPET._STA =0 1 1 Link to comment Share on other sites More sharing options...
Wayang-NT Posted May 9 Author Share Posted May 9 7 Link to comment Share on other sites More sharing options...
Anto65 Posted May 9 Share Posted May 9 8 1 Link to comment Share on other sites More sharing options...
strangeron Posted May 9 Share Posted May 9 👍 6 Link to comment Share on other sites More sharing options...
eSaF Posted May 9 Share Posted May 9 All set. 8 1 Link to comment Share on other sites More sharing options...
AlfredoM Posted May 10 Share Posted May 10 Everything works without problems 6 Link to comment Share on other sites More sharing options...
mariosun Posted May 10 Share Posted May 10 AMD is alive & kicking 7 Link to comment Share on other sites More sharing options...
jm26200 Posted May 10 Share Posted May 10 Done. 7 Link to comment Share on other sites More sharing options...
hiphopboy Posted May 10 Share Posted May 10 Done 6 Link to comment Share on other sites More sharing options...
Ludox Posted May 10 Share Posted May 10 7 Link to comment Share on other sites More sharing options...

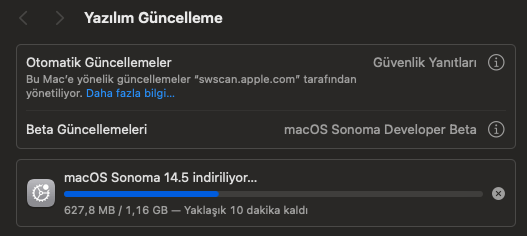

turko35408 Posted May 11 Share Posted May 11 On 5/9/2024 at 8:45 PM, Anto65 said: I can't get an incremental update; 13.65 GB. Please, installer.can you share the pkg? 2 Link to comment Share on other sites More sharing options...
