upgrading clover 5145 to 5157


RobertX
 Share

98 posts in this topic

Recommended Posts

...need a little direction, fine running 5145 to boot monterey  but can't boot from 5157 with my 5145 config.plist....wanting to update to sonoma ...sorry tired eyes...I can send whatever needed files, tomorrow...

I've got system to offer me sonoma upgrade...but 5145 will not boot this sonoma, or so I've read...

Link to comment
Share on other sites

HI @Slice



I hope you are well. I've been trying to study and follow the evolution of Clover by reading your posts here and on AppleLife.Ru but there's too much information to read, but I will).

I would like to ask you, when you have time, if you can give me some light or clarify the reason that may be preventing the use of Clover 5157 on the Lenovo E470.

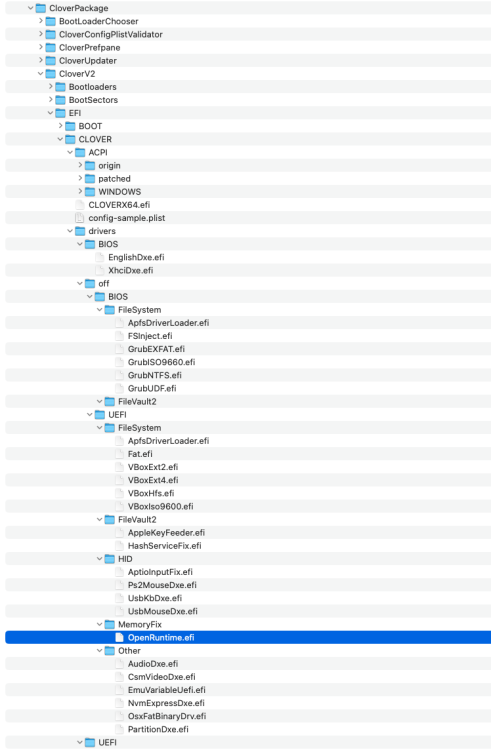

I compiled it on my machine and used the Clover Suite Builder and Clover Setup tools, but without success. Clean install of Sonoma and everything as required, Xcode etc.

Attached is my EFI 5157 and the preboot.log, if you need it I have all the DarwinDumper files.

I would like to thank you for giving the tip on the Plugin Type and C6 and C7 States that make the machine spectacular! Much stronger and more precise.

Thank you very much for all your really hard  work over the decades.

Thanks!!





config.plist.zip preboot.log.zip EFI LENOVO E470 CLOVER 5157 Compiled.zip

Link to comment
Share on other sites

28 minutes ago, Slice said:

@Max.1974

May be new Clover 5157 more sensitive to config mistakes (attention to @Jief_Machak). I corrected it slightly config.plist

And I see preboot.log stopped at the theme animation. Choose other theme.







Thanks a lot @Slice I will test, but about theme I try use basic Clovy, I will try and report back here.



:thumbsup_anim:

Link to comment
Share on other sites

ok, got it to boot from 5157 on usb drive, using the config file from the clover5157 pkg that was included with the clover5157 installer...not my 5145 config.plist... no boot args selected smbios entries and my imac 17,1 was automatically selected?   something changed, as I had to confirm my apple id when I logged in...not sure what I did different EDIT: totally Clover, totally automatic...now to get my info into that config

here's my preboot log from hackintool



Spoiler

0:100  0:100  MemLog inited, TSC freq: 4008576380
0:100  0:000  CPU was calibrated with RTC
0:100  0:000  CloverX64 : Image base = 0xB46B9000
0:100  0:000  Clover ImageHandle = ba21c358
0:104  0:004  SelfDirPath = \EFI\CLOVER
0:105  0:000  === [ Starting Clover ] =========================
0:105  0:000  Now is 22.02.2024,  00:11:47 (GMT)
0:105  0:000  Starting Clover revision: 5157 (master, commit ce3e4376b) on American Megatrends EFI
0:105  0:000  Build id: 20240112223240-ce3e437-5157-dirty
0:105  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG -t GCC131 | --cmd-len=50000 -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG --conf=/Users/sergey/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC131 -n 5 | OS: 14.2.1]
0:105  0:000  === [ Get Smbios ] ==============================
0:105  0:000  Type 16 Index = 0
0:105  0:000  Total Memory Slots Count = 4
0:105  0:000  Type 17 Index = 0
0:105  0:000  Ignoring insane frequency value 0MHz
0:105  0:000  Type 17 Index = 1
0:105  0:000  SmbiosTable.Type17->SlotIndex = 1
0:105  0:000  SmbiosTable.Type17->ModuleSize = 8192MB
0:105  0:000  SmbiosTable.Type17->Type = 0
0:105  0:000  SmbiosTable.Type17->Frequency = 2133MHz
0:105  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:105  0:000  SmbiosTable.Type17->Vendor = 04CD
0:105  0:000  SmbiosTable.Type17->SerialNo = 00000000
0:105  0:000  SmbiosTable.Type17->PartNo = F4-2133C15-8GVR
0:105  0:000  Type 17 Index = 2
0:105  0:000  Ignoring insane frequency value 0MHz
0:105  0:000  Type 17 Index = 3
0:105  0:000  SmbiosTable.Type17->SlotIndex = 3
0:105  0:000  SmbiosTable.Type17->ModuleSize = 8192MB
0:105  0:000  SmbiosTable.Type17->Type = 0
0:105  0:000  SmbiosTable.Type17->Frequency = 2133MHz
0:105  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:105  0:000  SmbiosTable.Type17->Vendor = 04CD
0:105  0:000  SmbiosTable.Type17->SerialNo = 00000000
0:105  0:000  SmbiosTable.Type17->PartNo = F4-2133C15-8GVR
0:105  0:000  Boot status=0
0:105  0:000  Running on: 'Q170M-D3H' with board 'Q170M-D3H-CF'
0:105  0:000  === [ GetCPUProperties ] ========================
0:105  0:000  CPU Vendor = 756E6547 Model=506E3
0:105  0:000   The CPU supported SSE4.1
0:105  0:000   The CPU supported RDRAND
0:105  0:000  BrandString = Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz
0:105  0:000   The CPU supported turbo
0:105  0:000   Energy PerfBias is  not visible:
0:105  0:000  MSR 0x35               40008
0:105  0:000   TSC/CCC Information Leaf:
0:105  0:000    numerator     : 334
0:105  0:000    denominator   : 2
0:105  0:000   Calibrated ARTFrequency: 24003451
0:105  0:000   Rounded ARTFrequency: 24000000
0:105  0:000  MSR 0xE2 before patch 1E008006
0:105  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:105  0:000  MSR 0xCE              00080838_F1012800
0:105  0:000  corrected FLEX_RATIO = E0000
0:105  0:000  FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:105  0:000  MaxDiv/MinDiv: 40.0/8
0:105  0:000  Turbo: 40/40/40/42
0:105  0:000  Features: 0x77FAFBBFBFEBFBFF
0:105  0:000  Threads: 8
0:105  0:000  Cores: 4
0:105  0:000  FSB: 100 MHz
0:105  0:000  CPU: 4000 MHz
0:105  0:000  TSC: 4000 MHz
0:105  0:000  PIS: 100 MHz
0:105  0:000  ExternalClock: 25 MHz
0:105  0:000  === [ GetDevices ] ==============================
0:105  0:000  GOP found at: PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/AcpiAdr(0x80010100)
0:105  0:000  PCI (00|00:00.00) : 8086 191F class=060000
0:105  0:000  PCI (00|00:01.00) : 8086 1901 class=060400
0:105  0:000  PCI (00|01:00.00) : 1002 67DF class=030000
0:105  0:000   - GFX: Model=AMD Radeon RX 480/570/580 (ATI/AMD)
0:105  0:000   - GOP: Provided by device
0:105  0:000  PCI (00|01:00.01) : 1002 AAF0 class=040300
0:106  0:000   - HDMI Audio:
0:106  0:000  PCI (00|00:14.00) : 8086 A12F class=0C0330
0:106  0:000  PCI (00|00:16.00) : 8086 A13A class=078000
0:106  0:000  PCI (00|00:16.03) : 8086 A13D class=070002
0:106  0:000  PCI (00|00:17.00) : 8086 A102 class=010601
0:106  0:000  PCI (00|00:1B.00) : 8086 A167 class=060400
0:106  0:000  PCI (00|00:1B.02) : 8086 A169 class=060400
0:106  0:000  PCI (00|03:00.00) : 1B21 1080 class=060400
0:106  0:000  PCI (00|00:1B.03) : 8086 A16A class=060400
0:106  0:000  PCI (00|00:1C.00) : 8086 A110 class=060400
0:106  0:000  PCI (00|00:1C.02) : 8086 A112 class=060400
0:106  0:000  PCI (00|00:1C.04) : 8086 A114 class=060400
0:106  0:000  PCI (00|00:1D.00) : 8086 A118 class=060400
0:106  0:000  PCI (00|09:00.00) : 15B7 5005 class=010802
0:106  0:000  PCI (00|00:1F.00) : 8086 A146 class=060100
0:106  0:000  PCI (00|00:1F.02) : 8086 A121 class=058000
0:106  0:000  PCI (00|00:1F.03) : 8086 A170 class=040300
0:106  0:000  PCI (00|00:1F.04) : 8086 A123 class=0C0500
0:106  0:000  PCI (00|00:1F.06) : 8086 15B7 class=020000
0:106  0:000   - LAN: 1 Vendor=Intel
0:106  0:000  Legacy MAC address of LAN #0= 40:8D:5C:B6:8D:43:
0:108  0:002  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H--40-8D-5C-B6-8D-43'. Dir doesn't exist.
0:108  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-CF\UEFI'. Dir doesn't exist.
0:108  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H'. Dir doesn't exist.
0:108  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-4000'. Dir doesn't exist.
0:108  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-CF'. Dir doesn't exist.
0:108  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-CF-4000'. Dir doesn't exist.
0:108  0:000  === [ GetUserSettings ] =========================
0:108  0:000  GetDefaultModel()=iMac17,1
0:108  0:000  === [ LoadUserSettings ] ========================
0:117  0:008  Using config.plist at path: \EFI\CLOVER
0:118  0:000  There is a problem in plist '\EFI\CLOVER\config.plist'
0:118  0:000  Warning: Unknown key '/SMBIOS_capitan:1207'. Skipped.
0:118  0:000  Use CloverConfigPlistValidator or look in the log
3:118  2:999  === [ LoadUserSettings ] ========================
3:118  0:000  Cannot find smbios.plist at path '\EFI\CLOVER' : Not Found
3:118  0:000  '\EFI\CLOVER\smbios.plist' not loaded. Efi error Not Found
3:118  0:000  create SMBIOS list, found 26 dicts
3:118  0:000  ... ACPI
3:118  0:000  ... Boot
3:118  0:000  ... BootGraphics
3:118  0:000  ... CPU
3:118  0:000  ... Devices
3:118  0:000  ... GUI
3:118  0:000  ... Graphics
3:118  0:000  ... KernelAndKextPatches
3:118  0:000  ... SMBIOS
3:118  0:000  ... SMBIOS_ventura
3:118  0:000  ... SystemParameters
3:118  0:000  ... RtVariables
3:118  0:000  ... Quirks
3:118  0:000  get default model
3:118  0:000  BiosVersion: IM171.88Z.F000.B00.2302021933
3:118  0:000  BiosReleaseDate: 02/02/2023
3:118  0:000  EfiVersion: 509.0.0.0.0
3:118  0:000  got BE smUUID as:40028D03-5C04-B605-8D06-430700080009
3:118  0:000  Calibrated TSC Frequency = 4008576380 = 4008MHz
3:118  0:000  === [ GetListOfThemes ] =========================
3:118  0:000  - [00]: random
3:118  0:000  - [00]: embedded
3:118  0:000  - [00]: Purple_Swirl
3:139  0:020  - [01]: Clovy
3:171  0:031  - [02]: BGM
3:199  0:027  - [03]: cesium
3:214  0:015  === [ Found config plists ] =====================
3:214  0:000  - config.plist
3:214  0:000  - config45.plist
3:214  0:000  - configusb.plist
3:214  0:000  - configIM183.plist
3:214  0:000  === [ LoadDrivers ] =============================
3:216  0:002  Loading EnglishDxe.efi status=Success
3:230  0:013  Loading ApfsDriverLoader.efi status=Success
3:245  0:015   - driver needs connecting
3:245  0:000  Loading Fat.efi status=Success
3:258  0:012   - driver needs connecting
3:258  0:000  2 drivers needs connecting ...
3:258  0:000  PlatformDriverOverrideProtocol->GetDriver overriden
3:258  0:000  APFS driver loaded
3:258  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
3:563  0:305  === [ InitScreen ] ==============================
3:563  0:000  Console modes reported: 6, available modes:
3:563  0:000   - [01]: 80x25
3:563  0:000   - [02]: 80x50
3:563  0:000   - [03]: 100x31 (current mode)
3:563  0:000   - [04]: 80x24
3:563  0:000   - [06]: 120x50
3:563  0:000  SetMaxResolution: found best mode 5: 1920x1080
3:603  0:039  Video mode change to mode #5: Success
3:603  0:000   - set
3:603  0:000  SetScreenResolution: 1920x1080 - already set
3:603  0:000  Using embedded font
3:604  0:000  === [ ScanSPD ] =================================
3:604  0:000  Scanning SMBus [8086:A123], mmio: 0xEFF4A004, ioport: 0xF000, hostc: 0x11
3:621  0:016  Not using XMP because it is not present
3:621  0:000  Slot: 1 Type 26 8192MB 2132MHz Vendor=G Skill Intl PartNo=F4-2133C15-8GVR SerialNo=00000000
3:638  0:016  Not using XMP because it is not present
3:638  0:000  Slot: 3 Type 26 8192MB 2132MHz Vendor=G Skill Intl PartNo=F4-2133C15-8GVR SerialNo=00000000
3:638  0:000  === [ GetAcpiTablesList ] =======================
3:638  0:000  Get Acpi Tables List from RSDT:
3:638  0:000   - [00]: FACP  A M I  len=132
3:638  0:000   - [01]: APIC  A M I  len=188
3:638  0:000   - [02]: FPDT  A M I  len=68
3:638  0:000   - [03]: MCFG  A M I  len=60
3:638  0:000   - [04]: SSDT  SataTabl len=956
3:638  0:000   - [05]: FIDT  A M I len=156
3:638  0:000   - [06]: SSDT  SaSsdt  len=12633
3:638  0:000   - [07]: SSDT  PegSsdt len=9567
3:638  0:000   - [08]: HPET  SKL len=56
3:638  0:000   - [09]: SSDT  Ther_Rvp len=3557
3:638  0:000   - [10]: SSDT  xh_rvp10 len=10967
3:638  0:000   - [11]: UEFI  EDK2     len=66
3:638  0:000   - [12]: SSDT  CpuSsdt len=3806
3:638  0:000   - [13]: LPIT  SKL len=148
3:638  0:000   - [14]: WSMT  SKL len=40
3:638  0:000   - [15]: SSDT  sensrhub len=671
3:638  0:000   - [16]: SSDT  PtidDevc len=12290
3:638  0:000   - [17]: DBGP   len=52
3:638  0:000   - [18]: DBG2   len=84
3:638  0:000   - [19]: DMAR  SKL  len=112
3:638  0:000   - [20]: TPM2  A M I len=52
3:638  0:000   - [21]: ASF!   HCG len=160
3:639  0:000   - [00]: Drop table : DMAR,                0 :  yes
3:639  0:000   - [01]: Drop table : SSDT,       6d50757043 :  no
3:639  0:000   - [02]: Drop table : SSDT,   74734930757043 :  no
3:639  0:000   - [03]: Drop table : BGRT,                0 :  no
3:639  0:000  Custom boot CUSTOM_BOOT_USER_DISABLED (0x0)
3:639  0:000  Default theme: Clovy
3:639  0:000  Set FakeCPUID: 0x10676
3:642  0:002  === [ Found DSDT tables ] =======================
3:642  0:000  - DSDT.aml
3:642  0:000  === [ InitKextList ] ============================
3:671  0:029  Added Kext=Other\AppleALC.kext (1.6.9)
3:676  0:004  Added Kext=Other\Display-20a3-0.kext (9.9.9)
3:681  0:005  Added Kext=Other\FakeSMC.kext (3.5.3)
3:686  0:004  Added Kext=Other\IntelCPUMonitor.kext (1.2.5)
3:691  0:005  Added Kext=Other\IntelMausi.kext (1.0.7)
3:705  0:014  Added Kext=Other\ITEIT87x.kext (1.0.7)
3:708  0:002  Added Kext=Other\Lilu.kext (1.6.7)
3:710  0:002  Added Kext=Other\RestrictEvents.kext (1.1.3)
3:713  0:002  Added Kext=Other\USBPorts.kext (1.0)
3:716  0:002  Added Kext=Other\WhateverGreen.kext (1.6.6)
3:721  0:004  === [ ScanVolumes ] =============================
3:721  0:000  Found 16 volumes with blockIO
3:721  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)
3:722  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)\HD(1,GPT,5DAA101B-ED8A-4BB7-8F93-6EC4CF331392,0x28,0x64000)
3:723  0:001          Result of bootcode detection: bootable unknown (legacy)
3:723  0:000            label : EFI
3:723  0:000          This is SelfVolume !!
3:723  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)\HD(2,GPT,50C65AFC-5861-4670-8DFA-2BFA55D77FB5,0x64800,0xE87000)
3:724  0:000          Result of bootcode detection: bootable unknown (legacy)
3:724  0:000            label : UNTITLED
3:724  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)
3:724  0:000          Result of bootcode detection: bootable unknown (legacy)
3:724  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,0EB42E37-219D-47A0-98D5-333A7BC91C86,0x28,0x64000)
3:725  0:000          Result of bootcode detection: bootable unknown (legacy)
3:752  0:026            label : EFI
3:752  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,D19F4116-B387-4709-A25B-5FC8B0CC4368,0x64028,0x3A1EC0C0)
3:752  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,34EF0413-E7C1-4E22-BC1B-F669A4D79B19,0x3A2500E8,0x135F20)
3:774  0:021  - [07]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)
3:774  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(1,GPT,53FDE995-D061-47AD-98ED-383160486B86,0x28,0x64000)
3:774  0:000          Result of bootcode detection: bootable unknown (legacy)
3:774  0:000            label : EFI
3:774  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)
3:774  0:000          Result of bootcode detection: bootable unknown (legacy)
3:774  0:000  - [10]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)
3:774  0:000            apfsFileSystemUUID=C4FEAA8B-EA2E-4789-8235-53BC8672D771, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x10
3:775  0:000            label : Preboot
3:775  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,578BB132B764E04E87CAAAE8D715FDB4)
3:775  0:000            apfsFileSystemUUID=32B18B57-64B7-4EE0-87CA-AAE8D715FDB4, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x1
3:778  0:002            label : AppleJam2
3:778  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7E55096151EDFA4E8A3C888D7489D377)
3:778  0:000            apfsFileSystemUUID=6109557E-ED51-4EFA-8A3C-888D7489D377, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x40
3:783  0:005            label : Untitled 2 - Data
3:783  0:000  - [13]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F8302DEFB3E0344D9C434BCA97A44AB9)
3:784  0:000            apfsFileSystemUUID=EF2D30F8-E0B3-4D34-9C43-4BCA97A44AB9, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x4
3:784  0:000            label : Recovery
3:784  0:000  - [14]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,FF0C76E3F91A5344A0A69DB0BAA79A71)
3:784  0:000            apfsFileSystemUUID=E3760CFF-1AF9-4453-A0A6-9DB0BAA79A71, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x8
3:784  0:000            label : VM
3:784  0:000  - [15]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B48D06EEA9BD864C93F93DFA921245FA)
3:784  0:000            apfsFileSystemUUID=EE068DB4-BDA9-4C86-93F9-3DFA921245FA, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0xc0
3:784  0:000            label : Update
3:784  0:000  No AudioIoProtocols, status=Not Found
3:784  0:000  === [ InitXTheme ] ==============================
3:784  0:000  use night theme
3:996  0:211  Using vector theme 'Clovy' (Clovy)
3:996  0:000  chosen theme Clovy
3:996  0:000  sound play end with status=Device Error
3:996  0:000  sound play end with status=Device Error
3:996  0:000  theme inited
3:996  0:000  Chosen theme Clovy
3:996  0:000  after NVRAM boot-args=
3:996  0:000  === [ Dump SMC keys from NVRAM ] ================
3:996  0:000  found AppleSMC protocol
4:021  0:024     fakesmc-key-#KEY-ui32:00 00 00 11
4:022  0:001     fakesmc-key-$Adr-ui32:00 00 03 00
4:023  0:001     fakesmc-key-$Num-ui8:01
4:025  0:001     fakesmc-key-RMde-char:41
4:026  0:001     fakesmc-key-RBr -ch8*:6A 39 35 6A 39 35 61 6D
4:027  0:001     fakesmc-key-EPCI-ui32:08 C0 F0 00
4:028  0:001     fakesmc-key-REV -ch8*:02 34 0F 00 00 03
4:030  0:001     fakesmc-key-RPlt-ch8*:6A 39 35 00 00 00 00 00
4:031  0:001     fakesmc-key-BEMB-flag:00
4:032  0:001     fakesmc-key-BATP-flag:00
4:033  0:001     fakesmc-key-BNum-ui8:00
4:035  0:001     fakesmc-key-MSTc-ui8:00
4:036  0:001     fakesmc-key-MSAc-ui16:00 00
4:037  0:001     fakesmc-key-MSWr-ui8:00
4:039  0:001     fakesmc-key-MSFW-ui8:01 00
4:040  0:001     fakesmc-key-MSPS-ui16:00 03
4:050  0:010     fakesmc-key-RVBF-ch8*:02 41 0F 00 00 02
4:069  0:018  Registered 17 SMC keys
4:071  0:001  === [ ScanLoader ] ==============================
4:071  0:000  - [01]: 'EFI'
4:090  0:019        AddLoaderEntry for Volume Name=EFI, idx=0
4:090  0:000        OSVersion=
4:090  0:000        IconName=unknown comma=-1 size=7
4:090  0:000        Full=unknown
4:090  0:000        Show badge as OSImage.
4:090  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)\HD(1,GPT,5DAA101B-ED8A-4BB7-8F93-6EC4CF331392,0x28,0x64000)\EFI\BOOT\BOOTX64.efi'
4:091  0:000        Menu entry added at index 0
4:091  0:000       hiding entry because DiskKind is DISK_KIND_EXTERNAL: \EFI\BOOT\BOOTX64.efi
4:091  0:000  - [02]: 'UNTITLED'
4:113  0:021        AddLoaderEntry for Volume Name=UNTITLED, idx=1
4:113  0:000        OSVersion=
4:113  0:000        IconName=unknown comma=-1 size=7
4:113  0:000        Full=unknown
4:113  0:000        Show badge as OSImage.
4:113  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)\HD(2,GPT,50C65AFC-5861-4670-8DFA-2BFA55D77FB5,0x64800,0xE87000)\EFI\BOOT\BOOTX64.efi'
4:113  0:000        Menu entry added at index 1
4:113  0:000       hiding entry because DiskKind is DISK_KIND_EXTERNAL: \EFI\BOOT\BOOTX64.efi
4:113  0:000  - [04]: 'EFI'
4:204  0:090        AddLoaderEntry for Volume Name=EFI, idx=2
4:204  0:000        OSVersion=
4:204  0:000        IconName=unknown comma=-1 size=7
4:204  0:000        Full=unknown
4:204  0:000        Show badge as OSImage.
4:204  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,0EB42E37-219D-47A0-98D5-333A7BC91C86,0x28,0x64000)\EFI\BOOT\BOOTX64.efi'
4:204  0:000        Menu entry added at index 2
4:204  0:000       hiding entry because DiskKind is DISK_KIND_INTERNAL: \EFI\BOOT\BOOTX64.efi
4:204  0:000  - [08]: 'EFI'
4:209  0:004        AddLoaderEntry for Volume Name=EFI, idx=3
4:209  0:000        OSVersion=
4:209  0:000        IconName=unknown comma=-1 size=7
4:209  0:000        Full=unknown
4:209  0:000        Show badge as OSImage.
4:209  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(1,GPT,53FDE995-D061-47AD-98ED-383160486B86,0x28,0x64000)\EFI\BOOT\BOOTX64.efi'
4:210  0:000        Menu entry added at index 3
4:210  0:000       hiding entry because DiskKind is DISK_KIND_INTERNAL: \EFI\BOOT\BOOTX64.efi
4:210  0:000  - [10]: 'Preboot'
4:210  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
4:210  0:000      ApfsFileSystemUUID=C4FEAA8B-EA2E-4789-8235-53BC8672D771
4:210  0:000      APFSTargetUUID=6109557E-ED51-4EFA-8A3C-888D7489D377
4:211  0:000        contentDetails name:AppleJam2
4:211  0:000        AddLoaderEntry for Volume Name=Preboot, idx=4
4:211  0:000        OSVersion=12.7.3
4:211  0:000        Check if volume Is Hibernated:
4:211  0:000        Check sleep image 'by signature':
4:211  0:000        using default sleep image name = \private\var\vm\sleepimage
4:211  0:000        cannot open sleepimage -> Not Found
4:211  0:000        hibernated: no - sign
4:211  0:000        IconName=monterey,mac comma=8 size=12
4:211  0:000        first=os_monterey
4:211  0:000        Show badge as OSImage.
4:211  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
4:212  0:001        Menu entry added at index 4
4:212  0:000  - [11]: 'AppleJam2'
4:212  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
4:212  0:000      ApfsFileSystemUUID=32B18B57-64B7-4EE0-87CA-AAE8D715FDB4
4:218  0:005  - [12]: 'Untitled 2 - Data'
4:218  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
4:218  0:000      ApfsFileSystemUUID=6109557E-ED51-4EFA-8A3C-888D7489D377
4:219  0:001  - [13]: 'Recovery'
4:219  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
4:219  0:000      ApfsFileSystemUUID=EF2D30F8-E0B3-4D34-9C43-4BCA97A44AB9
4:220  0:000      APFSTargetUUID=6109557E-ED51-4EFA-8A3C-888D7489D377
4:220  0:000        contentDetails name:AppleJam2
4:220  0:000        AddLoaderEntry for Volume Name=Recovery, idx=5
4:220  0:000        OSVersion=12.7.3
4:220  0:000        IconName=monterey,mac comma=8 size=12
4:220  0:000        first=os_monterey
4:221  0:000        Show badge as OSImage.
4:221  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F8302DEFB3E0344D9C434BCA97A44AB9)\6109557E-ED51-4EFA-8A3C-888D7489D377\BaseSystem.dmg'
4:222  0:001        Menu entry added at index 5
4:222  0:000  - [14]: 'VM'
4:222  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
4:222  0:000      ApfsFileSystemUUID=E3760CFF-1AF9-4453-A0A6-9DB0BAA79A71
4:222  0:000  - [15]: 'Update'
4:222  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
4:222  0:000      ApfsFileSystemUUID=EE068DB4-BDA9-4C86-93F9-3DFA921245FA
4:222  0:000  Entries list before ordering
4:222  0:000      Entry 0 : Boot UEFI external from EFI (hidden)
4:222  0:000      Entry 1 : Boot UEFI external from UNTITLED (hidden)
4:222  0:000      Entry 2 : Boot UEFI internal from EFI (hidden)
4:222  0:000      Entry 3 : Boot UEFI internal from EFI (hidden)
4:222  0:000      Entry 4 : Boot Mac OS from AppleJam2 via Preboot
4:222  0:000      Entry 5 : Boot Mac OS Recovery for AppleJam2 via Recovery
4:222  0:000  Entries list after ordering
4:222  0:000    Entry 0 : Boot UEFI external from EFI (hidden)
4:222  0:000    Entry 1 : Boot UEFI external from UNTITLED (hidden)
4:222  0:000    Entry 2 : Boot UEFI internal from EFI (hidden)
4:222  0:000    Entry 3 : Boot UEFI internal from EFI (hidden)
4:222  0:000    Entry 4 : Boot Mac OS from AppleJam2 via Preboot
4:222  0:000    Entry 5 : Boot Mac OS Recovery for AppleJam2 via Recovery
4:222  0:000  Scanning legacy ...
4:222  0:000  === [ AddCustomTool ] ===========================
4:222  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
4:222  0:000  Checking EFI partition Volume 1 for Clover
4:222  0:000   Found Clover
4:222  0:000  === [ GetEfiBootDeviceFromNvram ] ===============
4:223  0:001  Got efi-boot-device-data size=276
4:223  0:000   - efi-boot-device-data: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi
4:223  0:000    - Volume: 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)'
4:223  0:000    - LoaderPath: '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
4:223  0:000    - Guid = ED33F20C-9264-4B6C-94A6-F8F3C1569623
4:223  0:000  === [ FindStartupDiskVolume ] ===================
4:223  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)
4:223  0:000     - searching for that partition and loader '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
4:224  0:000    checking 'PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,68-89-71-46-8B-44-1B-00)/HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)'
4:224  0:000     '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
4:224  0:000      - found entry 0. 'Boot Mac OS from AppleJam2 via Preboot', Volume 'Preboot', '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
4:224  0:000  Boot redirected to Entry 0. 'Boot Mac OS from AppleJam2 via Preboot'
4:224  0:000  BannerPlace at Clear Screen [885,137]
4:357  0:133  GUI ready
81:700  77:343  BiosVersion: IM171.88Z.F000.B00.2302021933
81:700  0:000  BiosReleaseDate: 02/02/2023
81:700  0:000  EfiVersion: 509.0.0.0.0
81:700  0:000  SMBIOS reloaded with model iMac17,1
81:700  0:000  chosen SMBIOS of SMBIOS
111:330  29:629  BiosVersion: IM171.88Z.F000.B00.2302021933
111:330  0:000  BiosReleaseDate: 02/02/2023
111:330  0:000  EfiVersion: 509.0.0.0.0
111:330  0:000  SMBIOS reloaded with model iMac17,1
111:330  0:000  chosen SMBIOS of auto
135:636  24:306  ReinitRefitLib after theme change
135:636  0:000  === [ ScanVolumes ] =============================
135:636  0:000  Found 16 volumes with blockIO
135:636  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)
135:637  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)\HD(1,GPT,5DAA101B-ED8A-4BB7-8F93-6EC4CF331392,0x28,0x64000)
135:638  0:001          Result of bootcode detection: bootable unknown (legacy)
135:638  0:000            label : EFI
135:638  0:000          This is SelfVolume !!
135:638  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)\HD(2,GPT,50C65AFC-5861-4670-8DFA-2BFA55D77FB5,0x64800,0xE87000)
135:639  0:000          Result of bootcode detection: bootable unknown (legacy)
135:639  0:000            label : UNTITLED
135:639  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)
135:666  0:027          Result of bootcode detection: bootable unknown (legacy)
135:666  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,0EB42E37-219D-47A0-98D5-333A7BC91C86,0x28,0x64000)
135:667  0:000          Result of bootcode detection: bootable unknown (legacy)
135:669  0:002            label : EFI
135:669  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,D19F4116-B387-4709-A25B-5FC8B0CC4368,0x64028,0x3A1EC0C0)
135:670  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,34EF0413-E7C1-4E22-BC1B-F669A4D79B19,0x3A2500E8,0x135F20)
135:686  0:016  - [07]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)
135:686  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(1,GPT,53FDE995-D061-47AD-98ED-383160486B86,0x28,0x64000)
135:686  0:000          Result of bootcode detection: bootable unknown (legacy)
135:687  0:000            label : EFI
135:687  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)
135:687  0:000          Result of bootcode detection: bootable unknown (legacy)
135:687  0:000  - [10]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)
135:687  0:000            apfsFileSystemUUID=C4FEAA8B-EA2E-4789-8235-53BC8672D771, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x10
135:687  0:000            label : Preboot
135:687  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,578BB132B764E04E87CAAAE8D715FDB4)
135:687  0:000            apfsFileSystemUUID=32B18B57-64B7-4EE0-87CA-AAE8D715FDB4, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x1
135:687  0:000            label : AppleJam2
135:687  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7E55096151EDFA4E8A3C888D7489D377)
135:687  0:000            apfsFileSystemUUID=6109557E-ED51-4EFA-8A3C-888D7489D377, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x40
135:687  0:000            label : Untitled 2 - Data
135:687  0:000  - [13]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F8302DEFB3E0344D9C434BCA97A44AB9)
135:687  0:000            apfsFileSystemUUID=EF2D30F8-E0B3-4D34-9C43-4BCA97A44AB9, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x4
135:687  0:000            label : Recovery
135:687  0:000  - [14]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,FF0C76E3F91A5344A0A69DB0BAA79A71)
135:687  0:000            apfsFileSystemUUID=E3760CFF-1AF9-4453-A0A6-9DB0BAA79A71, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x8
135:687  0:000            label : VM
135:687  0:000  - [15]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B48D06EEA9BD864C93F93DFA921245FA)
135:688  0:000            apfsFileSystemUUID=EE068DB4-BDA9-4C86-93F9-3DFA921245FA, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0xc0
135:688  0:000            label : Update
135:688  0:000  No AudioIoProtocols, status=Not Found
135:688  0:000  theme inited
135:688  0:000  Chosen theme Clovy
135:688  0:000  after NVRAM boot-args=
135:688  0:000  === [ ScanLoader ] ==============================
135:688  0:000  - [01]: 'EFI'
135:689  0:000        AddLoaderEntry for Volume Name=EFI, idx=0
135:689  0:000        OSVersion=
135:689  0:000        IconName=unknown comma=-1 size=7
135:689  0:000        Full=unknown
135:689  0:000        Show badge as OSImage.
135:689  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)\HD(1,GPT,5DAA101B-ED8A-4BB7-8F93-6EC4CF331392,0x28,0x64000)\EFI\BOOT\BOOTX64.efi'
135:689  0:000        Menu entry added at index 0
135:689  0:000       hiding entry because DiskKind is DISK_KIND_EXTERNAL: \EFI\BOOT\BOOTX64.efi
135:689  0:000  - [02]: 'UNTITLED'
135:690  0:000        AddLoaderEntry for Volume Name=UNTITLED, idx=1
135:690  0:000        OSVersion=
135:690  0:000        IconName=unknown comma=-1 size=7
135:690  0:000        Full=unknown
135:690  0:000        Show badge as OSImage.
135:690  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x14,0x0)\USB(0x0,0x0)\HD(2,GPT,50C65AFC-5861-4670-8DFA-2BFA55D77FB5,0x64800,0xE87000)\EFI\BOOT\BOOTX64.efi'
135:690  0:000        Menu entry added at index 1
135:690  0:000       hiding entry because DiskKind is DISK_KIND_EXTERNAL: \EFI\BOOT\BOOTX64.efi
135:690  0:000  - [04]: 'EFI'
135:711  0:021        AddLoaderEntry for Volume Name=EFI, idx=2
135:711  0:000        OSVersion=
135:711  0:000        IconName=unknown comma=-1 size=7
135:711  0:000        Full=unknown
135:712  0:000        Show badge as OSImage.
135:712  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,0EB42E37-219D-47A0-98D5-333A7BC91C86,0x28,0x64000)\EFI\BOOT\BOOTX64.efi'
135:712  0:000        Menu entry added at index 2
135:712  0:000       hiding entry because DiskKind is DISK_KIND_INTERNAL: \EFI\BOOT\BOOTX64.efi
135:712  0:000  - [08]: 'EFI'
135:714  0:002        AddLoaderEntry for Volume Name=EFI, idx=3
135:714  0:000        OSVersion=
135:714  0:000        IconName=unknown comma=-1 size=7
135:714  0:000        Full=unknown
135:715  0:000        Show badge as OSImage.
135:715  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(1,GPT,53FDE995-D061-47AD-98ED-383160486B86,0x28,0x64000)\EFI\BOOT\BOOTX64.efi'
135:715  0:000        Menu entry added at index 3
135:715  0:000       hiding entry because DiskKind is DISK_KIND_INTERNAL: \EFI\BOOT\BOOTX64.efi
135:715  0:000  - [10]: 'Preboot'
135:715  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
135:715  0:000      ApfsFileSystemUUID=C4FEAA8B-EA2E-4789-8235-53BC8672D771
135:715  0:000      APFSTargetUUID=6109557E-ED51-4EFA-8A3C-888D7489D377
135:715  0:000        contentDetails name:AppleJam2
135:715  0:000        AddLoaderEntry for Volume Name=Preboot, idx=4
135:716  0:000        OSVersion=12.7.3
135:716  0:000        Check if volume Is Hibernated:
135:716  0:000        Check sleep image 'by signature':
135:716  0:000        using default sleep image name = \private\var\vm\sleepimage
135:716  0:000        cannot open sleepimage -> Not Found
135:716  0:000        hibernated: no - sign
135:716  0:000        IconName=monterey,mac comma=8 size=12
135:716  0:000        first=os_monterey
135:716  0:000        Show badge as OSImage.
135:716  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
135:717  0:001        Menu entry added at index 4
135:717  0:000  - [11]: 'AppleJam2'
135:717  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
135:717  0:000      ApfsFileSystemUUID=32B18B57-64B7-4EE0-87CA-AAE8D715FDB4
135:717  0:000  - [12]: 'Untitled 2 - Data'
135:717  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
135:717  0:000      ApfsFileSystemUUID=6109557E-ED51-4EFA-8A3C-888D7489D377
135:718  0:000  - [13]: 'Recovery'
135:718  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
135:718  0:000      ApfsFileSystemUUID=EF2D30F8-E0B3-4D34-9C43-4BCA97A44AB9
135:718  0:000      APFSTargetUUID=6109557E-ED51-4EFA-8A3C-888D7489D377
135:719  0:000        contentDetails name:AppleJam2
135:719  0:000        AddLoaderEntry for Volume Name=Recovery, idx=5
135:719  0:000        OSVersion=12.7.3
135:719  0:000        IconName=monterey,mac comma=8 size=12
135:719  0:000        first=os_monterey
135:719  0:000        Show badge as OSImage.
135:719  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F8302DEFB3E0344D9C434BCA97A44AB9)\6109557E-ED51-4EFA-8A3C-888D7489D377\BaseSystem.dmg'
135:720  0:001        Menu entry added at index 5
135:720  0:000  - [14]: 'VM'
135:720  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
135:720  0:000      ApfsFileSystemUUID=E3760CFF-1AF9-4453-A0A6-9DB0BAA79A71
135:720  0:000  - [15]: 'Update'
135:720  0:000      ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48
135:720  0:000      ApfsFileSystemUUID=EE068DB4-BDA9-4C86-93F9-3DFA921245FA
135:720  0:000  Entries list before ordering
135:720  0:000      Entry 0 : Boot UEFI external from EFI (hidden)
135:720  0:000      Entry 1 : Boot UEFI external from UNTITLED (hidden)
135:720  0:000      Entry 2 : Boot UEFI internal from EFI (hidden)
135:720  0:000      Entry 3 : Boot UEFI internal from EFI (hidden)
135:720  0:000      Entry 4 : Boot Mac OS from AppleJam2 via Preboot
135:720  0:000      Entry 5 : Boot Mac OS Recovery for AppleJam2 via Recovery
135:720  0:000  Entries list after ordering
135:720  0:000    Entry 0 : Boot UEFI external from EFI (hidden)
135:720  0:000    Entry 1 : Boot UEFI external from UNTITLED (hidden)
135:720  0:000    Entry 2 : Boot UEFI internal from EFI (hidden)
135:720  0:000    Entry 3 : Boot UEFI internal from EFI (hidden)
135:720  0:000    Entry 4 : Boot Mac OS from AppleJam2 via Preboot
135:720  0:000    Entry 5 : Boot Mac OS Recovery for AppleJam2 via Recovery
135:720  0:000  Scanning legacy ...
135:720  0:000  === [ AddCustomTool ] ===========================
135:720  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
135:720  0:000  Checking EFI partition Volume 1 for Clover
135:720  0:000   Found Clover
135:721  0:000  === [ GetEfiBootDeviceFromNvram ] ===============
135:721  0:000  === [ FindStartupDiskVolume ] ===================
135:721  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)
135:721  0:000     - searching for that partition and loader '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
135:721  0:000    checking 'PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,68-89-71-46-8B-44-1B-00)/HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)'
135:721  0:000     '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
135:721  0:000      - found entry 0. 'Boot Mac OS from AppleJam2 via Preboot', Volume 'Preboot', '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
135:721  0:000  Boot redirected to Entry 0. 'Boot Mac OS from AppleJam2 via Preboot'
150:025  14:303  BootVariable of the entry is empty
150:025  0:000  === [ StartLoader ] =============================
150:025  0:000  Starting PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi
150:025  0:000  Finally: ExternalClock=26MHz BusSpeed=100215kHz CPUFreq=4009MHz PIS: hw.busfrequency=104000000Hz
150:025  0:000  Beginning OC
150:025  0:000  OCST: Missing vault data, ignoring...
150:025  0:000  Bridge mmioWhiteList[0] to OC : comment=Haswell: SB_RCBA is a 0x4 page memory region, containing SPI_BASE at 0x3800 (SPI_BASE_ADDRESS)
150:025  0:000  Bridge mmioWhiteList[1] to OC : comment=Generic: PCI root is a 0x1000 page memory region used by some firmwares
150:025  0:000  AddKextsInArray from Other
150:025  0:000  ->Extra kext: Other\AppleALC.kext (v.1.6.9)
150:025  0:000  ->Extra kext: Other\Display-20a3-0.kext (v.9.9.9)
150:025  0:000  ->Extra kext: Other\FakeSMC.kext (v.3.5.3)
150:025  0:000  ->Extra kext: Other\IntelCPUMonitor.kext (v.1.2.5)
150:025  0:000  ->Extra kext: Other\IntelMausi.kext (v.1.0.7)
150:025  0:000  ->Extra kext: Other\ITEIT87x.kext (v.1.0.7)
150:025  0:000  ->Extra kext: Other\Lilu.kext (v.1.6.7)
150:025  0:000  ->Extra kext: Other\RestrictEvents.kext (v.1.1.3)
150:025  0:000  ->Extra kext: Other\USBPorts.kext (v.1.0)
150:025  0:000  ->Extra kext: Other\WhateverGreen.kext (v.1.6.6)
150:025  0:000  AddKextsInArray from Off
150:025  0:000  AddKextsInArray from 12
150:025  0:000  AddKextsInArray from 12_normal
150:025  0:000  AddKextsInArray from 12.7
150:025  0:000  AddKextsInArray from 12.7_normal
150:025  0:000  AddKextsInArray from 12.7.3
150:025  0:000  AddKextsInArray from 12.7.3_normal
150:025  0:000  Bridge kext to OC : Path=Other\Lilu.kext
150:028  0:002  OC BundlePath     = 'Other\Lilu.kext'
150:030  0:002  OC PlistPath      = 'Contents\Info.plist'
150:030  0:000  OC ExecutablePath = 'Contents\MacOS\Lilu'
150:030  0:000  Bridge kext to OC : Path=Other\FakeSMC.kext
150:030  0:000  OC BundlePath     = 'Other\FakeSMC.kext'
150:030  0:000  OC PlistPath      = 'Contents\Info.plist'
150:033  0:002  OC ExecutablePath = 'Contents\MacOS\FakeSMC'
150:033  0:000  Bridge kext to OC : Path=Other\WhateverGreen.kext
150:033  0:000  OC BundlePath     = 'Other\WhateverGreen.kext'
150:033  0:000  OC PlistPath      = 'Contents\Info.plist'
150:033  0:000  OC ExecutablePath = 'Contents\MacOS\WhateverGreen'
150:033  0:000  Bridge kext to OC : Path=Other\AppleALC.kext
150:033  0:000  OC BundlePath     = 'Other\AppleALC.kext'
150:036  0:002  OC PlistPath      = 'Contents\Info.plist'
150:062  0:026  OC ExecutablePath = 'Contents\MacOS\AppleALC'
150:062  0:000  Bridge kext to OC : Path=Other\USBPorts.kext
150:063  0:000  OC BundlePath     = 'Other\USBPorts.kext'
150:063  0:000  OC PlistPath      = 'Contents\Info.plist'
150:063  0:000  Bridge kext to OC : Path=Other\Display-20a3-0.kext
150:063  0:000  OC BundlePath     = 'Other\Display-20a3-0.kext'
150:065  0:002  OC PlistPath      = 'Contents\Info.plist'
150:065  0:000  Bridge kext to OC : Path=Other\IntelCPUMonitor.kext
150:065  0:000  OC BundlePath     = 'Other\IntelCPUMonitor.kext'
150:066  0:000  OC PlistPath      = 'Contents\Info.plist'
150:066  0:000  OC ExecutablePath = 'Contents\MacOS\IntelCPUMonitor'
150:066  0:000  Bridge kext to OC : Path=Other\IntelMausi.kext
150:066  0:000  OC BundlePath     = 'Other\IntelMausi.kext'
150:066  0:000  OC PlistPath      = 'Contents\Info.plist'
150:066  0:000  OC ExecutablePath = 'Contents\MacOS\IntelMausi'
150:066  0:000  Bridge kext to OC : Path=Other\ITEIT87x.kext
150:066  0:000  OC BundlePath     = 'Other\ITEIT87x.kext'
150:068  0:002  OC PlistPath      = 'Contents\Info.plist'
150:073  0:004  OC ExecutablePath = 'Contents\MacOS\ITEIT87x'
150:073  0:000  Bridge kext to OC : Path=Other\RestrictEvents.kext
150:073  0:000  OC BundlePath     = 'Other\RestrictEvents.kext'
150:073  0:000  OC PlistPath      = 'Contents\Info.plist'
150:073  0:000  OC ExecutablePath = 'Contents\MacOS\RestrictEvents'
150:091  0:017  Start 'OpenRuntime.efi' : Status Success
150:091  0:000  OC: config config.plist
150:091  0:000  OC: Got 0 drivers
150:091  0:000  OC: OpenCore DBG-097-2024-01-13 is loading in Optional mode (0/0)...
150:091  0:000  OC: StorageHandle 0 with  LauncherOption pointing to
150:091  0:000  OCAU: OcAudioInstallProtocols (0, 0)
150:092  0:000  OcOSInfoInstallProtocol
150:092  0:000  OCRTC: OcAppleRtcRamInstallProtocol
150:092  0:000  OCRTC: Wake log is 0x00 0x00   0 0x00
150:092  0:000  OcAppleFbInfoInstallProtocol
150:092  0:000  OcAppleEg2InfoInstallProtocol
150:093  0:000  OC: Loading Apple Secure Boot with Disabled (level 0)
150:093  0:000  OCABC: ALRBL 0 RTDFRG 1 DEVMMIO 0 NOSU 0 NOVRWR 0 NOSB 0 FBSIG 0 NOHBMAP 0 SMSLIDE 0 WRUNPROT 1
150:093  0:000  OCABC: FEXITBS 0 PRMRG 0 CSLIDE 0 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 1 APPLOS 0 RTPERMS 1 ARBAR -1 RBIO 0
150:093  0:000  OCABC: Got rendezvous with OpenRuntime r12
150:093  0:000  OCABC: MAT support is 0
150:093  0:000  OC: RequestBootVarRouting 0
150:093  0:000  OCDM: Found 0x20032/0x20032 UEFI version (376 bytes, 0 rebuilding to 376) gST BF7AB018 gBS B4B36A70 gBS->CreateEventEx B4B3BEC8 &gBS B4823F50
150:093  0:000  OC: Setting GPU BARs to 0
150:093  0:000  OCDM: RBAR using PciIo
150:093  0:000  OCDM: Setting RBAR to 0 inc 1 on 3/22
150:093  0:000  OCDM: Capability I/O error - Unsupported
150:093  0:000  OCDM: RBAR is unsupported by device - Device Error
150:093  0:000  OC: Got 0 drivers
150:093  0:000  OCC: Installing GOP (Unsupported) on ConsoleOutHandle...
150:110  0:016  OC: Requested resolution is 0x0@0 (max: 0, force: 0) from
150:110  0:000  OCC: Using builtin text renderer with 1 scale
150:110  0:000  OCC: Install console control (B480F930/B4B33FA8/0), current - Success
150:110  0:000  OCC: Setup ASCII Output - Success
150:110  0:000  OC: Requested console mode is 0x0 (max: 0) from
150:110  0:000  OC: Requested not to use audio
150:110  0:000  OC: Invalid HibernateMode:
150:110  0:000  OC: Translated HibernateMode  to 0
150:111  0:000  OC: Hibernation activation - Invalid Parameter, hibernation wake - no
150:111  0:000  OCABC: IsEfiBootRt 0 (BP 1, Apple 0)
150:112  0:001  OCB: Arch filtering B8BAE018(723512)->B8BAE018(723512) caps 0 - Success
150:129  0:017  ImageHandle = b8b98758
150:184  0:054  GetOSVersion: 12.7.3 (m)
150:184  0:000  Filtering KextPatches:
150:184  0:000   - [00]: VoodooHDA (NoLabel) :: BinPatch :: [OS: 12.7.3 | MatchOS: All | MatchBuild: All] ==> disabled by user
150:184  0:000   - [01]: AppleAHCIPort (Make all drives to be internal) :: BinPatch :: [OS: 12.7.3 | MatchOS: All | MatchBuild: All] ==> disabled by user
150:184  0:000   - [02]: IOAHCIBlockStorage (TRIM function for non-Apple SSDs) :: BinPatch :: [OS: 12.7.3 | MatchOS: All | MatchBuild: All] ==> disabled by user
150:184  0:000   - [03]: AMD6000Controller (ATI Connector patch new way) :: BinPatch :: [OS: 12.7.3 | MatchOS: 10.9,10.10,10.11 | MatchBuild: All] ==> disabled by user
150:184  0:000   - [04]: AMD6000Controller (ATI name HD xxxx -> HD6450) :: BinPatch :: [OS: 12.7.3 | MatchOS: 10.12,10.13 | MatchBuild: All] ==> disabled by user
150:184  0:000   - [05]: com.apple.kext.AMDSupport (Violet strips) :: BinPatch :: [OS: 12.7.3 | MatchOS: All | MatchBuild: All] ==> disabled by user
150:184  0:000  Filtering KernelPatches:
150:184  0:000   - [00]: Disable panic kext logging on 10.14 Release kernel :: [OS: 12.7.3 | MatchOS: 10.14 | MatchBuild: All] ==> disabled by user
150:184  0:000   - [01]: Disable panic kext logging on 10.13 Release kernel :: [OS: 12.7.3 | MatchOS: 10.13 | MatchBuild: All] ==> disabled by user
150:184  0:000   - [02]: Lapic panic patch example :: [OS: 12.7.3 | MatchOS: All | MatchBuild: All] ==> disabled by user
150:184  0:000   - [03]: Monterey RDRAND instruction #1 :: [OS: 12.7.3 | MatchOS: 12.x | MatchBuild: All] ==> disabled by user
150:184  0:000   - [04]: Monterey RDRAND instruction #2 :: [OS: 12.7.3 | MatchOS: 12.x | MatchBuild: All] ==> disabled by user
150:184  0:000   - [05]: Monterey RDRAND instruction #3 :: [OS: 12.7.3 | MatchOS: 12.x | MatchBuild: All]
150:184  0:000   check MatchOS 12.x
150:184  0:000   ==> allowed by OS
150:184  0:000  Filtering BootPatches:
150:184  0:000   - [00]: Example :: [OS: 12.7.3 | MatchOS: All | MatchBuild: All] ==> disabled by user
150:184  0:000  Patch[0]: Example
150:184  0:000  ==> disabled
150:184  0:000  Will not patch boot.efi
150:184  0:000  BiosVersion: IM171.88Z.F000.B00.2302021933
150:184  0:000  BiosReleaseDate: 02/02/2023
150:184  0:000  EfiVersion: 509.0.0.0.0
150:184  0:000  SMBIOS reloaded with model iMac17,1
150:184  0:000  Set FakeCPUID: 0x406E1
150:184  0:000  Bridge kernel patch to OC : Monterey RDRAND instruction #3
150:184  0:000  === [ PatchSmbios ] =============================
150:184  0:000  UpdateSmbiosString : BiosVersion=EfiVersion=509.0.0.0.0
150:184  0:000  UpdateSmbiosString : ReleaseDate=02/02/2023
150:184  0:000  void PatchTableType1(const SmbiosInjectedSettings&) : UpdateSmbiosString ProductName=iMac17,1
150:184  0:000  void PatchTableType2(const SmbiosInjectedSettings&) : UpdateSmbiosString ProductName=BoardNumber=Mac-B809C3757DA9BB8D
150:184  0:000  void PatchTableType2(const SmbiosInjectedSettings&) : UpdateSmbiosString Version=BoardVersion=iMac17,1
150:184  0:000  insert table 9 for dev 0:0
150:184  0:000  insert table 9 for dev 0:1
150:184  0:000  insert table 9 for dev 1F:6
150:184  0:000  Table 11 present, but rewritten for us
150:184  0:000  Do not inject memory table
150:184  0:000  Trusting SMBIOS...
150:184  0:000  Channels: 2
150:184  0:000  Interleave: 0 2 1 3
150:184  0:000  !trusted SMBIOS data, Table index 0:!gRAM.SMBIOS.doesSlotForIndexExist(SMBIOSIndex)
150:184  0:000    SMBIOS Type 17 Index = 0 => SMBIOSIndex=0 SPDIndex=0:
150:184  0:000  BANK 0 DIMM0 EMPTY
150:184  0:000  !trusted SMBIOS data, Table index 2:!gRAM.SMBIOS.doesSlotForIndexExist(SMBIOSIndex)
150:184  0:000    SMBIOS Type 17 Index = 1 => SMBIOSIndex=2 SPDIndex=2:
150:184  0:000  BANK 1 DIMM0 EMPTY
150:184  0:000  trusted SMBIOS data, table index 1:
150:184  0:000    gRAM.SMBIOS[1]->ModuleSize = 8192
150:184  0:000    gRAM.SMBIOS[1]->Type = 0
150:184  0:000    gRAM.SMBIOS[1]->Frequency = 2133
150:184  0:000    gRAM.SMBIOS[1]->Vendor = 04CD
150:184  0:000    gRAM.SMBIOS[1]->PartNo = F4-2133C15-8GVR
150:184  0:000    gRAM.SMBIOS[1]->SerialNo = 00000000
150:184  0:000  SPD data in use:
150:184  0:000    gRAM.SPD[1]->ModuleSize = 8192
150:184  0:000    gRAM.SPD[1]->Type = 26
150:184  0:000    gRAM.SPD[1]->Frequency = 2132
150:184  0:000    gRAM.SPD[1]->Vendor = G Skill Intl
150:184  0:000    gRAM.SPD[1]->SerialNo = 00000000
150:184  0:000    gRAM.SPD[1]->PartNo = F4-2133C15-8GVR
150:184  0:000    SMBIOS Type 17 Index = 2 => SMBIOSIndex=1 SPDIndex=1:
150:184  0:000  BANK 0 DIMM1 2133MHz 8192MB(Ext:0MB)
150:184  0:000  trusted SMBIOS data, table index 3:
150:184  0:000    gRAM.SMBIOS[3]->ModuleSize = 8192
150:184  0:000    gRAM.SMBIOS[3]->Type = 0
150:184  0:000    gRAM.SMBIOS[3]->Frequency = 2133
150:184  0:000    gRAM.SMBIOS[3]->Vendor = 04CD
150:184  0:000    gRAM.SMBIOS[3]->PartNo = F4-2133C15-8GVR
150:184  0:000    gRAM.SMBIOS[3]->SerialNo = 00000000
150:184  0:000  SPD data in use:
150:184  0:000    gRAM.SPD[3]->ModuleSize = 8192
150:184  0:000    gRAM.SPD[3]->Type = 26
150:184  0:000    gRAM.SPD[3]->Frequency = 2132
150:184  0:000    gRAM.SPD[3]->Vendor = G Skill Intl
150:184  0:000    gRAM.SPD[3]->SerialNo = 00000000
150:184  0:000    gRAM.SPD[3]->PartNo = F4-2133C15-8GVR
150:184  0:000    SMBIOS Type 17 Index = 3 => SMBIOSIndex=3 SPDIndex=3:
150:184  0:000  BANK 1 DIMM1 2133MHz 8192MB(Ext:0MB)
150:184  0:000  mTotalSystemMemory = 16384
150:184  0:000  NumberOfMemoryDevices = 4
150:184  0:000  Type20[0]->End = 0x7FFFFF, Type17[2] = 2000
150:184  0:000  Type20[1]->End = 0xFFFFFF, Type17[3] = 6000
150:184  0:000  Table 131 is present, CPUType=31
150:184  0:000  Change to: 705
150:184  0:000  === [ PatchACPI ] ===============================
150:184  0:000  OCABC: AllocPages 1 0xBE8A1000 (1) - Success
150:184  0:000  Xsdt reallocation done
150:184  0:000  OCABC: AllocPages 1 0xBE8A0000 (1) - Success
150:184  0:000  old FADT length=114
150:184  0:000   SignatureFixup: 0xA47E9957 -> 0x0
150:184  0:000  Found OperationRegion(GNVS, SystemMemory, BF062000, ...)
150:185  0:000  Found OperationRegion(CPSB, SystemMemory, BE811F98, ...)
150:185  0:000  Found OperationRegion(PNVA, SystemMemory, BF098018, ...)
150:185  0:000  Found OperationRegion(THBA, SystemMemory, FE200000, ...)
150:186  0:001  Found OperationRegion(ITSS, SystemMemory, FDC43100, ...)
150:186  0:000  Found OperationRegion(ABNV, SystemMemory, FFFF0000, ...)
150:186  0:000  Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
150:186  0:000  Found OperationRegion(CRBD, SystemMemory, FED40000, ...)
150:186  0:000  Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)
150:186  0:000  Found OperationRegion(ATNV, SystemMemory, BF098F18, ...)
150:186  0:000  DSDT found in Clover volume: \EFI\CLOVER\ACPI\patched\DSDT.aml
150:193  0:007  OCABC: AllocPages 1 0xBE883000 (29) - Success
150:193  0:000  Apply DsdtFixMask=0x1FE7B1D5
150:193  0:000  === [ FixBiosDsdt ] =============================
150:193  0:000  Patching DSDT:
150:193  0:000   - [Add _SUN property for GIGE]: disabled
150:193  0:000   - [Rename GFX0 to IGPU]: disabled
150:193  0:000   - [Rename AZAL  to HDAS]: disabled
150:193  0:000   - [Rename oem _DSM to ZDSM]: pattern 5F44534D, patched at: [ (326C) ]
150:193  0:000   - [Rename HECI to IMEI]: pattern 48454349, patched at: [ (F5B7) ]
150:195  0:001  Start HPET Fix
150:195  0:000  Start Display0 Fix
150:195  0:000  Found internal video device 0 @3E7F
150:195  0:000  Creating Method(_DSM) for 1002 card
150:196  0:000  patch Display #0 of Vendor=0x1002
150:196  0:000  patch LAN0 in DSDT
150:197  0:001  NewName HDAS already present, renaming impossible
150:198  0:000  NewName HDMI already present, renaming impossible
150:199  0:001   deleting device CRT_
150:200  0:001   deleting device DVI_
150:202  0:001   deleting device SPKR
150:203  0:001   deleting device ECP_
150:205  0:001   deleting device LPT_
150:206  0:001   deleting device FDC0
150:208  0:001   deleting device ECP1
150:209  0:001   deleting device LPT1
150:211  0:001   deleting device FDC_
150:214  0:002  OperationRegion (GNVS...) corrected from 0xB5EA9000 to addr=0xBF062000
150:214  0:000  OperationRegion (CPSB...) corrected from 0xB5A07F98 to addr=0xBE811F98
150:214  0:000    indirect name=PNVB
150:214  0:000  OperationRegion (PNVA...) corrected from 0xB5EDF018 to addr=0xBF098018
150:214  0:000  OperationRegion (THBA...) corrected from 0x0 to addr=0xFE200000
150:214  0:000  OperationRegion (ABNV...) corrected from 0xB5ED3000 to addr=0xFFFF0000
150:214  0:000    indirect name=TPMM
150:214  0:000    indirect name=FTPM
150:214  0:000    indirect name=PPIM
150:214  0:000  OperationRegion (ATNV...) corrected from 0xFFFF0000 to addr=0xBF098F18
150:214  0:000  no device(AC) exists
150:214  0:000  Name _OSI present at 0x7A75, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10C17, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10C1E, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10C33, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10C4F, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10C6F, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10C8F, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10CAD, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10CC9, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10CE5, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10D01, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10D1E, renaming to OOSI
150:214  0:000  Name _OSI present at 0x10D2A, renaming to OOSI
150:215  0:000  PreCleanup XSDT: count=22, length=212
150:215  0:000  PreCleanup XSDT, corrected XSDT: count=22, length=212
150:215  0:000  === [ ACPIDropTables ] ==========================
150:215  0:000  Drop tables from XSDT, SIGN=DMAR TableID=SKL  Length=112
150:215  0:000  OCABC: AllocPages 1 0xBE881000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xBE881000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xBE881000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xBE87F000 (2) - Success
150:215  0:000  Patching SSDTs: 5 patches each
150:215  0:000   pattern 5F44534D, bin not found / already patched!
150:215  0:000   pattern 48454349, bin not found / already patched!
150:215  0:000  OCABC: AllocPages 1 0xBE87D000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xBE87A000 (5) - Success
150:215  0:000  Patching SSDTs: 5 patches each
150:215  0:000   pattern 5F44534D, patched at: [ (2C47) ]
150:215  0:000   pattern 48454349, bin not found / already patched!
150:215  0:000  Found OperationRegion(SANV, SystemMemory, BF095018, ...)
150:215  0:000  OCABC: AllocPages 1 0xBE876000 (4) - Success
150:215  0:000  Patching SSDTs: 5 patches each
150:215  0:000   pattern 5F44534D, patched at: [ (415) ]
150:215  0:000   pattern 48454349, bin not found / already patched!
150:215  0:000  OCABC: AllocPages 1 0xBE874000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xBE874000 (2) - Success
150:215  0:000  Patching SSDTs: 5 patches each
150:215  0:000   pattern 5F44534D, bin not found / already patched!
150:215  0:000   pattern 48454349, bin not found / already patched!
150:215  0:000  OCABC: AllocPages 1 0xBE870000 (4) - Success
150:215  0:000  Patching SSDTs: 5 patches each
150:215  0:000   pattern 5F44534D, bin not found / already patched!
150:215  0:000   pattern 48454349, bin not found / already patched!
150:215  0:000  OCABC: AllocPages 1 0xBE86E000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xBE86E000 (2) - Success
150:215  0:000  Patching SSDTs: 5 patches each
150:215  0:000   pattern 5F44534D, bin not found / already patched!
150:215  0:000   pattern 48454349, bin not found / already patched!
150:215  0:000  Found OperationRegion(PNVS, SystemMemory, B5C31000, ...)
150:215  0:000  OCABC: AllocPages 1 0xB5CF5000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xB5CF5000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xB5CF5000 (2) - Success
150:215  0:000  Patching SSDTs: 5 patches each
150:215  0:000   pattern 5F44534D, patched at: [ (A5) ]
150:215  0:000   pattern 48454349, bin not found / already patched!
150:215  0:000  OCABC: AllocPages 1 0xB5CF0000 (5) - Success
150:215  0:000  Patching SSDTs: 5 patches each
150:215  0:000   pattern 5F44534D, bin not found / already patched!
150:215  0:000   pattern 48454349, bin not found / already patched!
150:215  0:000  OCABC: AllocPages 1 0xB5CEE000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xB5CEE000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xB5CEE000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xB5CEE000 (2) - Success
150:215  0:000  OCABC: AllocPages 1 0xB5CEE000 (2) - Success
150:215  0:000  ApicCPUNum=1
150:215  0:000  Maximum control=0x28
150:215  0:000  Turbo control=0x2A
150:215  0:000  P-States: min 0x8, max 0x2A
150:215  0:000  SSDT with CPU P-States and plugin-type generated successfully
150:215  0:000  OCABC: AllocPages 1 0xB5CEF000 (1) - Success
150:215  0:000  SSDT with CPU C-States generated successfully
150:215  0:000  OCABC: AllocPages 1 0xB5CEE000 (1) - Success
150:215  0:000  Cleanup XSDT: count=24, length=228
150:215  0:000  corrected XSDT count=24, length=228
150:215  0:000  === [ RestSetup macOS ] =========================
150:215  0:000  EdidDiscovered size=128
150:215  0:000  --- Discovered EDID Table size:128
150:215  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  20  A3
150:215  0:000  010  |  00  00  B2  00  00  00  25  1C  01  03
150:215  0:000  020  |  80  6F  3E  78  0A  8A  5D  A4  55  52
150:215  0:000  030  |  9F  25  0E  47  4A  AD  CF  00  71  4F
150:215  0:000  040  |  81  40  81  80  81  00  95  00  B3  00
150:215  0:000  050  |  D1  C0  81  C0  04  74  00  30  F2  70
150:215  0:000  060  |  5A  80  B0  58  8A  00  20  C2  31  00
150:215  0:000  070  |  00  1E  02  3A  80  18  71  38  2D  40
150:215  0:000  080  |  58  2C  45  00  20  C2  31  00  00  1E
150:215  0:000  090  |  00  00  00  FC  00  35  30  52  36  31
150:215  0:000  100  |  30  37  0A  20  20  20  20  20  00  00
150:215  0:000  110  |  00  FD  00  17  4C  0F  51  22  00  0A
150:215  0:000  120  |  20  20  20  20  20  20  01  0C
150:215  0:000  ATI injection not set
150:215  0:000   RCBA disabled; cannot use it
150:215  0:000  stringlength = 138
150:215  0:000  OCABC: AllocPages 1 0xB5CED000 (1) - Success
150:215  0:000  CurrentMode: Width=1920 Height=1080
150:215  0:000  SetNvramVariable (system-id, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x2, 16): -> writing new (Success)
150:216  0:000  SetNvramVariable (MLB, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 17): -> writing new (Success)
150:216  0:000  SetNvramVariable (ROM, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 6): -> writing new (Success)
150:217  0:000  SetNvramVariable (FirmwareFeatures, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 4): -> writing new (Success)
150:217  0:000  SetNvramVariable (FirmwareFeaturesMask, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 4): -> writing new (Success)
150:218  0:000  SetNvramVariable (ExtendedFirmwareFeatures, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 8): -> writing new (Success)
150:218  0:000  SetNvramVariable (ExtendedFirmwareFeaturesMask, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 8): -> writing new (Success)
150:219  0:000  AddNvramVariable (HW_BID, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 20): -> writing new (Success)
150:220  0:001  AddNvramVariable (security-mode, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 5): -> already exists, abort
150:220  0:000  set DefaultBackgroundColor=0xbfbfbf
150:220  0:000  SetNvramVariable (DefaultBackgroundColor, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x7, 4): -> writing new (Success)
150:223  0:002  SetNvramVariable (ActualDensity, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 2): exists(0x7, 2), equal -> not writing again.
150:224  0:000  SetNvramVariable (DensityThreshold, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 2): exists(0x7, 2), equal -> not writing again.
150:224  0:000  SetNvramVariable (gfx-saved-config-restore-status, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x7, 8): exists(0x7, 8), equal -> not writing again.
150:225  0:000  SetNvramVariable (UIScale, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x7, 1): -> writing new (Success)
150:226  0:001  SetNvramVariable (EFILoginHiDPI, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 4): -> writing new (Success)
150:229  0:002  SetNvramVariable (flagstate, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 32): -> writing new (Success)
150:230  0:001  SetNvramVariable (csr-active-config, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 4): -> writing new (Success)
150:233  0:002  SetNvramVariable (BridgeOSHardwareModel, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x7, 11): -> writing new (Success)
150:236  0:002  DeleteNvramVariable (bootercfg, 7C436110-AB2A-4BBB-A880-FE41995C9F82):
150:236  0:000  DeleteNvramVariable (nvda_drv, 7C436110-AB2A-4BBB-A880-FE41995C9F82):
150:236  0:000  DeleteNvramVariable (recovery-boot-mode, 7C436110-AB2A-4BBB-A880-FE41995C9F82):
150:236  0:000  AddNvramVariable (wake-failure, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 5): -> already exists, abort
150:237  0:000  DeleteNvramVariable (opencore-version, 7C436110-AB2A-4BBB-A880-FE41995C9F82):
150:237  0:000  DeleteNvramVariable (ApBoardID, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:238  0:000  DeleteNvramVariable (ApSecurityDomain, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:238  0:000  DeleteNvramVariable (ApProductionStatus, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:238  0:000  DeleteNvramVariable (ApSecurityMode, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:238  0:000  DeleteNvramVariable (EffectiveProductionStatus, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:239  0:000  DeleteNvramVariable (EffectiveSecurityMode, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:239  0:000  DeleteNvramVariable (CertificateEpoch, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:239  0:000  DeleteNvramVariable (MixNMatchPreventionStatus, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:239  0:000  DeleteNvramVariable (CryptoDigestMethod, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:240  0:000  DeleteNvramVariable (InternalUseOnlyUnit, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:240  0:000  DeleteNvramVariable (ApECID, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:240  0:000  DeleteNvramVariable (HardwareModel, 94B73556-2197-4702-82A8-3E1337DAFBFB):
150:240  0:000  Use origin smbios table type 1 guid.
150:254  0:013  SetStartupDiskVolume:
150:254  0:000    * Volume: 'Preboot'
150:254  0:000    * LoaderPath: '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi'
150:254  0:000    * DevPath: Preboot
150:254  0:000    * EFI_GUID = ED33F20C-9264-4B6C-94A6-F8F3C1569623
150:254  0:000  SetNvramVariable (efi-boot-device-data, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 276): exists(0x7, 276), equal -> not writing again.
150:254  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>ED33F20C-9264-4B6C-94A6-F8F3C1569623</string></dict></dict></dict></array>
150:254  0:000  SetNvramVariable (efi-boot-device, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 216): exists(0x7, 216), equal -> not writing again.
150:255  0:000  Custom boot screen not used because entry has unset use graphics
150:256  0:000  DeleteNvramVariable (IOHibernateRTCVariables, 7C436110-AB2A-4BBB-A880-FE41995C9F82):
150:256  0:000  DeleteNvramVariable (boot-image, 7C436110-AB2A-4BBB-A880-FE41995C9F82):





...and also  here is that config.plist



and from sys info



Hardware Overview:

  Model Name:    iMac
  Model Identifier:    iMac17,1
  Processor Name:    Quad-Core Intel Core i7
  Processor Speed:    4.01 GHz
  Number of Processors:    1
  Total Number of Cores:    4
  L2 Cache (per Core):    256 KB
  L3 Cache:    8 MB
  Hyper-Threading Technology:    Enabled
  Memory:    16 GB
  System Firmware Version:    509.0.0.0.0
  OS Loader Version:    540.120.3~37
  Apple ROM Info:    Apple ROM Version.
Board-ID : Mac-B809C3757DA9BB8D
⌘  Powered by Clover revision: 5157 (master, commit ce3e4376b)
  SMC Version (system):    2.41f2

config.plist.zip

Edited by RobertX
Link to comment
Share on other sites

5 hours ago, RobertX said:

ok, got it to boot from 5157 on usb drive, using the config file from the clover5157 pkg that was included with the clover5157 installer...not my 5145 config.plist... no boot args selected smbios entries and my imac 17,1 was automatically selected?   something changed, as I had to confirm my apple id when I logged in...not sure what I did different EDIT: totally Clover, totally automatic...now to get my info into that config

here's my preboot log from hackintool



  Reveal hidden contents





...and also  here is that config.plist



and from sys info



Hardware Overview:

  Model Name:    iMac
  Model Identifier:    iMac17,1
  Processor Name:    Quad-Core Intel Core i7
  Processor Speed:    4.01 GHz
  Number of Processors:    1
  Total Number of Cores:    4
  L2 Cache (per Core):    256 KB
  L3 Cache:    8 MB
  Hyper-Threading Technology:    Enabled
  Memory:    16 GB
  System Firmware Version:    509.0.0.0.0
  OS Loader Version:    540.120.3~37
  Apple ROM Info:    Apple ROM Version.
Board-ID : Mac-B809C3757DA9BB8D
⌘  Powered by Clover revision: 5157 (master, commit ce3e4376b)
  SMC Version (system):    2.41f2

config.plist.zip 7.17 kB · 2 downloads

I see in your config.plist

            <key>KernelPm</key>
            <false/>

But your E2 is locked so you must set <true/>.

I don't know what is happen in 5157 but probably explicit setting matters more them implicit.

  • Like 2
Link to comment
Share on other sites

1 hour ago, Slice said:

I see in your config.plist

            <key>KernelPm</key>
            <false/>

But your E2 is locked so you must set <true/>.

I don't know what is happen in 5157 but probably explicit setting matters more them implicit.

I saw that too, but when I'm booting, in clover it shows kernelpm checked as use...But anyway, thanks Slice, got it booting now, from Clover5157...installed on USB first to fiddle with smbios entries in config...when I could boot from USB without appleid  popping up,

I copied EFI folder from USB/EFI to NVMe/EFI . A little reading goes a long way https://github.com/5T33Z0/Clover-Crate

Edited by RobertX
just because
  • Like 1
Link to comment
Share on other sites

13 hours ago, Max.1974 said:

@RobertX im use this Clover Suit Builder to compile Clover on my Desktop, works very well.



And need start with Clover Setup

https://github.com/LAbyOne/Clover-Setup

Hope help you

Off-topic

Just for clarification

If you use CSB you have no need for Clover Setup, since it does the same and better

It not only download Clover it but in case you want to renew/replace your actual source for any reason

it will also automatically backup and put back in place, all basic files as "toolchain" avoiding the need to rebuild again later and "personal scripts" (if any present)

Sorry for the intrusion...

Edited by LAbyOne
typo... is my cross!
  • Like 2
  • Thanks 1
Link to comment
Share on other sites

13 minutes ago, STLVNUB said:

I See CSB Downloads And Builds OC, What Does OC Do

Do We Use Something From It?

I am not sure what about you. Did you read merge?

  • Like 1
Link to comment
Share on other sites

3 horas atrás, LAbyOne disse:

Off-topic

Just for clarification

If you use CSB you have no need for Clover Setup, since it does the same and better

It not only download Clover it but in case you want to renew/replace your actual source for any reason

it will also automatically backup and put back in place, all basic files as "toolchain" avoiding the need to rebuild again later and "personal scripts" (if any present)

Sorry for the intrusion...



Hi my friend, thanks a lot for your advise we learning again with Clover.



Im try everything with Lenovo, install Ventura, Xcode, Line Tools, Using Sonoma, less SSDTs Less Kexts, minimum config, but im sure that is incompatibility with my Bios or EUFI drivers has a change that not works anymore with 5157.



I do my best!



Im using first Clover Setup to get (or command line from Wiki) and after im use your CSB, it's nice.



Now im will use only CBS, in fact im do it but no success with Toolchain build all or Xcode or V2



You program is excellent to do this, im sure that is my Lenovo or fix something on my plist. Im change Quirks too, but im will wait new releases for Lenovo



Im try everything with Clover. With Desktop was the first build and Works. I have no more knowledge to find a way to update.



Thanks anyway and God Bless you all



We need more people like all over here together



Thanks @LAbyOne





Edited by Max.1974
  • Like 1
Link to comment
Share on other sites

There are only three reasons to stop or reboot after ++++++++

1. KernelPM should be set to true

2. Absent OpenRuntime.efi or wrong version. Clover 5157 required OpenRuntime.efi v1.2. And it is obligatory. As well Quirks must be good.

3. FixOwnership may crash on rare third-part USB3.0 controller. No problem expected with chipset controllers.

  • Like 1
Link to comment
Share on other sites

OpenRuntime.efi Gets Compiled With Clover?

Then WHY Is It NOT Included In The Packages

  • Like 1
Link to comment
Share on other sites

1 hour ago, STLVNUB said:

OpenRuntime.efi Gets Compiled With Clover?

Then WHY Is It NOT Included In The Packages



Yes my friend @STLVNUB when you compile Clover on your machine its build all on CloverPackages and UEFI folders



Spoiler






Link to comment
Share on other sites

 Share

×
×
  • Create New...
