RobertX Posted March 7 Author Share Posted March 7 (edited) ...just wondering why that boot argument "fips_mode=4" got me past that panic on the installer volume boot, I think that is an OC boot arg? anyway, deleting a ssdt file olaria? from patched, the system sucessfully loaded the 11 aml files the security policy loads AMFi then policy loads sandbox, and that where it hangs, when not in verbose mode I could see progress bar about 45% complete... I've not given up yet Edited March 7 by RobertX Link to comment Share on other sites More sharing options...
Max.1974 Posted March 8 Share Posted March 8 1 hour ago, RobertX said: clover 5157 even failed monterey update...or I should say , I failed to configure it correctly...so, back to 5145 for now, which did get me updated to 12.7.4 Are you try use extract all SSDTS basics from SSDTTime and try boot with this ACPI tables without your DSDT ? 1 Link to comment Share on other sites More sharing options...
RobertX Posted March 8 Author Share Posted March 8 1 hour ago, Max.1974 said: Are you try use extract all SSDTS basics from SSDTTime and try boot with this ACPI tables without your DSDT ? no, was still using dsdt patched, but for now, I'll just see if I can find my errors...clover 5157 is resting peacefully on a usb drive again...but I'll keep at it, thx @Max.1974 1 Link to comment Share on other sites More sharing options...
Max.1974 Posted March 8 Share Posted March 8 Thanks too my friend, if you need something we are able to help you!!! @RobertX 😁 1 Link to comment Share on other sites More sharing options...
RobertX Posted March 8 Author Share Posted March 8 (edited) 2 hours ago, Max.1974 said: Thanks too my friend, if you need something we are able to help you!!! @RobertX 😁 here's my last preboot log as iMac 19,1 from usb clover 5137 Spoiler 0:100 0:100 MemLog inited, TSC freq: 4008551180 0:100 0:000 CPU was calibrated with RTC 0:100 0:000 CloverX64 : Image base = 0xB46B9000 0:100 0:000 Clover ImageHandle = bb4b29d8 0:108 0:008 SelfDirPath = \EFI\CLOVER 0:109 0:000 === [ Starting Clover ] ========================= 0:109 0:000 Now is 08.03.2024, 02:11:20 (GMT) 0:109 0:000 Starting Clover revision: 5157 (master, commit ce3e4376b) on American Megatrends EFI 0:109 0:000 Build id: 20240112223240-ce3e437-5157-dirty 0:109 0:000 Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG -t GCC131 | --cmd-len=50000 -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG --conf=/Users/sergey/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC131 -n 5 | OS: 14.2.1] 0:109 0:000 === [ Get Smbios ] ============================== 0:109 0:000 Type 16 Index = 0 0:109 0:000 Total Memory Slots Count = 4 0:109 0:000 Type 17 Index = 0 0:109 0:000 Ignoring insane frequency value 0MHz 0:109 0:000 Type 17 Index = 1 0:109 0:000 SmbiosTable.Type17->SlotIndex = 1 0:109 0:000 SmbiosTable.Type17->ModuleSize = 8192MB 0:109 0:000 SmbiosTable.Type17->Type = 0 0:109 0:000 SmbiosTable.Type17->Frequency = 2133MHz 0:109 0:000 SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1 0:109 0:000 SmbiosTable.Type17->Vendor = 04CD 0:109 0:000 SmbiosTable.Type17->SerialNo = 00000000 0:109 0:000 SmbiosTable.Type17->PartNo = F4-2133C15-8GVR 0:109 0:000 Type 17 Index = 2 0:109 0:000 Ignoring insane frequency value 0MHz 0:109 0:000 Type 17 Index = 3 0:109 0:000 SmbiosTable.Type17->SlotIndex = 3 0:109 0:000 SmbiosTable.Type17->ModuleSize = 8192MB 0:109 0:000 SmbiosTable.Type17->Type = 0 0:109 0:000 SmbiosTable.Type17->Frequency = 2133MHz 0:109 0:000 SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1 0:109 0:000 SmbiosTable.Type17->Vendor = 04CD 0:109 0:000 SmbiosTable.Type17->SerialNo = 00000000 0:109 0:000 SmbiosTable.Type17->PartNo = F4-2133C15-8GVR 0:109 0:000 Boot status=0 0:109 0:000 Running on: 'Q170M-D3H' with board 'Q170M-D3H-CF' 0:109 0:000 === [ GetCPUProperties ] ======================== 0:109 0:000 CPU Vendor = 756E6547 Model=506E3 0:109 0:000 The CPU supported SSE4.1 0:109 0:000 The CPU supported RDRAND 0:109 0:000 BrandString = Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz 0:109 0:000 The CPU supported turbo 0:109 0:000 Energy PerfBias is not visible: 0:109 0:000 MSR 0x35 40008 0:109 0:000 TSC/CCC Information Leaf: 0:109 0:000 numerator : 334 0:109 0:000 denominator : 2 0:109 0:000 Calibrated ARTFrequency: 24003300 0:109 0:000 Rounded ARTFrequency: 24000000 0:109 0:000 MSR 0xE2 before patch 1E008006 0:109 0:000 MSR 0xE2 is locked, PM patches will be turned on 0:109 0:000 MSR 0xCE 00080838_F1012800 0:109 0:000 corrected FLEX_RATIO = E0000 0:109 0:000 FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz 0:109 0:000 MaxDiv/MinDiv: 40.0/8 0:109 0:000 Turbo: 40/40/40/42 0:109 0:000 Features: 0x77FAFBBFBFEBFBFF 0:109 0:000 Threads: 8 0:109 0:000 Cores: 4 0:109 0:000 FSB: 100 MHz 0:109 0:000 CPU: 4000 MHz 0:109 0:000 TSC: 4000 MHz 0:109 0:000 PIS: 100 MHz 0:109 0:000 ExternalClock: 25 MHz 0:109 0:000 === [ GetDevices ] ============================== 0:109 0:000 GOP found at: PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/AcpiAdr(0x80010303) 0:109 0:000 PCI (00|00:00.00) : 8086 191F class=060000 0:109 0:000 PCI (00|00:01.00) : 8086 1901 class=060400 0:109 0:000 PCI (00|01:00.00) : 1002 67DF class=030000 0:109 0:000 - GFX: Model=AMD Radeon RX 480/570/580 (ATI/AMD) 0:109 0:000 - GOP: Provided by device 0:109 0:000 PCI (00|01:00.01) : 1002 AAF0 class=040300 0:109 0:000 - HDMI Audio: 0:109 0:000 PCI (00|00:14.00) : 8086 A12F class=0C0330 0:109 0:000 PCI (00|00:16.00) : 8086 A13A class=078000 0:109 0:000 PCI (00|00:16.03) : 8086 A13D class=070002 0:109 0:000 PCI (00|00:17.00) : 8086 A102 class=010601 0:109 0:000 PCI (00|00:1B.00) : 8086 A167 class=060400 0:109 0:000 PCI (00|00:1B.02) : 8086 A169 class=060400 0:109 0:000 PCI (00|03:00.00) : 1B21 1080 class=060400 0:109 0:000 PCI (00|00:1B.03) : 8086 A16A class=060400 0:110 0:000 PCI (00|00:1C.00) : 8086 A110 class=060400 0:110 0:000 PCI (00|00:1C.02) : 8086 A112 class=060400 0:110 0:000 PCI (00|00:1C.04) : 8086 A114 class=060400 0:110 0:000 PCI (00|00:1D.00) : 8086 A118 class=060400 0:110 0:000 PCI (00|09:00.00) : 15B7 5005 class=010802 0:110 0:000 PCI (00|00:1F.00) : 8086 A146 class=060100 0:110 0:000 PCI (00|00:1F.02) : 8086 A121 class=058000 0:110 0:000 PCI (00|00:1F.03) : 8086 A170 class=040300 0:110 0:000 PCI (00|00:1F.04) : 8086 A123 class=0C0500 0:110 0:000 PCI (00|00:1F.06) : 8086 15B7 class=020000 0:110 0:000 - LAN: 1 Vendor=Intel 0:110 0:000 Legacy MAC address of LAN #0= 40:8D:5C:B6:8D:43: 0:112 0:002 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H--40-8D-5C-B6-8D-43'. Dir doesn't exist. 0:112 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-CF\UEFI'. Dir doesn't exist. 0:112 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H'. Dir doesn't exist. 0:112 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-4000'. Dir doesn't exist. 0:112 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-CF'. Dir doesn't exist. 0:112 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-CF-4000'. Dir doesn't exist. 0:112 0:000 === [ GetUserSettings ] ========================= 0:112 0:000 GetDefaultModel()=iMac17,1 0:112 0:000 === [ LoadUserSettings ] ======================== 0:118 0:006 Using config.plist at path: \EFI\CLOVER 0:119 0:000 There is a problem in plist '\EFI\CLOVER\config.plist' 0:119 0:000 Warning: Unknown key '/SMBIOS_capitan:1465'. Skipped. 0:119 0:000 Use CloverConfigPlistValidator or look in the log 3:119 2:999 === [ LoadUserSettings ] ======================== 3:119 0:000 Cannot find smbios.plist at path '\EFI\CLOVER' : Not Found 3:119 0:000 '\EFI\CLOVER\smbios.plist' not loaded. Efi error Not Found 3:119 0:000 create SMBIOS list, found 26 dicts 3:119 0:000 ... ACPI 3:119 0:000 ... Boot 3:119 0:000 ... BootGraphics 3:119 0:000 ... CPU 3:119 0:000 ... Devices 3:119 0:000 ... GUI 3:119 0:000 ... Graphics 3:119 0:000 ... KernelAndKextPatches 3:119 0:000 ... SMBIOS 3:119 0:000 ... SMBIOS_ventura 3:119 0:000 ... SystemParameters 3:119 0:000 ... RtVariables 3:119 0:000 ... Quirks 3:119 0:000 get model from config.plist 3:119 0:000 BiosVersion: IM191.88Z.F000.B00.2302212211 3:119 0:000 BiosReleaseDate: 02/21/2023 3:119 0:000 EfiVersion: 1968.100.16.0.1 3:119 0:000 Calibrated TSC Frequency = 4008551180 = 4008MHz 3:124 0:004 === [ GetListOfThemes ] ========================= 3:126 0:002 - [00]: Purple_Swirl 3:143 0:016 - [01]: Clovy 3:174 0:030 - [02]: BGM 3:201 0:027 - [03]: cesium 3:214 0:012 - [04]: random 3:216 0:002 - [04]: embedded 3:216 0:000 === [ Found config plists ] ===================== 3:216 0:000 - config1.plist 3:216 0:000 - configCP.plist 3:216 0:000 - config{censored}ed.plist 3:216 0:000 - configNOFAKEID.plist 3:216 0:000 - configslice.plist 3:216 0:000 - configLL.plist 3:216 0:000 - config.plist 3:216 0:000 === [ LoadDrivers ] ============================= 3:216 0:000 Loading EnglishDxe.efi status=Success 3:229 0:013 Loading Fat.efi status=Success 3:245 0:015 - driver needs connecting 3:245 0:000 Loading ApfsDriverLoader.efi status=Success 3:257 0:012 - driver needs connecting 3:257 0:000 2 drivers needs connecting ... 3:257 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success 3:257 0:000 APFS driver loaded 3:257 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 3:496 0:238 === [ InitScreen ] ============================== 3:496 0:000 Console modes reported: 6, available modes: 3:496 0:000 - [01]: 80x25 3:496 0:000 - [02]: 80x50 3:496 0:000 - [03]: 100x31 (current mode) 3:496 0:000 - [04]: 80x24 3:496 0:000 - [05]: 100x60 3:496 0:000 - [06]: 120x50 3:496 0:000 SetMaxResolution: found best mode 0: 3840x2160 3:514 0:017 Video mode change to mode #0: Success 3:514 0:000 - set 3:514 0:000 SetScreenResolution: 3840x2160 - already set 3:514 0:000 Using embedded font 3:515 0:000 === [ ScanSPD ] ================================= 3:515 0:000 Scanning SMBus [8086:A123], mmio: 0xEFF4A004, ioport: 0xF000, hostc: 0x11 3:532 0:016 XMP is not present, XMPDetection deactivated in config.plist 3:532 0:000 Slot: 1 Type 26 8192MB 2132MHz Vendor=G Skill Intl PartNo=F4-2133C15-8GVR SerialNo=00000000 3:549 0:016 XMP is not present, XMPDetection deactivated in config.plist 3:549 0:000 Slot: 3 Type 26 8192MB 2132MHz Vendor=G Skill Intl PartNo=F4-2133C15-8GVR SerialNo=00000000 3:549 0:000 === [ GetAcpiTablesList ] ======================= 3:551 0:001 Get Acpi Tables List from RSDT: 3:551 0:000 - [00]: FACP A M I len=132 3:551 0:000 - [01]: APIC A M I len=188 3:551 0:000 - [02]: FPDT A M I len=68 3:551 0:000 - [03]: MCFG A M I len=60 3:551 0:000 - [04]: SSDT SataTabl len=956 3:551 0:000 - [05]: FIDT A M I len=156 3:551 0:000 - [06]: SSDT SaSsdt len=12633 3:551 0:000 - [07]: SSDT PegSsdt len=9567 3:551 0:000 - [08]: HPET SKL len=56 3:551 0:000 - [09]: SSDT Ther_Rvp len=3557 3:551 0:000 - [10]: SSDT xh_rvp10 len=10967 3:551 0:000 - [11]: UEFI EDK2 len=66 3:551 0:000 - [12]: SSDT CpuSsdt len=3806 3:551 0:000 - [13]: LPIT SKL len=148 3:551 0:000 - [14]: WSMT SKL len=40 3:551 0:000 - [15]: SSDT sensrhub len=671 3:551 0:000 - [16]: SSDT PtidDevc len=12290 3:551 0:000 - [17]: DBGP len=52 3:551 0:000 - [18]: DBG2 len=84 3:551 0:000 - [19]: VFCT A M I len=60036 3:551 0:000 - [20]: TPM2 A M I len=52 3:551 0:000 - [21]: ASF! HCG len=160 3:551 0:000 - [00]: Drop table : DMAR, 0 : no 3:551 0:000 - [01]: Drop table : SSDT, 6d50757043 : no 3:551 0:000 - [02]: Drop table : SSDT, 74734930757043 : no 3:551 0:000 - [03]: Drop table : BGRT, 0 : no 3:551 0:000 Custom boot CUSTOM_BOOT_USER_DISABLED (0x0) 3:551 0:000 Default theme: Clovy 3:552 0:000 Set FakeCPUID: 0x0 3:555 0:002 === [ Found DSDT tables ] ======================= 3:555 0:000 - DSDT.aml 3:557 0:002 === [ InitKextList ] ============================ 3:562 0:004 Added Kext=Other\Lilu.kext (1.6.7) 3:587 0:025 Added Kext=Other\AppleALC.kext (1.6.9) 3:590 0:002 Added Kext=Other\IntelMausi.kext (1.0.7) 3:595 0:004 Added Kext=Other\RestrictEvents.kext (1.1.4) 3:597 0:002 Added Kext=Other\WhateverGreen.kext (1.6.6) 3:607 0:009 Added Kext=Other\ITEIT87x.kext (1.0.7) 3:607 0:000 Added Kext=Other\Display-20a3-0.kext (9.9.9) 3:609 0:002 Added Kext=Other\IntelCPUMonitor.kext (1.2.6) 3:612 0:002 Added Kext=Other\FakeSMC.kext (3.5.6) 3:615 0:002 Added Kext=Other\USBPorts.kext (1.0) 3:615 0:000 Added Kext=Off\RestrictEvents.kext (1.1.4) 3:616 0:000 Added Kext=Off\Display-20a3-0.kext (9.9.9) 3:616 0:000 Added Kext=Off\USBPorts.kext (1.0) 3:616 0:000 === [ ScanVolumes ] ============================= 3:616 0:000 Found 12 volumes with blockIO 3:616 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0) 3:617 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0)\HD(1,GPT,5DAA101B-ED8A-4BB7-8F93-6EC4CF331392,0x28,0x64000) 3:618 0:001 Result of bootcode detection: bootable unknown (legacy) 3:622 0:004 label : EFI 3:622 0:000 This is SelfVolume !! 3:622 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0)\HD(2,GPT,50C65AFC-5861-4670-8DFA-2BFA55D77FB5,0x64800,0xE87000) 3:623 0:000 Result of bootcode detection: bootable unknown (legacy) 3:627 0:003 label : UNTITLED 3:627 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00) 3:627 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(1,GPT,53FDE995-D061-47AD-98ED-383160486B86,0x28,0x64000) 3:627 0:000 Result of bootcode detection: bootable unknown (legacy) 3:628 0:001 label : EFI 3:628 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260) 3:629 0:000 Result of bootcode detection: bootable unknown (legacy) 3:629 0:000 - [06]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771) 3:629 0:000 apfsFileSystemUUID=C4FEAA8B-EA2E-4789-8235-53BC8672D771, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x10 3:629 0:000 label : Preboot 3:629 0:000 - [07]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E31EAF52EC605842BBD70F90D5E175BE) 3:629 0:000 apfsFileSystemUUID=52AF1EE3-60EC-4258-BBD7-0F90D5E175BE, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x1 3:632 0:002 label : AppleJam2 3:632 0:000 - [08]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7E55096151EDFA4E8A3C888D7489D377) 3:632 0:000 apfsFileSystemUUID=6109557E-ED51-4EFA-8A3C-888D7489D377, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x40 3:639 0:007 label : Untitled 2 - Data 3:639 0:000 - [09]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F8302DEFB3E0344D9C434BCA97A44AB9) 3:639 0:000 apfsFileSystemUUID=EF2D30F8-E0B3-4D34-9C43-4BCA97A44AB9, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x4 3:639 0:000 label : Recovery 3:639 0:000 - [10]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,FF0C76E3F91A5344A0A69DB0BAA79A71) 3:639 0:000 apfsFileSystemUUID=E3760CFF-1AF9-4453-A0A6-9DB0BAA79A71, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x8 3:639 0:000 label : VM 3:639 0:000 - [11]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B48D06EEA9BD864C93F93DFA921245FA) 3:639 0:000 apfsFileSystemUUID=EE068DB4-BDA9-4C86-93F9-3DFA921245FA, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0xc0 3:640 0:000 label : Update 3:640 0:000 No AudioIoProtocols, status=Not Found 3:640 0:000 === [ InitXTheme ] ============================== 3:640 0:000 use night theme 4:290 0:649 Using vector theme 'Clovy' (Clovy) 4:290 0:000 chosen theme Clovy 4:290 0:000 sound play end with status=Device Error 4:290 0:000 sound play end with status=Device Error 4:290 0:000 theme inited 4:290 0:000 Chosen theme Clovy 4:290 0:000 after NVRAM boot-args=fips_mode=4 revpatch=sbvmm 4:290 0:000 === [ Dump SMC keys from NVRAM ] ================ 4:290 0:000 found AppleSMC protocol 4:318 0:027 fakesmc-key-RBr -ch8*:6A 39 35 6A 39 35 61 6D 4:319 0:001 fakesmc-key-EPCI-ui32:08 C0 F0 00 4:321 0:001 fakesmc-key-REV -ch8*:02 34 0F 00 00 03 4:322 0:001 fakesmc-key-RVBF-ch8*:02 46 0F 00 00 12 4:323 0:001 fakesmc-key-RPlt-ch8*:6A 39 35 00 00 00 00 00 4:324 0:001 fakesmc-key-BEMB-flag:00 4:326 0:001 fakesmc-key-BATP-flag:00 4:327 0:001 fakesmc-key-BNum-ui8:00 4:328 0:001 fakesmc-key-MSTc-ui8:00 4:329 0:001 fakesmc-key-MSAc-ui16:00 00 4:331 0:001 fakesmc-key-MSWr-ui8:00 4:332 0:001 fakesmc-key-MSFW-ui8:01 00 4:333 0:001 fakesmc-key-MSPS-ui16:00 03 4:335 0:002 fakesmc-key-#KEY-ui32:00 00 00 11 4:337 0:001 fakesmc-key-$Adr-ui32:00 00 03 00 4:338 0:001 fakesmc-key-$Num-ui8:01 4:339 0:001 fakesmc-key-RMde-char:41 4:359 0:020 Registered 17 SMC keys 4:361 0:001 === [ ScanLoader ] ============================== 4:361 0:000 - [01]: 'EFI' 4:381 0:019 AddLoaderEntry for Volume Name=EFI, idx=0 4:381 0:000 OSVersion= 4:381 0:000 IconName=unknown comma=-1 size=7 4:381 0:000 Full=unknown 4:381 0:000 Show badge as OSImage. 4:381 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0)\HD(1,GPT,5DAA101B-ED8A-4BB7-8F93-6EC4CF331392,0x28,0x64000)\EFI\BOOT\BOOTX64.efi' 4:382 0:000 Menu entry added at index 0 4:382 0:000 hiding entry because DiskKind is DISK_KIND_EXTERNAL: \EFI\BOOT\BOOTX64.efi 4:382 0:000 - [02]: 'UNTITLED' 4:404 0:022 AddLoaderEntry for Volume Name=UNTITLED, idx=1 4:404 0:000 OSVersion= 4:404 0:000 IconName=unknown comma=-1 size=7 4:404 0:000 Full=unknown 4:404 0:000 Show badge as OSImage. 4:404 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0)\HD(2,GPT,50C65AFC-5861-4670-8DFA-2BFA55D77FB5,0x64800,0xE87000)\EFI\BOOT\BOOTX64.efi' 4:405 0:000 Menu entry added at index 1 4:405 0:000 hiding entry because DiskKind is DISK_KIND_EXTERNAL: \EFI\BOOT\BOOTX64.efi 4:405 0:000 - [04]: 'EFI' 4:411 0:006 AddLoaderEntry for Volume Name=EFI, idx=2 4:411 0:000 OSVersion= 4:411 0:000 IconName=unknown comma=-1 size=7 4:411 0:000 Full=unknown 4:412 0:000 Show badge as OSImage. 4:412 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(1,GPT,53FDE995-D061-47AD-98ED-383160486B86,0x28,0x64000)\EFI\BOOT\BOOTX64.efi' 4:412 0:000 Menu entry added at index 2 4:412 0:000 hiding entry because DiskKind is DISK_KIND_INTERNAL: \EFI\BOOT\BOOTX64.efi 4:412 0:000 - [06]: 'Preboot' 4:412 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 4:412 0:000 ApfsFileSystemUUID=C4FEAA8B-EA2E-4789-8235-53BC8672D771 4:412 0:000 APFSTargetUUID=6109557E-ED51-4EFA-8A3C-888D7489D377 4:413 0:001 contentDetails name:AppleJam2 4:414 0:000 AddLoaderEntry for Volume Name=Preboot, idx=3 4:414 0:000 OSVersion=12.7.4 4:414 0:000 Check if volume Is Hibernated: 4:414 0:000 Check sleep image 'by signature': 4:414 0:000 using default sleep image name = \private\var\vm\sleepimage 4:414 0:000 cannot open sleepimage -> Not Found 4:414 0:000 hibernated: no - sign 4:414 0:000 IconName=monterey,mac comma=8 size=12 4:414 0:000 first=os_monterey 4:414 0:000 Show badge as OSImage. 4:414 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 4:416 0:001 Menu entry added at index 3 4:416 0:000 - [07]: 'AppleJam2' 4:416 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 4:416 0:000 ApfsFileSystemUUID=52AF1EE3-60EC-4258-BBD7-0F90D5E175BE 4:421 0:005 - [08]: 'Untitled 2 - Data' 4:421 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 4:421 0:000 ApfsFileSystemUUID=6109557E-ED51-4EFA-8A3C-888D7489D377 4:422 0:000 - [09]: 'Recovery' 4:422 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 4:422 0:000 ApfsFileSystemUUID=EF2D30F8-E0B3-4D34-9C43-4BCA97A44AB9 4:422 0:000 APFSTargetUUID=6109557E-ED51-4EFA-8A3C-888D7489D377 4:422 0:000 contentDetails name:AppleJam2 4:422 0:000 AddLoaderEntry for Volume Name=Recovery, idx=4 4:423 0:000 OSVersion=12.7.4 4:423 0:000 IconName=monterey,mac comma=8 size=12 4:423 0:000 first=os_monterey 4:423 0:000 Show badge as OSImage. 4:423 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F8302DEFB3E0344D9C434BCA97A44AB9)\6109557E-ED51-4EFA-8A3C-888D7489D377\BaseSystem.dmg' 4:425 0:001 Menu entry added at index 4 4:425 0:000 - [10]: 'VM' 4:425 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 4:425 0:000 ApfsFileSystemUUID=E3760CFF-1AF9-4453-A0A6-9DB0BAA79A71 4:425 0:000 - [11]: 'Update' 4:425 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 4:425 0:000 ApfsFileSystemUUID=EE068DB4-BDA9-4C86-93F9-3DFA921245FA 4:425 0:000 Entries list before ordering 4:425 0:000 Entry 0 : Boot UEFI external from EFI (hidden) 4:425 0:000 Entry 1 : Boot UEFI external from UNTITLED (hidden) 4:425 0:000 Entry 2 : Boot UEFI internal from EFI (hidden) 4:425 0:000 Entry 3 : Boot Mac OS from AppleJam2 via Preboot 4:425 0:000 Entry 4 : Boot Mac OS Recovery for AppleJam2 via Recovery 4:425 0:000 Entries list after ordering 4:425 0:000 Entry 0 : Boot UEFI external from EFI (hidden) 4:425 0:000 Entry 1 : Boot UEFI external from UNTITLED (hidden) 4:425 0:000 Entry 2 : Boot UEFI internal from EFI (hidden) 4:425 0:000 Entry 3 : Boot Mac OS from AppleJam2 via Preboot 4:425 0:000 Entry 4 : Boot Mac OS Recovery for AppleJam2 via Recovery 4:425 0:000 Scanning legacy ... 4:425 0:000 === [ AddCustomTool ] =========================== 4:425 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 4:425 0:000 Checking EFI partition Volume 1 for Clover 4:425 0:000 Found Clover 4:425 0:000 === [ GetEfiBootDeviceFromNvram ] =============== 4:426 0:001 Got efi-boot-device-data size=276 4:426 0:000 - efi-boot-device-data: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi 4:426 0:000 - Volume: 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)' 4:426 0:000 - LoaderPath: '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 4:426 0:000 - Guid = ED33F20C-9264-4B6C-94A6-F8F3C1569623 4:426 0:000 === [ FindStartupDiskVolume ] =================== 4:426 0:000 - Volume: partition = PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771) 4:426 0:000 - searching for that partition and loader '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 4:426 0:000 checking 'PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,68-89-71-46-8B-44-1B-00)/HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)' 4:426 0:000 '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 4:426 0:000 - found entry 0. 'Boot Mac OS from AppleJam2 via Preboot', Volume 'Preboot', '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 4:426 0:000 Boot redirected to Entry 0. 'Boot Mac OS from AppleJam2 via Preboot' 4:426 0:000 BannerPlace at Clear Screen [1770,275] 4:508 0:082 GUI ready 109:033 104:524 ReinitRefitLib after theme change 109:033 0:000 === [ ScanVolumes ] ============================= 109:033 0:000 Found 12 volumes with blockIO 109:033 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0) 109:034 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0)\HD(1,GPT,5DAA101B-ED8A-4BB7-8F93-6EC4CF331392,0x28,0x64000) 109:035 0:001 Result of bootcode detection: bootable unknown (legacy) 109:035 0:000 label : EFI 109:035 0:000 This is SelfVolume !! 109:035 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0)\HD(2,GPT,50C65AFC-5861-4670-8DFA-2BFA55D77FB5,0x64800,0xE87000) 109:036 0:000 Result of bootcode detection: bootable unknown (legacy) 109:036 0:000 label : UNTITLED 109:036 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00) 109:037 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(1,GPT,53FDE995-D061-47AD-98ED-383160486B86,0x28,0x64000) 109:037 0:000 Result of bootcode detection: bootable unknown (legacy) 109:037 0:000 label : EFI 109:037 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260) 109:037 0:000 Result of bootcode detection: bootable unknown (legacy) 109:037 0:000 - [06]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771) 109:037 0:000 apfsFileSystemUUID=C4FEAA8B-EA2E-4789-8235-53BC8672D771, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x10 109:037 0:000 label : Preboot 109:037 0:000 - [07]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E31EAF52EC605842BBD70F90D5E175BE) 109:037 0:000 apfsFileSystemUUID=52AF1EE3-60EC-4258-BBD7-0F90D5E175BE, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x1 109:038 0:000 label : AppleJam2 109:038 0:000 - [08]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7E55096151EDFA4E8A3C888D7489D377) 109:038 0:000 apfsFileSystemUUID=6109557E-ED51-4EFA-8A3C-888D7489D377, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x40 109:038 0:000 label : Untitled 2 - Data 109:038 0:000 - [09]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F8302DEFB3E0344D9C434BCA97A44AB9) 109:038 0:000 apfsFileSystemUUID=EF2D30F8-E0B3-4D34-9C43-4BCA97A44AB9, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x4 109:038 0:000 label : Recovery 109:038 0:000 - [10]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,FF0C76E3F91A5344A0A69DB0BAA79A71) 109:038 0:000 apfsFileSystemUUID=E3760CFF-1AF9-4453-A0A6-9DB0BAA79A71, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0x8 109:038 0:000 label : VM 109:038 0:000 - [11]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B48D06EEA9BD864C93F93DFA921245FA) 109:038 0:000 apfsFileSystemUUID=EE068DB4-BDA9-4C86-93F9-3DFA921245FA, ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48, ApfsRole=0xc0 109:038 0:000 label : Update 109:038 0:000 No AudioIoProtocols, status=Not Found 109:038 0:000 theme inited 109:038 0:000 Chosen theme Clovy 109:039 0:000 after NVRAM boot-args= 109:039 0:000 === [ ScanLoader ] ============================== 109:039 0:000 - [01]: 'EFI' 109:039 0:000 AddLoaderEntry for Volume Name=EFI, idx=0 109:039 0:000 OSVersion= 109:039 0:000 IconName=unknown comma=-1 size=7 109:039 0:000 Full=unknown 109:040 0:000 Show badge as OSImage. 109:040 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0)\HD(1,GPT,5DAA101B-ED8A-4BB7-8F93-6EC4CF331392,0x28,0x64000)\EFI\BOOT\BOOTX64.efi' 109:040 0:000 Menu entry added at index 0 109:040 0:000 hiding entry because DiskKind is DISK_KIND_EXTERNAL: \EFI\BOOT\BOOTX64.efi 109:040 0:000 - [02]: 'UNTITLED' 109:040 0:000 AddLoaderEntry for Volume Name=UNTITLED, idx=1 109:040 0:000 OSVersion= 109:040 0:000 IconName=unknown comma=-1 size=7 109:040 0:000 Full=unknown 109:041 0:000 Show badge as OSImage. 109:041 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x14,0x0)\USB(0x8,0x0)\HD(2,GPT,50C65AFC-5861-4670-8DFA-2BFA55D77FB5,0x64800,0xE87000)\EFI\BOOT\BOOTX64.efi' 109:041 0:000 Menu entry added at index 1 109:041 0:000 hiding entry because DiskKind is DISK_KIND_EXTERNAL: \EFI\BOOT\BOOTX64.efi 109:041 0:000 - [04]: 'EFI' 109:045 0:003 AddLoaderEntry for Volume Name=EFI, idx=2 109:045 0:000 OSVersion= 109:045 0:000 IconName=unknown comma=-1 size=7 109:045 0:000 Full=unknown 109:045 0:000 Show badge as OSImage. 109:045 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(1,GPT,53FDE995-D061-47AD-98ED-383160486B86,0x28,0x64000)\EFI\BOOT\BOOTX64.efi' 109:045 0:000 Menu entry added at index 2 109:045 0:000 hiding entry because DiskKind is DISK_KIND_INTERNAL: \EFI\BOOT\BOOTX64.efi 109:045 0:000 - [06]: 'Preboot' 109:045 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 109:045 0:000 ApfsFileSystemUUID=C4FEAA8B-EA2E-4789-8235-53BC8672D771 109:045 0:000 APFSTargetUUID=6109557E-ED51-4EFA-8A3C-888D7489D377 109:046 0:000 contentDetails name:AppleJam2 109:046 0:000 AddLoaderEntry for Volume Name=Preboot, idx=3 109:046 0:000 OSVersion=12.7.4 109:046 0:000 Check if volume Is Hibernated: 109:046 0:000 Check sleep image 'by signature': 109:046 0:000 using default sleep image name = \private\var\vm\sleepimage 109:046 0:000 cannot open sleepimage -> Not Found 109:046 0:000 hibernated: no - sign 109:046 0:000 IconName=monterey,mac comma=8 size=12 109:046 0:000 first=os_monterey 109:046 0:000 Show badge as OSImage. 109:046 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 109:048 0:001 Menu entry added at index 3 109:048 0:000 - [07]: 'AppleJam2' 109:048 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 109:048 0:000 ApfsFileSystemUUID=52AF1EE3-60EC-4258-BBD7-0F90D5E175BE 109:048 0:000 - [08]: 'Untitled 2 - Data' 109:048 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 109:048 0:000 ApfsFileSystemUUID=6109557E-ED51-4EFA-8A3C-888D7489D377 109:049 0:000 - [09]: 'Recovery' 109:049 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 109:049 0:000 ApfsFileSystemUUID=EF2D30F8-E0B3-4D34-9C43-4BCA97A44AB9 109:049 0:000 APFSTargetUUID=6109557E-ED51-4EFA-8A3C-888D7489D377 109:049 0:000 contentDetails name:AppleJam2 109:049 0:000 AddLoaderEntry for Volume Name=Recovery, idx=4 109:049 0:000 OSVersion=12.7.4 109:049 0:000 IconName=monterey,mac comma=8 size=12 109:049 0:000 first=os_monterey 109:050 0:000 Show badge as OSImage. 109:050 0:000 Loader entry created for 'PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F8302DEFB3E0344D9C434BCA97A44AB9)\6109557E-ED51-4EFA-8A3C-888D7489D377\BaseSystem.dmg' 109:051 0:001 Menu entry added at index 4 109:051 0:000 - [10]: 'VM' 109:051 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 109:051 0:000 ApfsFileSystemUUID=E3760CFF-1AF9-4453-A0A6-9DB0BAA79A71 109:051 0:000 - [11]: 'Update' 109:051 0:000 ApfsContainerUUID=281711AD-3E23-4662-8530-3C277FEECA48 109:051 0:000 ApfsFileSystemUUID=EE068DB4-BDA9-4C86-93F9-3DFA921245FA 109:051 0:000 Entries list before ordering 109:051 0:000 Entry 0 : Boot UEFI external from EFI (hidden) 109:051 0:000 Entry 1 : Boot UEFI external from UNTITLED (hidden) 109:051 0:000 Entry 2 : Boot UEFI internal from EFI (hidden) 109:051 0:000 Entry 3 : Boot Mac OS from AppleJam2 via Preboot 109:051 0:000 Entry 4 : Boot Mac OS Recovery for AppleJam2 via Recovery 109:051 0:000 Entries list after ordering 109:051 0:000 Entry 0 : Boot UEFI external from EFI (hidden) 109:051 0:000 Entry 1 : Boot UEFI external from UNTITLED (hidden) 109:051 0:000 Entry 2 : Boot UEFI internal from EFI (hidden) 109:051 0:000 Entry 3 : Boot Mac OS from AppleJam2 via Preboot 109:051 0:000 Entry 4 : Boot Mac OS Recovery for AppleJam2 via Recovery 109:051 0:000 Scanning legacy ... 109:051 0:000 === [ AddCustomTool ] =========================== 109:051 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 109:051 0:000 Checking EFI partition Volume 1 for Clover 109:051 0:000 Found Clover 109:052 0:000 === [ GetEfiBootDeviceFromNvram ] =============== 109:052 0:000 === [ FindStartupDiskVolume ] =================== 109:052 0:000 - Volume: partition = PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771) 109:052 0:000 - searching for that partition and loader '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 109:052 0:000 checking 'PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,68-89-71-46-8B-44-1B-00)/HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)' 109:052 0:000 '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 109:052 0:000 - found entry 0. 'Boot Mac OS from AppleJam2 via Preboot', Volume 'Preboot', '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 109:052 0:000 Boot redirected to Entry 0. 'Boot Mac OS from AppleJam2 via Preboot' 115:078 6:026 BootVariable of the entry is empty 115:078 0:000 === [ StartLoader ] ============================= 115:078 0:000 Starting PciRoot(0x0)\Pci(0x1D,0x0)\Pci(0x0,0x0)\NVMe(0x1,68-89-71-46-8B-44-1B-00)\HD(2,GPT,ED33F20C-9264-4B6C-94A6-F8F3C1569623,0x64028,0x3B97D260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8BAAFEC42EEA8947823553BC8672D771)\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi 115:078 0:000 Finally: ExternalClock=26MHz BusSpeed=100214kHz CPUFreq=4009MHz PIS: hw.busfrequency=104000000Hz 115:079 0:000 Beginning OC 115:079 0:000 OCST: Missing vault data, ignoring... 115:079 0:000 Bridge mmioWhiteList[0] to OC : comment=Haswell: SB_RCBA is a 0x4 page memory region, containing SPI_BASE at 0x3800 (SPI_BASE_ADDRESS) 115:079 0:000 Bridge mmioWhiteList[1] to OC : comment=Generic: PCI root is a 0x1000 page memory region used by some firmwares 115:079 0:000 AddKextsInArray from Other 115:079 0:000 ->Extra kext: Other\Lilu.kext (v.1.6.7) 115:079 0:000 ->Extra kext: Other\AppleALC.kext (v.1.6.9) 115:079 0:000 ->Extra kext: Other\IntelMausi.kext (v.1.0.7) 115:079 0:000 ->Extra kext: Other\RestrictEvents.kext (v.1.1.4) 115:079 0:000 ->Extra kext: Other\WhateverGreen.kext (v.1.6.6) 115:079 0:000 ->Extra kext: Other\ITEIT87x.kext (v.1.0.7) 115:079 0:000 ->Extra kext: Other\Display-20a3-0.kext (v.9.9.9) 115:079 0:000 ->Extra kext: Other\IntelCPUMonitor.kext (v.1.2.6) 115:079 0:000 ->Extra kext: Other\FakeSMC.kext (v.3.5.6) 115:079 0:000 ->Extra kext: Other\USBPorts.kext (v.1.0) 115:079 0:000 AddKextsInArray from Off 115:079 0:000 Disabled kext: Off\RestrictEvents.kext (v.1.1.4) 115:079 0:000 Disabled kext: Off\Display-20a3-0.kext (v.9.9.9) 115:079 0:000 Disabled kext: Off\USBPorts.kext (v.1.0) 115:079 0:000 AddKextsInArray from 12 115:079 0:000 AddKextsInArray from 12_normal 115:079 0:000 AddKextsInArray from 12.7 115:079 0:000 AddKextsInArray from 12.7_normal 115:079 0:000 AddKextsInArray from 12.7.4 115:079 0:000 AddKextsInArray from 12.7.4_normal 115:079 0:000 Bridge kext to OC : Path=Other\Lilu.kext 115:079 0:000 OC BundlePath = 'Other\Lilu.kext' 115:079 0:000 OC PlistPath = 'Contents\Info.plist' 115:079 0:000 OC ExecutablePath = 'Contents\MacOS\Lilu' 115:079 0:000 Bridge kext to OC : Path=Other\FakeSMC.kext 115:079 0:000 OC BundlePath = 'Other\FakeSMC.kext' 115:079 0:000 OC PlistPath = 'Contents\Info.plist' 115:084 0:005 OC ExecutablePath = 'Contents\MacOS\FakeSMC' 115:084 0:000 Bridge kext to OC : Path=Other\WhateverGreen.kext 115:084 0:000 OC BundlePath = 'Other\WhateverGreen.kext' 115:084 0:000 OC PlistPath = 'Contents\Info.plist' 115:084 0:000 OC ExecutablePath = 'Contents\MacOS\WhateverGreen' 115:084 0:000 Bridge kext to OC : Path=Other\AppleALC.kext 115:084 0:000 OC BundlePath = 'Other\AppleALC.kext' 115:084 0:000 OC PlistPath = 'Contents\Info.plist' 115:110 0:025 OC ExecutablePath = 'Contents\MacOS\AppleALC' 115:110 0:000 Bridge kext to OC : Path=Other\USBPorts.kext 115:110 0:000 OC BundlePath = 'Other\USBPorts.kext' 115:110 0:000 OC PlistPath = 'Contents\Info.plist' 115:113 0:002 Bridge kext to OC : Path=Other\IntelMausi.kext 115:113 0:000 OC BundlePath = 'Other\IntelMausi.kext' 115:116 0:002 OC PlistPath = 'Contents\Info.plist' 115:116 0:000 OC ExecutablePath = 'Contents\MacOS\IntelMausi' 115:116 0:000 Bridge kext to OC : Path=Other\RestrictEvents.kext 115:116 0:000 OC BundlePath = 'Other\RestrictEvents.kext' 115:116 0:000 OC PlistPath = 'Contents\Info.plist' 115:116 0:000 OC ExecutablePath = 'Contents\MacOS\RestrictEvents' 115:116 0:000 Bridge kext to OC : Path=Other\ITEIT87x.kext 115:116 0:000 OC BundlePath = 'Other\ITEIT87x.kext' 115:116 0:000 OC PlistPath = 'Contents\Info.plist' 115:121 0:004 OC ExecutablePath = 'Contents\MacOS\ITEIT87x' 115:121 0:000 Bridge kext to OC : Path=Other\Display-20a3-0.kext 115:121 0:000 OC BundlePath = 'Other\Display-20a3-0.kext' 115:121 0:000 OC PlistPath = 'Contents\Info.plist' 115:121 0:000 Bridge kext to OC : Path=Other\IntelCPUMonitor.kext 115:121 0:000 OC BundlePath = 'Other\IntelCPUMonitor.kext' 115:121 0:000 OC PlistPath = 'Contents\Info.plist' 115:121 0:000 OC ExecutablePath = 'Contents\MacOS\IntelCPUMonitor' 115:134 0:013 Start 'OpenRuntime.efi' : Status Success 115:134 0:000 OC: config config.plist 115:134 0:000 OC: Got 0 drivers 115:134 0:000 OC: OpenCore DBG-097-2024-01-13 is loading in Optional mode (0/0)... 115:134 0:000 OC: StorageHandle 0 with LauncherOption pointing to 115:134 0:000 OCAU: OcAudioInstallProtocols (0, 0) 115:135 0:000 OcOSInfoInstallProtocol 115:135 0:000 OCRTC: OcAppleRtcRamInstallProtocol 115:135 0:000 OCRTC: Wake log is 0x00 0x00 0 0x00 115:135 0:000 OcAppleFbInfoInstallProtocol 115:135 0:000 OcAppleEg2InfoInstallProtocol 115:136 0:000 OC: Loading Apple Secure Boot with Disabled (level 0) 115:136 0:000 OCABC: ALRBL 0 RTDFRG 1 DEVMMIO 0 NOSU 0 NOVRWR 0 NOSB 0 FBSIG 0 NOHBMAP 0 SMSLIDE 0 WRUNPROT 1 115:136 0:000 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 0 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 1 APPLOS 0 RTPERMS 0 ARBAR -1 RBIO 0 115:136 0:000 OCABC: Got rendezvous with OpenRuntime r12 115:136 0:000 OCABC: MAT support is 0 115:136 0:000 OC: RequestBootVarRouting 0 115:136 0:000 OCDM: Found 0x20032/0x20032 UEFI version (376 bytes, 0 rebuilding to 376) gST BF7AB018 gBS B4B36A70 gBS->CreateEventEx B4B3BEC8 &gBS B4823F50 115:136 0:000 OC: Setting GPU BARs to 0 115:136 0:000 OCDM: RBAR using PciIo 115:136 0:000 OCDM: Setting RBAR to 0 inc 1 on 3/22 115:136 0:000 OCDM: Capability I/O error - Unsupported 115:136 0:000 OCDM: RBAR is unsupported by device - Device Error 115:136 0:000 OC: Got 0 drivers 115:136 0:000 OCC: Installing GOP (Unsupported) on ConsoleOutHandle... 115:143 0:006 OC: Requested resolution is 0x0@0 (max: 0, force: 0) from 115:143 0:000 OCC: Using builtin text renderer with 1 scale 115:143 0:000 OCC: Install console control (B480F930/B4B33FA8/0), current - Success 115:143 0:000 OCC: Setup ASCII Output - Success 115:143 0:000 OC: Requested console mode is 0x0 (max: 0) from 115:143 0:000 OC: Requested not to use audio 115:143 0:000 OC: Invalid HibernateMode: 115:143 0:000 OC: Translated HibernateMode to 0 115:144 0:000 OC: Hibernation activation - Invalid Parameter, hibernation wake - no 115:144 0:000 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 115:145 0:001 OCB: Arch filtering B9156018(723512)->B9156018(723512) caps 0 - Success 115:162 0:017 ImageHandle = b983e698 115:176 0:013 GetOSVersion: 12.7.4 (m) 115:176 0:000 Filtering KextPatches: 115:176 0:000 - [00]: VoodooHDA (NoLabel) :: BinPatch :: [OS: 12.7.4 | MatchOS: All | MatchBuild: All] ==> disabled by user 115:176 0:000 - [01]: AppleAHCIPort (Make all drives to be internal) :: BinPatch :: [OS: 12.7.4 | MatchOS: All | MatchBuild: All] ==> disabled by user 115:176 0:000 - [02]: IOAHCIBlockStorage (TRIM function for non-Apple SSDs) :: BinPatch :: [OS: 12.7.4 | MatchOS: All | MatchBuild: All] ==> disabled by user 115:176 0:000 - [03]: AMD6000Controller (ATI Connector patch new way) :: BinPatch :: [OS: 12.7.4 | MatchOS: 10.9,10.10,10.11 | MatchBuild: All] ==> disabled by user 115:176 0:000 - [04]: AMD6000Controller (ATI name HD xxxx -> HD6450) :: BinPatch :: [OS: 12.7.4 | MatchOS: 10.12,10.13 | MatchBuild: All] ==> disabled by user 115:176 0:000 - [05]: com.apple.kext.AMDSupport (Violet strips) :: BinPatch :: [OS: 12.7.4 | MatchOS: All | MatchBuild: All] ==> disabled by user 115:176 0:000 Filtering KernelPatches: 115:176 0:000 - [00]: Disable panic kext logging on 10.14 Release kernel :: [OS: 12.7.4 | MatchOS: 10.14 | MatchBuild: All] ==> disabled by user 115:176 0:000 - [01]: Disable panic kext logging on 10.13 Release kernel :: [OS: 12.7.4 | MatchOS: 10.13 | MatchBuild: All] ==> disabled by user 115:176 0:000 - [02]: Lapic panic patch example :: [OS: 12.7.4 | MatchOS: All | MatchBuild: All] ==> disabled by user 115:176 0:000 - [03]: Monterey RDRAND instruction #1 :: [OS: 12.7.4 | MatchOS: 12.x | MatchBuild: All] ==> disabled by user 115:176 0:000 - [04]: Monterey RDRAND instruction #2 :: [OS: 12.7.4 | MatchOS: 12.x | MatchBuild: All] ==> disabled by user 115:176 0:000 - [05]: Monterey RDRAND instruction #3 :: [OS: 12.7.4 | MatchOS: 12.x | MatchBuild: All] 115:176 0:000 check MatchOS 12.x 115:176 0:000 ==> allowed by OS 115:176 0:000 Filtering BootPatches: 115:176 0:000 - [00]: Example :: [OS: 12.7.4 | MatchOS: All | MatchBuild: All] ==> disabled by user 115:176 0:000 Patch[0]: Example 115:176 0:000 ==> disabled 115:176 0:000 Will not patch boot.efi 115:176 0:000 BiosVersion: IM191.88Z.F000.B00.2302212211 115:176 0:000 BiosReleaseDate: 02/21/2023 115:176 0:000 EfiVersion: 1968.100.16.0.1 115:176 0:000 SMBIOS reloaded with model iMac19,1 115:176 0:000 Set FakeCPUID: 0x506E3 115:176 0:000 Bridge kernel patch to OC : Monterey RDRAND instruction #3 115:176 0:000 === [ PatchSmbios ] ============================= 115:176 0:000 UpdateSmbiosString : BiosVersion=EfiVersion=1968.100.16.0.1 115:176 0:000 UpdateSmbiosString : ReleaseDate=02/21/2023 115:176 0:000 void PatchTableType1(const SmbiosInjectedSettings&) : UpdateSmbiosString ProductName=iMac19,1 115:176 0:000 void PatchTableType2(const SmbiosInjectedSettings&) : UpdateSmbiosString ProductName=BoardNumber=Mac-AA95B1DDAB278B95 115:176 0:000 void PatchTableType2(const SmbiosInjectedSettings&) : UpdateSmbiosString Version=BoardVersion=iMac19,1 115:176 0:000 insert table 9 for dev 0:0 115:176 0:000 insert table 9 for dev 0:1 115:176 0:000 insert table 9 for dev 1F:6 115:176 0:000 Table 11 present, but rewritten for us 115:177 0:000 Do not inject memory table 115:177 0:000 Trusting SMBIOS... 115:177 0:000 Channels: 2 115:177 0:000 Interleave: 0 2 1 3 115:177 0:000 !trusted SMBIOS data, Table index 0:!gRAM.SMBIOS.doesSlotForIndexExist(SMBIOSIndex) 115:177 0:000 SMBIOS Type 17 Index = 0 => SMBIOSIndex=0 SPDIndex=0: 115:177 0:000 BANK 0 DIMM0 EMPTY 115:177 0:000 !trusted SMBIOS data, Table index 2:!gRAM.SMBIOS.doesSlotForIndexExist(SMBIOSIndex) 115:177 0:000 SMBIOS Type 17 Index = 1 => SMBIOSIndex=2 SPDIndex=2: 115:177 0:000 BANK 1 DIMM0 EMPTY 115:177 0:000 trusted SMBIOS data, table index 1: 115:177 0:000 gRAM.SMBIOS[1]->ModuleSize = 8192 115:177 0:000 gRAM.SMBIOS[1]->Type = 0 115:177 0:000 gRAM.SMBIOS[1]->Frequency = 2133 115:177 0:000 gRAM.SMBIOS[1]->Vendor = 04CD 115:177 0:000 gRAM.SMBIOS[1]->PartNo = F4-2133C15-8GVR 115:177 0:000 gRAM.SMBIOS[1]->SerialNo = 00000000 115:177 0:000 SPD data in use: 115:177 0:000 gRAM.SPD[1]->ModuleSize = 8192 115:177 0:000 gRAM.SPD[1]->Type = 26 115:177 0:000 gRAM.SPD[1]->Frequency = 2132 115:177 0:000 gRAM.SPD[1]->Vendor = G Skill Intl 115:177 0:000 gRAM.SPD[1]->SerialNo = 00000000 115:177 0:000 gRAM.SPD[1]->PartNo = F4-2133C15-8GVR 115:177 0:000 SMBIOS Type 17 Index = 2 => SMBIOSIndex=1 SPDIndex=1: 115:177 0:000 BANK 0 DIMM1 2133MHz 8192MB(Ext:0MB) 115:177 0:000 trusted SMBIOS data, table index 3: 115:177 0:000 gRAM.SMBIOS[3]->ModuleSize = 8192 115:177 0:000 gRAM.SMBIOS[3]->Type = 0 115:177 0:000 gRAM.SMBIOS[3]->Frequency = 2133 115:177 0:000 gRAM.SMBIOS[3]->Vendor = 04CD 115:177 0:000 gRAM.SMBIOS[3]->PartNo = F4-2133C15-8GVR 115:177 0:000 gRAM.SMBIOS[3]->SerialNo = 00000000 115:177 0:000 SPD data in use: 115:177 0:000 gRAM.SPD[3]->ModuleSize = 8192 115:177 0:000 gRAM.SPD[3]->Type = 26 115:177 0:000 gRAM.SPD[3]->Frequency = 2132 115:177 0:000 gRAM.SPD[3]->Vendor = G Skill Intl 115:177 0:000 gRAM.SPD[3]->SerialNo = 00000000 115:177 0:000 gRAM.SPD[3]->PartNo = F4-2133C15-8GVR 115:177 0:000 SMBIOS Type 17 Index = 3 => SMBIOSIndex=3 SPDIndex=3: 115:177 0:000 BANK 1 DIMM1 2133MHz 8192MB(Ext:0MB) 115:177 0:000 mTotalSystemMemory = 16384 115:177 0:000 NumberOfMemoryDevices = 4 115:177 0:000 Type20[0]->End = 0x7FFFFF, Type17[2] = 2000 115:177 0:000 Type20[1]->End = 0xFFFFFF, Type17[3] = 6000 115:177 0:000 Table 131 is present, CPUType=31 115:177 0:000 Change to: 705 115:177 0:000 === [ PatchACPI ] =============================== 115:177 0:000 OCABC: AllocPages 1 0xBE8A1000 (1) - Success 115:177 0:000 Xsdt reallocation done 115:177 0:000 OCABC: AllocPages 1 0xBE8A0000 (1) - Success 115:177 0:000 old FADT length=114 115:177 0:000 SignatureFixup: 0xF28728AF -> 0x0 115:177 0:000 Found OperationRegion(GNVS, SystemMemory, BF062000, ...) 115:177 0:000 Found OperationRegion(CPSB, SystemMemory, BE811F98, ...) 115:177 0:000 Found OperationRegion(PNVA, SystemMemory, BF098018, ...) 115:177 0:000 Found OperationRegion(THBA, SystemMemory, FE200000, ...) 115:178 0:001 Found OperationRegion(ITSS, SystemMemory, FDC43100, ...) 115:178 0:000 Found OperationRegion(ABNV, SystemMemory, FFFF0000, ...) 115:178 0:000 Found OperationRegion(TMMB, SystemMemory, FED40000, ...) 115:178 0:000 Found OperationRegion(CRBD, SystemMemory, FED40000, ...) 115:178 0:000 Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...) 115:178 0:000 Found OperationRegion(ATNV, SystemMemory, BF098F18, ...) 115:178 0:000 DSDT found in Clover volume: \EFI\CLOVER\ACPI\patched\DSDT.aml 115:181 0:002 OCABC: AllocPages 1 0xBE883000 (29) - Success 115:181 0:000 Apply DsdtFixMask=0x10600000 115:181 0:000 === [ FixBiosDsdt ] ============================= 115:181 0:000 Patching DSDT: 115:181 0:000 - [HPET _CRS to XCRS Rename]: pattern 0F085F43, patched at: [ (4BB2) ] 115:181 0:000 - [HPET _STA to XSTA Rename]: pattern 5F535441, patched at: [ (4BAD) ] 115:181 0:000 - [Add _SUN property for GIGE]: disabled 115:181 0:000 - [Rename GFX0 to IGPU]: disabled 115:181 0:000 - [Rename AZAL to HDAS]: disabled 115:181 0:000 - [Rename oem _DSM to ZDSM]: pattern 5F44534D, patched at: [ (326C) ] 115:181 0:000 - [Rename HECI to IMEI]: pattern 48454349, patched at: [ (F5B7) ] 115:182 0:000 deleting device CRT_ 115:183 0:001 deleting device DVI_ 115:185 0:001 deleting device SPKR 115:187 0:001 deleting device ECP_ 115:188 0:001 deleting device LPT_ 115:190 0:001 deleting device FDC0 115:191 0:001 deleting device ECP1 115:193 0:001 deleting device LPT1 115:194 0:001 deleting device FDC_ 115:196 0:001 OperationRegion (GNVS...) corrected from 0xB5EA9000 to addr=0xBF062000 115:196 0:000 OperationRegion (CPSB...) corrected from 0xB5A07F98 to addr=0xBE811F98 115:196 0:000 indirect name=PNVB 115:196 0:000 OperationRegion (PNVA...) corrected from 0xB5EDF018 to addr=0xBF098018 115:196 0:000 OperationRegion (THBA...) corrected from 0x0 to addr=0xFE200000 115:196 0:000 OperationRegion (ABNV...) corrected from 0xB5ED3000 to addr=0xFFFF0000 115:196 0:000 indirect name=TPMM 115:196 0:000 indirect name=FTPM 115:196 0:000 indirect name=PPIM 115:196 0:000 OperationRegion (ATNV...) corrected from 0xFFFF0000 to addr=0xBF098F18 115:196 0:000 PreCleanup XSDT: count=22, length=212 115:196 0:000 PreCleanup XSDT, corrected XSDT: count=22, length=212 115:196 0:000 === [ ACPIDropTables ] ========================== 115:196 0:000 OCABC: AllocPages 1 0xBE881000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xBE881000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xBE881000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xBE87F000 (2) - Success 115:196 0:000 Patching SSDTs: 7 patches each 115:196 0:000 pattern 0F085F43, bin not found / already patched! 115:196 0:000 pattern 5F535441, bin not found / already patched! 115:196 0:000 pattern 5F44534D, bin not found / already patched! 115:196 0:000 pattern 48454349, bin not found / already patched! 115:196 0:000 OCABC: AllocPages 1 0xBE87D000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xBE87A000 (5) - Success 115:196 0:000 Patching SSDTs: 7 patches each 115:196 0:000 pattern 0F085F43, bin not found / already patched! 115:196 0:000 pattern 5F535441, bin not found / already patched! 115:196 0:000 pattern 5F44534D, patched at: [ (2C47) ] 115:196 0:000 pattern 48454349, bin not found / already patched! 115:196 0:000 Found OperationRegion(SANV, SystemMemory, BF095018, ...) 115:196 0:000 OCABC: AllocPages 1 0xBE876000 (4) - Success 115:196 0:000 Patching SSDTs: 7 patches each 115:196 0:000 pattern 0F085F43, bin not found / already patched! 115:196 0:000 pattern 5F535441, bin not found / already patched! 115:196 0:000 pattern 5F44534D, patched at: [ (415) ] 115:196 0:000 pattern 48454349, bin not found / already patched! 115:196 0:000 OCABC: AllocPages 1 0xBE874000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xBE874000 (2) - Success 115:196 0:000 Patching SSDTs: 7 patches each 115:196 0:000 pattern 0F085F43, bin not found / already patched! 115:196 0:000 pattern 5F535441, bin not found / already patched! 115:196 0:000 pattern 5F44534D, bin not found / already patched! 115:196 0:000 pattern 48454349, bin not found / already patched! 115:196 0:000 OCABC: AllocPages 1 0xBE870000 (4) - Success 115:196 0:000 Patching SSDTs: 7 patches each 115:196 0:000 pattern 0F085F43, bin not found / already patched! 115:196 0:000 pattern 5F535441, bin not found / already patched! 115:196 0:000 pattern 5F44534D, bin not found / already patched! 115:196 0:000 pattern 48454349, bin not found / already patched! 115:196 0:000 OCABC: AllocPages 1 0xBE86E000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xBE86E000 (2) - Success 115:196 0:000 Patching SSDTs: 7 patches each 115:196 0:000 pattern 0F085F43, bin not found / already patched! 115:196 0:000 pattern 5F535441, bin not found / already patched! 115:196 0:000 pattern 5F44534D, bin not found / already patched! 115:196 0:000 pattern 48454349, bin not found / already patched! 115:196 0:000 Found OperationRegion(PNVS, SystemMemory, B5C31000, ...) 115:196 0:000 OCABC: AllocPages 1 0xB5CF5000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xB5CF5000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xB5CF5000 (2) - Success 115:196 0:000 Patching SSDTs: 7 patches each 115:196 0:000 pattern 0F085F43, bin not found / already patched! 115:196 0:000 pattern 5F535441, bin not found / already patched! 115:196 0:000 pattern 5F44534D, patched at: [ (A5) ] 115:196 0:000 pattern 48454349, bin not found / already patched! 115:196 0:000 OCABC: AllocPages 1 0xB5CF0000 (5) - Success 115:196 0:000 Patching SSDTs: 7 patches each 115:196 0:000 pattern 0F085F43, bin not found / already patched! 115:196 0:000 pattern 5F535441, patched at: [ (942) ] 115:196 0:000 pattern 5F44534D, bin not found / already patched! 115:196 0:000 pattern 48454349, bin not found / already patched! 115:196 0:000 OCABC: AllocPages 1 0xB5CEE000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xB5CEE000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xB45F7000 (16) - Success 115:196 0:000 OCABC: AllocPages 1 0xB5CEE000 (2) - Success 115:196 0:000 OCABC: AllocPages 1 0xB5CEE000 (2) - Success 115:196 0:000 === [ ACPIPatchedAML ] ========================== 115:196 0:000 Sorted 115:196 0:000 Inserting table[0]:SSDT-HPET.aml from \EFI\CLOVER\ACPI\patched: size=318 OCABC: AllocPages 1 0xB5CEF000 (1) - Success ... Success 115:199 0:002 Inserting table[1]:SSDT-EC.aml from \EFI\CLOVER\ACPI\patched: size=125 OCABC: AllocPages 1 0xB5CEE000 (1) - Success ... Success 115:199 0:000 Disabled: SSDT-PLUG.aml, skip 115:199 0:000 Inserting table[3]:SSDT-PMC.aml from \EFI\CLOVER\ACPI\patched: size=144 OCABC: AllocPages 1 0xB5CED000 (1) - Success ... Success 115:199 0:000 ApicCPUNum=1 115:199 0:000 Maximum control=0x28 115:199 0:000 Turbo control=0x2A 115:199 0:000 P-States: min 0x8, max 0x2A 115:199 0:000 SSDT with CPU P-States and plugin-type generated successfully 115:199 0:000 OCABC: AllocPages 1 0xB5CEC000 (1) - Success 115:199 0:000 SSDT with CPU C-States generated successfully 115:199 0:000 OCABC: AllocPages 1 0xB5CEB000 (1) - Success 115:199 0:000 Cleanup XSDT: count=27, length=252 115:199 0:000 corrected XSDT count=27, length=252 115:199 0:000 === [ RestSetup macOS ] ========================= 115:199 0:000 EdidDiscovered size=128 115:199 0:000 --- Discovered EDID Table size:128 115:199 0:000 000 | 00 FF FF FF FF FF FF 00 20 A3 115:199 0:000 010 | 00 00 B2 00 00 00 25 1C 01 03 115:199 0:000 020 | 80 6F 3E 78 0A 8A 5D A4 55 52 115:199 0:000 030 | 9F 25 0E 47 4A AD CF 00 71 4F 115:199 0:000 040 | 81 40 81 80 81 00 95 00 B3 00 115:199 0:000 050 | D1 C0 81 C0 04 74 00 30 F2 70 115:199 0:000 060 | 5A 80 B0 58 8A 00 20 C2 31 00 115:199 0:000 070 | 00 1E 02 3A 80 18 71 38 2D 40 115:199 0:000 080 | 58 2C 45 00 20 C2 31 00 00 1E 115:199 0:000 090 | 00 00 00 FC 00 35 30 52 36 31 115:199 0:000 100 | 30 37 0A 20 20 20 20 20 00 00 115:199 0:000 110 | 00 FD 00 17 4C 0F 51 22 00 0A 115:199 0:000 120 | 20 20 20 20 20 20 01 0C 115:199 0:000 ATI injection not set 115:199 0:000 RCBA disabled; cannot use it 115:199 0:000 stringlength = 138 115:199 0:000 OCABC: AllocPages 1 0xB5CEA000 (1) - Success 115:199 0:000 CurrentMode: Width=3840 Height=2160 115:199 0:000 SetNvramVariable (system-id, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x2, 16): -> writing new (Success) 115:200 0:000 SetNvramVariable (MLB, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 17): -> writing new (Success) 115:200 0:000 SetNvramVariable (ROM, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 6): -> writing new (Success) 115:201 0:000 SetNvramVariable (FirmwareFeatures, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 4): -> writing new (Success) 115:201 0:000 SetNvramVariable (FirmwareFeaturesMask, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 4): -> writing new (Success) 115:202 0:000 SetNvramVariable (ExtendedFirmwareFeatures, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 8): -> writing new (Success) 115:202 0:000 SetNvramVariable (ExtendedFirmwareFeaturesMask, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 8): -> writing new (Success) 115:203 0:000 AddNvramVariable (HW_BID, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x6, 20): -> writing new (Success) 115:204 0:001 AddNvramVariable (security-mode, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 5): -> already exists, abort 115:204 0:000 set DefaultBackgroundColor=0xbfbfbf 115:204 0:000 SetNvramVariable (DefaultBackgroundColor, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x7, 4): -> writing new (Success) 115:207 0:002 SetNvramVariable (ActualDensity, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 2): exists(0x7, 2), equal -> not writing again. 115:207 0:000 SetNvramVariable (DensityThreshold, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 2): exists(0x7, 2), equal -> not writing again. 115:208 0:000 SetNvramVariable (gfx-saved-config-restore-status, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x7, 8): exists(0x7, 8), equal -> not writing again. 115:209 0:000 SetNvramVariable (UIScale, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x7, 1): -> writing new (Success) 115:210 0:001 SetNvramVariable (EFILoginHiDPI, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 4): -> writing new (Success) 115:212 0:002 SetNvramVariable (flagstate, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 32): -> writing new (Success) 115:214 0:001 SetNvramVariable (csr-active-config, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 4): -> writing new (Success) 115:217 0:002 SetNvramVariable (BridgeOSHardwareModel, 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14, 0x7, 11): -> writing new (Success) 115:220 0:002 DeleteNvramVariable (bootercfg, 7C436110-AB2A-4BBB-A880-FE41995C9F82): 115:220 0:000 DeleteNvramVariable (nvda_drv, 7C436110-AB2A-4BBB-A880-FE41995C9F82): 115:220 0:000 DeleteNvramVariable (recovery-boot-mode, 7C436110-AB2A-4BBB-A880-FE41995C9F82): 115:220 0:000 AddNvramVariable (wake-failure, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 5): -> already exists, abort 115:221 0:000 DeleteNvramVariable (opencore-version, 7C436110-AB2A-4BBB-A880-FE41995C9F82): 115:221 0:000 DeleteNvramVariable (ApBoardID, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:221 0:000 DeleteNvramVariable (ApSecurityDomain, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:222 0:000 DeleteNvramVariable (ApProductionStatus, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:222 0:000 DeleteNvramVariable (ApSecurityMode, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:222 0:000 DeleteNvramVariable (EffectiveProductionStatus, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:222 0:000 DeleteNvramVariable (EffectiveSecurityMode, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:223 0:000 DeleteNvramVariable (CertificateEpoch, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:223 0:000 DeleteNvramVariable (MixNMatchPreventionStatus, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:223 0:000 DeleteNvramVariable (CryptoDigestMethod, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:223 0:000 DeleteNvramVariable (InternalUseOnlyUnit, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:224 0:000 DeleteNvramVariable (ApECID, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:224 0:000 DeleteNvramVariable (HardwareModel, 94B73556-2197-4702-82A8-3E1337DAFBFB): 115:224 0:000 Use origin smbios table type 1 guid. 115:239 0:015 SetStartupDiskVolume: 115:239 0:000 * Volume: 'Preboot' 115:239 0:000 * LoaderPath: '\6109557E-ED51-4EFA-8A3C-888D7489D377\System\Library\CoreServices\boot.efi' 115:239 0:000 * DevPath: Preboot 115:239 0:000 * EFI_GUID = ED33F20C-9264-4B6C-94A6-F8F3C1569623 115:239 0:000 SetNvramVariable (efi-boot-device-data, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 276): exists(0x7, 276), equal -> not writing again. 115:240 0:000 * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>ED33F20C-9264-4B6C-94A6-F8F3C1569623</string></dict></dict></dict></array> 115:240 0:000 SetNvramVariable (efi-boot-device, 7C436110-AB2A-4BBB-A880-FE41995C9F82, 0x7, 216): exists(0x7, 216), equal -> not writing again. 115:240 0:000 Custom boot is disabled 115:241 0:000 DeleteNvramVariable (IOHibernateRTCVariables, 7C436110-AB2A-4BBB-A880-FE41995C9F82): 115:241 0:000 DeleteNvramVariable (boot-image, 7C436110-AB2A-4BBB-A880-FE41995C9F82): Edited March 8 by RobertX 1 Link to comment Share on other sites More sharing options...
RobertX Posted March 10 Author Share Posted March 10 looks like others had issues with the upgrade also, so now I don't feel so alone... 😳 1 Link to comment Share on other sites More sharing options...
RobertX Posted March 19 Author Share Posted March 19 ...an unusual side-effect of attempting to upgrade from within monterey, after returning to original iMac 17,1 smbios(had used iMac 19,1 smbios to try the upgrade) when I boot using clover 5157(with iMac 17,1 smbios) I'm still receiving upgrade notification for sonoma 14.4, Using clover 5145, no such notification appears(and had to use clover 5145 to update monterey)...reset nvram several times... I also tried the upgrade to sonoma using revpatch=sbvmm, with iMac 17,1 smbios, same results however... "who has more fun than people?" 1 Link to comment Share on other sites More sharing options...
cicetto Posted March 28 Share Posted March 28 (edited) If I update Clover to version >5145 I can boot only APFS partition, while Hfs+ reboot after the apple logo. This is my efi with preboot in misc folder, Clover 5157 Please help me https://www.mediafire.com/file/1n4ougc8w9dpckq/EFI+copia.zip/file Edited March 29 by cicetto Link to comment Share on other sites More sharing options...
Slice Posted March 29 Share Posted March 29 13 hours ago, cicetto said: If I update Clover to version >4145 I can boot only APFS partition, while Hfs+ reboot after the apple logo. This is my efi with preboot in misc folder, Clover 5157 Please help me https://www.mediafire.com/file/1n4ougc8w9dpckq/EFI+copia.zip/file 38:825 0:000 No OpenRuntime driver. This is ok, OpenRuntime is not mandatory. This is false message. OpenRuntime is mandatory. I changed this message in new commits. 1 Link to comment Share on other sites More sharing options...
cicetto Posted March 29 Share Posted March 29 edit... was version >5145 not 4145 23 hours ago, cicetto said: If I update Clover to version >4145 I can boot only APFS partition, while Hfs+ reboot after the apple logo. This is my efi with preboot in misc folder, Clover 5157 Please help me https://www.mediafire.com/file/1n4ougc8w9dpckq/EFI+copia.zip/file 1 Link to comment Share on other sites More sharing options...
cicetto Posted April 5 Share Posted April 5 (edited) On 5158 same issue, Big Sur Boot (APFS), Mojave won' t boot (HFS+), Installer Monterey, Ventura and Sonoma won' t boot. Catalina Installer works Edited April 5 by cicetto Link to comment Share on other sites More sharing options...
Slice Posted April 5 Share Posted April 5 Good tuned Clover boot installers from ElCapitan up to Sonoma without an issue. Link to comment Share on other sites More sharing options...
cicetto Posted April 5 Share Posted April 5 (edited) 3 hours ago, Slice said: Good tuned Clover boot installers from ElCapitan up to Sonoma without an issue. I know... but I can't believe that you don't find what's wrong with my legacy clover folder. Who better than you 🙌🏻 https://www.mediafire.com/file/9um0qlp8l0w548j/CLOVER.zip/file Edited April 5 by cicetto Link to comment Share on other sites More sharing options...
Slice Posted April 6 Share Posted April 6 10 hours ago, cicetto said: I know... but I can't believe that you don't find what's wrong with my legacy clover folder. Who better than you 🙌🏻 https://www.mediafire.com/file/9um0qlp8l0w548j/CLOVER.zip/file Tell me better what is the difference between EFI folders 5145 and 5158? Only CLOVERX64.efi changed? Really? Link to comment Share on other sites More sharing options...
cicetto Posted April 6 Share Posted April 6 15 minutes ago, Slice said: Tell me better what is the difference between EFI folders 5145 and 5158? Only CLOVERX64.efi changed? Really? I’ve installed the pkg, no other changes. Link to comment Share on other sites More sharing options...
Slice Posted April 6 Share Posted April 6 3 minutes ago, cicetto said: I’ve installed the pkg, no other changes. So many changes. On 3/29/2024 at 9:34 AM, Slice said: 38:825 0:000 No OpenRuntime driver. This is ok, OpenRuntime is not mandatory. This is false message. OpenRuntime is mandatory. I changed this message in new commits. Your Clover folder has no OpenRuntime. It is mandatory. Link to comment Share on other sites More sharing options...
Slice Posted April 6 Share Posted April 6 I also should notice that VoodooHDA.kext will not work from folder Other. Read manual. Link to comment Share on other sites More sharing options...
cicetto Posted April 6 Share Posted April 6 6 hours ago, Slice said: So many changes. Your Clover folder has no OpenRuntime. It is mandatory. It is in Drivers->Uefi folder, but give me always the same error. Do I had to put in Bios folder? 6 hours ago, Slice said: I also should notice that VoodooHDA.kext will not work from folder Other. Read manual. In Mojave works also in Other folder, in Big Sur audio did not work, I had to fix it. Link to comment Share on other sites More sharing options...
Slice Posted April 6 Share Posted April 6 3 hours ago, cicetto said: It is in Drivers->Uefi folder, but give me always the same error. Do I had to put in Bios folder? In Mojave works also in Other folder, in Big Sur audio did not work, I had to fix it. Yes, as you do legacy boot then you have to put the driver into BIOS folder. Since BigSur 11.3+ VoodooHDA will not work from Other folder. See my signature. Link to comment Share on other sites More sharing options...
cicetto Posted April 6 Share Posted April 6 (edited) 7 hours ago, Slice said: Yes, as you do legacy boot then you have to put the driver into BIOS folder. Since BigSur 11.3+ VoodooHDA will not work from Other folder. See my signature. With Openruntime in Bios folder error disappear, but if I put EmuVariableUefi.efi in Bios folder NVRAM did not work, why some drivers had to sit in UEFI folder? With 5158 I get this kernel panic on Mojave, Big sur works, Monterey can't install (KP and reboot also with keepsyms=1 and debug=0x100) Security policy loaded: Safety net for Time Machine (TMSafetyNet) kern_return_t catting mpo-pollcy-init for AMFT Initial|zoppleMoblleFileIntegrity): signature enforcement disabled by boot-arg Security policy loaded: Apple Mobile Flle Integrity (AMFI) calling mo _pollcy_init for Sandbox Sacurity policy loaded: Seatbelt sandbox pollcy (Sandbox) calling mpo policy_init for Quarantine Securlty policy loaded: Quarantine pollcy (Quarantine) JOAPIC: Version 0x20 Vectors 64:67 ACPI: Executed 8 blocks of module-level executable AML code ACPT aleep states 53 St 'Ss pal (butld 17:03:14 Aug 20 2019), flags 0x20c3080 RIC: Onconsole relocated to OxF80000000 IntelCPUMonitor: CPUO Tjmax 105 [ PCI conflguratlon end, bridges 5, devices 13 1 ACPIBacklight: Version 3.0.4 starting on OS X Darwin 18.7. Controller; Intel Panther Point (vendor ID: 8086, device ID: 1e20) AlrPort_BremNIC::Unit AtrPortFamt (y kexts-1437.3 "AirPortFamily_kexts-1437.3" Aug 20 2919 17:11:51 panic(cpu 6 caller OxfFfffF80012abadd) : Kernel trap at BxfffFffBOB17c9310, type 14=page fault, registers: CRO: 0x0000000080010036, CR2: OXFFFfFf7/84749490, CR3: 0x0000000005753000, CR4: 0x8000000000162660 RAX: 0x0000000000000001, RBX: OxODOOOODOOODOOOOO, RCX: 0x0000000000000081, RDX: 8x8880000060000001 RSP: OxffffFf81defObc70, RBP: Oxffffff81defObce®, RSI: 0x8000000000000007, RDI: 0x0000000000000007 R8: OxfFerrre19e024000, R9: 0x80000000000000dd. R10: OxO0000000000000dd. R11: OxFfffFF8020591a0 R12: OxfFFFFF8001c63fc8, R13: OxfffffF784749480, R14: OxFFffff80204F4b60, R15: BxFFFfff8020970040 RFL: 0x0000000000010282, RIP: Oxffffff80017c9310, CS: 0x0000000000000008, SS: 0x0000000000000000 Fault CR2: Oxffffff784749490, Error code: 0x0000000000000000, Fault CPU: 0x6, PL: 0, F: 1 Backtrace (CPU 6), Frame : Return Address OxfffFff81def0b740 : Oxffffff80011aeded mach_kernel _handle_debugger_trap + 0x47d Oxffffff81def0b790 : OxffffFF80012ea185 mach_kernel _kdp_(386_trap + 0x155 Oxffffff81def0b7d0 : OxffFFFf80012db8ba mach_kernel _kernel_trap + 0x50a Oxffffffaidef0b840 : Oxffffff800115bb40 mach_kernel _return_from_trap + 0xe0 OxfffFfF81def0b860 : OxfFFFFf80011ae107 mach kernel _panic_trap_to_debugger + 0x197 Oxffffff81def0b980 : Oxffffff80011adf53 mach kernel _panic + 0x63 Oxffffff81defOb9fo : Oxffffff80012dbadd mach_kernel _kernel_trap + 0x72d OxfFFFFf81defObb60 : 0xffFfff800115bb40 mach_kernel _return_from_trap + 0xe0 OxffFFFF81defObb80 : Oxffffff80017c9310 mach_Kernel __ZN110SMetaClass11postModLoadEPv + 0x2c0 Oxffffff81defObce0 : Oxffffff80017eaa21 mach kernel _OSRuntimeInitializeCPP + 0x1a1 Oxffffff81defObd50 : Oxffffff80017d808f mach_kernel _ZN6OSKext5startEb + 0x17f Oxffffff81defObda0 : Oxffffff80017d51be mach_kernel _ZN6OSKext4loadEhhP7OSArray + 0xde OxfffffF81defObe10 : Oxffffff80017e2df7 mach_kernel _ZNGOSKext22loadKextWithIdentifierEP8OSStringbbhhP70SArray + 0x1a7 OxfffFff81def@be60 : OxffffFf800184f8bb mach_kernel _ZNK11IOCatalogue14isModuleLoadedEP120SDictionary + 0xdb OxffffFF81defObe80 : Oxffffff800182f774 mach_kernel _ZN9IOService15probeCandidatesEP120SOrderedSet + 0x2a4 Oxffffff81defObf00 : OxfffFFF800182f337 mach_kernel _ZN910Service14doServiceMatchEJ + 0x2d7 Oxffffff81defobf50 : Oxffffff8001830e26 mach_kernel _ZN15_IOConfigThread4mainEPvi + 0x1a6 OxfFFfff81defObfa0 : Oxffffff800115b0ce mach_kernel call_continuation + 0x2e BSD process name corresponding to current thread: Unknown Boot args: kext-dev-mode=1 -хсрm -no_compat _check debug-0x100 amfi_get_out_of_my_way=1 -lilubetaall keepsyms=1 -igfxnohdmi revpatch=sbvmm fips_mode=4 -v Mac OS version: Not yet set Kernel version: Darwin Kernel Version 18.7.0: Tue Aug 20 16:57:14 PDT 2019; root:xnu-4903.271.2-2/RELERSE_X86_64 Kernel UUID: C41337A1-0EC3-3896-A954-A1F85E849D53 Kernel slide: 0x0000000000e00000 Kernel text base: 0xffffff8001000000 _HIB text base: 0xffffff8000f00000 System model nane: MacBookPro11,5 (Mac- 86F11F11946027C5) System uptime in nanoseconds : 1790671591 Edited April 7 by cicetto Link to comment Share on other sites More sharing options...
Slice Posted April 7 Share Posted April 7 If you are booting by legacy way then only drivers from BIOS folder take place. NVRAM is emulated by CloverEFI containing inside boot file. If you are booting by UEFI way then NVRAM is supported by UEFI BIOS. Very strange rare configurations has no native NVRAM when booted by UEFI way. Only in this case you need EmuVariableUefi.efi. It is not your case. Link to comment Share on other sites More sharing options...
cicetto Posted April 7 Share Posted April 7 2 hours ago, Slice said: If you are booting by legacy way then only drivers from BIOS folder take place. NVRAM is emulated by CloverEFI containing inside boot file. If you are booting by UEFI way then NVRAM is supported by UEFI BIOS. Very strange rare configurations has no native NVRAM when booted by UEFI way. Only in this case you need EmuVariableUefi.efi. It is not your case. I don’t know why but emuvariableuefi.efi don’t work in bios folder and nvram works only if it is in uefi folder. Can’t u help me with the kp? Link to comment Share on other sites More sharing options...
Slice Posted April 8 Share Posted April 8 It looks like your panic related to WiFi so I can't help you. My desktop has no wifi and my laptop has USB WiFi with special driver and works fine. 1 Link to comment Share on other sites More sharing options...

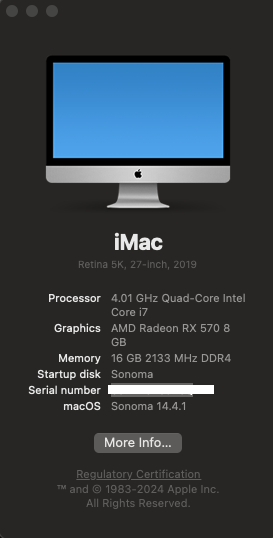

RobertX Posted April 15 Author Share Posted April 15 (edited) ...well, finally on sonoma...used a usb installer...started out using Clover 5145 to boot the installer using imac Pro smbios...after boot option "boot from mocos install from data 2, had to get 5157 going to finish the install, using iMac 19,1 smbios ...I'll update my sig and such later....how to enable trim in sonoma? the terminal command doesn't seem to work anymore EDIT: maybe not needed,however I could enable it in Monterey. Using a SAMSUNG MZ7LM480HMHQ SSD for Sonoma Edited April 16 by RobertX 1 Link to comment Share on other sites More sharing options...
RobertX Posted April 16 Author Share Posted April 16 ...just thinking...my config.plist construction must be faulty to have so convoluted an install process...but Sonoma itself runs fine here... 1 Link to comment Share on other sites More sharing options...
