Guest 5T33Z0 Posted June 16, 2022 Share Posted June 16, 2022 16 minutes ago, pitrysha said: For Mac Pro 7.1, the value is 3842 This setting is not a per SMBIOS setting but a per CPU setting. Link to comment Share on other sites More sharing options...
surenmunoo Posted June 16, 2022 Share Posted June 16, 2022 2 minutes ago, ilcondannato said: Uhm post ur config without serial etc... Thanks, its attached config.plist Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted June 16, 2022 Share Posted June 16, 2022 (edited) 24 minutes ago, surenmunoo said: Sorry Mate, I must be stupid. I tried to type Generic in Processor Type but it does not let me. Can you explain a little more in details. I ran that sting in terminal and below is the output. You need to edit the config with a plist editor since the key is defined as a Number. You need to change it to String in order to be able to add text. Make sure to have a backup of the EFI on a FAT32 formatted USB stick, just in case it doesn't work. If the terminal command works in Ventura then the CPU is detected correctly only the dispaly is wrong. Since this is beta software this is probably the reason why. Edited June 16, 2022 by 5T33Z0 Link to comment Share on other sites More sharing options...
niknod Posted June 16, 2022 Share Posted June 16, 2022 3 minutes ago, 5T33Z0 said: This setting is not a per SMBIOS setting but a per CPU setting. What is the setting for i9 12900k Link to comment Share on other sites More sharing options...
aben Posted June 16, 2022 Share Posted June 16, 2022 @surenmunoo Try updating OC to this build: https://github.com/dortania/build-repo/releases/download/OpenCorePkg-714fc69/OpenCore-0.8.2-RELEASE.zip Also keep AvoidRuntimeDefrag quirk ON - under Booter --> Quirks Link to comment Share on other sites More sharing options...
surenmunoo Posted June 16, 2022 Share Posted June 16, 2022 4 minutes ago, aben said: @surenmunoo Try updating OC to this build: https://github.com/dortania/build-repo/releases/download/OpenCorePkg-714fc69/OpenCore-0.8.2-RELEASE.zip Also keep AvoidRuntimeDefrag quirk ON - under Booter --> Quirks I was using 0.8.2 but had to revert to 081 because my Fenvi T919 worked sometimes and stopped. When I reverted to 081 it works properly. Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted June 16, 2022 Share Posted June 16, 2022 2 minutes ago, surenmunoo said: I was using 0.8.2 but had to revert to 081 because my Fenvi T919 worked sometimes and stopped. When I reverted to 081 it works properly. So you reverted to 081 and you are wondering why the CPU Name is not displayed correctly in macOS Ventura………… really? Link to comment Share on other sites More sharing options...
surenmunoo Posted June 16, 2022 Share Posted June 16, 2022 8 minutes ago, aben said: @surenmunoo Try updating OC to this build: https://github.com/dortania/build-repo/releases/download/OpenCorePkg-714fc69/OpenCore-0.8.2-RELEASE.zip Also keep AvoidRuntimeDefrag quirk ON - under Booter --> Quirks Attached is my config for 0.8.2 config.plist Link to comment Share on other sites More sharing options...
D3v1L Posted June 16, 2022 Share Posted June 16, 2022 (edited) 5 minutes ago, surenmunoo said: I was using 0.8.2 but had to revert to 081 because my Fenvi T919 worked sometimes and stopped. When I reverted to 081 it works properly. You have MacPro7,1 with RX navi...try to disable WEG and remove pikera bootarg...then you have t919 why you use brcram etc? Not needed Edited June 16, 2022 by ilcondannato Link to comment Share on other sites More sharing options...
surenmunoo Posted June 16, 2022 Share Posted June 16, 2022 1 minute ago, ilcondannato said: You have MacPro7,1 with RX navi...try to disable WEG and remove pikera bootarg... I will try Link to comment Share on other sites More sharing options...
surenmunoo Posted June 16, 2022 Share Posted June 16, 2022 (edited) 8 minutes ago, ilcondannato said: Ok so, remove weg, remove brcram"etc" ,remove pikera and lilubetaall bootarg, update OC and kext to latest beta, and try ti boot I'm guessing weg means the whatevergreen.kext? Edited June 16, 2022 by surenmunoo Link to comment Share on other sites More sharing options...
surenmunoo Posted June 16, 2022 Share Posted June 16, 2022 27 minutes ago, ilcondannato said: You have MacPro7,1 with RX navi...try to disable WEG and remove pikera bootarg...then you have t919 why you use brcram etc? Not needed Okay so I did all that and used OC 0.8.2 but CPU is still unknown and now wifi is not working again with OC 0.8.2 Link to comment Share on other sites More sharing options...
pitrysha Posted June 16, 2022 Share Posted June 16, 2022 43 minutes ago, surenmunoo said: Attached is my config for 0.8.2 config.plist 28.46 kB · 3 downloads Kernel ->Quirks -> CustomSMBIOSGuid set to NO Link to comment Share on other sites More sharing options...
Featured Comment Guest 5T33Z0 Posted June 16, 2022 Featured Comment Share Posted June 16, 2022 (edited) @Cyberdevs Setting custom names via revcpuname requires ProcessorType set to Generic. Therefore you have to change the key from Number to string Edited June 17, 2022 by 5T33Z0 Link to comment Share on other sites More sharing options...
surenmunoo Posted June 16, 2022 Share Posted June 16, 2022 27 minutes ago, pitrysha said: Kernel ->Quirks -> CustomSMBIOSGuid set to NO Thanks but still did not work Link to comment Share on other sites More sharing options...
Shaneee Posted June 16, 2022 Share Posted June 16, 2022 Lilu needed updated for Ventura to allow this. Use the latest build compiled from Dortania here, https://github.com/dortania/build-repo/releases/download/Lilu-9775e8b/Lilu-1.6.1-RELEASE.zip Link to comment Share on other sites More sharing options...

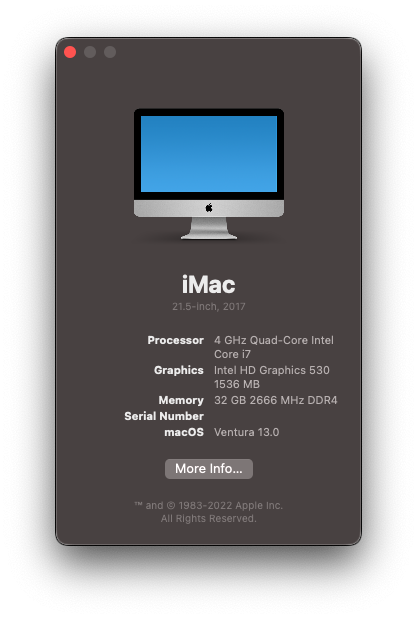

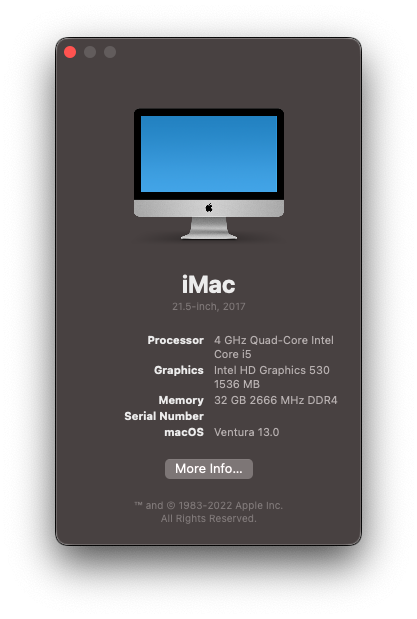

Cyberdevs Posted June 16, 2022 Share Posted June 16, 2022 Here is what I did. After taking the advice from @5T33Z0 i removed the ProcessorType value from my config rebooted the system now it works as intended. @5T33Z0 thanks for pointing that out. Before: Spoiler After: Spoiler Link to comment Share on other sites More sharing options...
pitrysha Posted June 16, 2022 Share Posted June 16, 2022 19 minutes ago, surenmunoo said: Thanks but still did not work Missed . Still need to fix PlatformInfo -> UpdateSMBIOSMode -> Create Link to comment Share on other sites More sharing options...
Cyberdevs Posted June 16, 2022 Share Posted June 16, 2022 Try this: For adding a custom entry: under the nvram entry 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102 add these values: revcpu=1 (as number) revcpuname: Your correct processor's name (as string) Or Under the SMBIOS remove the ProcessorType and leave it blank and use the lilu from links @aben or @Shaneee recommended. Link to comment Share on other sites More sharing options...
D3v1L Posted June 16, 2022 Share Posted June 16, 2022 2 hours ago, pitrysha said: Kernel ->Quirks -> CustomSMBIOSGuid set to NO 1 hour ago, pitrysha said: Missed . Still need to fix PlatformInfo -> UpdateSMBIOSMode -> Create it works great with NO and CUSTOM here...and Windows 11 is happy for this...... Link to comment Share on other sites More sharing options...
surenmunoo Posted June 17, 2022 Share Posted June 17, 2022 21 hours ago, Cyberdevs said: Here is what I did. After taking the advice from @5T33Z0 i removed the ProcessorType value from my config rebooted the system now it works as intended. @5T33Z0 thanks for pointing that out. Before: Reveal hidden contents After: Reveal hidden contents Thanks @Cyberdevs I have tried all these recommendations so far and it still shows as unknown. Seems that there might be an issue with the Gigabyte Aero D boards not showing this in Hackintosh. config.plist Link to comment Share on other sites More sharing options...
Cyberdevs Posted June 17, 2022 Share Posted June 17, 2022 @surenmunoo Have you tried with any other SMBIOS settings? Link to comment Share on other sites More sharing options...
surenmunoo Posted June 17, 2022 Share Posted June 17, 2022 Just now, Cyberdevs said: @surenmunoo Have you tried with any other SMBIOS settings? Yes, I tried 1.1 - 19.1 - 20.1 and 20.2 all give the same results Link to comment Share on other sites More sharing options...
Cyberdevs Posted June 17, 2022 Share Posted June 17, 2022 Just now, surenmunoo said: Yes, I tried 1.1 - 19.1 - 20.1 and 20.2 all give the same results And do you also have RestrictEvents.kext? On another note as it appears some systems don't show the correct CPU info and 12700K seems to be one of them. Link to comment Share on other sites More sharing options...
surenmunoo Posted June 17, 2022 Share Posted June 17, 2022 5 minutes ago, Cyberdevs said: And do you also have RestrictEvents.kext? On another note as it appears some systems don't show the correct CPU info and 12700K seems to be one of them. Yes, I have that kext. Maybe its as you say, just that CPU does not show. Link to comment Share on other sites More sharing options...
